Recensione del mini PC Maxtang MTN-FP750: AMD Ryzen 7 7735HS rallentato da una configurazione mal concepita

Prestazioni peggiori del previsto!

Maxtang MTN-FP750 è un mini PC relativamente poco spettacolare e, nella sua variante più potente, è dotato di un AMD Ryzen 7 7735HS. Abbiamo messo alla prova il compatto PC da ufficio, i suoi 16 GB di RAM e l'SSD da 512 GB e abbiamo analizzato le sue prestazioni.
Maxtang MTN-FP750
Maxtang MTN-FP750
Configurazioni Maxtang MTN-FP750 (fonte: Maxtang)
Configurazioni Maxtang MTN-FP750 (fonte: Maxtang)

Maxtang è un produttore di sistemi cinese che vende soluzioni industriali speciali sotto forma di sistemi embedded e mini PC progettati per l'ufficio. In questa recensione, ci concentriamo sul Maxtang MTN-FP750, che costa 440 dollari USA. Il sistema è composto da un AMD Ryzen 7 7735HS e 16 GB di RAM DDR5, oltre a un SSD da 512 GB. In alternativa, un AMD Ryzen 5 6600H è disponibile anche un processore AMD Ryzen 5 6600H. Inoltre, il mini PC può essere ordinato con RAM aggiuntiva e un SSD più grande. Maxtang offre anche un'opzione "barebone", che però è disponibile solo con AMD Ryzen 7 7735HS.

In questa recensione, Maxtang MTN-FP750 si confronta con gli attuali mini PC. Un elenco più dettagliato dei dispositivi di confronto trovati in questa recensione è riassunto nella seguente tabella.

Maxtang MTN-FP750
Processore
AMD Ryzen 7 7735HS 8 x 3.2 - 4.8 GHz, 35 W PL2 / Short Burst, 35 W PL1 / Sustained, Rembrandt-HS Refresh
Scheda grafica
AMD Radeon 680M, Adrenalin 23.12.1
Memoria
16 GB
, DDR5-4800, max. 64 GB
Scheda madre
AMD Promontory/Bixby FCH
Harddisk
Foresee VP1000F512G, 512 GB
, 440 GB libera
Scheda audio
AMD Zen - Audio Processor - HD Audio Controller
Porte di connessione
1 USB 2.0, 4 USB 3.1 Gen 2, 2 HDMI, 1 DisplayPort, 1 Kensington Lock, Connessioni Audio: 3,5mm Klinke (Combo)
Rete
Realtek RTL8125 2.5GBe Family Ethernet Controller (10/100/1000/2500MBit/s), Intel Wi-Fi 6 AX200 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2
Dimensioni
altezza x larghezza x profondità (in mm): 52 x 130 x 128
Sistema Operativo
Microsoft Windows 11 Pro
Altre caratteristiche
Power Adapter, VESA mount, 12 Mesi Garanzia
Peso
601 gr, Alimentazione: 289 gr
Prezzo
440 USD
Nota: il produttore potrebbe usare componenti di fornitori diversi pannelli dei diplay, drive o banchi di memoria con specifiche simili.



Potenziali concorrenti a confrontos

Punteggio
Data
Modello
Peso
Altezza
Miglior Prezzo
79.5 %
v7 (old)
02/2024
Maxtang MTN-FP750
R7 7735HS, Radeon 680M
601 gr52 mm
85.1 %
v7 (old)
01/2023
Minisforum Neptune Series NAD9
i9-12900H, Iris Xe G7 96EUs
1.2 kg66 mm
82.8 %
v7 (old)
07/2023
Geekom AS 6, R9 6900HX
R9 6900HX, Radeon 680M
753 gr58 mm
82.3 %
v7 (old)
05/2023
Geekom Mini IT12
i7-1260P, Iris Xe G7 96EUs
572 gr45.6 mm
81.2 %
v7 (old)
10/2023
Geekom A5
R7 5800H, Vega 8
555 gr49.2 mm
81.9 %
v7 (old)
05/2023
Minisforum Venus Series NAB6
i7-12650H, UHD Graphics 64EUs
616 gr55 mm
78.4 %
v7 (old)
01/2024
NiPoGi AD08
i7-12650H, UHD Graphics 64EUs
878 gr188.5 mm

Il Maxtang MTN-FP750 in dettaglio

Maxtang MTN-FP750
Maxtang MTN-FP750
Maxtang MTN-FP750
Maxtang MTN-FP750
Maxtang MTN-FP750
Maxtang MTN-FP750
Maxtang MTN-FP750
Maxtang MTN-FP750
Maxtang MTN-FP750
Maxtang MTN-FP750
Maxtang MTN-FP750
Maxtang MTN-FP750
Maxtang MTN-FP750
Maxtang MTN-FP750
Maxtang MTN-FP750
Maxtang MTN-FP750 - DDR5-RAM
Maxtang MTN-FP750 e la sua alimentazione (19 V; 4,74 A)
L'alimentatore del Maxtang MTN-FP750 (19 V; 4,74 A)
Cavo di collegamento per il supporto di archiviazione da 2,5 pollici

Cassa - Metallo e plastica in nero pianoforte

Maxtang MTN-FP750 ha una robusta cassa in metallo, completata da superfici in plastica nera lucida sulla parte superiore e inferiore del dispositivo. Molto rapidamente, le impronte digitali diventano visibili e, prima o poi, i graffi sono inevitabili. Dal punto di vista della stabilità, la macchina non sembra soffrire della presenza di coperture in plastica. Il marchio Maxtang è impresso sulla parte superiore del mini PC.

Con dimensioni di circa 13 x 13 centimetri, il dispositivo occupa un po' più di spazio sulla scrivania rispetto alla concorrenza e con un peso di 600 grammi, Maxtang MTN-FP750 è relativamente leggero. L'alimentatore pesa poco meno di 290 grammi. Maxtang MTN-FP750 può anche essere collegato a un monitor e nella confezione è incluso un supporto VESA.

Confronto delle dimensioni

208 mm 180 mm 66 mm 1.2 kg77.8 mm 146.9 mm 188.5 mm 878 g130 mm 120 mm 58 mm 753 g130 mm 128 mm 52 mm 601 g127 mm 127 mm 55 mm 616 g117 mm 112 mm 49.2 mm 555 g117 mm 112 mm 45.6 mm 572 g297 mm 210 mm 1 mm 5.7 g

Caratteristiche

Per quanto riguarda le porte, il Maxtang MTN-FP750 offre le basi. Tutte le porte si trovano sulla parte anteriore e posteriore. Ci sono un totale di cinque porte USB, una delle quali (USB Tipo C) può essere utilizzata anche come connettore per il display. Insieme alle due uscite HDMI sul retro, ciò significa che è possibile utilizzare un totale di tre monitor contemporaneamente. Inoltre, sul retro del dispositivo si trova anche la porta LAN 2.5G.

Anteriore: jack audio da 3,5 mm (line-out + mic-in), 2x USB 3.2, 1x USB-C (3.2 Gen 2 + DisplayPort 1.4), accensione
Anteriore: jack audio da 3,5 mm (line-out + mic-in), 2x USB 3.2, 1x USB-C (3.2 Gen 2 + DisplayPort 1.4), accensione

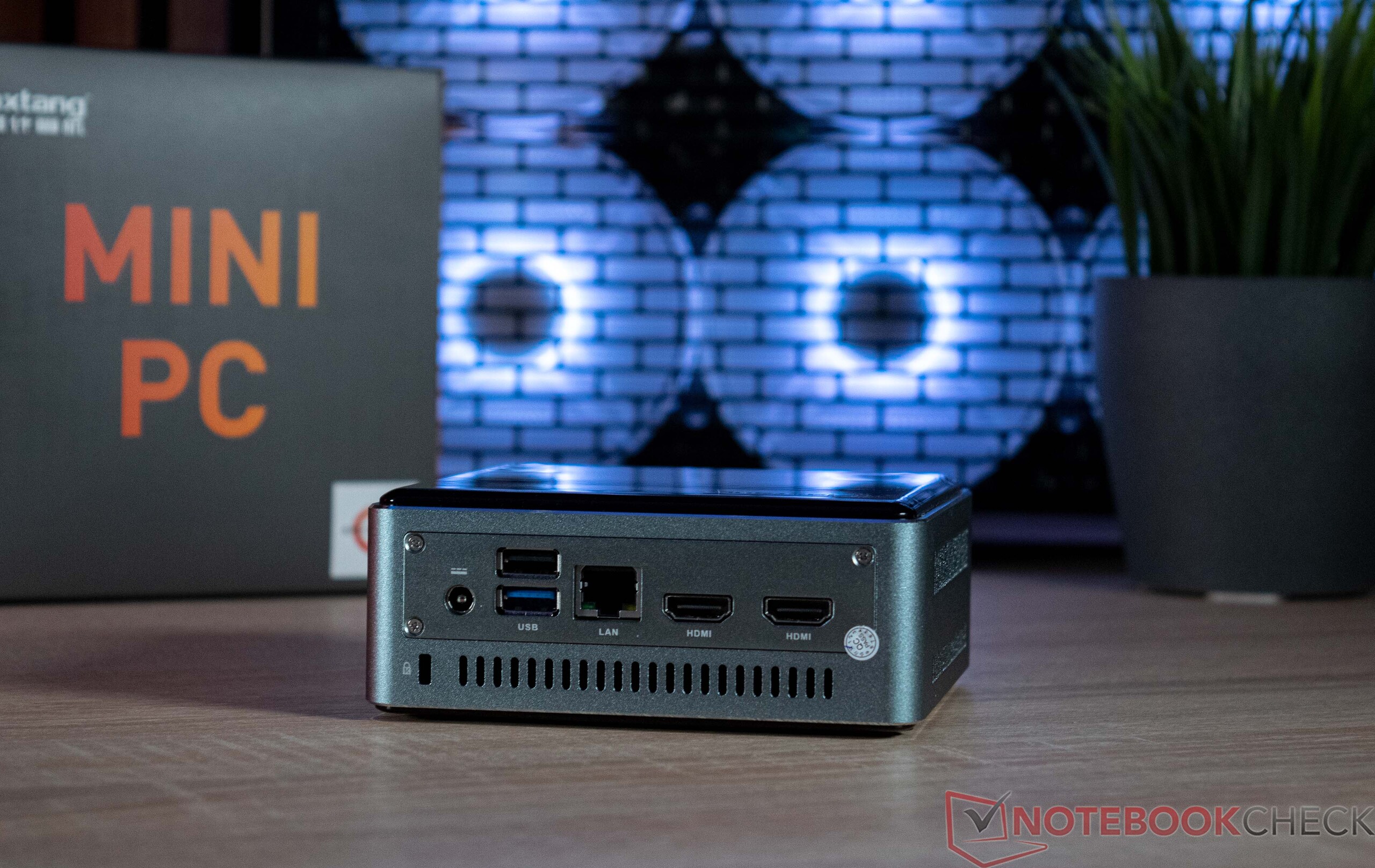

Posteriore, porta di rete (19 V; 4,74 A), 1x USB 3.2, 1x USB 2.0, 2,5G LAN, 2x HDMI 2.0
Posteriore, porta di rete (19 V; 4,74 A), 1x USB 3.2, 1x USB 2.0, 2,5G LAN, 2x HDMI 2.0

Comunicazione

Intel Wi-Fi 6 AX200
Intel Wi-Fi 6 AX200

Il Maxtang MTN-FP750 ospita un modulo wireless Intel Wi-Fi 6 AX200 che può gestire le frequenze di 2,4 e 5 GHz. Nei test, il nostro campione di prova non ci ha entusiasmato con risultati impressionanti. Per il test, abbiamo utilizzato un Asus ROG Rapture GT-AXE11000. In alternativa, può anche collegare il mini PC Maxtang alla rete tramite una porta Ethernet. Sono possibili velocità di trasferimento fino a 2,5 Gbit/s.

Networking
iperf3 receive AXE11000
Minisforum Neptune Series NAD9
Intel Wi-Fi 6E AX210
1318 (663min - 1363max) MBit/s +55%
Media Intel Wi-Fi 6 AX200
  (451 - 1746, n=22)
1295 MBit/s +52%
Geekom AS 6, R9 6900HX
MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card
959 (947min - 969max) MBit/s +13%
Geekom A5
Realtek RTL8852BE
946 (856min - 970max) MBit/s +11%
Geekom Mini IT12
Intel Wi-Fi 6E AX211
943 (923min - 960max) MBit/s +11%
Media della classe Mini PC
  (192.9 - 1796, n=111, ultimi 2 anni)
940 MBit/s +10%
NiPoGi AD08
Realtek RTL8852BE
903 (857min - 934max) MBit/s +6%
Maxtang MTN-FP750
Intel Wi-Fi 6 AX200
852 (802min - 903max) MBit/s
Minisforum Venus Series NAB6
MediaTek RZ608
787 (752min - 801max) MBit/s -8%
iperf3 transmit AXE11000
Minisforum Neptune Series NAD9
Intel Wi-Fi 6E AX210
1320 (1165min - 1353max) MBit/s +59%
Media Intel Wi-Fi 6 AX200
  (429 - 1748, n=22)
1189 MBit/s +44%
Geekom Mini IT12
Intel Wi-Fi 6E AX211
918 (892min - 938max) MBit/s +11%
Media della classe Mini PC
  (184.1 - 1776, n=111, ultimi 2 anni)
867 MBit/s +5%
Geekom AS 6, R9 6900HX
MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card
834 (769min - 893max) MBit/s +1%
Geekom A5
Realtek RTL8852BE
834 (730min - 861max) MBit/s +1%
Maxtang MTN-FP750
Intel Wi-Fi 6 AX200
828 (743min - 896max) MBit/s
Minisforum Venus Series NAB6
MediaTek RZ608
626 (301min - 689max) MBit/s -24%
NiPoGi AD08
Realtek RTL8852BE
591 (322min - 790max) MBit/s -29%
050100150200250300350400450500550600650700750800850900Tooltip
Maxtang MTN-FP750; iperf3 receive AXE11000; iperf 3.1.3: Ø851 (802-903)
Maxtang MTN-FP750; iperf3 transmit AXE11000; iperf 3.1.3: Ø828 (743-896)

Accessori

Maxtang MTN-FP750 viene fornito con tutti i componenti più importanti per rendere il dispositivo operativo. Oltre alla macchina stessa, la confezione contiene un alimentatore da 90 watt (19 V; 4,74 A) e una piastra di montaggio per l'assemblaggio VESA. Allo stesso modo, fanno parte della confezione anche un cavo HDMI e una guida di configurazione rapida.

Contenuto della scatola Maxtang MTN-FP750
Contenuto della scatola Maxtang MTN-FP750

Manutenzione

Il mini PC Maxtang può essere aperto con relativa facilità. La base è fissata da quattro viti che sono nascoste da piedini in gomma incollati. Sotto la piastra di base, è abbastanza semplice accedere alla RAM o all'SSD M.2. Nel nostro caso, c'è ancora spazio per installare un modulo RAM aggiuntivo e un secondo dispositivo di archiviazione di massa (formato 2,5 pollici). Per accedere alla ventola, il dispositivo deve essere ulteriormente smontato, rendendo impossibile una pulizia rapida.

Maxtang MTN-FP750 senza piastra di base
Maxtang MTN-FP750 senza piastra di base
Uno sguardo all'unità di raffreddamento di Maxtang MTN-FP750
La scheda principale senza la RAM e l'SSD
Uno sguardo all'unità di raffreddamento di Maxtang MTN-FP750

Prestazioni - Un AMD Ryzen 7 7735HS con 8 core e 16 threads

Il nostro dispositivo Maxtang MTN-FP750 in recensione è dotato di AMD Ryzen 7 7735HS. Nella AMD Radeon 680Mil SoC dispone anche di una potente iGPU. Tuttavia, per quanto riguarda la RAM, il produttore ha scelto di dotare il mini PC di un singolo modulo da 16 GB, DDR5-5600, anche se, in pratica, è possibile utilizzare solo una DDR5-4800.

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
GPU-Z
GPU-Z
HWiNFO

Condizioni del test

Abbiamo eseguito tutti i test sulle prestazioni utilizzando il profilo energetico "prestazioni più elevate". Le prestazioni del SoC non sono state modificate o alterate nel BIOS e il dispositivo ha mantenuto le impostazioni di fabbrica.

Processore

L'AMD Ryzen 7 7735HS AMD Ryzen 7 7735HS è un processore a 8 core relativamente moderno della serie Rembrandt. Tuttavia, il SoC Zen3 di AMD non può più essere considerato uno dei nuovi arrivati. Nonostante questo, il processore può elaborare 16 thread in parallelo, il che rappresenta una buona prestazione multi-thread. Nel confronto delle prestazioni, il nostro Maxtang MTN-FP750 è riuscito ad assicurarsi solo il penultimo posto. Il motivo è il limite di potenza di 35 watt di AMD Ryzen 7 7735HS.

Ulteriori benchmark dei processori sono disponibili qui qui.

Risultati di Cinebench con impostazioni di fabbrica (PL1 e PL2 = 35 watt)

Cinebench R15
Cinebench R15
Cinebench R20
Cinebench R20
Cinebench R23
Cinebench R23
Cinebench 2024
Cinebench 2024

Risultati di Cinebench con un obiettivo di potenza più elevato (PL1 = 54 watt, PL2 = 65 watt)

Cinebench R15
Cinebench R15
Cinebench R20
Cinebench R20
Cinebench R23
Cinebench R23
Cinebench 2024
Cinebench 2024
Performance Rating - Percent
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
50 pt
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
49.9 pt
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
48.2 pt
NiPoGi AD08
Intel Core i7-12650H, 1700 MHz
47.7 pt
Geekom A5
AMD Ryzen 7 5800H, 3200 MHz
46.1 pt
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
45.8 pt
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
45.8 pt
Cinebench R15
CPU Single 64Bit
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
260 Points +6%
NiPoGi AD08
Intel Core i7-12650H, 1700 MHz
251 Points +2%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
249 Points +2%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
247 Points +1%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
245 Points
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
241 Points -2%
Geekom A5
AMD Ryzen 7 5800H, 3200 MHz
227 Points -7%
CPU Multi 64Bit
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
2067 Points +15%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
2028 Points +13%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
1893 Points +5%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
1795 Points
Geekom A5
AMD Ryzen 7 5800H, 3200 MHz
1773 Points -1%
NiPoGi AD08
Intel Core i7-12650H, 1700 MHz
1670 Points -7%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
1565 Points -13%
Cinebench R20
CPU (Single Core)
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
696 Points +15%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
682 Points +13%
NiPoGi AD08
Intel Core i7-12650H, 1700 MHz
676 Points +12%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
652 Points +8%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
607 Points 0%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
604 Points
Geekom A5
AMD Ryzen 7 5800H, 3200 MHz
551 Points -9%
CPU (Multi Core)
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
4941 Points +14%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
4781 Points +10%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
4776 Points +10%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
4339 Points
Geekom A5
AMD Ryzen 7 5800H, 3200 MHz
4229 Points -3%
NiPoGi AD08
Intel Core i7-12650H, 1700 MHz
3951 Points -9%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
3427 Points -21%
Cinebench R23
Single Core
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
1804 Points +17%
NiPoGi AD08
Intel Core i7-12650H, 1700 MHz
1761 Points +14%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
1743 Points +13%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
1693 Points +10%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
1550 Points 0%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
1543 Points
Geekom A5
AMD Ryzen 7 5800H, 3200 MHz
1405 Points -9%
Multi Core
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
13320 Points +20%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
12486 Points +13%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
12072 Points +9%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
11072 Points
Geekom A5
AMD Ryzen 7 5800H, 3200 MHz
10819 Points -2%
NiPoGi AD08
Intel Core i7-12650H, 1700 MHz
10082 Points -9%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
8846 Points -20%
Cinebench R11.5
CPU Single 64Bit
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
3.14 Points +8%
NiPoGi AD08
Intel Core i7-12650H, 1700 MHz
3.06 Points +5%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
2.94 Points +1%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
2.93 Points 0%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
2.92 Points
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
2.86 Points -2%
Geekom A5
AMD Ryzen 7 5800H, 3200 MHz
2.69 Points -8%
CPU Multi 64Bit
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
25.96 Points +22%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
23.48 Points +10%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
22.08 Points +4%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
21.27 Points
Geekom A5
AMD Ryzen 7 5800H, 3200 MHz
21.25 Points 0%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
20.06 Points -6%
NiPoGi AD08
Intel Core i7-12650H, 1700 MHz
19.78 Points -7%
Cinebench R10
Rendering Single CPUs 64Bit
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
14533 Points +20%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
13568 Points +12%
NiPoGi AD08
Intel Core i7-12650H, 1700 MHz
13397 Points +10%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
12846 Points +6%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
12156 Points
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
12133 Points 0%
Geekom A5
AMD Ryzen 7 5800H, 3200 MHz
11378 Points -6%
Rendering Multiple CPUs 64Bit
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
77409 Points +25%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
68516 Points +11%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
68188 Points +10%
Geekom A5
AMD Ryzen 7 5800H, 3200 MHz
62312 Points +1%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
61781 Points
NiPoGi AD08
Intel Core i7-12650H, 1700 MHz
61107 Points -1%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
53950 Points -13%
Blender - v2.79 BMW27 CPU
NiPoGi AD08
Intel Core i7-12650H, 1700 MHz
325 Seconds * -16%
Geekom A5
AMD Ryzen 7 5800H, 3200 MHz
293 Seconds * -5%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
285 Seconds * -2%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
279 Seconds * -0%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
279 Seconds *
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
273 Seconds * +2%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
260 Seconds * +7%
wPrime 2.10
32m
NiPoGi AD08
Intel Core i7-12650H, 1700 MHz
4.564 s * -16%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
4.485 s * -14%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
3.934 s *
Geekom A5
AMD Ryzen 7 5800H, 3200 MHz
3.93 s * -0%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
3.765 s * +4%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
3.705 s * +6%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
3.421 s * +13%
1024m
NiPoGi AD08
Intel Core i7-12650H, 1700 MHz
449.815 s * -329%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
410.289 s * -292%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
237.123 s * -126%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
189.07 s * -80%
Geekom A5
AMD Ryzen 7 5800H, 3200 MHz
111.714 s * -7%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
104.788 s * -0%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
104.757 s *
X264 HD Benchmark 4.0
Pass 1
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
311.5 (311min - 312max) fps +33%
NiPoGi AD08
Intel Core i7-12650H, 1700 MHz
278 (253min - 279max) fps +19%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
249 (246min - 255max) fps +6%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
245 (239min - 261max) fps +4%
Geekom A5
AMD Ryzen 7 5800H, 3200 MHz
244 (242min - 246max) fps +4%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
234.5 (230min - 240max) fps
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
224 (222min - 258max) fps -4%
Pass 2
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
125.25 (105.2min - 130max) fps +19%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
114.45 (113.9min - 116.5max) fps +9%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
111.1 (96.7min - 111.7max) fps +6%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
105.3 (105.2min - 105.7max) fps
Geekom A5
AMD Ryzen 7 5800H, 3200 MHz
104.65 (104.1min - 106.9max) fps -1%
NiPoGi AD08
Intel Core i7-12650H, 1700 MHz
98.15 (83.6min - 101.2max) fps -7%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
77.75 (77.6min - 113.9max) fps -26%
WinRAR - Result
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
9090 KB/s +43%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
7937 KB/s +24%
NiPoGi AD08
Intel Core i7-12650H, 1700 MHz
7363 KB/s +15%
Geekom A5
AMD Ryzen 7 5800H, 3200 MHz
7042 KB/s +10%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
6980 KB/s +9%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
6559 KB/s +3%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
6378 KB/s
TrueCrypt
AES Mean 100MB
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
11.8 GB/s +15%
Geekom A5
AMD Ryzen 7 5800H, 3200 MHz
11.5 GB/s +12%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
10.4 GB/s +1%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
10.3 GB/s
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
10.1 GB/s -2%
NiPoGi AD08
Intel Core i7-12650H, 1700 MHz
10 GB/s -3%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
8.6 GB/s -17%
Twofish Mean 100MB
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
2 GB/s +33%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
1.8 GB/s +20%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
1.8 GB/s +20%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
1.7 GB/s +13%
NiPoGi AD08
Intel Core i7-12650H, 1700 MHz
1.7 GB/s +13%
Geekom A5
AMD Ryzen 7 5800H, 3200 MHz
1.6 GB/s +7%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
1.5 GB/s
Serpent Mean 100MB
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
1.1 GB/s +10%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
1.1 GB/s +10%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
1 GB/s 0%
Geekom A5
AMD Ryzen 7 5800H, 3200 MHz
1 GB/s 0%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
1 GB/s
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
0.974 GB/s -3%
NiPoGi AD08
Intel Core i7-12650H, 1700 MHz
0.962 GB/s -4%
Geekbench 5.5
Multi-Core
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
9695 Points +32%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
9363 Points +27%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
9278 Points +26%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
8918 Points +21%
Geekom A5
AMD Ryzen 7 5800H, 3200 MHz
8823 Points +20%
NiPoGi AD08
Intel Core i7-12650H, 1700 MHz
8661 Points +18%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
7368 Points
Single-Core
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
1861 Points +21%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
1782 Points +16%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
1767 Points +15%
NiPoGi AD08
Intel Core i7-12650H, 1700 MHz
1749 Points +14%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
1586 Points +3%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
1534 Points
Geekom A5
AMD Ryzen 7 5800H, 3200 MHz
1494 Points -3%
Geekbench 5.0
5.0 Multi-Core
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
10249 Points +40%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
9663 Points +32%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
9351 Points +28%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
9099 Points +24%
Geekom A5
AMD Ryzen 7 5800H, 3200 MHz
8568 Points +17%
NiPoGi AD08
Intel Core i7-12650H, 1700 MHz
8564 Points +17%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
7319 Points
5.0 Single-Core
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
1838 Points +20%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
1736 Points +14%
NiPoGi AD08
Intel Core i7-12650H, 1700 MHz
1668 Points +9%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
1557 Points +2%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
1538 Points +1%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
1528 Points
Geekom A5
AMD Ryzen 7 5800H, 3200 MHz
1421 Points -7%
Geekbench 4.4
64 Bit Single-Core Score
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
8015 Points +25%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
7705 Points +20%
NiPoGi AD08
Intel Core i7-12650H, 1700 MHz
7354 Points +15%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
6698 Points +4%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
6648 Points +4%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
6412 Points
Geekom A5
AMD Ryzen 7 5800H, 3200 MHz
6295 Points -2%
64 Bit Multi-Core Score
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
39852 Points +37%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
36780 Points +27%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
36692 Points +26%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
34909 Points +20%
Geekom A5
AMD Ryzen 7 5800H, 3200 MHz
34200 Points +18%
NiPoGi AD08
Intel Core i7-12650H, 1700 MHz
33523 Points +15%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
29047 Points
3DMark 11 - 1280x720 Performance Physics
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
18382 Points +40%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
18363 Points +39%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
17810 Points +35%
Geekom A5
AMD Ryzen 7 5800H, 3200 MHz
16933 Points +29%
NiPoGi AD08
Intel Core i7-12650H, 1700 MHz
16434 Points +25%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
13173 Points
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
13067 Points -1%
7-Zip 18.03
7z b 4
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
56930 MIPS +18%
Geekom A5
AMD Ryzen 7 5800H, 3200 MHz
53954 MIPS +12%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
51151 MIPS +6%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
48327 MIPS
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
47893 MIPS -1%
NiPoGi AD08
Intel Core i7-12650H, 1700 MHz
40050 MIPS -17%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
37570 MIPS -22%
7z b 4 -mmt1
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
6116 MIPS +6%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
6019 MIPS +4%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
5796 MIPS
NiPoGi AD08
Intel Core i7-12650H, 1700 MHz
5785 MIPS 0%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
5721 MIPS -1%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
5577 MIPS -4%
Geekom A5
AMD Ryzen 7 5800H, 3200 MHz
5486 MIPS -5%
HWBOT x265 Benchmark v2.2 - 4k Preset
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
15.8 fps +24%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
14.1 fps +11%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
13.6 fps +7%
Geekom A5
AMD Ryzen 7 5800H, 3200 MHz
13.3 fps +5%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
12.7 fps
NiPoGi AD08
Intel Core i7-12650H, 1700 MHz
11.9 fps -6%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
10.1 fps -20%
R Benchmark 2.5 - Overall mean
Geekom A5
AMD Ryzen 7 5800H, 3200 MHz
0.523 sec * -3%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
0.507 sec *
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
0.4849 sec * +4%
NiPoGi AD08
Intel Core i7-12650H, 1700 MHz
0.4781 sec * +6%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
0.4718 sec * +7%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
0.4641 sec * +8%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
0.462 sec * +9%
LibreOffice - 20 Documents To PDF
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
54.8 s *
Geekom A5
AMD Ryzen 7 5800H, 3200 MHz
54.3 s * +1%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
48.1 s * +12%
NiPoGi AD08
Intel Core i7-12650H, 1700 MHz
47.3 s * +14%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
47.1 s * +14%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
39.6 s * +28%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
38 s * +31%
WebXPRT 3 - Overall
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
311 Points +11%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
309 Points +11%
NiPoGi AD08
Intel Core i7-12650H, 1700 MHz
297 Points +6%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
287 Points +3%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
279 Points
Geekom A5
AMD Ryzen 7 5800H, 3200 MHz
269 Points -4%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
268 Points -4%
Mozilla Kraken 1.1 - Total
Geekom A5
AMD Ryzen 7 5800H, 3200 MHz
653 ms * -10%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
600 ms * -1%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
593 ms *
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
577 ms * +3%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
539 ms * +9%
NiPoGi AD08
Intel Core i7-12650H, 1700 MHz
536 ms * +10%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
519 ms * +12%
3DMark
3840x2160 Fire Strike Ultra Physics
Geekom A5
AMD Ryzen 7 5800H, 3200 MHz
22307 Points +5%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
22237 Points +5%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
21422 Points +1%
NiPoGi AD08
Intel Core i7-12650H, 1700 MHz
21241 Points 0%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
21206 Points
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
21001 Points -1%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
15903 Points -25%
1920x1080 Fire Strike Physics
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
22740 Points +5%
Geekom A5
AMD Ryzen 7 5800H, 3200 MHz
22433 Points +4%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
22346 Points +4%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
22244 Points +3%
NiPoGi AD08
Intel Core i7-12650H, 1700 MHz
22170 Points +3%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
21576 Points
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
16568 Points -23%
2560x1440 Time Spy CPU
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
10539 Points +45%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
9168 Points +26%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
9004 Points +24%
Geekom A5
AMD Ryzen 7 5800H, 3200 MHz
8481 Points +17%
NiPoGi AD08
Intel Core i7-12650H, 1700 MHz
8415 Points +16%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
7275 Points
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
6487 Points -11%

* ... Meglio usare valori piccoli

Performance Rating
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
99.9 pt
Geekom A5
AMD Ryzen 7 5800H, Vega 8
89 pt
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, Radeon 680M
84.7 pt
Media della classe Mini PC

78.6 pt
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
77 pt
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
75.4 pt
NiPoGi AD08
Intel Core i7-12650H, UHD Graphics 64EUs
65.1 pt
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
61.9 pt
AIDA64 / FP32 Ray-Trace
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
14418 KRay/s +13%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, Radeon 680M
12718 KRay/s
Geekom A5
AMD Ryzen 7 5800H, Vega 8
12468 KRay/s -2%
Media della classe Mini PC
  (561 - 51004, n=122, ultimi 2 anni)
11798 KRay/s -7%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
10952 KRay/s -14%
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
10839 KRay/s -15%
NiPoGi AD08
Intel Core i7-12650H, UHD Graphics 64EUs
9713 KRay/s -24%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
7933 KRay/s -38%
AIDA64 / FPU Julia
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
89540 Points +10%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, Radeon 680M
81722 Points
Geekom A5
AMD Ryzen 7 5800H, Vega 8
77847 Points -5%
Media della classe Mini PC
  (3604 - 214250, n=122, ultimi 2 anni)
60105 Points -26%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
55221 Points -32%
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
54435 Points -33%
NiPoGi AD08
Intel Core i7-12650H, UHD Graphics 64EUs
48470 Points -41%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
40251 Points -51%
AIDA64 / CPU SHA3
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
3065 MB/s +9%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, Radeon 680M
2818 MB/s
Geekom A5
AMD Ryzen 7 5800H, Vega 8
2707 MB/s -4%
Media della classe Mini PC
  (225 - 9399, n=122, ultimi 2 anni)
2657 MB/s -6%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
2558 MB/s -9%
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
2357 MB/s -16%
NiPoGi AD08
Intel Core i7-12650H, UHD Graphics 64EUs
2050 MB/s -27%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
2006 MB/s -29%
AIDA64 / CPU Queen
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
93870 Points +4%
Geekom A5
AMD Ryzen 7 5800H, Vega 8
91846 Points +2%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, Radeon 680M
90101 Points
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
85240 Points -5%
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
82454 Points -8%
Media della classe Mini PC
  (8172 - 184747, n=122, ultimi 2 anni)
76655 Points -15%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
73765 Points -18%
NiPoGi AD08
Intel Core i7-12650H, UHD Graphics 64EUs
71577 Points -21%
AIDA64 / FPU SinJulia
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, Radeon 680M
11831 Points
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
11771 Points -1%
Geekom A5
AMD Ryzen 7 5800H, Vega 8
10972 Points -7%
Media della classe Mini PC
  (408 - 29064, n=122, ultimi 2 anni)
8194 Points -31%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
7548 Points -36%
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
7444 Points -37%
NiPoGi AD08
Intel Core i7-12650H, UHD Graphics 64EUs
6628 Points -44%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
5567 Points -53%
AIDA64 / FPU Mandel
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
49558 Points +11%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, Radeon 680M
44756 Points
Geekom A5
AMD Ryzen 7 5800H, Vega 8
42543 Points -5%
Media della classe Mini PC
  (1958 - 113499, n=122, ultimi 2 anni)
31406 Points -30%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
28159 Points -37%
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
26735 Points -40%
NiPoGi AD08
Intel Core i7-12650H, UHD Graphics 64EUs
24086 Points -46%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
19857 Points -56%
AIDA64 / CPU AES
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
119363 MB/s +119%
Geekom A5
AMD Ryzen 7 5800H, Vega 8
108262 MB/s +98%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
99521 MB/s +82%
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
92530 MB/s +69%
Media della classe Mini PC
  (3691 - 325960, n=122, ultimi 2 anni)
84062 MB/s +54%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
74716 MB/s +37%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, Radeon 680M
54623 MB/s
NiPoGi AD08
Intel Core i7-12650H, UHD Graphics 64EUs
44835 MB/s -18%
AIDA64 / CPU ZLib
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
754 MB/s +12%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
732 MB/s +9%
Geekom A5
AMD Ryzen 7 5800H, Vega 8
700 MB/s +4%
NiPoGi AD08
Intel Core i7-12650H, UHD Graphics 64EUs
700 MB/s +4%
Media della classe Mini PC
  (74.8 - 2039, n=122, ultimi 2 anni)
684 MB/s +1%
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
674 MB/s 0%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, Radeon 680M
674 MB/s
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
575 MB/s -15%
AIDA64 / FP64 Ray-Trace
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
7551 KRay/s +11%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, Radeon 680M
6817 KRay/s
Geekom A5
AMD Ryzen 7 5800H, Vega 8
6380 KRay/s -6%
Media della classe Mini PC
  (308 - 26952, n=122, ultimi 2 anni)
6312 KRay/s -7%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
5777 KRay/s -15%
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
5771 KRay/s -15%
NiPoGi AD08
Intel Core i7-12650H, UHD Graphics 64EUs
5235 KRay/s -23%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
4156 KRay/s -39%
AIDA64 / CPU PhotoWorxx
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
30049 MPixel/s +57%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
28118 MPixel/s +47%
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
28010 MPixel/s +46%
Media della classe Mini PC
  (4408 - 50500, n=122, ultimi 2 anni)
27557 MPixel/s +44%
Geekom A5
AMD Ryzen 7 5800H, Vega 8
25113 MPixel/s +31%
NiPoGi AD08
Intel Core i7-12650H, UHD Graphics 64EUs
24589 MPixel/s +28%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
24323 MPixel/s +27%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, Radeon 680M
19153 MPixel/s

Maxtang MTN-FP750 vs. Cinebench R15 Multi-Loop

Il multi-loop Cinebench R15 ci ha mostrato come funziona bene il sistema di raffreddamento sotto carico. L'unità di raffreddamento non raggiunge i suoi limiti grazie a un TDP massimo basso di soli 35 watt ed è per questo che il dispositivo è stato in grado di ottenere prestazioni della CPU sempre stabili. Nel confronto, il nostro esemplare recensito è riuscito persino ad assicurarsi il secondo posto dietro al modello Geekom AS 6.

Metriche della CPU durante il ciclo di Cinebench R15
Metriche della CPU durante il ciclo di Cinebench R15
011523034546057569080592010351150126513801495161017251840195520702185Tooltip
Maxtang MTN-FP750 AMD Ryzen 7 7735HS, AMD Ryzen 7 7735HS: Ø1772 (1721.99-1800.59)
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Intel Core i9-12900H: Ø1703 (1657.14-2261.04)
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø1878 (1825.15-2068.58)
Geekom Mini IT12 Intel Core i7-1260P, Intel Core i7-1260P: Ø1280 (1241-1619.37)
Geekom A5 AMD Ryzen 7 5800H, AMD Ryzen 7 5800H: Ø1715 (1692.05-1838.74)
Minisforum Venus Series NAB6 Intel Core i7-12650H, Intel Core i7-12650H: Ø1627 (1590.71-1899.25)
NiPoGi AD08 Intel Core i7-12650H, Intel Core i7-12650H: Ø1399 (1362.4-1668.54)

Prestazioni del sistema

Ancora una volta, nei test sintetici sulle prestazioni del sistema, il nostro dispositivo di recensione si è trovato in coda. Nelle attività quotidiane durante i test e da un punto di vista soggettivo, il Maxtang MTN-FP750 è stato in grado di offrire buone prestazioni di sistema, a patto che il sistema non fosse costretto a gestire troppe attività contemporaneamente. La RAM sembra essere il collo di bottiglia, perché una volta sottratta la memoria grafica, sono disponibili solo 12 dei 16 GB.

PCMark 10 / Score
Geekom AS 6, R9 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston NV2 1000GB SNV2S/1000G
6653 Points +16%
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
6187 Points +8%
Geekom A5, AMD Ryzen 7 5800H
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Lexar NM620 512GB
6149 Points +7%
Minisforum Venus Series NAB6, Intel Core i7-12650H
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0
6057 Points +6%
NiPoGi AD08, Intel Core i7-12650H
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Netac NS512GSSD530
5751 Points +1%
Maxtang MTN-FP750, AMD Ryzen 7 7735HS
AMD Radeon 680M, Foresee VP1000F512G
5722 Points
Geekom Mini IT12, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
5658 Points -1%
PCMark 10 / Essentials
Minisforum Venus Series NAB6, Intel Core i7-12650H
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0
11395 Points +15%
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
11217 Points +13%
Geekom AS 6, R9 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston NV2 1000GB SNV2S/1000G
10504 Points +6%
NiPoGi AD08, Intel Core i7-12650H
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Netac NS512GSSD530
10408 Points +5%
Geekom A5, AMD Ryzen 7 5800H
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Lexar NM620 512GB
10356 Points +4%
Geekom Mini IT12, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
10139 Points +2%
Maxtang MTN-FP750, AMD Ryzen 7 7735HS
AMD Radeon 680M, Foresee VP1000F512G
9933 Points
PCMark 10 / Productivity
Geekom AS 6, R9 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston NV2 1000GB SNV2S/1000G
9550 Points +8%
Geekom A5, AMD Ryzen 7 5800H
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Lexar NM620 512GB
9311 Points +5%
Maxtang MTN-FP750, AMD Ryzen 7 7735HS
AMD Radeon 680M, Foresee VP1000F512G
8829 Points
Minisforum Venus Series NAB6, Intel Core i7-12650H
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0
8164 Points -8%
NiPoGi AD08, Intel Core i7-12650H
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Netac NS512GSSD530
7814 Points -11%
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
7673 Points -13%
Geekom Mini IT12, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
7427 Points -16%
CrossMark / Overall
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
1894 Points +37%
Minisforum Venus Series NAB6, Intel Core i7-12650H
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0
1875 Points +35%
Geekom Mini IT12, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
1738 Points +25%
NiPoGi AD08, Intel Core i7-12650H
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Netac NS512GSSD530
1660 Points +20%
Geekom AS 6, R9 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston NV2 1000GB SNV2S/1000G
1476 Points +6%
Geekom A5, AMD Ryzen 7 5800H
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Lexar NM620 512GB
1429 Points +3%
Maxtang MTN-FP750, AMD Ryzen 7 7735HS
AMD Radeon 680M, Foresee VP1000F512G
1387 Points
CrossMark / Responsiveness
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
2116 Points +68%
Minisforum Venus Series NAB6, Intel Core i7-12650H
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0
2077 Points +64%
Geekom Mini IT12, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
1734 Points +37%
NiPoGi AD08, Intel Core i7-12650H
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Netac NS512GSSD530
1478 Points +17%
Maxtang MTN-FP750, AMD Ryzen 7 7735HS
AMD Radeon 680M, Foresee VP1000F512G
1263 Points
Geekom A5, AMD Ryzen 7 5800H
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Lexar NM620 512GB
1233 Points -2%
Geekom AS 6, R9 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston NV2 1000GB SNV2S/1000G
1060 Points -16%
CrossMark / Creativity
Minisforum Venus Series NAB6, Intel Core i7-12650H
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0
1811 Points +32%
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
1800 Points +31%
NiPoGi AD08, Intel Core i7-12650H
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Netac NS512GSSD530
1788 Points +30%
Geekom Mini IT12, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
1749 Points +27%
Geekom AS 6, R9 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston NV2 1000GB SNV2S/1000G
1675 Points +22%
Geekom A5, AMD Ryzen 7 5800H
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Lexar NM620 512GB
1523 Points +11%
Maxtang MTN-FP750, AMD Ryzen 7 7735HS
AMD Radeon 680M, Foresee VP1000F512G
1376 Points
CrossMark / Productivity
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
1921 Points +33%
Minisforum Venus Series NAB6, Intel Core i7-12650H
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0
1876 Points +30%
Geekom Mini IT12, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
1729 Points +20%
NiPoGi AD08, Intel Core i7-12650H
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Netac NS512GSSD530
1601 Points +11%
Geekom AS 6, R9 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston NV2 1000GB SNV2S/1000G
1451 Points +1%
Maxtang MTN-FP750, AMD Ryzen 7 7735HS
AMD Radeon 680M, Foresee VP1000F512G
1443 Points
Geekom A5, AMD Ryzen 7 5800H
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Lexar NM620 512GB
1408 Points -2%
AIDA64 / Memory Copy
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
50714 MB/s +67%
Media della classe Mini PC
  (6481 - 76462, n=122, ultimi 2 anni)
46953 MB/s +55%
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
46936 MB/s +55%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
45941 MB/s +52%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
44726 MB/s +47%
NiPoGi AD08
Intel Core i7-12650H, UHD Graphics 64EUs
43916 MB/s +45%
Geekom A5
AMD Ryzen 7 5800H, Vega 8
43870 MB/s +45%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, Radeon 680M
30324 MB/s
AIDA64 / Memory Read
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
51580 MB/s +52%
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
50120 MB/s +48%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
49559 MB/s +46%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
47491 MB/s +40%
NiPoGi AD08
Intel Core i7-12650H, UHD Graphics 64EUs
47423 MB/s +40%
Media della classe Mini PC
  (6914 - 83287, n=122, ultimi 2 anni)
47375 MB/s +40%
Geekom A5
AMD Ryzen 7 5800H, Vega 8
46241 MB/s +36%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, Radeon 680M
33938 MB/s
AIDA64 / Memory Write
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
55128 MB/s +66%
Media della classe Mini PC
  (6862 - 89318, n=122, ultimi 2 anni)
51193 MB/s +54%
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
47383 MB/s +43%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
46815 MB/s +41%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
46785 MB/s +41%
Geekom A5
AMD Ryzen 7 5800H, Vega 8
46407 MB/s +40%
NiPoGi AD08
Intel Core i7-12650H, UHD Graphics 64EUs
45617 MB/s +38%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, Radeon 680M
33175 MB/s
AIDA64 / Memory Latency
NiPoGi AD08
Intel Core i7-12650H, UHD Graphics 64EUs
103.9 ns * -33%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
100 ns * -28%
Media della classe Mini PC
  (44.9 - 184.8, n=122, ultimi 2 anni)
91.1 ns * -16%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
89.9 ns * -15%
Geekom A5
AMD Ryzen 7 5800H, Vega 8
81.4 ns * -4%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
80.2 ns * -3%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, Radeon 680M
78.2 ns *
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
71.6 ns * +8%

* ... Meglio usare valori piccoli

Latenze DPC

Abbiamo già registrato un leggero aumento delle latenze all'apertura di più schede con il browser Edge. Tuttavia, non sono aumentate con il proseguire del test. Durante la riproduzione del nostro video di prova a 4K, l'iGPU è stata sollecitata a circa il 24% della sua capacità.

Massima latenza all'apertura di più schede del browser e durante la riproduzione di materiale video 4K
Massima latenza all'apertura di più schede del browser e durante la riproduzione di materiale video 4K
Latenza massima dopo dieci secondi di Prime95
Latenza massima dopo dieci secondi di Prime95
I piloti sono elencati in base al loro tempo di esecuzione più lungo
I piloti sono elencati in base al loro tempo di esecuzione più lungo
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Geekom AS 6, R9 6900HX
Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G
1588.3 μs * -45%
Geekom A5
Vega 8, R7 5800H, Lexar NM620 512GB
1310.5 μs * -19%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
1113.9 μs * -1%
Maxtang MTN-FP750
Radeon 680M, R7 7735HS, Foresee VP1000F512G
1097.7 μs *
NiPoGi AD08
UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530
1014.6 μs * +8%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
985.8 μs * +10%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
795 μs * +28%

* ... Meglio usare valori piccoli

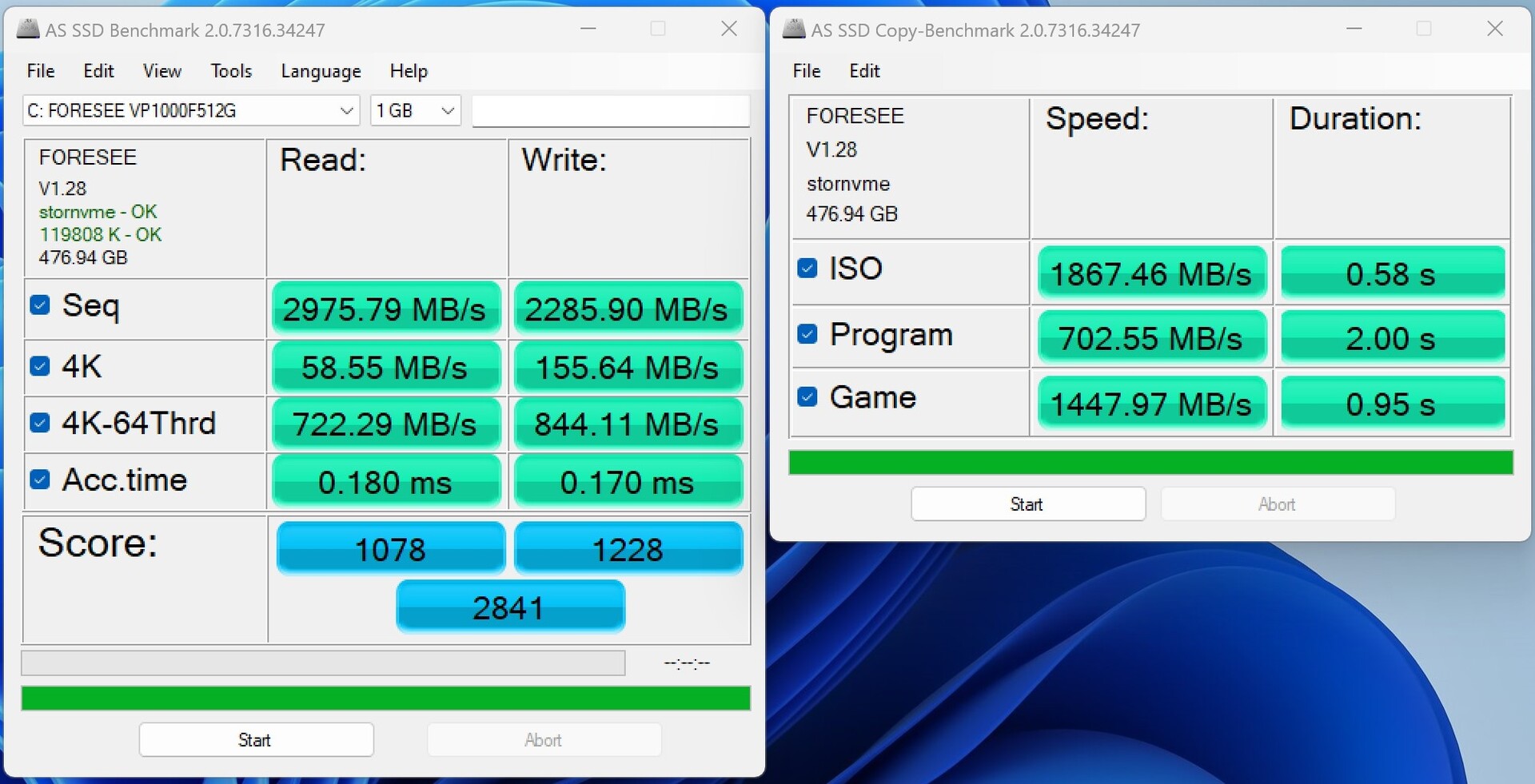

Memoria di massa

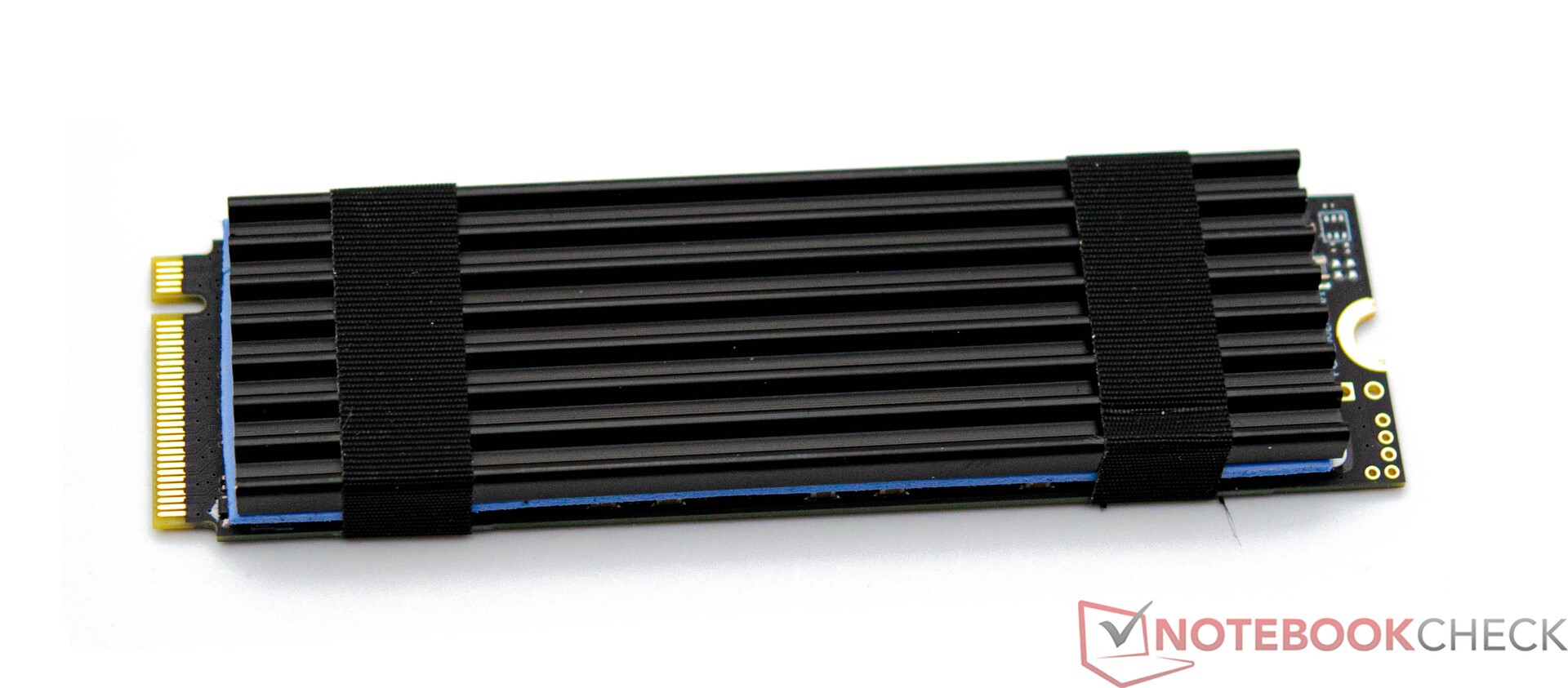

512 GB SSD e dissipatore di calore
512 GB SSD e dissipatore di calore

Maxtang ha equipaggiato il nostro campione di recensione MTN-FP750 con un SSD Foresee da 512 GB. L'SSD PCIe 3.0 sfrutta l'interfaccia M.2 con la massima larghezza di banda possibile e non è artificialmente frenata da un'interfaccia lenta. Nonostante questo, il nostro dispositivo di recensione è riuscito a guadagnarsi solo un posto a metà classifica. È possibile installare un dispositivo di archiviazione aggiuntivo da 2,5 pollici. Veda la nostra tabella di confronto per ulteriori confronti e benchmark.

AS SSD
AS SSD
CDM 3
CDM 3
CDM 5
CDM 5
CDM 6
CDM 6
CDI
CDI
Foresee VP1000F512G
Sequential Read: 2368 MB/s
Sequential Write: 2553 MB/s
512K Read: 1567 MB/s
512K Write: 2332 MB/s
4K Read: 61.94 MB/s
4K Write: 169.4 MB/s
4K QD32 Read: 463.7 MB/s
4K QD32 Write: 322.1 MB/s
Drive Performance Rating - Percent
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
95.2 pt
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
80.8 pt
Geekom A5
Lexar NM620 512GB
62.5 pt
Media della classe Mini PC

60.3 pt
NiPoGi AD08
Netac NS512GSSD530
47.2 pt
Geekom Mini IT12
Kingston OM8SEP4512N-A0
43.6 pt
Maxtang MTN-FP750
Foresee VP1000F512G
42 pt
Geekom AS 6, R9 6900HX
Kingston NV2 1000GB SNV2S/1000G
24.6 pt
DiskSpd
seq read
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
2815 (2802.79min - 2814.97max) MB/s +70%
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
2689 (2681.42min - 2688.76max) MB/s +62%
Geekom A5
Lexar NM620 512GB
2371 (2315.68min - 2370.91max) MB/s +43%
Media della classe Mini PC
  (233 - 4357, n=122, ultimi 2 anni)
2272 MB/s +37%
NiPoGi AD08
Netac NS512GSSD530
1851 (1840.88min - 1850.74max) MB/s +12%
Maxtang MTN-FP750
Foresee VP1000F512G
1658 (1638.79min - 1658.01max) MB/s
Geekom Mini IT12
Kingston OM8SEP4512N-A0
1451 (1441.37min - 1451.23max) MB/s -12%
Geekom AS 6, R9 6900HX
Kingston NV2 1000GB SNV2S/1000G
1414 (1406.14min - 1414.43max) MB/s -15%
seq write
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
3544 (3538.94min - 3544.19max) MB/s +406%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
3402 (3372.67min - 3402.21max) MB/s +386%
Geekom A5
Lexar NM620 512GB
2668 (292.6min - 2668max) MB/s +281%
Media della classe Mini PC
  (222 - 5595, n=122, ultimi 2 anni)
2406 MB/s +244%
NiPoGi AD08
Netac NS512GSSD530
1672 (673.94min - 1672.06max) MB/s +139%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
1203 (1169.58min - 1202.51max) MB/s +72%
Maxtang MTN-FP750
Foresee VP1000F512G
700 (690.38min - 700.03max) MB/s
Geekom AS 6, R9 6900HX
Kingston NV2 1000GB SNV2S/1000G
259 (255.55min - 258.69max) MB/s -63%
seq q8 t1 read
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
4801 (4506.78min - 4800.59max) MB/s +54%
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
4797 (4271.21min - 4796.87max) MB/s +54%
Media della classe Mini PC
  (236 - 8430, n=122, ultimi 2 anni)
3647 MB/s +17%
Geekom A5
Lexar NM620 512GB
3444 (2979.63min - 3443.98max) MB/s +11%
Maxtang MTN-FP750
Foresee VP1000F512G
3116 (2788.16min - 3115.59max) MB/s
NiPoGi AD08
Netac NS512GSSD530
2375 (2107.85min - 2375.44max) MB/s -24%
Geekom AS 6, R9 6900HX
Kingston NV2 1000GB SNV2S/1000G
1976 (1110.86min - 1975.52max) MB/s -37%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
1694 (1415.05min - 1693.87max) MB/s -46%
seq q8 t1 write
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
3541 (3519.65min - 3541.04max) MB/s +247%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
3402 (3374.28min - 3401.67max) MB/s +234%
Geekom A5
Lexar NM620 512GB
3117 (3075.4min - 3117.21max) MB/s +206%
Media della classe Mini PC
  (228 - 6669, n=122, ultimi 2 anni)
2703 MB/s +165%
NiPoGi AD08
Netac NS512GSSD530
1667 (577.24min - 1667.45max) MB/s +64%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
1213 (1155.74min - 1212.78max) MB/s +19%
Maxtang MTN-FP750
Foresee VP1000F512G
1019 (702.55min - 1018.53max) MB/s
Geekom AS 6, R9 6900HX
Kingston NV2 1000GB SNV2S/1000G
271 (261.51min - 270.62max) MB/s -73%
4k q1 t1 read
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
82.8 (82.48min - 82.75max) MB/s +31%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
82.1 (81.4min - 82.09max) MB/s +30%
Maxtang MTN-FP750
Foresee VP1000F512G
63.1 (63.03min - 63.11max) MB/s
NiPoGi AD08
Netac NS512GSSD530
57.3 (56.08min - 57.31max) MB/s -9%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
55.6 (54.87min - 55.6max) MB/s -12%
Media della classe Mini PC
  (5.67 - 86.6, n=122, ultimi 2 anni)
54.9 MB/s -13%
Geekom A5
Lexar NM620 512GB
54.5 (37.15min - 54.54max) MB/s -14%
Geekom AS 6, R9 6900HX
Kingston NV2 1000GB SNV2S/1000G
27.7 (27.3min - 27.66max) MB/s -56%
4k q1 t1 write
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
425 (415.92min - 425.01max) MB/s +167%
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
420 (417.55min - 420.16max) MB/s +164%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
276 (193.9min - 275.81max) MB/s +73%
NiPoGi AD08
Netac NS512GSSD530
224 (122.9min - 223.95max) MB/s +41%
Media della classe Mini PC
  (30.4 - 435, n=122, ultimi 2 anni)
193.8 MB/s +22%
Maxtang MTN-FP750
Foresee VP1000F512G
159.1 (147.33min - 159.12max) MB/s
Geekom A5
Lexar NM620 512GB
148.4 (147.43min - 148.38max) MB/s -7%
Geekom AS 6, R9 6900HX
Kingston NV2 1000GB SNV2S/1000G
88 (84.11min - 87.99max) MB/s -45%
4k q32 t16 read
Geekom A5
Lexar NM620 512GB
1960 MB/s +350%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
1944 (1936.89min - 1943.53max) MB/s +346%
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
1939 (1934.48min - 1939.25max) MB/s +345%
Media della classe Mini PC
  (26.1 - 4158, n=122, ultimi 2 anni)
1312 MB/s +201%
NiPoGi AD08
Netac NS512GSSD530
966 (662.38min - 966.09max) MB/s +122%
Geekom AS 6, R9 6900HX
Kingston NV2 1000GB SNV2S/1000G
740 (734.91min - 739.88max) MB/s +70%
Maxtang MTN-FP750
Foresee VP1000F512G
436 (434.71min - 436.44max) MB/s
Geekom Mini IT12
Kingston OM8SEP4512N-A0
420 (418.45min - 419.54max) MB/s -4%
4k q32 t16 write
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
3388 (3373.11min - 3387.88max) MB/s +292%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
2396 (2376.28min - 2396.46max) MB/s +177%
Geekom A5
Lexar NM620 512GB
1370 (84.65min - 1370.23max) MB/s +59%
Media della classe Mini PC
  (30.2 - 4288, n=122, ultimi 2 anni)
1263 MB/s +46%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
942 (402.72min - 941.71max) MB/s +9%
Maxtang MTN-FP750
Foresee VP1000F512G
864 (598.32min - 864.46max) MB/s
NiPoGi AD08
Netac NS512GSSD530
696 (189.46min - 695.85max) MB/s -19%
Geekom AS 6, R9 6900HX
Kingston NV2 1000GB SNV2S/1000G
210 (203.49min - 210.22max) MB/s -76%
AS SSD
Score Total
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
7134 Points +151%
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
4744 Points +67%
Media della classe Mini PC
  (181.5 - 10021, n=120, ultimi 2 anni)
4029 Points +42%
Geekom A5
Lexar NM620 512GB
4006 Points +41%
NiPoGi AD08
Netac NS512GSSD530
3032 Points +7%
Maxtang MTN-FP750
Foresee VP1000F512G
2841 Points
Geekom Mini IT12
Kingston OM8SEP4512N-A0
2491 Points -12%
Geekom AS 6, R9 6900HX
Kingston NV2 1000GB SNV2S/1000G
1602 Points -44%
Score Read
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
2391 Points +122%
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
2356 Points +119%
Media della classe Mini PC
  (61 - 3741, n=120, ultimi 2 anni)
1507 Points +40%
Geekom A5
Lexar NM620 512GB
1502 Points +39%
NiPoGi AD08
Netac NS512GSSD530
1167 Points +8%
Maxtang MTN-FP750
Foresee VP1000F512G
1078 Points
Geekom AS 6, R9 6900HX
Kingston NV2 1000GB SNV2S/1000G
910 Points -16%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
725 Points -33%
Score Write
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
3538 Points +188%
Media della classe Mini PC
  (88 - 4371, n=120, ultimi 2 anni)
1799 Points +46%
Geekom A5
Lexar NM620 512GB
1739 Points +42%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
1457 Points +19%
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
1308 Points +7%
NiPoGi AD08
Netac NS512GSSD530
1283 Points +4%
Maxtang MTN-FP750
Foresee VP1000F512G
1228 Points
Geekom AS 6, R9 6900HX
Kingston NV2 1000GB SNV2S/1000G
325 Points -74%
Seq Read
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
4147 MB/s +39%
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
3874.21 MB/s +30%
Media della classe Mini PC
  (291 - 6620, n=120, ultimi 2 anni)
3135 MB/s +5%
Geekom A5
Lexar NM620 512GB
3020 MB/s +1%
Maxtang MTN-FP750
Foresee VP1000F512G
2976 MB/s
Geekom Mini IT12
Kingston OM8SEP4512N-A0
2789 MB/s -6%
Geekom AS 6, R9 6900HX
Kingston NV2 1000GB SNV2S/1000G
2302 MB/s -23%
NiPoGi AD08
Netac NS512GSSD530
2282 MB/s -23%
Seq Write
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
3292 MB/s +44%
Geekom A5
Lexar NM620 512GB
2714 MB/s +19%
Maxtang MTN-FP750
Foresee VP1000F512G
2286 MB/s
Media della classe Mini PC
  (240 - 5783, n=120, ultimi 2 anni)
2186 MB/s -4%
NiPoGi AD08
Netac NS512GSSD530
1657 MB/s -28%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
1232 MB/s -46%
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
882.93 MB/s -61%
Geekom AS 6, R9 6900HX
Kingston NV2 1000GB SNV2S/1000G
277 MB/s -88%
4K Read
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
103.66 MB/s +77%
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
102.97 MB/s +76%
NiPoGi AD08
Netac NS512GSSD530
59.4 MB/s +1%
Maxtang MTN-FP750
Foresee VP1000F512G
58.6 MB/s
Media della classe Mini PC
  (6.08 - 104.3, n=120, ultimi 2 anni)
58.1 MB/s -1%
Geekom A5
Lexar NM620 512GB
57.7 MB/s -2%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
48.9 MB/s -17%
Geekom AS 6, R9 6900HX
Kingston NV2 1000GB SNV2S/1000G
27 MB/s -54%
4K Write
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
365.87 MB/s +135%
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
354.53 MB/s +128%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
273 MB/s +75%
Media della classe Mini PC
  (30.9 - 366, n=120, ultimi 2 anni)
174.8 MB/s +12%
Maxtang MTN-FP750
Foresee VP1000F512G
155.6 MB/s
Geekom AS 6, R9 6900HX
Kingston NV2 1000GB SNV2S/1000G
150.4 MB/s -3%
NiPoGi AD08
Netac NS512GSSD530
126.8 MB/s -19%
Geekom A5
Lexar NM620 512GB
125.5 MB/s -19%
4K-64 Read
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
1872.82 MB/s +159%
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
1865.81 MB/s +158%
Geekom A5
Lexar NM620 512GB
1143 MB/s +58%
Media della classe Mini PC
  (23.4 - 3220, n=120, ultimi 2 anni)
1135 MB/s +57%
NiPoGi AD08
Netac NS512GSSD530
880 MB/s +22%
Maxtang MTN-FP750
Foresee VP1000F512G
722 MB/s
Geekom AS 6, R9 6900HX
Kingston NV2 1000GB SNV2S/1000G
653 MB/s -10%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
397 MB/s -45%
4K-64 Write
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
2842.9 MB/s +237%
Media della classe Mini PC
  (32.8 - 3731, n=120, ultimi 2 anni)
1406 MB/s +67%
Geekom A5
Lexar NM620 512GB
1342 MB/s +59%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
1060 MB/s +26%
NiPoGi AD08
Netac NS512GSSD530
990 MB/s +17%
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
865.27 MB/s +3%
Maxtang MTN-FP750
Foresee VP1000F512G
844 MB/s
Geekom AS 6, R9 6900HX
Kingston NV2 1000GB SNV2S/1000G
146.7 MB/s -83%
Access Time Read
Maxtang MTN-FP750
Foresee VP1000F512G
0.18 ms *
Geekom AS 6, R9 6900HX
Kingston NV2 1000GB SNV2S/1000G
0.141 ms * +22%
NiPoGi AD08
Netac NS512GSSD530
0.131 ms * +27%
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
0.117 ms * +35%
Media della classe Mini PC
  (0.022 - 0.489, n=120, ultimi 2 anni)
0.09934 ms * +45%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
0.098 ms * +46%
Geekom A5
Lexar NM620 512GB
0.08 ms * +56%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
0.074 ms * +59%
Access Time Write
Geekom AS 6, R9 6900HX
Kingston NV2 1000GB SNV2S/1000G
0.263 ms * -55%
Maxtang MTN-FP750
Foresee VP1000F512G
0.17 ms *
Geekom A5
Lexar NM620 512GB
0.13 ms * +24%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
0.118 ms * +31%
Media della classe Mini PC
  (0.016 - 0.765, n=120, ultimi 2 anni)
0.1137 ms * +33%
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
0.11 ms * +35%
NiPoGi AD08
Netac NS512GSSD530
0.103 ms * +39%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
0.031 ms * +82%

* ... Meglio usare valori piccoli

Continuous Performance Read: DiskSpd Read Loop, Queue Depth 8

0245490735980122514701715196022052450269529403185343036753920416544104655Tooltip
Maxtang MTN-FP750 Foresee VP1000F512G; diskspd 2.0.17 f: Ø3025 (2610.09-3059.95)
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0: Ø3302 (1830.49-4799.45)
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G: Ø1820 (713.49-2039.48)
Geekom Mini IT12 Kingston OM8SEP4512N-A0: Ø2178 (1555.46-2595.65)
Geekom A5 Lexar NM620 512GB: Ø3437 (3126.47-3454.22)
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0: Ø4789 (4164.37-4807.96)
NiPoGi AD08 Netac NS512GSSD530; diskspd 2.0.17 f: Ø1365 (827.75-2529.17)

Scheda grafica

L'uscita grafica è gestita dalla AMD Radeon 680M, una iGPU che offre buone prestazioni nella maggior parte delle situazioni. Tuttavia, con il Maxtang MTN-FP750, la situazione è un po' diversa e il motivo è la RAM installata. Il produttore ha dotato il nostro dispositivo di recensione di un solo modulo RAM. In questa configurazione, la AMD Radeon 680M è appena più veloce dell'Intel Iris Xe Graphics G7 con 96 EU. Anche il Geekom A5 ha il naso davanti al nostro campione in esame, con la sua vecchia AMD Radeon RX Vega 8.

Per capire la debolezza delle prestazioni, abbiamo preso un altro modulo di RAM dalle nostre forniture e abbiamo effettuato alcuni benchmark. Questo ha portato a risultati più o meno equivalenti a quelli di Geekom AS 6 rendendo così Maxtang MTN-FP750 non inferiore ai suoi concorrenti.

Ulteriori benchmark di AMD Radeon 680M sono disponibili qui.

3DMark Performance Rating - Percent
Media AMD Radeon 680M

99.3 pt
Geekom AS 6, R9 6900HX
AMD Radeon 680M, AMD Ryzen 9 6900HX
98.8 pt
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H
75.8 pt
Geekom A5
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H
68.3 pt
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
65.9 pt
Maxtang MTN-FP750
AMD Radeon 680M, AMD Ryzen 7 7735HS
64.6 pt
Minisforum Venus Series NAB6
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H
56.3 pt
NiPoGi AD08
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H
53.9 pt
3DMark 11 - 1280x720 Performance GPU
Geekom AS 6, R9 6900HX
AMD Radeon 680M, AMD Ryzen 9 6900HX
10399 Points +52%
Media AMD Radeon 680M
  (6858 - 11668, n=34)
10018 Points +46%
Geekom A5
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H
7101 Points +4%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H
7057 Points +3%
Maxtang MTN-FP750
AMD Radeon 680M, AMD Ryzen 7 7735HS
6858 Points
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
6599 Points -4%
Minisforum Venus Series NAB6
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H
5462 Points -20%
NiPoGi AD08
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H
5047 Points -26%
3DMark
1280x720 Cloud Gate Standard Graphics
Media AMD Radeon 680M
  (24634 - 50120, n=27)
40750 Points +65%
Geekom AS 6, R9 6900HX
AMD Radeon 680M, AMD Ryzen 9 6900HX
39814 Points +62%
Geekom A5
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H
32875 Points +33%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H
30434 Points +24%
Maxtang MTN-FP750
AMD Radeon 680M, AMD Ryzen 7 7735HS
24634 Points
NiPoGi AD08
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H
23061 Points -6%
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
22570 Points -8%
Minisforum Venus Series NAB6
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H
21383 Points -13%
1920x1080 Fire Strike Graphics
Media AMD Radeon 680M
  (3791 - 7653, n=35)
6673 Points +51%
Geekom AS 6, R9 6900HX
AMD Radeon 680M, AMD Ryzen 9 6900HX
6501 Points +47%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H
5526 Points +25%
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
4860 Points +10%
Geekom A5
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H
4567 Points +3%
Maxtang MTN-FP750
AMD Radeon 680M, AMD Ryzen 7 7735HS
4424 Points
Minisforum Venus Series NAB6
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H
4098 Points -7%
NiPoGi AD08
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H
3905 Points -12%
2560x1440 Time Spy Graphics
Media AMD Radeon 680M
  (1359 - 2607, n=35)
2219 Points +59%
Geekom AS 6, R9 6900HX
AMD Radeon 680M, AMD Ryzen 9 6900HX
2210 Points +58%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H
1658 Points +19%
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
1528 Points +9%
Geekom A5
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H
1418 Points +1%
Maxtang MTN-FP750
AMD Radeon 680M, AMD Ryzen 7 7735HS
1399 Points
Minisforum Venus Series NAB6
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H
1217 Points -13%
NiPoGi AD08
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H
1114 Points -20%
Fire Strike Extreme Graphics
Media AMD Radeon 680M
  (2089 - 3572, n=13)
3110 Points +49%
Geekom AS 6, R9 6900HX
AMD Radeon 680M, AMD Ryzen 9 6900HX
3088 Points +48%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H
2455 Points +18%
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
2150 Points +3%
Maxtang MTN-FP750
AMD Radeon 680M, AMD Ryzen 7 7735HS
2089 Points
Geekom A5
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H
1879 Points -10%
Minisforum Venus Series NAB6
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H
1866 Points -11%
NiPoGi AD08
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H
1738 Points -17%
Performance Rating - Percent
Geekom AS 6, R9 6900HX
Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G
99.3 pt
Geekom A5
Vega 8, R7 5800H, Lexar NM620 512GB
69.5 pt
Maxtang MTN-FP750
Radeon 680M, R7 7735HS, Foresee VP1000F512G
65.7 pt
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
63.2 pt
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
61.3 pt
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
53.2 pt
NiPoGi AD08
UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530
51.8 pt
Unigine Heaven 4.0
Extreme Preset OpenGL
Geekom AS 6, R9 6900HX
Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G
34.2 fps +61%
NiPoGi AD08
UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530
25 fps +18%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
23.3 fps +10%
Geekom A5
Vega 8, R7 5800H, Lexar NM620 512GB
22.8 fps +8%
Maxtang MTN-FP750
Radeon 680M, R7 7735HS, Foresee VP1000F512G
21.2 fps
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
21 fps -1%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
19.7 fps -7%
Extreme Preset DX11
Geekom AS 6, R9 6900HX
Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G
32 fps +62%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
24 fps +22%
Geekom A5
Vega 8, R7 5800H, Lexar NM620 512GB
22 fps +12%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
21.7 fps +10%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
20.4 fps +4%
Maxtang MTN-FP750
Radeon 680M, R7 7735HS, Foresee VP1000F512G
19.7 fps
NiPoGi AD08
UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530
19.1 fps -3%
Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Geekom AS 6, R9 6900HX
Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G
21 fps +79%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
14.3 fps +22%
Geekom A5
Vega 8, R7 5800H, Lexar NM620 512GB
14.2 fps +21%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
13.2 fps +13%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
12.8 fps +9%
NiPoGi AD08
UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530
11.8 fps +1%
Maxtang MTN-FP750
Radeon 680M, R7 7735HS, Foresee VP1000F512G
11.7 fps
1920x1080 Extreme HD Preset OpenGL AA:x8
Geekom AS 6, R9 6900HX
Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G
22.9 fps +73%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
16.1 fps +22%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
15.2 fps +15%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
15.1 fps +14%
Geekom A5
Vega 8, R7 5800H, Lexar NM620 512GB
14.7 fps +11%
Maxtang MTN-FP750
Radeon 680M, R7 7735HS, Foresee VP1000F512G
13.2 fps
NiPoGi AD08
UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530
13 fps -2%
ComputeMark v2.1
1024x600 Normal, Score
Geekom AS 6, R9 6900HX
Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G
5602 Points +27%
Maxtang MTN-FP750
Radeon 680M, R7 7735HS, Foresee VP1000F512G
4417 Points
Geekom A5
Vega 8, R7 5800H, Lexar NM620 512GB
4020 Points -9%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
3390 Points -23%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
3308 Points -25%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
2512 Points -43%
NiPoGi AD08
UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530
2370 Points -46%
1024x600 Normal, Fluid 3DTex
Geekom AS 6, R9 6900HX
Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G
393 Points +83%
Geekom A5
Vega 8, R7 5800H, Lexar NM620 512GB
296 Points +38%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
237 Points +10%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
234 Points +9%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
216 Points 0%
Maxtang MTN-FP750
Radeon 680M, R7 7735HS, Foresee VP1000F512G
215 Points
NiPoGi AD08
UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530
207 Points -4%
1024x600 Normal, Fluid 2DTexArr
Geekom AS 6, R9 6900HX
Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G
400 Points +87%
Geekom A5
Vega 8, R7 5800H, Lexar NM620 512GB
280 Points +31%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
249 Points +16%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
237 Points +11%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
220 Points +3%
Maxtang MTN-FP750
Radeon 680M, R7 7735HS, Foresee VP1000F512G
214 Points
NiPoGi AD08
UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530
212 Points -1%
1024x600 Normal, Mandel Vector
Geekom AS 6, R9 6900HX
Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G
1582 Points +44%
Geekom A5
Vega 8, R7 5800H, Lexar NM620 512GB
1236 Points +12%
Maxtang MTN-FP750
Radeon 680M, R7 7735HS, Foresee VP1000F512G
1100 Points
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
851 Points -23%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
827 Points -25%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
483 Points -56%
NiPoGi AD08
UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530
450 Points -59%
1024x600 Normal, Mandel Scalar
Geekom AS 6, R9 6900HX
Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G
1451 Points +53%
Geekom A5
Vega 8, R7 5800H, Lexar NM620 512GB
1062 Points +12%
Maxtang MTN-FP750
Radeon 680M, R7 7735HS, Foresee VP1000F512G
948 Points
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
865 Points -9%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
834 Points -12%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
770 Points -19%
NiPoGi AD08
UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530
743 Points -22%
1024x600 Normal, QJuliaRayTrace
Maxtang MTN-FP750
Radeon 680M, R7 7735HS, Foresee VP1000F512G
1941 Points
Geekom AS 6, R9 6900HX
Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G
1776 Points -9%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
1191 Points -39%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
1174 Points -40%
Geekom A5
Vega 8, R7 5800H, Lexar NM620 512GB
1145 Points -41%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
823 Points -58%
NiPoGi AD08
UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530
759 Points -61%
Unigine Superposition
1280x720 720p Low
Geekom AS 6, R9 6900HX
Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G
10118 Points +66%
Geekom A5
Vega 8, R7 5800H, Lexar NM620 512GB
7952 Points +31%
Maxtang MTN-FP750
Radeon 680M, R7 7735HS, Foresee VP1000F512G
6081 Points
NiPoGi AD08
UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530
5353 Points -12%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
5162 Points -15%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
5141 Points -15%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
4088 Points -33%
1920x1080 1080p High
Geekom AS 6, R9 6900HX
Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G
3014 Points +54%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
2095 Points +7%
Maxtang MTN-FP750
Radeon 680M, R7 7735HS, Foresee VP1000F512G
1958 Points
Geekom A5
Vega 8, R7 5800H, Lexar NM620 512GB
1949 Points 0%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
1923 Points -2%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
1659 Points -15%
NiPoGi AD08
UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530
1615 Points -18%
1920x1080 1080p Extreme
Geekom AS 6, R9 6900HX
Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G
1394 Points +42%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
1076 Points +9%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
992 Points +1%
Maxtang MTN-FP750
Radeon 680M, R7 7735HS, Foresee VP1000F512G
985 Points
Geekom A5
Vega 8, R7 5800H, Lexar NM620 512GB
914 Points -7%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
796 Points -19%
NiPoGi AD08
UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530
757 Points -23%
Maxtang MTN-FP750, AMD Radeon 680M
R7 7735HS
Minisforum Neptune Series NAD9, Intel Iris Xe Graphics G7 96EUs
i9-12900H
Geekom AS 6, R9 6900HX, AMD Radeon 680M
R9 6900HX
Geekom Mini IT12, Intel Iris Xe Graphics G7 96EUs
i7-1260P
Geekom A5, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R7 5800H
Minisforum Venus Series NAB6, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)
i7-12650H
NiPoGi AD08, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)
i7-12650H
Media della classe Mini PC

SPECviewperf 12
-26%
58%
-31%
2%
-37%
-34%
43%
1900x1060 3ds Max (3dsmax-05)
46.9
40.9
-13%
75.3
61%
38.7
-17%
51.7
10%
36.2
-23%
34.4
-27%
1900x1060 Catia (catia-04)
51.5
41.2
-20%
70.3
37%
38.5
-25%
44.2
-14%
34.5
-33%
30.3
-41%
1900x1060 Creo (creo-01)
33.2
9.64
-71%
45.2
36%
7.52
-77%
36.3
9%
6.44
-81%
21.1
-36%
1900x1060 Energy (energy-01)
0.41
76.1
0.41
0.35
0.77
1900x1060 Maya (maya-04)
45.2
39.9
-12%
58.3
29%
36.5
-19%
40.3
-11%
33.4
-26%
32.5
-28%
1900x1060 Medical (medical-01)
17.9
12.3
-31%
44
146%
11.2
-37%
18.2
2%
9.12
-49%
8.41
-53%
1900x1060 Showcase (showcase-01)
17.5
17.9
2%
30.1
72%
16.7
-5%
21.7
24%
15.9
-9%
15.2
-13%
1900x1060 Solidworks (sw-03)
72.1
47.2
-35%
88.8
23%
43.7
-39%
68.3
-5%
44.5
-38%
43.4
-40%
SPECviewperf 13
-27%
51%
-30%
2%
-37%
-40%
48%
3ds Max (3dsmax-06)
48.3
40.5
-16%
76.7
59%
37.9
-22%
51.6
7%
36
-25%
34.1
-29%
Catia (catia-05)
73.9
59.4
-20%
105
42%
56.3
-24%
62.1
-16%
49.6
-33%
43.2
-42%
Creo (creo-02)
44.9
38.8
-14%
78.4
75%
36.8
-18%
50.6
13%
33
-27%
33.1
-26%
Energy (energy-02)
11.4
4.27
-63%
13.9
22%
4.29
-62%
10.6
-7%
2.82
-75%
2.62
-77%
Maya (maya-05)
58.3
44.2
-24%
99
70%
42.9
-26%
56.5
-3%
38.2
-34%
41.3
-29%
Medical (medical-02)
32.8
14.5
-56%
44.9
37%
14
-57%
31
-5%
10.9
-67%
8.63
-74%
Showcase (showcase-02)
17.4
17.9
3%
30.4
75%
16.8
-3%
21.5
24%
15.7
-10%
15.1
-13%
Solidworks (sw-04)
72.9
55.8
-23%
95
30%
54.1
-26%
72.4
-1%
53.9
-26%
51.9
-29%
SPECviewperf 2020
-35%
84%
-24%
2%
-43%
69%
3840x2160 Medical (medical-03)
4.72
2.57
-46%
8.59
82%
3.37
-29%
4.82
2%
2.54
-46%
3840x2160 Energy (energy-03)
6.6
3.02
-54%
16.9
156%
7.39
12%
5.33
-19%
1.9
-71%
3840x2160 Creo (creo-03)
17.5
15.3
-13%
28.9
65%
15.1
-14%
19.1
9%
12.7
-27%
3840x2160 CATIA (catia-06)
13.1
8.2
-37%
20.4
56%
8.23
-37%
13.1
0%
7.63
-42%
3840x2160 3ds Max (3dsmax-07)
9.26
9.67
4%
17.5
89%
9.65
4%
11.3
22%
8.65
-7%
3840x2160 Siemens NX (snx-04)
33
6.69
-80%
58.5
77%
6.23
-81%
38
15%
6.61
-80%
3840x2160 Maya (maya-06)
29.5
24
-19%
47.4
61%
23.7
-20%
25.8
-13%
21.2
-28%
Media totale (Programma / Settaggio)
-29% / -29%
64% / 64%
-28% / -28%
2% / 2%
-39% / -39%
-37% / -37%
53% / 53%
3DMark 06 Score 1366x768
25274 punti
3DMark Vantage P Result
24874 punti
3DMark 11 Performance
6723 punti
3DMark Ice Storm Standard Score
127954 punti
3DMark Cloud Gate Standard Score
21960 punti
3DMark Fire Strike Score
4002 punti
3DMark Fire Strike Extreme Score
2090 punti
3DMark Time Spy Score
1591 punti
Aiuto

Prestazioni di gioco

La nostra specifica di recensione Maxtang MTN-FP750 gode solo di un'idoneità limitata per il gioco. La relativamente potente AMD Radeon 680M non riesce a fornire tutta la sua potenza. Pertanto, consigliamo l'installazione di due moduli RAM per ottenere le massime prestazioni. Una linea guida approssimativa per quanto riguarda le prestazioni di gioco si può trovare nella forma di Geekom AS 6.

Per ulteriori confronti e benchmark, dia un'occhiata al nostro Elenco di giochi con GPU.

The Witcher 3
1024x768 Low Graphics & Postprocessing
Geekom AS 6, R9 6900HX
Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G
107.7 fps +48%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
97.2 fps +33%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
86.9 fps +19%
Geekom A5
Vega 8, R7 5800H, Lexar NM620 512GB
85.6 (16min, 36.2P0.1, 60.2P1) fps +17%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
80.8 fps +11%
NiPoGi AD08
UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530
74 (26min, 29.9P0.1, 42.4P1) fps +1%
Maxtang MTN-FP750
Radeon 680M, R7 7735HS, Foresee VP1000F512G
73 (13.3min, 24.8P0.1, 40.9P1) fps
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Geekom AS 6, R9 6900HX
Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G
39.3 fps +66%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
32 fps +35%
NiPoGi AD08
UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530
30.2 (5.17min, 14.7P0.1, 16.3P1) fps +27%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
28.9 fps +22%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
26.2 fps +11%
Geekom A5
Vega 8, R7 5800H, Lexar NM620 512GB
26 (20.8min, 21.4P0.1, 22.6P1) fps +10%
Maxtang MTN-FP750
Radeon 680M, R7 7735HS, Foresee VP1000F512G
23.7 (12.8min, 13.7P0.1, 19P1) fps
Borderlands 3
1280x720 Very Low Overall Quality (DX11)
Geekom A5
Vega 8, R7 5800H, Lexar NM620 512GB
68 fps +17%
Geekom AS 6, R9 6900HX
Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G
66.4 fps +14%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
59.1 fps +2%
Maxtang MTN-FP750
Radeon 680M, R7 7735HS, Foresee VP1000F512G
58.2 fps
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
51.8 fps -11%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
46 fps -21%
NiPoGi AD08
UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530
42.2 fps -27%
1920x1080 High Overall Quality (DX11)
Geekom AS 6, R9 6900HX
Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G
26.2 fps +67%
Geekom A5
Vega 8, R7 5800H, Lexar NM620 512GB
16.4 fps +4%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
16.2 fps +3%
Maxtang MTN-FP750
Radeon 680M, R7 7735HS, Foresee VP1000F512G
15.7 fps
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
14.8 fps -6%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
12.1 fps -23%
NiPoGi AD08
UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530
11.2 fps -29%
GTA V
1024x768 Lowest Settings possible
Geekom A5
Vega 8, R7 5800H, Lexar NM620 512GB
140.1 (17.4min, 90.9P1) fps +47%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
135.3 (26.7min, 90.9P1) fps +42%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
129.9 (16.1min, 83.3P1) fps +36%
Geekom AS 6, R9 6900HX
Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G
125.5 (11.9min, 83.3P1) fps +31%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
119.3 (25.1min, 76.9P1) fps +25%
NiPoGi AD08
UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530
118.3 (10.2min, 76.9P1) fps +24%
Maxtang MTN-FP750
Radeon 680M, R7 7735HS, Foresee VP1000F512G
95.5 (8.24min, 62.5P1) fps
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Geekom AS 6, R9 6900HX
Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G
49.2 (13.3min, 33.3P1) fps +74%
Geekom A5
Vega 8, R7 5800H, Lexar NM620 512GB
35.1 (10.8min, 25.6P1) fps +24%
Maxtang MTN-FP750
Radeon 680M, R7 7735HS, Foresee VP1000F512G
28.2 (4.09min, 18.5P1) fps
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
21 (8.15min, 16.1P1) fps -26%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
18.6 (8min, 14.3P1) fps -34%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
18.5 (6.9min, 14.3P1) fps -34%
NiPoGi AD08
UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530
16.9 (5.82min, 13P1) fps -40%
Far Cry 5
1280x720 Low Preset AA:T
Geekom AS 6, R9 6900HX
Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G
68 (58min) fps +48%
Geekom A5
Vega 8, R7 5800H, Lexar NM620 512GB
62 (56min) fps +35%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
57 (49min) fps +24%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
50 (41min) fps +9%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
50 (44min) fps +9%
NiPoGi AD08
UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530
46 (38min) fps 0%
Maxtang MTN-FP750
Radeon 680M, R7 7735HS, Foresee VP1000F512G
46 (37min) fps
1920x1080 High Preset AA:T
Geekom AS 6, R9 6900HX
Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G
38 (32min) fps +73%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
27 (24min) fps +23%
Geekom A5
Vega 8, R7 5800H, Lexar NM620 512GB
27 (24min) fps +23%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
25 (22min) fps +14%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
22 (19min) fps 0%
Maxtang MTN-FP750
Radeon 680M, R7 7735HS, Foresee VP1000F512G
22 (19min) fps
NiPoGi AD08
UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530
21 (18min) fps -5%
Far Cry New Dawn
1280x720 Low Preset
Geekom AS 6, R9 6900HX
Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G
58 (46min) fps +45%
Geekom A5
Vega 8, R7 5800H, Lexar NM620 512GB
56 (43min) fps +40%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
52 (31min) fps +30%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
48 (32min) fps +20%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
46 (28min) fps +15%
NiPoGi AD08
UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530
45 (29min) fps +13%
Maxtang MTN-FP750
Radeon 680M, R7 7735HS, Foresee VP1000F512G
40 (23min) fps
1920x1080 High Preset
Geekom AS 6, R9 6900HX
Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G
36 (29min) fps +71%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
28 (21min) fps +33%
Geekom A5
Vega 8, R7 5800H, Lexar NM620 512GB
27 (22min) fps +29%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
25 (19min) fps +19%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
23 (17min) fps +10%
NiPoGi AD08
UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530
22 (16min) fps +5%
Maxtang MTN-FP750
Radeon 680M, R7 7735HS, Foresee VP1000F512G
21 (8min) fps
Dota 2 Reborn
1280x720 min (0/3) fastest
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
136.9 (106.8min) fps +18%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
134.7 (102.1min) fps +16%
Geekom A5
Vega 8, R7 5800H, Lexar NM620 512GB
129.5 (112.6min) fps +12%
Maxtang MTN-FP750
Radeon 680M, R7 7735HS, Foresee VP1000F512G
115.8 (101.2min) fps
NiPoGi AD08
UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530
112.4 (89min) fps -3%
Geekom AS 6, R9 6900HX
Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G
110.5 (93.1min) fps -5%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
108.1 (86.6min) fps -7%
1920x1080 high (2/3)
Geekom AS 6, R9 6900HX
Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G
69.6 (59.3min) fps +15%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
68 (62.7min) fps +12%
Geekom A5
Vega 8, R7 5800H, Lexar NM620 512GB
67.7 (59.9min) fps +12%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
60.9 (55.7min) fps +1%
Maxtang MTN-FP750
Radeon 680M, R7 7735HS, Foresee VP1000F512G
60.5 (53.8min) fps
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
57.8 (54.5min) fps -4%
NiPoGi AD08
UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530
55 (51.6min) fps -9%
bassomedioaltoultra
GTA V (2015) 95.5 85.7 28.2 12.7
The Witcher 3 (2015) 73 46.7 23.7 14.9
Dota 2 Reborn (2015) 115.8 87.4 60.5 53.1
Final Fantasy XV Benchmark (2018) 39.2 20.5 14.6
X-Plane 11.11 (2018) 49.8 39.8 33.8
Far Cry 5 (2018) 46 25 22 21
Strange Brigade (2018) 78.4 31.4 26.7 23.1
Shadow of the Tomb Raider (2018) 53.3 21.8 19.8 16.4
Far Cry New Dawn (2019) 40 23 21 20
Metro Exodus (2019) 43.1 17.6 13.8 11.7
Borderlands 3 (2019) 58.2 24.8 15.7 12.5
F1 2020 (2020) 96.9 49.8 39.1 27.5
F1 2021 (2021) 97 49.8 36.4 16.7
God of War (2022) 19.5 15.9 11.7
GRID Legends (2022) 58.2 45 34.2 26.6
Tiny Tina's Wonderlands (2022) 37.7 28.2 20.2 16.2
F1 22 (2022) 45.6 40.6 32.1 9.25
F1 23 (2023) 45.3 40.1 29.1
Total War Pharaoh (2023) 43.3 33.3 21.6 16.9
Prince of Persia The Lost Crown (2024) 89.3 58.8 58.4

Emissioni - Economiche ma non impercettibili

Emissioni di rumore

Senza essere stressato, il Maxtang MTN-FP750 è, per la maggior parte, silenzioso. Tuttavia, sotto carico, abbiamo raggiunto rapidamente i 45 dB(A) e siamo stati in grado di distinguere solo una differenza minima tra carico medio e pieno. Ma possiamo dire che questo rientra nella tolleranza di misurazione. È un peccato che ci siano solo due livelli di ventole. Dando un'occhiata alla tabella, si nota che entrambi i modelli di Geekom A5 e il NiPoGi AD08 erano ancora più rumorosi nello stesso scenario.

Rumorosità

Idle
25.3 / 25.3 / 25.4 dB(A)
Sotto carico
45.1 / 45.3 dB(A)
  red to green bar


30 dB
silenzioso
40 dB(A)
udibile
50 dB(A)
rumoroso

min: dark, med: mid, max: light   Earthworks M23R (15 cm di distanza)   Rumorosità ambientale: 25 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2040.6383839.239.140.937.840.62536.8373738.837.139.142.136.83138.336.936.940.138.138.438.338.34031.328.328.328.928.126.428.131.35030.932.132.131.332.833.13330.96328.328.528.528.928.228.128.128.38024.420.320.321.121.523.822.424.410021.718.318.319.317.818.117.421.712521.819.319.316.816.715.613.821.816020.5171714.711.211.41220.520021.519.819.8131310.211.321.525022.421.921.911.111.39.310.422.431522.722.322.311.91210.110.922.740023.4242412.311.59.610.423.450025.526.626.610.710.39.712.125.563028.3292910.310.89.710.628.380031.831.631.61212.71210.431.8100032.932.932.911.610.911.310.732.9125034.1343411.210.711.110.934.1160038.638.138.111.811.311.511.238.6200036.235.835.812.512.312.312.136.2250033.233.133.11312.91312.433.2315036.9373714.113.71413.136.9400031.1313114.113.814.11431.1500026.225.525.514.11414.31426.2630024.924.524.514.814.814.714.424.9800021.321.121.114.714.714.914.621.31000018.518.418.415.415.215.414.918.5125001817.417.415.315.415.315.2181600017.418.718.715.615.515.615.417.4SPL45.345.145.125.425.325.32545.3N4.34.34.30.60.60.60.64.3median 24.9median 24.5median 24.5median 13median 12.9median 12.3median 12.1median 24.9Delta5.56.96.91.71.82.31.95.5hearing rangehide median Fan NoiseMaxtang MTN-FP750
Maxtang MTN-FP750
R7 7735HS, Radeon 680M
Minisforum Neptune Series NAD9
i9-12900H, Iris Xe G7 96EUs
Geekom AS 6, R9 6900HX
R9 6900HX, Radeon 680M
Geekom Mini IT12
i7-1260P, Iris Xe G7 96EUs
Geekom A5
R7 5800H, Vega 8
Minisforum Venus Series NAB6
i7-12650H, UHD Graphics 64EUs
NiPoGi AD08
i7-12650H, UHD Graphics 64EUs
Noise
-3%
-14%
-3%
-7%
-4%
-14%
off /ambiente *
25
30.2
-21%
30
-20%
29.8
-19%
25
-0%
29.4
-18%
25
-0%
Idle Minimum *
25.3
30.5
-21%
33.2
-31%
29.9
-18%
28.2
-11%
29.4
-16%
31.1
-23%
Idle Average *
25.3
30.5
-21%
33.6
-33%
30.1
-19%
28.2
-11%
29.5
-17%
31.2
-23%
Idle Maximum *
25.4
30.5
-20%
33.6
-32%
30.2
-19%
28.2
-11%
29.7
-17%
31.3
-23%
Load Average *
45.1
30.5
32%
36.8
18%
32.1
29%
47.8
-6%
34.6
23%
51.7
-15%
Load Maximum *
45.3
30.5
33%
39.8
12%
32.5
28%
47.4
-5%
36.1
20%
45.8
-1%

* ... Meglio usare valori piccoli

Temperatura

Il case del Maxtang MTN-FP750 si riscalda solo in minima parte, sia quando è inattivo che sotto carico. Abbiamo osservato un hotspot sulla parte superiore dell'unità, che misura solo poco meno di 40 °C, mentre la parte inferiore del dispositivo non ha raggiunto nemmeno i 35 °C. Tuttavia, il SoC si scalda notevolmente, anche se, con quasi 80 °C, eravamo ancora nella zona verde. Inoltre, il produttore ha impostato una temperatura massima di 90 °C nel BIOS. Non siamo comunque riusciti a raggiungerla con il limite di potenza preimpostato di 35 watt.

Stress test Prime95, in solitaria
Stress test Prime95, in solitaria
Stress test FurMark, in solitaria
Stress test FurMark, in solitaria
Stress test Prime95 + FurMark
Stress test Prime95 + FurMark
Maxtang MTN-FP750 - test di stress (in alto)
Maxtang MTN-FP750 - test di stress (in alto)
Maxtang MTN-FP750 - test di stress (in basso)
Maxtang MTN-FP750 - test di stress (in basso)
Carico massimo
 31.8 °C31.5 °C32.6 °C
 28.8 °C33.8 °C39.7 °C
 34.9 °C35.5 °C36.4 °C
Massima: 39.7 °C
Media: 33.9 °C
31.3 °C29.9 °C31 °C
34.3 °C31.2 °C31.6 °C
34.2 °C33.8 °C33 °C
Massima: 34.3 °C
Media: 32.3 °C
Alimentazione (max)  38.2 °C | Temperatura della stanza 21.9 °C | Fluke t3000FC (calibrated)
(±) La temperatura media del lato superiore sotto carico massimo e' di 33.9 °C / 93 F, rispetto alla media di 32.1 °C / 90 F per i dispositivi di questa classe Mini PC.
(+) La temperatura massima sul lato superiore è di 39.7 °C / 103 F, rispetto alla media di 35.8 °C / 96 F, che varia da 24 a 69.5 °C per questa classe Mini PC.
(+) Il lato inferiore si riscalda fino ad un massimo di 34.3 °C / 94 F, rispetto alla media di 36.3 °C / 97 F
(+) In idle, la temperatura media del lato superiore è di 29.4 °C / 85 F, rispetto alla media deld ispositivo di 32.1 °C / 90 F.

Consumo di energia

Nel nostro confronto, il Maxtang MTN-FP750 appartiene ai dispositivi più economici. In funzionamento al minimo, abbiamo già registrato un consumo energetico molto basso, pari a soli 7-8,4 watt. Solo il Geekom A5 e il Geekom Mini IT12 possono tenere il passo con punteggi altrettanto bassi. Sotto carico, il nostro campione in esame ha continuato a rimanere relativamente economico, con il nostro dispositivo di misurazione che ha registrato un picco di soli 61,4 watt. Considerando i limiti di potenza del processore, non si tratta di requisiti energetici particolarmente sorprendenti sotto carico.

Ciò significa che l'alimentatore da 90 watt non ha mai problemi a fornire al mini PC energia sufficiente in modo affidabile. L'alimentatore può anche gestire senza problemi la regolazione manuale del consumo energetico.

Maxtang MTN-FP750 e la sua PSU (19 V; 4,74 A)
Maxtang MTN-FP750 e la sua PSU (19 V; 4,74 A)
PSU (19 V; 4,74 A)
PSU (19 V; 4,74 A)
Consumo di corrente
Off / Standbydarklight 0.95 / 0.75 Watt
Idledarkmidlight 7 / 8.1 / 8.4 Watt
Sotto carico midlight 54.2 / 61.4 Watt
 color bar
Leggenda: min: dark, med: mid, max: light        Metrahit Energy
Maxtang MTN-FP750
R7 7735HS, Radeon 680M
Minisforum Neptune Series NAD9
i9-12900H, Iris Xe G7 96EUs
Geekom AS 6, R9 6900HX
R9 6900HX, Radeon 680M
Geekom Mini IT12
i7-1260P, Iris Xe G7 96EUs
Geekom A5
R7 5800H, Vega 8
Minisforum Venus Series NAB6
i7-12650H, UHD Graphics 64EUs
NiPoGi AD08
i7-12650H, UHD Graphics 64EUs
Media AMD Radeon 680M

Media della classe Mini PC

Power Consumption
-73%
-23%
-2%
-12%
-50%
-107%
-8%
-45%
Idle Minimum *
7
12.1
-73%
6.8
3%
5
29%
6.9
1%
10.4
-49%
14.2
-103%
Idle Average *
8.1
13
-60%
9.4
-16%
7
14%
7.9
2%
12.3
-52%
15.1
-86%
Idle Maximum *
8.4
18.2
-117%
13.7
-63%
10.7
-27%
8.9
-6%
12.4
-48%
28.7
-242%
10.3 ?(5.1 - 18.6, n=32)
-23%
Load Average *
54.2
70.6
-30%
45.3
16%
50.3
7%
60.8
-12%
72.9
-35%
76.9
-42%
Load Maximum *
61.4
113
-84%
94.8
-54%
82
-34%
89.7
-46%
101.2
-65%
100.2
-63%
70.3 ?(48 - 103.2, n=32)
-14%

* ... Meglio usare valori piccoli

Power consumption with an external monitor

05101520253035404550556065707580859095Tooltip
Maxtang MTN-FP750 Radeon 680M, R7 7735HS, Foresee VP1000F512G; Prime95 V2810 Stress (external Monitor): Ø60.8 (60.4-61.4)
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530; Prime95 V2810 Stress (external Monitor): Ø76.4 (66.8-99.1)
Maxtang MTN-FP750 Radeon 680M, R7 7735HS, Foresee VP1000F512G; Cinebench R15 Multi (external Monitor): Ø55.8 (54.7-56.4)
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530; Cinebench R15 Multi (external Monitor): Ø91.3 (90.8-91.9)
Maxtang MTN-FP750 Radeon 680M, R7 7735HS, Foresee VP1000F512G; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø57.3 (55.4-61)
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø59.8 (56.9-71.5)
Maxtang MTN-FP750 Radeon 680M, R7 7735HS, Foresee VP1000F512G; Idle 1min (external Monitor): Ø8.48 (2.87-15.8)
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530; Idle 1min (external Monitor): Ø22.3 (12.4-25.4)
Maxtang MTN-FP750 Radeon 680M, R7 7735HS, Foresee VP1000F512G; Cinebench R23 Single (external Monitor): Ø34.2 (31.9-51.8)
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530; Cinebench R23 Single (external Monitor): Ø58.1 (55.9-85.1)
Maxtang MTN-FP750 Radeon 680M, R7 7735HS, Foresee VP1000F512G; Cinebench R23 Multi (external Monitor): Ø56.2 (54.9-57)
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530; Cinebench R23 Multi (external Monitor): Ø79.7 (26.6-92.6)

Pro

+ robusto chassis in metallo
+ AMD Ryzen 7 con 8 core e 16 thread
+ AMD Radeon 680M
+ 2.lAN 5G
+ Opzione di montaggio VESA
+ facile da aprire
+ bassi requisiti energetici

Contro

- un solo modulo RAM
- SoC privo di turbo (PL1 e PL2 da 35 watt)
- udibile sotto carico
- nessuna porta USB4

Verdetto - Prestazioni migliori ma solo dopo l'ottimizzazione

Recensione Maxtang MTN-FP750: fornita da Maxtang
Recensione Maxtang MTN-FP750: fornita da Maxtang

Maxtang MTN-FP750 è un mini PC relativamente semplice da usare a casa o sul posto di lavoro. Il processore AMD Ryzen 7 7735HS offre una potenza sufficiente per gestire la maggior parte dei compiti. I suoi 8 core e 16 thread rendono il mini PC adatto alle applicazioni che richiedono prestazioni elevate. La RAM installata è di 16 GB, il che non pone alcun problema per il momento. Tuttavia, quando si arriva al dunque, l'uso di un singolo modulo RAM ha dato i suoi frutti, nonostante Maxtang MTN-FP750 consenta l'installazione di moduli SO-DIMM. Questo significa che, nei test, Maxtang MTN-FP750 non ha fornito il tipo di prestazioni che ci saremmo aspettati. Le differenze di prestazioni più evidenti si riscontrano nei benchmark 3D. Questo problema può essere evitato installando un modulo RAM aggiuntivo e, senza dubbio, è un aspetto a cui i clienti dovrebbero prestare attenzione.

Secondo la scheda tecnica, Maxtang MTN-FP750 offre prestazioni eccellenti. Tuttavia, nei test, il mini PC non è riuscito a fornire la potenza promessa.

Il più grande vantaggio di Maxtang MTN-FP750 è il suo prezzo basso rispetto alla concorrenza presentata qui nel nostro confronto. Le prestazioni sono leggermente peggiori, a meno che non si prenda in mano la situazione e non si possano regolare i limiti di potenza del SoC. A nostro avviso, il limite di potenza definito di 35 watt è un po' troppo conservativo. Con 45 watt, il produttore avrebbe potuto trovare un buon compromesso. Lo stesso vale per la RAM, che può essere espansa con un secondo modulo. Se si considerano entrambi questi punti, dal punto di vista delle prestazioni, si tratta di un Maxtang MTN-FP750 completamente diverso da quello che abbiamo testato.

La selezione delle porte può essere descritta come solida. Tutte quelle importanti sono presenti a bordo, ma questo è tutto. Thunderbolt o USB4 sono assenti, il che limita leggermente il numero di casi d'uso. Un effetto collaterale positivo dell'avere una CPU con limitazioni di prestazioni è il fabbisogno energetico di Maxtang MTN-FP750. Nei test, questo dispositivo è risultato significativamente più economico rispetto ai suoi concorrenti. Sfortunatamente, questo non ha influenzato positivamente il rumore relativamente forte della ventola. Un concetto di raffreddamento leggermente migliore avrebbe portato a punteggi migliori in quest'area.

Prezzo e disponibilità

Nella configurazione della nostra recensione, il Maxtang MTN-FP750 può essere acquistato per 440 dollari USA direttamente dal produttore.

Maxtang MTN-FP750 - 02/27/2024 v7 (old)
Sebastian Bade

Chassis
74 / 98 → 76%
Connettività
56 / 81 → 70%
Peso
82%
Prestazioni di gioco
64%
Prestazioni Applicazioni
93%
Workstation
67%
Temperatura
91%
Rumorosità
84%
Media
76%
80%
Mini PC - Media ponderata

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Please share our article, every link counts!
> Recensioni e prove di notebook, tablets e smartphones > Recensioni e prove > Recensioni e prove > Recensione del mini PC Maxtang MTN-FP750: AMD Ryzen 7 7735HS rallentato da una configurazione mal concepita
Sebastian Bade, 2024-02-11 (Update: 2024-02-11)
