Recensione del Geekom AS 6: Il mini PC definitivo per professionisti e gamers con Ryzen 9 6900HX e Radeon 680M

Name: Geekom AS 6, R9 6900HX
Brand: Geekom

Intel NUC 13 Pro sfidante!

Il Geekom AS 6 è entrato nell'arena come successore dell'AS 5 e questo piccolo dispositivo è davvero potente. L'AMD Ryzen 9 6900HX fornisce la potenza necessaria e la sua potente iGPU è sufficiente per le sessioni di gioco occasionali. Ma non è tutto: il Geekom AS 6 ha molto altro da offrire. Potete leggere tutto ciò che è importante in questa recensione.

Sebastian Bade (traduzione a cura di DeepL / Ninh Duy), Published 07/10/2023 🇺🇸 🇩🇪 ...

AMD Mini PC Desktop Radeon Thunderbolt Gaming

Per quanto riguarda i mini PC, Geekom sembra rilasciare i propri modelli in un colpo solo, visto che appena dopo la nostra recensione delGeekom AS 5è già tempo di dare un'occhiata al modello AS 6 del produttore taiwanese. Questo modello è dotato di un SoC più recente e di migliori opzioni di connettività. Il nostro dispositivo di prova ha unAMD Ryzen 9 6900HXcon 32 GB di RAM DDR5 e un'unità SSD da 1 TB. È possibile preordinare l'intero pacchetto a soli 749 dollari, mentre il suo MRSP è di ben 1.009 dollari. La collaborazione con Asus rimane anche per questo modello, poiché il Geekom AS 6 e l'Asus ExpertCenter PN53 sono costruiti allo stesso modo. Tuttavia, il modello Asus è notevolmente più costoso. Per il mini PC con soli 16 GB di RAM e un SSD da 512 GB, il prezzo è già di circa 1.000 dollari. Se volete risparmiare ancora di più, potete dare un'occhiata al Geekom AS 6 con un processoreAMD Ryzen 7 6800H. Questo modello presenta la stessa RAM e lo stesso SSD del nostro esemplare di prova, ma costa solo 689 dollari. Al momento non sono disponibili altre configurazioni, il che include anche l'assenza di un modello barebone.

Il Intel NUC 13 Pro può essere considerato il principale concorrente del Geekom PC. Abbiamo già testato questo dispositivo, dotato di un Intel Core i7-1360P, ma esistono molti altri concorrenti altrettanto potenti, che abbiamo riassunto nella tabella seguente.

Dispositivo di test fornito da Geekom

Scarica la tua immagine come PNG / SVG

Geekom AS 6, R9 6900HX

Processore

AMD Ryzen 9 6900HX 8 x 3.3 - 4.9 GHz, 54 W PL2 / Short Burst, 35 W PL1 / Sustained, Rembrandt-H (Zen 3+)

Scheda grafica

AMD Radeon 680M, Adrenalin 23.5.2

Memoria

32 GB

, DDR5-4800, 2 von 2 installiert, max. 64 GB

Scheda madre

AMD Promontory/Bixby FCH

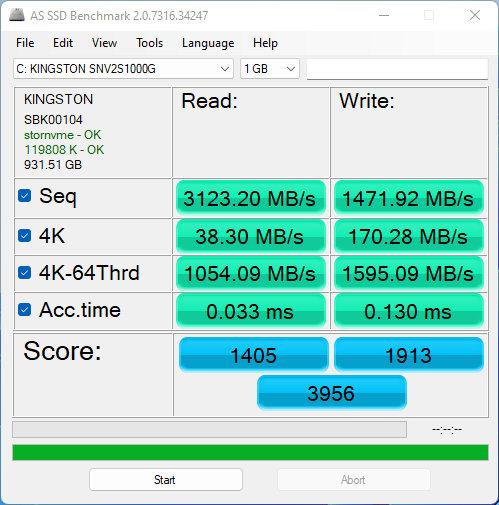

Harddisk

Kingston NV2 1000GB SNV2S/1000G, 1000 GB

, M.2 2280, NVME, 920 GB libera

Scheda audio

AMD Zen - Audio Processor - HD Audio Controller

Porte di connessione

5 USB 3.0 / 3.1, 1 USB 3.1 Gen 2, 1 USB 4.0 40 Gbps, 1 Thunderbolt, 2 HDMI, 2 DisplayPort, 1 Kensington Lock, Connessioni Audio: 3,5mm Klinke

Rete

Realtek RTL8125 2.5GBe Family Ethernet Controller (10/100/1000/2500MBit/s), MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2

Dimensioni

altezza x larghezza x profondità (in mm): 58 x 130 x 120

Sistema Operativo

Microsoft Windows 11 Pro

Altre caratteristiche

150-Watt-Netzteil, VESA-Mount Halteplatte, 24 Mesi Garanzia

Peso

753 gr, Alimentazione: 350 gr

Prezzo

769 EUR

Nota: il produttore potrebbe usare componenti di fornitori diversi pannelli dei diplay, drive o banchi di memoria con specifiche simili.

guarda tutte le specifiche

Potenziali concorrenti a confronto

Punteggio	Data	Modello	Peso	Altezza
82.8 % v7 ^(old)	07/2023	Geekom AS 6, R9 6900HX R9 6900HX, Radeon 680M	753 gr	58 mm
80.8 % v7 ^(old)	04/2023	Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs	538 gr	37 mm
79.5 % v7 ^(old)	07/2023	Geekom AS 5 R9 5900HX, Vega 8	742 gr	58 mm
82.3 % v7 ^(old)	05/2023	Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs	572 gr	45.6 mm
81.9 % v7 ^(old)	05/2023	Minisforum Venus Series NAB6 i7-12650H, UHD Graphics 64EUs	616 gr	55 mm
85.5 % v7 ^(old)	03/2023	Morefine M600, 6900HX R9 6900HX, Radeon 680M	779 gr	40.6 mm
85.1 % v7 ^(old)	01/2023	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	1.2 kg	66 mm
83.7 % v7 ^(old)	05/2023	Morefine M600, 6600U R5 6600U, Radeon 660M	768 gr	40.6 mm

Il Geekom AS 6 in dettaglio

Caso

Visivamente, il Geekom AS 6 è identico al Geekom AS 5.Geekom AS 5. Anche la collaborazione con Asus non è un segreto, come si può notare dalla struttura del dispositivo. È anche identico alAsus ExpertCenter PN53. Il suo ingombro di 13 x 12 centimetri è piuttosto ridotto. Tuttavia, ci sono anche dispositivi più piccoli sul mercato. Il Geekom AS 6 pesa 753 grammi, il che significa che è solo minimamente più pesante dell'AS 5. Non abbiamo notato alcun problema nella sua qualità costruttiva. D'altra parte, i materiali utilizzati non sono esattamente di altissima qualità, in quanto l'intero case è realizzato in materiale plastico di base. Tuttavia, l'interno è rinforzato dal metallo, che rende la custodia molto più stabile. Non abbiamo notato alcun difetto o problema sul nostro dispositivo di prova.

Il Geekom AS 6 può essere fissato a un monitor tramite il supporto VESA in dotazione, una soluzione piuttosto comune per i mini PC.

Confronto delle dimensioni

Minisforum Neptune Series NAD9 Geekom AS 6, R9 6900HX Geekom AS 5 Morefine M600, 6900HX Morefine M600, 6600U Minisforum Venus Series NAB6 Geekom Mini IT12 Intel NUC 13 Pro Kit NUC13ANK DIN A4 ❌

Connettività

A causa delle già citate somiglianze con ilGeekom AS 5il Geekom AS 6 presenta anche opzioni di connettività simili. Tra queste vi sono sette porte USB, il che significa che il modello più recente continua a essere equipaggiato in modo eccellente. Dispone inoltre di due porte HMDI e di una connessione DisplayPort che, in combinazione con la porta USB-C posteriore, consente di collegare quattro schermi contemporaneamente. La porta USB-C sul lato anteriore è la più utile. Offre velocità USB 4 e supporta Thunderbolt, il che significa che gli usi del Geekom AS 6 possono essere notevolmente ampliati con l'aiuto dei giusti dispositivi esterni.

Le porte esterne del Geekom AS 6 (fonte: Geekom)

Comunicazione

Geekom ha installato nell'AS 6 lo stesso modulo Wi-Fi 6E AX211 già presente nell'AS 5. Le velocità di trasferimento sono quasi identiche. Tuttavia, la velocità di trasmissione a 6 GHz è leggermente superiore a quella dei suoi concorrenti. Il Geekom AS 6 ha faticato un po' di più con la frequenza di 5-GHz e ha dovuto ammettere la sconfitta nei confronti del Minisforum Neptune Series NAD9nel nostro test. Rispetto all'Intel NUC 13 Pro, il nostro campione di prova si è comportato molto bene. Per questo test abbiamo utilizzato un Asus ROG Rapture GT-AXE11000 come router di prova. In alternativa è possibile collegarsi a Internet tramite la porta Ethernet, che può raggiungere velocità di trasferimento fino a 2,5 Gbit/s.

Networking
iperf3 receive AXE11000 6GHz
Geekom AS 5 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1771 (1758^min - 1782^max) MBit/s +3%
Geekom AS 6, R9 6900HX MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1719 (1695^min - 1733^max) MBit/s
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	1668 (1467^min - 1725^max) MBit/s -3%
Geekom Mini IT12 Intel Wi-Fi 6E AX211	1519 (1392^min - 1699^max) MBit/s -12%
Media MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (684 - 1771, n=39)	1433 MBit/s -17%
Media della classe Mini PC (684 - 1771, n=53, ultimi 2 anni)	1381 MBit/s -20%
Morefine M600, 6600U MediaTek RZ608	957 (943^min - 967^max) MBit/s -44%
Minisforum Venus Series NAB6 MediaTek RZ608	791 (776^min - 799^max) MBit/s -54%
iperf3 transmit AXE11000 6GHz
Geekom AS 5 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1764 (1647^min - 1826^max) MBit/s +9%
Geekom Mini IT12 Intel Wi-Fi 6E AX211	1622 (1561^min - 1670^max) MBit/s +1%
Geekom AS 6, R9 6900HX MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1611 (1514^min - 1705^max) MBit/s
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	1445 (736^min - 1476^max) MBit/s -10%
Media MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (394 - 1800, n=38)	1399 MBit/s -13%
Media della classe Mini PC (394 - 1800, n=53, ultimi 2 anni)	1328 MBit/s -18%
Minisforum Venus Series NAB6 MediaTek RZ608	919 (853^min - 980^max) MBit/s -43%
Morefine M600, 6600U MediaTek RZ608	765 (718^min - 814^max) MBit/s -53%
iperf3 receive AXE11000
Media MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (707 - 1775, n=55)	1397 MBit/s +46%
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1318 (663^min - 1363^max) MBit/s +37%
Geekom AS 6, R9 6900HX MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	959 (947^min - 969^max) MBit/s
Morefine M600, 6600U MediaTek RZ608	948 (934^min - 957^max) MBit/s -1%
Geekom Mini IT12 Intel Wi-Fi 6E AX211	943 (923^min - 960^max) MBit/s -2%
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	939 (921^min - 952^max) MBit/s -2%
Media della classe Mini PC (192.9 - 1796, n=113, ultimi 2 anni)	932 MBit/s -3%
Morefine M600, 6900HX MediaTek RZ608	929 (874^min - 946^max) MBit/s -3%
Geekom AS 5 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	870 (788^min - 885^max) MBit/s -9%
Minisforum Venus Series NAB6 MediaTek RZ608	787 (752^min - 801^max) MBit/s -18%
iperf3 transmit AXE11000
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1320 (1165^min - 1353^max) MBit/s +58%
Media MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (358 - 1785, n=55)	1279 MBit/s +53%
Morefine M600, 6900HX MediaTek RZ608	964 (924^min - 990^max) MBit/s +16%
Geekom Mini IT12 Intel Wi-Fi 6E AX211	918 (892^min - 938^max) MBit/s +10%
Media della classe Mini PC (184.1 - 1776, n=113, ultimi 2 anni)	864 MBit/s +4%
Geekom AS 5 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	838 (749^min - 923^max) MBit/s 0%
Geekom AS 6, R9 6900HX MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	834 (769^min - 893^max) MBit/s
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	833 (805^min - 866^max) MBit/s 0%
Morefine M600, 6600U MediaTek RZ608	784 (381^min - 874^max) MBit/s -6%
Minisforum Venus Series NAB6 MediaTek RZ608	626 (301^min - 689^max) MBit/s -25%

Geekom AS 6, R9 6900HX; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1611 (1514-1705)

Geekom AS 6, R9 6900HX; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1718 (1695-1733)

Geekom AS 6, R9 6900HX; iperf3 receive AXE11000; iperf 3.1.3: Ø958 (947-969)

Geekom AS 6, R9 6900HX; iperf3 transmit AXE11000; iperf 3.1.3: Ø834 (769-893)

Accessori

Il mini PC viene fornito con un alimentatore da 150 watt e una piastra di montaggio per collegare il dispositivo a un monitor (montaggio VESA). Sono inclusi anche un cavo HDMI, un breve manuale di istruzioni e alcune viti.

Manutenzione

Il Geekom AS 6 può essere aperto dal basso. Il case è tenuto insieme da una moltitudine di piccole viti situate all'interno dei piedini in gomma del dispositivo. Il cuscinetto termoconduttivo dell'SSD crea un po' di resistenza quando si apre il PC. I componenti installati possono essere facilmente accessibili e sostituiti o aggiornati se necessario. Il Geekom AS 6 può ospitare fino a tre SSD.

Prestazioni - un AMD Ryzen 9 6900HX con una Radeon 680M come iGPU

Il Geekom AS 6 è stato equipaggiato con unAMD Ryzen 9 6900HX - un moderno SoC con una veloce iGPU. Le sue prestazioni aumentano grazie alla AMD Radeon 680Mlo porta ad avere prestazioni migliori rispetto alGeekom AS 5che ha dovuto accontentarsi di unaAMD Radeon RX Vega 8. È ben equipaggiato con 32 GB di RAM e il suo SSD da 1 TB dovrebbe essere più che sufficiente per la maggior parte degli utenti.

Condizioni di test

Abbiamo eseguito tutti i nostri test sulle prestazioni utilizzando il profilo "Highest Performance". Le prestazioni del SoC non sono state modificate nel BIOS e sono state lasciate nello stato in cui sono state fornite, secondo le impostazioni del produttore.

Processore

IlAMD Ryzen 9 6900HXè la potenza del Geekom AS 6 e offre buone prestazioni multi-core grazie ai suoi 8 core e 16 thread. Rispetto alGeekom AS 5che è dotato di unAMD Ryzen 9 5900HXil modello più recente non riesce a spremere molte più prestazioni dal SoC. Entrambi i dispositivi sono quasi ugualmente veloci. Lo stesso si può dire confrontandolo con il modelloMorfine M600, anch'esso dotato di AMD Ryzen 9 6900HX.

Per quanto riguarda le prestazioni pure della CPU, il rivale Intel non è riuscito a tenere il passo. Tuttavia, c'erano solo 5 punti percentuali tra il Intel NUC 13 Pro e le prestazioni del Geekom AS 6, che riflette la media di tutti i benchmark della CPU. Intel, con il suo Core i7-1360P, ha ottenuto il miglior risultato totale grazie alle sue migliori prestazioni single-core. Tuttavia, è probabile che nell'uso quotidiano non si notino queste piccole differenze.

Nei benchmark AIDA64, il Geekom AS 6 ha dimostrato chiaramente di avere un SoC potente. D'altra parte, abbiamo notato che quasi tutti i sistemi basati su AMD hanno fatto molto meglio della concorrenza. A questo punto, il Geekom AS 6 è riuscito ad assicurarsi il primo posto.

Potete trovare altri benchmark dei processori qui.

Performance Rating - Percent
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	51.8 pt
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	50.9 pt
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	50.4 pt
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	49.1 pt
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	48.9 pt
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	48.4 pt
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, 3200 MHz	48.1 pt
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	47 pt
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	44.8 pt

Cinebench R15
CPU Single 64Bit
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	271 Points +9%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	260 Points +4%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	249 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	247 Points -1%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	244 Points -2%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	241 Points -3%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	241 Points -3%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	227 Points -9%
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, 3200 MHz	203 Points -18%
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, 3200 MHz	182.7 Points -27%
CPU Multi 64Bit
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2067 Points +2%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	2030 Points 0%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	2028 Points
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	1928 Points -5%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1920 Points -5%
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, 3200 MHz	1900 Points -6%
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, 3200 MHz	1585 (1350.03^min - 1585.1^max) Points -22%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1893 Points -7%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1565 Points -23%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1361 Points -33%

Cinebench R20
CPU (Single Core)
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	736 Points +21%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	696 Points +15%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	682 Points +12%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	652 Points +7%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	607 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	600 Points -1%
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, 3200 MHz	589 Points -3%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	581 Points -4%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	558 Points -8%
CPU (Multi Core)
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	4941 Points +3%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	4887 Points +2%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	4788 Points 0%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	4781 Points 0%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	4776 Points
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, 3200 MHz	4686 Points -2%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	4574 Points -4%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	3427 Points -28%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	3419 Points -28%

Cinebench R23
Single Core
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	1909 Points +23%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1804 Points +16%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1743 Points +12%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1693 Points +9%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1550 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1533 Points -1%
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, 3200 MHz	1511 Points -3%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	1490 Points -4%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1420 Points -8%
Multi Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	13320 Points +7%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	12637 Points +1%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12486 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12375 Points -1%
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, 3200 MHz	12160 (10531^min - 12159.5^max) Points -3%
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, 3200 MHz	12151 (10485.6^min - 12151.4^max) Points -3%
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, 3200 MHz	12122 Points -3%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	12072 Points -3%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	11662 Points -7%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	8846 Points -29%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	8491 Points -32%

Cinebench R11.5
CPU Single 64Bit
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	3.3 Points +12%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	3.14 Points +7%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	2.94 Points
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	2.93 Points 0%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	2.88 Points -2%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2.86 Points -3%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	2.84 Points -3%
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, 3200 MHz	2.83 Points -4%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	2.73 Points -7%
CPU Multi 64Bit
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	25.96 Points +11%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	25.12 Points +7%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	23.66 Points +1%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	23.48 Points
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, 3200 MHz	23.02 Points -2%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	22.78 Points -3%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	22.08 Points -6%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	20.06 Points -15%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	17.15 Points -27%

Cinebench R10
Rendering Single CPUs 64Bit
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	15471 Points +28%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	14533 Points +20%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	13568 Points +12%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	12846 Points +6%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12185 Points 0%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12133 Points
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	12025 Points -1%
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, 3200 MHz	12014 Points -1%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	11685 Points -4%
Rendering Multiple CPUs 64Bit
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	77409 Points +14%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	76744 Points +13%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	69797 Points +2%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	68516 Points 0%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	68188 Points
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, 3200 MHz	67316 Points -1%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	66904 Points -2%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	54792 Points -20%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	53950 Points -21%

Blender - v2.79 BMW27 CPU
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	415 Seconds * -60%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	285 Seconds * -10%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	279 Seconds * -7%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	275 Seconds * -6%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	273 Seconds * -5%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	260 Seconds * -0%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	260 Seconds *
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, 3200 MHz	259 Seconds * -0%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	231 Seconds * +11%

wPrime 2.10
32m
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, 3200 MHz	8.216 s * -118%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	4.688 s * -25%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	4.485 s * -19%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	3.765 s *
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	3.735 s * +1%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	3.705 s * +2%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	3.642 s * +3%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	3.58 s * +5%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	3.421 s * +9%
1024m
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	410.289 s * -292%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	277.01 s * -164%
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, 3200 MHz	260.199 s * -148%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	237.123 s * -126%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	189.07 s * -80%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	146.553 s * -40%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	104.788 s *
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	103.299 s * +1%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	103.226 s * +1%

TrueCrypt
AES Mean 100MB
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	12.5 GB/s +6%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	12.3 GB/s +4%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12.1 GB/s +3%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	11.8 GB/s
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, 3200 MHz	11.5 GB/s -3%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	10.4 GB/s -12%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	10.1 GB/s -14%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	9.3 GB/s -21%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8.6 GB/s -27%
Twofish Mean 100MB
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	2.2 GB/s +29%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2 GB/s +18%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1.8 GB/s +6%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1.8 GB/s +6%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1.7 GB/s
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1.6 GB/s -6%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	1.6 GB/s -6%
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, 3200 MHz	1.5 GB/s -12%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1.3 GB/s -24%
Serpent Mean 100MB
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	1.2 GB/s +9%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1.1 GB/s 0%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1.1 GB/s 0%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	1.1 GB/s 0%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1.1 GB/s
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, 3200 MHz	1.1 GB/s 0%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1 GB/s -9%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	0.974 GB/s -11%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	0.857 GB/s -22%

Geekbench 5.5
Multi-Core
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	10574 Points +14%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9695 Points +4%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9363 Points +1%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	9278 Points
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, 3200 MHz	9277 Points 0%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	9151 Points -1%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	8918 Points -4%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	8826 Points -5%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	7658 Points -17%
Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1861 Points +17%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	1850 Points +17%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1782 Points +12%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1767 Points +11%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1586 Points
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	1574 Points -1%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1547 Points -2%
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, 3200 MHz	1518 Points -4%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1504 Points -5%

Geekbench 5.0
5.0 Multi-Core
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	10249 Points +10%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	10249 Points +10%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	10249 Points +10%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	10249 Points +10%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9663 Points +3%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	9351 Points
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, 3200 MHz	9345 Points 0%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9099 Points -3%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	8750 Points -6%
5.0 Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1838 Points +20%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1736 Points +13%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1557 Points +1%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	1557 Points +1%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1557 Points +1%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1557 Points +1%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1538 Points
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	1517 Points -1%
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, 3200 MHz	1510 Points -2%

Geekbench 4.4
64 Bit Single-Core Score
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8015 Points +21%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	7705 Points +16%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	6698 Points +1%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	6698 Points +1%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	6698 Points +1%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	6698 Points +1%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	6648 Points
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	6591 Points -1%
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, 3200 MHz	6500 Points -2%
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, 3200 MHz	6477 Points -3%
64 Bit Multi-Core Score
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	39852 Points +8%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	39852 Points +8%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	39852 Points +8%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	39852 Points +8%
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, 3200 MHz	36919 Points 0%
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, 3200 MHz	36446 Points -1%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	36780 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	36692 Points 0%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	34909 Points -5%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	34237 Points -7%

3DMark 11 - 1280x720 Performance Physics
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	18382 Points +3%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	18363 Points +3%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	17973 Points +1%
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, 3200 MHz	17834 Points 0%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	17810 Points
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	16684 Points -6%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	15855 Points -11%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	13067 Points -27%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	11630 Points -35%

7-Zip 18.03
7z b 4
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, 3200 MHz	57884 MIPS +2%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	56930 MIPS
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	56923 MIPS 0%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	52959 MIPS -7%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	51151 MIPS -10%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	50673 MIPS -11%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	47893 MIPS -16%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	44320 MIPS -22%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	37570 MIPS -34%
7z b 4 -mmt1
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	6116 MIPS +7%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	6019 MIPS +5%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	5961 MIPS +4%
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, 3200 MHz	5797 MIPS +1%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	5721 MIPS
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	5653 MIPS -1%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	5591 MIPS -2%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	5577 MIPS -3%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	5486 MIPS -4%

HWBOT x265 Benchmark v2.2 - 4k Preset
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, 3200 MHz	15.9 fps +1%
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, 3200 MHz	15.5 fps -2%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	15.8 fps
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	15.4 fps -3%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	15 fps -5%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	14.2 fps -10%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	14.1 fps -11%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	13.6 fps -14%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	11.7 fps -26%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	10.1 fps -36%

R Benchmark 2.5 - Overall mean
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	0.511 sec * -5%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	0.506 sec * -4%
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, 3200 MHz	0.4895 sec * -1%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	0.4881 sec * -1%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	0.4849 sec *
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	0.4718 sec * +3%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	0.4641 sec * +4%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	0.462 sec * +5%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	0.445 sec * +8%

LibreOffice - 20 Documents To PDF
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	53.4 s * -13%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	53 s * -13%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	50.1 s * -6%
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, 3200 MHz	48.7 s * -3%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	48.1 s * -2%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	47.1 s *
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	43.7 s * +7%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	39.6 s * +16%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	38 s * +19%

WebXPRT 3 - Overall
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	311 Points +16%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	309 Points +15%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	305 Points +14%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	292 Points +9%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	287 Points +7%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	285 Points +6%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	274 Points +2%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	268 Points
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, 3200 MHz	264 Points -1%

Mozilla Kraken 1.1 - Total
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	619 ms * -3%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	605 ms * -1%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	601 ms * -0%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	600 ms *
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, 3200 MHz	595 ms * +1%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	577 ms * +4%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	539 ms * +10%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	519 ms * +13%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	494 ms * +18%

3DMark
3840x2160 Fire Strike Ultra Physics
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	23977 Points +8%
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, 3200 MHz	22603 Points +2%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	22441 Points +1%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	22237 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	21422 Points -4%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	21001 Points -6%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	20158 Points -9%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	18599 Points -16%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	15903 Points -28%
1920x1080 Fire Strike Physics
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	24427 Points +7%
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, 3200 MHz	23873 Points +5%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	22740 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	22426 Points -1%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	22346 Points -2%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	22244 Points -2%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	21523 Points -5%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	16568 Points -27%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	15934 Points -30%
2560x1440 Time Spy CPU
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	10539 Points +17%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	9334 Points +4%
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, 3200 MHz	9215 Points +2%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9168 Points +2%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	9004 Points
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	8653 Points -4%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	8622 Points -4%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	6487 Points -28%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	5114 Points -43%

* ... Meglio usare valori piccoli

Performance Rating
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	97.9 pt
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, Radeon 680M	96.1 pt
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	93.5 pt
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	91.2 pt
Media della classe Mini PC	79.7 pt
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	78.5 pt
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	75.3 pt
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	73.8 pt
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	66.4 pt
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	60.5 pt

AIDA64 / FP32 Ray-Trace
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	14418 KRay/s
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, Radeon 680M	14321 KRay/s -1%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	13757 KRay/s -5%
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	13746 KRay/s -5%
Media della classe Mini PC (561 - 51004, n=119, ultimi 2 anni)	12449 KRay/s -14%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	11040 KRay/s -23%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	10952 KRay/s -24%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	10839 KRay/s -25%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	9518 KRay/s -34%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	7933 KRay/s -45%

AIDA64 / FPU Julia
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	89540 Points
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, Radeon 680M	89349 Points 0%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	87663 Points -2%
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	86566 Points -3%
Media della classe Mini PC (3604 - 214250, n=119, ultimi 2 anni)	62645 Points -30%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	59704 Points -33%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	55557 Points -38%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	55221 Points -38%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	54435 Points -39%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	40251 Points -55%

AIDA64 / CPU SHA3
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, Radeon 680M	3067 MB/s 0%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	3065 MB/s
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	2980 MB/s -3%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	2931 MB/s -4%
Media della classe Mini PC (225 - 9399, n=119, ultimi 2 anni)	2760 MB/s -10%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	2728 MB/s -11%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	2558 MB/s -17%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	2357 MB/s -23%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	2006 MB/s -35%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	1997 MB/s -35%

AIDA64 / CPU Queen
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	100712 Points +7%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	100293 Points +7%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	93870 Points
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	86691 Points -8%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	85240 Points -9%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	82454 Points -12%
Media della classe Mini PC (8172 - 184747, n=119, ultimi 2 anni)	77998 Points -17%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	75248 Points -20%
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, Radeon 680M	75117 Points -20%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	73765 Points -21%

AIDA64 / FPU SinJulia
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	12396 Points +5%
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	12082 Points +3%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	11771 Points
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, Radeon 680M	11771 Points 0%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	8738 Points -26%
Media della classe Mini PC (408 - 29064, n=119, ultimi 2 anni)	8538 Points -27%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	7548 Points -36%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	7444 Points -37%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	7269 Points -38%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	5567 Points -53%

AIDA64 / FPU Mandel
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	49558 Points
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, Radeon 680M	49206 Points -1%
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	47652 Points -4%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	44629 Points -10%
Media della classe Mini PC (1958 - 113499, n=119, ultimi 2 anni)	32689 Points -34%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	32465 Points -34%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	28159 Points -43%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	27772 Points -44%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	26735 Points -46%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	19857 Points -60%

AIDA64 / CPU AES
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, Radeon 680M	119824 MB/s 0%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	119363 MB/s
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	117773 MB/s -1%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	99521 MB/s -17%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	99244 MB/s -17%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	92530 MB/s -22%
Media della classe Mini PC (3691 - 325960, n=119, ultimi 2 anni)	85358 MB/s -28%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	74716 MB/s -37%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	56199 MB/s -53%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	39680 MB/s -67%

AIDA64 / CPU ZLib
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	807 MB/s +7%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	754 MB/s
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, Radeon 680M	751 MB/s 0%
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	750 MB/s -1%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	745 MB/s -1%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	732 MB/s -3%
Media della classe Mini PC (74.8 - 2039, n=119, ultimi 2 anni)	714 MB/s -5%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	674 MB/s -11%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	575 MB/s -24%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	530 MB/s -30%

AIDA64 / FP64 Ray-Trace
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, Radeon 680M	7660 KRay/s +1%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	7551 KRay/s
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	7289 KRay/s -3%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	7288 KRay/s -3%
Media della classe Mini PC (308 - 26952, n=119, ultimi 2 anni)	6658 KRay/s -12%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	5920 KRay/s -22%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	5777 KRay/s -23%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	5771 KRay/s -24%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	5058 KRay/s -33%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	4156 KRay/s -45%

AIDA64 / CPU PhotoWorxx
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, Radeon 680M	30172 MPixel/s 0%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	30049 MPixel/s
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	29765 MPixel/s -1%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	29108 MPixel/s -3%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	28118 MPixel/s -6%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	28010 MPixel/s -7%
Media della classe Mini PC (4408 - 50500, n=119, ultimi 2 anni)	27805 MPixel/s -7%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	27456 MPixel/s -9%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	24323 MPixel/s -19%
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	19749 MPixel/s -34%

Geekom AS 6 vs. Cinebench R15 Multi Loop

Durante il Multi Loop di Cinebench R15, abbiamo misurato il comportamento del SoC in presenza di periodi di carico più lunghi. IlAMD Ryzen 9 6900HXha funzionato per la prima volta al suo TDP massimo di 65 watt - a causa delle temperature, ha rallentato un po' dopo il 13° ciclo. Durante l'ulteriore corso, abbiamo notato un TDP di 40 watt, che è stato in grado di essere mantenuto in modo sicuro grazie al suo sistema di raffreddamento. In confronto, il Geekom AS 6 ha fatto un po' meglio dell'Intel NUC 13 Pro.Intel NUC 13 Proin quanto è stato in grado di ottenere migliori livelli di prestazioni continue dal suo SoC.

Metriche della CPU durante il ciclo Cinebench R15

Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø1878 (1825.15-2068.58)

Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Core i7-1360P: Ø1825 (1794.93-2181.38)

Geekom AS 5 AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø1896 (1822.41-1994.52)

Geekom Mini IT12 Intel Core i7-1260P, Intel Core i7-1260P: Ø1280 (1241-1619.37)

Minisforum Venus Series NAB6 Intel Core i7-12650H, Intel Core i7-12650H: Ø1627 (1590.71-1899.25)

Morefine M600, 6900HX AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø1900 (1863.93-2044.26)

Minisforum Neptune Series NAD9 Intel Core i9-12900H, Intel Core i9-12900H: Ø1703 (1657.14-2261.04)

Morefine M600, 6600U AMD Ryzen 5 6600U, AMD Ryzen 5 6600U: Ø1166 (1105.77-1443.37)

Prestazioni del sistema

Il nostro Geekom AS 6 si è comportato molto bene nei benchmark sintetici per quanto riguarda le prestazioni del sistema. Durante PCMark 10, il nostro Geekom AS 6 e ilMorefine M600si sono piazzati al primo posto. Dopo un leggero distacco, il NUC 13 Pro con processore Intel si è piazzato al primo posto.NUC 13 Proanche se i risultati sono stati completamente diversi durante Crossmark. In questo caso, tutti i sistemi AMD hanno faticato di più a mettere sotto pressione i mini PC con processore Intel-SoC. Durante i nostri test sulla RAM utilizzando AIDA64, il Geekom AS 6 è stato in grado di mostrare i suoi punti di forza grazie alle sue DDR5. In confronto, questo è stato sufficiente per far sì che l'AS 6 si posizionasse davanti al Morefine M600, che presenta una configurazione simile. L'Intel NUC 13 Pro Kit, invece, è dotato di una RAM DDR4 leggermente più lenta.

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	6654 Points 0%
Geekom AS 6, R9 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston NV2 1000GB SNV2S/1000G	6653 Points
Geekom AS 6, R7 6800H, AMD Ryzen 7 6800H AMD Radeon 680M, Kingston NV2 1000GB SNV2S/1000G	6591 Points -1%
Geekom AS 5, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston NV2 1000GB SNV2S/1000G	6430 Points -3%
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	6281 Points -6%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	6187 Points -7%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	6057 Points -9%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	5872 Points -12%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	5658 Points -15%

PCMark 10 / Essentials
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	11596 Points +10%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	11395 Points +8%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	11217 Points +7%
Geekom AS 5, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston NV2 1000GB SNV2S/1000G	10702 Points +2%
Geekom AS 6, R7 6800H, AMD Ryzen 7 6800H AMD Radeon 680M, Kingston NV2 1000GB SNV2S/1000G	10507 Points 0%
Geekom AS 6, R9 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston NV2 1000GB SNV2S/1000G	10504 Points
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	10390 Points -1%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	10139 Points -3%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	9820 Points -7%

PCMark 10 / Productivity
Geekom AS 5, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston NV2 1000GB SNV2S/1000G	10120 Points +6%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	9817 Points +3%
Geekom AS 6, R9 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston NV2 1000GB SNV2S/1000G	9550 Points
Geekom AS 6, R7 6800H, AMD Ryzen 7 6800H AMD Radeon 680M, Kingston NV2 1000GB SNV2S/1000G	9140 Points -4%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	9031 Points -5%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	8164 Points -15%
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	7893 Points -17%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	7673 Points -20%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	7427 Points -22%

CrossMark: Overall | Responsiveness | Creativity | Productivity

CrossMark / Overall
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1894 Points +28%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1875 Points +27%
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	1810 Points +23%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1738 Points +18%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1517 Points +3%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1517 Points +3%
Geekom AS 6, R9 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston NV2 1000GB SNV2S/1000G	1476 Points
Geekom AS 5, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston NV2 1000GB SNV2S/1000G	1402 Points -5%

CrossMark / Responsiveness
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	2116 Points +100%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	2077 Points +96%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1734 Points +64%
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	1578 Points +49%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1238 Points +17%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1238 Points +17%
Geekom AS 5, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston NV2 1000GB SNV2S/1000G	1068 Points +1%
Geekom AS 6, R9 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston NV2 1000GB SNV2S/1000G	1060 Points

CrossMark / Creativity
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	1970 Points +18%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1811 Points +8%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1800 Points +7%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1749 Points +4%
Geekom AS 6, R9 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston NV2 1000GB SNV2S/1000G	1675 Points
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1652 Points -1%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1652 Points -1%
Geekom AS 5, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston NV2 1000GB SNV2S/1000G	1553 Points -7%

CrossMark / Productivity
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1921 Points +32%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1876 Points +29%
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	1740 Points +20%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1729 Points +19%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1491 Points +3%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1491 Points +3%
Geekom AS 6, R9 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston NV2 1000GB SNV2S/1000G	1451 Points
Geekom AS 5, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston NV2 1000GB SNV2S/1000G	1387 Points -4%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, Radeon 680M	50956 MB/s 0%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	50714 MB/s
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	50228 MB/s -1%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	47711 MB/s -6%
Media della classe Mini PC (6481 - 89287, n=119, ultimi 2 anni)	47585 MB/s -6%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	46936 MB/s -7%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	45941 MB/s -9%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	44892 MB/s -11%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	44726 MB/s -12%
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	41434 MB/s -18%

AIDA64 / Memory Read
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, Radeon 680M	51715 MB/s 0%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	51580 MB/s
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	51077 MB/s -1%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	50120 MB/s -3%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	49559 MB/s -4%
Media della classe Mini PC (6914 - 99171, n=119, ultimi 2 anni)	48328 MB/s -6%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	47491 MB/s -8%
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	47137 MB/s -9%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	46084 MB/s -11%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	45196 MB/s -12%

AIDA64 / Memory Write
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	55194 MB/s 0%
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, Radeon 680M	55163 MB/s 0%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	55128 MB/s
Media della classe Mini PC (6862 - 98583, n=119, ultimi 2 anni)	52056 MB/s -6%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	49353 MB/s -10%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	47383 MB/s -14%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	46815 MB/s -15%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	46785 MB/s -15%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	46179 MB/s -16%
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	43042 MB/s -22%

AIDA64 / Memory Latency
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	100 ns * -11%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	96.1 ns * -7%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	94 ns * -5%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	92.4 ns * -3%
Media della classe Mini PC (44.9 - 184.8, n=119, ultimi 2 anni)	91.9 ns * -2%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	89.9 ns *
Geekom AS 6, R7 6800H AMD Ryzen 7 6800H, Radeon 680M	83.1 ns * +8%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	80.2 ns * +11%
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	78.9 ns * +12%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	71.6 ns * +20%

* ... Meglio usare valori piccoli

Latenza DPC

Abbiamo già osservato un leggero aumento delle latenze quando si aprono più schede nel browser Edge. Le latenze sono aumentate ancora leggermente quando abbiamo iniziato a riprodurre il nostro video di prova in 4K. La AMD Radeon 680M è stata utilizzata al 30% circa.

Latenze massime quando si aprono più schede del browser e si riproducono video 4K

Latenze massime dopo dieci secondi di Prime95

Driver classificati in base alla durata di esecuzione più lunga

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	1588.3 μs *
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1317 μs * +17%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	1113.9 μs * +30%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1087 μs * +32%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	1016.7 μs * +36%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	985.8 μs * +38%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	891 μs * +44%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	795 μs * +50%

* ... Meglio usare valori piccoli

Dispositivi di archiviazione

Geekom ha dotato l'AS 6 di un'identica unità SSD NVMe da 1.024 GB di Kingston, la stessa che avevamo visto nel Geekom AS 5. Anche questo modello utilizza un'unità SSD NV2 di Kingston. Entrambi i modelli, sia questo SSD che quello del Geekom AS 5, utilizzano un SSD NV2 di Kingston.Geekom AS 5- si sono comportati in modo identico. Sebbene il modello installato utilizzi la porta NVMe, ha fornito prestazioni mediocri quando si è trattato di scrittura sequenziale. In termini di scrittura in lettura, entrambi i modelli hanno ottenuto prestazioni simili. Dopo aver consultato il produttore, stiamo valutando la possibilità di installare un altro modello in grado di fornire prestazioni migliori in termini di consistenza. Tuttavia, al momento abbiamo solo la possibilità di valutare il suo stato attuale, e questo ha reso chiaro che il Geekom AS 6 purtroppo non ha ottenuto altro che l'ultimo posto in questo confronto.

In generale, la scelta dell'SSD per quanto riguarda il supporto NVMe e la capacità di archiviazione è stata un lavoro ben fatto per Geekom. Tuttavia, siamo stati in grado di escludere un problema del dispositivo stesso per quanto riguarda le prestazioni mostrate, poiché abbiamo ottenuto risultati molto migliori utilizzando il nostro Kingston KC3000 nello stesso sistema. Abbiamo allegato uno screenshot dei benchmark dell'AS SSD.

Il Geekom AS 6 ha spazio per un massimo di tre dispositivi di archiviazione in totale. Due utilizzano lo slot M.2 e il terzo deve essere un dispositivo di archiviazione da 2,5 pollici.

Ulteriori confronti e benchmark possono essere visualizzati nella nostra tabella di confronto Laptop SSD & HDD Benchmarks .

Nota bene:

I nostri colleghi statunitensi hanno testato il Geekom AS 6 sulla base di un AMD Ryzen 7 6800H. Abbiamo quindi dato una rapida occhiata alle prestazioni dell'SSD con questo modello, per vedere se presentava problemi simili. Secondo i benchmark, il modello Kingston installato in questa versione ha fatto decisamente meglio.

CrystalDiskMark 3.0

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Kingston NV2 1000GB SNV2S/1000G

Sequential Read: 2005 MB/s

Sequential Write: 299.2 MB/s

512K Read: 1252 MB/s

512K Write: 288.1 MB/s

4K Read: 31.32 MB/s

4K Write: 133.3 MB/s

4K QD32 Read: 445.9 MB/s

4K QD32 Write: 250.6 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	84.8 pt
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	71.7 pt
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	71.3 pt
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	66.2 pt
Media della classe Mini PC	53.9 pt
Geekom Mini IT12 Kingston OM8SEP4512N-A0	39.4 pt
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	36.9 pt
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	22.6 pt
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	20.5 pt

DiskSpd
seq read
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3375 (3310.44^min - 3375.33^max) MB/s +139%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2815 (2802.79^min - 2814.97^max) MB/s +99%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	2689 (2681.42^min - 2688.76^max) MB/s +90%
Media della classe Mini PC (233 - 4357, n=119, ultimi 2 anni)	2288 MB/s +62%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	1935 (1920.15^min - 1935.25^max) MB/s +37%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1720 (1344.24^min - 1720.17^max) MB/s +22%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1451 (1441.37^min - 1451.23^max) MB/s +3%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	1414 (1406.14^min - 1414.43^max) MB/s
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1176 (1169.13^min - 1175.87^max) MB/s -17%
seq write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3544 (3538.94^min - 3544.19^max) MB/s +1268%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3402 (3372.67^min - 3402.21^max) MB/s +1214%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3360 (1416.73^min - 3360.47^max) MB/s +1197%
Media della classe Mini PC (222 - 5595, n=119, ultimi 2 anni)	2448 MB/s +845%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1530 (603.77^min - 1530.08^max) MB/s +491%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1203 (1169.58^min - 1202.51^max) MB/s +364%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1075 (545.51^min - 1075.26^max) MB/s +315%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	301 (225.06^min - 301.12^max) MB/s +16%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	259 (255.55^min - 258.69^max) MB/s
seq q8 t1 read
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	6729 (6134.8^min - 6728.5^max) MB/s +241%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	4801 (4506.78^min - 4800.59^max) MB/s +143%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	4797 (4271.21^min - 4796.87^max) MB/s +143%
Media della classe Mini PC (236 - 8430, n=119, ultimi 2 anni)	3706 MB/s +88%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	2522 (2230.32^min - 2522.44^max) MB/s +28%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	2366 (1354.13^min - 2365.71^max) MB/s +20%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1987 (1409.4^min - 1987.27^max) MB/s +1%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	1976 (1110.86^min - 1975.52^max) MB/s
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1694 (1415.05^min - 1693.87^max) MB/s -14%
seq q8 t1 write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3541 (3519.65^min - 3541.04^max) MB/s +1207%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3402 (3374.28^min - 3401.67^max) MB/s +1155%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	2830 (1138.15^min - 2830.32^max) MB/s +944%
Media della classe Mini PC (228 - 6669, n=119, ultimi 2 anni)	2743 MB/s +912%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1599 (266.87^min - 1599.24^max) MB/s +490%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1213 (1155.74^min - 1212.78^max) MB/s +348%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1084 (553.02^min - 1084.16^max) MB/s +300%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	301 (225.44^min - 301.12^max) MB/s +11%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	271 (261.51^min - 270.62^max) MB/s
4k q1 t1 read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	82.8 (82.48^min - 82.75^max) MB/s +199%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	82.1 (81.4^min - 82.09^max) MB/s +196%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	55.6 (54.87^min - 55.6^max) MB/s +101%
Media della classe Mini PC (5.67 - 86.6, n=119, ultimi 2 anni)	54.7 MB/s +97%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	51.8 (51.62^min - 51.84^max) MB/s +87%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	48.5 (48.27^min - 48.47^max) MB/s +75%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	40.3 (36.8^min - 40.3^max) MB/s +45%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	30.7 (30.15^min - 30.74^max) MB/s +11%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	27.7 (27.3^min - 27.66^max) MB/s
4k q1 t1 write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	425 (415.92^min - 425.01^max) MB/s +383%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	420 (417.55^min - 420.16^max) MB/s +377%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	276 (193.9^min - 275.81^max) MB/s +214%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	229 (165.03^min - 229.29^max) MB/s +160%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	220 (212.2^min - 220.15^max) MB/s +150%
Media della classe Mini PC (30.4 - 435, n=119, ultimi 2 anni)	194.7 MB/s +121%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	177.7 (176.17^min - 177.7^max) MB/s +102%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	134 (102.93^min - 134.02^max) MB/s +52%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	88 (84.11^min - 87.99^max) MB/s
4k q32 t16 read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	1944 (1936.89^min - 1943.53^max) MB/s +163%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	1939 (1934.48^min - 1939.25^max) MB/s +162%
Media della classe Mini PC (26.1 - 4158, n=119, ultimi 2 anni)	1360 MB/s +84%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1225 (1194.7^min - 1224.8^max) MB/s +66%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	761 (756^min - 761.3^max) MB/s +3%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	740 (734.91^min - 739.88^max) MB/s
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	561 (475.29^min - 560.56^max) MB/s -24%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	420 (418.45^min - 419.54^max) MB/s -43%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	354 (11.43^min - 353.56^max) MB/s -52%
4k q32 t16 write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3388 (3373.11^min - 3387.88^max) MB/s +1513%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2396 (2376.28^min - 2396.46^max) MB/s +1041%
Media della classe Mini PC (30.2 - 4288, n=119, ultimi 2 anni)	1287 MB/s +513%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	942 (402.72^min - 941.71^max) MB/s +349%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	893 (601.78^min - 892.97^max) MB/s +325%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	626 (605.6^min - 625.63^max) MB/s +198%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	544 (355.98^min - 544.47^max) MB/s +159%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	281 (203.56^min - 280.69^max) MB/s +34%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	210 (203.49^min - 210.22^max) MB/s

AS SSD
Score Total
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	9030 Points +464%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	7134 Points +345%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	6005 Points +275%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	4744 Points +196%
Media della classe Mini PC (181.5 - 10021, n=117, ultimi 2 anni)	4121 Points +157%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	2491 Points +55%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	1604 Points 0%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	1602 Points
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	748.83 Points -53%
Score Read
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3635 Points +299%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2391 Points +163%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	2356 Points +159%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1673 Points +84%
Media della classe Mini PC (61 - 3741, n=117, ultimi 2 anni)	1534 Points +69%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	910 Points
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	892 Points -2%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	725 Points -20%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	661 Points -27%
Score Write
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3615 Points +1012%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3574 Points +1000%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3538 Points +989%
Media della classe Mini PC (88 - 4371, n=117, ultimi 2 anni)	1851 Points +470%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1457 Points +348%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	1308 Points +302%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	700 Points +115%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	349 Points +7%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	325 Points
Seq Read
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	5338 MB/s +132%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	4767 MB/s +107%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	4147 MB/s +80%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3874.21 MB/s +68%
Media della classe Mini PC (291 - 6620, n=117, ultimi 2 anni)	3161 MB/s +37%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	2844 MB/s +24%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	2789 MB/s +21%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	2302 MB/s
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	2231 MB/s -3%
Seq Write
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3927 MB/s +1318%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3292 MB/s +1088%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	2442 MB/s +782%
Media della classe Mini PC (240 - 5783, n=117, ultimi 2 anni)	2212 MB/s +699%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1232 MB/s +345%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	882.93 MB/s +219%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	524 MB/s +89%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	285 MB/s +3%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	277 MB/s
4K Read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	103.66 MB/s +284%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	102.97 MB/s +281%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	78.3 MB/s +190%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	66.6 MB/s +147%
Media della classe Mini PC (6.08 - 104.3, n=117, ultimi 2 anni)	58.9 MB/s +118%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	53.5 MB/s +98%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	48.9 MB/s +81%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	28.2 MB/s +4%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	27 MB/s
4K Write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	365.87 MB/s +143%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	354.53 MB/s +136%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	273 MB/s +82%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	209 MB/s +39%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	209 MB/s +39%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	185.4 MB/s +23%
Media della classe Mini PC (30.9 - 366, n=117, ultimi 2 anni)	175.1 MB/s +16%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	150.4 MB/s
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	138.6 MB/s -8%
4K-64 Read
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3035 MB/s +365%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	1872.82 MB/s +187%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	1865.81 MB/s +186%
Media della classe Mini PC (23.4 - 3220, n=117, ultimi 2 anni)	1159 MB/s +77%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1118 MB/s +71%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	653 MB/s
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	641 MB/s -2%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	397 MB/s -39%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	323 MB/s -51%
4K-64 Write
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3120 MB/s +2027%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3013 MB/s +1954%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2842.9 MB/s +1838%
Media della classe Mini PC (32.8 - 3731, n=117, ultimi 2 anni)	1455 MB/s +892%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1060 MB/s +623%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	865.27 MB/s +490%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	462 MB/s +215%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	181.8 MB/s +24%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	146.7 MB/s
Access Time Read
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	0.141 ms *
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	0.127 ms * +10%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	0.117 ms * +17%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	0.098 ms * +30%
Media della classe Mini PC (0.022 - 0.489, n=117, ultimi 2 anni)	0.09726 ms * +31%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	0.074 ms * +48%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	0.066 ms * +53%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	0.06 ms * +57%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	0.045 ms * +68%
Access Time Write
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	0.29 ms * -10%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	0.263 ms *
Geekom Mini IT12 Kingston OM8SEP4512N-A0	0.118 ms * +55%
Media della classe Mini PC (0.014 - 0.765, n=117, ultimi 2 anni)	0.1153 ms * +56%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	0.11 ms * +58%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	0.031 ms * +88%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	0.023 ms * +91%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	0.02 ms * +92%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	0.018 ms * +93%

* ... Meglio usare valori piccoli

Reading continuous performance: DiskSpd Read Loop, Queue Depth 8

Geekom AS 6, R9 6900HX: Ø1820 (713.49-2039.48)

Scheda grafica

I nostri altri test hanno già mostrato le buone prestazioni di base fornite dallaAMD Radeon 680M come ilAMD Ryzen 9 6900HXcome iGPU dell'AMD Ryzen 9 6900HX. In questo caso, il Geekom AS 6 si aggiunge senza problemi con i suoi livelli di prestazioni 3D altrettanto eccellenti. Attualmente Intel ha troppo poco da offrire per poter competere: le sue attuali iGPU, alias Intel Iris Xe Graphics G7, sono molto indietro. Lo stesso si può dire per l'Intel NUC 13 Pro, che è risultato indietro del 41% rispetto al nostro campione di prova. IlMorefine M600'sAMD Radeon 680Msi è comportato un po' meglio in totale, il che significa che il Geekom AS 6 è riuscito a raggiungere solo il secondo posto.

Grazie alla sua porta Thunderbolt 3, abbiamo anche esaminato le prestazioni 3D del mini PC in combinazione con il Razer Core X e la nostraNvidia GeForce RTX 3060 Ti. Le prestazioni della scheda grafica dedicata per desktop non riescono a tenere il passo con quelle di una GPU installata di serie, a causa della minore larghezza di banda PCIe. Nonostante ciò, abbiamo notato livelli di prestazioni 3D molto migliori con questa combinazione. Tuttavia, abbiamo notato risultati molto coerenti tra i diversi concorrenti.

Potete vedere altri benchmark della AMD Radeon 680Mqui.

AMD Radeon 680M

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	99.9 pt
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	96.1 pt
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	73.9 pt
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	71.1 pt
Geekom AS 5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	65.5 pt
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	64.2 pt
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	63.6 pt
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	54.8 pt

3DMark 11 - 1280x720 Performance GPU
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	11055 Points +6%
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	10399 Points
Geekom AS 5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	7166 Points -31%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	7143 Points -31%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	7057 Points -32%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	6599 Points -37%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	5634 Points -46%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	5462 Points -47%

3DMark
1280x720 Cloud Gate Standard Graphics
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	41124 Points +3%
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	39814 Points
Geekom AS 5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	31638 Points -21%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	30434 Points -24%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	28159 Points -29%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	27511 Points -31%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	22570 Points -43%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	21383 Points -46%
1920x1080 Fire Strike Graphics
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	6644 Points +2%
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	6501 Points
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	5526 Points -15%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	5229 Points -20%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	4860 Points -25%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	4621 Points -29%
Geekom AS 5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	4419 Points -32%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	4098 Points -37%
2560x1440 Time Spy Graphics
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	2408 Points +9%
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	2210 Points
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1673 Points -24%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	1658 Points -25%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	1528 Points -31%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	1430 Points -35%
Geekom AS 5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	1430 Points -35%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	1217 Points -45%
Fire Strike Extreme Graphics
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	3088 Points
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	3066 Points -1%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	2455 Points -20%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	2340 Points -24%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	2150 Points -30%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	2149 Points -30%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	1866 Points -40%
Geekom AS 5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	1844 Points -40%

Performance Rating | Unigine Heaven 4.0 | Unigine Valley 1.0 | ComputeMark v2.1 | Unigine Superposition

Performance Rating - Percent
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	98.5 pt
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	98.2 pt
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	68.5 pt
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	67.5 pt
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	62.7 pt
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	62.5 pt
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	60.9 pt
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	52.9 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	34.2 fps
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	33.6 fps -2%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	23.6 fps -31%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	23.3 fps -32%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	22.4 fps -35%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	21 fps -39%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	20.4 fps -40%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	19.7 fps -42%
Extreme Preset DX11
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	32.2 fps +1%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	32 fps
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	24.5 fps -23%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	24 fps -25%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	21.7 fps -32%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	21.5 fps -33%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	20.9 fps -35%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	20.4 fps -36%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	21 fps 0%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	21 fps
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	15.1 fps -28%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	14.3 fps -32%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	14.1 fps -33%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	13.2 fps -37%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	12.8 fps -39%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	10.9 fps -48%
1920x1080 Extreme HD Preset OpenGL AA:x8
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	22.9 fps
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	22.8 fps 0%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	17.7 fps -23%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	16.1 fps -30%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	15.2 fps -34%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	15.1 fps -34%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	14.4 fps -37%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	11.6 fps -49%

ComputeMark v2.1
1024x600 Normal, Score
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	5813 Points +4%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	5602 Points
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	4178 Points -25%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	3603 Points -36%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	3439 Points -39%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	3390 Points -39%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	3308 Points -41%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	2512 Points -55%
1024x600 Normal, Fluid 3DTex
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	393 Points
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	371 Points -6%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	318 Points -19%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	284 Points -28%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	276 Points -30%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	237 Points -40%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	234 Points -40%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	216 Points -45%
1024x600 Normal, Fluid 2DTexArr
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	400 Points
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	367 Points -8%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	340 Points -15%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	277 Points -31%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	264 Points -34%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	249 Points -38%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	237 Points -41%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	220 Points -45%
1024x600 Normal, Mandel Vector
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1677 Points +6%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	1582 Points
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	1295 Points -18%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	933 Points -41%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	911 Points -42%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	851 Points -46%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	827 Points -48%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	483 Points -69%
1024x600 Normal, Mandel Scalar
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1473 Points +2%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	1451 Points
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	1126 Points -22%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	885 Points -39%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	865 Points -40%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	862 Points -41%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	834 Points -43%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	770 Points -47%
1024x600 Normal, QJuliaRayTrace
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1924 Points +8%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	1776 Points
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1268 Points -29%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	1217 Points -31%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	1191 Points -33%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	1174 Points -34%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	963 Points -46%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	823 Points -54%

Unigine Superposition
1280x720 720p Low
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	10118 Points
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	9915 Points -2%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	7862 Points -22%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	7731 Points -24%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	5662 Points -44%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	5162 Points -49%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	5141 Points -49%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	4088 Points -60%
1920x1080 1080p High
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	3014 Points
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	2916 Points -3%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	2095 Points -30%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	2062 Points -32%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	1935 Points -36%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	1923 Points -36%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	1800 Points -40%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	1659 Points -45%
1920x1080 1080p Extreme
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	1394 Points
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1358 Points -3%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	1076 Points -23%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1069 Points -23%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	992 Points -29%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	875 Points -37%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	801 Points -43%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	796 Points -43%

3DMark 05 Standard		35979 punti
3DMark 06 Standard Score		27100 punti
3DMark Vantage P Result		31407 punti
3DMark 11 Performance		10477 punti
3DMark Ice Storm Standard Score		127539 punti
3DMark Cloud Gate Standard Score		30929 punti
3DMark Fire Strike Score		6025 punti
3DMark Fire Strike Extreme Score		3061 punti
3DMark Time Spy Score		2492 punti
Aiuto

... in confronto

Il Geekom AS 6 con una Nvidia GeForce RTX 3060 Ti via Thunderbolt 3

Performance Rating | 3DMark 11 | 3DMark

Performance Rating - Percent
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	100 pt
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	98.8 pt
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	97.4 pt
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	96.3 pt
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	96 pt
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	94.7 pt

3DMark 11 - 1280x720 Performance GPU
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	33577 Points +223%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	33425 Points +221%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	32915 Points +217%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	32726 Points +215%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	32630 Points +214%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	32467 Points +212%
	10399 Points

3DMark
1280x720 Cloud Gate Standard Graphics
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	123559 Points +210%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	121918 Points +206%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	118686 Points +198%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	116516 Points +193%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	115545 Points +190%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	112625 Points +183%
	39814 Points
1920x1080 Fire Strike Graphics
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	25669 Points +295%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	25071 Points +286%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	24905 Points +283%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	24738 Points +281%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	24360 Points +275%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	24193 Points +272%
	6501 Points
2560x1440 Time Spy Graphics
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	11032 Points +399%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	11031 Points +399%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	10777 Points +388%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	10768 Points +387%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	10717 Points +385%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	10530 Points +376%
	2210 Points
Fire Strike Extreme Graphics
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	13552 Points +339%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	13299 Points +331%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	13264 Points +330%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	13186 Points +327%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	13007 Points +321%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	12943 Points +319%
	3088 Points

Unigine Heaven 4.0 | Unigine Valley 1.0 | Unigine Superposition | ComputeMark v2.1

Unigine Heaven 4.0
Extreme Preset OpenGL
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	169.6 fps +396%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	169.6 fps +396%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	167.3 fps +389%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	167.3 fps +389%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	166.1 fps +386%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	142.1 fps +315%
	34.2 fps
Extreme Preset DX11
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	164.8 fps +415%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	164.4 fps +414%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	154.5 fps +383%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	154.3 fps +382%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	153.4 fps +379%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	135.3 fps +323%
	32 fps

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	143.1 fps +581%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	141.6 fps +574%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	134.2 fps +539%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	131.7 fps +527%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	127.9 fps +509%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	93.6 fps +346%
	21 fps
1920x1080 Extreme HD Preset OpenGL AA:x8
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	127.2 fps +455%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	125.8 fps +449%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	122.7 fps +436%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	122.2 fps +434%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	120.1 fps +424%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	91.6 fps +300%
	22.9 fps

Unigine Superposition
1920x1080 1080p High
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	15114 Points +401%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	14836 Points +392%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	14751 Points +389%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	14698 Points +388%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	8142 Points +170%
	3014 Points
1920x1080 1080p Extreme
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	7129 Points +411%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	7036 Points +405%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	7035 Points +405%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	7012 Points +403%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	4171 Points +199%
	1394 Points

ComputeMark v2.1
1024x600 Normal, Score
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	27847 Points +397%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	27847 Points +397%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	27811 Points +396%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	27740 Points +395%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	27566 Points +392%
	5602 Points
1024x600 Normal, Fluid 3DTex
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	2698 Points +587%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	2691 Points +585%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	2689 Points +584%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	2679 Points +582%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	2675 Points +581%
	393 Points
1024x600 Normal, Fluid 2DTexArr
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	2629 Points +557%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	2622 Points +556%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	2619 Points +555%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	2619 Points +555%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	2606 Points +552%
	400 Points
1024x600 Normal, Mandel Vector
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	5711 Points +261%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	5694 Points +260%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	5689 Points +260%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	5655 Points +257%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	5603 Points +254%
	1582 Points
1024x600 Normal, QJuliaRayTrace
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	10555 Points +494%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	10539 Points +493%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	10536 Points +493%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	10532 Points +493%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	10462 Points +489%
	1776 Points

Prestazioni di gioco

Rispetto allaAMD Radeon RX Vega 8, laAMD Radeon 680Mha migliorato notevolmente le prestazioni 3D dell'AS 6 nei test sintetici. Un risultato simile è stato ottenuto con tutti i giochi testati. Il Geekom AS 6 ha ottenuto un lodevole secondo posto dietro al Morefine M600. L'Intel NUC 13 Pro non è riuscito a ottenere un risultato decente a causa della sua iGPU più lenta e le sue prestazioni sono state battute del 40% in tutti i giochi testati. È interessante anche dare un'occhiata alla lotta interna tra il Geekom AS 6 e ilGeekom AS 5. Qui, laAMD Radeon 680Mrispetto alla Radeon RX Vega 8. Qui, l'aumento delle prestazioni dellaAMD Radeon RX Vega 8è perfettamente visibile. L'AS 6 è stato in grado di offrire il 30% in più di prestazioni della GPU.

Anche in questo caso, daremo un'occhiata alle prestazioni che ci si può aspettare con l'AS 6 collegato al Razer Core X e a una scheda video Nvidia RTX 3060.Nvidia GeForce RTX 3060 Titramite Thunderbolt. In questa combinazione, abbiamo osservato una gara testa a testa tra il nostro campione di prova e l'Intel NUC 13 Pro.Intel NUC 13 Pro. Allo stesso tempo, va notato che fino al terzo posto, tutti i sistemi di questa combinazione erano altrettanto veloci. Al quarto posto, ilMinisforum Venus Series UM690ha mostrato prestazioni notevolmente peggiori.

Per ulteriori confronti e benchmark, date un'occhiata alla nostra lista di giochi con GPU Computer Games on Laptop Graphics Cards .

AMD Radeon 680M

Performance Rating - Percent
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	96.1 pt
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	94.2 pt
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	71.7 pt
Minisforum Neptune Series NAD9 ^-1! Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	68.4 pt
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	67.2 pt
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	67.1 pt
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	60.9 pt
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	58.9 pt

The Witcher 3
1024x768 Low Graphics & Postprocessing
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	113.9 fps +6%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	107.7 fps
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	101.7 fps -6%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	97.2 fps -10%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	86.9 fps -19%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	84.7 fps -21%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	80.8 fps -25%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	76.8 fps -29%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	39.4 fps 0%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	39.3 fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	32 fps -19%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	31.1 fps -21%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	28.9 fps -26%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	26.2 fps -33%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	25.9 fps -34%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	22.6 fps -42%

Borderlands 3
1280x720 Very Low Overall Quality (DX11)
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	90.7 fps +37%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	72.5 fps +9%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	66.4 fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	59.1 fps -11%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	55.5 fps -16%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	51.8 fps -22%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	49 fps -26%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	46 fps -31%
1920x1080 Medium Overall Quality (DX11)
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	39.6 fps
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	34.8 fps -12%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	28.3 fps -29%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	26.4 fps -33%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	25.4 fps -36%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	23.3 fps -41%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	20.5 fps -48%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	20.1 fps -49%
1920x1080 High Overall Quality (DX11)
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	26.2 fps
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	24.1 fps -8%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	17.9 fps -32%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	16.2 fps -38%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	16.2 fps -38%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	14.8 fps -44%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	13.6 fps -48%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	12.1 fps -54%

GTA V
1024x768 Lowest Settings possible
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	152.1 (2.73^min, 100^P1) fps +21%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	142.9 (1.358^min, 71.4^P1) fps +14%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	141.6 (8.77^min, 90.9^P1) fps +13%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	135.3 (26.7^min, 90.9^P1) fps +8%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	129.9 (16.1^min, 83.3^P1) fps +4%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	126.2 (50.6^min, 76.9^P1) fps +1%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	125.5 (11.9^min, 83.3^P1) fps
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	119.3 (25.1^min, 76.9^P1) fps -5%
1366x768 Normal/Off AF:4x
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	140.4 (5.84^min, 90.9^P1) fps +22%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	129.5 (30.7^min, 83.3^P1) fps +12%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	124.9 (8.7^min, 71.4^P1) fps +8%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	115.4 (23.7^min, 71.4^P1) fps
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	113.4 (7.15^min, 71.4^P1) fps -2%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	107.3 (19^min, 62.5^P1) fps -7%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	103.1 (6.05^min, 62.5^P1) fps -11%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	53.5 (3.46^min, 38.5^P1) fps +9%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	49.2 (13.3^min, 33.3^P1) fps
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	33.9 (1.094^min, 20.4^P1) fps -31%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	33.1 (15.2^min, 23.8^P1) fps -33%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	21 (8.15^min, 16.1^P1) fps -57%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	20.7 (9.05^min, 15.9^P1) fps -58%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	18.6 (8^min, 14.3^P1) fps -62%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	18.5 (6.9^min, 14.3^P1) fps -62%

Far Cry 5
1280x720 Low Preset AA:T
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	75 (60^min) fps +10%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	68 (58^min) fps
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	62 (49^min) fps -9%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	61 (56^min) fps -10%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	57 (49^min) fps -16%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	50 (41^min) fps -26%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	50 (44^min) fps -26%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	46 (37^min) fps -32%
1920x1080 Medium Preset AA:T
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	41 (37^min) fps 0%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	41 (35^min) fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	29 (26^min) fps -29%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	29 (23^min) fps -29%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	28 (24^min) fps -32%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	27 (23^min) fps -34%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	26 (24^min) fps -37%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	24 (20^min) fps -41%
1920x1080 High Preset AA:T
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	38 (32^min) fps
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	34 (30^min) fps -11%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	29 (25^min) fps -24%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	27 (24^min) fps -29%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	26 (23^min) fps -32%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	25 (22^min) fps -34%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	25 (22^min) fps -34%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	22 (19^min) fps -42%

Far Cry New Dawn
1280x720 Low Preset
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	66 (50^min) fps +14%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	58 (42^min) fps 0%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	58 (46^min) fps
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	53 (40^min) fps -9%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	52 (31^min) fps -10%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	52 (34^min) fps -10%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	48 (32^min) fps -17%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	46 (28^min) fps -21%
1920x1080 Medium Preset
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	39 (32^min) fps 0%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	39 (32^min) fps
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	32 (26^min) fps -18%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	29 (22^min) fps -26%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	29 (23^min) fps -26%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	27 (22^min) fps -31%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	26 (20^min) fps -33%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	24 (18^min) fps -38%
1920x1080 High Preset
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	37 (29^min) fps +3%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	36 (29^min) fps
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	29 (23^min) fps -19%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	28 (21^min) fps -22%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	28 (22^min) fps -22%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	25 (19^min) fps -31%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	25 (20^min) fps -31%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	23 (17^min) fps -36%

Dota 2 Reborn
1280x720 min (0/3) fastest
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	136.9 (106.8^min) fps +24%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	135.9 (121.4^min) fps +23%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	135 (114.8^min) fps +22%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	134.7 (102.1^min) fps +22%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	133.4 (119^min) fps +21%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	123.8 (98^min) fps +12%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	110.5 (93.1^min) fps
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	108.1 (86.6^min) fps -2%
1366x768 med (1/3)
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	110.4 (92.1^min) fps +21%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	107.7 (88.3^min) fps +18%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	106.6 (88.3^min) fps +17%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	105 (83.3^min) fps +15%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	99.6 (80.7^min) fps +9%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	93.9 (77.2^min) fps +3%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	91.4 (78.4^min) fps
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	83.8 (66.5^min) fps -8%
1920x1080 high (2/3)
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	82.2 (71.4^min) fps +18%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	69.6 (59.3^min) fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	68 (62.7^min) fps -2%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	67.6 (59.9^min) fps -3%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	64.9 (56.8^min) fps -7%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	62.8 (54.9^min) fps -10%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	60.9 (55.7^min) fps -12%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	57.8 (54.5^min) fps -17%

Tiny Tina's Wonderlands
1280x720 Lowest Preset (DX12)
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	106.6 fps
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	93.3 fps -12%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	82.2 fps -23%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	59.8 fps -44%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	56.3 fps -47%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	56 fps -47%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	52.3 fps -51%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	46.8 fps -56%
1920x1080 Medium Preset (DX12)
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	44.9 fps
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	35.3 fps -21%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	28.8 fps -36%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	25.5 fps -43%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	25.2 fps -44%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	22.9 fps -49%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	19.7 fps -56%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	19.6 fps -56%
1920x1080 High Preset (DX12)
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	30.2 fps
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	23.5 fps -22%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	18 fps -40%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	16.1 fps -47%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	15.7 fps -48%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	14.6 fps -52%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	12.6 fps -58%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	12.1 fps -60%

F1 2020
1280x720 Ultra Low Preset
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	166.9 (146^min) fps +10%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	152.2 (142^min) fps
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	113.3 (96^min) fps -26%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	102.1 (87^min) fps -33%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	95.2 (83^min) fps -37%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	94.4 (81^min) fps -38%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	82.1 (73^min) fps -46%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	78.4 (70^min) fps -48%
1920x1080 Medium Preset AF:16x
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	84.6 (72^min) fps
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	80.9 (71^min) fps -4%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	50.3 (42^min) fps -41%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	49.2 (41^min) fps -42%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	48.2 (41^min) fps -43%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	44.6 (37^min) fps -47%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	43.3 (38^min) fps -49%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	38.2 (33^min) fps -55%
1920x1080 High Preset AA:T AF:16x
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	66.4 (56^min) fps
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	63.7 (55^min) fps -4%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	39.3 (33^min) fps -41%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	37.9 (32^min) fps -43%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	37 (31^min) fps -44%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	33.5 (28^min) fps -50%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	32.3 (27^min) fps -51%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	29 (23^min) fps -56%

F1 2021
1280x720 Ultra Low Preset
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	175.3 (131^min, 141^P1) fps +13%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	155.7 (107^min, 115^P1) fps
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	118.5 (92^min, 92^P1) fps -24%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	109.7 (85^min, 81^P1) fps -30%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	109.5 (93^min, 91^P1) fps -30%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	97.2 (76^min, 74^P1) fps -38%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	93 (72^min, 70^P1) fps -40%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	92.1 (71^min, 71^P1) fps -41%
1920x1080 Medium Preset AA:T AF:16x
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	86 (70^min, 66^P1) fps
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	82.1 (69^min, 63^P1) fps -5%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	53.3 (43^min, 42^P1) fps -38%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	52.2 (42^min, 42^P1) fps -39%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	50.1 (40^min, 40^P1) fps -42%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	46 (36^min, 36^P1) fps -47%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	44.4 (37^min, 36^P1) fps -48%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	42.6 (34^min, 33^P1) fps -50%
1920x1080 High Preset AA:T AF:16x
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	64.2 (51^min, 42^P1) fps
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	63.5 (48^min, 48^P1) fps -1%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	42 (35^min, 34^P1) fps -35%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	40.4 (33^min, 33^P1) fps -37%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	38.1 (32^min, 32^P1) fps -41%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	35.8 (30^min, 29^P1) fps -44%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	35.2 (29^min, 28^P1) fps -45%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	33.2 (28^min, 26^P1) fps -48%

Metro Exodus
1280x720 Low Quality AF:4x
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	69.8 (39.41^min) fps
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	65.8 (39.88^min) fps -6%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	48.4 (29.8^min) fps -31%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	48 (28.76^min) fps -31%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	41.3 (22.12^min) fps -41%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	40.4 (22.43^min) fps -42%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	37.6 (20.98^min) fps -46%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	35.5 (19.38^min) fps -49%
1920x1080 Medium Quality AF:4x
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	29.2 (14.06^min) fps
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	27.2 (13.38^min) fps -7%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	20.6 (11.15^min) fps -29%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	19.8 (11.01^min) fps -32%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	19.8 (9.36^min) fps -32%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	18.8 (10.48^min) fps -36%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	17.1 (9.52^min) fps -41%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	17 (9.04^min) fps -42%
1920x1080 High Quality AF:16x
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	22.3 (11.49^min) fps
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	20.2 (10.53^min) fps -9%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	15.3 (7.88^min) fps -31%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	14.9 (8.21^min) fps -33%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	14.6 (8.07^min) fps -35%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	14.4 (8.08^min) fps -35%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	12.6 (6.91^min) fps -43%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	12.5 (6.57^min) fps -44%

Strange Brigade
1280x720 lowest AF:1
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	140.4 (67.6^min, 120.3^P1) fps +6%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	132.2 (72.4^min, 110.3^P1) fps
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	99.9 (19.3^min, 86.6^P1) fps -24%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	97.8 (28^min, 76.9^P1) fps -26%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	96.3 (21.9^min, 34^P1) fps -27%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	95.4 (19.5^min, 37.2^P1) fps -28%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	84.5 (18.9^min, 28.2^P1) fps -36%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	83.6 (19.9^min, 27.5^P1) fps -37%
1920x1080 medium AA:medium AF:4
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	57.8 (48.1^min, 51.2^P1) fps +5%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	55.2 (43.9^min, 48.5^P1) fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	40.2 (15.1^min, 22.7^P1) fps -27%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	37.9 (18.6^min, 32.1^P1) fps -31%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	37.8 (15.8^min, 32.8^P1) fps -32%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	37.3 (12^min, 16.1^P1) fps -32%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	36.1 (13.1^min, 20.7^P1) fps -35%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	34.5 (12.1^min, 17.9^P1) fps -37%
1920x1080 high AA:high AF:8
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	47.9 (35^min, 37.7^P1) fps +4%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	46 (33.6^min, 36.3^P1) fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	32.5 (7^min, 16.6^P1) fps -29%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	32.1 (16^min, 24.6^P1) fps -30%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	31 (8.5^min, 12^P1) fps -33%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	29.5 (11.9^min, 16.4^P1) fps -36%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	29.2 (9.7^min, 15.6^P1) fps -37%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	27.2 (6.5^min, 10^P1) fps -41%

	basso	medio	alto	ultra	QHD	4K
GTA V (2015)	125.5	115.4	49.2	21.7
The Witcher 3 (2015)	107.7	65.8	39.3	23.5	16.7	12.8
Dota 2 Reborn (2015)	110.5	91.4	69.6	62.2
Final Fantasy XV Benchmark (2018)	63.1	33.1	23.6
X-Plane 11.11 (2018)	55.3	43.7	35.5
Far Cry 5 (2018)	68	41	38	36
Strange Brigade (2018)	132.2	55.2	46	39.9	26.8	14.4
Shadow of the Tomb Raider (2018)	85.7	38.8	35.2	29.8
Far Cry New Dawn (2019)	58	39	36	34
Metro Exodus (2019)	69.8	29.2	22.3	18
Control (2019)	79.9	28.2	20.5		13.3	6.54
Borderlands 3 (2019)	66.4	39.6	26.2	20.3
F1 2020 (2020)	152.2	84.6	66.4	45.4
F1 2021 (2021)	155.7	86	64.2	26.3
Far Cry 6 (2021)	69.7	41.8	35.3	29.7
God of War (2022)	48.6	27.6	21.8	15.1
GRID Legends (2022)	81.1	63.4	48.2	37.9
Cyberpunk 2077 1.6 (2022)	31.4	24.4	19	17.6	9.94	3.39
Tiny Tina's Wonderlands (2022)	60.3	44.9	30.2	23.5
F1 22 (2022)	80.2	70.4	51.7	11.9
The Witcher 3 v4.00 (2023)	42.5	33.3	28.7	24.5	16.4	8.28
Cyberpunk 2077 2.1 Phantom Liberty (2023)	32.1	25.1	20.1	18.4	10.4	3.98

The Geekom AS 6 with an Nvidia GeForce RTX 3060 Ti via Thunderbolt 3

Performance Rating - Percent
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	98.4 pt
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	96.3 pt
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	96.1 pt
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	85.7 pt
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	85 pt
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	80.5 pt

GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	100.6 (9.76^min, 66.7^P1 - 197.6^max) fps +364%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	96.6 (15^min, 66.7^P1 - 168.7^max) fps +345%
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	93.6 (18.1^min, 66.7^P1 - 185.1^max) fps +331%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	90.5 (15.8^min, 62.5^P1 - 187.2^max) fps +317%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	89.5 (16.6^min, 58.8^P1 - 175.8^max) fps +312%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	76.1 (11.9^min, 50^P1 - 151.7^max) fps +251%
	21.7 (12.7^min, 15.4^P1 - 34.6^max) fps

The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	74.8 fps +218%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	73.8 fps +214%
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	64.8 fps +176%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	57.9 fps +146%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	56.6 fps +141%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	56.3 fps +140%
	23.5 fps

Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	127.5 (110.1^min) fps +105%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	126.2 (108.1^min) fps +103%
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	121.2 (104.6^min) fps +95%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	113.3 (94.8^min) fps +82%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	111.7 (92.8^min) fps +80%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	105 (89.2^min) fps +69%
	62.2 (53.4^min) fps

Final Fantasy XV Benchmark - 1920x1080 High Quality
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	98.7 fps +318%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	98.5 fps +317%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	97.4 fps +313%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	92.2 fps +291%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	91.5 fps +288%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	91.2 fps +286%
	23.6 fps

Strange Brigade - 1920x1080 ultra AA:ultra AF:16
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	157.9 (77.9^min, 97.3^P1 - 300^max) fps +296%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	150 (76.6^min, 93.3^P1 - 295^max) fps +276%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	147 (76.9^min, 90.8^P1 - 300^max) fps +268%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	131.1 (68.1^min, 78.3^P1 - 270^max) fps +229%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	128.7 (36^min, 76.1^P1 - 249^max) fps +223%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	127.4 (45.3^min, 77.9^P1 - 260^max) fps +219%
	39.9 (27.9^min, 32^P1 - 61.7^max) fps

Far Cry 5 - 1920x1080 Ultra Preset AA:T
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	117 (88^min - 156^max) fps +225%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	114 (85^min - 152^max) fps +217%
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	111 (86^min - 148^max) fps +208%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	107 (72^min - 143^max) fps +197%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	104 (77^min - 138^max) fps +189%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	88 (68^min - 117^max) fps +144%
	36 (29^min - 42^max) fps

Far Cry New Dawn - 1920x1080 Ultra Preset
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	99 fps +191%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	95 (69^min - 143^max) fps +179%
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	92 (65^min - 143^max) fps +171%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	88 (63^min - 132^max) fps +159%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	87 (62^min - 135^max) fps +156%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	77 (54^min - 122^max) fps +126%
	34 (25^min - 45^max) fps

F1 2020 - 1920x1080 Ultra High Preset AA:T AF:16x
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	110 (71^min - 140^max) fps +142%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	106.1 (59^min - 146^max) fps +134%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	100.5 (58^min - 143^max) fps +121%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	86.7 (48^min - 122^max) fps +91%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	84.5 (42^min - 120^max) fps +86%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	82.4 (39^min - 117^max) fps +81%
	45.4 (34^min - 57^max) fps

F1 2021 - 1920x1080 Ultra High Preset + Raytracing AA:T AF:16x
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	58.1 (39^min, 28^P1 - 68^max) fps +121%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	54.2 (36^min, 31^P1 - 61^max) fps +106%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	51.5 (31^min, 27^P1 - 60^max) fps +96%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	44 (9^min, 20^P1 - 52^max) fps +67%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	43.5 (10^min, 19^P1 - 51^max) fps +65%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	42.8 (11^min, 19^P1 - 50^max) fps +63%
	26.3 (17^min, 15^P1 - 30^max) fps

Borderlands 3 - 1920x1080 Badass Overall Quality (DX11)
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	83.2 fps +310%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	82.8 fps +308%
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	80.8 fps +298%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	76.4 fps +276%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	69.8 fps +244%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	68.7 fps +238%
	20.3 fps

Tiny Tina's Wonderlands - 1920x1080 Badass Preset (DX12)
Geekom AS 6 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	81.7 fps +248%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	80.7 fps +243%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	80.4 fps +242%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	75.3 fps +220%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	74.8 fps +218%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	74.1 fps +215%
	23.5 fps

	basso	medio	alto	ultra	QHD	4K
GTA V (2015)	178	170.5	158.7	93.6	87.6	102.5
The Witcher 3 (2015)	251.5	171.9	127.6	64.8		66.7
Dota 2 Reborn (2015)	145	134.5	129.1	121.2		105.6
Final Fantasy XV Benchmark (2018)	193.8	142.7	98.7		77.2	48.7
X-Plane 11.11 (2018)	109.2	98.1	77.5			66.3
Far Cry 5 (2018)	142	126	119	111	95	58
Strange Brigade (2018)	209	163.8	162.6	157.9	132.8	86.4
Shadow of the Tomb Raider (2018)	140	116	113.1	109.3	90	54.3
Far Cry New Dawn (2019)	120	108	102	92	88	59
Metro Exodus (2019)	133.4	89.4	67.7	51.3	45	33.5
Borderlands 3 (2019)	120.3	104.3	94.9	80.8	64.4	38.1
F1 2020 (2020)	215	132	135.1	110	91.4	62.3
F1 2021 (2021)	152.5	126.8	76.9	58.1	53.8	45.3
Far Cry 6 (2021)	77.5	67	56.5	49.8	48.4
God of War (2022)	111.2	98.6	82.9	61.4	53.9	40.4
GRID Legends (2022)	124.7	99.8	81.3	68.5	62.3	50
Tiny Tina's Wonderlands (2022)	172.4	140.7	100.8	81.7	62	36.3
F1 22 (2022)	70.4	64.7	49.4	31.2	29.5	19.7

Emissioni: potenti eppure parsimoniose

Emissioni acustiche

Sebbene il Geekom AS 6 abbia prestazioni molto più elevate rispetto al Geekom AS 5.Geekom AS 5abbiamo notato emissioni acustiche molto più silenziose sotto carico. Abbiamo misurato solo 40 dB(A) - il modello precedente aveva emissioni acustiche molto più elevate, pari a 47 dB(A). Rispetto all'Intel NUC 13 Pro, ha fatto circa lo stesso. Tuttavia, il Geekom AS 6 non è mai completamente silenzioso, nemmeno in modalità idle, il che significa che ha preso la pagliuzza corta nel confronto diretto con i suoi concorrenti. Con una misurazione di poco più di 33 dB(A), il nostro sistema ha funzionato in modo molto silenzioso e anche sotto carico medio il Geekom AS 6 non è mai diventato fastidiosamente rumoroso, misurando 36,8 dB(A).

Rumorosità

Idle		33.2 / 33.6 / 33.6 dB(A)
Sotto carico		36.8 / 39.8 dB(A)

	30 dB silenzioso 40 dB(A) udibile 50 dB(A) rumoroso
min: , med: , max: Earthworks M23R, Arta (15 cm di distanza) Rumorosità ambientale: 30 dB(A)

	Geekom AS 6, R9 6900HX R9 6900HX, Radeon 680M	Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs	Geekom AS 5 R9 5900HX, Vega 8	Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs	Minisforum Venus Series NAB6 i7-12650H, UHD Graphics 64EUs	Morefine M600, 6900HX R9 6900HX, Radeon 680M	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	Morefine M600, 6600U R5 6600U, Radeon 660M
Noise		2%	-4%	10%	9%	5%	11%	14%
off /ambiente *	30	29.8 1%	30 -0%	29.8 1%	29.4 2%	30.4 -1%	30.2 -1%	29.4 2%
Idle Minimum *	33.2	30.2 9%	30.8 7%	29.9 10%	29.4 11%	30.9 7%	30.5 8%	29.4 11%
Idle Average *	33.6	31.1 7%	30.8 8%	30.1 10%	29.5 12%	31.5 6%	30.5 9%	29.4 12%
Idle Maximum *	33.6	31.9 5%	30.8 8%	30.2 10%	29.7 12%	31.5 6%	30.5 9%	29.5 12%
Load Average *	36.8	40 -9%	47 -28%	32.1 13%	34.6 6%	37.5 -2%	30.5 17%	29.6 20%
Load Maximum *	39.8	40.5 -2%	47.1 -18%	32.5 18%	36.1 9%	34.1 14%	30.5 23%	29.6 26%

* ... Meglio usare valori piccoli

Temperatura

Il Geekom AS 6 non ha mai avuto problemi di temperatura. Non importava se stesse eseguendo Prime95, FurMark o entrambi i programmi contemporaneamente: il SoC non ha mai superato gli 80 °C di temperatura. Abbiamo notato un certo margine di manovra per quanto riguarda la curva della ventola, la stessa che si trovava sulGeekom AS 5- per mantenere le temperature basse sotto carico. D'altro canto, il produttore ha rinunciato a un po' di prestazioni che sarebbe stato in grado di offrire con un TDP costantemente più elevato. Sembra invece che abbia trovato un compromesso per garantire un funzionamento stabile nelle aree meno raffreddate del PC. Gli stress test sono stati eseguiti con una temperatura ambiente di 22 °C.

Stresstest FurMark solo — Stress test FurMark solo

Consumo di energia

I valori di consumo energetico del Geekom AS 6 sembrano abbastanza positivi se si confrontano con quelli delMorefine M600 6900HXpoiché i componenti installati sono simili. Rispetto al carico medio e al valore massimo (che è stato raggiunto solo per un breve periodo di tempo), il nostro campione di prova ha fatto molto meglio. Abbiamo anche notato valori inferiori rispetto alIntel NUC 13 Proanche se il suo consumo in modalità idle era un po' alto, con 13,7 watt. In fin dei conti, questo non dovrebbe essere un grosso problema. Il Geekom AS 6 è dotato di un potente alimentatore da 150 watt che, a nostro avviso, è un po' eccessivo. In base alle nostre misurazioni, il modello precedente120 watt del modello precedente sarebbe stato più che sufficiente. D'altra parte, offre un margine sufficiente per altri due dispositivi di archiviazione.

Consumo di corrente

Off / Standby	0.4 / 1 Watt
Idle	6.8 / 9.4 / 13.7 Watt
Sotto carico	45.3 / 94.8 Watt


Leggenda: min: , med: , max: Metrahit Energy

	Geekom AS 6, R9 6900HX R9 6900HX, Radeon 680M	Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs	Geekom AS 5 R9 5900HX, Vega 8	Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs	Minisforum Venus Series NAB6 i7-12650H, UHD Graphics 64EUs	Morefine M600, 6900HX R9 6900HX, Radeon 680M	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	Morefine M600, 6600U R5 6600U, Radeon 660M	Media AMD Radeon 680M	Media della classe Mini PC
Power Consumption		5%	-3%	15%	-29%	-24%	-45%	3%	8%	-20%
Idle Minimum *	6.8	5.1 25%	8.6 -26%	5 26%	10.4 -53%	9.9 -46%	12.1 -78%	8 -18%	6.7 ?(2.2 - 10.8, n=32) 1%	9.48 ?(1.9 - 45.7, n=119, ultimi 2 anni) -39%
Idle Average *	9.4	5.8 38%	9.3 1%	7 26%	12.3 -31%	11 -17%	13 -38%	8.7 7%	8.73 ?(4.4 - 12.8, n=32) 7%	11.5 ?(1.9 - 47.5, n=117, ultimi 2 anni) -22%
Idle Maximum *	13.7	10.2 26%	9.6 30%	10.7 22%	12.4 9%	11.2 18%	18.2 -33%	8.8 36%	10.3 ?(5.1 - 18.6, n=32) 25%	14.9 ?(2.6 - 57.1, n=119, ultimi 2 anni) -9%
Load Average *	45.3	68.1 -50%	59.8 -32%	50.3 -11%	72.9 -61%	74.2 -64%	70.6 -56%	54.6 -21%	53.1 ?(20 - 77.7, n=32) -17%	57.4 ?(11.3 - 170.6, n=119, ultimi 2 anni) -27%
Load Maximum *	94.8	108.3 -14%	83.7 12%	82 14%	101.2 -7%	103.2 -9%	113 -19%	83.2 12%	70.3 ?(48 - 103.2, n=32) 26%	97.5 ?(18.1 - 423, n=119, ultimi 2 anni) -3%

* ... Meglio usare valori piccoli

Power consumption with external monitor

Geekom AS 6, R9 6900HX; Prime95 V2810 Stress (external Monitor): Ø77.9 (56.4-94.8)

Geekom AS 6, R9 6900HX; Cinebench R15 Multi (external Monitor): Ø81.4 (76.7-89.8)

Geekom AS 6, R9 6900HX; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø59.2 (54.7-63.2)

Geekom AS 6, R9 6900HX; 1920x1080 The Witcher 3 ultra (external Monitor): Ø51.7 (50-53.8)

Geekom AS 6, R9 6900HX; Idle 1min (external Monitor): Ø10 (6.19-13.7)

Geekom AS 6, R9 6900HX; Cinebench R23 Single (external Monitor): Ø44.5 (34.6-77.5)

Geekom AS 6, R9 6900HX; Cinebench R23 Multi (external Monitor): Ø78.2 (76.3-89.9)

Pro

+ struttura stabile e compatta

+ veloce SoC a 8 core

+ prestazioni eccezionali dell'iGPU

+ buone prestazioni WLAN

+ è possibile installare fino a 3 unità SSD

+ numerose porte USB, tra cui Thunderbolt

+ supporto quad display

+ 32 GB DI RAM DDR 5

+ facile da aprire

+ 1 TB SSD

+ prezzo decente

Contro

- nessun lettore di schede SD

- prestazioni mediocri dell'SSD (velocità di scrittura)

- sistema di raffreddamento sempre attivo

Verdetto - Piccolo ma potente!

Recensione di Geekom AS 6 - campione di prova fornito da Geekom

Il Geekom AS 6 è attualmente un mini PC estremamente potente con un moderno processoreAMD Ryzen 9 6900HX. Non ha ottenuto solo prestazioni migliori nei test della CPU: la sua nuova iGPU, laAMD Radeon 680Mha superato anche l'AMD Ryzen 9 5900HX.AMD Ryzen 9 5900HXcon la suaAMD Radeon RX Vega 8. Durante il nostro test, abbiamo notato un aumento delle prestazioni della sua iGPU di circa il 30%. Si tratta di un aumento enorme e attualmente Intel non è in grado di tenere il passo. Se siete alla ricerca di un mini PC potente con prestazioni 3D utilizzabili, allora siete di fronte al dispositivo giusto. Il Geekom AS 6 dispone anche di un'ampia gamma di porte USB e Thunderbolt. Quest'ultima può persino aiutare a trasformare questo piccolo PC in una vera e propria bestia informatica con gli accessori giusti. Inoltre, il Geekom AS 6 può ospitare fino a quattro schermi contemporaneamente. Questa caratteristica non è presente in tutti i mini PC e potrebbe rivelarsi un fattore decisivo per molti potenziali acquirenti. Rispetto al suo predecessore, le prestazioni WLAN non sono necessariamente migliori, ma non sono nemmeno peggiori. Non c'è da sorprendersi, visto che sia il case che il modulo WLAN 6E installato sono identici a quelli dell'AS 5.

Il Geekom AS 6 ha il potenziale per essere un ottimo mini PC. La sua potente iGPU è in grado di superare praticamente tutti i mini PC Intel e Thunderbolt rende questo dispositivo ancora più a prova di futuro.

La nota collaborazione dell'azienda con Asus continua con questo modello, ma non lo consideriamo assolutamente un punto negativo. Dal punto di vista del prezzo, il dispositivo di Geekom è notevolmente più attraente e non deve nemmeno scendere a compromessi degni di nota. Purtroppo, il problema principale del mini PC è l'unità SSD. Il modello Kingston è già stato utilizzato nel Geekom AS 5, con prestazioni simili. Il produttore dovrebbe scegliere un modello diverso in futuro per evitare di ripetere lo stesso problema. In termini di emissioni acustiche, l'AS 6 è molto più silenzioso del suo predecessore. Tuttavia, questo non significa che l'AS 6 sia uno dei mini PC più silenziosi. Con i loroSerie Venus UM690minisforum ha dimostrato che è possibile fare di più utilizzando lo stesso SoC.

Prezzi e disponibilità

Il Geekom AS 6 può essere acquistato direttamente dal produttore https://www.geekompc.com/geekom-as-6-mini-pc/. Attualmente viene venduto a 749 dollari.

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Geekom AS 6, R9 6900HX - 06/08/2023 v7 ^(old)
Sebastian Bade

Chassis

84 / 98 → 85%

Connettività

64 / 81 → 79%

Peso

79%

Prestazioni di gioco

77%
