Recensione del portatile 13,5 Ryzen 7 7840U: Molto meglio della versione Intel

Name: Framework Laptop 13.5 Ryzen 7 7840U
Brand: Framework

AMD Zen 4 fa la sua magia.

La piattaforma AMD Zen 4 serie U fa sembrare obsoleta la serie P di Intel Core. A meno che non si apprezzino una o due caratteristiche specifiche di Intel, allora il nuovo AMD Framework dovrebbe essere una scelta obbligata per la maggior parte degli utenti.

Allen Ngo, 👁 Allen Ngo (traduzione a cura di DeepL / Ninh Duy), Published 10/03/2023 🇺🇸 🇸🇪 ...

AMD Laptop / Notebook Zen 4 Ultrabook Ryzen (Zen)

Gli utenti hanno chiesto a gran voce una versione AMD del Framework Laptop fai-da-te fin dalla sua introduzione nel 2021. Con le CPU Ryzen che ogni anno diventano sempre più competitive nei confronti di Intel, questo è il momento migliore per lanciare il primo AMD Framework Laptop.

La nostra unità in prova è una configurazione di fascia alta con Ryzen 7 7840U a poco meno di 1500 dollari, mentre le opzioni di fascia bassa sono disponibili con Ryzen 5 7640U. Il Framework Laptop 13.5 è uno dei primi sul mercato a essere fornito con Ryzen 7 7840U.

Vi consigliamo di consultare le nostre recensioni e i video sul Framework Laptop per maggiori dettagli sulle sue caratteristiche fisiche, dato che il design è rimasto invariato.

I concorrenti del Framework Laptop 13.5 includono altri subnotebook di punta come ilLenovo ThinkPad X1 Nano Gen 3, HP Dragonfly G4,Dell XPS 13 Plus 9320o l' Asus ZenBook S13.

Altre recensioni del quadro:

Dispositivo di test fornito da Framework

Scarica la tua immagine come PNG / SVG

Framework Laptop 13.5 Ryzen 7 7840U (Laptop Serie)

Processore

AMD Ryzen 7 7840U 8 x 3.3 - 5.1 GHz, 51 W PL2 / Short Burst, 35 W PL1 / Sustained, Phoenix-U (Zen 4)

Scheda grafica

AMD Radeon 780M - 512 MB VRAM, Core: 2800 MHz, DDR5, 31.0.22011.4008

Memoria

16 GB

, ADATA DDR5-5600, 46-45-45-90, Dual-Channel

Schermo

13.50 pollici 3:2, 2256 x 1504 pixel 201 PPI, BOE CQ NE135FBM-N41, IPS, BOE0BCA, 60 Hz

Scheda madre

AMD Promontory/Bixby FCH

Harddisk

WD PC SN740 512GB SDDPNQD-512G, 512 GB

Scheda audio

AMD Zen - Audio Processor - HD Audio Controller

Porte di connessione

4 USB 3.1 Gen 2, 2 USB 4.0 40 Gbps, 2 Thunderbolt, USB-C Power Delivery (PD), 3 DisplayPort, Connessioni Audio: 3.5 mm combo, Lettore schede: MicroSD

Rete

MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2

Dimensioni

altezza x larghezza x profondità (in mm): 15.85 x 296.63 x 228.98

Batteria

61 Wh polimeri di litio

Sistema Operativo

Microsoft Windows 11 Home

Camera

Webcam: 1080p30
Fotocamera Principale: 2.1 MPix

Altre caratteristiche

Tastiera: Chiclet, Illuminazione Tastiera: si, 12 Mesi Garanzia

Peso

1.334 kg, Alimentazione: 313 gr

Prezzo

1500 USD

Nota: il produttore potrebbe usare componenti di fornitori diversi pannelli dei diplay, drive o banchi di memoria con specifiche simili.

guarda tutte le specifiche

Potenziali concorrenti a confronto

Punteggio	Data	Modello	Peso	Altezza	Dimensione	Risoluzione
87.5 % v7 ^(old)	10/2023	Framework Laptop 13.5 Ryzen 7 7840U R7 7840U, Radeon 780M	1.3 kg	15.85 mm	13.50"	2256x1504
85.4 % v7 ^(old)	07/2021	Framework Laptop 13.5 i7-1165G7, Iris Xe G7 96EUs	1.3 kg	15.85 mm	13.50"	2256x1504
89.5 % v7 ^(old)	08/2023	Lenovo ThinkPad X1 Nano Gen 3 i7-1360P, Iris Xe G7 96EUs	989 gr	14.8 mm	13.00"	2160x1350
91.9 % v7 ^(old)	07/2023	HP Dragonfly G4 i7-1365U, Iris Xe G7 96EUs	1.1 kg	16.3 mm	13.50"	1920x1280
87.4 % v7 ^(old)	07/2023	Dell XPS 13 Plus 9320 Core i7-1360P i7-1360P, Iris Xe G7 96EUs	1.3 kg	15.3 mm	13.40"	3456x2160
85.4 % v7 ^(old)	05/2023	Asus ZenBook S13 OLED UX5304 i7-1355U, Iris Xe G7 96EUs	1 kg	11.8 mm	13.30"	2880x1800

Caso

▶ load Youtube video

Confronto delle dimensioni

HP Dragonfly G4 Framework Laptop 13.5 Ryzen 7 7840U Framework Laptop 13.5 Dell XPS 13 Plus 9320 Core i7-1360P Lenovo ThinkPad X1 Nano Gen 3 Asus ZenBook S13 OLED UX5304 DIN A4 ❌

Connettività

Sebbene tutte e quattro le porte USB-C siano ancora presenti, i dettagli sono complicati poiché il supporto Thunderbolt è più nebuloso tra i PC AMD. Solo le due porte posteriori supportano USB4, mentre la porta in basso a sinistra è solo USB-C 3.2 e quella in basso a destra è USB-C 3.2 con DisplayPort. Lo possiamo confermare noi stessi, dato che il nostro monitor esterno funzionava solo su tre delle quattro porte USB-C. La ricarica può essere effettuata su una qualsiasi delle quattro porte.

I dispositivi Thunderbolt sono supportati dalle due porte USB-C posteriori.

Comunicazione

Il modello AMD è dotato di un MediaTek RZ616 per il supporto Wi-Fi 6E e Bluetooth 5.2 al posto dei comuni Intel AX210 o AX211. Le velocità di trasferimento sono comunque eccellenti, ma avrebbero potuto essere un po' più costanti.

Networking
iperf3 transmit AX12
Framework Laptop 13.5 Intel Wi-Fi 6E AX210	956 (902^min - 1037^max) MBit/s
iperf3 receive AX12
Framework Laptop 13.5 Intel Wi-Fi 6E AX210	914 (734^min - 1050^max) MBit/s
iperf3 transmit AXE11000
Asus ZenBook S13 OLED UX5304 Intel Wi-Fi 6E AX211	1555 (1319^min - 1613^max) MBit/s +14%
Framework Laptop 13.5 Ryzen 7 7840U MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1364 (1196^min - 1508^max) MBit/s
Lenovo ThinkPad X1 Nano Gen 3 Intel Wi-Fi 6E AX211	1232 (966^min - 1415^max) MBit/s -10%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Wi-Fi 6E AX211	1118 (1064^min - 1183^max) MBit/s -18%
HP Dragonfly G4 Intel Wi-Fi 6E AX211	973 (879^min - 1016^max) MBit/s -29%
iperf3 receive AXE11000
Asus ZenBook S13 OLED UX5304 Intel Wi-Fi 6E AX211	1439 (1353^min - 1469^max) MBit/s +3%
Framework Laptop 13.5 Ryzen 7 7840U MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1403 (1292^min - 1492^max) MBit/s
Lenovo ThinkPad X1 Nano Gen 3 Intel Wi-Fi 6E AX211	1299 (1181^min - 1400^max) MBit/s -7%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Wi-Fi 6E AX211	1266 (928^min - 1336^max) MBit/s -10%
HP Dragonfly G4 Intel Wi-Fi 6E AX211	1200 (1059^min - 1247^max) MBit/s -14%
iperf3 transmit AXE11000 6GHz
Framework Laptop 13.5 Ryzen 7 7840U MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1514 (1238^min - 1724^max) MBit/s
Lenovo ThinkPad X1 Nano Gen 3 Intel Wi-Fi 6E AX211	1418 (937^min - 1499^max) MBit/s -6%
HP Dragonfly G4 Intel Wi-Fi 6E AX211	1243 (776^min - 1326^max) MBit/s -18%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Wi-Fi 6E AX211	1094 (570^min - 1214^max) MBit/s -28%
iperf3 receive AXE11000 6GHz
Lenovo ThinkPad X1 Nano Gen 3 Intel Wi-Fi 6E AX211	1302 (1171^min - 1381^max) MBit/s +4%
Framework Laptop 13.5 Ryzen 7 7840U MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1246 (1020^min - 1386^max) MBit/s
HP Dragonfly G4 Intel Wi-Fi 6E AX211	1234 (1042^min - 1336^max) MBit/s -1%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Wi-Fi 6E AX211	1173 (982^min - 1272^max) MBit/s -6%

Framework Laptop 13.5 Ryzen 7 7840U; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1514 (1238-1724)

Framework Laptop 13.5 Ryzen 7 7840U; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1245 (1020-1386)

Webcam

ColorChecker Framework Laptop 13.5 Ryzen 7 7840U: 7.09 ∆E min: 2.2 - max: 14.15 ∆E

Manutenzione

La struttura è molto semplice da usare per quanto riguarda le riparazioni e gli aggiornamenti, come descritto in dettaglio nella nostra recensione esistente.

Accessori e garanzia

La versione AMD utilizza le stesse schede di espansione della versione Intel, comprese le schede HDMI e DP. Si noti che non sono incluse schede di espansione gratuite e si consiglia vivamente di averne almeno una o due con l'acquisto di un portatile.

La garanzia standard limitata di un anno è valida se acquistata negli Stati Uniti.

Display

Il display IPS 2256 x 1504 BOE CQ NE135FBM-N41 non è cambiato dall'originale laptop Framework 2021. Framework non ha ancora offerto altre opzioni di display con tecnologie più recenti o migliori come OLED, mini-LED, frequenze di aggiornamento >60 Hz o tempi di risposta più rapidi.

Minima perdita di luce irregolare in retroilluminazione


427 cd/m²	439.9 cd/m²	438.2 cd/m²
400.3 cd/m²	436 cd/m²	409.4 cd/m²
390.7 cd/m²	393.1 cd/m²	409 cd/m²

Distribuzione della luminosità

BOE CQ NE135FBM-N41 tested with X-Rite i1Pro 2

Massima: 439.9 cd/m² (Nits) Media: 416 cd/m² Minimum: 20.9 cd/m²
Distribuzione della luminosità: 89 %
Al centro con la batteria: 436 cd/m²
Contrasto: 1211:1 (Nero: 0.36 cd/m²)
ΔE Color 1.81 | 0.5-29.43 Ø4.91, calibrated: 0.45
ΔE Greyscale 2.9 | 0.5-98 Ø5.2
71.1% AdobeRGB 1998 (Argyll 2.2.0 3D)
99.1% sRGB (Argyll 2.2.0 3D)
69% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.27

Download ICC File (X-Rite i1Pro 2)

	Framework Laptop 13.5 Ryzen 7 7840U BOE CQ NE135FBM-N41, IPS, 2256x1504, 13.5"	Framework Laptop 13.5 13th Gen Intel BOE CQ NE135FBM-N41, IPS, 2256x1504, 13.5"	Framework Laptop 13.5 12th Gen Intel BOE CQ NE135FBM-N41, IPS, 2256x1504, 13.5"	Framework Laptop 13.5 BOE CQ NE135FBM-N41, IPS, 2256x1504, 13.5"	Lenovo ThinkPad X1 Nano Gen 3 MND007ZA1-3, IPS, 2160x1350, 13"	HP Dragonfly G4 Chi Mei CMN13C0, IPS, 1920x1280, 13.5"
Display		-1%	0%	-0%	-1%	-1%
Display P3 Coverage	69	68.9 0%	69.9 1%	69 0%	68.5 -1%	68.4 -1%
sRGB Coverage	99.1	97.5 -2%	99.4 0%	99.3 0%	99.5 0%	98.3 -1%
AdobeRGB 1998 Coverage	71.1	71.1 0%	71.1 0%	70.3 -1%	69.7 -2%	70.4 -1%
Response Times		-8%	22%	-12%	20%	2%
Response Time Grey 50% / Grey 80% *	50.4 ?(23.8, 26.6)	54.9 ?(24.2, 30.7) -9%	34.7 ?(17.7, 17) 31%	55.6 ?(27.2, 28.4) -10%	39.9 ?(18.7, 21.2) 21%	48.8 ?(22.9, 25.9) 3%
Response Time Black / White *	31.5 ?(17.7, 13.8)	33.5 ?(18.2, 15.3) -6%	27.5 ?(14.8, 12.7) 13%	36 ?(21.2, 14.8) -14%	25.8 ?(11.8, 14) 18%	31.3 ?(16.3, 15) 1%
PWM Frequency
Screen		-37%	-21%	-28%	13%	0%
Brightness middle	436	503 15%	449.6 3%	449 3%	461.2 6%	408.8 -6%
Brightness	416	472 13%	431 4%	435 5%	428 3%	399 -4%
Brightness Distribution	89	87 -2%	90 1%	93 4%	86 -3%	90 1%
Black Level *	0.36	0.36 -0%	0.31 14%	0.39 -8%	0.29 19%	0.32 11%
Contrast	1211	1397 15%	1450 20%	1151 -5%	1590 31%	1278 6%
Colorchecker dE 2000 *	1.81	3.38 -87%	2.76 -52%	2.34 -29%	1.79 1%	2.02 -12%
Colorchecker dE 2000 max. *	4.73	7.08 -50%	7.96 -68%	7.07 -49%	3.3 30%	3.84 19%
Colorchecker dE 2000 calibrated *	0.45	1.21 -169%	0.58 -29%	0.96 -113%	0.47 -4%	0.61 -36%
Greyscale dE 2000 *	2.9	4.8 -66%	5.2 -79%	4.7 -62%	1.8 38%	2.3 21%
Gamma	2.27 ^97%	2.13 ^103%	2.23 ^99%	2.29 ^96%	2.24 ^98%	2.2 ^100%
CCT	6784 ^96%	6235 ^104%	6475 ^100%	6760 ^96%	6588 ^99%	6203 ^105%
Media totale (Programma / Settaggio)		-15% / -25%	0% / -10%	-13% / -20%	11% / 11%	0% / 0%

* ... Meglio usare valori piccoli

Sweep di saturazione prima della calibrazione

Sweep di saturazione dopo la calibrazione

Tempi di risposta del Display

ℹ

I tempi di risposta del display mostrano quanto sia veloce lo schermo a cambaire da un colore all'altro. Tempi di risposta lenti possono creare sovrapposizioni negloi oggetti in movimento. Specialmente i giocatori patiti del 3D dovrebbero usare uno schermo con tempi di risposta bassi.

↔ Tempi di risposta dal Nero al Bianco
31.5 ms ... aumenta ↗ e diminuisce ↘ combinato	↗ 17.7 ms Incremento
31.5 ms ... aumenta ↗ e diminuisce ↘ combinato	↘ 13.8 ms Calo
Lo schermo mostra tempi di risposta lenti nei nostri tests e sarà insoddisfacente per i gamers. In confronto, tutti i dispositivi di test variano da 0.1 (minimo) a 240 (massimo) ms. » 84 % di tutti i dispositivi è migliore. Questo significa che i tempi di risposta rilevati sono peggiori rispetto alla media di tutti i dispositivi testati (20.9 ms).
↔ Tempo di risposta dal 50% Grigio all'80% Grigio
50.4 ms ... aumenta ↗ e diminuisce ↘ combinato	↗ 23.8 ms Incremento
50.4 ms ... aumenta ↗ e diminuisce ↘ combinato	↘ 26.6 ms Calo
Lo schermo mostra tempi di risposta lenti nei nostri tests e sarà insoddisfacente per i gamers. In confronto, tutti i dispositivi di test variano da 0.165 (minimo) a 636 (massimo) ms. » 85 % di tutti i dispositivi è migliore. Questo significa che i tempi di risposta rilevati sono peggiori rispetto alla media di tutti i dispositivi testati (32.8 ms).

Sfarfallio dello schermo / PWM (Pulse-Width Modulation)

ℹ

Per ridurre la luminosità dello schermo, alcuni portatili accendono e spengono la retroilluminazione in rapida successione - un metodo chiamato Pulse Width Modulation (PWM). Questa frequenza di ciclo a livello ideale non dovrebbe essere percepibile dall'occhi umano. Se tale frequenza è troppo bassa, gli utenti con occhi sensibili potrebbero stancarsi gli occhi o avere mal di testa o anche notare uno sfarfallio.

flickering dello schermo / PWM non rilevato

In confronto: 53 % di tutti i dispositivi testati non utilizza PWM per ridurre la luminosita' del display. Se è rilevato PWM, una media di 8702 (minimo: 5 - massimo: 343500) Hz è stata rilevata.

Prestazioni

Condizioni di test

Abbiamo impostato Windows in modalità Prestazioni prima di eseguire i benchmark qui sotto. Il Framework non include alcun software preinstallato di tipo centro di controllo per la regolazione di eventuali funzioni specializzate, ma consigliamo di installare AMD Adrenalin per un migliore controllo della GPU integrata.

Processore

Dopo il deludente Zen 3 Ryzen 7 7730Ustiamo finalmente iniziando a vedere più portatili che sfoggiano lo Zen 4 Ryzen 7 7840U disponibili. Questa attesissima CPU della serie U è in grado di competere con la serie H Core i7-12700H pur richiedendo solo una frazione della potenza. Inoltre, supera marginalmente le prestazioni del Core i7-1370P di 13a generazione Core i7-1370P presente nel Framework Laptop basato su Intel nei carichi di lavoro multi-thread.

Tuttavia, le prestazioni in single-thread sono circa il 15% più lente rispetto al Core i7-1370P, per essere più in linea con una CPU Intel di 12a generazione come il Core i7-1260P Intel Alder Lake-P i7-1260P Notebook Processor . Questo deficit non dovrebbe essere una grande sorpresa, dato che le CPU AMD sono di solito leggermente indietro in questo senso.

Non abbiamo ancora testato un portatile Ryzen 5 7640U e quindi non possiamo dire con certezza quale sia la perdita di prestazioni che ci si aspetta quando si passa dal Ryzen 7 7840U al Ryzen 5 7640U.

Cinebench R15 Multi Loop

Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U: Ø2158 (2124.16-2204.83)

Framework Laptop 13.5 Intel Core i7-1165G7: Ø845 (812.27-850.43)

Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P: Ø1109 (808.08-1572.33)

HP Dragonfly G4 Intel Core i7-1365U: Ø1060 (1014.74-1347.89)

Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P: Ø1507 (1397.72-1950.55)

Asus ZenBook S13 OLED UX5304 Intel Core i7-1355U: Ø1024 (989.63-1358.19)

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

CPU Performance Rating
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P	84.3 pt
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U	81.3 pt
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H	80.6 pt
SCHENKER Vision 14 2023 Intel Core i7-13700H	78.1 pt
Media AMD Ryzen 7 7840U	74.8 pt
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P	74.1 pt
Asus ROG Zephyrus G14 GA402RJ AMD Ryzen 7 6800HS	69.8 pt
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P	69.7 pt
Lenovo ThinkPad E16 G1-21JUS08X00 AMD Ryzen 7 7730U	63.7 pt
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P	63.4 pt
HP Dragonfly G4 Intel Core i7-1365U	62.9 pt
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P	57.9 pt
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7	46.9 pt
Framework Laptop 13.5 ^-2! Intel Core i7-1165G7	46.1 pt
Huawei MateBook 13s i5 11300H Intel Core i5-11300H	44 pt
Dell XPS 13 9310 Core i7 FHD ^-2! Intel Core i7-1165G7	43.5 pt

Cinebench R23 / Multi Core
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U	13981 (12822.5^min - 13981.2^max) Points
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H	13572 Points -3%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P	13159 (11903.7^min - 13158.6^max) Points -6%
Media AMD Ryzen 7 7840U (11739 - 15074, n=10)	12884 Points -8%
SCHENKER Vision 14 2023 Intel Core i7-13700H	12275 Points -12%
Asus ROG Zephyrus G14 GA402RJ AMD Ryzen 7 6800HS	11992 Points -14%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P	11503 (9427.43^min - 11502.9^max) Points -18%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P	10405 (10008.9^min - 10404.6^max) Points -26%
Lenovo ThinkPad E16 G1-21JUS08X00 AMD Ryzen 7 7730U	10325 Points -26%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P	9392 Points -33%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P	8198 (6706.67^min - 8197.58^max) Points -41%
HP Dragonfly G4 Intel Core i7-1365U	7532 (5307.67^min - 7531.78^max) Points -46%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7	5504 (5281.5^min - 5504.22^max) Points -61%
Framework Laptop 13.5 Intel Core i7-1165G7	5477 (5385.09^min - 5477.06^max) Points -61%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H	5186 Points -63%

Cinebench R23 / Single Core
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P	1995 Points +21%
SCHENKER Vision 14 2023 Intel Core i7-13700H	1912 Points +16%
HP Dragonfly G4 Intel Core i7-1365U	1891 Points +15%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P	1848 Points +12%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P	1704 Points +3%
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H	1701 Points +3%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U	1647 Points
Media AMD Ryzen 7 7840U (1373 - 1742, n=10)	1646 Points 0%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P	1640 Points 0%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P	1621 Points -2%
Framework Laptop 13.5 Intel Core i7-1165G7	1507 Points -9%
Lenovo ThinkPad E16 G1-21JUS08X00 AMD Ryzen 7 7730U	1466 Points -11%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7	1457 Points -12%
Asus ROG Zephyrus G14 GA402RJ AMD Ryzen 7 6800HS	1455 Points -12%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H	1218 Points -26%

Cinebench R20 / CPU (Multi Core)
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U	5425 Points
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H	5247 Points -3%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P	5079 Points -6%
Media AMD Ryzen 7 7840U (4469 - 5917, n=10)	5039 Points -7%
SCHENKER Vision 14 2023 Intel Core i7-13700H	4870 Points -10%
Asus ROG Zephyrus G14 GA402RJ AMD Ryzen 7 6800HS	4634 Points -15%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P	4424 Points -18%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P	4033 Points -26%
Lenovo ThinkPad E16 G1-21JUS08X00 AMD Ryzen 7 7730U	3985 Points -27%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P	3526 Points -35%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P	3424 Points -37%
HP Dragonfly G4 Intel Core i7-1365U	2902 Points -47%
Framework Laptop 13.5 Intel Core i7-1165G7	2119 Points -61%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7	2101 Points -61%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H	1982 Points -63%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7	1913 Points -65%

Cinebench R20 / CPU (Single Core)
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P	764 Points +17%
SCHENKER Vision 14 2023 Intel Core i7-13700H	734 Points +13%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P	707 Points +9%
HP Dragonfly G4 Intel Core i7-1365U	703 Points +8%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P	690 Points +6%
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H	672 Points +3%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P	668 Points +3%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U	651 Points
Media AMD Ryzen 7 7840U (533 - 678, n=10)	644 Points -1%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P	616 Points -5%
Framework Laptop 13.5 Intel Core i7-1165G7	580 Points -11%
Lenovo ThinkPad E16 G1-21JUS08X00 AMD Ryzen 7 7730U	573 Points -12%
Asus ROG Zephyrus G14 GA402RJ AMD Ryzen 7 6800HS	570 Points -12%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7	559 Points -14%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7	557 Points -14%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H	431 Points -34%

Cinebench R15 / CPU Multi 64Bit
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P	2492 (1843.32^min - 2492.21^max) Points +13%
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H	2333 (2007.13^min - 2332.91^max) Points +6%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U	2205 (2124.16^min - 2204.83^max) Points
SCHENKER Vision 14 2023 Intel Core i7-13700H	2000 (1907.49^min - 1999.5^max) Points -9%
Asus ROG Zephyrus G14 GA402RJ AMD Ryzen 7 6800HS	1987 (1933.96^min - 1986.89^max) Points -10%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P	1951 (1397.72^min - 1950.55^max) Points -12%
Media AMD Ryzen 7 7840U (1025 - 2439, n=12)	1946 Points -12%
Lenovo ThinkPad E16 G1-21JUS08X00 AMD Ryzen 7 7730U	1718.58 (1668.54^min - 1718.58^max) Points -22%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P	1623 (1546.61^min - 1622.59^max) Points -26%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P	1592 Points -28%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P	1572 (808.08^min - 1572.33^max) Points -29%
HP Dragonfly G4 Intel Core i7-1365U	1348 (1014.74^min - 1347.89^max) Points -39%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H	970 (913.26^min - 969.84^max) Points -56%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H	961 Points -56%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7	918 Points -58%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7	852 (828.74^min - 851.79^max) Points -61%
Framework Laptop 13.5 Intel Core i7-1165G7	850 (812.27^min - 850.43^max) Points -61%

Cinebench R15 / CPU Single 64Bit
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P	284 Points +14%
SCHENKER Vision 14 2023 Intel Core i7-13700H	276 Points +11%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P	263 Points +6%
HP Dragonfly G4 Intel Core i7-1365U	261 Points +5%
Media AMD Ryzen 7 7840U (217 - 272, n=10)	256 Points +3%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P	252 Points +1%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U	249 Points
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H	245 Points -2%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P	239 Points -4%
Asus ROG Zephyrus G14 GA402RJ AMD Ryzen 7 6800HS	234 Points -6%
Lenovo ThinkPad E16 G1-21JUS08X00 AMD Ryzen 7 7730U	233 Points -6%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P	226 Points -9%
Framework Laptop 13.5 Intel Core i7-1165G7	224 Points -10%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7	218 Points -12%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7	217 Points -13%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H	208 Points -16%

Blender / v2.79 BMW27 CPU
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7	632 Seconds * -175%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7	554 Seconds * -141%
Framework Laptop 13.5 Intel Core i7-1165G7	551 Seconds * -140%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H	509 Seconds * -121%
HP Dragonfly G4 Intel Core i7-1365U	430 Seconds * -87%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P	381 Seconds * -66%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P	369 Seconds * -60%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P	301 Seconds * -31%
Lenovo ThinkPad E16 G1-21JUS08X00 AMD Ryzen 7 7730U	296 Seconds * -29%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P	279 Seconds * -21%
Asus ROG Zephyrus G14 GA402RJ AMD Ryzen 7 6800HS	258 Seconds * -12%
Media AMD Ryzen 7 7840U (208 - 270, n=10)	251 Seconds * -9%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P	246 Seconds * -7%
SCHENKER Vision 14 2023 Intel Core i7-13700H	238 Seconds * -3%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U	230 Seconds *
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H	225 Seconds * +2%

7-Zip 18.03 / 7z b 4
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U	61902 MIPS
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H	60030 MIPS -3%
Asus ROG Zephyrus G14 GA402RJ AMD Ryzen 7 6800HS	56170 MIPS -9%
Media AMD Ryzen 7 7840U (50087 - 62156, n=10)	55687 MIPS -10%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P	55049 MIPS -11%
SCHENKER Vision 14 2023 Intel Core i7-13700H	54766 MIPS -12%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P	47737 MIPS -23%
Lenovo ThinkPad E16 G1-21JUS08X00 AMD Ryzen 7 7730U	47733 MIPS -23%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P	44426 MIPS -28%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P	40777 MIPS -34%
HP Dragonfly G4 Intel Core i7-1365U	33476 MIPS -46%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P	33022 MIPS -47%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H	26001 MIPS -58%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7	25319 MIPS -59%
Framework Laptop 13.5 Intel Core i7-1165G7	24436 MIPS -61%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7	20843 MIPS -66%

7-Zip 18.03 / 7z b 4 -mmt1
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P	6687 MIPS +4%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U	6408 MIPS
SCHENKER Vision 14 2023 Intel Core i7-13700H	6229 MIPS -3%
HP Dragonfly G4 Intel Core i7-1365U	5835 MIPS -9%
Media AMD Ryzen 7 7840U (4657 - 6408, n=10)	5816 MIPS -9%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P	5767 MIPS -10%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P	5756 MIPS -10%
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H	5661 MIPS -12%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P	5526 MIPS -14%
Asus ROG Zephyrus G14 GA402RJ AMD Ryzen 7 6800HS	5495 MIPS -14%
Lenovo ThinkPad E16 G1-21JUS08X00 AMD Ryzen 7 7730U	5426 MIPS -15%
Framework Laptop 13.5 Intel Core i7-1165G7	5405 MIPS -16%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7	5283 MIPS -18%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7	5208 MIPS -19%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H	4851 MIPS -24%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P	4791 MIPS -25%

Geekbench 5.5 / Multi-Core
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H	12843 Points +22%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P	11744 Points +11%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P	10817 Points +2%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U	10558 Points
SCHENKER Vision 14 2023 Intel Core i7-13700H	10515 Points 0%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P	9687 Points -8%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P	9678 Points -8%
Asus ROG Zephyrus G14 GA402RJ AMD Ryzen 7 6800HS	9298 Points -12%
Media AMD Ryzen 7 7840U (7399 - 10558, n=10)	9113 Points -14%
HP Dragonfly G4 Intel Core i7-1365U	8778 Points -17%
Lenovo ThinkPad E16 G1-21JUS08X00 AMD Ryzen 7 7730U	6747 Points -36%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7	5682 Points -46%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7	5583 Points -47%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H	5402 Points -49%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P	4286 Points -59%

Geekbench 5.5 / Single-Core
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P	1974 Points +3%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U	1912 Points
HP Dragonfly G4 Intel Core i7-1365U	1902 Points -1%
SCHENKER Vision 14 2023 Intel Core i7-13700H	1830 Points -4%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P	1825 Points -5%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P	1804 Points -6%
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H	1762 Points -8%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P	1759 Points -8%
Media AMD Ryzen 7 7840U (1355 - 1933, n=10)	1705 Points -11%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P	1588 Points -17%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7	1547 Points -19%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7	1498 Points -22%
Asus ROG Zephyrus G14 GA402RJ AMD Ryzen 7 6800HS	1492 Points -22%
Lenovo ThinkPad E16 G1-21JUS08X00 AMD Ryzen 7 7730U	1490 Points -22%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H	1430 Points -25%

HWBOT x265 Benchmark v2.2 / 4k Preset
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U	17.4 fps
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H	16.7 fps -4%
Media AMD Ryzen 7 7840U (14.4 - 18.6, n=10)	15.7 fps -10%
Asus ROG Zephyrus G14 GA402RJ AMD Ryzen 7 6800HS	15.1 fps -13%
SCHENKER Vision 14 2023 Intel Core i7-13700H	14.7 fps -16%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P	14.5 fps -17%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P	13.2 fps -24%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P	12.2 fps -30%
Lenovo ThinkPad E16 G1-21JUS08X00 AMD Ryzen 7 7730U	11.8 fps -32%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P	11.5 fps -34%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P	10.1 fps -42%
HP Dragonfly G4 Intel Core i7-1365U	8.61 fps -51%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H	7.55 fps -57%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7	7.06 fps -59%
Framework Laptop 13.5 Intel Core i7-1165G7	7.05 fps -59%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7	5.84 fps -66%

LibreOffice / 20 Documents To PDF
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P	61.8 s * -40%
Asus ROG Zephyrus G14 GA402RJ AMD Ryzen 7 6800HS	55 s * -25%
SCHENKER Vision 14 2023 Intel Core i7-13700H	52.8 s * -20%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P	51.1 s * -16%
Media AMD Ryzen 7 7840U (43.4 - 67.1, n=10)	50.1 s * -14%
Lenovo ThinkPad E16 G1-21JUS08X00 AMD Ryzen 7 7730U	49.6 s * -12%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H	49.1 s * -11%
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H	46.7 s * -6%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7	46.5 s * -5%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P	46.5 s * -5%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7	46.2 s * -5%
HP Dragonfly G4 Intel Core i7-1365U	45.3 s * -3%
Framework Laptop 13.5 Intel Core i7-1165G7	45.1 s * -2%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U	44.1 s *
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P	42.9 s * +3%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P	39.6 s * +10%

R Benchmark 2.5 / Overall mean
Huawei MateBook 13s i5 11300H Intel Core i5-11300H	0.624 sec * -37%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7	0.587 sec * -29%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7	0.586 sec * -29%
Framework Laptop 13.5 Intel Core i7-1165G7	0.566 sec * -24%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P	0.524 sec * -15%
Lenovo ThinkPad E16 G1-21JUS08X00 AMD Ryzen 7 7730U	0.515 sec * -13%
Asus ROG Zephyrus G14 GA402RJ AMD Ryzen 7 6800HS	0.512 sec * -12%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P	0.4834 sec * -6%
Media AMD Ryzen 7 7840U (0.4559 - 0.581, n=11)	0.4821 sec * -6%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P	0.4675 sec * -3%
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H	0.4669 sec * -2%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P	0.4634 sec * -2%
HP Dragonfly G4 Intel Core i7-1365U	0.4586 sec * -1%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U	0.456 sec *
SCHENKER Vision 14 2023 Intel Core i7-13700H	0.4409 sec * +3%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P	0.4244 sec * +7%

* ... Meglio usare valori piccoli

Cinebench R15 CPU Multi 64Bit

2205 Points

Cinebench R15 OpenGL 64Bit

191.7 fps

Cinebench R15 Ref. Match 64Bit

97.9 %

Cinebench R15 CPU Single 64Bit

249 Points

Cinebench R20 CPU (Multi Core)

5425 Points

Cinebench R20 CPU (Single Core)

651 Points

Cinebench R23 Multi Core

13981 Points

Cinebench R23 Single Core

1647 Points

Aiuto

... in confronto

Performance Rating
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, Radeon 780M	96.4 pt
Media AMD Ryzen 7 7840U	89.1 pt
Asus ROG Zephyrus G14 GA402RJ AMD Ryzen 7 6800HS, Radeon RX 6700S	77.7 pt
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, GeForce RTX 3050 4GB Laptop GPU	73.2 pt
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Iris Xe G7 96EUs	67 pt
SCHENKER Vision 14 2023 Intel Core i7-13700H, Iris Xe G7 96EUs	64.7 pt
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Iris Xe G7 96EUs	59.5 pt
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Iris Xe G7 96EUs	47.7 pt
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Iris Xe G7 96EUs	44.1 pt
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Iris Xe G7 80EUs	44 pt
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Iris Xe G7 80EUs	42.5 pt
HP Dragonfly G4 Intel Core i7-1365U, Iris Xe G7 96EUs	42.3 pt
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Iris Xe G7 96EUs	42.1 pt
Framework Laptop 13.5 Intel Core i7-1165G7, Iris Xe G7 96EUs	37.6 pt

AIDA64 / FP32 Ray-Trace
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, Radeon 780M	22071 KRay/s
Media AMD Ryzen 7 7840U (17924 - 25901, n=10)	21031 KRay/s -5%
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, GeForce RTX 3050 4GB Laptop GPU	13498 KRay/s -39%
Asus ROG Zephyrus G14 GA402RJ AMD Ryzen 7 6800HS, Radeon RX 6700S	13411 KRay/s -39%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Iris Xe G7 96EUs	12603 KRay/s -43%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Iris Xe G7 96EUs	11995 KRay/s -46%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Iris Xe G7 96EUs	10385 KRay/s -53%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Iris Xe G7 80EUs	8273 KRay/s -63%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Iris Xe G7 96EUs	7483 KRay/s -66%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Iris Xe G7 96EUs	7006 KRay/s -68%
Framework Laptop 13.5 Intel Core i7-1165G7, Iris Xe G7 96EUs	6926 KRay/s -69%
HP Dragonfly G4 Intel Core i7-1365U, Iris Xe G7 96EUs	6720 KRay/s -70%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Iris Xe G7 96EUs	5648 KRay/s -74%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Iris Xe G7 80EUs	5469 KRay/s -75%

AIDA64 / FPU Julia
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, Radeon 780M	93684 Points
Media AMD Ryzen 7 7840U (78360 - 109745, n=10)	89071 Points -5%
Asus ROG Zephyrus G14 GA402RJ AMD Ryzen 7 6800HS, Radeon RX 6700S	86254 Points -8%
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, GeForce RTX 3050 4GB Laptop GPU	67282 Points -28%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Iris Xe G7 96EUs	62873 Points -33%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Iris Xe G7 96EUs	60283 Points -36%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Iris Xe G7 96EUs	51798 Points -45%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Iris Xe G7 96EUs	38303 Points -59%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Iris Xe G7 80EUs	33979 Points -64%
HP Dragonfly G4 Intel Core i7-1365U, Iris Xe G7 96EUs	33777 Points -64%
Framework Laptop 13.5 Intel Core i7-1165G7, Iris Xe G7 96EUs	29808 Points -68%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Iris Xe G7 96EUs	28738 Points -69%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Iris Xe G7 96EUs	26279 Points -72%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Iris Xe G7 80EUs	24102 Points -74%

AIDA64 / CPU SHA3
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, Radeon 780M	4256 MB/s
Media AMD Ryzen 7 7840U (3519 - 4847, n=10)	4069 MB/s -4%
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, GeForce RTX 3050 4GB Laptop GPU	3161 MB/s -26%
Asus ROG Zephyrus G14 GA402RJ AMD Ryzen 7 6800HS, Radeon RX 6700S	2953 MB/s -31%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Iris Xe G7 96EUs	2872 MB/s -33%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Iris Xe G7 96EUs	2799 MB/s -34%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Iris Xe G7 96EUs	2507 MB/s -41%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Iris Xe G7 80EUs	2286 MB/s -46%
Framework Laptop 13.5 Intel Core i7-1165G7, Iris Xe G7 96EUs	1988 MB/s -53%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Iris Xe G7 96EUs	1941 MB/s -54%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Iris Xe G7 96EUs	1919 MB/s -55%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Iris Xe G7 96EUs	1818 MB/s -57%
HP Dragonfly G4 Intel Core i7-1365U, Iris Xe G7 96EUs	1754 MB/s -59%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Iris Xe G7 80EUs	1750 MB/s -59%

AIDA64 / CPU Queen
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, Radeon 780M	107879 Points
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Iris Xe G7 96EUs	104796 Points -3%
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, GeForce RTX 3050 4GB Laptop GPU	101744 Points -6%
Asus ROG Zephyrus G14 GA402RJ AMD Ryzen 7 6800HS, Radeon RX 6700S	100537 Points -7%
Media AMD Ryzen 7 7840U (83206 - 114294, n=10)	99477 Points -8%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Iris Xe G7 96EUs	84106 Points -22%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Iris Xe G7 96EUs	83978 Points -22%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Iris Xe G7 96EUs	74983 Points -30%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Iris Xe G7 96EUs	73454 Points -32%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Iris Xe G7 80EUs	73159 Points -32%
HP Dragonfly G4 Intel Core i7-1365U, Iris Xe G7 96EUs	69991 Points -35%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Iris Xe G7 96EUs	52815 Points -51%
Framework Laptop 13.5 Intel Core i7-1165G7, Iris Xe G7 96EUs	50212 Points -53%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Iris Xe G7 80EUs	49312 Points -54%

AIDA64 / FPU SinJulia
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, Radeon 780M	13499 Points
Media AMD Ryzen 7 7840U (11969 - 14822, n=10)	13054 Points -3%
Asus ROG Zephyrus G14 GA402RJ AMD Ryzen 7 6800HS, Radeon RX 6700S	12044 Points -11%
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, GeForce RTX 3050 4GB Laptop GPU	8525 Points -37%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Iris Xe G7 96EUs	8407 Points -38%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Iris Xe G7 96EUs	7167 Points -47%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Iris Xe G7 96EUs	6658 Points -51%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Iris Xe G7 96EUs	6386 Points -53%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Iris Xe G7 80EUs	5839 Points -57%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Iris Xe G7 96EUs	5361 Points -60%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Iris Xe G7 96EUs	4836 Points -64%
Framework Laptop 13.5 Intel Core i7-1165G7, Iris Xe G7 96EUs	4790 Points -65%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Iris Xe G7 80EUs	4677 Points -65%
HP Dragonfly G4 Intel Core i7-1365U, Iris Xe G7 96EUs	4589 Points -66%

AIDA64 / FPU Mandel
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, Radeon 780M	50190 Points
Media AMD Ryzen 7 7840U (40720 - 58482, n=10)	47352 Points -6%
Asus ROG Zephyrus G14 GA402RJ AMD Ryzen 7 6800HS, Radeon RX 6700S	47307 Points -6%
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, GeForce RTX 3050 4GB Laptop GPU	32763 Points -35%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Iris Xe G7 96EUs	31388 Points -37%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Iris Xe G7 96EUs	29631 Points -41%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Iris Xe G7 96EUs	25424 Points -49%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Iris Xe G7 80EUs	20202 Points -60%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Iris Xe G7 96EUs	18819 Points -63%
Framework Laptop 13.5 Intel Core i7-1165G7, Iris Xe G7 96EUs	18008 Points -64%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Iris Xe G7 96EUs	17453 Points -65%
HP Dragonfly G4 Intel Core i7-1365U, Iris Xe G7 96EUs	16808 Points -67%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Iris Xe G7 96EUs	15417 Points -69%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Iris Xe G7 80EUs	15013 Points -70%

AIDA64 / CPU AES
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, Radeon 780M	147611 MB/s
Asus ROG Zephyrus G14 GA402RJ AMD Ryzen 7 6800HS, Radeon RX 6700S	120077 MB/s -19%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Iris Xe G7 96EUs	107331 MB/s -27%
Media AMD Ryzen 7 7840U (53018 - 166333, n=10)	105137 MB/s -29%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Iris Xe G7 80EUs	71494 MB/s -52%
Framework Laptop 13.5 Intel Core i7-1165G7, Iris Xe G7 96EUs	67684 MB/s -54%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Iris Xe G7 96EUs	67623 MB/s -54%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Iris Xe G7 96EUs	64120 MB/s -57%
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, GeForce RTX 3050 4GB Laptop GPU	62266 MB/s -58%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Iris Xe G7 96EUs	56935 MB/s -61%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Iris Xe G7 96EUs	49725 MB/s -66%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Iris Xe G7 80EUs	38652 MB/s -74%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Iris Xe G7 96EUs	37413 MB/s -75%
HP Dragonfly G4 Intel Core i7-1365U, Iris Xe G7 96EUs	34968 MB/s -76%

AIDA64 / CPU ZLib
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, Radeon 780M	915 MB/s
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, GeForce RTX 3050 4GB Laptop GPU	888 MB/s -3%
Media AMD Ryzen 7 7840U (801 - 1047, n=10)	876 MB/s -4%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Iris Xe G7 96EUs	819 MB/s -10%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Iris Xe G7 96EUs	808 MB/s -12%
Asus ROG Zephyrus G14 GA402RJ AMD Ryzen 7 6800HS, Radeon RX 6700S	760 MB/s -17%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Iris Xe G7 96EUs	735 MB/s -20%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Iris Xe G7 96EUs	682 MB/s -25%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Iris Xe G7 80EUs	635 MB/s -31%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Iris Xe G7 96EUs	553 MB/s -40%
HP Dragonfly G4 Intel Core i7-1365U, Iris Xe G7 96EUs	519 MB/s -43%
Framework Laptop 13.5 Intel Core i7-1165G7, Iris Xe G7 96EUs	398 MB/s -57%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Iris Xe G7 80EUs	384 MB/s -58%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Iris Xe G7 96EUs	356 MB/s -61%

AIDA64 / FP64 Ray-Trace
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, Radeon 780M	11834 KRay/s
Media AMD Ryzen 7 7840U (9347 - 13846, n=10)	11110 KRay/s -6%
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, GeForce RTX 3050 4GB Laptop GPU	7382 KRay/s -38%
Asus ROG Zephyrus G14 GA402RJ AMD Ryzen 7 6800HS, Radeon RX 6700S	7183 KRay/s -39%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Iris Xe G7 96EUs	6899 KRay/s -42%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Iris Xe G7 96EUs	6372 KRay/s -46%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Iris Xe G7 96EUs	5569 KRay/s -53%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Iris Xe G7 80EUs	4454 KRay/s -62%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Iris Xe G7 96EUs	3994 KRay/s -66%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Iris Xe G7 96EUs	3760 KRay/s -68%
Framework Laptop 13.5 Intel Core i7-1165G7, Iris Xe G7 96EUs	3759 KRay/s -68%
HP Dragonfly G4 Intel Core i7-1365U, Iris Xe G7 96EUs	3513 KRay/s -70%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Iris Xe G7 96EUs	3235 KRay/s -73%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Iris Xe G7 80EUs	3096 KRay/s -74%

AIDA64 / CPU PhotoWorxx
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, GeForce RTX 3050 4GB Laptop GPU	52207 MPixel/s +56%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Iris Xe G7 96EUs	49328 MPixel/s +47%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Iris Xe G7 96EUs	44356 MPixel/s +32%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Iris Xe G7 96EUs	44286 MPixel/s +32%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Iris Xe G7 96EUs	40421 MPixel/s +20%
HP Dragonfly G4 Intel Core i7-1365U, Iris Xe G7 96EUs	37846 MPixel/s +13%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Iris Xe G7 80EUs	36770 MPixel/s +10%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, Radeon 780M	33560 MPixel/s
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Iris Xe G7 80EUs	33424 MPixel/s 0%
Media AMD Ryzen 7 7840U (26622 - 38173, n=10)	32058 MPixel/s -4%
Asus ROG Zephyrus G14 GA402RJ AMD Ryzen 7 6800HS, Radeon RX 6700S	27474 MPixel/s -18%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Iris Xe G7 96EUs	27048 MPixel/s -19%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Iris Xe G7 96EUs	26054 MPixel/s -22%
Framework Laptop 13.5 Intel Core i7-1165G7, Iris Xe G7 96EUs	14295 MPixel/s -57%

Prestazioni del sistema

PCMark 10 / Score
Framework Laptop 13.5 Ryzen 7 7840U Radeon 780M, R7 7840U, WD PC SN740 512GB SDDPNQD-512G	7157 Points
Media AMD Ryzen 7 7840U, AMD Radeon 780M (5866 - 7157, n=10)	6465 Points -10%
Dell XPS 13 Plus 9320 Core i7-1360P Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	6026 Points -16%
Lenovo ThinkPad X1 Nano Gen 3 Iris Xe G7 96EUs, i7-1360P, Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	5796 Points -19%
HP Dragonfly G4 Iris Xe G7 96EUs, i7-1365U, Micron 3400 MTFDKBA512TFH 512GB	5690 Points -20%
Asus ZenBook S13 OLED UX5304 Iris Xe G7 96EUs, i7-1355U, Samsung PM9A1 MZVL21T0HCLR	5576 Points -22%
Framework Laptop 13.5 Iris Xe G7 96EUs, i7-1165G7, Western Digital WD_BLACK SN850 WDS100T1X0E	4768 Points -33%

PCMark 10 / Essentials
Dell XPS 13 Plus 9320 Core i7-1360P Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	11144 Points +1%
Framework Laptop 13.5 Ryzen 7 7840U Radeon 780M, R7 7840U, WD PC SN740 512GB SDDPNQD-512G	11081 Points
HP Dragonfly G4 Iris Xe G7 96EUs, i7-1365U, Micron 3400 MTFDKBA512TFH 512GB	10853 Points -2%
Lenovo ThinkPad X1 Nano Gen 3 Iris Xe G7 96EUs, i7-1360P, Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	10611 Points -4%
Asus ZenBook S13 OLED UX5304 Iris Xe G7 96EUs, i7-1355U, Samsung PM9A1 MZVL21T0HCLR	10605 Points -4%
Framework Laptop 13.5 Iris Xe G7 96EUs, i7-1165G7, Western Digital WD_BLACK SN850 WDS100T1X0E	10260 Points -7%
Media AMD Ryzen 7 7840U, AMD Radeon 780M (9068 - 11081, n=10)	9985 Points -10%

PCMark 10 / Productivity
Framework Laptop 13.5 Ryzen 7 7840U Radeon 780M, R7 7840U, WD PC SN740 512GB SDDPNQD-512G	9989 Points
Media AMD Ryzen 7 7840U, AMD Radeon 780M (7323 - 10099, n=10)	9002 Points -10%
Lenovo ThinkPad X1 Nano Gen 3 Iris Xe G7 96EUs, i7-1360P, Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	7430 Points -26%
Dell XPS 13 Plus 9320 Core i7-1360P Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	7263 Points -27%
HP Dragonfly G4 Iris Xe G7 96EUs, i7-1365U, Micron 3400 MTFDKBA512TFH 512GB	7206 Points -28%
Asus ZenBook S13 OLED UX5304 Iris Xe G7 96EUs, i7-1355U, Samsung PM9A1 MZVL21T0HCLR	7182 Points -28%
Framework Laptop 13.5 Iris Xe G7 96EUs, i7-1165G7, Western Digital WD_BLACK SN850 WDS100T1X0E	5570 Points -44%

PCMark 10 / Digital Content Creation
Framework Laptop 13.5 Ryzen 7 7840U Radeon 780M, R7 7840U, WD PC SN740 512GB SDDPNQD-512G	8987 Points
Media AMD Ryzen 7 7840U, AMD Radeon 780M (7204 - 8987, n=10)	8185 Points -9%
Dell XPS 13 Plus 9320 Core i7-1360P Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	7338 Points -18%
Lenovo ThinkPad X1 Nano Gen 3 Iris Xe G7 96EUs, i7-1360P, Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	6702 Points -25%
HP Dragonfly G4 Iris Xe G7 96EUs, i7-1365U, Micron 3400 MTFDKBA512TFH 512GB	6392 Points -29%
Asus ZenBook S13 OLED UX5304 Iris Xe G7 96EUs, i7-1355U, Samsung PM9A1 MZVL21T0HCLR	6177 Points -31%
Framework Laptop 13.5 Iris Xe G7 96EUs, i7-1165G7, Western Digital WD_BLACK SN850 WDS100T1X0E	5146 Points -43%

CrossMark / Overall
Dell XPS 13 Plus 9320 Core i7-1360P Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1773 Points +5%
Lenovo ThinkPad X1 Nano Gen 3 Iris Xe G7 96EUs, i7-1360P, Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	1748 Points +4%
Framework Laptop 13.5 Ryzen 7 7840U Radeon 780M, R7 7840U, WD PC SN740 512GB SDDPNQD-512G	1682 Points
HP Dragonfly G4 Iris Xe G7 96EUs, i7-1365U, Micron 3400 MTFDKBA512TFH 512GB	1628 Points -3%
Asus ZenBook S13 OLED UX5304 Iris Xe G7 96EUs, i7-1355U, Samsung PM9A1 MZVL21T0HCLR	1592 Points -5%
Media AMD Ryzen 7 7840U, AMD Radeon 780M (1256 - 1804, n=10)	1498 Points -11%

CrossMark / Productivity
Lenovo ThinkPad X1 Nano Gen 3 Iris Xe G7 96EUs, i7-1360P, Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	1666 Points +2%
Dell XPS 13 Plus 9320 Core i7-1360P Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1661 Points +2%
Framework Laptop 13.5 Ryzen 7 7840U Radeon 780M, R7 7840U, WD PC SN740 512GB SDDPNQD-512G	1627 Points
HP Dragonfly G4 Iris Xe G7 96EUs, i7-1365U, Micron 3400 MTFDKBA512TFH 512GB	1620 Points 0%
Asus ZenBook S13 OLED UX5304 Iris Xe G7 96EUs, i7-1355U, Samsung PM9A1 MZVL21T0HCLR	1566 Points -4%
Media AMD Ryzen 7 7840U, AMD Radeon 780M (1261 - 1798, n=10)	1492 Points -8%

CrossMark / Creativity
Dell XPS 13 Plus 9320 Core i7-1360P Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	2003 Points +9%
Lenovo ThinkPad X1 Nano Gen 3 Iris Xe G7 96EUs, i7-1360P, Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	1951 Points +6%
Framework Laptop 13.5 Ryzen 7 7840U Radeon 780M, R7 7840U, WD PC SN740 512GB SDDPNQD-512G	1835 Points
HP Dragonfly G4 Iris Xe G7 96EUs, i7-1365U, Micron 3400 MTFDKBA512TFH 512GB	1731 Points -6%
Asus ZenBook S13 OLED UX5304 Iris Xe G7 96EUs, i7-1355U, Samsung PM9A1 MZVL21T0HCLR	1696 Points -8%
Media AMD Ryzen 7 7840U, AMD Radeon 780M (1251 - 1835, n=10)	1571 Points -14%

CrossMark / Responsiveness
Dell XPS 13 Plus 9320 Core i7-1360P Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1493 Points +4%
Lenovo ThinkPad X1 Nano Gen 3 Iris Xe G7 96EUs, i7-1360P, Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	1450 Points +1%
Framework Laptop 13.5 Ryzen 7 7840U Radeon 780M, R7 7840U, WD PC SN740 512GB SDDPNQD-512G	1429 Points
Asus ZenBook S13 OLED UX5304 Iris Xe G7 96EUs, i7-1355U, Samsung PM9A1 MZVL21T0HCLR	1386 Points -3%
HP Dragonfly G4 Iris Xe G7 96EUs, i7-1365U, Micron 3400 MTFDKBA512TFH 512GB	1373 Points -4%
Media AMD Ryzen 7 7840U, AMD Radeon 780M (1082 - 1775, n=10)	1334 Points -7%

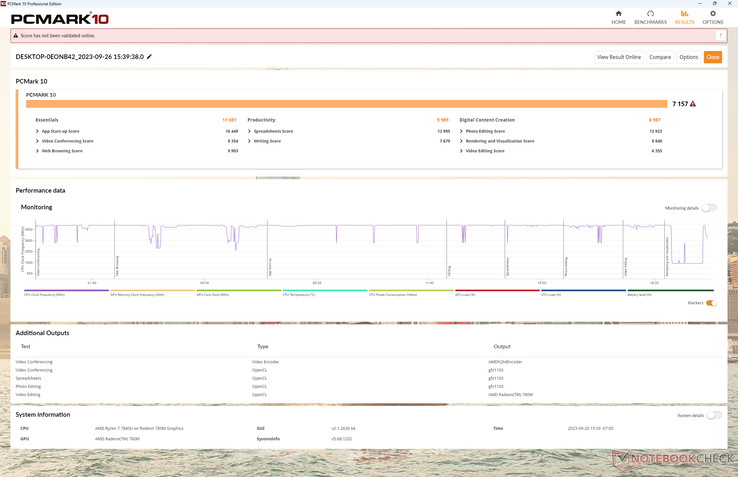

PCMark 10 Score		7157 punti
Aiuto

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Iris Xe G7 96EUs	72748 MB/s +16%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Iris Xe G7 96EUs	71500 MB/s +14%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, Radeon 780M	62540 MB/s
Asus ZenBook S13 OLED UX5304 Intel Core i7-1355U, Iris Xe G7 96EUs	59942 MB/s -4%
Media AMD Ryzen 7 7840U (43255 - 70532, n=11)	58370 MB/s -7%
HP Dragonfly G4 Intel Core i7-1365U, Iris Xe G7 96EUs	58331 MB/s -7%
Framework Laptop 13.5 Intel Core i7-1165G7, Iris Xe G7 96EUs	24957 MB/s -60%

AIDA64 / Memory Read
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Iris Xe G7 96EUs	68945 MB/s +12%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Iris Xe G7 96EUs	65355 MB/s +6%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, Radeon 780M	61602 MB/s
Asus ZenBook S13 OLED UX5304 Intel Core i7-1355U, Iris Xe G7 96EUs	49758 MB/s -19%
Media AMD Ryzen 7 7840U (37399 - 61602, n=10)	49647 MB/s -19%
HP Dragonfly G4 Intel Core i7-1365U, Iris Xe G7 96EUs	49203 MB/s -20%
Framework Laptop 13.5 Intel Core i7-1165G7, Iris Xe G7 96EUs	25785 MB/s -58%

AIDA64 / Memory Write
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Iris Xe G7 96EUs	93331 MB/s +20%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Iris Xe G7 96EUs	89865 MB/s +15%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, Radeon 780M	77965 MB/s
Asus ZenBook S13 OLED UX5304 Intel Core i7-1355U, Iris Xe G7 96EUs	72418 MB/s -7%
Media AMD Ryzen 7 7840U (49426 - 92289, n=12)	71395 MB/s -8%
HP Dragonfly G4 Intel Core i7-1365U, Iris Xe G7 96EUs	70434 MB/s -10%
Framework Laptop 13.5 Intel Core i7-1165G7, Iris Xe G7 96EUs	23454 MB/s -70%

AIDA64 / Memory Latency
Media AMD Ryzen 7 7840U (90 - 137.2, n=11)	121.3 ns * -35%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Iris Xe G7 96EUs	98.1 ns * -9%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Iris Xe G7 96EUs	93.2 ns * -4%
HP Dragonfly G4 Intel Core i7-1365U, Iris Xe G7 96EUs	90.2 ns * -0%
Asus ZenBook S13 OLED UX5304 Intel Core i7-1355U, Iris Xe G7 96EUs	90.1 ns * -0%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, Radeon 780M	90 ns *
Framework Laptop 13.5 Intel Core i7-1165G7, Iris Xe G7 96EUs	74.2 ns * +18%

* ... Meglio usare valori piccoli

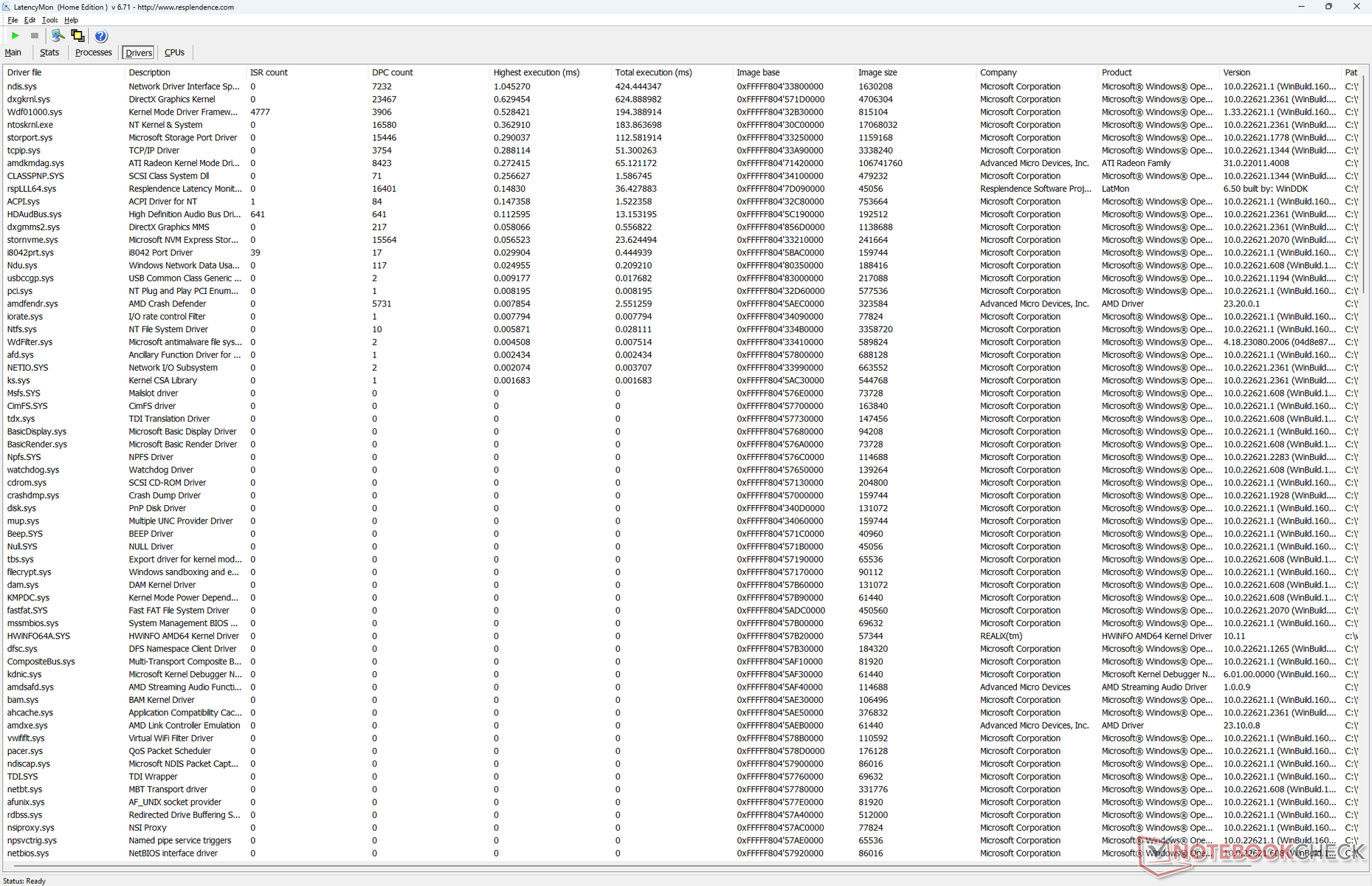

Latenza DPC

LatencyMon rivela solo lievi problemi di DPC quando si aprono più schede della nostra homepage. la riproduzione di video 4K a 60 FPS è imperfetta, con 6 fotogrammi saltati registrati durante un periodo di un minuto. I sistemi AMD come Legion Slim 5 14 o Aokzoe A1 sembrano presentare più problemi di frame skips rispetto a quelli Intel.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Dell XPS 13 Plus 9320 Core i7-1360P Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	16813.1 μs * -1369%
Lenovo ThinkPad X1 Nano Gen 3 Iris Xe G7 96EUs, i7-1360P, Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	2122.6 μs * -86%
Framework Laptop 13.5 Iris Xe G7 96EUs, i7-1165G7, Western Digital WD_BLACK SN850 WDS100T1X0E	1918 μs * -68%
Asus ZenBook S13 OLED UX5304 Iris Xe G7 96EUs, i7-1355U, Samsung PM9A1 MZVL21T0HCLR	1321.9 μs * -16%
HP Dragonfly G4 Iris Xe G7 96EUs, i7-1365U, Micron 3400 MTFDKBA512TFH 512GB	1181 μs * -3%
Framework Laptop 13.5 Ryzen 7 7840U Radeon 780M, R7 7840U, WD PC SN740 512GB SDDPNQD-512G	1144.2 μs *

* ... Meglio usare valori piccoli

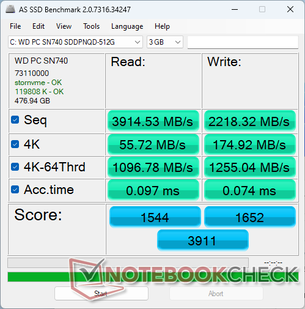

Dispositivi di archiviazione

La struttura offre solo Unità Western Digital probabilmente a causa di un accordo di esclusività con il produttore di SSD. Naturalmente, gli utenti possono facilmente installare le proprie unità al posto di quelle desiderate.

DiskSpd

WD PC SN740 512GB SDDPNQD-512G

DiskSpd seq_q8t1_read: 5098MB/s

DiskSpd seq_q8t1_write: 3759MB/s

DiskSpd seq_read: 3184MB/s

DiskSpd seq_write: 3249MB/s

DiskSpd 4k_q32t16_read: 1505MB/s

DiskSpd 4k_q32t16_write: 627MB/s

DiskSpd 4k_q1t1_read: 62.7MB/s

DiskSpd 4k_q1t1_write: 164.7MB/s

DiskSpd Loop seq_q8t1_read: 5070MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Framework Laptop 13.5 Western Digital WD_BLACK SN850 WDS100T1X0E	96.3 pt
Dell XPS 13 Plus 9320 Core i7-1360P Samsung PM9A1 MZVL2512HCJQ	68.4 pt
Media WD PC SN740 512GB SDDPNQD-512G	63.3 pt
HP Dragonfly G4 Micron 3400 MTFDKBA512TFH 512GB	61.8 pt
Framework Laptop 13.5 Ryzen 7 7840U ^-11! WD PC SN740 512GB SDDPNQD-512G	61 pt
Lenovo ThinkPad X1 Nano Gen 3 Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	48.3 pt
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	46 pt

DiskSpd
seq read
Framework Laptop 13.5 Western Digital WD_BLACK SN850 WDS100T1X0E	4346 (4237.84^min - 4346.35^max) MB/s +36%
Media WD PC SN740 512GB SDDPNQD-512G (3184 - 3659, n=2)	3422 MB/s +7%
HP Dragonfly G4 Micron 3400 MTFDKBA512TFH 512GB	3312 (3304.27^min - 3312.03^max) MB/s +4%
Framework Laptop 13.5 Ryzen 7 7840U WD PC SN740 512GB SDDPNQD-512G	3184 (3108.05^min - 3184.11^max) MB/s
Dell XPS 13 Plus 9320 Core i7-1360P Samsung PM9A1 MZVL2512HCJQ	2921 (1627.39^min - 2920.7^max) MB/s -8%
Lenovo ThinkPad X1 Nano Gen 3 Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	2370 (2363.8^min - 2369.99^max) MB/s -26%
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	1717 (1644.8^min - 1716.65^max) MB/s -46%
seq write
Framework Laptop 13.5 Western Digital WD_BLACK SN850 WDS100T1X0E	4947 (4825.12^min - 4946.55^max) MB/s +52%
Dell XPS 13 Plus 9320 Core i7-1360P Samsung PM9A1 MZVL2512HCJQ	3401 (3154.55^min - 3400.53^max) MB/s +5%
HP Dragonfly G4 Micron 3400 MTFDKBA512TFH 512GB	3342 (3270.72^min - 3341.6^max) MB/s +3%
Framework Laptop 13.5 Ryzen 7 7840U WD PC SN740 512GB SDDPNQD-512G	3249 (2938.52^min - 3248.91^max) MB/s
Media WD PC SN740 512GB SDDPNQD-512G (3000 - 3249, n=2)	3125 MB/s -4%
Lenovo ThinkPad X1 Nano Gen 3 Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	2508 (2487.22^min - 2508^max) MB/s -23%
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	2153 (2100.93^min - 2152.94^max) MB/s -34%
seq q8 t1 read
Framework Laptop 13.5 Western Digital WD_BLACK SN850 WDS100T1X0E	6952 (6547.73^min - 6952.06^max) MB/s +36%
HP Dragonfly G4 Micron 3400 MTFDKBA512TFH 512GB	6628 (6115.78^min - 6627.63^max) MB/s +30%
Dell XPS 13 Plus 9320 Core i7-1360P Samsung PM9A1 MZVL2512HCJQ	5598 (3950.89^min - 5597.72^max) MB/s +10%
Framework Laptop 13.5 Ryzen 7 7840U WD PC SN740 512GB SDDPNQD-512G	5098 (4619.39^min - 5098.39^max) MB/s
Media WD PC SN740 512GB SDDPNQD-512G (5080 - 5098, n=2)	5089 MB/s 0%
Lenovo ThinkPad X1 Nano Gen 3 Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	3662 (2760.48^min - 3662.26^max) MB/s -28%
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	3426 (2707.21^min - 3425.7^max) MB/s -33%
seq q8 t1 write
Framework Laptop 13.5 Western Digital WD_BLACK SN850 WDS100T1X0E	5160 (5028.55^min - 5159.62^max) MB/s +37%
Dell XPS 13 Plus 9320 Core i7-1360P Samsung PM9A1 MZVL2512HCJQ	5063 (5035.69^min - 5062.94^max) MB/s +35%
HP Dragonfly G4 Micron 3400 MTFDKBA512TFH 512GB	3965 (3820.5^min - 3965.05^max) MB/s +5%
Framework Laptop 13.5 Ryzen 7 7840U WD PC SN740 512GB SDDPNQD-512G	3759 (3254.99^min - 3759.39^max) MB/s
Media WD PC SN740 512GB SDDPNQD-512G (3743 - 3759, n=2)	3751 MB/s 0%
Lenovo ThinkPad X1 Nano Gen 3 Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	3350 (3300.4^min - 3349.78^max) MB/s -11%
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	2711 (1214.13^min - 2710.57^max) MB/s -28%
4k q1 t1 read
Framework Laptop 13.5 Western Digital WD_BLACK SN850 WDS100T1X0E	88.5 (86.28^min - 88.45^max) MB/s +41%
Dell XPS 13 Plus 9320 Core i7-1360P Samsung PM9A1 MZVL2512HCJQ	82.5 (80.71^min - 82.54^max) MB/s +32%
HP Dragonfly G4 Micron 3400 MTFDKBA512TFH 512GB	67.2 (66.32^min - 67.16^max) MB/s +7%
Lenovo ThinkPad X1 Nano Gen 3 Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	64 (61.48^min - 64.01^max) MB/s +2%
Framework Laptop 13.5 Ryzen 7 7840U WD PC SN740 512GB SDDPNQD-512G	62.7 (61.75^min - 62.74^max) MB/s
Media WD PC SN740 512GB SDDPNQD-512G (57 - 62.7, n=2)	59.9 MB/s -4%
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	50.7 (49.53^min - 50.73^max) MB/s -19%
4k q1 t1 write
Framework Laptop 13.5 Western Digital WD_BLACK SN850 WDS100T1X0E	310 (307.53^min - 309.65^max) MB/s +88%
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	167.5 (166.11^min - 167.53^max) MB/s +2%
Framework Laptop 13.5 Ryzen 7 7840U WD PC SN740 512GB SDDPNQD-512G	164.7 (159.96^min - 164.74^max) MB/s
Lenovo ThinkPad X1 Nano Gen 3 Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	146.4 (142.83^min - 146.41^max) MB/s -11%
Dell XPS 13 Plus 9320 Core i7-1360P Samsung PM9A1 MZVL2512HCJQ	145.9 (143.58^min - 145.9^max) MB/s -11%
Media WD PC SN740 512GB SDDPNQD-512G (119 - 164.7, n=2)	141.9 MB/s -14%
HP Dragonfly G4 Micron 3400 MTFDKBA512TFH 512GB	138.9 (137.35^min - 138.92^max) MB/s -16%
4k q32 t16 read
Framework Laptop 13.5 Western Digital WD_BLACK SN850 WDS100T1X0E	2946 (2796.46^min - 2946.05^max) MB/s +96%
Framework Laptop 13.5 Ryzen 7 7840U WD PC SN740 512GB SDDPNQD-512G	1505 (1389.3^min - 1505^max) MB/s
Media WD PC SN740 512GB SDDPNQD-512G (1025 - 1505, n=2)	1265 MB/s -16%
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	1067 (1040.91^min - 1067.32^max) MB/s -29%
Lenovo ThinkPad X1 Nano Gen 3 Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	752 (569.42^min - 752^max) MB/s -50%
HP Dragonfly G4 Micron 3400 MTFDKBA512TFH 512GB	690 (550.07^min - 689.62^max) MB/s -54%
Dell XPS 13 Plus 9320 Core i7-1360P Samsung PM9A1 MZVL2512HCJQ	590 (557.57^min - 589.84^max) MB/s -61%
4k q32 t16 write
Framework Laptop 13.5 Western Digital WD_BLACK SN850 WDS100T1X0E	2253 (1847.93^min - 2253.22^max) MB/s +259%
Framework Laptop 13.5 Ryzen 7 7840U WD PC SN740 512GB SDDPNQD-512G	627 (616.63^min - 627.37^max) MB/s
Media WD PC SN740 512GB SDDPNQD-512G (445 - 627, n=2)	536 MB/s -15%
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	459 (401.81^min - 458.57^max) MB/s -27%
Dell XPS 13 Plus 9320 Core i7-1360P Samsung PM9A1 MZVL2512HCJQ	448 (440.57^min - 447.7^max) MB/s -29%
Lenovo ThinkPad X1 Nano Gen 3 Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	392 (315.08^min - 391.78^max) MB/s -37%
HP Dragonfly G4 Micron 3400 MTFDKBA512TFH 512GB	389 (345.44^min - 388.55^max) MB/s -38%

AS SSD
Score Total
Framework Laptop 13.5 Western Digital WD_BLACK SN850 WDS100T1X0E	7098 Points
Dell XPS 13 Plus 9320 Core i7-1360P Samsung PM9A1 MZVL2512HCJQ	5004 Points
Media WD PC SN740 512GB SDDPNQD-512G ()	4744 Points
HP Dragonfly G4 Micron 3400 MTFDKBA512TFH 512GB	4171 Points
Lenovo ThinkPad X1 Nano Gen 3 Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	3582 Points
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	3199 Points
Score Read
Framework Laptop 13.5 Western Digital WD_BLACK SN850 WDS100T1X0E	2864 Points
Media WD PC SN740 512GB SDDPNQD-512G ()	1380 Points
Dell XPS 13 Plus 9320 Core i7-1360P Samsung PM9A1 MZVL2512HCJQ	1360 Points
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	1329 Points
HP Dragonfly G4 Micron 3400 MTFDKBA512TFH 512GB	1169 Points
Lenovo ThinkPad X1 Nano Gen 3 Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	1034 Points
Score Write
Dell XPS 13 Plus 9320 Core i7-1360P Samsung PM9A1 MZVL2512HCJQ	3047 Points
Framework Laptop 13.5 Western Digital WD_BLACK SN850 WDS100T1X0E	2797 Points
Media WD PC SN740 512GB SDDPNQD-512G ()	2725 Points
HP Dragonfly G4 Micron 3400 MTFDKBA512TFH 512GB	2506 Points
Lenovo ThinkPad X1 Nano Gen 3 Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	2042 Points
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	1249 Points
Seq Read
Framework Laptop 13.5 Western Digital WD_BLACK SN850 WDS100T1X0E	5613 MB/s
Dell XPS 13 Plus 9320 Core i7-1360P Samsung PM9A1 MZVL2512HCJQ	5094.12 MB/s
HP Dragonfly G4 Micron 3400 MTFDKBA512TFH 512GB	4510.61 MB/s
Media WD PC SN740 512GB SDDPNQD-512G ()	3965 MB/s
Lenovo ThinkPad X1 Nano Gen 3 Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	3043.79 MB/s
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	2816.58 MB/s
Seq Write
Framework Laptop 13.5 Western Digital WD_BLACK SN850 WDS100T1X0E	4909 MB/s
Dell XPS 13 Plus 9320 Core i7-1360P Samsung PM9A1 MZVL2512HCJQ	2698.36 MB/s
Media WD PC SN740 512GB SDDPNQD-512G ()	2420 MB/s
Lenovo ThinkPad X1 Nano Gen 3 Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	2285.6 MB/s
HP Dragonfly G4 Micron 3400 MTFDKBA512TFH 512GB	2127.08 MB/s
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	1457.27 MB/s
4K Read
Framework Laptop 13.5 Western Digital WD_BLACK SN850 WDS100T1X0E	80.6 MB/s
Dell XPS 13 Plus 9320 Core i7-1360P Samsung PM9A1 MZVL2512HCJQ	74.72 MB/s
HP Dragonfly G4 Micron 3400 MTFDKBA512TFH 512GB	61.53 MB/s
Lenovo ThinkPad X1 Nano Gen 3 Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	55.28 MB/s
Media WD PC SN740 512GB SDDPNQD-512G ()	52.2 MB/s
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	50.91 MB/s
4K Write
Framework Laptop 13.5 Western Digital WD_BLACK SN850 WDS100T1X0E	256.6 MB/s
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	212.99 MB/s
Lenovo ThinkPad X1 Nano Gen 3 Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	197.06 MB/s
Dell XPS 13 Plus 9320 Core i7-1360P Samsung PM9A1 MZVL2512HCJQ	195.48 MB/s
HP Dragonfly G4 Micron 3400 MTFDKBA512TFH 512GB	185.58 MB/s
Media WD PC SN740 512GB SDDPNQD-512G ()	142.6 MB/s
4K-64 Read
Framework Laptop 13.5 Western Digital WD_BLACK SN850 WDS100T1X0E	2222 MB/s
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	996.29 MB/s
Media WD PC SN740 512GB SDDPNQD-512G ()	932 MB/s
Dell XPS 13 Plus 9320 Core i7-1360P Samsung PM9A1 MZVL2512HCJQ	775.4 MB/s
Lenovo ThinkPad X1 Nano Gen 3 Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	674.06 MB/s
HP Dragonfly G4 Micron 3400 MTFDKBA512TFH 512GB	656.17 MB/s
4K-64 Write
Dell XPS 13 Plus 9320 Core i7-1360P Samsung PM9A1 MZVL2512HCJQ	2582.13 MB/s
Media WD PC SN740 512GB SDDPNQD-512G ()	2340 MB/s
HP Dragonfly G4 Micron 3400 MTFDKBA512TFH 512GB	2107.89 MB/s
Framework Laptop 13.5 Western Digital WD_BLACK SN850 WDS100T1X0E	2050 MB/s
Lenovo ThinkPad X1 Nano Gen 3 Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	1616.01 MB/s
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	889.88 MB/s
Access Time Read
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	0.111 ms *
Lenovo ThinkPad X1 Nano Gen 3 Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	0.066 ms *
HP Dragonfly G4 Micron 3400 MTFDKBA512TFH 512GB	0.055 ms *
Dell XPS 13 Plus 9320 Core i7-1360P Samsung PM9A1 MZVL2512HCJQ	0.051 ms *
Media WD PC SN740 512GB SDDPNQD-512G ()	0.038 ms *
Framework Laptop 13.5 Western Digital WD_BLACK SN850 WDS100T1X0E	0.032 ms *
Access Time Write
Lenovo ThinkPad X1 Nano Gen 3 Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	0.352 ms *
HP Dragonfly G4 Micron 3400 MTFDKBA512TFH 512GB	0.067 ms *
Dell XPS 13 Plus 9320 Core i7-1360P Samsung PM9A1 MZVL2512HCJQ	0.061 ms *
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	0.056 ms *
Framework Laptop 13.5 Western Digital WD_BLACK SN850 WDS100T1X0E	0.044 ms *
Media WD PC SN740 512GB SDDPNQD-512G ()	0.027 ms *

* ... Meglio usare valori piccoli

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Framework Laptop 13.5 Ryzen 7 7840U: Ø5070 (4617.73-5084.34)

Prestazioni della GPU

L'anno scorso la Radeon 680M era già più veloce di qualsiasi soluzione integrata di Intel e la Radeon 780M consolida ulteriormente il vantaggio di AMD. Le prestazioni grafiche grezze sono più veloci del 30-50% rispetto alle soluzioni Iris Xe 96 EU nella recente versione Intel di 13a gen del Framework Laptop 13.5. I vantaggi in termini di prestazioni diventano più evidenti per le applicazioni abilitate alle DX12.

Profilo energetico	Punteggio grafico	Punteggio fisico	Punteggio combinato
Modalità prestazioni	7455	24735	2646
Modalità equilibrata	7426 (-0%)	24403 (-1%)	2646 (-0%)
Alimentazione a batteria	6591 (-12%)	24183 (-2%)	2223 (-16%)

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE NVIDIA GeForce RTX 3050 4GB Laptop GPU, Intel Core i7-12700H	100 pt
Media AMD Radeon 780M	67.5 pt
Framework Laptop 13.5 Ryzen 7 7840U AMD Radeon 780M, AMD Ryzen 7 7840U	64.2 pt
Asus Zenbook S 13 OLED AMD Radeon 680M, AMD Ryzen 7 6800U	55 pt
SCHENKER Vision 14 2023 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	45.1 pt
Dell XPS 13 Plus 9320 Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	44.4 pt
Framework Laptop 13.5 13th Gen Intel Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1370P	43.7 pt
MSI Summit E13 Flip Evo A11MT Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	41.5 pt
Framework Laptop 13.5 12th Gen Intel Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	41.3 pt
HP Dragonfly G4 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1365U	39.5 pt
Lenovo ThinkPad X1 Nano Gen 3 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	34.1 pt
Huawei MateBook 13s i5 11300H Intel Iris Xe Graphics G7 80EUs, Intel Core i5-11300H	33.6 pt
Dell XPS 13 9310 Core i7 FHD Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	33.4 pt
Framework Laptop 13.5 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	31 pt
Lenovo ThinkPad E14 G5-21JSS05C00 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U	30.2 pt
Dell XPS 13 Plus 9320 i5-1240p Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P	30.1 pt

3DMark 11 - 1280x720 Performance GPU
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE NVIDIA GeForce RTX 3050 4GB Laptop GPU, Intel Core i7-12700H	15712 Points +34%
Media AMD Radeon 780M (7868 - 14249, n=56)	12460 Points +7%
Framework Laptop 13.5 Ryzen 7 7840U AMD Radeon 780M, AMD Ryzen 7 7840U	11695 Points
Asus Zenbook S 13 OLED AMD Radeon 680M, AMD Ryzen 7 6800U	9095 Points -22%
Framework Laptop 13.5 13th Gen Intel Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1370P	7273 Points -38%
SCHENKER Vision 14 2023 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	7202 Points -38%
MSI Summit E13 Flip Evo A11MT Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	6983 Points -40%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	6815 Points -42%
Framework Laptop 13.5 12th Gen Intel Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	6779 Points -42%
Dell XPS 13 9310 Core i7 FHD Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	6698 Points -43%
Lenovo ThinkPad X1 Nano Gen 3 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	6568 Points -44%
HP Dragonfly G4 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1365U	6440 Points -45%
Lenovo ThinkPad E14 G5-21JSS05C00 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U	5873 Points -50%
Huawei MateBook 13s i5 11300H Intel Iris Xe Graphics G7 80EUs, Intel Core i5-11300H	5758 Points -51%
Framework Laptop 13.5 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	5702 Points -51%
Dell XPS 13 Plus 9320 i5-1240p Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P	5104 Points -56%

3DMark
1920x1080 Fire Strike Graphics
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE NVIDIA GeForce RTX 3050 4GB Laptop GPU, Intel Core i7-12700H	11356 Points +52%
Media AMD Radeon 780M (4550 - 8816, n=58)	7747 Points +4%
Framework Laptop 13.5 Ryzen 7 7840U AMD Radeon 780M, AMD Ryzen 7 7840U	7455 Points
Asus Zenbook S 13 OLED AMD Radeon 680M, AMD Ryzen 7 6800U	6683 Points -10%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	5981 Points -20%
SCHENKER Vision 14 2023 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	5978 Points -20%
Framework Laptop 13.5 13th Gen Intel Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1370P	5705 Points -23%
MSI Summit E13 Flip Evo A11MT Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	5577 Points -25%
Framework Laptop 13.5 12th Gen Intel Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	5200 Points -30%
HP Dragonfly G4 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1365U	5175 Points -31%
Huawei MateBook 13s i5 11300H Intel Iris Xe Graphics G7 80EUs, Intel Core i5-11300H	4189 Points -44%
Dell XPS 13 9310 Core i7 FHD Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	4170 Points -44%
Lenovo ThinkPad X1 Nano Gen 3 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	4136 Points -45%
Dell XPS 13 Plus 9320 i5-1240p Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P	4086 Points -45%
Framework Laptop 13.5 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	3709 Points -50%
Lenovo ThinkPad E14 G5-21JSS05C00 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U	3506 Points -53%
2560x1440 Time Spy Graphics
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE NVIDIA GeForce RTX 3050 4GB Laptop GPU, Intel Core i7-12700H	4454 Points +73%
Media AMD Radeon 780M (1496 - 3196, n=58)	2713 Points +5%
Framework Laptop 13.5 Ryzen 7 7840U AMD Radeon 780M, AMD Ryzen 7 7840U	2575 Points
Asus Zenbook S 13 OLED AMD Radeon 680M, AMD Ryzen 7 6800U	2287 Points -11%
SCHENKER Vision 14 2023 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	1797 Points -30%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1791 Points -30%
Framework Laptop 13.5 13th Gen Intel Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1370P	1714 Points -33%
Framework Laptop 13.5 12th Gen Intel Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	1675 Points -35%
MSI Summit E13 Flip Evo A11MT Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	1607 Points -38%
HP Dragonfly G4 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1365U	1579 Points -39%
Huawei MateBook 13s i5 11300H Intel Iris Xe Graphics G7 80EUs, Intel Core i5-11300H	1342 Points -48%
Lenovo ThinkPad X1 Nano Gen 3 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1276 Points -50%
Framework Laptop 13.5 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	1216 Points -53%
Dell XPS 13 9310 Core i7 FHD Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	1209 Points -53%
Lenovo ThinkPad E14 G5-21JSS05C00 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U	1146 Points -55%
Dell XPS 13 Plus 9320 i5-1240p Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P	1134 Points -56%
2560x1440 Time Spy Score
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE NVIDIA GeForce RTX 3050 4GB Laptop GPU, Intel Core i7-12700H	4903 Points +70%
Media AMD Radeon 780M (1707 - 3517, n=58)	3024 Points +5%
Framework Laptop 13.5 Ryzen 7 7840U AMD Radeon 780M, AMD Ryzen 7 7840U	2891 Points
Asus Zenbook S 13 OLED AMD Radeon 680M, AMD Ryzen 7 6800U	2548 Points -12%
SCHENKER Vision 14 2023 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	2047 Points -29%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	2021 Points -30%
Framework Laptop 13.5 13th Gen Intel Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1370P	1951 Points -33%
Framework Laptop 13.5 12th Gen Intel Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	1896 Points -34%
MSI Summit E13 Flip Evo A11MT Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	1783 Points -38%
HP Dragonfly G4 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1365U	1768 Points -39%
Huawei MateBook 13s i5 11300H Intel Iris Xe Graphics G7 80EUs, Intel Core i5-11300H	1512 Points -48%
Lenovo ThinkPad X1 Nano Gen 3 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1441 Points -50%
Framework Laptop 13.5 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	1361 Points -53%
Dell XPS 13 9310 Core i7 FHD Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	1333 Points -54%
Lenovo ThinkPad E14 G5-21JSS05C00 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U	1308 Points -55%
Dell XPS 13 Plus 9320 i5-1240p Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P	1290 Points -55%

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark 11 Performance		11531 punti
3DMark Fire Strike Score		6922 punti
3DMark Time Spy Score		2891 punti
Aiuto

... in confronto

Blender
v3.3 Classroom OPTIX/RTX
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE NVIDIA GeForce RTX 3050 4GB Laptop GPU, Intel Core i7-12700H	58 Seconds *
v3.3 Classroom CUDA
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE NVIDIA GeForce RTX 3050 4GB Laptop GPU, Intel Core i7-12700H	111 Seconds *
v3.3 Classroom CPU
HP Dragonfly G4 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1365U	796 Seconds * -115%
Lenovo ThinkPad X1 Nano Gen 3 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	732 Seconds * -97%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	531 Seconds * -43%
Framework Laptop 13.5 13th Gen Intel Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1370P	444 Seconds * -20%
SCHENKER Vision 14 2023 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	426 Seconds * -15%
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE NVIDIA GeForce RTX 3050 4GB Laptop GPU, Intel Core i7-12700H	388 Seconds * -5%
Media AMD Radeon 780M (300 - 664, n=54)	375 Seconds * -1%
Framework Laptop 13.5 Ryzen 7 7840U AMD Radeon 780M, AMD Ryzen 7 7840U	371 Seconds *

* ... Meglio usare valori piccoli

Prestazioni di gioco

Il Framework Laptop 13.5 non è una macchina da gioco, ma la CPU Zen 4 è comunque in grado di far girare ragionevolmente bene la maggior parte dei giochi a 1080p, compreso Cyberpunk 2077. Detto questo, abbiamo riscontrato degli arresti anomali durante l'esecuzione di alcuni titoli, tra cui F1 22 e Ratchet and Clank Rift Apart.

Far Cry 5
1280x720 Low Preset AA:T
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	74 (63^min) fps
Media AMD Radeon 780M (42 - 89, n=44)	72 fps -3%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	61 fps -18%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	55 fps -26%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Intel Iris Xe Graphics G7 80EUs	53 fps -28%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	41 (29^min) fps -45%
1920x1080 Medium Preset AA:T
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	75 fps +92%
Media AMD Radeon 780M (22 - 54, n=46)	42.2 fps +8%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	39 (21^min) fps
SCHENKER Vision 14 2023 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	30 fps -23%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	28 fps -28%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Intel Iris Xe Graphics G7 80EUs	25 fps -36%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	24 (17^min) fps -38%
1920x1080 High Preset AA:T
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	70 fps +89%
Media AMD Radeon 780M (21 - 49, n=46)	38.9 fps +5%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	37 (33^min) fps
SCHENKER Vision 14 2023 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	28 fps -24%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Intel Iris Xe Graphics G7 80EUs	23 fps -38%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	22 (15^min) fps -41%
1920x1080 Ultra Preset AA:T
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	62 fps +77%
Media AMD Radeon 780M (21 - 47, n=46)	37 fps +6%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	35 (29^min) fps
SCHENKER Vision 14 2023 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	26 fps -26%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Intel Iris Xe Graphics G7 80EUs	22 fps -37%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	22 (16^min) fps -37%

The Witcher 3
1024x768 Low Graphics & Postprocessing
Media AMD Radeon 780M (74 - 163.3, n=37)	136.9 fps +1%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	136.2 (99^min) fps
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Intel Iris Xe Graphics G7 96EUs	107.2 (95^min) fps -21%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	99.9 (93^min) fps -27%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	97.7 (89^min) fps -28%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	97.5 (41^min) fps -28%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	94 fps -31%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	90.7 (65^min) fps -33%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	86.7 (48^min) fps -36%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Intel Iris Xe Graphics G7 80EUs	84 fps -38%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	78.9 (50^min) fps -42%
Framework Laptop 13.5 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	75.9 (68^min) fps -44%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	75.5 fps -45%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	53.5 fps +17%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	45.9 (41^min) fps
Media AMD Radeon 780M (21.3 - 52.2, n=45)	44.2 fps -4%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	36 fps -22%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Intel Iris Xe Graphics G7 96EUs	35.4 (30^min) fps -23%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	33.9 (31^min) fps -26%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	32.7 (29^min) fps -29%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	32.4 (29^min) fps -29%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	32.3 (27^min) fps -30%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	31.9 fps -31%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	31 (29^min) fps -32%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	31 (28^min) fps -32%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Intel Iris Xe Graphics G7 80EUs	28 fps -39%
Framework Laptop 13.5 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	22.1 (17^min) fps -52%
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	42.8 fps +49%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	28.7 (25^min) fps
Media AMD Radeon 780M (14.3 - 36, n=47)	28 fps -2%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Intel Iris Xe Graphics G7 96EUs	16.5 (14^min) fps -43%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	15.4 (14^min) fps -46%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	15.1 (13^min) fps -47%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	14.8 (13^min, 14^P1) fps -48%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	14.7 (14^min) fps -49%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	14.7 (13^min) fps -49%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	14.3 (12^min) fps -50%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	13.1 fps -54%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	12.6 (9^min) fps -56%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Intel Iris Xe Graphics G7 80EUs	12.2 (11^min, 11^P1) fps -57%
Framework Laptop 13.5 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	12 (10^min) fps -58%

Dota 2 Reborn
1280x720 min (0/3) fastest
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	162.4 (144.9^min) fps +5%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	154.1 (129.7^min) fps
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	134.4 (81.4^min) fps -13%
Media AMD Radeon 780M (34.7 - 164.8, n=58)	132.9 fps -14%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Intel Iris Xe Graphics G7 96EUs	131.8 (102.5^min) fps -14%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	125.6 (99.1^min) fps -18%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	121.7 (97.1^min) fps -21%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Intel Iris Xe Graphics G7 80EUs	119 (105.9^min) fps -23%
Framework Laptop 13.5 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	109 (95.8^min) fps -29%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	103.2 (80.3^min) fps -33%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	101.4 (80.9^min) fps -34%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	96 (75.1^min) fps -38%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	82.6 (45.4^min) fps -46%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	77.5 (42.7^min) fps -50%
1366x768 med (1/3)
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	143.8 (127.3^min) fps +21%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	119.5 (103.4^min) fps 0%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	119.3 (97.9^min) fps
Media AMD Radeon 780M (33.6 - 130.2, n=58)	106.9 fps -10%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	97.7 (75.8^min) fps -18%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Intel Iris Xe Graphics G7 96EUs	92.4 (71.2^min) fps -23%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	90.3 (73.5^min) fps -24%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Intel Iris Xe Graphics G7 80EUs	89.9 (76.5^min) fps -25%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	76.3 (60.7^min) fps -36%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	72.3 (55.8^min) fps -39%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	69.6 (45.6^min) fps -42%
Framework Laptop 13.5 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	66.1 (49.6^min) fps -45%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	65.1 (48.1^min) fps -45%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	54.3 (36.6^min) fps -54%
1920x1080 high (2/3)
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	131.8 (114.7^min) fps +73%
Media AMD Radeon 780M (31.6 - 98.8, n=58)	79.4 fps +4%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	76.2 (63.3^min) fps
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	70.9 (59.6^min) fps -7%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Intel Iris Xe Graphics G7 96EUs	69 (61.2^min) fps -9%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	68.7 (58.6^min) fps -10%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	63.1 (51.5^min) fps -17%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	62.6 (57.1^min) fps -18%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	60.2 (49.5^min) fps -21%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	59 (38.9^min) fps -23%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Intel Iris Xe Graphics G7 80EUs	57.2 (46.9^min) fps -25%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	48.5 (33.9^min) fps -36%
Framework Laptop 13.5 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	41.2 (36.8^min) fps -46%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	40.5 (28.7^min) fps -47%
1920x1080 ultra (3/3) best looking
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	121.6 (101.3^min) fps +71%
Media AMD Radeon 780M (30.8 - 91.2, n=58)	71.6 fps +1%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	71.2 (59.4^min) fps
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	66.1 (49.7^min) fps -7%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Intel Iris Xe Graphics G7 96EUs	62.7 (55.5^min) fps -12%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	61.6 (52.9^min) fps -13%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	57.7 (51.4^min) fps -19%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	56.2 (47^min) fps -21%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	53.3 (44.9^min) fps -25%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Intel Iris Xe Graphics G7 80EUs	52.6 (46^min) fps -26%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	47.2 (32.1^min) fps -34%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	45.7 (37.9^min) fps -36%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	42.5 (24.8^min) fps -40%
Framework Laptop 13.5 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	38.2 (33.7^min) fps -46%

Final Fantasy XV Benchmark
1280x720 Lite Quality
Media AMD Radeon 780M (41.1 - 84.5, n=55)	70.6 fps +6%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	66.6 fps
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Intel Iris Xe Graphics G7 96EUs	45.1 fps -32%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	44.7 fps -33%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	44.5 fps -33%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	44 fps -34%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	42.5 fps -36%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	40.9 fps -39%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Intel Iris Xe Graphics G7 80EUs	40.4 fps -39%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	36.3 fps -45%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	35.2 fps -47%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	33.7 fps -49%
Framework Laptop 13.5 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	29.4 fps -56%
1920x1080 Standard Quality
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	62.2 fps +81%
Media AMD Radeon 780M (21 - 40.9, n=56)	35.3 fps +3%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	34.4 fps
SCHENKER Vision 14 2023 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	26.1 fps -24%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	25.2 fps -27%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Intel Iris Xe Graphics G7 96EUs	24.3 fps -29%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	24.1 fps -30%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	23.3 fps -32%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	23.2 fps -33%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Intel Iris Xe Graphics G7 80EUs	22.1 fps -36%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	20.6 fps -40%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	19.7 fps -43%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	19.6 fps -43%
Framework Laptop 13.5 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	15.7 fps -54%
1920x1080 High Quality
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	45 fps +75%
Media AMD Radeon 780M (15.9 - 30.8, n=57)	26.4 fps +3%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	25.7 fps
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	23.3 fps -9%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	18.2 fps -29%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	18.2 fps -29%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Intel Iris Xe Graphics G7 96EUs	18 fps -30%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	17.5 fps -32%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	16.4 fps -36%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Intel Iris Xe Graphics G7 80EUs	15.7 fps -39%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	15.4 fps -40%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	14.6 fps -43%
Framework Laptop 13.5 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	12.1 fps -53%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	11.7 fps -54%

X-Plane 11.11
1280x720 low (fps_test=1)
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	124.3 fps +107%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	62.6 fps +4%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	60 fps
Media AMD Radeon 780M (39 - 69.6, n=60)	53.3 fps -11%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Intel Iris Xe Graphics G7 96EUs	50.5 fps -16%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	48 fps -20%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	47.8 fps -20%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	42.7 fps -29%
Framework Laptop 13.5 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	41.3 fps -31%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Intel Iris Xe Graphics G7 80EUs	41.3 fps -31%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	40.1 fps -33%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	37.6 fps -37%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	28.5 fps -52%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	26.7 fps -55%
1920x1080 med (fps_test=2)
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	102.4 fps +131%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	45.9 fps +3%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	44.4 fps
SCHENKER Vision 14 2023 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	39.4 fps -11%
Media AMD Radeon 780M (26.2 - 48.9, n=60)	38.9 fps -12%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	37.7 fps -15%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	37.3 fps -16%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Intel Iris Xe Graphics G7 96EUs	36.9 fps -17%
Framework Laptop 13.5 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	36.5 fps -18%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	36.2 fps -18%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Intel Iris Xe Graphics G7 80EUs	33.8 fps -24%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	32.6 fps -27%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	31.8 fps -28%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	23.7 fps -47%
1920x1080 high (fps_test=3)
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	84.8 fps +126%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	41.3 fps +10%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	37.5 fps
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Intel Iris Xe Graphics G7 96EUs	36.5 fps -3%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	35.5 fps -5%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	33.2 fps -11%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	33.1 fps -12%
Media AMD Radeon 780M (24.5 - 41.5, n=59)	32.7 fps -13%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	32.5 fps -13%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Intel Iris Xe Graphics G7 80EUs	30.9 fps -18%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	30.2 fps -19%
Framework Laptop 13.5 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	29.5 fps -21%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	29.1 fps -22%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	28.8 fps -23%

Strange Brigade
1280x720 lowest AF:1
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	246 (59.7^min, 186.4^P1) fps +76%
Media AMD Radeon 780M (74.1 - 175.9, n=48)	149.5 fps +7%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	139.8 (37.5^min, 114.3^P1) fps
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Intel Iris Xe Graphics G7 96EUs	99.7 (17.7^min, 35.6^P1) fps -29%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	97.4 (18.1^min, 32^P1) fps -30%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	94.4 (16.2^min, 33.1^P1) fps -32%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	93.9 (20.3^min, 37.7^P1) fps -33%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	90.2 (20.4^min, 32.1^P1) fps -35%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	88.8 (19.5^min, 29.6^P1) fps -36%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	84.9 (19.4^min, 29.8^P1) fps -39%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Intel Iris Xe Graphics G7 80EUs	81.9 (18.4^min, 27.8^P1) fps -41%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	78.5 (16.5^min, 28.6^P1) fps -44%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	67.7 (15.5^min, 23.7^P1) fps -52%
1920x1080 medium AA:medium AF:4
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	118.4 (90.4^min, 101.1^P1) fps +98%
Media AMD Radeon 780M (31.7 - 70.9, n=49)	62.5 fps +5%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	59.7 (18.3^min, 51.4^P1) fps
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	43.8 (15.4^min, 25.5^P1) fps -27%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Intel Iris Xe Graphics G7 96EUs	42.4 (14.9^min, 23.7^P1) fps -29%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	41.9 (14.8^min, 25.4^P1) fps -30%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	39.6 (14.6^min, 21.7^P1) fps -34%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	39.1 (8^min, 10.2^P1) fps -35%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	38.5 (8.5^min, 10^P1) fps -36%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	38.4 (17.6^min, 22.1^P1) fps -36%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	35.1 (13^min, 19.7^P1) fps -41%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Intel Iris Xe Graphics G7 80EUs	34.5 (12.2^min, 19.7^P1) fps -42%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	30.7 (10.4^min, 16.6^P1) fps -49%
1920x1080 high AA:high AF:8
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	94.7 (40.6^min, 71.6^P1) fps +88%
Media AMD Radeon 780M (27.3 - 60.6, n=49)	52.7 fps +4%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	50.5 (17.2^min, 27.8^P1) fps
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	35.4 (5.4^min, 17.4^P1) fps -30%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Intel Iris Xe Graphics G7 96EUs	34.1 (9.3^min, 16.5^P1) fps -32%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	33.6 (9.7^min, 23.4^P1) fps -33%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	32.6 (16.7^min, 18.3^P1) fps -35%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	30.8 (6.3^min, 7.96^P1) fps -39%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	30.4 (6.3^min, 7.97^P1) fps -40%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	30.4 (8.5^min, 15.4^P1) fps -40%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Intel Iris Xe Graphics G7 80EUs	27.5 (9.1^min, 14.1^P1) fps -46%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	27.3 (7.6^min, 10.4^P1) fps -46%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	24.4 (8.4^min, 13.2^P1) fps -52%
1920x1080 ultra AA:ultra AF:16
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	82.1 (35.6^min, 62.9^P1) fps +91%
Media AMD Radeon 780M (23.5 - 52.1, n=50)	45 fps +5%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	43 (13.6^min, 21.3^P1) fps
SCHENKER Vision 14 2023 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	27.7 (5.7^min, 9.98^P1) fps -36%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Intel Iris Xe Graphics G7 96EUs	27.6 (5.5^min, 7.63^P1) fps -36%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	27.5 (5.6^min, 7.31^P1) fps -36%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	26.2 (8.5^min, 9.77^P1) fps -39%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	25.1 (5^min, 6.26^P1) fps -42%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	24.7 (5.3^min, 6.86^P1) fps -43%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	24 (5^min, 5.93^P1) fps -44%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Intel Iris Xe Graphics G7 80EUs	22.3 (5^min, 6.49^P1) fps -48%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	21 (5^min, 5^P1) fps -51%

Cyberpunk 2077 1.6
1280x720 Low Preset
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	65.5 (15.5^min) fps
Media AMD Radeon 780M (43 - 88.6, n=7)	63.3 fps -3%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	37.3 (24^min) fps -43%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	32.4 (18.6^min) fps -51%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	32.3 (6.7^min) fps -51%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	21 (9.7^min) fps -68%
1920x1080 Low Preset
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	39.5 (16.2^min) fps
Media AMD Radeon 780M (22 - 53.3, n=12)	37 fps -6%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	21.9 (15.6^min) fps -45%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	20.8 (13.6^min) fps -47%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	19.7 (13.9^min) fps -50%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	13 (8.1^min) fps -67%
1920x1080 Medium Preset
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	30.9 (6.8^min) fps
Media AMD Radeon 780M (16 - 42, n=12)	29.3 fps -5%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	18.5 (13.9^min) fps -40%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	17.3 (12.5^min) fps -44%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	16.3 (12.2^min) fps -47%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	10.8 (7^min) fps -65%
1920x1080 High Preset
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	24.6 (8.6^min) fps
Media AMD Radeon 780M (12 - 30.5, n=12)	22.7 fps -8%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	13.7 (10.6^min) fps -44%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	13.6 (9.8^min) fps -45%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	12.7 (9.7^min) fps -48%
1920x1080 Ultra Preset
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	23 (9.5^min) fps
Media AMD Radeon 780M (14.2 - 26, n=8)	21.8 fps -5%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	11.2 (8^min) fps -51%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	11 (7.5^min) fps -52%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	9.3 (5^min) fps -60%

Tiny Tina's Wonderlands
1280x720 Lowest Preset (DX12)
Media AMD Radeon 780M (62.6 - 151.2, n=23)	116.7 fps +4%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	111.8 fps
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	53.5 fps -52%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	53.2 fps -52%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	40.7 fps -64%
1920x1080 Low Preset (DX12)
Media AMD Radeon 780M (34.3 - 77.7, n=23)	61.7 fps +2%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	60.4 fps
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Intel Iris Xe Graphics G7 96EUs	32.5 fps -46%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	29.6 fps -51%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	25.9 fps -57%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	23.1 fps -62%
1920x1080 Medium Preset (DX12)
Media AMD Radeon 780M (28.4 - 55.9, n=23)	45.1 fps +1%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	44.8 fps
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Intel Iris Xe Graphics G7 96EUs	26.4 fps -41%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	23.7 fps -47%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	21.2 fps -53%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	18.3 fps -59%
1920x1080 High Preset (DX12)
Media AMD Radeon 780M (18.6 - 38.8, n=23)	31.3 fps +3%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	30.4 fps
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Intel Iris Xe Graphics G7 96EUs	16.4 fps -46%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	15.2 fps -50%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	14.1 fps -54%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	11.9 fps -61%
1920x1080 Badass Preset (DX12)
Media AMD Radeon 780M (16.5 - 31.3, n=23)	25.7 fps +2%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	25.2 fps
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Intel Iris Xe Graphics G7 96EUs	14.1 fps -44%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	12.2 fps -52%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	11.1 fps -56%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	8.9 fps -65%

F1 22
1280x720 Ultra Low Preset AA:T AF:16x
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	188.9 (136^min, 119^P1) fps +42%
Media AMD Radeon 780M (85.4 - 186.7, n=27)	143.5 fps +8%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	133.2 (110^min, 87^P1) fps
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Intel Iris Xe Graphics G7 96EUs	84.7 (68^min, 68^P1) fps -36%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	81.5 (61^min, 60^P1) fps -39%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	75.8 (55^min, 56^P1) fps -43%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	72.1 (54^min, 54^P1) fps -46%
1920x1080 Low Preset AA:T AF:16x
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	133.9 (113^min, 88^P1) fps +66%
Media AMD Radeon 780M (47 - 109.9, n=33)	84.8 fps +5%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	80.6 (70^min, 55^P1) fps
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Intel Iris Xe Graphics G7 96EUs	49.8 (43^min, 41^P1) fps -38%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	47.5 (40^min, 37^P1) fps -41%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	45.7 (38^min, 36^P1) fps -43%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	43.6 (34^min, 31^P1) fps -46%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	41.2 (28^min, 27^P1) fps -49%
1920x1080 Medium Preset AA:T AF:16x
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	121.6 (63^min, 82^P1) fps +68%
Media AMD Radeon 780M (41.5 - 95, n=33)	75 fps +3%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	72.5 (58^min, 45^P1) fps
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Intel Iris Xe Graphics G7 96EUs	45.3 (38^min, 37^P1) fps -38%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	42.8 (37^min, 36^P1) fps -41%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	41.3 (34^min, 32^P1) fps -43%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	39.4 (33^min, 30^P1) fps -46%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	36.6 (25^min, 25^P1) fps -50%
1920x1080 High Preset AA:T AF:16x
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	85 (71^min, 64^P1) fps +57%
Media AMD Radeon 780M (31.7 - 70.6, n=33)	55.9 fps +3%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	54.2 (44^min, 35^P1) fps
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Intel Iris Xe Graphics G7 96EUs	33 (28^min, 27^P1) fps -39%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	31.9 (24^min, 26^P1) fps -41%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	30.4 (25^min, 24^P1) fps -44%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	27.4 (22^min, 22^P1) fps -49%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	27.1 (17^min, 17^P1) fps -50%

Witcher 3 FPS Chart

Framework Laptop 13.5 Ryzen 7 7840U: Ø43.5 (39-46)

	basso	medio	alto	ultra
The Witcher 3 (2015)	136.2		45.9	28.7
Dota 2 Reborn (2015)	154.1	119.3	76.2	71.2
Final Fantasy XV Benchmark (2018)	66.6	34.4	25.7
X-Plane 11.11 (2018)	60	44.4	37.5
Far Cry 5 (2018)	74	39	37	35
Strange Brigade (2018)	139.8	59.7	50.5	43
Cyberpunk 2077 1.6 (2022)	39.5	30.9	24.6	23
Tiny Tina's Wonderlands (2022)	60.4	44.8	30.4	25.2
F1 22 (2022)	80.6	72.5	54.2

Emissioni

Rumore del sistema

La rumorosità della ventola durante l'esecuzione di carichi impegnativi è praticamente uguale a quella registrata sulla configurazione Intel Core-P. Il Framework rimane uno dei subnotebook più rumorosi quando il rumore è compreso tra 46 e 49 dB(A), rispetto ai 40 dB(A) della maggior parte degli altri subnotebook. Notiamo anche una maggiore frequenza di pulsazioni della ventola.

A merito di Framework, il tempo di aumento del rumore della ventola è relativamente lento e costante sulla configurazione AMD, il che significa che il sistema è in grado di rimanere relativamente silenzioso quando si eseguono carichi meno impegnativi come la navigazione o lo streaming video.

Profilo del rumore della ventola (bianco: Sfondo, Rosso: Sistema inattivo, Blu: 3DMark 06, Arancione: Witcher 3, Verde: Prime95 stress)

Rumorosità

Idle		22.6 / 22.6 / 24.2 dB(A)
Sotto carico		35.8 / 48.9 dB(A)

	30 dB silenzioso 40 dB(A) udibile 50 dB(A) rumoroso
min: , med: , max: Earthworks M23R, Arta (15 cm di distanza) Rumorosità ambientale: 22.6 dB(A)

	Framework Laptop 13.5 Ryzen 7 7840U Radeon 780M, R7 7840U, WD PC SN740 512GB SDDPNQD-512G	Framework Laptop 13.5 Iris Xe G7 96EUs, i7-1165G7, Western Digital WD_BLACK SN850 WDS100T1X0E	Lenovo ThinkPad X1 Nano Gen 3 Iris Xe G7 96EUs, i7-1360P, Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	HP Dragonfly G4 Iris Xe G7 96EUs, i7-1365U, Micron 3400 MTFDKBA512TFH 512GB	Dell XPS 13 Plus 9320 Core i7-1360P Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	Asus ZenBook S13 OLED UX5304 Iris Xe G7 96EUs, i7-1355U, Samsung PM9A1 MZVL21T0HCLR
Noise		-6%	8%	9%	0%	3%
off /ambiente *	22.6	23.9 -6%	22.9 -1%	23.3 -3%	23.7 -5%	23.3 -3%
Idle Minimum *	22.6	23.9 -6%	23 -2%	23.5 -4%	24 -6%	23.3 -3%
Idle Average *	22.6	23.9 -6%	23 -2%	23.5 -4%	24 -6%	23.3 -3%
Idle Maximum *	24.2	23.9 1%	23 5%	26.8 -11%	24.4 -1%	23.3 4%
Load Average *	35.8	45.6 -27%	32.8 8%	27.2 24%	37 -3%	37.7 -5%
Witcher 3 ultra *	46.5	47.1 -1%	36.9 21%	32.7 30%	42.1 9%	40.1 14%
Load Maximum *	48.9	47.9 2%	36.9 25%	35 28%	42 14%	40.1 18%

* ... Meglio usare valori piccoli

Temperatura

Le temperature di superficie non sono più basse rispetto alla versione Intel e potrebbero addirittura essere più calde. Le temperature medie del nostro sistema AMD sarebbero di qualche grado C più calde sia sul lato superiore che su quello inferiore, ma non si possono mai escludere del tutto le differenze di temperatura di fondo. Le alternative con CPU più lente, come il modelloHP Spectre x360 13,5 funzionano meglio.

L'adattatore CA raggiunge oltre 44 C quando si utilizzano carichi impegnativi

Carico massimo

Idle


39 °C	42 °C	40.2 °C
31 °C	40.6 °C	38.8 °C
26.4 °C	27.8 °C	27.6 °C

Massima: 42 °C
Media: 34.8 °C


40.2 °C	47.4 °C	42.6 °C
34.8 °C	39.4 °C	37.4 °C
31 °C	31.4 °C	31 °C

Massima: 47.4 °C
Media: 37.2 °C

Alimentazione (max) 45 °C | Temperatura della stanza 20 °C | Fluke 62 Mini IR Thermometer

(±) La temperatura media del lato superiore sotto carico massimo e' di 34.8 °C / 95 F, rispetto alla media di 29.5 °C / 85 F per i dispositivi di questa classe Office.
(±) La temperatura massima sul lato superiore è di 42 °C / 108 F, rispetto alla media di 34.3 °C / 94 F, che varia da 21.2 a 62.5 °C per questa classe Office.
(-) Il lato inferiore si riscalda fino ad un massimo di 47.4 °C / 117 F, rispetto alla media di 36.8 °C / 98 F
(+) In idle, la temperatura media del lato superiore è di 27.5 °C / 82 F, rispetto alla media deld ispositivo di 29.5 °C / 85 F.
(+) I poggiapolsi e il touchpad sono piu' freddi della temperatura della pelle con un massimo di 27.8 °C / 82 F e sono quindi freddi al tatto.
(±) La temperatura media della zona del palmo della mano di dispositivi simili e'stata di 27.6 °C / 81.7 F (-0.2 °C / -0.3 F).

	Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	Framework Laptop 13.5 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	Asus ZenBook S13 OLED UX5304 Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs
Heat		6%	7%	7%	9%	3%
Maximum Upper Side *	42	47.2 -12%	44 -5%	38.6 8%	43.8 -4%	43.1 -3%
Maximum Bottom *	47.4	39.4 17%	43.2 9%	40.4 15%	44.4 6%	45 5%
Idle Upper Side *	28.8	25.2 12%	25.6 11%	28.2 2%	24 17%	27.3 5%
Idle Bottom *	29.6	27.8 6%	25.6 14%	29 2%	25.2 15%	27.8 6%

* ... Meglio usare valori piccoli

Stress test

La frequenza di clock della CPU e l'assorbimento di potenza della scheda raggiungevano rispettivamente i 4 GHz e i 51 W, durando al massimo un paio di secondi prima di stabilizzarsi a 3,2 GHz, 35 W e 85 C. Ripetendo questo test sulla versione Core i7 Intel si ottenevano temperature del core simili, ma con un assorbimento di potenza di 30 W leggermente inferiore.

Quando si esegue Witcher 3 per rappresentare carichi grafici impegnativi, la temperatura del core si stabilizzava a soli 71 C rispetto ai 93 C dell'Intel, nonostante la Radeon 780M sia molto più veloce della Iris Xe.

	Clock della CPU (GHz)	Clock della GPU (MHz)	Temperatura media della CPU (°C)
Sistema inattivo	--	--	46
Stress Prime95	3.2	--	85
Prime95 + FurMark Stress	3.0	1534	74
Witcher 3 Stress	~0,3	2176	71

Altoparlanti

Diagramma frequenza (le caselle possono essere selezionate/deselezionate per confrontare i dispositivi)

Framework Laptop 13.5 Ryzen 7 7840U analisi audio

(+) | gli altoparlanti sono relativamente potenti (82.8 dB)
Bassi 100 - 315 Hz
(±) | bassi ridotti - in media 10.7% inferiori alla media
(±) | la linearità dei bassi è media (9.2% delta rispetto alla precedente frequenza)
Medi 400 - 2000 Hz
(±) | medi elevati - circa 6.7% superiore alla media
(+) | medi lineari (3.9% delta rispetto alla precedente frequenza)
Alti 2 - 16 kHz
(+) | Alti bilanciati - appena 2.8% dalla media
(+) | alti lineari (3.2% delta rispetto alla precedente frequenza)
Nel complesso 100 - 16.000 Hz
(+) | suono nel complesso lineare (13.9% differenza dalla media)
Rispetto alla stessa classe
» 6% di tutti i dispositivi testati in questa classe è stato migliore, 4% simile, 90% peggiore
» Il migliore ha avuto un delta di 7%, medio di 21%, peggiore di 53%
Rispetto a tutti i dispositivi testati
» 14% di tutti i dispositivi testati in questa classe è stato migliore, 4% similare, 83% peggiore
» Il migliore ha avuto un delta di 4%, medio di 25%, peggiore di 134%

Apple MacBook Pro 16 2021 M1 Pro analisi audio

(+) | gli altoparlanti sono relativamente potenti (84.7 dB)
Bassi 100 - 315 Hz
(+) | bassi buoni - solo 3.8% dalla media
(+) | bassi in lineaa (5.2% delta rispetto alla precedente frequenza)
Medi 400 - 2000 Hz
(+) | medi bilanciati - solo only 1.3% rispetto alla media
(+) | medi lineari (2.1% delta rispetto alla precedente frequenza)
Alti 2 - 16 kHz
(+) | Alti bilanciati - appena 1.9% dalla media
(+) | alti lineari (2.7% delta rispetto alla precedente frequenza)
Nel complesso 100 - 16.000 Hz
(+) | suono nel complesso lineare (4.6% differenza dalla media)
Rispetto alla stessa classe
» 0% di tutti i dispositivi testati in questa classe è stato migliore, 0% simile, 100% peggiore
» Il migliore ha avuto un delta di 5%, medio di 18%, peggiore di 45%
Rispetto a tutti i dispositivi testati
» 0% di tutti i dispositivi testati in questa classe è stato migliore, 0% similare, 100% peggiore
» Il migliore ha avuto un delta di 4%, medio di 25%, peggiore di 134%

Gestione dell'energia

Consumo di energia

Il consumo energetico è costantemente inferiore a quello registrato con la configurazione Core i7-1370P su tutta la linea. Questo si aggiunge al fatto che il nostro Ryzen 7 7840U è in grado di superare la CPU Intel nella maggior parte delle applicazioni. Il funzionamento al minimo su desktop richiede solo 4-7 W rispetto ai 3-10 W della versione Intel.

L'esecuzione di Witcher 3 per rappresentare i carichi di gioco tipici consumerebbe circa l'8% di energia in meno rispetto alla configurazione Core i7-1370P, per un aumento del 30-50% delle prestazioni grafiche grezze. Quindi, non solo la Radeon 780M è più veloce della Iris Xe 96 EUs, ma richiede anche meno energia per prestazioni superiori per watt.

Il caricatore CA GaN USB-C da 60 W, di dimensioni ridotte (circa 5,8 x 5,8 x 2,6 cm), è lo stesso per tutte le configurazioni, indipendentemente dall'opzione della CPU.

Il consumo saliva a 55 W senza cali significativi quando si avviava lo stress Prime95, suggerendo un'eccellente prestazione di Boost

Lo stress di Prime95+FurMark è iniziato al 10s

Consumo di corrente

Off / Standby	0.41 / 0.81 Watt
Idle	4 / 6.5 / 6.8 Watt
Sotto carico	48 / 55.2 Watt


Leggenda: min: , med: , max: Metrahit Energy

	Framework Laptop 13.5 Ryzen 7 7840U R7 7840U, Radeon 780M, WD PC SN740 512GB SDDPNQD-512G, IPS, 2256x1504, 13.5"	Framework Laptop 13.5 13th Gen Intel i7-1370P, Iris Xe G7 96EUs, WD PC SN740 SDDPNQD-1T00, IPS, 2256x1504, 13.5"	Framework Laptop 13.5 12th Gen Intel i7-1260P, Iris Xe G7 96EUs, WDC PC SN730 SDBPNTY-512G, IPS, 2256x1504, 13.5"	Framework Laptop 13.5 i7-1165G7, Iris Xe G7 96EUs, Western Digital WD_BLACK SN850 WDS100T1X0E, IPS, 2256x1504, 13.5"	Lenovo ThinkPad X1 Nano Gen 3 i7-1360P, Iris Xe G7 96EUs, Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ, IPS, 2160x1350, 13"	HP Dragonfly G4 i7-1365U, Iris Xe G7 96EUs, Micron 3400 MTFDKBA512TFH 512GB, IPS, 1920x1280, 13.5"
Power Consumption		-9%	-25%	-8%	9%	-1%
Idle Minimum *	4	2.9 27%	5.3 -33%	4.3 -8%	3.3 17%	4.1 -3%
Idle Average *	6.5	6.3 3%	8.4 -29%	8.2 -26%	6.5 -0%	7.5 -15%
Idle Maximum *	6.8	9.9 -46%	11.2 -65%	8.7 -28%	7.1 -4%	8.2 -21%
Load Average *	48	56.2 -17%	57.4 -20%	43.5 9%	40.7 15%	35.5 26%
Witcher 3 ultra *	52.3	56.6 -8%	46.7 11%	43.5 17%	37 29%	37.5 28%
Load Maximum *	55.2	60.8 -10%	61.2 -11%	61.8 -12%	58.6 -6%	66.5 -20%

* ... Meglio usare valori piccoli

Power Consumption Witcher 3 / Stresstest

Framework Laptop 13.5 Ryzen 7 7840U R7 7840U, Radeon 780M; Witcher 3 ultra: Ø52.3 (51.2-53.8)

Framework Laptop 13.5 13th Gen Intel i7-1370P, Iris Xe G7 96EUs; Witcher 3 ultra: Ø56.6 (52.4-60.8)

Framework Laptop 13.5 Ryzen 7 7840U R7 7840U, Radeon 780M; 1280x720 Prime95 28.10 and Furmark 1.25: Ø55 (54.5-55.2)

Framework Laptop 13.5 13th Gen Intel i7-1370P, Iris Xe G7 96EUs; 1280x720 Prime95 28.10 and Furmark 1.25: Ø59.6 (59.1-60.8)

Framework Laptop 13.5 Ryzen 7 7840U R7 7840U, Radeon 780M; Idle 150cd/m2: Ø4.74 (4.28-8.77)

Framework Laptop 13.5 13th Gen Intel i7-1370P, Iris Xe G7 96EUs; Idle 150cd/m2: Ø4.06 (3.33-6.47)

Power Consumption external Monitor

Framework Laptop 13.5 Ryzen 7 7840U R7 7840U, Radeon 780M; Prime95 V2810 Stress (external Monitor): Ø54.7 (54.3-55)

Framework Laptop 13.5 13th Gen Intel i7-1370P, Iris Xe G7 96EUs; Prime95 V2810 Stress (external Monitor): Ø60.3 (59.1-60.9)

Framework Laptop 13.5 Ryzen 7 7840U R7 7840U, Radeon 780M; Cinebench R15 Multi (external Monitor): Ø50.4 (40.1-54.8)

Framework Laptop 13.5 13th Gen Intel i7-1370P, Iris Xe G7 96EUs; Cinebench R15 Multi (external Monitor): Ø60.6 (58.7-60.8)

Framework Laptop 13.5 Ryzen 7 7840U R7 7840U, Radeon 780M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø52.9 (29.4-54)

Framework Laptop 13.5 13th Gen Intel i7-1370P, Iris Xe G7 96EUs; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø52.3 (49-57.4)

Framework Laptop 13.5 Ryzen 7 7840U R7 7840U, Radeon 780M; 1920x1080 The Witcher 3 ultra (external Monitor): Ø51.2 (50.7-52.2)

Framework Laptop 13.5 13th Gen Intel i7-1370P, Iris Xe G7 96EUs; 1920x1080 The Witcher 3 ultra (external Monitor): Ø54.7 (54.1-55.2)

Framework Laptop 13.5 Ryzen 7 7840U R7 7840U, Radeon 780M; Idle 1min (external Monitor): Ø4.05 (3.56-6.57)

Framework Laptop 13.5 13th Gen Intel i7-1370P, Iris Xe G7 96EUs; Idle 1min (external Monitor): Ø3.23 (2.59-4.76)

Durata della batteria

I tempi di esecuzione sono più lunghi rispetto alle configurazioni basate su Intel, con margini significativi, grazie ai livelli di consumo energetico inferiori menzionati in precedenza. Siamo riusciti a navigare sul web per oltre 3 ore in più con il nostro modello AMD rispetto al modello Core i7-1370P, quando entrambi sono impostati in modalità Bilanciata e con una luminosità di 150 nit. Questo non significa che la durata della batteria sia scarsa se configurata con Intel, ma AMD ha un chiaro vantaggio in questo senso.

Si noti che la configurazione Ryzen 5 di base è dotata di una batteria da soli 55 Wh, rispetto ai 61 Wh della nostra configurazione Ryzen 7 7840U.

Autonomia della batteria


WiFi Websurfing		12ore 06minuti

	Framework Laptop 13.5 Ryzen 7 7840U R7 7840U, Radeon 780M, 61 Wh	Framework Laptop 13.5 13th Gen Intel i7-1370P, Iris Xe G7 96EUs, 61 Wh	Framework Laptop 13.5 12th Gen Intel i7-1260P, Iris Xe G7 96EUs, 55 Wh	Framework Laptop 13.5 i7-1165G7, Iris Xe G7 96EUs, 55 Wh	Lenovo ThinkPad X1 Nano Gen 3 i7-1360P, Iris Xe G7 96EUs, 49.5 Wh	HP Dragonfly G4 i7-1365U, Iris Xe G7 96EUs, 68 Wh
Autonomia della batteria		-27%	-38%	-34%	-36%	31%
WiFi v1.3	726	527 -27%	447 -38%	478 -34%	465 -36%	954 31%
Reader / Idle						2550
Load						192

Pro

+ eccellenti prestazioni di CPU e GPU

+ elevate prestazioni per watt

+ lunga durata della batteria

+ Supporto USB4

Contro

- le quattro porte USB-C non sono uguali

- le prestazioni in single-thread potrebbero essere migliori

- la ventola è rumorosa e tende a pulsare

- ancora nessuna nuova opzione di visualizzazione

Verdetto - Prestazioni grafiche due volte superiori a quelle di Intel

In recensione: Framework Laptop 13.5 Ryzen 7. Unità di test fornita da Framework

Se si apprezzano le prestazioni multi-thread e la grafica, la configurazione AMD è senza dubbio la scelta migliore rispetto a quella Intel. Il Ryzen 7 7840U e la Radeon 780M sono più veloci di qualsiasi processore Intel Core-U o Core-P di 13a generazione, soprattutto per quanto riguarda le prestazioni per watt e la durata della batteria. Il fatto che le configurazioni Ryzen 7 e Core i7 costino circa lo stesso prezzo di 1500 dollari l'una rende la versione AMD più interessante.

A meno che non abbiate assolutamente bisogno di Ryzen PRO o Intel vPro, il Framework Laptop 13.5 basato su AMD è più veloce e molto più facile da consigliare rispetto a quello Intel, soprattutto perché costano circa lo stesso prezzo.

Al momento ci sono ancora alcuni motivi per scegliere Intel. In primo luogo, le CPU Zen 4 Ryzen PRO non sono ancora disponibili presso Framework, lasciando Intel vPro come unica opzione. In secondo luogo, la serie Core-P ha ancora un leggero vantaggio su AMD per quanto riguarda le prestazioni a thread singolo. Infine, le porte USB-C del modello Intel sono uniformi per quanto riguarda le caratteristiche e la compatibilità. Di queste tre differenze, la prima è probabilmente la più preziosa, soprattutto per le aziende o per gli utenti che necessitano di un ulteriore livello di sicurezza hardware. Per il resto, è difficile rinunciare a una maggiore durata della batteria e a prestazioni grafiche doppie a parità di prezzo.

Prezzo e disponibilità

Il produttore sta spedendo la versione la versione AMD del Framework Laptop 13.5 a partire da 1050 dollari per la configurazione Ryzen 5 di base fino a oltre 1600 dollari per la configurazione completa con Ryzen 7 7840U.

Framework Laptop 13.5 Ryzen 7 7840U - 10/02/2023 v7 ^(old)
Allen Ngo

Chassis

78 / 98 → 79%

Tastiera

87%

Dispositivo di puntamento

83%

Connettività

67 / 80 → 84%

Peso

71 / 20-75 → 93%

Batteria

89%

Display

91%

Prestazioni di gioco

78 / 78 → 100%

Prestazioni Applicazioni

97 / 95 → 100%

Temperatura

90%

Rumorosità

89%

Audio

85%

Fotocamera

38 / 85 → 45%

Media

80%

88%

Office - Media ponderata

Articoli collegati

Framework Laptop 13.5 Ryzen 7 7840U (Laptop Serie)

notizia

•

Framework Laptop 16 ora suppor...

notizia

•

Framework Laptop Brick System ...

recensione

•

Recensione del Framework Lapto...

recensione

•

Recensione del Framework Lapto...

recensione

•

Recensione del portatile quadr...

recensione

•

Recensione del portatile Frame...

notizia

•

Framework raddoppia sulla ripa...

recensione

•

Recensione del Laptop Framewor...

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
