Recensione dell'Intel NUC Pro Chassis Element: barebone modulare per molti scopi

A differenza dei sistemi Intel NUC tradizionali, che a volte vengono forniti in versione barebone senza RAM e SSD, l'Intel NUC Pro Chassis Element non viene fornito con un SoC nella configurazione di base. È installato su un elemento di calcolo separato e viene installato come scheda plug-in aggiuntiva nel sistema.

Il NUC Pro Chassis Element costa attualmente circa 340 euro, che non è poco considerando i costi aggiuntivi per l'elemento di calcolo e la memoria di massa. Nella versione più piccola che abbiamo testato, bisogna fare i conti con circa 850 euro, il modello in combinazione con il processore Intel Core i7-1265Upuò facilmente costare 1.250 euro. Intel segue un approccio simile anche con il portatile Intel NUC P14E, che può essere equipaggiato con gli elementi di calcolo corrispondenti. Secondo Intel, la longevità della base è un grande vantaggio, sia per il portatile che per la versione desktop. Tuttavia, al momento non è possibile sapere come sarà il supporto per i moduli più recenti in futuro. Una panoramica degli elementi di calcolo utilizzati è riportata nella tabella seguente.

Modello	Intel NUC 11 Compute Element (CM11EBv58W)	Intel NUC 11 Compute Element (CM11EBv716W)	Intel NUC 12 Compute Element (ELM12HBv5)	Intel NUC 12 Compute Element (ELM12HBv7)
SoC	Intel Core i5-1145G7	Intel Core i7-1185G7	Intel Core i5-1245U	Intel Core i7-1265U
Core / Thread	4 / 8	4 / 8	10 / 12	10 / 12
RAM	8GB (LPDDR4x-4266)	16GB (LPDDR4x-4266)	8GB, 16GB (LPDDR5-5200)	16GB, 32GB (LPDDR5-5200)
WiFi	Intel Wi-Fi 6 AX201	Intel Wi-Fi 6 AX201	Intel Wi-Fi 6E AX211	Intel Wi-Fi 6E AX211
Prezzo in dollari USA	447	669	508	765 - 885

Caso

L'elemento dello chassis dell'Intel NUC Pro è completamente nero e quindi ha un aspetto relativamente poco spettacolare, si potrebbe anche dire piuttosto noioso. Tuttavia, la qualità costruttiva è di alto livello, come sappiamo dai sistemi NUC di Intel. Tutto è realizzato in plastica all'esterno, mentre all'interno è presente un robusto telaio in metallo che conferisce al dispositivo la necessaria stabilità.

Attrezzatura

A prima vista, c'è molto da scoprire in termini di connettività. Tuttavia, uno sguardo più attento rivela una certa disillusione. 3x USB 2.0 non è semplicemente quello che ci si aspetta nel 2022. Questo può ancora essere tollerato quando il mouse e la tastiera vengono gestiti tramite essa. Tuttavia, avremmo voluto vedere interfacce più moderne, in particolare USB-C e Thunderbolt. Le due uscite HDMI sono buone e possono alimentare una configurazione a doppio monitor, ma le porte LAN sono insufficienti con una velocità di 1 GBit. Anche in questo caso, almeno una porta LAN da 2,5 GBit sarebbe quello che ci si aspetta attualmente.

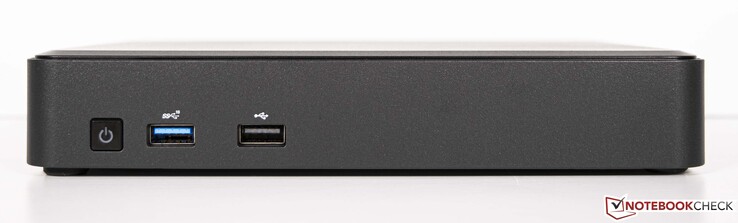

Anteriore: Accensione, 1x USB3.1 Gen.2, 1x USB2.0

Posteriore: Connettore di alimentazione, 2x HDMI, 2x LAN (Intel i219-LM GbE +Intel i211-AT GbE), 2x USB3.1 Gen.2, 2x USB2.0

Comunicazione

Per quanto riguarda i moduli Wi-Fi utilizzati, Intel si affida a un Intel Wi-Fi 6 AX201 per gli elementi di calcolo basati su Tiger-Lake, mentre i SoC Alder-Lake sono abbinati a un Intel Wi-Fi 6 AX211 leggermente più moderno. Le prestazioni di tutte le configurazioni testate sono buone e differiscono solo di qualche punto percentuale. Per questo test è stato utilizzato il nostro router ASUS ROG Rapture GT-AXE11000.

Networking
iperf3 receive AXE11000 6GHz
Intel NUC Pro Chassis_i7_1265U Intel Wi-Fi 6E AX211	1713 (1694^min - 1728^max) MBit/s
Intel NUC Pro Chassis_i5_1245U Intel Wi-Fi 6E AX211	1701 (854^min - 1715^max) MBit/s
iperf3 transmit AXE11000 6GHz
Intel NUC Pro Chassis_i7_1265U Intel Wi-Fi 6E AX211	1093 (570^min - 1168^max) MBit/s
Intel NUC Pro Chassis_i5_1245U Intel Wi-Fi 6E AX211	1062 (1009^min - 1098^max) MBit/s
iperf3 receive AXE11000
Intel NUC Pro Chassis_i5_1145G7 Intel Wi-Fi 6 AX201	1688 (1377^min - 1732^max) MBit/s
Intel NUC Pro Chassis_i7_1185G7 Intel Wi-Fi 6 AX201	1685 (841^min - 1722^max) MBit/s 0%
iperf3 transmit AXE11000
Intel NUC Pro Chassis_i5_1145G7 Intel Wi-Fi 6 AX201	1060 (544^min - 1101^max) MBit/s
Intel NUC Pro Chassis_i7_1185G7 Intel Wi-Fi 6 AX201	1011 (529^min - 1068^max) MBit/s -5%

Intel NUC Pro Chassis_i5_1245U Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1062 (1009-1098)

Intel NUC Pro Chassis_i7_1265U Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1074 (570-1168)

Intel NUC Pro Chassis_i5_1245U Intel Wi-Fi 6E AX211; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1671 (854-1715)

Intel NUC Pro Chassis_i7_1265U Intel Wi-Fi 6E AX211; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1712 (1694-1728)

Intel NUC Pro Chassis_i5_1145G7 Intel Wi-Fi 6 AX201; iperf3 receive AXE11000; iperf 3.1.3: Ø1687 (1377-1732)

Intel NUC Pro Chassis_i7_1185G7 Intel Wi-Fi 6 AX201; iperf3 receive AXE11000; iperf 3.1.3: Ø1657 (841-1722)

Intel NUC Pro Chassis_i5_1145G7 Intel Wi-Fi 6 AX201; iperf3 transmit AXE11000; iperf 3.1.3: Ø1042 (544-1101)

Intel NUC Pro Chassis_i7_1185G7 Intel Wi-Fi 6 AX201; iperf3 transmit AXE11000; iperf 3.1.3: Ø993 (529-1068)

Manutenzione

L'opzione barebone semplifica l'apertura dell'Intel NUC Pro Chassis Element. La piastra di base è fissata con quattro viti. All'interno è possibile accedere facilmente alle interfacce necessarie per dotare il dispositivo degli elementi più essenziali. L'elemento di calcolo trova posto nell'area anteriore. Inoltre, è già stato applicato un pad di conduzione del calore per garantire la dissipazione del calore. Inoltre, è necessario collegare le due antenne WLAN, anch'esse preinstallate. Per la memoria di massa è possibile installare fino a due unità SSD M.2.

Intel NUC Pro Chassis Element senza piastra di base

Prestazioni

In termini di prestazioni, ognuno può decidere da solo quanto è necessario. Grazie al design modulare, l'Intel NUC Pro Chassis Element può essere equipaggiato in base al caso d'uso e al budget.

Benchmark del processore

Le prestazioni della CPU dei diversi elementi di calcolo si differenziano l'una dall'altra come previsto. Circa il 20% è la differenza tra il Intel Core i5-1145G7 e l'Intel Intel Core i7-1265U. Tuttavia, la differenza di prestazioni tra i due SoC Alder Lake è marginale. Le prestazioni sono quasi identiche grazie allo stesso numero di core e thread. Per valutare meglio le prestazioni, abbiamo testato anche il PrimeBook Circular. Anche questo è dotato di un elemento di calcolo e si colloca tra i migliori dispositivi basati sul processore Intel Core i7-1165G7che lo colloca subito dopo l'Intel Core i7-1185G7 Intel Core i7-1185G7 nella classifica. Rispetto a un AMD Ryzen 5 5600Uche abbiamo testato nel Ace Magician AMR5 l'elemento dello chassis Intel NUC Pro con i SoC Alder-Lake si distingue facilmente.

Per ulteriori confronti e benchmark, facciamo riferimento al nostroTabella di confronto delle CPU.

Performance Rating - Percent
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	45.5 pt
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	45.1 pt
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	41.3 pt
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	38.6 pt
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	38 pt
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	37.8 pt
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	35.5 pt

Cinebench R15
CPU Single 64Bit
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	245 Points +21%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	242 Points +20%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	223 Points +10%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	221 Points +9%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	215 Points +6%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	202 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	197 Points -2%
CPU Multi 64Bit
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	1320 Points +67%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	1311 Points +66%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	1265 Points +60%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	832 Points +5%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	791 Points
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	791 Points 0%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	560 Points -29%

Cinebench R20
CPU (Single Core)
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	654 Points +23%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	649 Points +22%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	568 Points +7%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	558 Points +5%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	534 Points +1%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	531 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	517 Points -3%
CPU (Multi Core)
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	3234 Points +63%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	3153 Points +58%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	2975 Points +49%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	2051 Points +3%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	2027 Points +2%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	1990 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	1440 Points -28%

Cinebench R23
Single Core
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	1713 Points +26%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	1690 Points +24%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	1487 Points +9%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	1451 Points +7%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	1376 Points +1%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	1361 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	1346 Points -1%
Multi Core
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	8342 Points +67%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	8199 Points +64%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	7615 Points +53%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	5240 Points +5%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	5222 Points +5%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	4991 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	3721 Points -25%

Cinebench R11.5
CPU Single 64Bit
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	2.99 Points +27%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	2.92 Points +24%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	2.64 Points +12%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	2.58 Points +9%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	2.52 Points +7%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	2.36 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	2.31 Points -2%
CPU Multi 64Bit
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	16.48 Points +81%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	16.2 Points +78%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	14.78 Points +62%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	9.78 Points +7%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	9.12 Points
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	8.99 Points -1%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	6.37 Points -30%

Cinebench R10
Rendering Single CPUs 64Bit
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	13904 Points +33%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	13501 Points +29%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	11620 Points +11%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	11343 Points +8%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	11098 Points +6%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	10472 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	10395 Points -1%
Rendering Multiple CPUs 64Bit
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	61863 Points +75%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	60266 Points +70%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	45363 Points +28%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	36902 Points +4%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	35564 Points +1%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	35372 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	24499 Points -31%

Blender - v2.79 BMW27 CPU
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	759 Seconds * -26%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	750 Seconds * -25%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	601 Seconds *
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	590 Seconds * +2%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	399 Seconds * +34%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	388 Seconds * +35%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	380 Seconds * +37%

wPrime 2.10
32m
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	6.875 s * -6%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	6.799 s * -5%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	6.499 s *
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	6.428 s * +1%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	5.435 s * +16%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	5.377 s * +17%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	5.242 s * +19%
1024m
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	286.835 s * -26%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	240.405 s * -6%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	229.096 s * -1%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	227.285 s *
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	217.425 s * +4%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	216.279 s * +5%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	156.33 s * +31%

X264 HD Benchmark 4.0
Pass 1
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	265.5 (255^min - 284^max) fps +38%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	263 (250^min - 286^max) fps +37%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	234 (233^min - 235^max) fps +22%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	209 (207^min - 221^max) fps +9%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	198.8 (197.5^min - 231^max) fps +4%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	192 (188.3^min - 208^max) fps
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	165.55 (163.6^min - 204^max) fps -14%
Pass 2
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	80.95 (79.9^min - 96.6^max) fps +75%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	78.35 (77.6^min - 101.7^max) fps +69%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	76 (75.7^min - 76.3^max) fps +64%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	48.7 (48.7^min - 55.5^max) fps +5%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	46.6 (46.4^min - 53.9^max) fps +1%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	46.3 (46^min - 51^max) fps
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	36.7 (36.7^min - 37.6^max) fps -21%

WinRAR - Result
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	6877 KB/s +32%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	6154 KB/s +18%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	6045 KB/s +16%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	5960 KB/s +14%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	5717 KB/s +9%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	5223 KB/s
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	4185 KB/s -20%

TrueCrypt
AES Mean 100MB
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	9.7 GB/s +73%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	9.2 GB/s +64%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	7.7 GB/s +38%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	5.8 GB/s +4%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	5.7 GB/s +2%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	5.6 GB/s
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	5.3 GB/s -5%
Twofish Mean 100MB
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	1.6 GB/s +100%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	1.5 GB/s +87%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	1.1 GB/s +37%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	0.819 GB/s +2%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	0.813 GB/s +1%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	0.802 GB/s
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	0.755 GB/s -6%
Serpent Mean 100MB
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	0.901 GB/s +92%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	0.872 GB/s +86%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	0.7 GB/s +49%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	0.496 GB/s +6%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	0.469 GB/s
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	0.448 GB/s -4%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	0.447 GB/s -5%

Geekbench 5.5
Multi-Core
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	9065 Points +66%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	8772 Points +60%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	6175 Points +13%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	5813 Points +6%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	5467 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	4898 Points -10%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	4851 Points -11%
Single-Core
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	1714 Points +20%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	1675 Points +17%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	1543 Points +8%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	1506 Points +6%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	1430 Points 0%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	1427 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	1391 Points -3%

Geekbench 5.0
5.0 Multi-Core
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	8911 Points +67%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	8807 Points +65%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	6117 Points +14%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	5745 Points +7%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	5351 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	4841 Points -10%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	4813 Points -10%
5.0 Single-Core
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	1674 Points +18%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	1585 Points +11%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	1553 Points +9%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	1508 Points +6%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	1423 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	1385 Points -3%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	1383 Points -3%

Geekbench 4.4
64 Bit Single-Core Score
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	7515 Points +21%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	7065 Points +13%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	6686 Points +7%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	6305 Points +1%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	6226 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	5911 Points -5%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	5854 Points -6%
64 Bit Multi-Core Score
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	33057 Points +59%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	33040 Points +59%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	24495 Points +18%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	22175 Points +7%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	21011 Points +1%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	20787 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	19288 Points -7%

3DMark 11 - 1280x720 Performance Physics
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	16005 Points +39%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	15485 Points +34%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	12608 Points +9%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	11536 Points
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	11284 Points -2%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	7797 Points -32%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	7792 Points -32%

7-Zip 18.03
7z b 4
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	39207 MIPS +70%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	36343 MIPS +57%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	35918 MIPS +55%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	24006 MIPS +4%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	23471 MIPS +2%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	23123 MIPS
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	17636 MIPS -24%
7z b 4 -mmt1
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	5353 MIPS +10%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	5255 MIPS +8%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	5249 MIPS +8%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	5235 MIPS +8%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	5097 MIPS +5%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	4853 MIPS
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	4788 MIPS -1%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	10.1 fps +53%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	9.7 fps +47%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	9.47 fps +43%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	6.6 fps
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	6.55 fps -1%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	5.26 fps -20%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	4.74 fps -28%

R Benchmark 2.5 - Overall mean
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	0.639 sec * -1%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	0.63 sec *
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	0.609 sec * +3%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	0.599 sec * +5%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	0.537 sec * +15%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	0.511 sec * +19%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	0.4856 sec * +23%

LibreOffice - 20 Documents To PDF
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	52 s * -11%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	51.8 s * -10%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	51.1 s * -9%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	49.4 s * -5%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	48.9 s * -4%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	46.9 s *
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	46.1 s * +2%

WebXPRT 3 - Overall
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	271 Points +16%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	263 Points +12%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	255 Points +9%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	252 Points +8%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	245 Points +5%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	236 Points +1%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	234 Points

Mozilla Kraken 1.1 - Total
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	724 ms * -0%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	722 ms *
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	695 ms * +4%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	646 ms * +11%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	643 ms * +11%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	597 ms * +17%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	575 ms * +20%

3DMark
3840x2160 Fire Strike Ultra Physics
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	18463 Points +37%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	18218 Points +35%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	17568 Points +30%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	13479 Points
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	12661 Points -6%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	9561 Points -29%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	9094 Points -33%
1920x1080 Fire Strike Physics
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	18467 Points +38%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	18108 Points +35%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	18076 Points +35%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	13413 Points
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	12768 Points -5%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	9354 Points -30%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	8668 Points -35%
2560x1440 Time Spy CPU
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	6307 Points +41%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	6185 Points +38%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	5443 Points +21%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	4487 Points
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	4426 Points -1%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	3070 Points -32%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	2867 Points -36%

* ... Meglio usare valori piccoli

I diversi elementi di calcolo di Cinebench R15 multi-loop

Si osserva un comportamento simile in tutte e quattro le costellazioni. Le prestazioni della CPU calano significativamente dopo la prima esecuzione a causa delle temperature. Il calo delle prestazioni è significativamente maggiore nei nuovi SoC Alder Lake. Tuttavia, le prestazioni rimangono sostanzialmente stabili nel prosieguo

Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7: Ø757 (739.28-828.86)

Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7: Ø757 (738.48-856.13)

Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U: Ø1222 (1193.03-1456.4)

Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U: Ø1254 (1145.71-1444.46)

Benchmark sintetici e prestazioni delle applicazioni

Nei benchmark sintetici, vediamo un risultato quasi identico a quello ottenuto nei test della CPU pura. Questa volta, il primo e il secondo posto vanno ai due SoC Alder Lake in ordine inverso. Pertanto, si dimostra ancora una volta che il Core i7-1265Unon è sempre l'opzione migliore. Gli elementi di calcolo basati su Tiger-Lake sono altrettanto vicini, per cui il Core i7-1185G7 non ha una vittoria netta nemmeno in questo caso.

Performance Rating | PCMark 10 | 3DMark | 3DMark 11 | CrossMark

Performance Rating - Percent
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	98.3 pt
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	97.9 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	90 pt
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	78.6 pt
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	76 pt
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	64.6 pt
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	60.4 pt

PCMark 10 - Score
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	5761 Points +20%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	5510 Points +15%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	5387 Points +12%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	5160 Points +8%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	4892 Points +2%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	4792 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	4521 Points -6%

3DMark
1920x1080 Fire Strike Physics
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	18467 Points +38%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	18108 Points +35%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	18076 Points +35%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	13413 Points
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	12768 Points -5%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	9354 Points -30%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	8668 Points -35%
2560x1440 Time Spy CPU
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	6307 Points +41%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	6185 Points +38%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	5443 Points +21%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	4487 Points
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	4426 Points -1%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	3070 Points -32%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	2867 Points -36%

3DMark 11 - 1280x720 Performance Physics
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	16005 Points +39%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	15485 Points +34%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	12608 Points +9%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	11536 Points
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	11284 Points -2%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	7797 Points -32%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	7792 Points -32%

CrossMark - Overall
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	1577 Points +23%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	1559 Points +22%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	1477 Points +15%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	1474 Points +15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	1373 Points +7%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	1279 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	1245 Points -3%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Iris Xe G7 80EUs	70620 MB/s +18%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	69882 MB/s +17%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7, Iris Xe G7 96EUs	65021 MB/s +9%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Iris Xe G7 96EUs	62171 MB/s +4%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Iris Xe G7 80EUs	59767 MB/s
Media della classe Mini PC (6481 - 89287, n=118, ultimi 2 anni)	47240 MB/s -21%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	35423 MB/s -41%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	35051 MB/s -41%

AIDA64 / Memory Read
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Iris Xe G7 80EUs	65856 MB/s +7%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	65177 MB/s +6%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7, Iris Xe G7 96EUs	63583 MB/s +3%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Iris Xe G7 80EUs	61758 MB/s
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Iris Xe G7 96EUs	59634 MB/s -3%
Media della classe Mini PC (6914 - 98398, n=118, ultimi 2 anni)	47897 MB/s -22%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	40348 MB/s -35%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	38400 MB/s -38%

AIDA64 / Memory Write
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7, Iris Xe G7 96EUs	66791 MB/s +1%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Iris Xe G7 80EUs	66047 MB/s
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Iris Xe G7 96EUs	63908 MB/s -3%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	63385 MB/s -4%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Iris Xe G7 80EUs	63277 MB/s -4%
Media della classe Mini PC (6862 - 98583, n=118, ultimi 2 anni)	51663 MB/s -22%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	39154 MB/s -41%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	37475 MB/s -43%

AIDA64 / Memory Latency
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	100 ns * -16%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Iris Xe G7 80EUs	99.9 ns * -16%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Iris Xe G7 96EUs	98.1 ns * -14%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7, Iris Xe G7 96EUs	92.3 ns * -7%
Media della classe Mini PC (44.9 - 184.8, n=118, ultimi 2 anni)	91.8 ns * -6%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	91.3 ns * -6%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Iris Xe G7 80EUs	86.4 ns *
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	69 ns * +20%

* ... Meglio usare valori piccoli

Latenze DPC

Solo la combinazione con il Intel Core i7-1265U si distingue un po' in termini di latenze DPC. Un test ripetuto ha mostrato lo stesso risultato. Non ci sono stati problemi nelle altre tre costellazioni secondo LatancyMon. L'iGPU è stata utilizzata al 30-40% durante la riproduzione di video YouTube 4K.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Prime Computer PrimeBook Circular-i7-1165G7 Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 500GB (MZ-V8V500BW)	4415 μs * -698%
Intel NUC Pro Chassis_i7_1265U Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G	1151 μs * -108%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	765 μs * -38%
Intel NUC Pro Chassis_i7_1185G7 Iris Xe G7 96EUs, i7-1185G7, WDC PC SN720 SDAQNTW-512G	740 μs * -34%
Intel NUC Pro Chassis_i5_1245U Iris Xe G7 80EUs, i5-1245U, WDC PC SN720 SDAQNTW-512G	738 μs * -33%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	659.1 μs * -19%
Intel NUC Pro Chassis_i5_1145G7 Iris Xe G7 80EUs, i5-1145G7, WDC PC SN720 SDAQNTW-512G	553.1 μs *

* ... Meglio usare valori piccoli

Memoria di massa

L'Intel NUC Pro Chassis Element supporta fino a due dispositivi di memoria di massa in formato M.2. Tuttavia, chi utilizza un'unità SSD M.2 con velocità SATA deve prestare attenzione alla scelta dell'interfaccia M.2. Solo uno slot supporta questo formato leggermente più lento. Solo uno slot supporta il formato leggermente più lento. Per il test abbiamo utilizzato il nostro WDC PC SN720 con 512 GB. Nonostante l'SSD sia identico, il test presenta differenze significative, che si notano nei tempi di accesso e nelle velocità di lettura e scrittura 4K. Non ci sono problemi durante il carico permanente. I pad termici sulla piastra di base di entrambi gli slot SSD garantiscono una buona dissipazione del calore.

CrystalDiskMark 3.0

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

WDC PC SN720 SDAQNTW-512G

Sequential Read: 2451 MB/s

Sequential Write: 2512 MB/s

512K Read: 1521 MB/s

512K Write: 1490 MB/s

4K Read: 41.97 MB/s

4K Write: 212.4 MB/s

4K QD32 Read: 683.2 MB/s

4K QD32 Write: 435.2 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	91.8 pt
Media della classe Mini PC	86.6 pt
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	81.2 pt
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	77.3 pt
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	74.2 pt

DiskSpd
seq read
Media della classe Mini PC (233 - 4357, n=118, ultimi 2 anni)	2284 MB/s +26%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	2228 (1938.09^min - 2228.38^max) MB/s +23%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	2058 (1847.09^min - 2057.65^max) MB/s +14%
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	1811 (1731.93^min - 1810.83^max) MB/s 0%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	1810 (1705.56^min - 1810.26^max) MB/s
seq write
Media della classe Mini PC (222 - 5595, n=118, ultimi 2 anni)	2438 MB/s +40%
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	2249 (2126.93^min - 2248.57^max) MB/s +29%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	2198 (2143.62^min - 2198.23^max) MB/s +26%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	2149 (2077.61^min - 2148.85^max) MB/s +24%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	1739 (1663.04^min - 1739.25^max) MB/s
seq q8 t1 read
Media della classe Mini PC (236 - 8430, n=118, ultimi 2 anni)	3694 MB/s +6%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	3497 (2944.82^min - 3496.65^max) MB/s +1%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	3487 (2948.62^min - 3486.57^max) MB/s 0%
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	3485 (3116.01^min - 3485^max) MB/s 0%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	3479 (2889.34^min - 3478.93^max) MB/s
seq q8 t1 write
Media della classe Mini PC (228 - 6669, n=118, ultimi 2 anni)	2736 MB/s +7%
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	2573 (2526.46^min - 2573.42^max) MB/s 0%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	2573 (2547.29^min - 2572.88^max) MB/s 0%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	2564 (2533.74^min - 2564.49^max) MB/s 0%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	2561 MB/s
4k q1 t1 read
Media della classe Mini PC (5.67 - 86.6, n=118, ultimi 2 anni)	55.1 MB/s +31%
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	46.8 (46.64^min - 46.84^max) MB/s +11%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	44.7 (43.85^min - 44.67^max) MB/s +6%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	43.2 (42.7^min - 43.23^max) MB/s +2%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	42.2 (41.96^min - 42.19^max) MB/s
4k q1 t1 write
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	232 (230.89^min - 232.39^max) MB/s +54%
Media della classe Mini PC (30.4 - 435, n=118, ultimi 2 anni)	195.6 MB/s +30%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	155.6 (152.79^min - 155.57^max) MB/s +3%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	150.5 (149.1^min - 150.47^max) MB/s
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	127.3 (125.68^min - 127.3^max) MB/s -15%
4k q32 t16 read
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	1750 (1724.46^min - 1749.88^max) MB/s +82%
Media della classe Mini PC (26.1 - 4158, n=118, ultimi 2 anni)	1349 MB/s +40%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	963 (935.31^min - 963.3^max) MB/s
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	926 (896.56^min - 926.49^max) MB/s -4%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	643 (632.31^min - 643.46^max) MB/s -33%
4k q32 t16 write
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	1380 (935.1^min - 1380.02^max) MB/s +235%
Media della classe Mini PC (30.2 - 4288, n=118, ultimi 2 anni)	1282 MB/s +211%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	423 (402.45^min - 423.18^max) MB/s +3%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	412 (397.32^min - 412.23^max) MB/s
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	328 (314.14^min - 327.95^max) MB/s -20%

AS SSD
Score Total
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	4415 Points +1%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	4358 Points
Media della classe Mini PC (181.5 - 10021, n=116, ultimi 2 anni)	4101 Points -6%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	3536 Points -19%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	3526 Points -19%
Score Read
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	1657 Points 0%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	1656 Points
Media della classe Mini PC (61 - 3741, n=116, ultimi 2 anni)	1527 Points -8%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	1269 Points -23%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	1042 Points -37%
Score Write
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	1997 Points +6%
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	1936 Points +3%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	1888 Points
Media della classe Mini PC (88 - 4371, n=116, ultimi 2 anni)	1841 Points -2%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	1652 Points -12%
Seq Read
Media della classe Mini PC (291 - 6620, n=116, ultimi 2 anni)	3157 MB/s +4%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	3039 MB/s
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	3030 MB/s 0%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	2881 MB/s -5%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	2854 MB/s -6%
Seq Write
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	2390 MB/s +5%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	2273 MB/s
Media della classe Mini PC (240 - 5783, n=116, ultimi 2 anni)	2202 MB/s -3%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	1960 MB/s -14%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	1846 MB/s -19%
4K Read
Media della classe Mini PC (6.08 - 104.3, n=116, ultimi 2 anni)	58.8 MB/s +26%
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	49.78 MB/s +7%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	46.54 MB/s
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	45.38 MB/s -2%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	43.07 MB/s -7%
4K Write
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	205.06 MB/s +5%
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	201.42 MB/s +3%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	195.91 MB/s
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	182.89 MB/s -7%
Media della classe Mini PC (30.9 - 366, n=116, ultimi 2 anni)	175.9 MB/s -10%
4K-64 Read
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	1305.92 MB/s
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	1304.51 MB/s 0%
Media della classe Mini PC (23.4 - 3220, n=116, ultimi 2 anni)	1153 MB/s -12%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	940.13 MB/s -28%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	708.14 MB/s -46%
4K-64 Write
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	1617.56 MB/s +10%
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	1495.31 MB/s +2%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	1464.88 MB/s
Media della classe Mini PC (32.8 - 3731, n=116, ultimi 2 anni)	1444 MB/s -1%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	1262.16 MB/s -14%
Access Time Read
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	0.237 ms * -85%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	0.128 ms *
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	0.124 ms * +3%
Media della classe Mini PC (0.022 - 0.489, n=116, ultimi 2 anni)	0.09752 ms * +24%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	0.053 ms * +59%
Access Time Write
Media della classe Mini PC (0.014 - 0.765, n=116, ultimi 2 anni)	0.116 ms * -452%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	0.022 ms * -5%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	0.021 ms *
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	0.02 ms * +5%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	0.019 ms * +10%

* ... Meglio usare valori piccoli

Continuous Read: DiskSpd Read Loop, Queue Depth 8

Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G: Ø3473 (3163.1-3486.1)

Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G: Ø3480 (2916.51-3492.11)

Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G: Ø3482 (3157.08-3490.29)

Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G: Ø3481 (3067.45-3492.18)

Scheda grafica

Un Intel Iris Xe Graphics G7 con 80 o 96 EU viene utilizzata come GPU integrata per gli elementi di calcolo. Le differenze di prestazioni sono minime. Il modello con 96 EU è più veloce di circa il 15%, ma questo non si nota soggettivamente. Le prestazioni della AMD Radeon RX Vega 7 possono essere quasi sempre superate in questo confronto.

Per ulteriori confronti e benchmark, consultate il nostro sito webG PU.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Asus ROG Zephyrus G14 GA402RJ AMD Radeon RX 6700S, AMD Ryzen 7 6800HS	99.7 pt
SCHENKER XMG Core 15 Ampere NVIDIA GeForce RTX 3060 Laptop GPU, AMD Ryzen 7 4800H	88.3 pt
Media della classe Mini PC	28.6 pt
Intel NUC Pro Chassis_i7_1185G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	19 pt
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	18 pt
Prime Computer PrimeBook Circular-i7-1165G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	16.7 pt
Intel NUC Pro Chassis_i5_1145G7 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1145G7	16.4 pt
Intel NUC Pro Chassis_i5_1245U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U	15.6 pt
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	15.5 pt
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	14.7 pt

3DMark 11 - 1280x720 Performance GPU
Asus ROG Zephyrus G14 GA402RJ AMD Radeon RX 6700S, AMD Ryzen 7 6800HS	32662 Points +471%
SCHENKER XMG Core 15 Ampere NVIDIA GeForce RTX 3060 Laptop GPU, AMD Ryzen 7 4800H	27741 Points +385%
Media della classe Mini PC (574 - 47892, n=118, ultimi 2 anni)	10013 Points +75%
Intel NUC Pro Chassis_i7_1185G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	6676 Points +17%
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	6210 Points +9%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	6091 Points +7%
Intel NUC Pro Chassis_i5_1145G7 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1145G7	5718 Points
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	5610 Points -2%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	5565 Points -3%
Intel NUC Pro Chassis_i5_1245U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U	5378 Points -6%

3DMark
1280x720 Cloud Gate Standard Graphics
Asus ROG Zephyrus G14 GA402RJ AMD Radeon RX 6700S, AMD Ryzen 7 6800HS	153853 Points +569%
SCHENKER XMG Core 15 Ampere NVIDIA GeForce RTX 3060 Laptop GPU, AMD Ryzen 7 4800H	130964 Points +470%
Media della classe Mini PC (2346 - 168736, n=110, ultimi 2 anni)	37822 Points +65%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	26247 Points +14%
Intel NUC Pro Chassis_i7_1185G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	25485 Points +11%
Intel NUC Pro Chassis_i5_1145G7 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1145G7	22983 Points
Prime Computer PrimeBook Circular-i7-1165G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	22735 Points -1%
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	21602 Points -6%
Intel NUC Pro Chassis_i5_1245U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U	21276 Points -7%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	20432 Points -11%
1920x1080 Fire Strike Graphics
Asus ROG Zephyrus G14 GA402RJ AMD Radeon RX 6700S, AMD Ryzen 7 6800HS	24135 Points +472%
SCHENKER XMG Core 15 Ampere NVIDIA GeForce RTX 3060 Laptop GPU, AMD Ryzen 7 4800H	20081 Points +376%
Media della classe Mini PC (307 - 34047, n=117, ultimi 2 anni)	6950 Points +65%
Intel NUC Pro Chassis_i7_1185G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	4959 Points +18%
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	4902 Points +16%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	4360 Points +3%
Intel NUC Pro Chassis_i5_1245U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U	4249 Points +1%
Intel NUC Pro Chassis_i5_1145G7 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1145G7	4217 Points
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	3725 Points -12%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	3586 Points -15%
2560x1440 Time Spy Graphics
SCHENKER XMG Core 15 Ampere NVIDIA GeForce RTX 3060 Laptop GPU, AMD Ryzen 7 4800H	8425 Points +536%
Asus ROG Zephyrus G14 GA402RJ AMD Radeon RX 6700S, AMD Ryzen 7 6800HS	8316 Points +528%
Media della classe Mini PC (179 - 13961, n=113, ultimi 2 anni)	2551 Points +93%
Intel NUC Pro Chassis_i7_1185G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	1570 Points +19%
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	1556 Points +18%
Intel NUC Pro Chassis_i5_1145G7 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1145G7	1324 Points
Prime Computer PrimeBook Circular-i7-1165G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	1287 Points -3%
Intel NUC Pro Chassis_i5_1245U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U	1234 Points -7%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	1109 Points -16%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	1102 Points -17%

Prestazioni di gioco

La iGPU del SoC è adatta come soluzione di gioco solo in misura limitata. I frame rate giocabili sono spesso possibili con risoluzioni basse e dettagli minimi. I frame rate documentati calano drasticamente a risoluzioni più elevate. Tuttavia, le iGPU degli elementi di calcolo dell'Intel NUC Pro si comportano abbastanza bene, come si può vedere dalle prestazioni medie.

GTA V
1024x768 Lowest Settings possible
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	179.6 (3.66^min, 142.9^P1) fps +90%
Media NVIDIA GeForce RTX 3060 Laptop GPU (164 - 186.8, n=38)	179.5 fps +90%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	116 (17^min, 76.9^P1) fps +23%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	114.3 (8.54^min, 76.9^P1) fps +21%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	105.8 (17.8^min, 71.4^P1) fps +12%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	102.1 (19.6^min, 58.8^P1) fps +8%
Media Intel Iris Xe Graphics G7 96EUs (52 - 166.4, n=162)	98.5 fps +4%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	97.6 (17.8^min, 62.5^P1) fps +3%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	94.4 (6.11^min, 50^P1) fps
Media Intel Iris Xe Graphics G7 80EUs (36.5 - 144.6, n=81)	83.1 fps -12%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	68.3 (18.7^min, 45.5^P1) fps -28%
1366x768 Normal/Off AF:4x
Media NVIDIA GeForce RTX 3060 Laptop GPU (152 - 183.4, n=36)	174.1 fps +117%
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	172.2 (4.2^min, 125^P1) fps +114%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	104 (13.4^min, 71.4^P1) fps +30%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	95.2 (17.8^min, 58.8^P1) fps +19%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	94.3 (5.72^min, 62.5^P1) fps +17%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	89.4 (9.45^min, 55.6^P1) fps +11%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	87.4 (20.5^min, 50^P1) fps +9%
Media Intel Iris Xe Graphics G7 96EUs (24.1 - 149.3, n=165)	83.1 fps +3%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	80.3 (13.6^min, 47.6^P1) fps
Media Intel Iris Xe Graphics G7 80EUs (28.9 - 133.8, n=84)	70.6 fps -12%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	54.8 (16.1^min, 37^P1) fps -32%

The Witcher 3
1024x768 Low Graphics & Postprocessing
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	367 (5.67^min, 43.9^P0.1, 264^P1) fps +352%
Media NVIDIA GeForce RTX 3060 Laptop GPU (221 - 449, n=35)	324 fps +299%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	90.7 (3.4^min, 21.9^P0.1, 53.7^P1) fps +12%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	89 (38.4^min, 43.3^P0.1, 52.8^P1) fps +10%
Media Intel Iris Xe Graphics G7 96EUs (28.9 - 117.2, n=186)	84 fps +3%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	81.4 (31.8^min, 35.9^P0.1, 47.9^P1) fps 0%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	81.2 (4.78^min, 20.4^P0.1, 42.9^P1) fps
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	72.2 (21.1^min, 40.1^P0.1, 51.4^P1) fps -11%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	65.9 (1.678^min, 12.6^P0.1, 39.7^P1) fps -19%
Media Intel Iris Xe Graphics G7 80EUs (30.2 - 97.4, n=101)	65.4 fps -19%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	61.8 (16.1^min, 20.6^P0.1, 34.6^P1) fps -24%
1366x768 Medium Graphics & Postprocessing
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	260 (41.7^min, 170.3^P0.1, 202^P1) fps +400%
Media NVIDIA GeForce RTX 3060 Laptop GPU (204 - 296, n=33)	237 fps +356%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	59.9 (15.7^min, 28.4^P0.1, 34^P1) fps +15%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	57.9 (25.7^min, 27.5^P0.1, 33^P1) fps +11%
Media Intel Iris Xe Graphics G7 96EUs (21.4 - 77.8, n=184)	53.6 fps +3%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	52.3 (22.4^min, 24.9^P0.1, 29.9^P1) fps +1%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	52 (3.24^min, 25.2^P0.1, 29.7^P1) fps
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	44.5 (31^min, 32.6^P0.1, 36.6^P1) fps -14%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	42.6 (10.6^min, 28.7^P0.1, 33.9^P1) fps -18%
Media Intel Iris Xe Graphics G7 80EUs (21.8 - 56.9, n=103)	41.9 fps -19%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	39.4 (20.2^min, 22.2^P0.1, 30.4^P1) fps -24%

Far Cry 5
1280x720 Low Preset AA:T
Media NVIDIA GeForce RTX 3060 Laptop GPU (102 - 168, n=23)	141.4 fps +195%
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	137 (108^min) fps +185%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	52 (46^min) fps +8%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	52 (41^min) fps +8%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	51 (46^min) fps +6%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	48 (44^min) fps 0%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	48 (28^min) fps
Media Intel Iris Xe Graphics G7 96EUs (23 - 75, n=92)	46.5 fps -3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	44 (38^min) fps -8%
Media Intel Iris Xe Graphics G7 80EUs (14 - 63, n=50)	38.8 fps -19%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	25 (19^min) fps -48%
1920x1080 Medium Preset AA:T
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	122 (97^min) fps +352%
Media NVIDIA GeForce RTX 3060 Laptop GPU (88 - 135, n=25)	114.2 fps +323%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	30 (26^min) fps +11%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	28 (24^min) fps +4%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	27 (24^min) fps
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	27 (23^min) fps 0%
Media Intel Iris Xe Graphics G7 96EUs (14 - 39, n=90)	25.5 fps -6%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	21 (19^min) fps -22%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	21 (19^min) fps -22%
Media Intel Iris Xe Graphics G7 80EUs (9 - 31, n=47)	20.1 fps -26%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	17 (14^min) fps -37%

Far Cry New Dawn
1280x720 Low Preset
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	114 (90^min) fps +165%
Media NVIDIA GeForce RTX 3060 Laptop GPU (107 - 115, n=2)	111 fps +158%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	50 (39^min) fps +16%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	48 (34^min) fps +12%
Media Intel Iris Xe Graphics G7 96EUs (29 - 69, n=19)	47.2 fps +10%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	47 (28^min) fps +9%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	44 (34^min) fps +2%
Media Intel Iris Xe Graphics G7 80EUs (29 - 59, n=5)	44 fps +2%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	43 (28^min) fps
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	40 (31^min) fps -7%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	29 (19^min) fps -33%
1920x1080 Medium Preset
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	102 (81^min) fps +278%
Media NVIDIA GeForce RTX 3060 Laptop GPU (91 - 96, n=2)	93.5 fps +246%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	30 (23^min) fps +11%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	29 (23^min) fps +7%
Media Intel Iris Xe Graphics G7 96EUs (16 - 38, n=19)	27.2 fps +1%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	27 (21^min) fps
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	27 (20^min) fps 0%
Media Intel Iris Xe Graphics G7 80EUs (15 - 32, n=6)	25.5 fps -6%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22 (18^min) fps -19%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	20 (17^min) fps -26%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	16 (12^min) fps -41%

F1 2020
1280x720 Ultra Low Preset
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	325 (264^min) fps +418%
Media NVIDIA GeForce RTX 3060 Laptop GPU (215 - 260, n=6)	242 fps +285%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	94.7 (78^min) fps +51%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	92.6 (77^min) fps +47%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	90.4 (73^min) fps +44%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	89.9 (79^min) fps +43%
Media Intel Iris Xe Graphics G7 96EUs (49 - 109.6, n=34)	82 fps +31%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	66.1 (58^min) fps +5%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	62.8 (58^min) fps
Media Intel Iris Xe Graphics G7 80EUs (45 - 76.6, n=10)	62.5 fps 0%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	60.4 (2^min) fps -4%
1920x1080 Medium Preset AF:16x
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	242 (200^min) fps +478%
Media NVIDIA GeForce RTX 3060 Laptop GPU (150 - 204, n=6)	173.8 fps +315%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	48 (39^min) fps +15%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	47.1 (40^min) fps +12%
Media Intel Iris Xe Graphics G7 96EUs (23.1 - 57.5, n=34)	42.8 fps +2%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	41.9 (34^min) fps
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	41.2 (34^min) fps -2%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	32.6 (2^min) fps -22%
Media Intel Iris Xe Graphics G7 80EUs (24.8 - 42, n=12)	32.3 fps -23%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	31.6 (26^min) fps -25%

Strange Brigade
1280x720 lowest AF:1
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	447 (227^min, 334^P1) fps +424%
Media NVIDIA GeForce RTX 3060 Laptop GPU (253 - 471, n=37)	347 fps +307%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	89.9 (20^min, 32.7^P1) fps +5%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	87.7 (45^min, 75.6^P1) fps +3%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	87.6 (11.7^min, 31^P1) fps +3%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	85.3 (18.6^min, 27.1^P1) fps
Media Intel Iris Xe Graphics G7 96EUs (48.5 - 115.1, n=168)	84.8 fps -1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	80.1 (48.8^min, 67.5^P1) fps -6%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	72.9 (14.8^min, 24.2^P1) fps -15%
Media Intel Iris Xe Graphics G7 80EUs (22.7 - 98.7, n=81)	67.4 fps -21%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	66.1 (9.6^min, 21.1^P1) fps -23%
1920x1080 medium AA:medium AF:4
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	216 (163.8^min, 183.9^P1) fps +497%
Media NVIDIA GeForce RTX 3060 Laptop GPU (154.9 - 242, n=38)	193.8 fps +435%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	38.3 (10.4^min, 17.6^P1) fps +6%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	38.1 (8.7^min, 14.5^P1) fps +5%
Media Intel Iris Xe Graphics G7 96EUs (18.2 - 51.4, n=166)	36.5 fps +1%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	36.2 (12.6^min, 20.5^P1) fps
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	33.5 (28.7^min, 29.8^P1) fps -7%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	30.2 (23.5^min, 26.3^P1) fps -17%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	29.6 (9.5^min, 16^P1) fps -18%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	28.3 (6.5^min, 7.43^P1) fps -22%
Media Intel Iris Xe Graphics G7 80EUs (6 - 48.8, n=83)	28.1 fps -22%

Borderlands 3
1920x1080 Medium Overall Quality (DX11)
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	111.2 fps +420%
Media NVIDIA GeForce RTX 3060 Laptop GPU (102 - 107.4, n=2)	104.7 fps +389%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	25.7 fps +20%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	25.1 fps +17%
Media Intel Iris Xe Graphics G7 96EUs (15.8 - 30.9, n=20)	24.3 fps +14%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	23.1 fps +8%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	21.9 fps +2%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	21.4 fps
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	21.2 fps -1%
Media Intel Iris Xe Graphics G7 80EUs (16.5 - 25.8, n=5)	21.2 fps -1%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	15.8 fps -26%
1280x720 Very Low Overall Quality (DX11)
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	127.5 fps +173%
Media NVIDIA GeForce RTX 3060 Laptop GPU (116 - 133.7, n=2)	124.9 fps +167%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	60.1 fps +29%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	53.4 fps +14%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	52.7 fps +13%
Media Intel Iris Xe Graphics G7 96EUs (33.9 - 67.2, n=20)	51.6 fps +10%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	51.3 fps +10%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	47.8 fps +2%
Media Intel Iris Xe Graphics G7 80EUs (37.9 - 57.6, n=5)	47.3 fps +1%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	46.7 fps
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	33.9 fps -27%

Metro Exodus
1280x720 Low Quality AF:4x
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	198.4 (107.04^min) fps +456%
Media NVIDIA GeForce RTX 3060 Laptop GPU (151 - 154.3, n=2)	152.7 fps +328%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	39.2 (25.3^min) fps +10%
Media Intel Iris Xe Graphics G7 96EUs (28.2 - 45.8, n=17)	39.2 fps +10%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	37.9 (22.1^min) fps +6%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	37.8 (20.62^min) fps +6%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	36.6 (21.07^min) fps +3%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	35.7 (20.6^min) fps
Media Intel Iris Xe Graphics G7 80EUs (28 - 39.4, n=4)	34.2 fps -4%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	33.6 (18.95^min) fps -6%
1920x1080 Medium Quality AF:4x
Media NVIDIA GeForce RTX 3060 Laptop GPU (96.3 - 104, n=2)	100.2 fps +493%
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	98.8 (51.07^min) fps +485%
Media Intel Iris Xe Graphics G7 96EUs (15 - 32.2, n=17)	20.2 fps +20%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	19.3 (10.26^min) fps +14%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	17.5 (10.13^min) fps +4%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	16.9 (9.18^min) fps
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	16.4 (7.91^min) fps -3%
Media Intel Iris Xe Graphics G7 80EUs (13.7 - 18.8, n=4)	16.2 fps -4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	15.9 (8.1^min) fps -6%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	15.4 (8.13^min) fps -9%

F1 2021
1280x720 Ultra Low Preset
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	326 (232^min, 231^P1) fps +222%
Media NVIDIA GeForce RTX 3060 Laptop GPU (130 - 360, n=9)	266 fps +163%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	108.1 (81^min, 77^P1) fps +7%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	107.4 (80^min, 79^P1) fps +6%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	101.1 (74^min, 72^P1) fps
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	98.3 (74^min, 75^P1) fps -3%
Media Intel Iris Xe Graphics G7 96EUs (59.4 - 129.9, n=46)	95.7 fps -5%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	94.7 (75^min, 75^P1) fps -6%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	80.9 (62^min, 62^P1) fps -20%
Media Intel Iris Xe Graphics G7 80EUs (15.6 - 102, n=18)	67.4 fps -33%
1920x1080 Medium Preset AA:T AF:16x
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	283 (213^min, 204^P1) fps
Media NVIDIA GeForce RTX 3060 Laptop GPU (120 - 287, n=9)	195 fps
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	51.8 (41^min, 41^P1) fps
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	51.8 (32^min, 41^P1) fps
Media Intel Iris Xe Graphics G7 96EUs (29.4 - 64.9, n=45)	46.5 fps
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	42.5 (34^min, 34^P1) fps
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	39.9 (32^min, 32^P1) fps
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	36.4 (30^min, 28^P1) fps
Media Intel Iris Xe Graphics G7 80EUs (20.1 - 42.9, n=12)	33 fps

Emissioni

Emissioni acustiche

L'elemento dello chassis dell'Intel NUC Pro si comporta allo stesso modo, indipendentemente dall'elemento di calcolo installato, in termini di emissioni acustiche. A volte sono misurabili piccole fluttuazioni del volume massimo. Tuttavia, il livello di rumorosità è già ben superiore a 40 dB(A) anche con un carico medio. Inoltre, è presente un rumore di ventola ad alta frequenza, che aumenta ulteriormente la percezione soggettiva del rumore.

	Intel NUC Pro Chassis_i5_1145G7 Iris Xe G7 80EUs, i5-1145G7, WDC PC SN720 SDAQNTW-512G	Intel NUC Pro Chassis_i7_1185G7 Iris Xe G7 96EUs, i7-1185G7, WDC PC SN720 SDAQNTW-512G	Intel NUC Pro Chassis_i5_1245U Iris Xe G7 80EUs, i5-1245U, WDC PC SN720 SDAQNTW-512G	Intel NUC Pro Chassis_i7_1265U Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G
Noise		-1%	1%	0%
off /ambiente *	30.5	30.2 1%	30.5 -0%	30.5 -0%
Idle Minimum *	31.4	31.6 -1%	31.3 -0%	31.4 -0%
Idle Average *	31.4	31.6 -1%	31.3 -0%	31.4 -0%
Idle Maximum *	31.4	31.6 -1%	31.3 -0%	31.4 -0%
Load Average *	44.2	44.5 -1%	42.9 3%	43.8 1%
Load Maximum *	44.3	45.3 -2%	44.5 -0%	44 1%

* ... Meglio usare valori piccoli

Temperatura

Le temperature del case non si notano nell'elemento dello chassis dell'Intel NUC Pro. Tuttavia, la situazione è leggermente diversa per i SoC degli elementi di calcolo. I SoC sono tutti definiti con un limite di potenza (PL2) di un massimo di 64 watt. Tuttavia, nel test non siamo riusciti a raggiungerlo. La temperatura all'interno del chip sale troppo rapidamente. A differenza dei computer portatili, che utilizzano prevalentemente il raffreddamento diretto del chip, il calore generato negli elementi di calcolo viene prima dissipato attraverso la parte posteriore in metallo, che a sua volta può dissipare il calore alle heat pipe dell'elemento dello chassis dell'Intel NUC Pro. In questo modo, abbiamo un altro trasferimento di calore da superare.

Elemento dello chassis di Intel NUC Pro durante lo stress test (lato superiore)

Elemento dello chassis di Intel NUC Pro durante lo stress test (in basso)

L'alimentatore dell'Intel NUC Pro Chassis Element durante lo stress test

Consumo di energia

Rispetto ai PC desktop tradizionali, i mini-PC compatti basati sulla collaudata tecnologia dei notebook hanno un grande vantaggio in termini di consumo energetico. Abbiamo registrato una media di 55 watt nello stress test, anche se all'inizio abbiamo superato per un breve periodo la soglia dei 100 watt. Questo sovraccarica l'alimentatore per un breve periodo, dato che può fornire un massimo di 90 watt. Riteniamo che il produttore abbia previsto un piccolo buffer perché il sistema non si è bloccato a causa dell'alimentazione insufficiente durante il test.

Power Consumption: Prime95 V2810 Stress (external Monitor) | Cinebench R15 Multi (external Monitor) | 1280x720 Prime95 28.10 and Furmark 1.25 | Idle 1min (external Monitor)
: Idle Minimum

Power Consumption / Prime95 V2810 Stress (external Monitor)
Intel NUC Pro Chassis_i5_1245U Iris Xe G7 80EUs, i5-1245U, WDC PC SN720 SDAQNTW-512G	55.4 (48.7^min, 51^P1 - 100.1^max) Watt * -17%
Intel NUC Pro Chassis_i7_1265U Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G	52.5 (48.2^min, 48.4^P1 - 88.8^max) Watt * -11%
Intel NUC Pro Chassis_i5_1145G7 Iris Xe G7 80EUs, i5-1145G7, WDC PC SN720 SDAQNTW-512G	47.5 (42.4^min, 43.5^P1 - 84.2^max) Watt *
Intel NUC Pro Chassis_i7_1185G7 Iris Xe G7 96EUs, i7-1185G7, WDC PC SN720 SDAQNTW-512G	46.8 (39.4^min, 40.6^P1 - 81.7^max) Watt * +1%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	42.1 (36.8^min, 36.9^P1 - 52.4^max) Watt * +11%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	31.4 (27.8^min, 27.9^P1 - 68.7^max) Watt * +34%

Power Consumption / Cinebench R15 Multi (external Monitor)
Intel NUC Pro Chassis_i5_1245U Iris Xe G7 80EUs, i5-1245U, WDC PC SN720 SDAQNTW-512G	83.7 (80.7^min, 80.8^P1 - 97^max) Watt * -51%
Intel NUC Pro Chassis_i7_1265U Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G	72.3 (48.3^min, 48.3^P1 - 87^max) Watt * -30%
Intel NUC Pro Chassis_i5_1145G7 Iris Xe G7 80EUs, i5-1145G7, WDC PC SN720 SDAQNTW-512G	55.5 (42.5^min, 42.5^P1 - 73.7^max) Watt *
Intel NUC Pro Chassis_i7_1185G7 Iris Xe G7 96EUs, i7-1185G7, WDC PC SN720 SDAQNTW-512G	55.4 (38.4^min, 40.2^P1 - 77.3^max) Watt * -0%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	44.8 (36.1^min, 38.4^P1 - 47.8^max) Watt * +19%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	32.9 (23.9^min, 24.6^P1 - 55.3^max) Watt * +41%

Power Consumption / Prime95 28.10 and Furmark 1.25
Intel NUC Pro Chassis_i5_1245U Iris Xe G7 80EUs, i5-1245U, WDC PC SN720 SDAQNTW-512G	53.3 (49.6^min, 50.2^P1 - 86.1^max) Watt * -12%
Intel NUC Pro Chassis_i7_1265U Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G	52.2 (40.4^min, 48.1^P1 - 97.5^max) Watt * -10%
Intel NUC Pro Chassis_i5_1145G7 Iris Xe G7 80EUs, i5-1145G7, WDC PC SN720 SDAQNTW-512G	47.4 (44.2^min, 45.5^P1 - 91.3^max) Watt *
Intel NUC Pro Chassis_i7_1185G7 Iris Xe G7 96EUs, i7-1185G7, WDC PC SN720 SDAQNTW-512G	46.9 (44.1^min, 44.8^P1 - 87.4^max) Watt * +1%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	43.6 (41.6^min, 41.7^P1 - 51^max) Watt * +8%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	30.6 (11^min, 27.7^P1 - 68.5^max) Watt * +35%

Power Consumption / Idle 1min (external Monitor)
Intel NUC Pro Chassis_i5_1245U Iris Xe G7 80EUs, i5-1245U, WDC PC SN720 SDAQNTW-512G	12.9 (11.6^min, 11.6^P1 - 21.8^max) Watt * -18%
Intel NUC Pro Chassis_i7_1265U Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G	12.7 (11.1^min, 11.3^P1 - 16.2^max) Watt * -17%
Intel NUC Pro Chassis_i5_1145G7 Iris Xe G7 80EUs, i5-1145G7, WDC PC SN720 SDAQNTW-512G	10.9 (7.54^min, 9.51^P1 - 16.4^max) Watt *
Intel NUC Pro Chassis_i7_1185G7 Iris Xe G7 96EUs, i7-1185G7, WDC PC SN720 SDAQNTW-512G	10.6 (5.92^min, 7.36^P1 - 21.2^max) Watt * +3%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	9.27 (8.82^min, 8.91^P1 - 10.3^max) Watt * +15%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	7.02 (6.54^min, 6.57^P1 - 9.28^max) Watt * +36%

Power Consumption
Idle Minimum
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	3.4 Watt *
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	8.4 Watt *
Idle Average
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	5.7 Watt *
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	8.7 Watt *
Idle Maximum
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	7 Watt *
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	9.3 Watt *
Load Average
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	36.5 Watt *
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	46.4 Watt *
Load Maximum
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	68 Watt *
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	52 Watt *

* ... Meglio usare valori piccoli

Verdetto - Mini PC con approccio sostenibile

L'Intel NUC Pro Chassis Element con quattro diversi elementi di calcolo in prova - Fornito da Intel Germania

L'Intel NUC Pro Chassis Element non è un mini-PC in senso classico, perché nulla funziona senza un elemento di calcolo. Questo deve essere chiaro se il dispositivo, che costa circa 340 euro, è in cima alla vostra lista dei desideri. Tuttavia, la struttura modulare assicura che il dispositivo sia liberamente configurabile in base ai vostri desideri in termini di prestazioni. Attualmente sono disponibili gli ultimi SoC Alder Lake di Intel con un totale di 10 core e 12 thread, che si sono comportati bene nel test. In termini di prezzo, l'elemento di calcolo con il processore Intel Core i5-1245U è il più interessante, poiché anch'esso è dotato di 12 thread e di una veloce memoria di lavoro DDR5 da 16 GB. Tuttavia, coloro che dipendono da 32 GB di memoria di lavoro non possono attualmente fare a meno dell'elemento di calcolo (ELM12HBv7) basato sull'Intel Core i7-1265U Intel Core i7-1265U.

L'Intel NUC Pro Chassis Element è un approccio interessante per i clienti consapevoli che vogliono utilizzare una base esistente per un lungo periodo di tempo. Grazie ai diversi elementi di calcolo, il sistema può essere abbinato anche ai SoC più recenti.

Visivamente, l'elemento dello chassis dell'Intel NUC Pro non è una gioia per gli occhi e Intel avrebbe potuto portare il dispositivo allo stato dell'arte. Per quanto riguarda la connettività, non è presente il supporto Thunderbolt e le interfacce di rete offrono solo un massimo di 1 GBit. Tuttavia, il numero di porte, disponibili almeno in confezione doppia, è sufficiente. Le prestazioni WLAN sono limitate al rispettivo elemento di calcolo. Pertanto, l'ultimo standard a 6 GHz è disponibile solo con gli elementi di calcolo NUC 12 di Intel. Tuttavia, le prestazioni Wi-Fi dei vecchi elementi di calcolo Intel NUC 11 sono pari a quelle della nuova generazione e comunque più veloci della connessione via cavo.

L'idea della sostenibilità è buona e abbastanza appropriata nei tempi attuali. Tuttavia, al momento non possiamo dire come sarà il futuro con i nuovi elementi di calcolo.

Considerando solo le prestazioni, l'elemento chassis dell'Intel NUC Pro con gli attuali SoC Alder Lake offre risultati decenti a un prezzo relativamente alto. D'altra parte, i due dispositivi di confronto - Ace Magician AMR5 e Ace Magician TK11-A0- sono più interessanti in termini di prezzo.

Prezzi e disponibilità

L'Intel NUC Pro Chassis Element è attualmente in vendita su Amazon al prezzo di 340 euro (~$340) in elenco. Gli elementi di calcolo utilizzati nel test (CM11EBv58W, CM11EBv716W, ELM12HBv516W, ELM12HBv732W) sono disponibili anche in questo sito a un prezzo attualmente compreso tra 511 e 1.100 euro.

Recensione dell'Intel NUC Pro Chassis Element: barebone modulare per molti scopi

Buon approccio!

Gli elementi di calcolo utilizzati in questo test in dettaglio

Caso

Attrezzatura

Comunicazione

Manutenzione

Prestazioni

Benchmark del processore

I diversi elementi di calcolo di Cinebench R15 multi-loop

Benchmark sintetici e prestazioni delle applicazioni

Latenze DPC

Memoria di massa

Continuous Read: DiskSpd Read Loop, Queue Depth 8

Scheda grafica

Prestazioni di gioco

Emissioni

Emissioni acustiche

Temperatura

Consumo di energia

Power consumption with external monitor

Pro

Contro

Verdetto - Mini PC con approccio sostenibile

Prezzi e disponibilità
