Recensione dell'Asus ExpertCenter D9 SFF D900SC: Un PC da ufficio compatto per uso professionale

Asus è più familiare alla maggior parte degli utenti come produttore di hardware o di computer portatili. Tuttavia, Asus è presente da tempo anche nel settore dei PC desktop. Con la serie ExpertCenter, il produttore di sistemi offre potenti PC da ufficio con hardware attuale.

Basato sull'Intel Core i7-11700, con la CPU Rocket Lake, c'è un moderno processore octa-core che è anche relativamente efficiente allo stesso tempo. I 32 GB di memoria di lavoro consentono inoltre di eseguire senza problemi applicazioni ad alta intensità di storage, come ad esempio le macchine virtuali. Inoltre, la nostra unità di prova include una scheda grafica professionale Nvidia T600, che trasforma il sistema in una workstation compatta. In questo modo, il sistema configurato nel nostro test copre una gamma molto ampia di scenari di utilizzo.

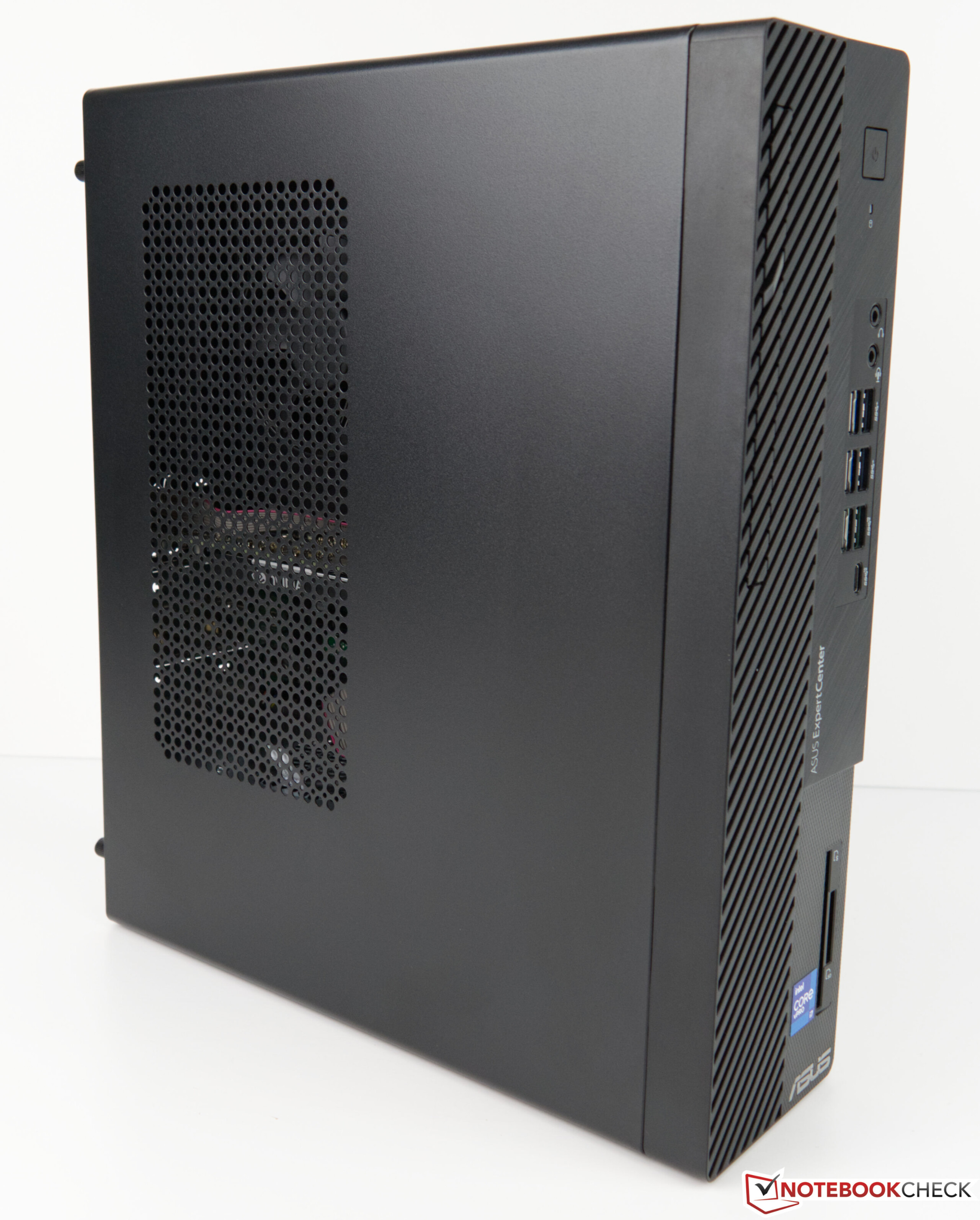

L'Asus ExpertCenter D9 SFF in dettaglio

Caso

Il case e in particolare la costruzione interna ricordano fortemente un tipico PC industriale, il che non è necessariamente da intendersi come negativo. La costruzione è ben studiata e funzionale, e questo è ciò che conta. Tutti i componenti possono essere sostituiti ed espansi rapidamente e senza problemi. Tuttavia, è necessario notare che le schede di espansione possono essere installate solo nel formato a basso profilo. Questo naturalmente limita notevolmente l'uso di schede grafiche dedicate

La scelta dei materiali è dominata dall'alluminio e dalla plastica. Quest'ultima è utilizzata soprattutto nella parte anteriore. Non abbiamo trovato spigoli vivi che potrebbero causare lesioni e la lavorazione è di ottimo livello. Con quasi 5 kg (~11 lb), il PC da ufficio non è eccessivamente pesante.

Attrezzatura

La base è una scheda madre Asus con chipset Q570. Con questa scheda, l'Asus ExpertCenter D9 SFF D900SC offre numerose connessioni USB. Sei porte USB Type-A nella parte anteriore e quattro in quella posteriore sono più che sufficienti. Sul retro troviamo anche connessioni HDMI, DisplayPort e VGA. Tuttavia, queste utilizzano solo l'iGPU dell'Intel Core i7-11700. Inoltre, laNvidia T600 offre quattro connessioni Mini DisplayPort. La nostra unità di prova offre anche una porta seriale, ampliando ulteriormente gli scenari di utilizzo del PC

Un'altra aggiunta sensibile è il lettore di schede accanto al lettore di schede SD, una caratteristica apprezzata nel segmento business.

Asus ExpertCenter D9 SFF D900SC (fonte: Asus)

Comunicazione

Il modulo WiFi dell'Asus ExpertCenter D9 SFF D900SC offre il WiFi 6, che è lo standard più recente per il trasferimento dati più veloce. Tuttavia, nel nostro confronto, le prestazioni sono sufficienti solo per la buona metà del campo di prova. Ma c'è anche una connessione RJ45, e qui sono possibili velocità di trasferimento fino a 1 Gbit/s

Networking
iperf3 receive AXE11000 6GHz
Intel Dragon Canyon NUC - RTX 3060 Intel Wi-Fi 6E AX211	1848 (1731^min - 1888^max) MBit/s +101%
Media della classe Desktop (1751 - 1751, n=2, ultimi 2 anni)	1751 MBit/s +91%
Zotac ZBOX Magnus EN173070C Killer Wi-Fi 6 AX1650x Wireless Network Adapter (200NGW)	1480 (1212^min - 1519^max) MBit/s +61%
Prime Computer Primestation Pulsar Intel Wi-Fi 6 AX200	1455 (748^min - 1523^max) MBit/s +58%
Media Intel Wi-Fi 6 AX201 (390 - 1670, n=3)	993 MBit/s +8%
Asus ExpertCenter D9 SFF Intel Wi-Fi 6 AX201	919 (875^min - 928^max) MBit/s
Minisforum EliteMini TH50 MediaTek MT7921	776 (482^min - 881^max) MBit/s -16%
Minisforum EliteMini B550 MediaTek RZ608	430 (379^min - 451^max) MBit/s -53%
iperf3 transmit AXE11000 6GHz
Intel Dragon Canyon NUC - RTX 3060 Intel Wi-Fi 6E AX211	1851 (1799^min - 1897^max) MBit/s +89%
Prime Computer Primestation Pulsar Intel Wi-Fi 6 AX200	1696 (1619^min - 1764^max) MBit/s +73%
Zotac ZBOX Magnus EN173070C Killer Wi-Fi 6 AX1650x Wireless Network Adapter (200NGW)	1669 (1609^min - 1719^max) MBit/s +70%
Media della classe Desktop (1513 - 1734, n=3, ultimi 2 anni)	1616 MBit/s +65%
Media Intel Wi-Fi 6 AX201 (745 - 1252, n=3)	993 MBit/s +1%
Asus ExpertCenter D9 SFF Intel Wi-Fi 6 AX201	981 (965^min - 998^max) MBit/s
Minisforum EliteMini TH50 MediaTek MT7921	866 (502^min - 950^max) MBit/s -12%
Minisforum EliteMini B550 MediaTek RZ608	572 (532^min - 680^max) MBit/s -42%

Asus ExpertCenter D9 SFF; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø982 (965-998)

Asus ExpertCenter D9 SFF; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø918 (875-928)

Lettore di schede SD

Per citare gli aspetti positivi, è presente un lettore di schede SD. Tuttavia, in termini di prestazioni, offre solo velocità USB 2.0. Questo purtroppo rende impossibile il trasferimento veloce dei dati. Questo purtroppo rende impossibile il trasferimento veloce dei dati. Nel migliore dei casi, la nostra scheda di memoria UHS-II (AV Pro SD microSD 128 GB V60) viene letta solo a circa 20 MB/s, e anche in scrittura le velocità di trasferimento non sono migliori.

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Media della classe Desktop (ultimi 2 anni)	187 MB/s +842%
Zotac ZBOX Magnus EN173070C Intel Core i7-11800H (AV Pro SD microSD 128 GB V60)	65 MB/s +227%
Asus ExpertCenter D9 SFF Intel Core i7-11700 (AV Pro SD microSD 128 GB V60)	19.86 MB/s
maximum AS SSD Seq Read Test (1GB)
Media della classe Desktop (ultimi 2 anni)	215 MB/s +944%
Zotac ZBOX Magnus EN173070C Intel Core i7-11800H (AV Pro SD microSD 128 GB V60)	69.9 MB/s +239%
Asus ExpertCenter D9 SFF Intel Core i7-11700 (AV Pro SD microSD 128 GB V60)	20.6 MB/s

Prestazioni

Processore

Per quanto riguarda il processore, Asus utilizza attualmente un Intel Core i7-11700 della serie Rocket Lake S. Il processore offre 8 core e 16 thread a una velocità di clock di base di 2,5 GHz. Tuttavia, nella maggior parte dei casi, questa velocità viene superata e in Turbo è possibile arrivare fino a 4,9 GHz. Il consumo energetico è di 190 watt nel nostro modello, che è il valore PL1 e PL2. Con questo valore, le prestazioni del processore sono sempre disponibili. Tuttavia, nella pratica anche il raffreddamento deve garantire che non ci siano limitazioni.

Il nostro test di confronto mostra che l'Intel Core i7-11700 produce all'incirca le prestazioni di un Intel Core i5-11600K Intel Core i5-11600K. Il Intel Core i7-10700 è circa il 10% più lento. Rispetto all'attuale generazione Alder Lake S, il Core i7-11700 deve accontentarsi di uno svantaggio di circa il 17% rispetto all'Intel Core i5-12600K Intel Core i5-12600K. Ciononostante, l'Intel Core i7-11700 è ancora un processore veloce, adatto anche ad applicazioni ad alta intensità di calcolo

Potete trovare altri benchmark sui processori qui.

Performance Rating - Percent
Intel Core i5-12600K, i5-12600K, 2800 MHz	56.2 pt
AMD Ryzen 7 5800X, R7 5800X, 3800 MHz	55.2 pt
Intel Core i7-11700K, ^-10! i7-11700K, 3600 MHz	54.3 pt
AMD Ryzen 7 5700G, R7 5700G, 3800 MHz	50 pt
AMD Ryzen 5 5600X, R5 5600X, 3700 MHz	50 pt
Intel Core i7-11700, Asus i7-11700, 2500 MHz	48.5 pt
Intel Core i5-11600K, i5-11600K, 3900 MHz	48.2 pt
AMD Ryzen 9 5900HX, Minisforum R9 5900HX, 3300 MHz	47.8 pt
AMD Ryzen 9 5900HX, Morefine R9 5900HX, 3300 MHz	47.6 pt
AMD Ryzen 7 PRO 5750G, Prime Computer R7 PRO 5750G, 3800 MHz	47.4 pt
AMD Ryzen 7 5700G, Minisforum R7 5700G, 3800 MHz	47.3 pt
Intel Core i7-10700K, i7-10700K, 3800 MHz	47.3 pt
Intel Core i7-11800H, Zotac i7-11800H, 2300 MHz	46.1 pt
Intel Core i7-10700, ^-2! i7-10700, 2900 MHz	44.5 pt
Intel Core i5-10600K, i5-10600K, 4100 MHz	42.8 pt

Cinebench R15
CPU Single 64Bit
Intel Core i5-12600K, i5-12600K, 2800 MHz	275 Points +18%
AMD Ryzen 7 5800X, R7 5800X, 3800 MHz	266 Points +14%
AMD Ryzen 5 5600X, R5 5600X, 3700 MHz	254 Points +9%
AMD Ryzen 7 5700G, Minisforum R7 5700G, 3800 MHz	243 Points +4%
Intel Core i5-11600K, i5-11600K, 3900 MHz	242 Points +4%
AMD Ryzen 7 5700G, R7 5700G, 3800 MHz	242 Points +4%
AMD Ryzen 9 5900HX, Minisforum R9 5900HX, 3300 MHz	242 Points +4%
AMD Ryzen 7 PRO 5750G, Prime Computer R7 PRO 5750G, 3800 MHz	241 Points +3%
Intel Core i7-11700K, i7-11700K, 3600 MHz	240 Points +3%
AMD Ryzen 9 5900HX, Morefine R9 5900HX, 3300 MHz	240 Points +3%
Intel Core i7-11700, Asus i7-11700, 2500 MHz	233 Points
Intel Core i7-11800H, Zotac i7-11800H, 2300 MHz	224 Points -4%
Intel Core i7-10700K, i7-10700K, 3800 MHz	208 Points -11%
Intel Core i5-10600K, i5-10600K, 4100 MHz	205 Points -12%
Intel Core i7-10700, i7-10700, 2900 MHz	196 Points -16%
CPU Multi 64Bit
AMD Ryzen 7 5800X, R7 5800X, 3800 MHz	2616 Points +48%
Intel Core i5-12600K, i5-12600K, 2800 MHz	2555 Points +45%
Intel Core i7-11700K, i7-11700K, 3600 MHz	2333 (2084.96^min - 2333.04^max) Points +32%
AMD Ryzen 7 5700G, R7 5700G, 3800 MHz	2234 Points +26%
AMD Ryzen 9 5900HX, Minisforum R9 5900HX, 3300 MHz	2224 Points +26%
Intel Core i7-10700K, i7-10700K, 3800 MHz	2027 Points +15%
AMD Ryzen 7 5700G, Minisforum R7 5700G, 3800 MHz	1980 Points +12%
AMD Ryzen 5 5600X, R5 5600X, 3700 MHz	1968 Points +11%
AMD Ryzen 7 PRO 5750G, Prime Computer R7 PRO 5750G, 3800 MHz	1956 Points +11%
AMD Ryzen 9 5900HX, Morefine R9 5900HX, 3300 MHz	1919 (1862.02^min - 1893.4^max) Points +9%
Intel Core i7-11700, Asus i7-11700, 2500 MHz	1767 Points
Intel Core i5-11600K, i5-11600K, 3900 MHz	1738 Points -2%
Intel Core i7-11800H, Zotac i7-11800H, 2300 MHz	1666 Points -6%
Intel Core i7-10700, i7-10700, 2900 MHz	1455 Points -18%
Intel Core i5-10600K, i5-10600K, 4100 MHz	1452 Points -18%

Cinebench R20
CPU (Single Core)
Intel Core i5-12600K, i5-12600K, 2800 MHz	734 Points +27%
AMD Ryzen 7 5800X, R7 5800X, 3800 MHz	625 Points +8%
AMD Ryzen 5 5600X, R5 5600X, 3700 MHz	601 Points +4%
Intel Core i7-11700K, i7-11700K, 3600 MHz	596 Points +3%
Intel Core i5-11600K, i5-11600K, 3900 MHz	595 Points +3%
AMD Ryzen 7 5700G, Minisforum R7 5700G, 3800 MHz	585 Points +1%
AMD Ryzen 7 PRO 5750G, Prime Computer R7 PRO 5750G, 3800 MHz	585 Points +1%
AMD Ryzen 7 5700G, R7 5700G, 3800 MHz	583 Points +1%
AMD Ryzen 9 5900HX, Minisforum R9 5900HX, 3300 MHz	582 Points +1%
Intel Core i7-11700, Asus i7-11700, 2500 MHz	579 Points
AMD Ryzen 9 5900HX, Morefine R9 5900HX, 3300 MHz	567 Points -2%
Intel Core i7-11800H, Zotac i7-11800H, 2300 MHz	564 Points -3%
Intel Core i7-10700K, i7-10700K, 3800 MHz	496 Points -14%
Intel Core i5-10600K, i5-10600K, 4100 MHz	464 Points -20%
CPU (Multi Core)
Intel Core i5-12600K, i5-12600K, 2800 MHz	6692 Points +68%
AMD Ryzen 7 5800X, R7 5800X, 3800 MHz	6068 Points +52%
AMD Ryzen 7 5700G, R7 5700G, 3800 MHz	5371 Points +35%
AMD Ryzen 9 5900HX, Minisforum R9 5900HX, 3300 MHz	5185 Points +30%
Intel Core i7-11700K, i7-11700K, 3600 MHz	5082 Points +27%
Intel Core i7-10700K, i7-10700K, 3800 MHz	4882 Points +22%
AMD Ryzen 7 PRO 5750G, Prime Computer R7 PRO 5750G, 3800 MHz	4782 Points +20%
AMD Ryzen 7 5700G, Minisforum R7 5700G, 3800 MHz	4660 Points +17%
AMD Ryzen 5 5600X, R5 5600X, 3700 MHz	4567 Points +15%
AMD Ryzen 9 5900HX, Morefine R9 5900HX, 3300 MHz	4495 Points +13%
Intel Core i5-11600K, i5-11600K, 3900 MHz	4349 Points +9%
Intel Core i7-11700, Asus i7-11700, 2500 MHz	3986 Points
Intel Core i7-11800H, Zotac i7-11800H, 2300 MHz	3954 Points -1%
Intel Core i5-10600K, i5-10600K, 4100 MHz	3443 Points -14%

Cinebench R11.5
CPU Single 64Bit
Intel Core i5-12600K, i5-12600K, 2800 MHz	3.31 Points +19%
AMD Ryzen 7 5800X, R7 5800X, 3800 MHz	3.09 Points +12%
AMD Ryzen 5 5600X, R5 5600X, 3700 MHz	2.95 Points +6%
Intel Core i5-11600K, i5-11600K, 3900 MHz	2.87 Points +4%
Intel Core i7-11700K, i7-11700K, 3600 MHz	2.87 Points +4%
AMD Ryzen 7 5700G, Minisforum R7 5700G, 3800 MHz	2.87 Points +4%
AMD Ryzen 7 PRO 5750G, Prime Computer R7 PRO 5750G, 3800 MHz	2.87 Points +4%
AMD Ryzen 9 5900HX, Minisforum R9 5900HX, 3300 MHz	2.86 Points +3%
AMD Ryzen 7 5700G, R7 5700G, 3800 MHz	2.84 Points +3%
AMD Ryzen 9 5900HX, Morefine R9 5900HX, 3300 MHz	2.8 Points +1%
Intel Core i7-11700, Asus i7-11700, 2500 MHz	2.77 Points
Intel Core i7-11800H, Zotac i7-11800H, 2300 MHz	2.59 Points -6%
Intel Core i7-10700K, i7-10700K, 3800 MHz	2.38 Points -14%
Intel Core i7-10700, i7-10700, 2900 MHz	2.26 Points -18%
Intel Core i5-10600K, i5-10600K, 4100 MHz	2.19 Points -21%
CPU Multi 64Bit
Intel Core i5-12600K, i5-12600K, 2800 MHz	30.01 Points +51%
AMD Ryzen 7 5800X, R7 5800X, 3800 MHz	29.31 Points +48%
AMD Ryzen 9 5900HX, Minisforum R9 5900HX, 3300 MHz	25.6 Points +29%
Intel Core i7-11700K, i7-11700K, 3600 MHz	25.55 Points +29%
AMD Ryzen 7 5700G, R7 5700G, 3800 MHz	24.37 Points +23%
AMD Ryzen 7 5700G, Minisforum R7 5700G, 3800 MHz	22.79 Points +15%
AMD Ryzen 7 PRO 5750G, Prime Computer R7 PRO 5750G, 3800 MHz	22.22 Points +12%
Intel Core i7-10700K, i7-10700K, 3800 MHz	22.19 Points +12%
AMD Ryzen 9 5900HX, Morefine R9 5900HX, 3300 MHz	22 Points +11%
AMD Ryzen 5 5600X, R5 5600X, 3700 MHz	21.75 Points +10%
Intel Core i7-11700, Asus i7-11700, 2500 MHz	19.84 Points
Intel Core i5-11600K, i5-11600K, 3900 MHz	19.32 Points -3%
Intel Core i7-11800H, Zotac i7-11800H, 2300 MHz	19.18 Points -3%
Intel Core i7-10700, i7-10700, 2900 MHz	16.7 Points -16%
Intel Core i5-10600K, i5-10600K, 4100 MHz	15.76 Points -21%

Cinebench R10
Rendering Single CPUs 64Bit
Intel Core i5-12600K, i5-12600K, 2800 MHz	15180 Points +19%
AMD Ryzen 7 5800X, R7 5800X, 3800 MHz	13039 Points +2%
Intel Core i5-11600K, i5-11600K, 3900 MHz	12957 Points +2%
Intel Core i7-11700, Asus i7-11700, 2500 MHz	12748 Points
AMD Ryzen 5 5600X, R5 5600X, 3700 MHz	12563 Points -1%
AMD Ryzen 9 5900HX, Minisforum R9 5900HX, 3300 MHz	12152 Points -5%
AMD Ryzen 7 5700G, Minisforum R7 5700G, 3800 MHz	12113 Points -5%
AMD Ryzen 7 PRO 5750G, Prime Computer R7 PRO 5750G, 3800 MHz	12046 Points -6%
AMD Ryzen 9 5900HX, Morefine R9 5900HX, 3300 MHz	11811 Points -7%
Intel Core i7-11800H, Zotac i7-11800H, 2300 MHz	11608 Points -9%
AMD Ryzen 7 5700G, R7 5700G, 3800 MHz	11351 Points -11%
Intel Core i7-10700K, i7-10700K, 3800 MHz	10201 Points -20%
Intel Core i7-10700, i7-10700, 2900 MHz	9898 Points -22%
Intel Core i5-10600K, i5-10600K, 4100 MHz	9594 Points -25%
Rendering Multiple CPUs 64Bit
Intel Core i5-12600K, i5-12600K, 2800 MHz	89478 Points +30%
AMD Ryzen 7 5800X, R7 5800X, 3800 MHz	83426 Points +21%
AMD Ryzen 9 5900HX, Minisforum R9 5900HX, 3300 MHz	73115 Points +6%
AMD Ryzen 7 5700G, R7 5700G, 3800 MHz	71162 Points +3%
AMD Ryzen 5 5600X, R5 5600X, 3700 MHz	69545 Points +1%
Intel Core i7-11700, Asus i7-11700, 2500 MHz	68932 Points
AMD Ryzen 7 5700G, Minisforum R7 5700G, 3800 MHz	66237 Points -4%
Intel Core i7-10700K, i7-10700K, 3800 MHz	64901 Points -6%
Intel Core i5-11600K, i5-11600K, 3900 MHz	64663 Points -6%
AMD Ryzen 9 5900HX, Morefine R9 5900HX, 3300 MHz	64320 Points -7%
AMD Ryzen 7 PRO 5750G, Prime Computer R7 PRO 5750G, 3800 MHz	62835 Points -9%
Intel Core i7-11800H, Zotac i7-11800H, 2300 MHz	58426 Points -15%
Intel Core i7-10700, i7-10700, 2900 MHz	52577 Points -24%
Intel Core i5-10600K, i5-10600K, 4100 MHz	51816 Points -25%

Blender - v2.79 BMW27 CPU
Intel Core i7-10700, i7-10700, 2900 MHz	315.4 Seconds * -7%
Intel Core i5-10600K, i5-10600K, 4100 MHz	302.4 Seconds * -3%
Intel Core i7-11700, Asus i7-11700, 2500 MHz	295 Seconds *
Intel Core i7-11800H, Zotac i7-11800H, 2300 MHz	286.1 Seconds * +3%
AMD Ryzen 9 5900HX, Morefine R9 5900HX, 3300 MHz	265 Seconds * +10%
Intel Core i5-11600K, i5-11600K, 3900 MHz	264.5 Seconds * +10%
AMD Ryzen 5 5600X, R5 5600X, 3700 MHz	260.2 Seconds * +12%
AMD Ryzen 7 5700G, Minisforum R7 5700G, 3800 MHz	252.1 Seconds * +15%
AMD Ryzen 7 PRO 5750G, Prime Computer R7 PRO 5750G, 3800 MHz	245 Seconds * +17%
AMD Ryzen 9 5900HX, Minisforum R9 5900HX, 3300 MHz	229.3 Seconds * +22%
Intel Core i7-11700K, i7-11700K, 3600 MHz	221 Seconds * +25%
Intel Core i7-10700K, i7-10700K, 3800 MHz	217.4 Seconds * +26%
AMD Ryzen 7 5700G, R7 5700G, 3800 MHz	213.6 Seconds * +28%
AMD Ryzen 7 5800X, R7 5800X, 3800 MHz	196.8 Seconds * +33%
Intel Core i5-12600K, i5-12600K, 2800 MHz	189.5 Seconds * +36%

wPrime 2.10
32m
AMD Ryzen 7 5700G, R7 5700G, 3800 MHz	5.067 s * -21%
Intel Core i5-11600K, i5-11600K, 3900 MHz	4.919 s * -17%
Intel Core i7-11700K, i7-11700K, 3600 MHz	4.8 s * -14%
Intel Core i5-12600K, i5-12600K, 2800 MHz	4.725 s * -13%
Intel Core i5-10600K, i5-10600K, 4100 MHz	4.648 s * -11%
AMD Ryzen 9 5900HX, Morefine R9 5900HX, 3300 MHz	4.4 s * -5%
Intel Core i7-11700, Asus i7-11700, 2500 MHz	4.193 s *
Intel Core i7-11800H, Zotac i7-11800H, 2300 MHz	4.186 s * -0%
AMD Ryzen 5 5600X, R5 5600X, 3700 MHz	3.891 s * +7%
AMD Ryzen 7 PRO 5750G, Prime Computer R7 PRO 5750G, 3800 MHz	3.687 s * +12%
AMD Ryzen 7 5700G, Minisforum R7 5700G, 3800 MHz	3.595 s * +14%
AMD Ryzen 9 5900HX, Minisforum R9 5900HX, 3300 MHz	3.308 s * +21%
Intel Core i7-10700, i7-10700, 2900 MHz	3.257 s * +22%
Intel Core i7-10700K, i7-10700K, 3800 MHz	3.183 s * +24%
AMD Ryzen 7 5800X, R7 5800X, 3800 MHz	3.037 s * +28%
1024m
Intel Core i5-12600K, i5-12600K, 2800 MHz	202.7 s * -75%
Intel Core i7-11800H, Zotac i7-11800H, 2300 MHz	120.839 s * -5%
Intel Core i7-10700, i7-10700, 2900 MHz	119.5 s * -3%
Intel Core i7-11700, Asus i7-11700, 2500 MHz	115.519 s *
AMD Ryzen 5 5600X, R5 5600X, 3700 MHz	113.9 s * +1%
Intel Core i5-10600K, i5-10600K, 4100 MHz	113.2 s * +2%
Intel Core i5-11600K, i5-11600K, 3900 MHz	107.6 s * +7%
AMD Ryzen 9 5900HX, Morefine R9 5900HX, 3300 MHz	106.7 s * +8%
AMD Ryzen 7 5700G, Minisforum R7 5700G, 3800 MHz	98.635 s * +15%
AMD Ryzen 7 PRO 5750G, Prime Computer R7 PRO 5750G, 3800 MHz	96.767 s * +16%
AMD Ryzen 9 5900HX, Minisforum R9 5900HX, 3300 MHz	91.6 s * +21%
AMD Ryzen 7 5700G, R7 5700G, 3800 MHz	90.5 s * +22%
AMD Ryzen 7 5800X, R7 5800X, 3800 MHz	86.1 s * +25%
Intel Core i7-10700K, i7-10700K, 3800 MHz	85.7 s * +26%

X264 HD Benchmark 4.0
Pass 1
AMD Ryzen 7 5800X, R7 5800X, 3800 MHz	339 (338^min - 341^max) fps +27%
Intel Core i5-12600K, i5-12600K, 2800 MHz	333.5 (332^min - 336^max) fps +25%
AMD Ryzen 5 5600X, R5 5600X, 3700 MHz	320 (319^min - 321^max) fps +20%
Intel Core i5-11600K, i5-11600K, 3900 MHz	299 (294^min - 299^max) fps +12%
Intel Core i7-11700K, i7-11700K, 3600 MHz	292.5 (279^min - 296^max) fps +9%
AMD Ryzen 7 5700G, R7 5700G, 3800 MHz	284 (283^min - 285^max) fps +6%
AMD Ryzen 9 5900HX, Morefine R9 5900HX, 3300 MHz	276.5 (274^min - 278^max) fps +3%
AMD Ryzen 9 5900HX, Minisforum R9 5900HX, 3300 MHz	271.5 (259^min - 276^max) fps +2%
Intel Core i7-10700K, i7-10700K, 3800 MHz	269 (263^min - 269^max) fps +1%
Intel Core i7-11700, Asus i7-11700, 2500 MHz	267.2 fps
AMD Ryzen 7 5700G, Minisforum R7 5700G, 3800 MHz	263.5 (262^min - 266^max) fps -1%
Intel Core i5-10600K, i5-10600K, 4100 MHz	251.5 (250^min - 253^max) fps -6%
AMD Ryzen 7 PRO 5750G, Prime Computer R7 PRO 5750G, 3800 MHz	249.5 (246^min - 252^max) fps -7%
Intel Core i7-11800H, Zotac i7-11800H, 2300 MHz	247.5 (245^min - 250^max) fps -7%
Intel Core i7-10700, i7-10700, 2900 MHz	236 (235^min - 257^max) fps -12%
Pass 2
AMD Ryzen 7 5800X, R7 5800X, 3800 MHz	152 (151^min - 152^max) fps +63%
Intel Core i5-12600K, i5-12600K, 2800 MHz	148 (147^min - 148^max) fps +59%
AMD Ryzen 7 5700G, R7 5700G, 3800 MHz	130 (130^min - 130^max) fps +40%
Intel Core i7-11700K, i7-11700K, 3600 MHz	128 (128^min - 128^max) fps +37%
AMD Ryzen 9 5900HX, Minisforum R9 5900HX, 3300 MHz	128 (122^min - 128^max) fps +37%
Intel Core i7-10700K, i7-10700K, 3800 MHz	121 (121^min - 121^max) fps +30%
AMD Ryzen 5 5600X, R5 5600X, 3700 MHz	117 (117^min - 117^max) fps +26%
AMD Ryzen 7 5700G, Minisforum R7 5700G, 3800 MHz	116.8 (116.8^min - 117.3^max) fps +25%
AMD Ryzen 7 PRO 5750G, Prime Computer R7 PRO 5750G, 3800 MHz	113.15 (112.7^min - 113.6^max) fps +22%
AMD Ryzen 9 5900HX, Morefine R9 5900HX, 3300 MHz	112 (112^min - 112^max) fps +20%
Intel Core i5-11600K, i5-11600K, 3900 MHz	101 (101^min - 101^max) fps +8%
Intel Core i7-11800H, Zotac i7-11800H, 2300 MHz	93.75 (91.3^min - 98.8^max) fps +1%
Intel Core i7-11700, Asus i7-11700, 2500 MHz	93.1 fps
Intel Core i5-10600K, i5-10600K, 4100 MHz	88.2 (88^min - 88.2^max) fps -5%
Intel Core i7-10700, i7-10700, 2900 MHz	84.8 (84.6^min - 105^max) fps -9%

WinRAR - Result
AMD Ryzen 7 5800X, R7 5800X, 3800 MHz	15604 KB/s +162%
AMD Ryzen 5 5600X, R5 5600X, 3700 MHz	13282 KB/s +123%
Intel Core i7-10700K, i7-10700K, 3800 MHz	8469 KB/s +42%
AMD Ryzen 7 5700G, R7 5700G, 3800 MHz	8401 KB/s +41%
Intel Core i7-11800H, Zotac i7-11800H, 2300 MHz	7925 KB/s +33%
Intel Core i5-11600K, i5-11600K, 3900 MHz	7850 KB/s +32%
AMD Ryzen 9 5900HX, Morefine R9 5900HX, 3300 MHz	7722 KB/s +30%
AMD Ryzen 7 PRO 5750G, Prime Computer R7 PRO 5750G, 3800 MHz	7011 KB/s +18%
AMD Ryzen 7 5700G, Minisforum R7 5700G, 3800 MHz	6960 KB/s +17%
Intel Core i7-10700, i7-10700, 2900 MHz	6555 KB/s +10%
Intel Core i5-10600K, i5-10600K, 4100 MHz	6536 KB/s +10%
Intel Core i5-12600K, i5-12600K, 2800 MHz	6239 KB/s +5%
Intel Core i7-11700, Asus i7-11700, 2500 MHz	5962 KB/s
AMD Ryzen 9 5900HX, Minisforum R9 5900HX, 3300 MHz	4297 KB/s -28%

TrueCrypt
AES Mean 100MB
AMD Ryzen 7 5800X, R7 5800X, 3800 MHz	15 GB/s +25%
AMD Ryzen 7 5700G, R7 5700G, 3800 MHz	13.4 GB/s +12%
Intel Core i5-12600K, i5-12600K, 2800 MHz	12.8 GB/s +7%
Intel Core i7-11700K, i7-11700K, 3600 MHz	12.7 GB/s +6%
Intel Core i7-11700, Asus i7-11700, 2500 MHz	12 GB/s
Intel Core i7-10700K, i7-10700K, 3800 MHz	11.2 GB/s -7%
AMD Ryzen 7 PRO 5750G, Prime Computer R7 PRO 5750G, 3800 MHz	11.1 GB/s -7%
AMD Ryzen 9 5900HX, Morefine R9 5900HX, 3300 MHz	10.8 GB/s -10%
AMD Ryzen 5 5600X, R5 5600X, 3700 MHz	10.7 GB/s -11%
Intel Core i7-10700, i7-10700, 2900 MHz	10.3 GB/s -14%
Intel Core i7-11800H, Zotac i7-11800H, 2300 MHz	9.9 GB/s -17%
Intel Core i5-11600K, i5-11600K, 3900 MHz	9.7 GB/s -19%
Intel Core i5-10600K, i5-10600K, 4100 MHz	8 GB/s -33%
AMD Ryzen 7 5700G, Minisforum R7 5700G, 3800 MHz	7.6 GB/s -37%
AMD Ryzen 9 5900HX, Minisforum R9 5900HX, 3300 MHz	7.4 GB/s -38%
Twofish Mean 100MB
Intel Core i5-12600K, i5-12600K, 2800 MHz	2.2 GB/s +22%
Intel Core i7-10700K, i7-10700K, 3800 MHz	2 GB/s +11%
AMD Ryzen 7 5800X, R7 5800X, 3800 MHz	2 GB/s +11%
AMD Ryzen 9 5900HX, Minisforum R9 5900HX, 3300 MHz	2 GB/s +11%
Intel Core i7-11700K, i7-11700K, 3600 MHz	1.9 GB/s +6%
Intel Core i7-10700, i7-10700, 2900 MHz	1.8 GB/s 0%
Intel Core i7-11700, Asus i7-11700, 2500 MHz	1.8 GB/s
AMD Ryzen 7 5700G, R7 5700G, 3800 MHz	1.7 GB/s -6%
AMD Ryzen 9 5900HX, Morefine R9 5900HX, 3300 MHz	1.6 GB/s -11%
AMD Ryzen 7 PRO 5750G, Prime Computer R7 PRO 5750G, 3800 MHz	1.6 GB/s -11%
AMD Ryzen 5 5600X, R5 5600X, 3700 MHz	1.5 GB/s -17%
Intel Core i5-11600K, i5-11600K, 3900 MHz	1.5 GB/s -17%
Intel Core i7-11800H, Zotac i7-11800H, 2300 MHz	1.5 GB/s -17%
AMD Ryzen 7 5700G, Minisforum R7 5700G, 3800 MHz	1.5 GB/s -17%
Intel Core i5-10600K, i5-10600K, 4100 MHz	1.4 GB/s -22%
Serpent Mean 100MB
AMD Ryzen 7 5800X, R7 5800X, 3800 MHz	1.3 GB/s +18%
Intel Core i5-12600K, i5-12600K, 2800 MHz	1.3 GB/s +18%
Intel Core i7-11700K, i7-11700K, 3600 MHz	1.2 GB/s +9%
AMD Ryzen 9 5900HX, Minisforum R9 5900HX, 3300 MHz	1.2 GB/s +9%
Intel Core i7-10700, i7-10700, 2900 MHz	1.1 GB/s 0%
AMD Ryzen 9 5900HX, Morefine R9 5900HX, 3300 MHz	1.1 GB/s 0%
AMD Ryzen 7 5700G, Minisforum R7 5700G, 3800 MHz	1.1 GB/s 0%
Intel Core i7-11700, Asus i7-11700, 2500 MHz	1.1 GB/s
AMD Ryzen 7 5700G, R7 5700G, 3800 MHz	1 GB/s -9%
AMD Ryzen 7 PRO 5750G, Prime Computer R7 PRO 5750G, 3800 MHz	1 GB/s -9%
Intel Core i7-10700K, i7-10700K, 3800 MHz	0.965 GB/s -12%
AMD Ryzen 5 5600X, R5 5600X, 3700 MHz	0.938 GB/s -15%
Intel Core i5-11600K, i5-11600K, 3900 MHz	0.9 GB/s -18%
Intel Core i7-11800H, Zotac i7-11800H, 2300 MHz	0.9 GB/s -18%
Intel Core i5-10600K, i5-10600K, 4100 MHz	0.82 GB/s -25%

Geekbench 5.5
Multi-Core
Intel Core i5-12600K, i5-12600K, 2800 MHz	12797 Points +31%
AMD Ryzen 7 5800X, R7 5800X, 3800 MHz	11354 Points +16%
Intel Core i7-11700K, i7-11700K, 3600 MHz	10269 Points +5%
Intel Core i7-11700, Asus i7-11700, 2500 MHz	9760 Points
AMD Ryzen 7 5700G, R7 5700G, 3800 MHz	9544 Points -2%
AMD Ryzen 5 5600X, R5 5600X, 3700 MHz	8980 Points -8%
Intel Core i7-10700K, i7-10700K, 3800 MHz	8939 Points -8%
Intel Core i7-10700K, i7-10700K, 3800 MHz	8911 Points -9%
Intel Core i5-11600K, i5-11600K, 3900 MHz	8523 Points -13%
AMD Ryzen 7 PRO 5750G, Prime Computer R7 PRO 5750G, 3800 MHz	8396 Points -14%
Intel Core i7-11800H, Zotac i7-11800H, 2300 MHz	8207 Points -16%
Intel Core i7-10700, i7-10700, 2900 MHz	8173 Points -16%
AMD Ryzen 9 5900HX, Minisforum R9 5900HX, 3300 MHz	7875 Points -19%
AMD Ryzen 9 5900HX, Morefine R9 5900HX, 3300 MHz	7855 Points -20%
AMD Ryzen 7 5700G, Minisforum R7 5700G, 3800 MHz	7818 Points -20%
Intel Core i5-10600K, i5-10600K, 4100 MHz	7248 Points -26%
Single-Core
Intel Core i5-12600K, i5-12600K, 2800 MHz	1904 Points +13%
Intel Core i5-11600K, i5-11600K, 3900 MHz	1752 Points +4%
Intel Core i7-11700K, i7-11700K, 3600 MHz	1721 Points +2%
Intel Core i7-11700, Asus i7-11700, 2500 MHz	1681 Points
AMD Ryzen 7 5800X, R7 5800X, 3800 MHz	1665 Points -1%
AMD Ryzen 5 5600X, R5 5600X, 3700 MHz	1657 Points -1%
AMD Ryzen 7 5700G, R7 5700G, 3800 MHz	1598 Points -5%
Intel Core i7-11800H, Zotac i7-11800H, 2300 MHz	1579 Points -6%
AMD Ryzen 7 PRO 5750G, Prime Computer R7 PRO 5750G, 3800 MHz	1561 Points -7%
AMD Ryzen 7 5700G, Minisforum R7 5700G, 3800 MHz	1560 Points -7%
AMD Ryzen 9 5900HX, Morefine R9 5900HX, 3300 MHz	1552 Points -8%
AMD Ryzen 9 5900HX, Minisforum R9 5900HX, 3300 MHz	1542 Points -8%
Intel Core i7-10700K, i7-10700K, 3800 MHz	1376 Points -18%
Intel Core i7-10700K, i7-10700K, 3800 MHz	1371 Points -18%
Intel Core i7-10700, i7-10700, 2900 MHz	1299 Points -23%
Intel Core i5-10600K, i5-10600K, 4100 MHz	1286 Points -23%

Geekbench 5.0
5.0 Multi-Core
Intel Core i5-12600K, i5-12600K, 2800 MHz	12746 Points +31%
AMD Ryzen 7 5800X, R7 5800X, 3800 MHz	11246 Points +16%
Intel Core i7-11700, Asus i7-11700, 2500 MHz	9706 Points
AMD Ryzen 7 5700G, R7 5700G, 3800 MHz	9563 Points -1%
AMD Ryzen 5 5600X, R5 5600X, 3700 MHz	8926 Points -8%
Intel Core i7-10700K, i7-10700K, 3800 MHz	8903 Points -8%
Intel Core i7-10700K, i7-10700K, 3800 MHz	8903 Points -8%
Intel Core i5-11600K, i5-11600K, 3900 MHz	8542 Points -12%
AMD Ryzen 7 PRO 5750G, Prime Computer R7 PRO 5750G, 3800 MHz	8361 Points -14%
Intel Core i7-10700, i7-10700, 2900 MHz	8196 Points -16%
Intel Core i7-11800H, Zotac i7-11800H, 2300 MHz	8109 Points -16%
AMD Ryzen 9 5900HX, Minisforum R9 5900HX, 3300 MHz	7859 Points -19%
AMD Ryzen 9 5900HX, Morefine R9 5900HX, 3300 MHz	7847 Points -19%
AMD Ryzen 7 5700G, Minisforum R7 5700G, 3800 MHz	7806 Points -20%
Intel Core i5-10600K, i5-10600K, 4100 MHz	7237 Points -25%
5.0 Single-Core
Intel Core i5-12600K, i5-12600K, 2800 MHz	1821 Points +9%
Intel Core i5-11600K, i5-11600K, 3900 MHz	1731 Points +3%
Intel Core i7-11700, Asus i7-11700, 2500 MHz	1677 Points
AMD Ryzen 7 5800X, R7 5800X, 3800 MHz	1673 Points 0%
AMD Ryzen 5 5600X, R5 5600X, 3700 MHz	1587 Points -5%
Intel Core i7-11800H, Zotac i7-11800H, 2300 MHz	1571 Points -6%
AMD Ryzen 7 5700G, R7 5700G, 3800 MHz	1525 Points -9%
AMD Ryzen 7 5700G, Minisforum R7 5700G, 3800 MHz	1518 Points -9%
AMD Ryzen 9 5900HX, Morefine R9 5900HX, 3300 MHz	1504 Points -10%
AMD Ryzen 9 5900HX, Minisforum R9 5900HX, 3300 MHz	1498 Points -11%
AMD Ryzen 7 PRO 5750G, Prime Computer R7 PRO 5750G, 3800 MHz	1493 Points -11%
Intel Core i7-10700K, i7-10700K, 3800 MHz	1368 Points -18%
Intel Core i7-10700K, i7-10700K, 3800 MHz	1368 Points -18%
Intel Core i7-10700, i7-10700, 2900 MHz	1304 Points -22%
Intel Core i5-10600K, i5-10600K, 4100 MHz	1281 Points -24%

Geekbench 4.4
64 Bit Single-Core Score
Intel Core i5-12600K, i5-12600K, 2800 MHz	8223 Points +15%
Intel Core i5-11600K, i5-11600K, 3900 MHz	7438 Points +4%
AMD Ryzen 7 5800X, R7 5800X, 3800 MHz	7333 Points +2%
Intel Core i7-11700, Asus i7-11700, 2500 MHz	7173 Points
AMD Ryzen 5 5600X, R5 5600X, 3700 MHz	6953 Points -3%
AMD Ryzen 7 5700G, R7 5700G, 3800 MHz	6743 Points -6%
Intel Core i7-11800H, Zotac i7-11800H, 2300 MHz	6698 Points -7%
AMD Ryzen 7 5700G, Minisforum R7 5700G, 3800 MHz	6517 Points -9%
AMD Ryzen 7 PRO 5750G, Prime Computer R7 PRO 5750G, 3800 MHz	6440 Points -10%
AMD Ryzen 9 5900HX, Morefine R9 5900HX, 3300 MHz	6434 Points -10%
AMD Ryzen 9 5900HX, Minisforum R9 5900HX, 3300 MHz	6365 Points -11%
Intel Core i7-10700K, i7-10700K, 3800 MHz	6247 Points -13%
Intel Core i5-10600K, i5-10600K, 4100 MHz	5821 Points -19%
Intel Core i7-10700, i7-10700, 2900 MHz	5726 Points -20%
64 Bit Multi-Core Score
Intel Core i5-12600K, i5-12600K, 2800 MHz	46557 Points +23%
AMD Ryzen 7 5800X, R7 5800X, 3800 MHz	44131 Points +17%
Intel Core i7-11700, Asus i7-11700, 2500 MHz	37795 Points
AMD Ryzen 7 5700G, R7 5700G, 3800 MHz	36970 Points -2%
AMD Ryzen 5 5600X, R5 5600X, 3700 MHz	35617 Points -6%
Intel Core i7-10700K, i7-10700K, 3800 MHz	34735 Points -8%
Intel Core i5-11600K, i5-11600K, 3900 MHz	33266 Points -12%
AMD Ryzen 7 PRO 5750G, Prime Computer R7 PRO 5750G, 3800 MHz	33145 Points -12%
Intel Core i7-11800H, Zotac i7-11800H, 2300 MHz	33034 Points -13%
AMD Ryzen 9 5900HX, Minisforum R9 5900HX, 3300 MHz	32434 Points -14%
Intel Core i7-10700, i7-10700, 2900 MHz	32174 Points -15%
AMD Ryzen 7 5700G, Minisforum R7 5700G, 3800 MHz	31835 Points -16%
AMD Ryzen 9 5900HX, Morefine R9 5900HX, 3300 MHz	31724 Points -16%
Intel Core i5-10600K, i5-10600K, 4100 MHz	28391 Points -25%

3DMark 11 - 1280x720 Performance Physics
Intel Core i5-12600K, i5-12600K, 2800 MHz	25017 Points +38%
AMD Ryzen 7 5800X, R7 5800X, 3800 MHz	23381 Points +29%
AMD Ryzen 5 5600X, R5 5600X, 3700 MHz	19649 Points +9%
AMD Ryzen 7 5700G, R7 5700G, 3800 MHz	18372 Points +2%
Intel Core i7-11700, Asus i7-11700, 2500 MHz	18083 Points
Intel Core i7-10700K, i7-10700K, 3800 MHz	18064 Points 0%
Intel Core i5-11600K, i5-11600K, 3900 MHz	17381 Points -4%
Intel Core i7-11700K, i7-11700K, 3600 MHz	17324 Points -4%
AMD Ryzen 9 5900HX, Morefine R9 5900HX, 3300 MHz	16783 Points -7%
AMD Ryzen 7 PRO 5750G, Prime Computer R7 PRO 5750G, 3800 MHz	16158 Points -11%
Intel Core i5-10600K, i5-10600K, 4100 MHz	15961 Points -12%
Intel Core i7-11800H, Zotac i7-11800H, 2300 MHz	15739 Points -13%
Intel Core i7-10700, i7-10700, 2900 MHz	15497 Points -14%
AMD Ryzen 7 5700G, Minisforum R7 5700G, 3800 MHz	14277 Points -21%
AMD Ryzen 9 5900HX, Minisforum R9 5900HX, 3300 MHz	13940 Points -23%

7-Zip 18.03
7z b 4
AMD Ryzen 7 5800X, R7 5800X, 3800 MHz	74306 MIPS +66%
AMD Ryzen 7 5700G, R7 5700G, 3800 MHz	64358 MIPS +44%
Intel Core i5-12600K, i5-12600K, 2800 MHz	64260 MIPS +44%
AMD Ryzen 9 5900HX, Minisforum R9 5900HX, 3300 MHz	57435 MIPS +28%
AMD Ryzen 7 PRO 5750G, Prime Computer R7 PRO 5750G, 3800 MHz	57184 MIPS +28%
Intel Core i7-11700K, i7-11700K, 3600 MHz	57129 MIPS +28%
AMD Ryzen 5 5600X, R5 5600X, 3700 MHz	56607 MIPS +26%
AMD Ryzen 7 5700G, Minisforum R7 5700G, 3800 MHz	55046 MIPS +23%
AMD Ryzen 9 5900HX, Morefine R9 5900HX, 3300 MHz	54998 MIPS +23%
Intel Core i7-10700K, i7-10700K, 3800 MHz	54050 MIPS +21%
Intel Core i7-11800H, Zotac i7-11800H, 2300 MHz	45999 MIPS +3%
Intel Core i5-11600K, i5-11600K, 3900 MHz	45322 MIPS +1%
Intel Core i7-11700, Asus i7-11700, 2500 MHz	44752 MIPS
Intel Core i7-10700, i7-10700, 2900 MHz	43007 MIPS -4%
Intel Core i5-10600K, i5-10600K, 4100 MHz	40379 MIPS -10%
7z b 4 -mmt1
AMD Ryzen 7 5800X, R7 5800X, 3800 MHz	6970 MIPS +20%
AMD Ryzen 5 5600X, R5 5600X, 3700 MHz	6594 MIPS +13%
Intel Core i7-11700K, i7-11700K, 3600 MHz	6157 MIPS +6%
Intel Core i5-11600K, i5-11600K, 3900 MHz	6136 MIPS +6%
Intel Core i5-12600K, i5-12600K, 2800 MHz	5944 MIPS +2%
AMD Ryzen 9 5900HX, Morefine R9 5900HX, 3300 MHz	5905 MIPS +2%
AMD Ryzen 7 5700G, R7 5700G, 3800 MHz	5818 MIPS 0%
Intel Core i7-11700, Asus i7-11700, 2500 MHz	5810 MIPS
AMD Ryzen 7 5700G, Minisforum R7 5700G, 3800 MHz	5809 MIPS 0%
AMD Ryzen 9 5900HX, Minisforum R9 5900HX, 3300 MHz	5739 MIPS -1%
AMD Ryzen 7 PRO 5750G, Prime Computer R7 PRO 5750G, 3800 MHz	5682 MIPS -2%
Intel Core i7-10700K, i7-10700K, 3800 MHz	5647 MIPS -3%
Intel Core i7-11800H, Zotac i7-11800H, 2300 MHz	5619 MIPS -3%
Intel Core i7-10700, i7-10700, 2900 MHz	5293 MIPS -9%
Intel Core i5-10600K, i5-10600K, 4100 MHz	5289 MIPS -9%

HWBOT x265 Benchmark v2.2 - 4k Preset
Intel Core i5-12600K, i5-12600K, 2800 MHz	30.1 fps +139%
AMD Ryzen 7 5800X, R7 5800X, 3800 MHz	20.8 fps +65%
AMD Ryzen 7 5700G, R7 5700G, 3800 MHz	16.8 fps +33%
Intel Core i7-10700K, i7-10700K, 3800 MHz	16.3 fps +29%
Intel Core i7-11700K, i7-11700K, 3600 MHz	16.3 fps +29%
AMD Ryzen 9 5900HX, Minisforum R9 5900HX, 3300 MHz	15.9 fps +26%
AMD Ryzen 5 5600X, R5 5600X, 3700 MHz	15.7 fps +25%
AMD Ryzen 7 5700G, Minisforum R7 5700G, 3800 MHz	14.8 fps +17%
Intel Core i5-11600K, i5-11600K, 3900 MHz	14.7 fps +17%
AMD Ryzen 9 5900HX, Morefine R9 5900HX, 3300 MHz	14.5 fps +15%
AMD Ryzen 7 PRO 5750G, Prime Computer R7 PRO 5750G, 3800 MHz	14.4 fps +14%
Intel Core i7-11800H, Zotac i7-11800H, 2300 MHz	13.2 fps +5%
Intel Core i7-11700, Asus i7-11700, 2500 MHz	12.6 fps
Intel Core i5-10600K, i5-10600K, 4100 MHz	12.2 fps -3%
Intel Core i7-10700, i7-10700, 2900 MHz	11.6 fps -8%

R Benchmark 2.5 - Overall mean
Intel Core i5-10600K, i5-10600K, 4100 MHz	0.593 sec * -13%
Intel Core i7-10700, i7-10700, 2900 MHz	0.588 sec * -12%
Intel Core i7-11800H, Zotac i7-11800H, 2300 MHz	0.56 sec * -7%
Intel Core i7-10700K, i7-10700K, 3800 MHz	0.554 sec * -6%
Intel Core i7-11700, Asus i7-11700, 2500 MHz	0.524 sec *
AMD Ryzen 7 PRO 5750G, Prime Computer R7 PRO 5750G, 3800 MHz	0.508 sec * +3%
Intel Core i5-11600K, i5-11600K, 3900 MHz	0.506 sec * +3%
Intel Core i7-11700K, i7-11700K, 3600 MHz	0.505 sec * +4%
AMD Ryzen 7 5700G, Minisforum R7 5700G, 3800 MHz	0.4975 sec * +5%
AMD Ryzen 9 5900HX, Minisforum R9 5900HX, 3300 MHz	0.4965 sec * +5%
AMD Ryzen 9 5900HX, Morefine R9 5900HX, 3300 MHz	0.493 sec * +6%
AMD Ryzen 7 5700G, R7 5700G, 3800 MHz	0.4896 sec * +7%
AMD Ryzen 5 5600X, R5 5600X, 3700 MHz	0.4778 sec * +9%
AMD Ryzen 7 5800X, R7 5800X, 3800 MHz	0.4509 sec * +14%
Intel Core i5-12600K, i5-12600K, 2800 MHz	0.4456 sec * +15%

LibreOffice - 20 Documents To PDF
Intel Core i5-12600K, i5-12600K, 2800 MHz	71.8 s * -69%
Intel Core i7-10700, i7-10700, 2900 MHz	59.5 s * -40%
AMD Ryzen 7 5700G, Minisforum R7 5700G, 3800 MHz	50.7 s * -19%
AMD Ryzen 9 5900HX, Morefine R9 5900HX, 3300 MHz	50.4 s * -18%
AMD Ryzen 7 PRO 5750G, Prime Computer R7 PRO 5750G, 3800 MHz	50.3 s * -18%
AMD Ryzen 7 5700G, R7 5700G, 3800 MHz	49.8 s * -17%
Intel Core i7-10700K, i7-10700K, 3800 MHz	49.64 s * -17%
AMD Ryzen 9 5900HX, Minisforum R9 5900HX, 3300 MHz	49.3 s * -16%
Intel Core i7-11800H, Zotac i7-11800H, 2300 MHz	48 s * -13%
Intel Core i5-10600K, i5-10600K, 4100 MHz	46.06 s * -8%
AMD Ryzen 5 5600X, R5 5600X, 3700 MHz	45.14 s * -6%
AMD Ryzen 7 5800X, R7 5800X, 3800 MHz	43.31 s * -2%
Intel Core i7-11700, Asus i7-11700, 2500 MHz	42.6 s *
Intel Core i7-11700K, i7-11700K, 3600 MHz	42 s * +1%
Intel Core i5-11600K, i5-11600K, 3900 MHz	39.7 s * +7%

WebXPRT 3 - Overall
AMD Ryzen 7 5800X, R7 5800X, 3800 MHz	296 Points +16%
AMD Ryzen 7 5700G, R7 5700G, 3800 MHz	295 Points +15%
Intel Core i5-12600K, i5-12600K, 2800 MHz	293 Points +14%
AMD Ryzen 5 5600X, R5 5600X, 3700 MHz	286 Points +12%
AMD Ryzen 7 5700G, Minisforum R7 5700G, 3800 MHz	284 Points +11%
Intel Core i5-11600K, i5-11600K, 3900 MHz	280 Points +9%
AMD Ryzen 9 5900HX, Minisforum R9 5900HX, 3300 MHz	278 Points +9%
AMD Ryzen 7 PRO 5750G, Prime Computer R7 PRO 5750G, 3800 MHz	276 Points +8%
AMD Ryzen 9 5900HX, Morefine R9 5900HX, 3300 MHz	274 Points +7%
Intel Core i7-11800H, Zotac i7-11800H, 2300 MHz	267 Points +4%
Intel Core i7-11700, Asus i7-11700, 2500 MHz	256 Points
Intel Core i7-11700K, i7-11700K, 3600 MHz	254 Points -1%
Intel Core i7-10700K, i7-10700K, 3800 MHz	245 Points -4%
Intel Core i7-10700, i7-10700, 2900 MHz	244 Points -5%
Intel Core i5-10600K, i5-10600K, 4100 MHz	239 Points -7%

Mozilla Kraken 1.1 - Total
Intel Core i5-10600K, i5-10600K, 4100 MHz	760 ms * -26%
Intel Core i7-10700, i7-10700, 2900 MHz	752 ms * -25%
Intel Core i7-10700K, i7-10700K, 3800 MHz	747 ms * -24%
Intel Core i7-11800H, Zotac i7-11800H, 2300 MHz	641 ms * -7%
AMD Ryzen 7 PRO 5750G, Prime Computer R7 PRO 5750G, 3800 MHz	617 ms * -3%
AMD Ryzen 7 5700G, Minisforum R7 5700G, 3800 MHz	604 ms * -0%
Intel Core i7-11700K, i7-11700K, 3600 MHz	603 ms * -0%
AMD Ryzen 9 5900HX, Morefine R9 5900HX, 3300 MHz	602 ms * -0%
AMD Ryzen 9 5900HX, Minisforum R9 5900HX, 3300 MHz	601 ms * -0%
Intel Core i7-11700, Asus i7-11700, 2500 MHz	601 ms *
Intel Core i5-11600K, i5-11600K, 3900 MHz	587 ms * +2%
AMD Ryzen 7 5700G, R7 5700G, 3800 MHz	587 ms * +2%
AMD Ryzen 5 5600X, R5 5600X, 3700 MHz	578 ms * +4%
AMD Ryzen 7 5800X, R7 5800X, 3800 MHz	558 ms * +7%
Intel Core i5-12600K, i5-12600K, 2800 MHz	511 ms * +15%

3DMark
3840x2160 Fire Strike Ultra Physics
AMD Ryzen 7 5800X, R7 5800X, 3800 MHz	31095 Points +20%
Intel Core i5-12600K, i5-12600K, 2800 MHz	29443 Points +14%
AMD Ryzen 7 5700G, R7 5700G, 3800 MHz	27096 Points +5%
AMD Ryzen 5 5600X, R5 5600X, 3700 MHz	26038 Points +1%
Intel Core i7-11700, Asus i7-11700, 2500 MHz	25831 Points
Intel Core i7-10700K, i7-10700K, 3800 MHz	25113 Points -3%
AMD Ryzen 7 5700G, Minisforum R7 5700G, 3800 MHz	23939 Points -7%
AMD Ryzen 9 5900HX, Morefine R9 5900HX, 3300 MHz	23269 Points -10%
Intel Core i5-11600K, i5-11600K, 3900 MHz	23190 Points -10%
AMD Ryzen 9 5900HX, Minisforum R9 5900HX, 3300 MHz	22976 Points -11%
AMD Ryzen 7 PRO 5750G, Prime Computer R7 PRO 5750G, 3800 MHz	22975 Points -11%
Intel Core i7-11800H, Zotac i7-11800H, 2300 MHz	22873 Points -11%
Intel Core i7-10700, i7-10700, 2900 MHz	21542 Points -17%
Intel Core i5-10600K, i5-10600K, 4100 MHz	19942 Points -23%
1920x1080 Fire Strike Physics
AMD Ryzen 7 5800X, R7 5800X, 3800 MHz	30938 Points +20%
Intel Core i5-12600K, i5-12600K, 2800 MHz	29671 Points +15%
AMD Ryzen 7 5700G, R7 5700G, 3800 MHz	27300 Points +6%
AMD Ryzen 5 5600X, R5 5600X, 3700 MHz	25990 Points +1%
Intel Core i7-11700, Asus i7-11700, 2500 MHz	25831 Points
Intel Core i7-11700K, i7-11700K, 3600 MHz	25557 Points -1%
AMD Ryzen 7 5700G, Minisforum R7 5700G, 3800 MHz	25160 Points -3%
Intel Core i7-10700K, i7-10700K, 3800 MHz	24791 Points -4%
AMD Ryzen 9 5900HX, Minisforum R9 5900HX, 3300 MHz	24096 Points -7%
AMD Ryzen 9 5900HX, Morefine R9 5900HX, 3300 MHz	23903 Points -7%
Intel Core i7-11800H, Zotac i7-11800H, 2300 MHz	23641 Points -8%
AMD Ryzen 7 PRO 5750G, Prime Computer R7 PRO 5750G, 3800 MHz	23047 Points -11%
Intel Core i5-11600K, i5-11600K, 3900 MHz	22631 Points -12%
Intel Core i7-10700, i7-10700, 2900 MHz	20080 Points -22%
Intel Core i5-10600K, i5-10600K, 4100 MHz	20040 Points -22%
2560x1440 Time Spy CPU
Intel Core i5-12600K, i5-12600K, 2800 MHz	13869 Points +23%
AMD Ryzen 7 5800X, R7 5800X, 3800 MHz	11599 Points +3%
Intel Core i7-11700, Asus i7-11700, 2500 MHz	11243 Points
Intel Core i7-10700K, i7-10700K, 3800 MHz	10963 Points -2%
AMD Ryzen 7 5700G, R7 5700G, 3800 MHz	9743 Points -13%
Intel Core i5-11600K, i5-11600K, 3900 MHz	9482 Points -16%
Intel Core i7-11800H, Zotac i7-11800H, 2300 MHz	9282 Points -17%
AMD Ryzen 5 5600X, R5 5600X, 3700 MHz	8911 Points -21%
Intel Core i7-10700, i7-10700, 2900 MHz	8580 Points -24%
Intel Core i5-10600K, i5-10600K, 4100 MHz	8290 Points -26%
AMD Ryzen 9 5900HX, Morefine R9 5900HX, 3300 MHz	8191 Points -27%
AMD Ryzen 7 PRO 5750G, Prime Computer R7 PRO 5750G, 3800 MHz	8003 Points -29%
AMD Ryzen 7 5700G, Minisforum R7 5700G, 3800 MHz	7087 Points -37%
AMD Ryzen 9 5900HX, Minisforum R9 5900HX, 3300 MHz	6955 Points -38%

* ... Meglio usare valori piccoli

Performance Rating
Media della classe Desktop	98.7 pt
AMD Ryzen 7 5700G AMD Ryzen 7 5700G, Vega 8	57.1 pt
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	53.4 pt
AMD Ryzen 7 5800X AMD Ryzen 7 5800X, NVIDIA Titan RTX	51.7 pt
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	47.8 pt
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	47.7 pt
Zotac ZBOX Magnus EN173070C Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU	45 pt
Asus ExpertCenter D9 SFF Intel Core i7-11700, T600	44.1 pt
Media Intel Core i7-11700	44.1 pt
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	43.3 pt
AMD Ryzen 5 5600X AMD Ryzen 5 5600X, NVIDIA Titan RTX	39.8 pt

AIDA64 / FP32 Ray-Trace
Media della classe Desktop (6011 - 83214, n=15, ultimi 2 anni)	40286 KRay/s +227%
AMD Ryzen 7 5800X AMD Ryzen 7 5800X, NVIDIA Titan RTX	17545 KRay/s +42%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	15755 KRay/s +28%
AMD Ryzen 7 5700G AMD Ryzen 7 5700G, Vega 8	15260 KRay/s +24%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	13631 KRay/s +11%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	13460 KRay/s +9%
Zotac ZBOX Magnus EN173070C Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU	13002 KRay/s +5%
AMD Ryzen 5 5600X AMD Ryzen 5 5600X, NVIDIA Titan RTX	12482 KRay/s +1%
Asus ExpertCenter D9 SFF Intel Core i7-11700, T600	12326 KRay/s
Media Intel Core i7-11700 ()	12326 KRay/s 0%
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	8243 KRay/s -33%

AIDA64 / FPU Julia
Media della classe Desktop (27835 - 264044, n=15, ultimi 2 anni)	161013 Points +205%
AMD Ryzen 7 5700G AMD Ryzen 7 5700G, Vega 8	101689 Points +93%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	100504 Points +90%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	86825 Points +64%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	85294 Points +62%
AMD Ryzen 7 5800X AMD Ryzen 7 5800X, NVIDIA Titan RTX	82429 Points +56%
AMD Ryzen 5 5600X AMD Ryzen 5 5600X, NVIDIA Titan RTX	61688 Points +17%
Zotac ZBOX Magnus EN173070C Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU	56368 Points +7%
Asus ExpertCenter D9 SFF Intel Core i7-11700, T600	52783 Points
Media Intel Core i7-11700 ()	52783 Points 0%
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	37321 Points -29%

AIDA64 / CPU SHA3
Media della classe Desktop (2019 - 10804, n=15, ultimi 2 anni)	7090 MB/s +102%
Zotac ZBOX Magnus EN173070C Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU	3829 MB/s +9%
AMD Ryzen 7 5700G AMD Ryzen 7 5700G, Vega 8	3605 MB/s +3%
Asus ExpertCenter D9 SFF Intel Core i7-11700, T600	3517 MB/s
Media Intel Core i7-11700 ()	3517 MB/s 0%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	3444 MB/s -2%
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	3250 MB/s -8%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	2953 MB/s -16%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	2924 MB/s -17%
AMD Ryzen 7 5800X AMD Ryzen 7 5800X, NVIDIA Titan RTX	2542 MB/s -28%
AMD Ryzen 5 5600X AMD Ryzen 5 5600X, NVIDIA Titan RTX	1920 MB/s -45%

AIDA64 / CPU Queen
Media della classe Desktop (75592 - 205588, n=15, ultimi 2 anni)	146317 Points +52%
AMD Ryzen 7 5800X AMD Ryzen 7 5800X, NVIDIA Titan RTX	113297 Points +18%
AMD Ryzen 7 5700G AMD Ryzen 7 5700G, Vega 8	106467 Points +11%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	105123 Points +9%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	97720 Points +2%
Asus ExpertCenter D9 SFF Intel Core i7-11700, T600	96182 Points
Media Intel Core i7-11700 ()	96182 Points 0%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	94655 Points -2%
Zotac ZBOX Magnus EN173070C Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU	88481 Points -8%
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	88337 Points -8%
AMD Ryzen 5 5600X AMD Ryzen 5 5600X, NVIDIA Titan RTX	85863 Points -11%

AIDA64 / FPU SinJulia
Media della classe Desktop (6540 - 35251, n=15, ultimi 2 anni)	20183 Points +137%
AMD Ryzen 7 5800X AMD Ryzen 7 5800X, NVIDIA Titan RTX	13527 Points +59%
AMD Ryzen 7 5700G AMD Ryzen 7 5700G, Vega 8	13297 Points +56%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	12792 Points +50%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	12202 Points +43%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	11929 Points +40%
AMD Ryzen 5 5600X AMD Ryzen 5 5600X, NVIDIA Titan RTX	10088 Points +18%
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	9510 Points +12%
Zotac ZBOX Magnus EN173070C Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU	9457 Points +11%
Asus ExpertCenter D9 SFF Intel Core i7-11700, T600	8518 Points
Media Intel Core i7-11700 ()	8518 Points 0%

AIDA64 / FPU Mandel
Media della classe Desktop (16325 - 138291, n=15, ultimi 2 anni)	83865 Points +163%
AMD Ryzen 7 5700G AMD Ryzen 7 5700G, Vega 8	57827 Points +81%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	55452 Points +74%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	47597 Points +49%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	47010 Points +47%
AMD Ryzen 7 5800X AMD Ryzen 7 5800X, NVIDIA Titan RTX	45369 Points +42%
AMD Ryzen 5 5600X AMD Ryzen 5 5600X, NVIDIA Titan RTX	33927 Points +6%
Zotac ZBOX Magnus EN173070C Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU	33223 Points +4%
Asus ExpertCenter D9 SFF Intel Core i7-11700, T600	31873 Points
Media Intel Core i7-11700 ()	31873 Points 0%
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	24230 Points -24%

AIDA64 / CPU AES
Media della classe Desktop (67922 - 513073, n=15, ultimi 2 anni)	212768 MB/s +75%
AMD Ryzen 7 5700G AMD Ryzen 7 5700G, Vega 8	141615 MB/s +16%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	135212 MB/s +11%
Zotac ZBOX Magnus EN173070C Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU	124539 MB/s +2%
Asus ExpertCenter D9 SFF Intel Core i7-11700, T600	121619 MB/s
Media Intel Core i7-11700 ()	121619 MB/s 0%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	119844 MB/s -1%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	115382 MB/s -5%
AMD Ryzen 7 5800X AMD Ryzen 7 5800X, NVIDIA Titan RTX	82897 MB/s -32%
AMD Ryzen 5 5600X AMD Ryzen 5 5600X, NVIDIA Titan RTX	62563 MB/s -49%
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	58635 MB/s -52%

AIDA64 / CPU ZLib
Media della classe Desktop (812 - 2632, n=15, ultimi 2 anni)	1757 MB/s +167%
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	988 MB/s +50%
AMD Ryzen 7 5800X AMD Ryzen 7 5800X, NVIDIA Titan RTX	942 MB/s +43%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	871 MB/s +32%
AMD Ryzen 7 5700G AMD Ryzen 7 5700G, Vega 8	869 MB/s +32%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	774 MB/s +18%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	747 MB/s +14%
Zotac ZBOX Magnus EN173070C Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU	735 MB/s +12%
AMD Ryzen 5 5600X AMD Ryzen 5 5600X, NVIDIA Titan RTX	719 MB/s +9%
Asus ExpertCenter D9 SFF Intel Core i7-11700, T600	658 MB/s
Media Intel Core i7-11700 ()	658 MB/s 0%

AIDA64 / FP64 Ray-Trace
Media della classe Desktop (3442 - 44013, n=15, ultimi 2 anni)	21693 KRay/s +218%
AMD Ryzen 7 5800X AMD Ryzen 7 5800X, NVIDIA Titan RTX	9469 KRay/s +39%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	8425 KRay/s +23%
AMD Ryzen 7 5700G AMD Ryzen 7 5700G, Vega 8	8093 KRay/s +18%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	7193 KRay/s +5%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	7184 KRay/s +5%
Zotac ZBOX Magnus EN173070C Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU	7119 KRay/s +4%
AMD Ryzen 5 5600X AMD Ryzen 5 5600X, NVIDIA Titan RTX	6894 KRay/s +1%
Asus ExpertCenter D9 SFF Intel Core i7-11700, T600	6831 KRay/s
Media Intel Core i7-11700 ()	6831 KRay/s 0%
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	5149 KRay/s -25%

AIDA64 / CPU PhotoWorxx
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	48577 MPixel/s +78%
Media della classe Desktop (27809 - 54680, n=15, ultimi 2 anni)	42318 MPixel/s +55%
AMD Ryzen 7 5700G AMD Ryzen 7 5700G, Vega 8	28231 MPixel/s +3%
Asus ExpertCenter D9 SFF Intel Core i7-11700, T600	27327 MPixel/s
Media Intel Core i7-11700 ()	27327 MPixel/s 0%
AMD Ryzen 7 5800X AMD Ryzen 7 5800X, NVIDIA Titan RTX	25309 MPixel/s -7%
AMD Ryzen 5 5600X AMD Ryzen 5 5600X, NVIDIA Titan RTX	24352 MPixel/s -11%
Zotac ZBOX Magnus EN173070C Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU	23774 MPixel/s -13%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	19885 MPixel/s -27%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	14978 MPixel/s -45%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	14810 MPixel/s -46%

L'Asus ExpertCenter D9 SFF nel Multi Loop di Cinebench R15

Il comportamento dell'Intel Core i7-11700 nell'Asus ExpertCenter D9 SFF D900SC è simile a quello dei processori dei due dispositivi di confronto Intel NUC e dello Zotac ZBOX Magnus. Il risultato della prova iniziale non sarà più raggiunto nelle prove successive, il che significa che Asus non è in grado di mantenere costanti le prestazioni del processore. D'altra parte, le prestazioni nei 50 cicli costanti di Cinebench-R15 rimangono in gran parte stabili, per cui non ci si deve aspettare ulteriori cali di prestazioni

Asus ExpertCenter D9 SFF Intel Core i7-11700, Intel Core i7-11700: Ø1537 (1521.95-1608.36)

Intel Ghost Canyon NUC (RTX 2070) Intel Core i9-9980HK, Intel Core i9-9980HK: Ø1463 (1410.79-1593.44)

Intel Beast Canyon NUC Intel Core i9-11900KB, Intel Core i9-11900KB: Ø1800 (1776.75-1859.25)

Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø2121 (2086.27-2197.32)

Zotac ZBOX Magnus EN173070C Intel Core i7-11800H, Intel Core i7-11800H: Ø1562 (1536.63-1683.86)

Morefine S500+ AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø1892 (1879.35-1907.49)

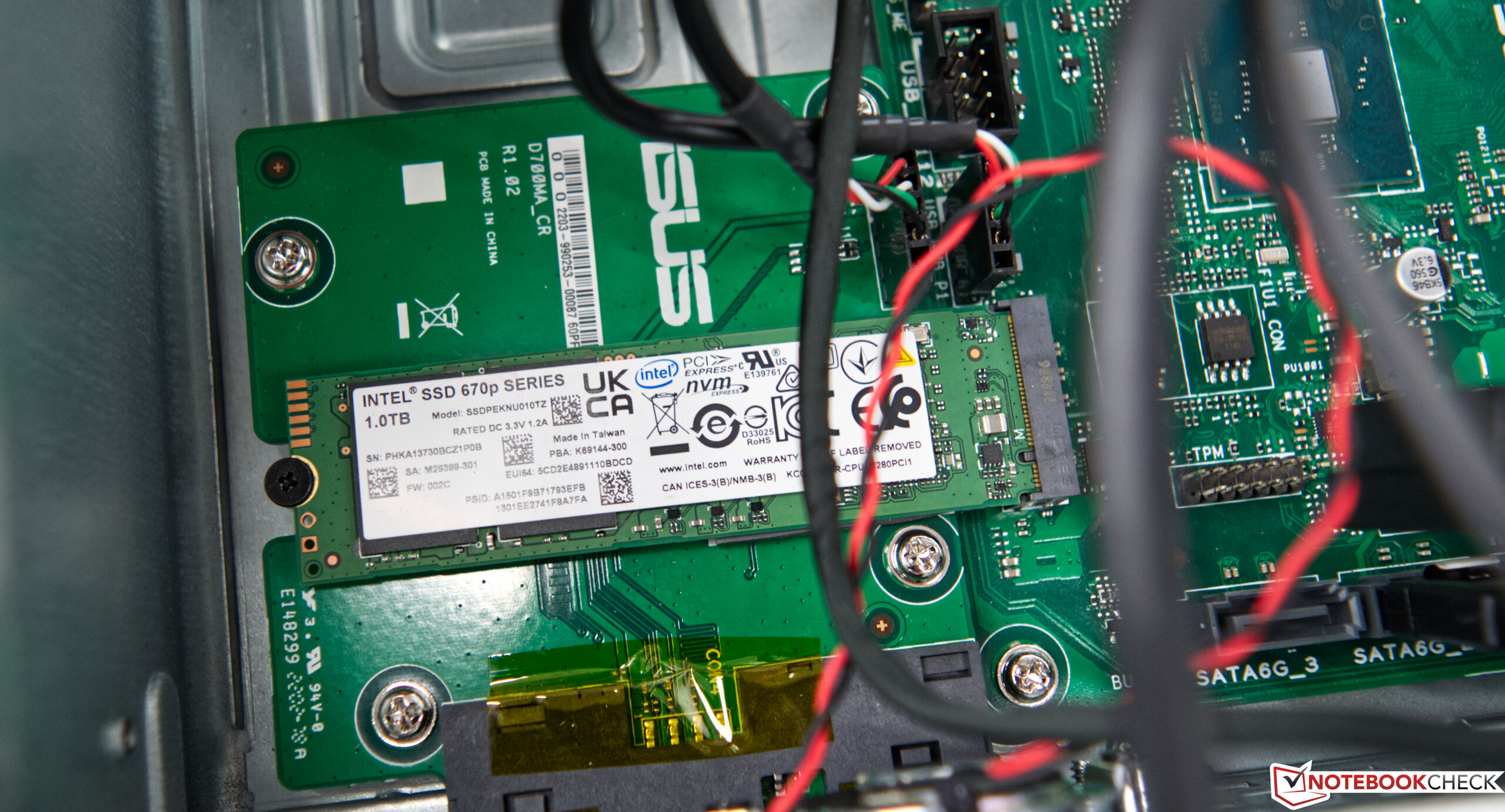

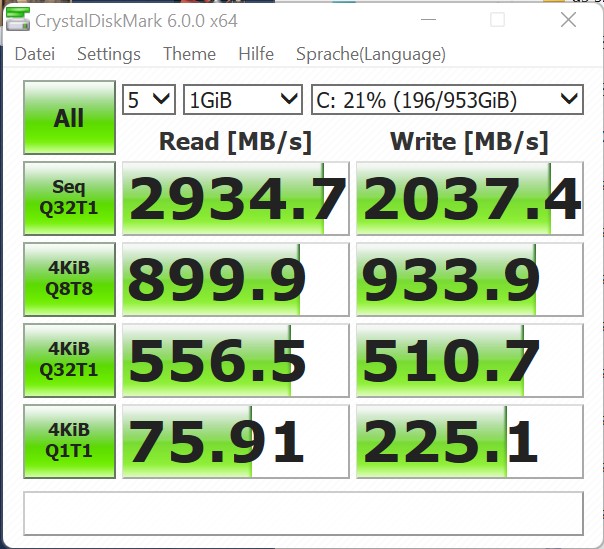

Soluzione per lo storage e le prestazioni delle applicazioni

L'impressione soggettiva delle prestazioni del sistema Asus ExpertCenter D9 SFF D900SC è buona. Allo stesso tempo, la nostra unità di test ha anche qualche problema a raggiungere buoni risultati nei valori misurati. Ad esempio, è sufficiente solo per il penultimo posto nel punteggio di PCMark. D'altra parte, il sistema è in grado di ottenere risultati relativamente buoni nei test di rendering grazie alla Nvidia T600. Per sottolineare le prestazioni in questo senso, abbiamo incluso anche un sistema con la Nvidia GeForce GTX 1650. Entrambe le schede grafiche sono basate sullo stesso chip. I test separati mostrano chiaramente cosa è possibile fare con una migliore ottimizzazione dei driver.

L'impressione soggettiva delle prestazioni è influenzata in modo significativo anche dall'unità SSD utilizzata. L'SSD M.2-2280 da 1 TB di Intel offre velocità di lettura e scrittura elevate. Vogliamo sottolineare in particolare l'ottima velocità di lettura 4K, che aumenterà notevolmente la velocità di caricamento di molti file di piccole dimensioni.

PCMark 10 - Score
Intel Core i5-12600K, Intel Core i5-12600K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	8259 Points +32%
Intel Core i5-11600K, Intel Core i5-11600K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	7740 Points +23%
Intel Core i7-10700K, Intel Core i7-10700K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	7512 Points +20%
Intel Core i5-10600K, Intel Core i5-10600K NVIDIA Titan RTX,	7279 Points +16%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S	6952 Points +11%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	6507 Points +4%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 NVIDIA GeForce RTX 3070, Phison 512GB PA6620060U	6499 Points +4%
Prime Computer Primestation Pulsar, AMD Ryzen 7 PRO 5750G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Samsung SSD 980 1TB MZ-V8V1T0BW	6480 Points +3%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S	6444 Points +3%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	6290 Points 0%
Asus ExpertCenter D9 SFF, Intel Core i7-11700 NVIDIA T600, Intel SSD 670p SSDPEKNU010TZ	6271 Points
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	6214 Points -1%

SPECviewperf 12
1900x1060 Solidworks (sw-03)
Intel Core i5-11600K, Intel Core i5-11600K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	171 fps +49%
Intel Core i7-10700K, Intel Core i7-10700K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	168.3 fps +46%
Intel Core i5-12600K, Intel Core i5-12600K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	164 fps +43%
Intel Core i5-10600K, Intel Core i5-10600K NVIDIA Titan RTX,	158.2 fps +38%
Asus ExpertCenter D9 SFF, Intel Core i7-11700 NVIDIA T600, Intel SSD 670p SSDPEKNU010TZ	115 fps
Zotac Magnus One (ECM73070C), Intel Core i7-10700 NVIDIA GeForce RTX 3070, Phison 512GB PA6620060U	82.3 fps -28%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S	79.4 fps -31%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S	71.1 fps -38%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	64.5 fps -44%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	61.8 fps -46%
Prime Computer Primestation Pulsar, AMD Ryzen 7 PRO 5750G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Samsung SSD 980 1TB MZ-V8V1T0BW	60.7 fps -47%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	59.4 fps -48%
KFA2 GeForce GTX 1650 EX One Click Plus, AMD Ryzen 9 3900X NVIDIA GeForce GTX 1650 (Desktop),	47.78 fps -58%
1900x1060 Siemens NX (snx-02)
Intel Core i5-12600K, Intel Core i5-12600K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	276 fps +302%
Intel Core i7-10700K, Intel Core i7-10700K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	274.5 fps +300%
Intel Core i5-10600K, Intel Core i5-10600K NVIDIA Titan RTX,	259.1 fps +278%
Intel Core i5-11600K, Intel Core i5-11600K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	251 fps +266%
Asus ExpertCenter D9 SFF, Intel Core i7-11700 NVIDIA T600, Intel SSD 670p SSDPEKNU010TZ	68.6 fps
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S	22.2 fps -68%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	21.1 fps -69%
Prime Computer Primestation Pulsar, AMD Ryzen 7 PRO 5750G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Samsung SSD 980 1TB MZ-V8V1T0BW	20.9 fps -70%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	20.1 fps -71%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	18.6 fps -73%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 NVIDIA GeForce RTX 3070, Phison 512GB PA6620060U	12 fps -83%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S	11.7 fps -83%
KFA2 GeForce GTX 1650 EX One Click Plus, AMD Ryzen 9 3900X NVIDIA GeForce GTX 1650 (Desktop),	6.42 fps -91%
1900x1060 Showcase (showcase-01)
Intel Core i5-11600K, Intel Core i5-11600K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	202 fps +472%
Intel Core i5-12600K, Intel Core i5-12600K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	200 fps +467%
Intel Core i5-10600K, Intel Core i5-10600K NVIDIA Titan RTX,	196.1 fps +456%
Intel Core i7-10700K, Intel Core i7-10700K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	194.1 fps +450%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 NVIDIA GeForce RTX 3070, Phison 512GB PA6620060U	165 fps +367%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S	136 fps +285%
KFA2 GeForce GTX 1650 EX One Click Plus, AMD Ryzen 9 3900X NVIDIA GeForce GTX 1650 (Desktop),	51.8 fps +47%
Asus ExpertCenter D9 SFF, Intel Core i7-11700 NVIDIA T600, Intel SSD 670p SSDPEKNU010TZ	35.3 fps
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S	22 fps -38%
Prime Computer Primestation Pulsar, AMD Ryzen 7 PRO 5750G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Samsung SSD 980 1TB MZ-V8V1T0BW	17.5 fps -50%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	17.4 fps -51%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	14.4 fps -59%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	13.7 fps -61%
1900x1060 Medical (medical-01)
Intel Core i5-12600K, Intel Core i5-12600K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	105 fps +438%
Intel Core i5-10600K, Intel Core i5-10600K NVIDIA Titan RTX,	94.6 fps +385%
Intel Core i7-10700K, Intel Core i7-10700K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	93.7 fps +381%
Intel Core i5-11600K, Intel Core i5-11600K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	88.7 fps +355%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S	57.2 fps +193%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 NVIDIA GeForce RTX 3070, Phison 512GB PA6620060U	49 fps +151%
KFA2 GeForce GTX 1650 EX One Click Plus, AMD Ryzen 9 3900X NVIDIA GeForce GTX 1650 (Desktop),	23.29 fps +19%
Asus ExpertCenter D9 SFF, Intel Core i7-11700 NVIDIA T600, Intel SSD 670p SSDPEKNU010TZ	19.5 fps
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S	15.3 fps -22%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	14.8 fps -24%
Prime Computer Primestation Pulsar, AMD Ryzen 7 PRO 5750G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Samsung SSD 980 1TB MZ-V8V1T0BW	14.7 fps -25%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	12.4 fps -36%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	12.2 fps -37%
1900x1060 Maya (maya-04)
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S	212 fps +215%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 NVIDIA GeForce RTX 3070, Phison 512GB PA6620060U	200 fps +197%
Intel Core i5-12600K, Intel Core i5-12600K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	197 fps +192%
Intel Core i5-11600K, Intel Core i5-11600K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	186 fps +176%
Intel Core i7-10700K, Intel Core i7-10700K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	183 fps +172%
Intel Core i5-10600K, Intel Core i5-10600K NVIDIA Titan RTX,	169.4 fps +151%
KFA2 GeForce GTX 1650 EX One Click Plus, AMD Ryzen 9 3900X NVIDIA GeForce GTX 1650 (Desktop),	93.9 fps +39%
Asus ExpertCenter D9 SFF, Intel Core i7-11700 NVIDIA T600, Intel SSD 670p SSDPEKNU010TZ	67.4 fps
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S	43.5 fps -35%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	36.8 fps -45%
Prime Computer Primestation Pulsar, AMD Ryzen 7 PRO 5750G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Samsung SSD 980 1TB MZ-V8V1T0BW	36.4 fps -46%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	31 fps -54%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	30 fps -55%
1900x1060 Energy (energy-01)
Intel Core i5-12600K, Intel Core i5-12600K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	29.8 fps +501%
Intel Core i5-10600K, Intel Core i5-10600K NVIDIA Titan RTX,	28.77 fps +480%
Intel Core i7-10700K, Intel Core i7-10700K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	28.55 fps +476%
Intel Core i5-11600K, Intel Core i5-11600K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	28.3 fps +471%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 NVIDIA GeForce RTX 3070, Phison 512GB PA6620060U	13.1 fps +164%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S	12.8 fps +158%
KFA2 GeForce GTX 1650 EX One Click Plus, AMD Ryzen 9 3900X NVIDIA GeForce GTX 1650 (Desktop),	5.03 fps +1%
Asus ExpertCenter D9 SFF, Intel Core i7-11700 NVIDIA T600, Intel SSD 670p SSDPEKNU010TZ	4.96 fps
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S	2.68 fps -46%
Prime Computer Primestation Pulsar, AMD Ryzen 7 PRO 5750G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Samsung SSD 980 1TB MZ-V8V1T0BW	2.28 fps -54%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	2.19 fps -56%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	0.53 fps -89%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	0.52 fps -90%
1900x1060 Creo (creo-01)
Intel Core i5-12600K, Intel Core i5-12600K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	177 fps +125%
Intel Core i5-11600K, Intel Core i5-11600K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	164 fps +109%
Intel Core i7-10700K, Intel Core i7-10700K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	153.4 fps +95%
Intel Core i5-10600K, Intel Core i5-10600K NVIDIA Titan RTX,	142.7 fps +82%
Asus ExpertCenter D9 SFF, Intel Core i7-11700 NVIDIA T600, Intel SSD 670p SSDPEKNU010TZ	78.5 fps
Zotac Magnus One (ECM73070C), Intel Core i7-10700 NVIDIA GeForce RTX 3070, Phison 512GB PA6620060U	61.5 fps -22%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S	59 fps -25%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S	42.4 fps -46%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	37.2 fps -53%
Prime Computer Primestation Pulsar, AMD Ryzen 7 PRO 5750G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Samsung SSD 980 1TB MZ-V8V1T0BW	36.1 fps -54%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	35.9 fps -54%
KFA2 GeForce GTX 1650 EX One Click Plus, AMD Ryzen 9 3900X NVIDIA GeForce GTX 1650 (Desktop),	34.79 fps -56%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	34.6 fps -56%
1900x1060 Catia (catia-04)
Intel Core i5-12600K, Intel Core i5-12600K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	276 fps +259%
Intel Core i5-11600K, Intel Core i5-11600K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	251 fps +226%
Intel Core i5-10600K, Intel Core i5-10600K NVIDIA Titan RTX,	215.5 fps +180%
Intel Core i7-10700K, Intel Core i7-10700K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	212.9 fps +177%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 NVIDIA GeForce RTX 3070, Phison 512GB PA6620060U	117 fps +52%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S	115 fps +50%
Asus ExpertCenter D9 SFF, Intel Core i7-11700 NVIDIA T600, Intel SSD 670p SSDPEKNU010TZ	76.9 fps
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S	48 fps -38%
KFA2 GeForce GTX 1650 EX One Click Plus, AMD Ryzen 9 3900X NVIDIA GeForce GTX 1650 (Desktop),	43.9 fps -43%
Prime Computer Primestation Pulsar, AMD Ryzen 7 PRO 5750G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Samsung SSD 980 1TB MZ-V8V1T0BW	42.3 fps -45%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	41.2 fps -46%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	37.7 fps -51%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	34.4 fps -55%
1900x1060 3ds Max (3dsmax-05)
Intel Core i5-10600K, Intel Core i5-10600K NVIDIA Titan RTX,	296.9 fps +271%
Intel Core i7-10700K, Intel Core i7-10700K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	293.2 fps +267%
Intel Core i5-11600K, Intel Core i5-11600K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	288 fps +260%
Intel Core i5-12600K, Intel Core i5-12600K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	263 fps +229%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S	233 fps +191%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 NVIDIA GeForce RTX 3070, Phison 512GB PA6620060U	213 fps +166%
KFA2 GeForce GTX 1650 EX One Click Plus, AMD Ryzen 9 3900X NVIDIA GeForce GTX 1650 (Desktop),	110.1 fps +38%
Asus ExpertCenter D9 SFF, Intel Core i7-11700 NVIDIA T600, Intel SSD 670p SSDPEKNU010TZ	80 fps
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S	53 fps -34%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	47.5 fps -41%
Prime Computer Primestation Pulsar, AMD Ryzen 7 PRO 5750G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Samsung SSD 980 1TB MZ-V8V1T0BW	46.9 fps -41%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	43.7 fps -45%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	40.8 fps -49%

SPECviewperf 13
Solidworks (sw-04)
Intel Core i5-12600K, Intel Core i5-12600K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	187 fps +64%
Intel Core i5-11600K, Intel Core i5-11600K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	185 fps +62%
Intel Core i7-10700K, Intel Core i7-10700K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	162.6 fps +43%
Intel Core i5-10600K, Intel Core i5-10600K NVIDIA Titan RTX,	153.9 fps +35%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 NVIDIA GeForce RTX 3070, Phison 512GB PA6620060U	114 fps 0%
Asus ExpertCenter D9 SFF, Intel Core i7-11700 NVIDIA T600, Intel SSD 670p SSDPEKNU010TZ	114 fps
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S	111 fps -3%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S	79.4 fps -30%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	71.7 fps -37%
Prime Computer Primestation Pulsar, AMD Ryzen 7 PRO 5750G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Samsung SSD 980 1TB MZ-V8V1T0BW	70.2 fps -38%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	69.6 fps -39%
KFA2 GeForce GTX 1650 EX One Click Plus, AMD Ryzen 9 3900X NVIDIA GeForce GTX 1650 (Desktop),	68.9 fps -40%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	67.7 fps -41%
Siemens NX (snx-03)
Intel Core i5-12600K, Intel Core i5-12600K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	499 fps +309%
Intel Core i7-10700K, Intel Core i7-10700K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	494.5 fps +305%
Intel Core i5-10600K, Intel Core i5-10600K NVIDIA Titan RTX,	469.1 fps +285%
Intel Core i5-11600K, Intel Core i5-11600K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	453 fps +271%
Asus ExpertCenter D9 SFF, Intel Core i7-11700 NVIDIA T600, Intel SSD 670p SSDPEKNU010TZ	122 fps
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S	39.9 fps -67%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	38.2 fps -69%
Prime Computer Primestation Pulsar, AMD Ryzen 7 PRO 5750G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Samsung SSD 980 1TB MZ-V8V1T0BW	36.7 fps -70%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	36.3 fps -70%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	33.6 fps -72%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 NVIDIA GeForce RTX 3070, Phison 512GB PA6620060U	21.9 fps -82%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S	20.9 fps -83%
KFA2 GeForce GTX 1650 EX One Click Plus, AMD Ryzen 9 3900X NVIDIA GeForce GTX 1650 (Desktop),	11.49 fps -91%
Showcase (showcase-02)
Intel Core i5-12600K, Intel Core i5-12600K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	199 fps +470%
Intel Core i5-10600K, Intel Core i5-10600K NVIDIA Titan RTX,	195.1 fps +459%
Intel Core i7-10700K, Intel Core i7-10700K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	194.5 fps +457%
Intel Core i5-11600K, Intel Core i5-11600K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	193 fps +453%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 NVIDIA GeForce RTX 3070, Phison 512GB PA6620060U	165 fps +373%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S	135 fps +287%
KFA2 GeForce GTX 1650 EX One Click Plus, AMD Ryzen 9 3900X NVIDIA GeForce GTX 1650 (Desktop),	51.6 fps +48%
Asus ExpertCenter D9 SFF, Intel Core i7-11700 NVIDIA T600, Intel SSD 670p SSDPEKNU010TZ	34.9 fps
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S	22 fps -37%
Prime Computer Primestation Pulsar, AMD Ryzen 7 PRO 5750G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Samsung SSD 980 1TB MZ-V8V1T0BW	17.4 fps -50%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	17.3 fps -50%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	14.1 fps -60%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	13.8 fps -60%
Medical (medical-02)
Intel Core i5-12600K, Intel Core i5-12600K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	92.8 fps +160%
Intel Core i7-10700K, Intel Core i7-10700K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	90.6 fps +154%
Intel Core i5-11600K, Intel Core i5-11600K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	90 fps +152%
Intel Core i5-10600K, Intel Core i5-10600K NVIDIA Titan RTX,	89.7 fps +151%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 NVIDIA GeForce RTX 3070, Phison 512GB PA6620060U	78.3 fps +119%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S	69.5 fps +95%
Asus ExpertCenter D9 SFF, Intel Core i7-11700 NVIDIA T600, Intel SSD 670p SSDPEKNU010TZ	35.7 fps
KFA2 GeForce GTX 1650 EX One Click Plus, AMD Ryzen 9 3900X NVIDIA GeForce GTX 1650 (Desktop),	25.58 fps -28%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S	21.7 fps -39%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	21.2 fps -41%
Prime Computer Primestation Pulsar, AMD Ryzen 7 PRO 5750G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Samsung SSD 980 1TB MZ-V8V1T0BW	20.4 fps -43%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	19.2 fps -46%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	18.7 fps -48%
Maya (maya-05)
Intel Core i5-12600K, Intel Core i5-12600K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	487 fps +388%
Intel Core i5-11600K, Intel Core i5-11600K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	449 fps +350%
Intel Core i7-10700K, Intel Core i7-10700K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	411.5 fps +312%
Intel Core i5-10600K, Intel Core i5-10600K NVIDIA Titan RTX,	387.5 fps +288%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 NVIDIA GeForce RTX 3070, Phison 512GB PA6620060U	367 fps +268%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S	337 fps +238%
KFA2 GeForce GTX 1650 EX One Click Plus, AMD Ryzen 9 3900X NVIDIA GeForce GTX 1650 (Desktop),	140.3 fps +41%
Asus ExpertCenter D9 SFF, Intel Core i7-11700 NVIDIA T600, Intel SSD 670p SSDPEKNU010TZ	99.8 fps
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S	58.5 fps -41%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	48.6 fps -51%
Prime Computer Primestation Pulsar, AMD Ryzen 7 PRO 5750G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Samsung SSD 980 1TB MZ-V8V1T0BW	48 fps -52%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	39.1 fps -61%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	38.9 fps -61%
Energy (energy-02)
Intel Core i5-11600K, Intel Core i5-11600K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	53.9 fps +328%
Intel Core i5-12600K, Intel Core i5-12600K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	53.9 fps +328%
Intel Core i5-10600K, Intel Core i5-10600K NVIDIA Titan RTX,	53.3 fps +323%
Intel Core i7-10700K, Intel Core i7-10700K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	52.4 fps +316%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 NVIDIA GeForce RTX 3070, Phison 512GB PA6620060U	28.2 fps +124%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S	25.5 fps +102%
Asus ExpertCenter D9 SFF, Intel Core i7-11700 NVIDIA T600, Intel SSD 670p SSDPEKNU010TZ	12.6 fps
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S	7.57 fps -40%
KFA2 GeForce GTX 1650 EX One Click Plus, AMD Ryzen 9 3900X NVIDIA GeForce GTX 1650 (Desktop),	7.03 fps -44%
Prime Computer Primestation Pulsar, AMD Ryzen 7 PRO 5750G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Samsung SSD 980 1TB MZ-V8V1T0BW	6.97 fps -45%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	6.93 fps -45%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	0.88 fps -93%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	0.87 fps -93%
Creo (creo-02)
Intel Core i5-12600K, Intel Core i5-12600K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	380 fps +288%
Intel Core i5-11600K, Intel Core i5-11600K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	354 fps +261%
Intel Core i7-10700K, Intel Core i7-10700K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	353.3 fps +261%
Intel Core i5-10600K, Intel Core i5-10600K NVIDIA Titan RTX,	331.7 fps +238%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 NVIDIA GeForce RTX 3070, Phison 512GB PA6620060U	241 fps +146%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S	225 fps +130%
KFA2 GeForce GTX 1650 EX One Click Plus, AMD Ryzen 9 3900X NVIDIA GeForce GTX 1650 (Desktop),	106 fps +8%
Asus ExpertCenter D9 SFF, Intel Core i7-11700 NVIDIA T600, Intel SSD 670p SSDPEKNU010TZ	98 fps
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S	59.3 fps -39%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	50.4 fps -49%
Prime Computer Primestation Pulsar, AMD Ryzen 7 PRO 5750G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Samsung SSD 980 1TB MZ-V8V1T0BW	49 fps -50%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	44.9 fps -54%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	41.8 fps -57%
Catia (catia-05)
Intel Core i5-12600K, Intel Core i5-12600K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	433 fps
Intel Core i5-11600K, Intel Core i5-11600K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	397 fps
Intel Core i7-10700K, Intel Core i7-10700K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	342.8 fps
Intel Core i5-10600K, Intel Core i5-10600K NVIDIA Titan RTX,	341.7 fps
Zotac Magnus One (ECM73070C), Intel Core i7-10700 NVIDIA GeForce RTX 3070, Phison 512GB PA6620060U	171 fps
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S	163 fps
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S	69.1 fps
KFA2 GeForce GTX 1650 EX One Click Plus, AMD Ryzen 9 3900X NVIDIA GeForce GTX 1650 (Desktop),	61.8 fps
Prime Computer Primestation Pulsar, AMD Ryzen 7 PRO 5750G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Samsung SSD 980 1TB MZ-V8V1T0BW	59.9 fps
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	59.3 fps
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	52.2 fps
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	49.3 fps
3ds Max (3dsmax-06)
Intel Core i5-10600K, Intel Core i5-10600K NVIDIA Titan RTX,	294.4 fps +268%
Intel Core i7-10700K, Intel Core i7-10700K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	290.8 fps +264%
Intel Core i5-11600K, Intel Core i5-11600K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	288 fps +260%
Intel Core i5-12600K, Intel Core i5-12600K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	263 fps +229%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S	235 fps +194%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 NVIDIA GeForce RTX 3070, Phison 512GB PA6620060U	213 fps +167%
KFA2 GeForce GTX 1650 EX One Click Plus, AMD Ryzen 9 3900X NVIDIA GeForce GTX 1650 (Desktop),	110.1 fps +38%
Asus ExpertCenter D9 SFF, Intel Core i7-11700 NVIDIA T600, Intel SSD 670p SSDPEKNU010TZ	79.9 fps
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S	52.9 fps -34%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	47.5 fps -41%
Prime Computer Primestation Pulsar, AMD Ryzen 7 PRO 5750G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Samsung SSD 980 1TB MZ-V8V1T0BW	46.8 fps -41%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	42.9 fps -46%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	40.5 fps -49%

ComputeMark v2.1
1024x600 Normal, Score
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S	24877 Points +416%
KFA2 GeForce GTX 1650 EX One Click Plus, AMD Ryzen 9 3900X NVIDIA GeForce GTX 1650 (Desktop),	7159 Points +48%
Asus ExpertCenter D9 SFF, Intel Core i7-11700 NVIDIA T600, Intel SSD 670p SSDPEKNU010TZ	4825 Points
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S	4166 Points -14%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	4148 Points -14%
Prime Computer Primestation Pulsar, AMD Ryzen 7 PRO 5750G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Samsung SSD 980 1TB MZ-V8V1T0BW	4019 Points -17%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	3843 Points -20%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	3499 Points -27%
Asus Maximus XIII Hero, Intel Core i7-11700K Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel SSD 670p SSDPEKNU010TZ	1348 Points -72%
1024x600 Normal, Fluid 3DTex
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S	2557 Points +265%
KFA2 GeForce GTX 1650 EX One Click Plus, AMD Ryzen 9 3900X NVIDIA GeForce GTX 1650 (Desktop),	949 Points +36%
Asus ExpertCenter D9 SFF, Intel Core i7-11700 NVIDIA T600, Intel SSD 670p SSDPEKNU010TZ	700 Points
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S	340 Points -51%
Prime Computer Primestation Pulsar, AMD Ryzen 7 PRO 5750G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Samsung SSD 980 1TB MZ-V8V1T0BW	292 Points -58%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	276 Points -61%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	235 Points -66%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	235 Points -66%
Asus Maximus XIII Hero, Intel Core i7-11700K Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel SSD 670p SSDPEKNU010TZ	181 Points -74%
1024x600 Normal, Fluid 2DTexArr
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S	2358 Points +274%
KFA2 GeForce GTX 1650 EX One Click Plus, AMD Ryzen 9 3900X NVIDIA GeForce GTX 1650 (Desktop),	889 Points +41%
Asus ExpertCenter D9 SFF, Intel Core i7-11700 NVIDIA T600, Intel SSD 670p SSDPEKNU010TZ	630 Points
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S	337 Points -47%
Prime Computer Primestation Pulsar, AMD Ryzen 7 PRO 5750G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Samsung SSD 980 1TB MZ-V8V1T0BW	280 Points -56%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	272 Points -57%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	231 Points -63%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	220 Points -65%
Asus Maximus XIII Hero, Intel Core i7-11700K Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel SSD 670p SSDPEKNU010TZ	165 Points -74%
1024x600 Normal, Mandel Vector
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S	4963 Points +371%
KFA2 GeForce GTX 1650 EX One Click Plus, AMD Ryzen 9 3900X NVIDIA GeForce GTX 1650 (Desktop),	1557 Points +48%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	1280 Points +21%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S	1255 Points +19%
Prime Computer Primestation Pulsar, AMD Ryzen 7 PRO 5750G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Samsung SSD 980 1TB MZ-V8V1T0BW	1234 Points +17%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1217 Points +15%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	1066 Points +1%
Asus ExpertCenter D9 SFF, Intel Core i7-11700 NVIDIA T600, Intel SSD 670p SSDPEKNU010TZ	1054 Points
Asus Maximus XIII Hero, Intel Core i7-11700K Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel SSD 670p SSDPEKNU010TZ	224 Points -79%
1024x600 Normal, Mandel Scalar
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S	5466 Points +483%
KFA2 GeForce GTX 1650 EX One Click Plus, AMD Ryzen 9 3900X NVIDIA GeForce GTX 1650 (Desktop),	1382 Points +47%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	1115 Points +19%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S	1084 Points +16%
Prime Computer Primestation Pulsar, AMD Ryzen 7 PRO 5750G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Samsung SSD 980 1TB MZ-V8V1T0BW	1065 Points +14%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1047 Points +12%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	964 Points +3%
Asus ExpertCenter D9 SFF, Intel Core i7-11700 NVIDIA T600, Intel SSD 670p SSDPEKNU010TZ	937 Points
Asus Maximus XIII Hero, Intel Core i7-11700K Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel SSD 670p SSDPEKNU010TZ	310 Points -67%
1024x600 Normal, QJuliaRayTrace
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S	9534 Points +534%
KFA2 GeForce GTX 1650 EX One Click Plus, AMD Ryzen 9 3900X NVIDIA GeForce GTX 1650 (Desktop),	2381 Points +58%
Asus ExpertCenter D9 SFF, Intel Core i7-11700 NVIDIA T600, Intel SSD 670p SSDPEKNU010TZ	1504 Points
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	1205 Points -20%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S	1149 Points -24%
Prime Computer Primestation Pulsar, AMD Ryzen 7 PRO 5750G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Samsung SSD 980 1TB MZ-V8V1T0BW	1148 Points -24%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1123 Points -25%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	1002 Points -33%
Asus Maximus XIII Hero, Intel Core i7-11700K Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel SSD 670p SSDPEKNU010TZ	468 Points -69%

LuxMark v2.0 64Bit
Sala GPUs-only
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S	9606 Samples/s +369%
KFA2 GeForce GTX 1650 EX One Click Plus, AMD Ryzen 9 3900X NVIDIA GeForce GTX 1650 (Desktop),	2582 Samples/s +26%
Asus ExpertCenter D9 SFF, Intel Core i7-11700 NVIDIA T600, Intel SSD 670p SSDPEKNU010TZ	2049 Samples/s
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S	1575 Samples/s -23%
Prime Computer Primestation Pulsar, AMD Ryzen 7 PRO 5750G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Samsung SSD 980 1TB MZ-V8V1T0BW	1298 Samples/s -37%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	1287 Samples/s -37%
Asus Maximus XIII Hero, Intel Core i7-11700K Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel SSD 670p SSDPEKNU010TZ	1115 Samples/s -46%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	948 Samples/s -54%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	939 Samples/s -54%
Room GPUs-only
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S	4566 Samples/s +307%
KFA2 GeForce GTX 1650 EX One Click Plus, AMD Ryzen 9 3900X NVIDIA GeForce GTX 1650 (Desktop),	1273 Samples/s +14%
Asus ExpertCenter D9 SFF, Intel Core i7-11700 NVIDIA T600, Intel SSD 670p SSDPEKNU010TZ	1121 Samples/s
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S	772 Samples/s -31%
Prime Computer Primestation Pulsar, AMD Ryzen 7 PRO 5750G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Samsung SSD 980 1TB MZ-V8V1T0BW	689 Samples/s -39%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	547 Samples/s -51%
Asus Maximus XIII Hero, Intel Core i7-11700K Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel SSD 670p SSDPEKNU010TZ	543 Samples/s -52%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	451 Samples/s -60%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	392 Samples/s -65%

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1867 μs * -44%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	1625 μs * -25%
Asus ExpertCenter D9 SFF, Intel Core i7-11700 NVIDIA T600, Intel SSD 670p SSDPEKNU010TZ	1295 μs *
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S	1214.8 μs * +6%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	1106 μs * +15%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Transcend M.2 SSD 430S TS512GMTS430S	829 μs * +36%
Prime Computer Primestation Pulsar, AMD Ryzen 7 PRO 5750G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Samsung SSD 980 1TB MZ-V8V1T0BW	767 μs * +41%

CrossMark
Responsiveness
Asus Maximus XIII Hero, Intel Core i7-11700K Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel SSD 670p SSDPEKNU010TZ	1602 Points +5%
Asus ExpertCenter D9 SFF, Intel Core i7-11700 NVIDIA T600, Intel SSD 670p SSDPEKNU010TZ	1533 Points
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S	1435 Points -6%
Prime Computer Primestation Pulsar, AMD Ryzen 7 PRO 5750G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Samsung SSD 980 1TB MZ-V8V1T0BW	1292 Points -16%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1271 Points -17%
Creativity
Asus Maximus XIII Hero, Intel Core i7-11700K Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel SSD 670p SSDPEKNU010TZ	1875 Points +5%
Asus ExpertCenter D9 SFF, Intel Core i7-11700 NVIDIA T600, Intel SSD 670p SSDPEKNU010TZ	1784 Points
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S	1613 Points -10%
Prime Computer Primestation Pulsar, AMD Ryzen 7 PRO 5750G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Samsung SSD 980 1TB MZ-V8V1T0BW	1517 Points -15%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1448 Points -19%
Productivity
Asus Maximus XIII Hero, Intel Core i7-11700K Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel SSD 670p SSDPEKNU010TZ	1740 Points +4%
Asus ExpertCenter D9 SFF, Intel Core i7-11700 NVIDIA T600, Intel SSD 670p SSDPEKNU010TZ	1678 Points
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S	1573 Points -6%
Prime Computer Primestation Pulsar, AMD Ryzen 7 PRO 5750G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Samsung SSD 980 1TB MZ-V8V1T0BW	1475 Points -12%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1453 Points -13%
Overall
Asus Maximus XIII Hero, Intel Core i7-11700K Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel SSD 670p SSDPEKNU010TZ	1775 Points +4%
Asus ExpertCenter D9 SFF, Intel Core i7-11700 NVIDIA T600, Intel SSD 670p SSDPEKNU010TZ	1701 Points
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S	1569 Points -8%
Prime Computer Primestation Pulsar, AMD Ryzen 7 PRO 5750G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Samsung SSD 980 1TB MZ-V8V1T0BW	1464 Points -14%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1424 Points -16%

* ... Meglio usare valori piccoli

prestazioni 3D e di gioco

Gli scenari di utilizzo principali dell'Asus ExpertCenter D9 SFF D900SC sono le applicazioni d'ufficio, l'elaborazione di immagini o video e alcune attività minori nell'area della workstation. Tuttavia, la piccola Nvidia T600è ancora adatto per uno o l'altro gioco. Tuttavia, è necessario accettare alcune limitazioni nei giochi più recenti o più esigenti. Giochi molto impegnativi dal punto di vista dello storage, come Far Cry 6, mettono rapidamente in ginocchio la piccola scheda grafica. I 4 GB di VRAM GDDR6 raggiungono i loro limiti già con l'impostazione High. In pratica, le prestazioni della Nvidia T600possono essere paragonate a quelle dellaNvidia GeForce GTX 1650. Entrambe le schede grafiche sono basate sul chip grafico TU117 della generazione Turing. Tuttavia, il TU117 della Nvidia T600 è leggermente limitato, il che si riflette nel numero di unità shader. L'Nvidia T600 offre 640 shader attivi, anche se la GTX 1650 ne ha 896. Solo la Nvidia T1000 è in grado di tenere completamente il passo con la GeForce GTX 1650, offrendo la stessa quantità di unità shader.

Chi vuole dotare l'Asus ExpertCenter D9 SFF D900SC di una scheda grafica più potente deve tenere presente la compatibilità, poiché è possibile inserire una scheda grafica solo nel formato a basso profilo.

Potete trovare ulteriori confronti e benchmark nel nostro G PU a confronto

Performance Rating - Percent
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	98.3 pt
Sapphire Pulse Radeon RX 6500 XT ^-2! Radeon RX 6500 XT, R9 5900X, Corsair MP600	71.8 pt
Asus ExpertCenter D9 SFF ^-2! T600, i7-11700, Intel SSD 670p SSDPEKNU010TZ	44.8 pt
AMD Ryzen 7 5700G ^-4! Vega 8, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S	34.1 pt
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	28.5 pt
Prime Computer Primestation Pulsar Vega 8, R7 PRO 5750G, Samsung SSD 980 1TB MZ-V8V1T0BW	27.7 pt
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	24.5 pt
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	24 pt
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	23.2 pt

Borderlands 3
1280x720 Very Low Overall Quality (DX11)
Sapphire Pulse Radeon RX 6500 XT Radeon RX 6500 XT, R9 5900X, Corsair MP600	139 fps +29%
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	135.5 fps +26%
Asus ExpertCenter D9 SFF T600, i7-11700, Intel SSD 670p SSDPEKNU010TZ	107.6 fps
AMD Ryzen 7 5700G Vega 8, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S	82.2 fps -24%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	72.7 fps -32%
Prime Computer Primestation Pulsar Vega 8, R7 PRO 5750G, Samsung SSD 980 1TB MZ-V8V1T0BW	71.4 fps -34%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	61 fps -43%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	60.1 fps -44%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	51.7 fps -52%
1920x1080 Badass Overall Quality (DX11)
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	84.6 fps +325%
Sapphire Pulse Radeon RX 6500 XT Radeon RX 6500 XT, R9 5900X, Corsair MP600	45 fps +126%
Asus ExpertCenter D9 SFF T600, i7-11700, Intel SSD 670p SSDPEKNU010TZ	19.9 fps
AMD Ryzen 7 5700G Vega 8, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S	14.9 fps -25%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	13.8 fps -31%
Prime Computer Primestation Pulsar Vega 8, R7 PRO 5750G, Samsung SSD 980 1TB MZ-V8V1T0BW	13.5 fps -32%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	11.7 fps -41%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	11.4 fps -43%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	11.3 fps -43%

Metro Exodus
1280x720 Low Quality AF:4x
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	177.1 (91.24^min - 271.37^max) fps +137%
Sapphire Pulse Radeon RX 6500 XT Radeon RX 6500 XT, R9 5900X, Corsair MP600	151 (82.26^min - 227.95^max) fps +102%
Asus ExpertCenter D9 SFF T600, i7-11700, Intel SSD 670p SSDPEKNU010TZ	74.6 (36.02^min - 124.22^max) fps
AMD Ryzen 7 5700G Vega 8, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S	54.7 (34.36^min - 82.18^max) fps -27%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	48.3 (30.74^min - 71.3^max) fps -35%
Prime Computer Primestation Pulsar Vega 8, R7 PRO 5750G, Samsung SSD 980 1TB MZ-V8V1T0BW	48.1 (29.67^min - 71.65^max) fps -36%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	40.4 (21.6^min - 65.78^max) fps -46%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	39.3 (25.31^min - 57.32^max) fps -47%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	39.2 (25.3^min - 57.01^max) fps -47%
1920x1080 Ultra Quality AF:16x
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	74.6 (38.33^min - 131.96^max) fps +285%
Sapphire Pulse Radeon RX 6500 XT Radeon RX 6500 XT, R9 5900X, Corsair MP600	40 (23.78^min - 55.43^max) fps +106%
Asus ExpertCenter D9 SFF T600, i7-11700, Intel SSD 670p SSDPEKNU010TZ	19.4 (10.31^min - 31.06^max) fps
AMD Ryzen 7 5700G Vega 8, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S	14.8 (8.42^min - 21.64^max) fps -24%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	13 (7.31^min - 18.99^max) fps -33%
Prime Computer Primestation Pulsar Vega 8, R7 PRO 5750G, Samsung SSD 980 1TB MZ-V8V1T0BW	13 (7.25^min - 19.22^max) fps -33%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	11.6 (6.55^min - 19.58^max) fps -40%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	10.8 (5.78^min - 15.68^max) fps -44%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	9.91 (5.19^min - 14.43^max) fps -49%

Far Cry New Dawn
1280x720 Low Preset
Sapphire Pulse Radeon RX 6500 XT Radeon RX 6500 XT, R9 5900X, Corsair MP600	150 (103^min - 226^max) fps
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	134 (89^min - 198^max) fps
AMD Ryzen 7 5700G Vega 8, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S	66 (50^min - 79^max) fps
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	56 (43^min - 67^max) fps
Prime Computer Primestation Pulsar Vega 8, R7 PRO 5750G, Samsung SSD 980 1TB MZ-V8V1T0BW	54 (42^min - 65^max) fps
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	48 (30^min - 63^max) fps
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	44 (34^min - 53^max) fps
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	42 (33^min - 50^max) fps
1920x1080 Ultra Preset
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	100 (67^min - 162^max) fps
Sapphire Pulse Radeon RX 6500 XT Radeon RX 6500 XT, R9 5900X, Corsair MP600	82 (61^min - 103^max) fps
AMD Ryzen 7 5700G Vega 8, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S	28 (21^min - 35^max) fps
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	25 (18^min - 31^max) fps
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	24 (19^min - 30^max) fps
Prime Computer Primestation Pulsar Vega 8, R7 PRO 5750G, Samsung SSD 980 1TB MZ-V8V1T0BW	24 (19^min - 29^max) fps
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	19 (14^min - 24^max) fps
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	18 (3^min - 22^max) fps

Far Cry 5
1280x720 Low Preset AA:T
Sapphire Pulse Radeon RX 6500 XT Radeon RX 6500 XT, R9 5900X, Corsair MP600	167 (133^min - 226^max) fps +76%
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	159 (115^min - 214^max) fps +67%
Asus ExpertCenter D9 SFF T600, i7-11700, Intel SSD 670p SSDPEKNU010TZ	95 (80^min - 110^max) fps
AMD Ryzen 7 5700G Vega 8, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S	71 (64^min - 85^max) fps -25%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	62 (57^min - 74^max) fps -35%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	55 (48^min - 66^max) fps -42%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	48 (44^min - 57^max) fps -49%
Prime Computer Primestation Pulsar Vega 8, R7 PRO 5750G, Samsung SSD 980 1TB MZ-V8V1T0BW	46 (43^min - 53^max) fps -52%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	44 (19^min - 57^max) fps -54%
1920x1080 Ultra Preset AA:T
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	120 (91^min - 161^max) fps +208%
Sapphire Pulse Radeon RX 6500 XT Radeon RX 6500 XT, R9 5900X, Corsair MP600	85 (75^min - 103^max) fps +118%
Asus ExpertCenter D9 SFF T600, i7-11700, Intel SSD 670p SSDPEKNU010TZ	39 (35^min - 47^max) fps
AMD Ryzen 7 5700G Vega 8, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S	29 (25^min - 36^max) fps -26%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	25 (23^min - 32^max) fps -36%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	25 (22^min - 29^max) fps -36%
Prime Computer Primestation Pulsar Vega 8, R7 PRO 5750G, Samsung SSD 980 1TB MZ-V8V1T0BW	22 (20^min - 26^max) fps -44%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	19 (17^min - 23^max) fps -51%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	19 (8^min - 24^max) fps -51%

X-Plane 11.11
1280x720 low (fps_test=1)
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	136.6 fps +3%
Asus ExpertCenter D9 SFF T600, i7-11700, Intel SSD 670p SSDPEKNU010TZ	132.8 fps
AMD Ryzen 7 5700G Vega 8, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S	64.9 fps -51%
Prime Computer Primestation Pulsar Vega 8, R7 PRO 5750G, Samsung SSD 980 1TB MZ-V8V1T0BW	57.5 fps -57%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	56.9 fps -57%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	53.9 fps -59%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	53.1 fps -60%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	27.3 fps -79%
1920x1080 high (fps_test=3)
Asus ExpertCenter D9 SFF T600, i7-11700, Intel SSD 670p SSDPEKNU010TZ	95.9 fps
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	95.7 fps 0%
AMD Ryzen 7 5700G Vega 8, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S	43.1 fps -55%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	40.1 fps -58%
Prime Computer Primestation Pulsar Vega 8, R7 PRO 5750G, Samsung SSD 980 1TB MZ-V8V1T0BW	39.2 fps -59%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	37 fps -61%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	37 fps -61%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	21.7 fps -77%

Final Fantasy XV Benchmark
1280x720 Lite Quality
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	190.1 fps +169%
Sapphire Pulse Radeon RX 6500 XT Radeon RX 6500 XT, R9 5900X, Corsair MP600	145 fps +105%
Asus ExpertCenter D9 SFF T600, i7-11700, Intel SSD 670p SSDPEKNU010TZ	70.7 fps
AMD Ryzen 7 5700G Vega 8, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S	50.1 fps -29%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	45 fps -36%
Prime Computer Primestation Pulsar Vega 8, R7 PRO 5750G, Samsung SSD 980 1TB MZ-V8V1T0BW	44.4 fps -37%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	43.2 fps -39%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	37 fps -48%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	37 fps -48%
1920x1080 High Quality
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	101 fps +302%
Sapphire Pulse Radeon RX 6500 XT Radeon RX 6500 XT, R9 5900X, Corsair MP600	48.9 fps +95%
Asus ExpertCenter D9 SFF T600, i7-11700, Intel SSD 670p SSDPEKNU010TZ	25.1 fps
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	23.2 fps -8%
AMD Ryzen 7 5700G Vega 8, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S	17.7 fps -29%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	16 fps -36%
Prime Computer Primestation Pulsar Vega 8, R7 PRO 5750G, Samsung SSD 980 1TB MZ-V8V1T0BW	15.7 fps -37%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	13.6 fps -46%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	13 fps -48%

Dota 2 Reborn
1280x720 min (0/3) fastest
Sapphire Pulse Radeon RX 6500 XT Radeon RX 6500 XT, R9 5900X, Corsair MP600	189 (133.9^min) fps +16%
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	164.4 (144.1^min) fps +1%
Asus ExpertCenter D9 SFF T600, i7-11700, Intel SSD 670p SSDPEKNU010TZ	162.8 (146.5^min) fps
AMD Ryzen 7 5700G Vega 8, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S	152 (126.2^min) fps -7%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	137.4 (117.3^min) fps -16%
Prime Computer Primestation Pulsar Vega 8, R7 PRO 5750G, Samsung SSD 980 1TB MZ-V8V1T0BW	129.6 (110.9^min) fps -20%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	127 (111.3^min) fps -22%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	125.3 (113.2^min) fps -23%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	124.2 (110.5^min) fps -24%
1920x1080 ultra (3/3) best looking
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	133.9 (116.8^min) fps +21%
Asus ExpertCenter D9 SFF T600, i7-11700, Intel SSD 670p SSDPEKNU010TZ	110.5 (94.9^min) fps
Sapphire Pulse Radeon RX 6500 XT Radeon RX 6500 XT, R9 5900X, Corsair MP600	103.5 (80.2^min) fps -6%
AMD Ryzen 7 5700G Vega 8, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S	72 (66.4^min) fps -35%
Prime Computer Primestation Pulsar Vega 8, R7 PRO 5750G, Samsung SSD 980 1TB MZ-V8V1T0BW	64.6 (60^min) fps -42%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	62.8 (57.5^min) fps -43%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	54.8 (47.9^min) fps -50%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	49.9 (43.8^min) fps -55%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	48.4 (44.3^min) fps -56%

GTA V
1024x768 Lowest Settings possible
Sapphire Pulse Radeon RX 6500 XT Radeon RX 6500 XT, R9 5900X, Corsair MP600	186 (4.63^min, 143^P1 - 471^max) fps +2%
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	182.7 (2.41^min, 142.9^P1 - 282^max) fps +1%
Asus ExpertCenter D9 SFF T600, i7-11700, Intel SSD 670p SSDPEKNU010TZ	181.5 (3.73^min, 142.9^P1 - 337^max) fps
AMD Ryzen 7 5700G Vega 8, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S	160 (4.62^min, 125^P1 - 374^max) fps -12%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	136 (6.37^min, 90.9^P1 - 322^max) fps -25%
Prime Computer Primestation Pulsar Vega 8, R7 PRO 5750G, Samsung SSD 980 1TB MZ-V8V1T0BW	135.3 (43.4^min, 90.9^P1 - 240^max) fps -25%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	116 (17^min, 76.9^P1 - 213^max) fps -36%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	113.4 (25.6^min, 76.9^P1 - 181.1^max) fps -38%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	99.2 (25.1^min, 58.8^P1 - 158^max) fps -45%
1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	104.9 (4.3^min, 71.4^P1 - 204^max) fps +175%
Sapphire Pulse Radeon RX 6500 XT Radeon RX 6500 XT, R9 5900X, Corsair MP600	51.3 (12.2^min, 37^P1 - 227^max) fps +34%
Asus ExpertCenter D9 SFF T600, i7-11700, Intel SSD 670p SSDPEKNU010TZ	38.2 (3.13^min, 26.3^P1 - 69.1^max) fps
AMD Ryzen 7 5700G Vega 8, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S	18.2 (10.4^min, 13.2^P1 - 135^max) fps -52%
Prime Computer Primestation Pulsar Vega 8, R7 PRO 5750G, Samsung SSD 980 1TB MZ-V8V1T0BW	15.3 (9.14^min, 11.2^P1 - 60.5^max) fps -60%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	15.2 (7.37^min, 10.8^P1 - 37.9^max) fps -60%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	12 (3.91^min, 8.93^P1 - 33.5^max) fps -69%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	11.2 (5.88^min, 8.26^P1 - 32.9^max) fps -71%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	10.2 (4.22^min, 6.37^P1 - 90.8^max) fps -73%

The Witcher 3
1024x768 Low Graphics & Postprocessing
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	435 (17.2^min, 159.4^P0.1, 291^P1 - 681^max) fps +213%
Sapphire Pulse Radeon RX 6500 XT Radeon RX 6500 XT, R9 5900X, Corsair MP600	319 (21.9^min, 91.4^P0.1, 244^P1 - 662^max) fps +129%
Asus ExpertCenter D9 SFF T600, i7-11700, Intel SSD 670p SSDPEKNU010TZ	139.1 (20.4^min, 84^P0.1, 109.4^P1 - 490^max) fps
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	89.8 (38.5^min, 43^P0.1, 53.7^P1 - 193^max) fps -35%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	84.5 (18.4^min, 24^P0.1, 61.8^P1 - 302^max) fps -39%
Prime Computer Primestation Pulsar Vega 8, R7 PRO 5750G, Samsung SSD 980 1TB MZ-V8V1T0BW	82.1 (17.6^min, 46.9^P0.1, 61.6^P1 - 254^max) fps -41%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	72.2 (21.1^min, 40.1^P0.1, 51.4^P1 - 229^max) fps -48%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	69 (13.2^min, 36.3^P0.1, 41.6^P1 - 257^max) fps -50%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	190.1 (27.7^min, 84.1^P0.1, 144.8^P1 - 421^max) fps +300%
Sapphire Pulse Radeon RX 6500 XT Radeon RX 6500 XT, R9 5900X, Corsair MP600	94.8 (17.9^min, 67.6^P0.1, 81.3^P1 - 241^max) fps +100%
Asus ExpertCenter D9 SFF T600, i7-11700, Intel SSD 670p SSDPEKNU010TZ	47.5 (36.1^min, 37.7^P0.1, 40.7^P1 - 69.5^max) fps
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	29.5 (11.7^min, 15.1^P0.1, 17.6^P1 - 109^max) fps -38%
Prime Computer Primestation Pulsar Vega 8, R7 PRO 5750G, Samsung SSD 980 1TB MZ-V8V1T0BW	25.9 (17.5^min, 21.1^P0.1, 22.6^P1 - 35.7^max) fps -45%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	25.6 (19.1^min, 20^P0.1, 22.1^P1 - 34.9^max) fps -46%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	21.9 (8.18^min, 17.5^P0.1, 19^P1 - 131^max) fps -54%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	19.3 (2.25^min, 2.26^P0.1, 2.92^P1 - 33.1^max) fps -59%

F1 2020
1280x720 Ultra Low Preset
Sapphire Pulse Radeon RX 6500 XT Radeon RX 6500 XT, R9 5900X, Corsair MP600	355 (320^min - 403^max) fps +136%
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	315 (253^min - 344^max) fps +109%
Asus ExpertCenter D9 SFF T600, i7-11700, Intel SSD 670p SSDPEKNU010TZ	150.4 (131^min - 177^max) fps
AMD Ryzen 7 5700G Vega 8, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S	127 (111^min - 154^max) fps -16%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	114 (101^min - 137^max) fps -24%
Prime Computer Primestation Pulsar Vega 8, R7 PRO 5750G, Samsung SSD 980 1TB MZ-V8V1T0BW	112.6 (98^min - 134^max) fps -25%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	94.7 (78^min - 114^max) fps -37%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	93.1 (80^min - 108^max) fps -38%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	89.9 (78^min - 108^max) fps -40%
1920x1080 High Preset AA:T AF:16x
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	238 (207^min - 272^max) fps +329%
Sapphire Pulse Radeon RX 6500 XT Radeon RX 6500 XT, R9 5900X, Corsair MP600	137 (111^min - 162^max) fps +147%
Asus ExpertCenter D9 SFF T600, i7-11700, Intel SSD 670p SSDPEKNU010TZ	55.5 (48^min - 64^max) fps
AMD Ryzen 7 5700G Vega 8, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S	44.6 (37^min - 53^max) fps -20%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	40.4 (34^min - 48^max) fps -27%
Prime Computer Primestation Pulsar Vega 8, R7 PRO 5750G, Samsung SSD 980 1TB MZ-V8V1T0BW	39.3 (32^min - 47^max) fps -29%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	36.4 (30^min - 42^max) fps -34%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	33.4 (28^min - 39^max) fps -40%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	31.7 (26^min - 37^max) fps -43%

F1 2021
1280x720 Ultra Low Preset
Sapphire Pulse Radeon RX 6500 XT Radeon RX 6500 XT, R9 5900X, Corsair MP600	382 (307^min, 255^P1 - 483^max) fps +122%
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	367 (260^min, 240^P1 - 399^max) fps +113%
Asus ExpertCenter D9 SFF T600, i7-11700, Intel SSD 670p SSDPEKNU010TZ	171.9 (145^min, 140^P1 - 210^max) fps
AMD Ryzen 7 5700G Vega 8, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S	134 (109^min, 109^P1 - 157^max) fps -22%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	122 (97^min, 96^P1 - 142^max) fps -29%
Prime Computer Primestation Pulsar Vega 8, R7 PRO 5750G, Samsung SSD 980 1TB MZ-V8V1T0BW	117.9 (62^min, 75^P1 - 138^max) fps -31%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	105 (81^min, 78^P1 - 125^max) fps -39%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	98.3 (74^min, 75^P1 - 114^max) fps -43%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	91.1 (72^min, 71^P1 - 106^max) fps -47%
1920x1080 High Preset AA:T AF:16x
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	246 (198^min, 143^P1 - 278^max) fps +286%
Sapphire Pulse Radeon RX 6500 XT Radeon RX 6500 XT, R9 5900X, Corsair MP600	109 (81^min, 79^P1 - 131^max) fps +71%
Asus ExpertCenter D9 SFF T600, i7-11700, Intel SSD 670p SSDPEKNU010TZ	63.7 (54^min, 52^P1 - 70^max) fps
AMD Ryzen 7 5700G Vega 8, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S	45.9 (39^min, 38^P1 - 52^max) fps -28%
Prime Computer Primestation Pulsar Vega 8, R7 PRO 5750G, Samsung SSD 980 1TB MZ-V8V1T0BW	40.2 (33^min, 33^P1 - 46^max) fps -37%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	40.1 (33^min, 33^P1 - 45^max) fps -37%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	40.1 (33^min, 33^P1 - 45^max) fps -37%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	31.9 (27^min, 26^P1 - 36^max) fps -50%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	30.3 (25^min, 25^P1 - 34^max) fps -52%

3DMark 11
1280x720 Performance GPU
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	34957 Points +302%
Sapphire Pulse Radeon RX 6500 XT Radeon RX 6500 XT, R9 5900X, Corsair MP600	20419 Points +135%
Asus ExpertCenter D9 SFF T600, i7-11700, Intel SSD 670p SSDPEKNU010TZ	8694 Points
AMD Ryzen 7 5700G Vega 8, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S	7591 Points -13%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	7122 Points -18%
Prime Computer Primestation Pulsar Vega 8, R7 PRO 5750G, Samsung SSD 980 1TB MZ-V8V1T0BW	6939 Points -20%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	6518 Points -25%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	6306 Points -27%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	5777 Points -34%
1280x720 Performance
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	26749 Points +182%
Sapphire Pulse Radeon RX 6500 XT Radeon RX 6500 XT, R9 5900X, Corsair MP600	20343 Points +114%
Asus ExpertCenter D9 SFF T600, i7-11700, Intel SSD 670p SSDPEKNU010TZ	9497 Points
AMD Ryzen 7 5700G Vega 8, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S	8050 Points -15%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	7449 Points -22%
Prime Computer Primestation Pulsar Vega 8, R7 PRO 5750G, Samsung SSD 980 1TB MZ-V8V1T0BW	7271 Points -23%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	6905 Points -27%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	6462 Points -32%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	5997 Points -37%

3DMark
Fire Strike Extreme Graphics
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	12636 Points +313%
Sapphire Pulse Radeon RX 6500 XT Radeon RX 6500 XT, R9 5900X, Corsair MP600	6695 Points +119%
Asus ExpertCenter D9 SFF T600, i7-11700, Intel SSD 670p SSDPEKNU010TZ	3061 Points
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	2167 Points -29%
AMD Ryzen 7 5700G Vega 8, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S	2085 Points -32%
Prime Computer Primestation Pulsar Vega 8, R7 PRO 5750G, Samsung SSD 980 1TB MZ-V8V1T0BW	1830 Points -40%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	1823 Points -40%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	1578 Points -48%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	1509 Points -51%
1920x1080 Fire Strike Graphics
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	26284 Points +301%
Sapphire Pulse Radeon RX 6500 XT Radeon RX 6500 XT, R9 5900X, Corsair MP600	15344 Points +134%
Asus ExpertCenter D9 SFF T600, i7-11700, Intel SSD 670p SSDPEKNU010TZ	6552 Points
AMD Ryzen 7 5700G Vega 8, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S	5041 Points -23%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	4730 Points -28%
Prime Computer Primestation Pulsar Vega 8, R7 PRO 5750G, Samsung SSD 980 1TB MZ-V8V1T0BW	4397 Points -33%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	4369 Points -33%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	3775 Points -42%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	3379 Points -48%
2560x1440 Time Spy Graphics
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	9929 Points +352%
Sapphire Pulse Radeon RX 6500 XT Radeon RX 6500 XT, R9 5900X, Corsair MP600	4942 Points +125%
Asus ExpertCenter D9 SFF T600, i7-11700, Intel SSD 670p SSDPEKNU010TZ	2195 Points
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	1592 Points -27%
AMD Ryzen 7 5700G Vega 8, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S	1557 Points -29%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	1412 Points -36%
Prime Computer Primestation Pulsar Vega 8, R7 PRO 5750G, Samsung SSD 980 1TB MZ-V8V1T0BW	1303 Points -41%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	1247 Points -43%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	1150 Points -48%

Unigine Superposition
1280x720 720p Low
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	30771 Points +119%
Sapphire Pulse Radeon RX 6500 XT Radeon RX 6500 XT, R9 5900X, Corsair MP600	24124 Points +72%
Asus ExpertCenter D9 SFF T600, i7-11700, Intel SSD 670p SSDPEKNU010TZ	14056 Points
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	7768 Points -45%
Prime Computer Primestation Pulsar Vega 8, R7 PRO 5750G, Samsung SSD 980 1TB MZ-V8V1T0BW	7678 Points -45%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	6430 Points -54%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	6189 Points -56%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	5998 Points -57%
1920x1080 1080p Extreme
Zotac ZBOX Magnus EN173070C GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S	6259 Points +416%
Sapphire Pulse Radeon RX 6500 XT Radeon RX 6500 XT, R9 5900X, Corsair MP600	2810 Points +132%
Asus ExpertCenter D9 SFF T600, i7-11700, Intel SSD 670p SSDPEKNU010TZ	1213 Points
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	992 Points -18%
Prime Computer Primestation Pulsar Vega 8, R7 PRO 5750G, Samsung SSD 980 1TB MZ-V8V1T0BW	897 Points -26%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	868 Points -28%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	762 Points -37%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	736 Points -39%

	basso	medio	alto	ultra	QHD	4K
GTA V (2015)	181.5	175.6	80.3	38.2	26.6	25
The Witcher 3 (2015)	139.1	82.8	47.5	27.2		16.1
Dota 2 Reborn (2015)	162.8	148.6	120.7	110.5		39.6
Final Fantasy XV Benchmark (2018)	70.7	34.9	25.1		17.8	9.98
X-Plane 11.11 (2018)	132.8	107	95.9			40.8
Far Cry 5 (2018)	95	46	42	39	26	12
Strange Brigade (2018)	174.4	64.9	51.4	44.8	31.9	17.9
Metro Exodus (2019)	74.6	34	24	19.4	14.8	8.47
Borderlands 3 (2019)	107.6	42	26.7	19.9	13.4	5.54
F1 2020 (2020)	150.4	73.1	55.5	38.6	27	14.5
F1 2021 (2021)	171.9	78.8	63.7	40.2	29.1	15.7
Far Cry 6 (2021)	93.5	44.6	21.3	6.33

Emissioni

Emissioni sonore

Le emissioni acustiche dell'Asus ExpertCenter D9 SFF D900SC rimangono entro i limiti. Mentre durante il funzionamento inattivo il dispositivo è appena udibile, sotto carico il livello di rumore aumenta fino a 37,7 dB(A) in media. Durante lo stress test, che simula uno scenario estremo, si misura un massimo di 43,1 dB(A). Inoltre, il rumore della ventola non può essere definito fastidioso. La velocità della ventola viene variata lentamente, evitando così un'accelerazione del numero di giri.

Rumorosità

Idle		31.4 / 31.4 / 31.5 dB(A)
Sotto carico		37.7 / 43.1 dB(A)

	30 dB silenzioso 40 dB(A) udibile 50 dB(A) rumoroso
min: , med: , max: Earthworks M23R, Arta (15 cm di distanza) Rumorosità ambientale: 29.8 dB(A)

Temperature

Nel nostro stress test, abbiamo eseguito Prime95 e FurMark contemporaneamente, documentando le temperature in questo scenario estremo. L'Intel Core i7-11700 raggiunge gli 85 °C (185 °F) già dopo poco tempo, il che non rappresenta un grosso problema. In seguito, il consumo energetico e la temperatura del processore iniziano a scendere, con quest'ultima che si stabilizza a circa 67 °C (153 °F) in media. Nel Nvidia T600la temperatura massima della GPU è di 86,6 °C (187,9 °F). Allo stesso tempo, HWiNFO specifica un massimo di 98 °C (208 °F) come temperatura hotspot della GPU, il che non dà motivo di spaventarsi.

Nel nostro stress test, il punto caldo del case era nell'area dell'Nvidia T600. Tuttavia, le temperature superficiali sono rimaste significativamente al di sotto dei 50 °C (122 °F).

Sviluppo del calore durante lo stress test (Asus ExpertCenter D9 SFF D900SC)

Consumo di energia

L'Asus ExpertCenter D9 SFF D900SC si dimostra piacevolmente efficiente dal punto di vista energetico durante il funzionamento in idle e a basso carico. L'alimentatore da 300 watt eroga in media 120 watt, che aumentano fino a 153 watt in media durante lo stress test. Durante alcuni picchi di carico, raggiunge brevemente i 240 watt, il che non rappresenta un problema per l'alimentatore.

Verdetto - Un PC da ufficio per molte attività

Test dell'Asus ExpertCenter D9 SFF D900SC, unità di prova fornita da Asus Germania

L'Asus ExpertCenter D9 SFF D900SC è un veloce PC da ufficio che, nella nostra configurazione, può fungere anche da workstation compatta. L'Intel Core i7-11700 rappresenta una buona scelta, dimostrando nel test di offrire sufficienti riserve di prestazioni. La grafica e la costruzione non sono degne di nota, il che va benissimo. Per la produttività, ciò che conta di più è la funzionalità, e questa è sicuramente offerta dall'Asus ExpertCenter D9 SFF D900SC. Ad esempio, sono presenti numerose porte USB, che consentono di collegare molti dispositivi esterni contemporaneamente. Inoltre, è possibile ampliare gli scenari di utilizzo del PC grazie alla connessione seriale. Come dispositivo aziendale, l'Asus ExpertCenter D9 SFF D900SC offre anche una serie di funzioni di sicurezza come Intel vPro o un lettore di smart card.

L'Asus ExpertCenter D9 SFF è un PC versatile con un potenziale da workstation a un prezzo relativamente basso.

In termini di prestazioni pure, l'ASUS ExpertCenter D9 SFF D900SC è un PC da ufficio veloce. Nel test, la nostra unità di prova si è spesso posizionata nella buona metà del campo di prova. Tuttavia, dobbiamo ancora dire che non c'è molto spazio in termini di prestazioni pure. La piattaforma a 1200 socket è già stata sostituita con Alder Lake S lo scorso anno e con Raptor Lake S la prossima generazione di CPU è già ai blocchi di partenza. L'ASUS ExpertCenter D9 SFF è disponibile anche nella versione D900SD con processore Intel di 12a generazione. Tuttavia, al momento non abbiamo ancora informazioni sulla disponibilità. A proposito di disponibilità, anche la nostra unità di prova è difficile da trovare in questa configurazione. Un modello leggermente più debole, basato sul processore Intel Core i5-11400, è disponibile a partire da 770 Euro (~$803) su Amazon in Germania (mentre un modello simile è elencato sul sito statunitense di Amazon https://www.amazon.com/ASUS-ExpertCenter-Desktop-i5-10500-D900SA-XH501/dp/B08PY8Q3VW/ref=sr_1_13?crid=2H3XB7WTR2DQU&keywords=Asus+ExpertCenter+D9+SFF+D900SC&qid=1656969708&s=electronics&sprefix=asus+expertcenter+d9+sff+d900sc%2Celectronics%2C221&sr=1-13&tag=nbcnewsnet-20 , non sembra essere attualmente disponibile). Per la nostra configurazione di prova dovete aspettarvi circa 1200 Euro (~$1251) (un altro modello che utilizza lo stesso processore è elencato sul sito statunitense di Amazon a $971). Considerando la sua versatilità, questo è un prezzo equo, secondo noi. Coloro che sono alla ricerca di alternative, dato che l'Asus è difficile da trovare, possono dare un'occhiata più da vicino alla Lenovo ThinkStation P350. Il modello con equipaggiamento simile costa circa la stessa cifra a Amazon ed è direttamente disponibile.
