Recensione del mini PC Beelink U59: Debutto del Celeron N5105 Jasper Lake

Il mini PC da 199 dollari.

Beelink ha aggiornato il suo economico mini PC U59 con una maggiore quantità di RAM e una nuova CPU Intel Celeron senza doverne aumentare il prezzo. Ma quanto possono davvero aspettarsi gli utenti in termini di prestazioni?

Allen Ngo (traduzione a cura di DeepL / Ninh Duy), Pubblicato 09/08/2022 🇺🇸 🇸🇪 ...

Mini PC Jasper Lake

Beelink ha aggiornato uno dei suoi mini PC meno costosi con una CPU Jasper Lake Intel Celeron N5105 più veloce, in sostituzione del Celeron N5095 del precedente modello Modello U59. Sebbene lo chassis sia rimasto pressoché invariato, ci sono alcune differenze importanti che noteremo nella recensione che segue

Il Beelink U59 compete con altri mini PC economici come la serie Zotac Nano, GMK NucBoxo il Chuwi GBox

Altre recensioni di Beelink:

Beelink U59 N5105

Processore

Intel Celeron N5105 4 x 2 - 2.9 GHz, 20 W PL2 / Short Burst, 15 W PL1 / Sustained, Jasper Lake

Scheda grafica

Intel UHD Graphics (Jasper Lake 24 EU), 30.0.101.1340

Memoria

16 GB

, DDR4-2666, PC4-21300, Dual-Channel, 19-19-19-43

Harddisk

Silicon Motion AZW 512G NV428, 512 GB

Scheda audio

Intel Jasper Lake PCH - cAVS Controller

Porte di connessione

5 USB 3.0 / 3.1, 2 HDMI, 1 DisplayPort, Connessioni Audio: 3.5 mm combo

Rete

Realtek Semiconductor RTL8168/8111 PCI-E Gigabit Ethernet NIC (10/100/1000MBit/s), Intel Dual Band Wireless-AC 3165 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4

Dimensioni

altezza x larghezza x profondità (in mm): 42 x 124 x 113

Sistema Operativo

Microsoft Windows 11 Pro

Altre caratteristiche

2x HDMI, AC adapter, 12 Mesi Garanzia

Peso

320 gr, Alimentazione: 160 gr

Prezzo

200 USD

Links

Beelink homepage

Nota: il produttore potrebbe usare componenti di fornitori diversi pannelli dei diplay, drive o banchi di memoria con specifiche simili.

guarda tutte le specifiche

Potenziali concorrenti a confronto

Punteggio	Data	Modello	Peso	Altezza	Risoluzione
v ^(old)	09/2022	Beelink U59 N5105 Celeron N5105, UHD Graphics (Jasper Lake 24 EU)	320 gr	42 mm	x
v ^(old)	06/2022	Beelink U59 Mini-S Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	279 gr	41 mm	x
v ^(old)	04/2022	Beelink SER4 R7 4800U, Vega 8	494 gr	40 mm	x
v ^(old)	11/2021	Beelink SER3 R7 3750H, Vega 10	492 gr	40 mm	x
v ^(old)	04/2021	Intel NUC11TNKi5 i5-1135G7, Iris Xe G7 80EUs	504 gr	37 mm	x
v ^(old)	07/2022	Zotac ZBOX PI336 pico Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	293 gr	20.7 mm	x

Caso

Purtroppo, Beelink offre tre diversi U59 con opzioni di porte, design e caratteristiche interne leggermente diverse. Per il resto, le dimensioni e il peso sono quasi identici. Per il nostro modello in prova, lo chassis presenta griglie di ventilazione più grandi e un top e un logo completamente opachi rispetto alle griglie più piccole e ai top lucidi dei modelli precedenti.

Piedini in gomma e viti di adattamento per il montaggio VESA sul lato inferiore

Bordi e angoli lucidi circondano il piano opaco

Confronto delle dimensioni

Connettività

Le opzioni delle porte sono per lo più identiche a quelle dell'U59 originale, compresa la porta USB-C e la mancanza del Kensington Lock. Per questo nuovo modello, tuttavia, il produttore ha integrato una seconda porta RJ-45 per un totale di due. Si noti che la porta USB-C supporta DisplayPort ma non Power Delivery e quindi il sistema si affida all'adattatore CA proprietario per l'alimentazione.

Anteriore: 2x USB-A 3.0, USB-C con DisplayPort, jack audio da 3,5 mm, pulsante di accensione

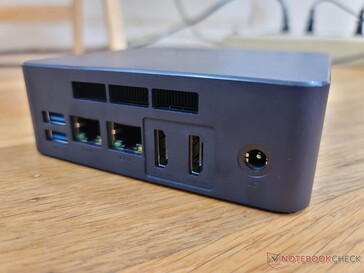

Posteriore: 2x USB-A 3.0, 2x Gigabit RJ-45, 2x HDMI 2.0, adattatore AC

Comunicazione

Il modulo WLAN Intel 3165 è rimovibile, a differenza della versione Mini-S dell'U59. Anche se lento, non abbiamo riscontrato problemi di connettività durante lo streaming di contenuti 4K.

Il modulo WLAN rimovibile si trova sotto l'unità SSD M.2

Networking
iperf3 transmit AX12
Intel NUC11TNKi5 Intel Wi-Fi 6 AX201	1626 (1386^min - 1677^max) MBit/s
Beelink SER4 MediaTek RZ608	821 (758^min - 891^max) MBit/s
Beelink SER3 Intel Dual Band Wireless-AC 7265	359 (321^min - 383^max) MBit/s
iperf3 receive AX12
Intel NUC11TNKi5 Intel Wi-Fi 6 AX201	1524 (1442^min - 1571^max) MBit/s
Beelink SER4 MediaTek RZ608	880 (842^min - 900^max) MBit/s
Beelink SER3 Intel Dual Band Wireless-AC 7265	641 (594^min - 665^max) MBit/s
iperf3 receive AXE11000
Beelink U59 N5105 Intel Dual Band Wireless-AC 3165	339 (328^min - 345^max) MBit/s
Beelink U59 Mini-S Intel Dual Band Wireless-AC 3165	322 (295^min - 337^max) MBit/s -5%
iperf3 transmit AXE11000
Beelink U59 N5105 Intel Dual Band Wireless-AC 3165	206 (191^min - 224^max) MBit/s
Beelink U59 Mini-S Intel Dual Band Wireless-AC 3165	188.4 (153^min - 228^max) MBit/s -9%

Beelink U59 N5105; iperf3 transmit AXE11000; iperf 3.1.3: Ø206 (191-224)

Beelink U59 N5105; iperf3 receive AXE11000; iperf 3.1.3: Ø338 (328-345)

Manutenzione

Il pannello inferiore può essere rimosso con un semplice cacciavite Philips per svelare 2 slot di memoria (M.2 SATA 2280 + 2,5" SATA III), 2 slot SODIMM e il modulo WLAN M.2 rimovibile. In confronto, l'U59 Mini-S è limitato alla memoria a canale singolo con il suo singolo slot SODIMM.

Accessori e garanzia

Nella confezione sono inclusi due cavi HDMI, l'adattatore CA, la documentazione e una staffa per il montaggio VESA.

La garanzia standard limitata di un anno è valida se acquistata negli Stati Uniti.

Prestazioni

Condizioni di test

Abbiamo impostato la nostra unità di prova in modalità Performance tramite Windows prima di eseguire i benchmark qui sotto. Non ci sono programmi specifici del produttore o funzioni del BIOS relative alle prestazioni del mini PC.

Processore

Le prestazioni della CPU sono solo un po' più veloci di quelle dell'N5095 N5095 sia nelle operazioni a thread singolo che in quelle multi-thread. La differenza di prestazioni è così piccola che i due processori potrebbero anche essere uguali.

Cinebench R15 Multi Loop

Beelink U59 N5105 Intel Celeron N5105: Ø362 (359.79-368.43)

Beelink U59 Mini-S Intel Celeron N5095: Ø353 (350.25-357.53)

GMK NucBox 3 Intel Celeron J4125: Ø203 (171.15-207.16)

Blackview AceBook 1 Intel Celeron N4120: Ø228 (225.47-233.66)

Asus BR1100FKA-BP0109RA Intel Celeron N4500: Ø125.2 (117.75-170.9)

AC6-M Mini-PC Intel Celeron J4125: Ø247 (245.01-250.05)

Beelink SEi8 Intel Core i3-8109U: Ø320 (317.69-324.13)

Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R23: Multi Core | Single Core
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

Cinebench R20 / CPU (Multi Core)
Beelink SER4 AMD Ryzen 7 4800U	3248 Points +293%
Intel NUC11TNKi5 Intel Core i5-1135G7	1974 Points +139%
Beelink SER3 AMD Ryzen 7 3750H	1514 Points +83%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Core i3-1115G4	1071 Points +30%
Beelink U59 N5105 Intel Celeron N5105	826 Points
Media Intel Celeron N5105 (n=1)	826 Points 0%
Teclast TBOLT F15 Pro Intel Core i3-1005G1	820 Points -1%
Beelink U59 Mini-S Intel Celeron N5095	804 Points -3%
Beelink SEi8 Intel Core i3-8109U	772 Points -7%
HP 17-by2437ng Intel Core i3-10110U	753 Points -9%
Zotac ZBOX PI336 pico Intel Celeron N6211	285 Points -65%

Cinebench R20 / CPU (Single Core)
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Core i3-1115G4	505 Points +115%
Intel NUC11TNKi5 Intel Core i5-1135G7	503 Points +114%
Beelink SER4 AMD Ryzen 7 4800U	488 Points +108%
Teclast TBOLT F15 Pro Intel Core i3-1005G1	402 Points +71%
HP 17-by2437ng Intel Core i3-10110U	400 Points +70%
Beelink SER3 AMD Ryzen 7 3750H	377 Points +60%
Beelink SEi8 Intel Core i3-8109U	351 Points +49%
Beelink U59 N5105 Intel Celeron N5105	235 Points
Media Intel Celeron N5105 (n=1)	235 Points 0%
Beelink U59 Mini-S Intel Celeron N5095	228 Points -3%
Zotac ZBOX PI336 pico Intel Celeron N6211	174 Points -26%

Cinebench R23 / Multi Core
Beelink SER4 AMD Ryzen 7 4800U	8376 (8310.1^min - 8376.05^max) Points +285%
Intel NUC11TNKi5 Intel Core i5-1135G7	5098 (4930.91^min - 5098.17^max) Points +134%
Beelink SER3 AMD Ryzen 7 3750H	3897 (3854.8^min - 3897.37^max) Points +79%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Core i3-1115G4	2771 Points +27%
Beelink U59 N5105 Intel Celeron N5105	2175 (2157.23^min - 2174.57^max) Points
Media Intel Celeron N5105 (n=1)	2175 Points 0%
Beelink U59 Mini-S Intel Celeron N5095	2159 (2113.79^min - 2158.74^max) Points -1%
Teclast TBOLT F15 Pro Intel Core i3-1005G1	2135 Points -2%
Beelink SEi8 Intel Core i3-8109U	2004 (1983.59^min - 2004.09^max) Points -8%
Zotac ZBOX PI336 pico Intel Celeron N6211	735 Points -66%

Cinebench R23 / Single Core
Intel NUC11TNKi5 Intel Core i5-1135G7	1369 Points +122%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Core i3-1115G4	1319 Points +113%
Beelink SER4 AMD Ryzen 7 4800U	1240 Points +101%
Teclast TBOLT F15 Pro Intel Core i3-1005G1	1046 Points +69%
Beelink SER3 AMD Ryzen 7 3750H	971 Points +57%
Beelink SEi8 Intel Core i3-8109U	906 Points +47%
Beelink U59 N5105 Intel Celeron N5105	618 Points
Media Intel Celeron N5105 (n=1)	618 Points 0%
Beelink U59 Mini-S Intel Celeron N5095	615 Points 0%
Zotac ZBOX PI336 pico Intel Celeron N6211	439 Points -29%

Cinebench R15 / CPU Multi 64Bit
Beelink SER4 AMD Ryzen 7 4800U	1411 (1390.29^min - 1411.03^max) Points +283%
Intel NUC11TNKi5 Intel Core i5-1135G7	794 (772.57^min - 794.38^max) Points +116%
Beelink SER3 AMD Ryzen 7 3750H	680 (670.93^min - 679.66^max) Points +85%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Core i3-1115G4	417 Points +13%
Beelink U59 N5105 Intel Celeron N5105	368 (359.79^min - 368.43^max) Points
Media Intel Celeron N5105 (n=1)	368 Points 0%
Beelink U59 Mini-S Intel Celeron N5095	358 (350.25^min - 357.53^max) Points -3%
Teclast TBOLT F15 Pro Intel Core i3-1005G1	346 (334.54^min - 346.03^max) Points -6%
Beelink SEi8 Intel Core i3-8109U	324 (317.69^min - 324.13^max) Points -12%
HP 17-by2437ng Intel Core i3-10110U	321 Points -13%
Zotac ZBOX PI336 pico Intel Celeron N6211	128 Points -65%

Cinebench R15 / CPU Single 64Bit
Intel NUC11TNKi5 Intel Core i5-1135G7	201 Points +86%
Beelink SER4 AMD Ryzen 7 4800U	187 Points +73%
HP 17-by2437ng Intel Core i3-10110U	160 Points +48%
Teclast TBOLT F15 Pro Intel Core i3-1005G1	155 Points +43%
Beelink SER3 AMD Ryzen 7 3750H	146 Points +35%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Core i3-1115G4	137 Points +27%
Beelink SEi8 Intel Core i3-8109U	124.3 Points +15%
Beelink U59 N5105 Intel Celeron N5105	108.1 Points
Media Intel Celeron N5105 (n=1)	108.1 Points 0%
Beelink U59 Mini-S Intel Celeron N5095	95.4 Points -12%
Zotac ZBOX PI336 pico Intel Celeron N6211	76 Points -30%

Blender / v2.79 BMW27 CPU
Zotac ZBOX PI336 pico Intel Celeron N6211	3767 Seconds * -139%
Beelink U59 Mini-S Intel Celeron N5095	1624 Seconds * -3%
Beelink U59 N5105 Intel Celeron N5105	1573 Seconds *
Media Intel Celeron N5105 (n=1)	1573 Seconds * -0%
Teclast TBOLT F15 Pro Intel Core i3-1005G1	1388 Seconds * +12%
HP 17-by2437ng Intel Core i3-10110U	1385 Seconds * +12%
Beelink SEi8 Intel Core i3-8109U	1328 Seconds * +16%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Core i3-1115G4	1087 Seconds * +31%
Beelink SER3 AMD Ryzen 7 3750H	672 Seconds * +57%
Intel NUC11TNKi5 Intel Core i5-1135G7	600 Seconds * +62%
Beelink SER4 AMD Ryzen 7 4800U	340 Seconds * +78%

7-Zip 18.03 / 7z b 4
Beelink SER4 AMD Ryzen 7 4800U	40117 MIPS +260%
Intel NUC11TNKi5 Intel Core i5-1135G7	23280 MIPS +109%
Beelink SER3 AMD Ryzen 7 3750H	17077 MIPS +53%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Core i3-1115G4	12793 MIPS +15%
Beelink U59 N5105 Intel Celeron N5105	11153 MIPS
Media Intel Celeron N5105 (n=1)	11153 MIPS 0%
Beelink U59 Mini-S Intel Celeron N5095	11013 MIPS -1%
HP 17-by2437ng Intel Core i3-10110U	9858 MIPS -12%
Teclast TBOLT F15 Pro Intel Core i3-1005G1	9731 MIPS -13%
Beelink SEi8 Intel Core i3-8109U	9489 MIPS -15%
Zotac ZBOX PI336 pico Intel Celeron N6211	3974 MIPS -64%

7-Zip 18.03 / 7z b 4 -mmt1
Intel NUC11TNKi5 Intel Core i5-1135G7	4738 MIPS +52%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Core i3-1115G4	4674 MIPS +50%
Beelink SER4 AMD Ryzen 7 4800U	4603 MIPS +48%
HP 17-by2437ng Intel Core i3-10110U	4269 MIPS +37%
Teclast TBOLT F15 Pro Intel Core i3-1005G1	3862 MIPS +24%
Beelink SER3 AMD Ryzen 7 3750H	3752 MIPS +21%
Beelink SEi8 Intel Core i3-8109U	3752 MIPS +21%
Beelink U59 Mini-S Intel Celeron N5095	3124 MIPS +1%
Beelink U59 N5105 Intel Celeron N5105	3108 MIPS
Media Intel Celeron N5105 (n=1)	3108 MIPS 0%
Zotac ZBOX PI336 pico Intel Celeron N6211	2593 MIPS -17%

Geekbench 5.5 / Multi-Core
Beelink SER4 AMD Ryzen 7 4800U	6375 Points +206%
Intel NUC11TNKi5 Intel Core i5-1135G7	4593 Points +121%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Core i3-1115G4	2802 Points +35%
Teclast TBOLT F15 Pro Intel Core i3-1005G1	2591 Points +25%
Beelink U59 N5105 Intel Celeron N5105	2080 Points
Media Intel Celeron N5105 (n=1)	2080 Points 0%
HP 17-by2437ng Intel Core i3-10110U	2017 Points -3%
Beelink U59 Mini-S Intel Celeron N5095	1933 Points -7%
Beelink SEi8 Intel Core i3-8109U	1880 Points -10%
Zotac ZBOX PI336 pico Intel Celeron N6211	844 Points -59%

Geekbench 5.5 / Single-Core
Intel NUC11TNKi5 Intel Core i5-1135G7	1396 Points +114%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Core i3-1115G4	1345 Points +106%
Beelink SER4 AMD Ryzen 7 4800U	1192 Points +83%
Teclast TBOLT F15 Pro Intel Core i3-1005G1	1158 Points +77%
HP 17-by2437ng Intel Core i3-10110U	1017 Points +56%
Beelink SEi8 Intel Core i3-8109U	888 Points +36%
Beelink U59 N5105 Intel Celeron N5105	653 Points
Media Intel Celeron N5105 (n=1)	653 Points 0%
Beelink U59 Mini-S Intel Celeron N5095	644 Points -1%
Zotac ZBOX PI336 pico Intel Celeron N6211	556 Points -15%

HWBOT x265 Benchmark v2.2 / 4k Preset
Beelink SER4 AMD Ryzen 7 4800U	10.4 fps +417%
Intel NUC11TNKi5 Intel Core i5-1135G7	6.63 fps +230%
Beelink SER3 AMD Ryzen 7 3750H	4.14 fps +106%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Core i3-1115G4	3.6 fps +79%
Beelink SEi8 Intel Core i3-8109U	2.85 fps +42%
HP 17-by2437ng Intel Core i3-10110U	2.72 fps +35%
Teclast TBOLT F15 Pro Intel Core i3-1005G1	2.42 fps +20%
Beelink U59 N5105 Intel Celeron N5105	2.01 fps
Media Intel Celeron N5105 (n=1)	2.01 fps 0%
Beelink U59 Mini-S Intel Celeron N5095	2 fps 0%
Zotac ZBOX PI336 pico Intel Celeron N6211	0.88 fps -56%

LibreOffice / 20 Documents To PDF
Zotac ZBOX PI336 pico Intel Celeron N6211	144.7 s * -43%
Beelink U59 Mini-S Intel Celeron N5095	106.5 s * -5%
Beelink U59 N5105 Intel Celeron N5105	101 s *
Media Intel Celeron N5105 (n=1)	101 s * -0%
Beelink SER3 AMD Ryzen 7 3750H	86.5 s * +14%
Teclast TBOLT F15 Pro Intel Core i3-1005G1	81.7 s * +19%
Beelink SEi8 Intel Core i3-8109U	79 s * +22%
HP 17-by2437ng Intel Core i3-10110U	65.4 s * +35%
Beelink SER4 AMD Ryzen 7 4800U	62.6 s * +38%
Intel NUC11TNKi5 Intel Core i5-1135G7	51.3 s * +49%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Core i3-1115G4	42.8 s * +58%

R Benchmark 2.5 / Overall mean
Zotac ZBOX PI336 pico Intel Celeron N6211	1.371 sec * -18%
Beelink U59 Mini-S Intel Celeron N5095	1.178 sec * -1%
Beelink U59 N5105 Intel Celeron N5105	1.162 sec *
Media Intel Celeron N5105 (n=1)	1.162 sec * -0%
Beelink SEi8 Intel Core i3-8109U	0.861 sec * +26%
Teclast TBOLT F15 Pro Intel Core i3-1005G1	0.762 sec * +34%
HP 17-by2437ng Intel Core i3-10110U	0.74 sec * +36%
Beelink SER3 AMD Ryzen 7 3750H	0.723 sec * +38%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Core i3-1115G4	0.643 sec * +45%
Intel NUC11TNKi5 Intel Core i5-1135G7	0.622 sec * +46%
Beelink SER4 AMD Ryzen 7 4800U	0.576 sec * +50%

* ... Meglio usare valori piccoli

Cinebench R15 CPU Multi 64Bit

368 Points

Cinebench R15 OpenGL 64Bit

36.9 fps

Cinebench R15 Ref. Match 64Bit

97.8 %

Cinebench R15 CPU Single 64Bit

108.1 Points

Cinebench R20 CPU (Multi Core)

826 Points

Cinebench R20 CPU (Single Core)

235 Points

Cinebench R23 Single Core

618 Points

Cinebench R23 Multi Core

2175 Points

Aiuto

... in confronto

Performance Rating
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	98.1 pt
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	67 pt
Beelink SER3 AMD Ryzen 7 3750H, Vega 10	41.6 pt
Beelink U59 N5105 Intel Celeron N5105, UHD Graphics (Jasper Lake 24 EU)	22 pt
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	20.5 pt
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	9.1 pt

AIDA64 / FP32 Ray-Trace
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	10046 KRay/s +711%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	6699 KRay/s +441%
Beelink SER3 AMD Ryzen 7 3750H, Vega 10	3338 KRay/s +169%
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1244 KRay/s 0%
Beelink U59 N5105 Intel Celeron N5105, UHD Graphics (Jasper Lake 24 EU)	1239 KRay/s
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	490 KRay/s -60%

AIDA64 / FPU Julia
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	56388 Points +658%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	27861 Points +274%
Beelink SER3 AMD Ryzen 7 3750H, Vega 10	16912 Points +127%
Beelink U59 N5105 Intel Celeron N5105, UHD Graphics (Jasper Lake 24 EU)	7441 Points
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	7264 Points -2%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	2932 Points -61%

AIDA64 / CPU SHA3
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	1855 MB/s +262%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	1840 MB/s +259%
Beelink SER3 AMD Ryzen 7 3750H, Vega 10	897 MB/s +75%
Beelink U59 N5105 Intel Celeron N5105, UHD Graphics (Jasper Lake 24 EU)	513 MB/s
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	508 MB/s -1%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	202 MB/s -61%

AIDA64 / CPU Queen
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	78511 Points +254%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	46536 Points +110%
Beelink SER3 AMD Ryzen 7 3750H, Vega 10	43632 Points +97%
Beelink U59 N5105 Intel Celeron N5105, UHD Graphics (Jasper Lake 24 EU)	22167 Points
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	21801 Points -2%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	8820 Points -60%

AIDA64 / FPU SinJulia
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	11799 Points +1080%
Beelink SER3 AMD Ryzen 7 3750H, Vega 10	5639 Points +464%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	4444 Points +344%
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1002 Points 0%
Beelink U59 N5105 Intel Celeron N5105, UHD Graphics (Jasper Lake 24 EU)	1000 Points
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	396 Points -60%

AIDA64 / FPU Mandel
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	28667 Points +637%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	16937 Points +336%
Beelink SER3 AMD Ryzen 7 3750H, Vega 10	8846 Points +127%
Beelink U59 N5105 Intel Celeron N5105, UHD Graphics (Jasper Lake 24 EU)	3889 Points
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	3802 Points -2%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	1558 Points -60%

AIDA64 / CPU AES
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	66724 MB/s +245%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	54686 MB/s +182%
Beelink SER3 AMD Ryzen 7 3750H, Vega 10	28977 MB/s +50%
Beelink U59 N5105 Intel Celeron N5105, UHD Graphics (Jasper Lake 24 EU)	19362 MB/s
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	19076 MB/s -1%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	7653 MB/s -60%

AIDA64 / CPU ZLib
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	593 MB/s +216%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	373 MB/s +99%
Beelink SER3 AMD Ryzen 7 3750H, Vega 10	313 MB/s +67%
Beelink U59 N5105 Intel Celeron N5105, UHD Graphics (Jasper Lake 24 EU)	187.8 MB/s
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	187.7 MB/s 0%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	75.2 MB/s -60%

AIDA64 / FP64 Ray-Trace
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	5555 KRay/s +723%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	3628 KRay/s +437%
Beelink SER3 AMD Ryzen 7 3750H, Vega 10	1758 KRay/s +160%
Beelink U59 N5105 Intel Celeron N5105, UHD Graphics (Jasper Lake 24 EU)	675 KRay/s
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	673 KRay/s 0%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	273 KRay/s -60%

AIDA64 / CPU PhotoWorxx
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	24254 MPixel/s +127%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	16877 MPixel/s +58%
Beelink U59 N5105 Intel Celeron N5105, UHD Graphics (Jasper Lake 24 EU)	10671 MPixel/s
Beelink SER3 AMD Ryzen 7 3750H, Vega 10	10338 MPixel/s -3%
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	7386 MPixel/s -31%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	5125 MPixel/s -52%

Prestazioni del sistema

I risultati di PCMark 10 sono costantemente superiori a quelli dell'U59 N5095 dell'anno scorso, anche se i margini sono ridotti

PCMark 10 / Score
Beelink SER4 Vega 8, R7 4800U, Intel SSD 660p SSDPEKNW512G8	5257 Points +97%
Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S	4512 Points +69%
Beelink SER3 Vega 10, R7 3750H, GSemi AZW GSDFN512TS3F1OGCX	3818 Points +43%
Beelink U59 N5105 UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428	2670 Points
Media Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU) (n=1)	2670 Points 0%
Beelink U59 Mini-S UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3	2386 Points -11%

PCMark 10 / Essentials
Beelink SER4 Vega 8, R7 4800U, Intel SSD 660p SSDPEKNW512G8	9188 Points +45%
Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S	9000 Points +42%
Beelink SER3 Vega 10, R7 3750H, GSemi AZW GSDFN512TS3F1OGCX	7408 Points +17%
Beelink U59 N5105 UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428	6340 Points
Media Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU) (n=1)	6340 Points 0%
Beelink U59 Mini-S UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3	5778 Points -9%

PCMark 10 / Productivity
Beelink SER4 Vega 8, R7 4800U, Intel SSD 660p SSDPEKNW512G8	7916 Points +111%
Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S	6190 Points +65%
Beelink SER3 Vega 10, R7 3750H, GSemi AZW GSDFN512TS3F1OGCX	6066 Points +61%
Beelink U59 N5105 UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428	3758 Points
Media Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU) (n=1)	3758 Points 0%
Beelink U59 Mini-S UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3	3591 Points -4%

PCMark 10 / Digital Content Creation
Beelink SER4 Vega 8, R7 4800U, Intel SSD 660p SSDPEKNW512G8	5422 Points +150%
Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S	4474 Points +106%
Beelink SER3 Vega 10, R7 3750H, GSemi AZW GSDFN512TS3F1OGCX	3363 Points +55%
Beelink U59 N5105 UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428	2170 Points
Media Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU) (n=1)	2170 Points 0%
Beelink U59 Mini-S UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3	1779 Points -18%

CrossMark / Overall
Beelink U59 N5105 UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428	531 Points
Media Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU) (n=1)	531 Points 0%
Beelink U59 Mini-S UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3	490 Points -8%

CrossMark / Productivity
Beelink U59 N5105 UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428	590 Points
Media Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU) (n=1)	590 Points 0%
Beelink U59 Mini-S UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3	561 Points -5%

CrossMark / Creativity
Beelink U59 N5105 UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428	471 Points
Media Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU) (n=1)	471 Points 0%
Beelink U59 Mini-S UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3	434 Points -8%

CrossMark / Responsiveness
Beelink U59 N5105 UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428	554 Points
Media Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU) (n=1)	554 Points 0%
Beelink U59 Mini-S UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3	469 Points -15%

PCMark 10 Score		2670 punti
Aiuto

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	37086 MB/s +49%
Beelink U59 N5105 Intel Celeron N5105, UHD Graphics (Jasper Lake 24 EU)	24807 MB/s
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	22895 MB/s -8%
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	16968 MB/s -32%
Beelink SER3 AMD Ryzen 7 3750H, Vega 10	16249 MB/s -34%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	15737 MB/s -37%

AIDA64 / Memory Read
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	44706 MB/s +155%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	24947 MB/s +42%
Beelink SER3 AMD Ryzen 7 3750H, Vega 10	18268 MB/s +4%
Beelink U59 N5105 Intel Celeron N5105, UHD Graphics (Jasper Lake 24 EU)	17511 MB/s
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	16942 MB/s -3%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	10311 MB/s -41%

AIDA64 / Memory Write
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	43768 MB/s +45%
Beelink U59 N5105 Intel Celeron N5105, UHD Graphics (Jasper Lake 24 EU)	30205 MB/s
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	23454 MB/s -22%
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	19340 MB/s -36%
Beelink SER3 AMD Ryzen 7 3750H, Vega 10	18455 MB/s -39%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	17031 MB/s -44%

AIDA64 / Memory Latency
Beelink SER3 AMD Ryzen 7 3750H, Vega 10	95.8 ns * -61%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	94.7 ns * -59%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	87.1 ns * -46%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	76.3 ns * -28%
Beelink U59 N5105 Intel Celeron N5105, UHD Graphics (Jasper Lake 24 EU)	59.6 ns *
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	58 ns * +3%

* ... Meglio usare valori piccoli

Latenza DPC

LatencyMon rivela problemi di DPC quando si aprono più schede del browser della nostra homepage. la riproduzione di video 4K a 60 FPS è quasi perfetta, con solo 4 fotogrammi caduti durante il nostro video di prova della durata di un minuto.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Beelink U59 N5105 UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428	1753.5 μs *
Beelink U59 Mini-S UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3	1732.2 μs * +1%
Zotac ZBOX PI336 pico UHD Graphics (Elkhart Lake 16 EU), Celeron N6211, SanDisk DF4128	1476.3 μs * +16%
Beelink SER3 Vega 10, R7 3750H, GSemi AZW GSDFN512TS3F1OGCX	697 μs * +60%
Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S	525 μs * +70%
Beelink SER4 Vega 8, R7 4800U, Intel SSD 660p SSDPEKNW512G8	336 μs * +81%

* ... Meglio usare valori piccoli

Dispositivi di archiviazione

Il modello viene fornito con un'unità M.2 SATA III anziché NVMe, probabilmente per risparmiare sui costi. Considerando la CPU, tuttavia, un'unità SATA III è accettabile. IlSilicon Motion AZW nella nostra unità di test ha restituito ottime velocità di lettura e scrittura sequenziale, superiori a 400 MB/s ciascuna

È incluso un piccolo pad termico per l'unità SSD, sorprendente da vedere su un mini PC economico come l'U59. Il cuscinetto si trova tra l'SSD e l'involucro metallico SATA III da 2,5 pollici fissato al pannello superiore inferiore.

Gli utenti possono installare fino a due unità. Le unità PCIe non sono supportate

CrystalDiskMark 5.2 / 6

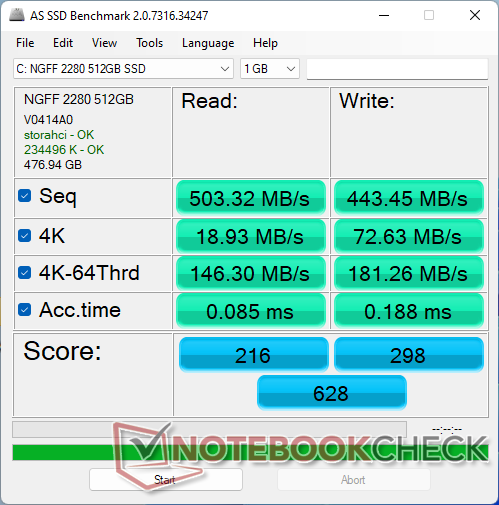

AS SSD

DiskSpd

Silicon Motion AZW 512G NV428

CDM 5/6 Read Seq Q32T1: 528.3 MB/s

CDM 5/6 Write Seq Q32T1: 359.5 MB/s

CDM 5/6 Read 4K Q32T1: 146.6 MB/s

CDM 5/6 Write 4K Q32T1: 165.1 MB/s

CDM 5 Read Seq: 477.6 MB/s

CDM 5 Write Seq: 379.8 MB/s

CDM 5/6 Read 4K: 25.9 MB/s

CDM 5/6 Write 4K: 86.45 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	83.9 pt
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	81.9 pt
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	36.7 pt
Beelink U59 N5105 Silicon Motion AZW 512G NV428	34.9 pt
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	30 pt
Zotac ZBOX PI336 pico SanDisk DF4128	8.3 pt

DiskSpd
seq read
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1370 (1352.45^min - 1370.49^max) MB/s +181%
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	1349 (1345.08^min - 1349.49^max) MB/s +176%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	509 (505.62^min - 509.19^max) MB/s +4%
Beelink U59 N5105 Silicon Motion AZW 512G NV428	488 (400.14^min - 488.01^max) MB/s
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	468 (410.62^min - 468.2^max) MB/s -4%
Zotac ZBOX PI336 pico SanDisk DF4128	250 (248.23^min - 249.69^max) MB/s -49%
seq write
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	1366 (1342.35^min - 1366.3^max) MB/s +196%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	971 (941.83^min - 970.77^max) MB/s +111%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	467 (462^min - 467.13^max) MB/s +1%
Beelink U59 N5105 Silicon Motion AZW 512G NV428	461 (274.52^min - 460.74^max) MB/s
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	435 (387.34^min - 434.74^max) MB/s -6%
Zotac ZBOX PI336 pico SanDisk DF4128	105.7 (97.74^min - 105.7^max) MB/s -77%
seq q8 t1 read
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	1958 (1343.44^min - 1957.62^max) MB/s +290%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1562 (1435.86^min - 1562.38^max) MB/s +211%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	561 (469.24^min - 560.5^max) MB/s +12%
Beelink U59 N5105 Silicon Motion AZW 512G NV428	502 (458.44^min - 501.64^max) MB/s
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	490 (435.79^min - 489.54^max) MB/s -2%
Zotac ZBOX PI336 pico SanDisk DF4128	254 (201.55^min - 254.3^max) MB/s -49%
seq q8 t1 write
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	1371 (1348.89^min - 1371.13^max) MB/s +197%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	970 (945.19^min - 970.14^max) MB/s +110%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	504 (500.38^min - 503.53^max) MB/s +9%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	488 (470.29^min - 487.93^max) MB/s +6%
Beelink U59 N5105 Silicon Motion AZW 512G NV428	462 (179.1^min - 462^max) MB/s
Zotac ZBOX PI336 pico SanDisk DF4128	100.9 (42.78^min - 100.87^max) MB/s -78%
4k q1 t1 read
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	62.4 (61.64^min - 62.4^max) MB/s +168%
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	40.2 (38.82^min - 40.17^max) MB/s +73%
Beelink U59 N5105 Silicon Motion AZW 512G NV428	23.3 (21.43^min - 23.34^max) MB/s
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	21.6 (20.05^min - 21.62^max) MB/s -7%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	16 (13.05^min - 15.97^max) MB/s -31%
Zotac ZBOX PI336 pico SanDisk DF4128	13.7 (13.61^min - 13.69^max) MB/s -41%
4k q1 t1 write
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	200 (197.44^min - 200.13^max) MB/s +167%
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	116 (112.64^min - 116.46^max) MB/s +55%
Beelink U59 N5105 Silicon Motion AZW 512G NV428	74.8 (70.07^min - 74.78^max) MB/s
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	46.9 (43.93^min - 46.94^max) MB/s -37%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	46.4 (45.57^min - 46.37^max) MB/s -38%
Zotac ZBOX PI336 pico SanDisk DF4128	13.8 (12.91^min - 13.8^max) MB/s -82%
4k q32 t16 read
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	826 (823.98^min - 826.07^max) MB/s +364%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	345 (343.07^min - 345.33^max) MB/s +94%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	285 (283.99^min - 284.61^max) MB/s +60%
Beelink U59 N5105 Silicon Motion AZW 512G NV428	178.1 (150.41^min - 178.11^max) MB/s
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	163.2 (153.74^min - 163.17^max) MB/s -8%
Zotac ZBOX PI336 pico SanDisk DF4128	26 (24.84^min - 25.96^max) MB/s -85%
4k q32 t16 write
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	826 (804.5^min - 825.5^max) MB/s +275%
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	400 (389.86^min - 399.66^max) MB/s +82%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	330 (329.53^min - 329.95^max) MB/s +50%
Beelink U59 N5105 Silicon Motion AZW 512G NV428	220 (6.81^min - 220.26^max) MB/s
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	209 (190.39^min - 209.23^max) MB/s -5%
Zotac ZBOX PI336 pico SanDisk DF4128	13.1 (12.24^min - 13.12^max) MB/s -94%

AS SSD
Score Total
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	2346 Points +274%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1833 Points +192%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	839 Points +34%
Beelink U59 N5105 Silicon Motion AZW 512G NV428	628 Points
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	580 Points -8%
Zotac ZBOX PI336 pico SanDisk DF4128	136 Points -78%
Score Read
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	974 Points +351%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	544 Points +152%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	304 Points +41%
Beelink U59 N5105 Silicon Motion AZW 512G NV428	216 Points
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	166 Points -23%
Zotac ZBOX PI336 pico SanDisk DF4128	65 Points -70%
Score Write
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1028 Points +245%
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	866 Points +191%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	375 Points +26%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	324 Points +9%
Beelink U59 N5105 Silicon Motion AZW 512G NV428	298 Points
Zotac ZBOX PI336 pico SanDisk DF4128	39 Points -87%
Seq Read
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1653 MB/s +228%
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	1432 MB/s +185%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	527 MB/s +5%
Beelink U59 N5105 Silicon Motion AZW 512G NV428	503.32 MB/s
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	455.57 MB/s -9%
Zotac ZBOX PI336 pico SanDisk DF4128	264.86 MB/s -47%
Seq Write
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	1433 MB/s +223%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	869 MB/s +96%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	469 MB/s +6%
Beelink U59 N5105 Silicon Motion AZW 512G NV428	443.45 MB/s
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	438.23 MB/s -1%
Zotac ZBOX PI336 pico SanDisk DF4128	117 MB/s -74%
4K Read
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	56.4 MB/s +198%
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	36.38 MB/s +92%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	20.41 MB/s +8%
Beelink U59 N5105 Silicon Motion AZW 512G NV428	18.93 MB/s
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	13.9 MB/s -27%
Zotac ZBOX PI336 pico SanDisk DF4128	13.21 MB/s -30%
4K Write
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	163.7 MB/s +125%
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	118.5 MB/s +63%
Beelink U59 N5105 Silicon Motion AZW 512G NV428	72.63 MB/s
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	49.68 MB/s -32%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	42.52 MB/s -41%
Zotac ZBOX PI336 pico SanDisk DF4128	13.46 MB/s -81%
4K-64 Read
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	795 MB/s +443%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	321.8 MB/s +120%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	231.4 MB/s +58%
Beelink U59 N5105 Silicon Motion AZW 512G NV428	146.3 MB/s
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	106.99 MB/s -27%
Zotac ZBOX PI336 pico SanDisk DF4128	25.74 MB/s -82%
4K-64 Write
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	778 MB/s +329%
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	604 MB/s +233%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	285.3 MB/s +57%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	230.65 MB/s +27%
Beelink U59 N5105 Silicon Motion AZW 512G NV428	181.26 MB/s
Zotac ZBOX PI336 pico SanDisk DF4128	13.71 MB/s -92%
Access Time Read
Zotac ZBOX PI336 pico SanDisk DF4128	0.311 ms * -266%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	0.193 ms * -127%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	0.124 ms * -46%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	0.085 ms * -0%
Beelink U59 N5105 Silicon Motion AZW 512G NV428	0.085 ms *
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	0.07 ms * +18%
Access Time Write
Zotac ZBOX PI336 pico SanDisk DF4128	0.942 ms * -401%
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	0.36 ms * -91%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	0.269 ms * -43%
Beelink U59 N5105 Silicon Motion AZW 512G NV428	0.188 ms *
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	0.18 ms * +4%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	0.137 ms * +27%

* ... Meglio usare valori piccoli

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Beelink U59 N5105: Ø490 (445.59-491.99)

Prestazioni della GPU

La GPU integrata viene aggiornata rispetto alla Jasper Lake 16 EU del Celeron N5095 dell'anno scorso alla GPU Jasper Lake 24 EU sull'U59 N5105 di quest'anno. i risultati di 3DMark sono più veloci dell'80% con la nuova GPU rispetto all'U59 dell'anno scorso, il che rappresenta un significativo incremento rispetto all'anno precedente. Tuttavia, è importante notare che il nostro U59 N5095 è stato fornito con 8 GB di RAM a canale singolo rispetto ai 16 GB di RAM a doppio canale del nostro U59 N5105. La RAM a doppio canale rappresenta probabilmente il 30-50% della differenza di prestazioni. Ciononostante, questa è ancora una delle soluzioni con GPU integrata più lente in circolazione e quindi non è adatta alla maggior parte dei giochi, vecchi o nuovi che siano.

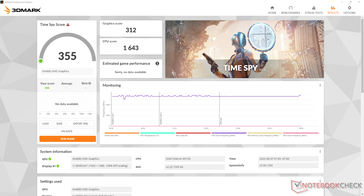

3DMark | 3DMark 11

3DMark
1920x1080 Fire Strike Graphics
Beelink SER4 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U	3927 Points +255%
Intel NUC11TNKi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	3152 Points +185%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel UHD Graphics Xe G4 48EUs, Intel Core i3-1115G4	2427 Points +119%
Beelink SER3 AMD Radeon RX Vega 10, AMD Ryzen 7 3750H	2027 Points +83%
Beelink SEi8 Intel Iris Plus Graphics 655, Intel Core i3-8109U	1715 Points +55%
Teclast TBOLT F15 Pro Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i3-1005G1	1530 Points +38%
Beelink U59 N5105 Intel UHD Graphics (Jasper Lake 24 EU), Intel Celeron N5105	1106 Points
Media Intel UHD Graphics (Jasper Lake 24 EU) (n=1)	1106 Points 0%
HP 17-by2437ng Intel UHD Graphics 620, Intel Core i3-10110U	967 Points -13%
Beelink U59 Mini-S Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	605 Points -45%
Zotac ZBOX PI336 pico Intel UHD Graphics (Elkhart Lake 16 EU), Intel Celeron N6211	523 Points -53%
2560x1440 Time Spy Graphics
Beelink SER4 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U	1241 Points +298%
Intel NUC11TNKi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	1031 Points +230%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel UHD Graphics Xe G4 48EUs, Intel Core i3-1115G4	798 Points +156%
Beelink SER3 AMD Radeon RX Vega 10, AMD Ryzen 7 3750H	609 Points +95%
Beelink SEi8 Intel Iris Plus Graphics 655, Intel Core i3-8109U	569 Points +82%
Teclast TBOLT F15 Pro Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i3-1005G1	419 Points +34%
HP 17-by2437ng Intel UHD Graphics 620, Intel Core i3-10110U	317 Points +2%
Beelink U59 N5105 Intel UHD Graphics (Jasper Lake 24 EU), Intel Celeron N5105	312 Points
Media Intel UHD Graphics (Jasper Lake 24 EU) (n=1)	312 Points 0%
Beelink U59 Mini-S Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	173 Points -45%
2560x1440 Time Spy Score
Beelink SER4 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U	1412 Points +298%
Intel NUC11TNKi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	1161 Points +227%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel UHD Graphics Xe G4 48EUs, Intel Core i3-1115G4	888 Points +150%
Beelink SER3 AMD Radeon RX Vega 10, AMD Ryzen 7 3750H	690 Points +94%
Beelink SEi8 Intel Iris Plus Graphics 655, Intel Core i3-8109U	636 Points +79%
Teclast TBOLT F15 Pro Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i3-1005G1	476 Points +34%
HP 17-by2437ng Intel UHD Graphics 620, Intel Core i3-10110U	361 Points +2%
Beelink U59 N5105 Intel UHD Graphics (Jasper Lake 24 EU), Intel Celeron N5105	355 Points
Media Intel UHD Graphics (Jasper Lake 24 EU) (n=1)	355 Points 0%
Beelink U59 Mini-S Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	199 Points -44%

3DMark 11 - 1280x720 Performance GPU
Beelink SER4 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U	6036 Points +314%
Intel NUC11TNKi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	5221 Points +258%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel UHD Graphics Xe G4 48EUs, Intel Core i3-1115G4	3636 Points +149%
Beelink SER3 AMD Radeon RX Vega 10, AMD Ryzen 7 3750H	3245 Points +123%
Beelink SEi8 Intel Iris Plus Graphics 655, Intel Core i3-8109U	2801 Points +92%
Teclast TBOLT F15 Pro Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i3-1005G1	2065 Points +42%
HP 17-by2437ng Intel UHD Graphics 620, Intel Core i3-10110U	1501 Points +3%
Beelink U59 N5105 Intel UHD Graphics (Jasper Lake 24 EU), Intel Celeron N5105	1458 Points
Media Intel UHD Graphics (Jasper Lake 24 EU) (n=1)	1458 Points 0%
Beelink U59 Mini-S Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	854 Points -41%
Zotac ZBOX PI336 pico Intel UHD Graphics (Elkhart Lake 16 EU), Intel Celeron N6211	650 Points -55%

3DMark 11 Performance		1654 punti
3DMark Cloud Gate Standard Score		6659 punti
3DMark Fire Strike Score		1043 punti
3DMark Time Spy Score		355 punti
Aiuto

... in confronto

The Witcher 3 | X-Plane 11.11 | Final Fantasy XV Benchmark | Dota 2 Reborn

The Witcher 3
1024x768 Low Graphics & Postprocessing
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	64.2 (51^min) fps +197%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	59.8 (53^min) fps +177%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs	43.8 (1.672^min, 3.35^P0.1, 20.7^P1) fps +103%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	35.7 (28^min) fps +65%
Teclast TBOLT F15 Pro Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)	30.2 fps +40%
Beelink U59 N5105 Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU)	21.6 fps
Media Intel UHD Graphics (Jasper Lake 24 EU) (n=1)	21.6 fps 0%
1366x768 Medium Graphics & Postprocessing
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	45.2 (41^min) fps +214%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs	30.1 (13.3^min, 14.7^P0.1, 17.3^P1) fps +109%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	22.9 (21^min) fps +59%
Teclast TBOLT F15 Pro Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)	19.6 fps +36%
Beelink U59 N5105 Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU)	14.4 (11^min) fps
Media Intel UHD Graphics (Jasper Lake 24 EU) (n=1)	14.4 fps 0%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22.6 (21^min) fps +190%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs	15 (7.55^min, 7.88^P0.1, 9.45^P1) fps +92%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	12.2 (11^min) fps +56%
Teclast TBOLT F15 Pro Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)	10.3 fps +32%
Beelink U59 N5105 Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU)	7.8 (5^min) fps
Media Intel UHD Graphics (Jasper Lake 24 EU) (n=1)	7.8 fps 0%
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	14.3 (13^min) fps +267%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs	8.26 (4.29^min, 4.37^P0.1, 5.33^P1) fps +112%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	8 (7^min) fps +105%
Beelink U59 N5105 Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU)	3.9 (2^min) fps
Media Intel UHD Graphics (Jasper Lake 24 EU) (n=1)	3.9 fps 0%

X-Plane 11.11
1280x720 low (fps_test=1)
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	41.1 fps +98%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs	39.4 fps +89%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	37.1 fps +78%
Teclast TBOLT F15 Pro Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)	28.1 fps +35%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	23.8 fps +14%
Beelink SEi8 Intel Core i3-8109U, Intel Iris Plus Graphics 655	22.4 fps +8%
Beelink U59 N5105 Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU)	20.8 fps
Media Intel UHD Graphics (Jasper Lake 24 EU) (n=1)	20.8 fps 0%
Beelink U59 Mini-S Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	13.3 fps -36%
Zotac ZBOX PI336 pico Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)	7.76 fps -63%
1920x1080 med (fps_test=2)
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	33.2 fps +150%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	27.3 fps +105%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs	25.1 fps +89%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	18.5 fps +39%
Beelink SEi8 Intel Core i3-8109U, Intel Iris Plus Graphics 655	15 fps +13%
Teclast TBOLT F15 Pro Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)	13.7 fps +3%
Beelink U59 N5105 Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU)	13.3 fps
Media Intel UHD Graphics (Jasper Lake 24 EU) (n=1)	13.3 fps 0%
Beelink U59 Mini-S Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	7.54 fps -43%
Zotac ZBOX PI336 pico Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)	4.97 fps -63%
1920x1080 high (fps_test=3)
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	29.5 fps +140%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	29.1 fps +137%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs	23.2 fps +89%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	16.7 fps +36%
Teclast TBOLT F15 Pro Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)	12.9 fps +5%
Beelink SEi8 Intel Core i3-8109U, Intel Iris Plus Graphics 655	12.3 fps 0%
Beelink U59 N5105 Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU)	12.3 fps
Media Intel UHD Graphics (Jasper Lake 24 EU) (n=1)	12.3 fps 0%
Beelink U59 Mini-S Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	7.07 fps -43%
Zotac ZBOX PI336 pico Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)	4.64 fps -62%

Final Fantasy XV Benchmark - 1280x720 Lite Quality
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	37.3 fps +172%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	26.8 fps +96%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs	24.4 fps +78%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	19 fps +39%
Beelink SEi8 Intel Core i3-8109U, Intel Iris Plus Graphics 655	16.6 fps +21%
Teclast TBOLT F15 Pro Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)	15.4 fps +12%
Beelink U59 N5105 Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU)	13.7 fps
Media Intel UHD Graphics (Jasper Lake 24 EU) (n=1)	13.7 fps 0%
Beelink U59 Mini-S Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	6.86 fps -50%
Zotac ZBOX PI336 pico Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)	3.45 fps -75%

Dota 2 Reborn
1280x720 min (0/3) fastest
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	103 (88.1^min) fps +40%
Beelink SEi8 Intel Core i3-8109U, Intel Iris Plus Graphics 655	94.4 (75.6^min) fps +28%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs	83.7 (73.3^min) fps +13%
Teclast TBOLT F15 Pro Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)	76.7 (66.8^min) fps +4%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	73.8 (47.9^min) fps 0%
Beelink U59 N5105 Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU)	73.8 (65.8^min) fps
Media Intel UHD Graphics (Jasper Lake 24 EU) (n=1)	73.8 fps 0%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	67.4 (57.5^min) fps -9%
Beelink U59 Mini-S Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	58.3 (51.4^min) fps -21%
Zotac ZBOX PI336 pico Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)	24.3 (20.6^min) fps -67%
1366x768 med (1/3)
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	83.3 (67.5^min) fps +246%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	56 (40.8^min) fps +132%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	52 (42.4^min) fps +116%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs	36.6 (27.6^min) fps +52%
Beelink SEi8 Intel Core i3-8109U, Intel Iris Plus Graphics 655	34.6 (29.8^min) fps +44%
Teclast TBOLT F15 Pro Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)	31.9 (24.8^min) fps +32%
Beelink U59 N5105 Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU)	24.1 (17.1^min) fps
Media Intel UHD Graphics (Jasper Lake 24 EU) (n=1)	24.1 fps 0%
Beelink U59 Mini-S Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	20.7 (13.8^min) fps -14%
Zotac ZBOX PI336 pico Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)	10.9 (8.1^min) fps -55%
1920x1080 high (2/3)
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	53.1 (44.7^min) fps +216%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	34.2 (20^min) fps +104%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	30.1 (27.5^min) fps +79%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs	25.7 (18.5^min) fps +53%
Beelink SEi8 Intel Core i3-8109U, Intel Iris Plus Graphics 655	25.3 (19.3^min) fps +51%
Teclast TBOLT F15 Pro Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)	20.9 (16.9^min) fps +24%
Beelink U59 N5105 Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU)	16.8 (12.2^min) fps
Media Intel UHD Graphics (Jasper Lake 24 EU) (n=1)	16.8 fps 0%
Beelink U59 Mini-S Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	11.6 (9.6^min) fps -31%
Zotac ZBOX PI336 pico Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)	5.8 (2.3^min) fps -65%
1920x1080 ultra (3/3) best looking
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	51.1 (44.6^min) fps +230%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	31.4 (18.2^min) fps +103%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	28.3 (25.9^min) fps +83%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs	24.5 (21.5^min) fps +58%
Beelink SEi8 Intel Core i3-8109U, Intel Iris Plus Graphics 655	22.7 (18.8^min) fps +46%
Teclast TBOLT F15 Pro Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)	19.4 (16.2^min) fps +25%
Beelink U59 N5105 Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU)	15.5 (10.8^min) fps
Media Intel UHD Graphics (Jasper Lake 24 EU) (n=1)	15.5 fps 0%
Beelink U59 Mini-S Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	10.8 (8.7^min) fps -30%
Zotac ZBOX PI336 pico Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)	5.2 (2.4^min) fps -66%

	basso	medio	alto	ultra
The Witcher 3 (2015)	21.6	14.4	7.8	3.9
Dota 2 Reborn (2015)	73.8	24.1	16.8	15.5
Final Fantasy XV Benchmark (2018)	13.7
X-Plane 11.11 (2018)	20.8	13.3	12.3

Emissioni

Rumore del sistema

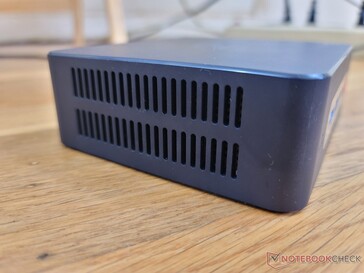

Il rumore della ventola è silenzioso a prescindere dal carico, anche quando è impostata la modalità Performance. Siamo riusciti a registrare solo un massimo di poco meno di 27 dB(A) contro uno sfondo silenzioso di 21,5 dB(A) rispetto ai 34 dB(A) dell'U59 dello scorso anno. Si tratta di uno dei mini PC più silenziosi se non si opta per modelli fanless come lo Zotac ZBOX PI336.

La nostra unità di prova presentava lievi rumori elettronici o coil whine che contribuiscono a spiegare il rumore al minimo di 22,1 dB(A).

Profilo del rumore della ventola (bianco: Sfondo, Rosso: Sistema inattivo, Blu: 3DMark 06, Arancione: Witcher 3, Verde: Prime95 stress)

Rumorosità

Idle		22.1 / 22.1 / 22.1 dB(A)
Sotto carico		23.9 / 26.8 dB(A)

	30 dB silenzioso 40 dB(A) udibile 50 dB(A) rumoroso
min: , med: , max: Earthworks M23R, Arta (15 cm di distanza) Rumorosità ambientale: 21.5 dB(A)

	Beelink U59 N5105 UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428	Beelink U59 Mini-S UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3	Beelink SER4 Vega 8, R7 4800U, Intel SSD 660p SSDPEKNW512G8	Beelink SER3 Vega 10, R7 3750H, GSemi AZW GSDFN512TS3F1OGCX	Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
Noise		-12%	-48%	-31%	-55%
off /ambiente *	21.5	23.3 -8%	23.4 -9%	23.4 -9%	24.8 -15%
Idle Minimum *	22.1	24.2 -10%	33.2 -50%	23.4 -6%	35.6 -61%
Idle Average *	22.1	24.2 -10%	33.2 -50%	23.4 -6%	35.6 -61%
Idle Maximum *	22.1	24.2 -10%	33.2 -50%	29.4 -33%	35.6 -61%
Load Average *	23.9	25.1 -5%	38.6 -62%	35.2 -47%	36.2 -51%
Witcher 3 ultra *	24.4		39.2 -61%	37.2 -52%	38 -56%
Load Maximum *	26.8	33.9 -26%	40.8 -52%	43.3 -62%	47.6 -78%

* ... Meglio usare valori piccoli

Temperatura

L'adattatore CA raggiunge oltre 44 C quando si utilizzano carichi impegnativi per periodi prolungati

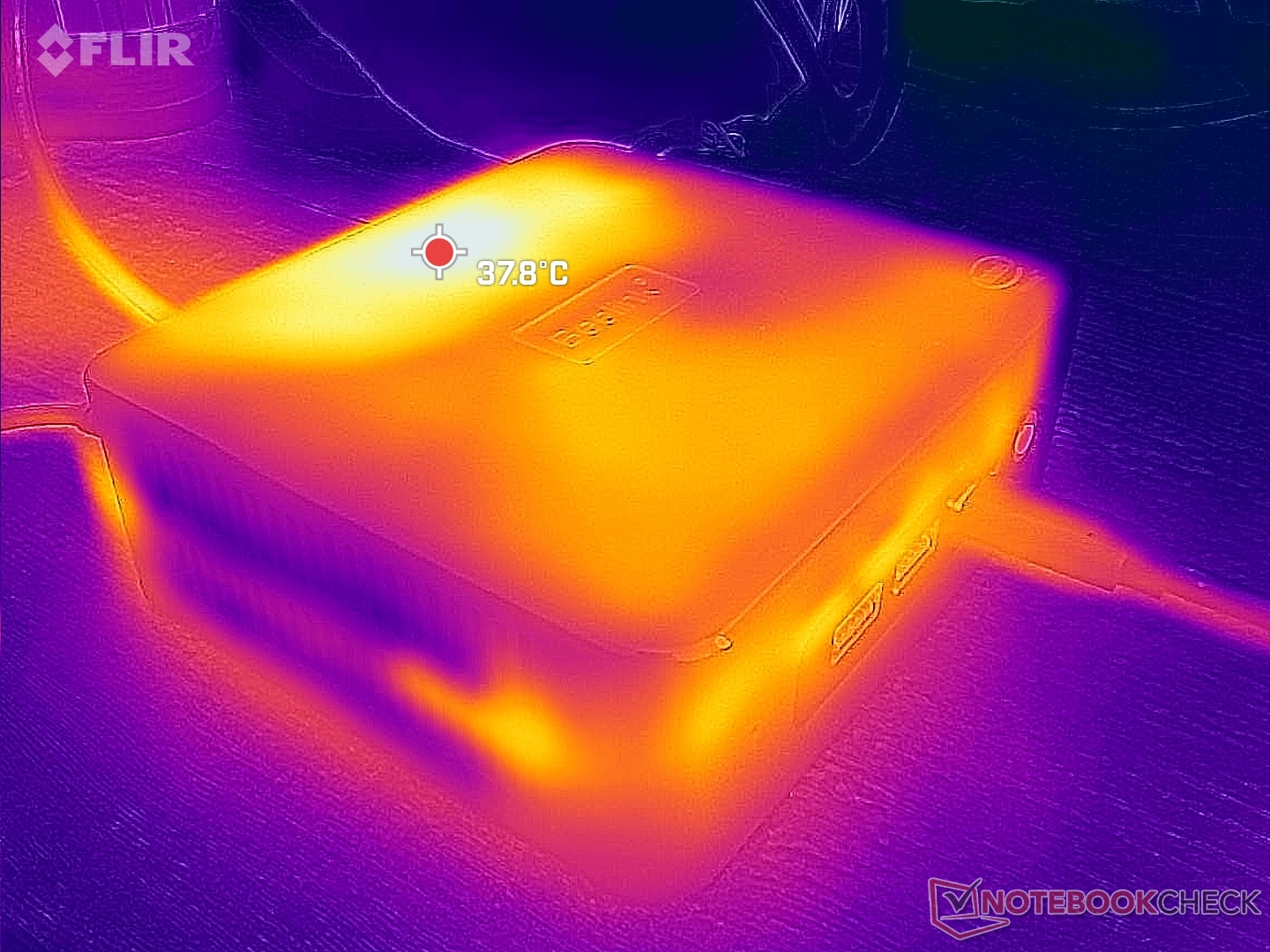

Le temperature di superficie sono calde anche quando il computer è al minimo, dato che la ventola è così letargica. La parte superiore dell'unità può raggiungere i 32 C quando non si eseguono applicazioni o i 38 C quando si eseguono applicazioni stressanti per lunghi periodi. I punti caldi si trovano verso la parte posteriore dello chassis, vicino alle griglie di ventilazione posteriori.

Stress test

La velocità di clock della CPU, la temperatura e l'assorbimento di potenza della scheda raggiungevano rispettivamente 2,8 GHz, 86 C e 20 W quando si avviava lo stress Prime95. Dopo circa 20 secondi, tuttavia, la velocità di clock e l'assorbimento di potenza della scheda scendevano rispettivamente a 2,4 GHz e 15 W, per mantenere una temperatura del core di 76 C, come mostra lo screenshot qui sotto. Questo valore è in realtà più lento e più freddo di 200 MHz e di 9 C, rispettivamente, rispetto a quello che abbiamo registrato sull'U59 dello scorso anno con il vecchio N5095.

	Clock della CPU (GHz)	Clock della GPU (MHz)	Temperatura media della CPU (°C)
Sistema inattivo	--	--	59
Stress Prime95	2,4	--	78

Gestione dell'energia

Consumo di energia

Il sistema è solo leggermente più esigente rispetto all'U59 dello scorso anno con il vecchio Celeron N5095. I già citati guadagni della GPU, tuttavia, valgono un paio di watt in più. Il consumo complessivo è ancora molto inferiore a quello dei mini PC con CPU Core U o Ryzen U, come l'Intel NUC11 Intel NUC11 o Beelink SER4

Siamo riusciti a registrare un consumo massimo temporaneo di 29 W dal piccolo (~7,8 x 4,6 x 3,2 cm) adattatore CA da 36 W durante l'esecuzione di Prime95.

CineBench R15 xT è stato avviato a 10 secondi dal termine. Il benchmark richiede circa 1 minuto e 55 secondi per essere completato

Lo stress Prime95 è iniziato a 10 secondi dalla fine. Il consumo è salito a 28,8 W per circa 25 secondi prima di scendere e stabilizzarsi a 23 W a causa del limitato potenziale del Turbo Boost del sistema

Consumo di corrente

Off / Standby	1.7 / 0.83 Watt
Idle	6.7 / 8.1 / 11.6 Watt
Sotto carico	23.9 / 28.8 Watt


Leggenda: min: , med: , max: Metrahit Energy

	Beelink U59 N5105 Celeron N5105, UHD Graphics (Jasper Lake 24 EU), Silicon Motion AZW 512G NV428, , x,	Beelink U59 Mini-S Celeron N5095, UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3, , x,	Beelink SER4 R7 4800U, Vega 8, Intel SSD 660p SSDPEKNW512G8, , x,	Beelink SER3 R7 3750H, Vega 10, GSemi AZW GSDFN512TS3F1OGCX, , x,	Intel NUC11TNKi5 i5-1135G7, Iris Xe G7 80EUs, Transcend M.2 SSD 430S TS512GMTS430S, , x,	Zotac ZBOX PI336 pico Celeron N6211, UHD Graphics (Elkhart Lake 16 EU), SanDisk DF4128, , x,
Power Consumption		15%	-4%	-27%	-82%	42%
Idle Minimum *	6.7	7 -4%	4.1 39%	7 -4%	11.5 -72%	5.4 19%
Idle Average *	8.1	7 14%	4.1 49%	9.1 -12%	12.4 -53%	5.5 32%
Idle Maximum *	11.6	7.6 34%	4.6 60%	9.7 16%	12.9 -11%	6.2 47%
Load Average *	23.9	18.3 23%	35.6 -49%	29.5 -23%	40.7 -70%	11.3 53%
Witcher 3 ultra *	19.1		35.6 -86%	32.5 -70%	43.9 -130%
Load Maximum *	28.8	27.1 6%	39.9 -39%	48.7 -69%	73.5 -155%	11.8 59%

* ... Meglio usare valori piccoli

Power Consumption Witcher 3 / Stresstest

Beelink U59 N5105 Celeron N5105, UHD Graphics (Jasper Lake 24 EU): Ø19.1 (18.5-23.3)

Beelink U59 Celeron N5095, UHD Graphics (Jasper Lake 16 EU): Ø13.1 (12.6-17)

Power Consumption external Monitor

Beelink U59 N5105 Celeron N5105, UHD Graphics (Jasper Lake 24 EU); Prime95 V2810 Stress (external Monitor): Ø24 (22.7-28.8)

Beelink U59 Celeron N5095, UHD Graphics (Jasper Lake 16 EU); Prime95 V2810 Stress (external Monitor): Ø24.1 (23-24.7)

Beelink U59 N5105 Celeron N5105, UHD Graphics (Jasper Lake 24 EU); Cinebench R15 Multi (external Monitor): Ø22.7 (17.2-24.9)

Beelink U59 Celeron N5095, UHD Graphics (Jasper Lake 16 EU); Cinebench R15 Multi (external Monitor): Ø20.7 (19.8-21.1)

Beelink U59 N5105 Celeron N5105, UHD Graphics (Jasper Lake 24 EU); 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø19.9 (18.6-27.2)

Beelink U59 Celeron N5095, UHD Graphics (Jasper Lake 16 EU); 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø13.1 (12.7-14.8)

Beelink U59 N5105 Celeron N5105, UHD Graphics (Jasper Lake 24 EU); 1920x1080 The Witcher 3 ultra (external Monitor): Ø19.1 (18.5-23.3)

Pro

+ facilità di manutenzione; 2x SODIMM, 2x alloggiamenti di archiviazione

+ leggero ed economico

+ Supporto DisplayPort

+ ventola silenziosa

+ 2 porte RJ-45

Contro

- prestazioni limitate di CPU e GPU

- connettività Wi-Fi 5 1x1 lenta

- assenza di alimentazione USB-C

- Problemi di latenza DPC

Verdetto - Stessa CPU, GPU più veloce

In esame: Beelink U59 N5105. Unità di prova fornita da Beelink

Se si punta alla velocità di elaborazione, non c'è quasi nessun motivo per scegliere il modello Celeron N5105 rispetto al modello N5095. L'N5105 può essere leggermente più freddo, ma non offre alcun guadagno apprezzabile in termini di prestazioni single-thread o multi-thread. I suoi vantaggi risiedono invece nella GPU integrata, che è più veloce della GPU integrata dell'N5095 con margini molto più ampi.

Purtroppo, la GPU dell'N5105 è ancora lenta e quindi l'esperienza dell'interfaccia utente di Windows è ancora lenta quando si eseguono più di una o due applicazioni contemporaneamente. In questo caso, le capacità di streaming dell'U59 N5105 sono essenzialmente le stesse dell'U59 N5095. Si consiglia di trovare SKU con RAM a doppio canale quando possibile per massimizzare le prestazioni della GPU integrata.

Per quanto riguarda il mini PC in sé, l'U59 ha una discreta quantità di funzioni, considerando il suo prezzo molto basso. Le configurazioni vengono fornite con Windows 11 preinstallato e un'unità SSD da 512 GB molto capiente con 16 GB di RAM per soli 200 dollari circa, mentre un NUC Intel potrebbe facilmente costare più di due volte tanto senza RAM o memoria. Se tutto ciò che si vuole fare è lo streaming di base a 1080p o la navigazione, allora questo U59 farà il lavoro a sufficienza. Per un multi-tasking più intenso e un maggiore overhead, tuttavia, è preferibile investire in un mini PC con CPU Core o Ryzen più veloci, come le serie Bellink SEI o SER.

Prezzo e disponibilità

Il Beelink U59, come configurato nella nostra recensione, è attualmente disponibile a 200 dollari se acquistato su direttamente dal produttore. In alternativa, Amazon ha la configurazione in stock a 240 dollari e 200 dollari per le SKU da 16 GB e 8 GB, rispettivamente.

Altri articoli relativi a questo dispositivo

Beelink U59 N5105 (U Serie)

recensione

•

Recensione del mini PC Beelink...

recensione

•

Intel Celeron N5095 Jasper Lak...

Price comparison

Editor of the original article: Allen Ngo - Lead Editor U.S. - 5316 articles published on Notebookcheck since 2011

contact me via: @AllenNgoNBC

Translator: Ninh Ngoc Duy - Editorial Assistant - 531918 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Recensioni e prove di notebook, tablets e smartphones > Recensioni e prove > Recensioni e prove > Recensione del mini PC Beelink U59: Debutto del Celeron N5105 Jasper Lake

Allen Ngo, 2022-09- 8 (Update: 2022-09- 9)
