Recensione del mini PC ACEMagician ACE-CK10-8259U - un PC da ufficio silenzioso con spazio per tre SSD

Name: ACEMagician ACE-CK10-8259U
Brand: ACEMagician

Mostro della memoria!

L'ACEMagician ACE-CK10-8259U è un piccolo PC da ufficio basato su un processore nativo a 4 core. Tuttavia, il suo processore fa ancora parte della generazione Coffee Lake, che non è necessariamente la prima scelta per i nuovi dispositivi. Tuttavia, il produttore ha fornito a questo modello un potenziale di prestazioni sufficiente per l'uso quotidiano. Abbiamo messo alla prova l'ACEMagician ACE-CK10-8259U e questa recensione vi mostrerà tutto ciò che il SoC può fare.

Sebastian Bade (traduzione a cura di DeepL / Ninh Duy), Published 04/19/2023 🇺🇸 🇩🇪 ...

Mini PC Desktop Intel Coffee Lake

Il produttore cinese di sistemi Minipc Union distribuisce, tra gli altri, i marchi ACEMagician, NiPoGi e Kamuri, che abbiamo già avuto modo di conoscere in alcuni dei nostri test. L'ACEMagician ACE-CK10-8259U si affida a un processore Intel Core i5-8259U come SoC. Il SoC ha 4 core e 8 thread e riesce a gestire relativamente bene il carico di lavoro nell'uso quotidiano - questo possiamo già dirlo a questo punto. Il SoC è supportato da 16 GB di RAM LPDDR3, non espandibile. L'unità SSD del nostro esemplare di prova è un modello da 512 GB. Attualmente il produttore richiede circa 400 dollari per il dispositivo di prova, che include anche Windows 11 Professional.

Il mini PC si presenta in una confezione compatta che include un alimentatore da 65 watt e un supporto VESA, che consente di fissare il dispositivo a un monitor. Una panoramica dei potenziali rivali è riportata nella seguente tabella.

ACEMagician ACE-CK10-8259U

Processore

Intel Core i5-8259U 4 x 2.3 - 3.8 GHz, Coffee Lake-U

Scheda grafica

Intel Iris Plus Graphics 655

Memoria

16 GB

, LPDDR3-1600, fest verbaut

Scheda madre

Intel Cannon Lake-U PCH-LP Premium

Harddisk

FPT330M8SSD512G, 512 GB

, M.2 2280, 440 GB libera

Scheda audio

Intel Cannon Lake-LP - cAVS

Porte di connessione

5 USB 3.0 / 3.1, 1 VGA, 2 HDMI

Rete

Realtek Semiconductor RTL8168/8111 PCI-E Gigabit Ethernet NIC (10/100/1000MBit/s), RealTek Semiconductor, Device ID: C821 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2

Dimensioni

altezza x larghezza x profondità (in mm): 50 x 137.5 x 125

Sistema Operativo

Microsoft Windows 11 Pro

Peso

449 gr, Alimentazione: 236 gr

Prezzo

450 EUR

Nota: il produttore potrebbe usare componenti di fornitori diversi pannelli dei diplay, drive o banchi di memoria con specifiche simili.

guarda tutte le specifiche

Potenziali concorrenti a confronto

Punteggio	Data	Modello	Peso	Altezza
73.4 % v7 ^(old)	04/2023	ACEMagician ACE-CK10-8259U i5-8259U, Iris Plus Graphics 655	449 gr	50 mm
v ^(old)	01/2022	Morefine S500+ R9 5900HX, Vega 8	697 gr	40 mm
v ^(old)	02/2022	Minisforum EliteMini TH50 i5-11320H, Iris Xe G7 96EUs	763 gr	55.5 mm
v ^(old)	09/2022	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	628 gr	72 mm
v7 ^(old)	09/2022	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	586 gr	53 mm
70.9 % v7 ^(old)	12/2022	Minipc Union NiPoGi CK10 - 10810U i7-10810U, UHD Graphics 620	468 gr	50 mm
68.2 % v7 ^(old)	03/2023	Minipc Union NiPoGi GK3PLUS - N95 N95, UHD Graphics 24EUs (Alder Lake-N)	381 gr	47 mm

Il prodotto ACEMagician ACE-CK10-8259U in dettaglio

Caso

L'ACEMagician ACE-CK10-8259U è identico nella costruzione al NiPoGi CK10. Entrambi i modelli presentano la stessa custodia, realizzata principalmente in plastica. Il dispositivo è disponibile in un colore grigio opaco relativamente poco appariscente. Questo è un bene, perché le superfici lucide tendono a graffiarsi rapidamente. L'ingombro di 13,7 x 12,5 centimetri è inferiore a quello dei suoi concorrenti. Tuttavia, l'altezza della struttura, che nel nostro campione di prova misurava esattamente cinque centimetri, è risultata un po' più alta. Per quanto riguarda la scelta dei materiali da parte di ACEMagician, il NiPoGi CK10 è prevalentemente in plastica. Il produttore ha scelto di rinunciare a un telaio metallico aggiuntivo per garantire la stabilità. Il lettore di impronte digitali presente sul lato superiore sembra non funzionare sul nostro dispositivo di prova. Sembra che il produttore abbia utilizzato la custodia del dispositivo per ulteriori opzioni di configurazione.

Confronto delle dimensioni

Minipc Union Ace Magician AMR5 Minisforum EliteMini TH50 Minipc Union Ace Magician TK11-A0 ACEMagician ACE-CK10-8259U Minipc Union NiPoGi CK10 - 10810U Morefine S500+ Minipc Union NiPoGi GK3PLUS - N95 DIN A4 ❌

Connettività

In termini di porte esterne, abbiamo potuto vedere le stesse porte dell'ACEMagician ACE-CK10-8259U e del NiPoGi CK10. Abbiamo contato un totale di cinque interfacce USB, che dovrebbero essere più che sufficienti per la maggior parte degli utenti. Le porte USB sono suddivise in 4 porte USB Type-A e 1 porta USB Type-C. Tuttavia, quest'ultima è solo una normale porta dati e, di conseguenza, non offre il supporto Thunderbolt. I display possono essere collegati al dispositivo tramite le porte HDMI sul retro. Inoltre, ACEMagician ACE-CK10-8259U dispone di una porta VGA, che oggi non è più molto utilizzata.

Parte anteriore: USB Type-C (dati), 2x USB 3.0, jack da 3,5 mm, accensione

Retro: 2x USB 3.0, 2x HDMI, GBit-LAN, connessione di alimentazione

Comunicazione

Modulo Wi-Fi nel dispositivo ACEMagician ACE-CK10-8259U

L'ACEMagician CK10 è dotato di un modulo Wi-Fi di Realtek. Tuttavia, il modulo wireless non ha funzionato in modo affidabile nel nostro test, il che ha fatto sì che il nostro campione di prova si posizionasse in fondo alla nostra lista. Un modulo identico è stato utilizzato anche nel NiPoGi CK10che ha mostrato un risultato simile. Per questo test è stato utilizzato un Asus ROG Rapture GT-AXE11000 come router di prova. In alternativa, l'ACEMagician ACE-CK10-8259U dispone anche di una porta Ethernet. Qui è possibile raggiungere 1 GBit/s.

Networking
iperf3 receive AXE11000
Media della classe Mini PC (192.9 - 1796, n=113, ultimi 2 anni)	932 MBit/s +167%
Minipc Union Ace Magician AMR5 MediaTek RZ608	903 MBit/s +159%
Minisforum EliteMini TH50 MediaTek MT7921	776 MBit/s +122%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	390 MBit/s +12%
Minipc Union NiPoGi GK3PLUS - N95 Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	358 (180^min - 362^max) MBit/s +3%
ACEMagician ACE-CK10-8259U RealTek Semiconductor, Device ID: C821	349 (175^min - 353^max) MBit/s
Media RealTek Semiconductor, Device ID: C821 (192.9 - 349, n=2)	271 MBit/s -22%
Minipc Union NiPoGi CK10 - 10810U RealTek Semiconductor, Device ID: C821	192.9 (95^min - 196^max) MBit/s -45%
iperf3 transmit AXE11000
Minipc Union Ace Magician AMR5 MediaTek RZ608	967 MBit/s +256%
Minisforum EliteMini TH50 MediaTek MT7921	866 MBit/s +218%
Media della classe Mini PC (184.1 - 1776, n=113, ultimi 2 anni)	864 MBit/s +218%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	745 MBit/s +174%
Minipc Union NiPoGi CK10 - 10810U RealTek Semiconductor, Device ID: C821	343 (170^min - 362^max) MBit/s +26%
Media RealTek Semiconductor, Device ID: C821 (272 - 343, n=2)	308 MBit/s +13%
ACEMagician ACE-CK10-8259U RealTek Semiconductor, Device ID: C821	272 (263^min - 279^max) MBit/s
Minipc Union NiPoGi GK3PLUS - N95 Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	269 (136^min - 276^max) MBit/s -1%

ACEMagician ACE-CK10-8259U; iperf3 receive AXE11000; iperf 3.1.3: Ø342 (175-353)

ACEMagician ACE-CK10-8259U; iperf3 transmit AXE11000; iperf 3.1.3: Ø272 (263-279)

Accessori

Oltre al dispositivo stesso, la confezione comprendeva un alimentatore da 65 watt e una piastra di montaggio VESA con tutte le viti necessarie. Inoltre, la fornitura comprendeva un cavo HDMI e un cavo di collegamento per un supporto di memorizzazione da 2,5 pollici, che può essere installato internamente.

Manutenzione

Per il momento non dovrebbe essere necessario un aggiornamento grazie alla configurazione di base preconfigurata del mini PC, che include RAM e SSD. Dal momento che la memoria di lavoro non può essere sostituita, l'unica opzione sarebbe quella di installare ulteriori unità SSD. A tal fine, la parte inferiore del dispositivo può essere facilmente rimossa. Anche la parte superiore può essere aperta - il pannello è tenuto in posizione solo da alcune clip di plastica. La ventola della CPU è nascosta sotto.

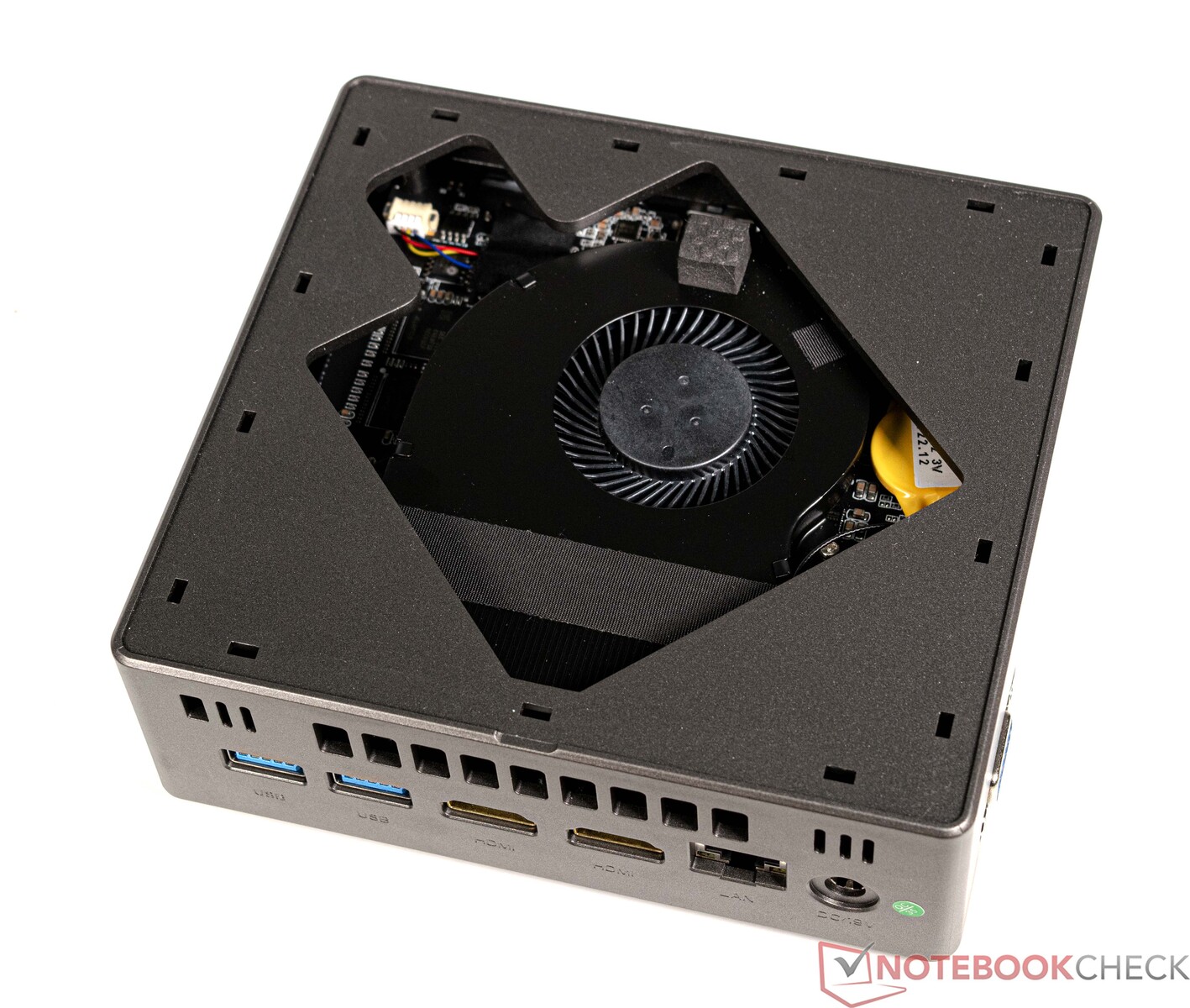

aperto ACEMagician ACE-CK10-8259U (in alto)

aperto ACEMagician ACE-CK10-8259U (in basso)

Prestazioni

L'ACEMagician ACE-CK10-8259U è un dispositivoIntel Core i5-8259U Che è già presente sul mercato da diversi anni. Di conseguenza, questo SoC avrà difficoltà a competere con gli attuali 4 core nativi. Ciononostante, l'ACEMagician ACE-CK10-8259U, insieme ai suoi 16 GB di RAM e all'SSD da 512 GB, offre prestazioni solide e può essere sicuramente considerato un dispositivo da ufficio.

Condizioni di test

Per tutti i test sulle prestazioni abbiamo lasciato il sistema nello stato in cui è stato consegnato. Non abbiamo modificato i limiti di potenza del SoC. Tuttavia, il BIOS offre la possibilità di modificare questi valori.

Processore

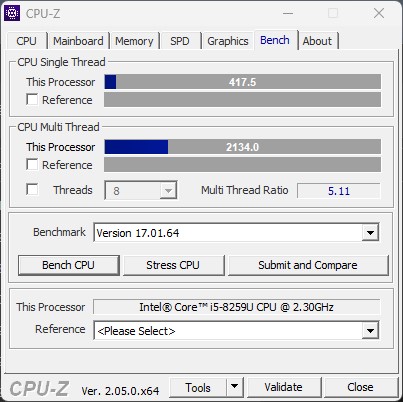

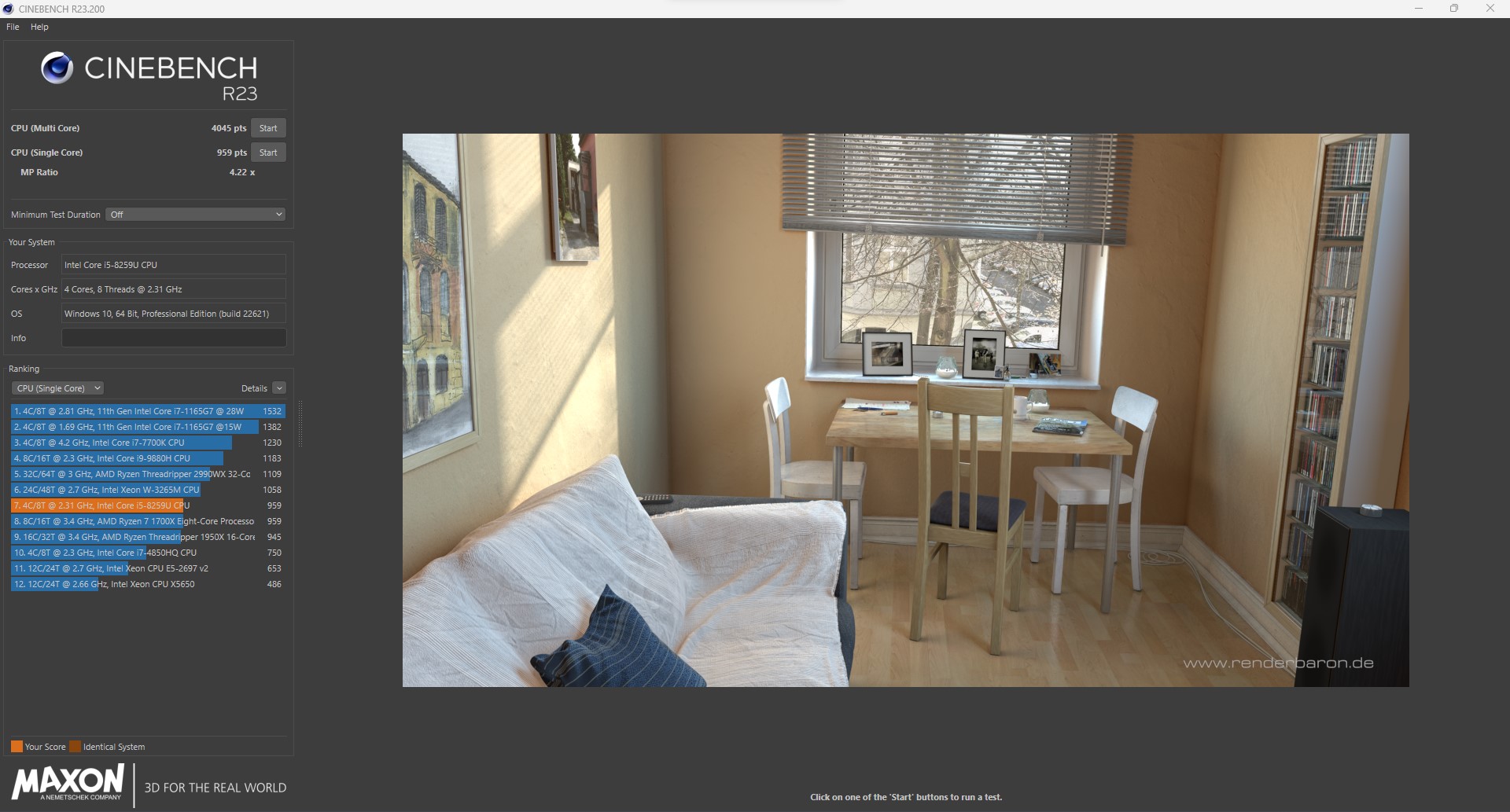

IlIntel Core i5-8259U fa parte della serie Coffee Lake e dispone di quattro core di elaborazione nativi con un totale di 8 thread. Il consumo energetico è limitato a 40 e 28 watt rispettivamente. Nel nostro test, abbiamo riscontrato una prestazione equivalente a quella del NiPoGi CK10che in realtà dovrebbe avere la CPU più veloce tra le due grazie al suo Intel Core i7-10810U. Rispetto ai 4 core della serie Tiger Lake, il nostro campione di prova non è riuscito a tenere il passo. La sua mancanza di IPC, che deriva dalla più recente architettura della CPU, si è rivelata piuttosto evidente nei risultati dei benchmark.

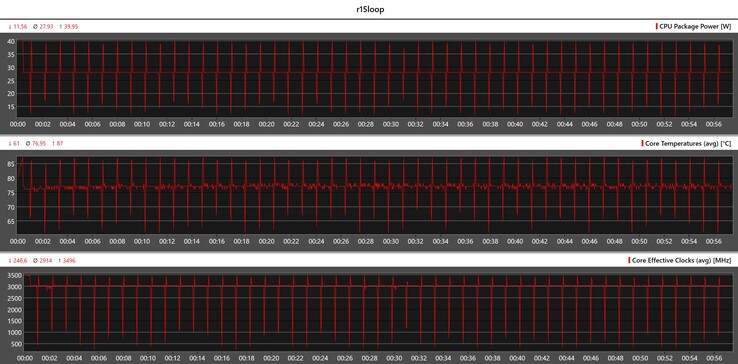

Inoltre, l'ACEMagician ACE-CK10-8259U è costretto a fare i conti con una RAM LPDDR3 più lenta, il che spiega le sue prestazioni relativamente scarse nei benchmark della memoria.

Altri benchmark del processore sono disponibili qui.

Performance Rating - Percent
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	47.6 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	41.8 pt
Minisforum EliteMini TH50 ^-2! Intel Core i5-11320H, 3200 MHz	40 pt
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	35.8 pt
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	33.9 pt
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	32.6 pt
Media Intel Core i5-8259U	32.4 pt
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	27.9 pt

Cinebench R15
CPU Single 64Bit
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	240 Points +64%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	223 Points +53%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	212 Points +45%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	197 Points +35%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	170 Points +16%
Media Intel Core i5-8259U (132 - 154, n=6)	147.1 Points +1%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	146 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	123 Points -16%
CPU Multi 64Bit
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1919 (1862.02^min - 1893.4^max) Points +203%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1265 Points +100%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	950 Points +50%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	634 Points
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	623 Points -2%
Media Intel Core i5-8259U (575 - 687, n=7)	622 Points -2%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	560 Points -12%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	408 Points -36%

Cinebench R20
CPU (Single Core)
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	567 Points +52%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	560 Points +51%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	534 Points +44%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	517 Points +39%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	415 Points +12%
Media Intel Core i5-8259U (369 - 386, n=5)	378 Points +2%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	372 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	241 Points -35%
CPU (Multi Core)
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	4495 Points +187%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2975 Points +90%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	2319 Points +48%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	1567 Points
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1498 Points -4%
Media Intel Core i5-8259U (1385 - 1567, n=5)	1473 Points -6%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1440 Points -8%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	976 Points -38%

Cinebench R11.5
CPU Single 64Bit
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	2.8 Points +68%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2.64 Points +58%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	2.51 Points +50%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	2.31 Points +38%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1.95 Points +17%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	1.67 Points
Media Intel Core i5-8259U ()	1.67 Points 0%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	1.49 Points -11%
CPU Multi 64Bit
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	22 Points +211%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	14.78 Points +109%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	10.78 Points +52%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	7.07 Points
Media Intel Core i5-8259U ()	7.07 Points 0%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	6.98 Points -1%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	6.37 Points -10%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	5.18 Points -27%

Cinebench R10
Rendering Single CPUs 64Bit
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	11811 Points +60%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	11457 Points +55%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	11098 Points +50%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	10395 Points +41%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	8591 Points +16%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	7397 Points
Media Intel Core i5-8259U ()	7397 Points 0%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	6562 Points -11%
Rendering Multiple CPUs 64Bit
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	64320 Points +135%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	45363 Points +66%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	42350 Points +55%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	27377 Points
Media Intel Core i5-8259U ()	27377 Points 0%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	24499 Points -11%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	23491 Points -14%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	20429 Points -25%

Blender - v2.79 BMW27 CPU
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	1152 Seconds * -67%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	750 Seconds * -9%
Media Intel Core i5-8259U (688 - 769, n=6)	730 Seconds * -6%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	694 Seconds * -1%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	688 Seconds *
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	516 Seconds * +25%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	399 Seconds * +42%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	265 Seconds * +61%

wPrime 2.10
32m
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	16.449 s * -120%
Media Intel Core i5-8259U ()	7.48 s * -0%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	7.479 s *
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	6.952 s * +7%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	6.799 s * +9%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5.895 s * +21%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5.377 s * +28%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	4.4 s * +41%
1024m
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	535.88 s * -116%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	286.835 s * -15%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	267.369 s * -8%
Media Intel Core i5-8259U ()	249 s * -0%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	248.619 s *
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	191.4 s * +23%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	156.33 s * +37%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	106.7 s * +57%

X264 HD Benchmark 4.0
Pass 1
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	276.5 (274^min - 278^max) fps +65%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	234 (233^min - 235^max) fps +39%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	167.95 (167.5^min - 172.9^max) fps
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	165.55 (163.6^min - 204^max) fps -1%
Media Intel Core i5-8259U (162.3 - 168, n=2)	165.1 fps -2%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	145.25 (144.9^min - 145.6^max) fps -14%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	141.6 (140.9^min - 163.1^max) fps -16%
Pass 2
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	112 (112^min - 112^max) fps +177%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	76 (75.7^min - 76.3^max) fps +88%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	40.5 (39.6^min - 43.1^max) fps
Media Intel Core i5-8259U (38.5 - 40.5, n=2)	39.5 fps -2%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	39.15 (39.1^min - 42.7^max) fps -3%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	36.7 (36.7^min - 37.6^max) fps -9%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	29.65 (29.5^min - 29.7^max) fps -27%

WinRAR - Result
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7722 KB/s +44%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6877 KB/s +29%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5481 KB/s +2%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	5348 KB/s
Media Intel Core i5-8259U ()	5348 KB/s 0%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	4747 KB/s -11%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4185 KB/s -22%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2181 KB/s -59%

TrueCrypt
AES Mean 100MB
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	10.8 GB/s +163%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	7.7 GB/s +88%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	6.1 GB/s +49%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	5.9 GB/s +44%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5.3 GB/s +29%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	4.1 GB/s
Media Intel Core i5-8259U ()	4.1 GB/s 0%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2.4 GB/s -41%
Twofish Mean 100MB
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1.6 GB/s +112%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1.1 GB/s +46%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1 GB/s +33%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.919 GB/s +22%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.755 GB/s 0%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	0.753 GB/s
Media Intel Core i5-8259U ()	0.753 GB/s 0%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	0.497 GB/s -34%
Serpent Mean 100MB
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1.1 GB/s +142%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.7 GB/s +54%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	0.566 GB/s +25%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.525 GB/s +16%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	0.454 GB/s
Media Intel Core i5-8259U ()	0.454 GB/s 0%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.448 GB/s -1%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	0.243 GB/s -46%

Geekbench 5.5
Multi-Core
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7855 Points +105%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6175 Points +61%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5657 Points +47%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4898 Points +28%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	3934 Points +2%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	3839 Points
Media Intel Core i5-8259U (3359 - 3839, n=3)	3602 Points -6%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2391 Points -38%
Single-Core
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1552 Points +64%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	1453 Points +53%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1430 Points +51%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1391 Points +47%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1219 Points +29%
Media Intel Core i5-8259U (948 - 984, n=3)	961 Points +1%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	948 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	804 Points -15%

Geekbench 5.0
5.0 Multi-Core
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7847 Points +106%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6117 Points +61%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5606 Points +47%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4841 Points +27%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	3924 Points +3%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	3811 Points
Media Intel Core i5-8259U (3335 - 3811, n=3)	3571 Points -6%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2382 Points -37%
5.0 Single-Core
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1504 Points +59%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	1453 Points +54%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1385 Points +47%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1383 Points +47%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1220 Points +29%
Media Intel Core i5-8259U (944 - 979, n=3)	957 Points +1%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	944 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	804 Points -15%

Geekbench 4.4
64 Bit Single-Core Score
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	6434 Points +53%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	6238 Points +48%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5911 Points +40%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5854 Points +39%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	4762 Points +13%
Media Intel Core i5-8259U (4200 - 4383, n=3)	4265 Points +1%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	4211 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	3591 Points -15%
64 Bit Multi-Core Score
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	31724 Points +112%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	24495 Points +63%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	22045 Points +47%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	19324 Points +29%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	19288 Points +29%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	14984 Points
Media Intel Core i5-8259U (13421 - 14984, n=3)	14122 Points -6%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	9662 Points -36%

3DMark 11 - 1280x720 Performance Physics
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	16783 Points +94%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	12608 Points +45%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	11662 Points +35%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	8666 Points
Media Intel Core i5-8259U (7105 - 9276, n=6)	8348 Points -4%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	7792 Points -10%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	6537 Points -25%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	5084 Points -41%

7-Zip 18.03
7z b 4
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	54998 MIPS +194%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	39207 MIPS +109%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	26858 MIPS +43%
Media Intel Core i5-8259U (17799 - 28824, n=6)	20778 MIPS +11%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	20163 MIPS +8%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	18729 MIPS
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	17636 MIPS -6%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	11654 MIPS -38%
7z b 4 -mmt1
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	5905 MIPS +57%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5249 MIPS +40%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	4945 MIPS +32%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4788 MIPS +28%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	4638 MIPS +24%
Media Intel Core i5-8259U (3753 - 4022, n=6)	3949 MIPS +5%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	3753 MIPS
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	3121 MIPS -17%

HWBOT x265 Benchmark v2.2 - 4k Preset
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	14.5 fps +164%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	10.1 fps +84%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	7.86 fps +43%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	5.49 fps
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5.26 fps -4%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	5.2 fps -5%
Media Intel Core i5-8259U (4.72 - 5.49, n=6)	5.19 fps -5%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	3.03 fps -45%

R Benchmark 2.5 - Overall mean
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	1.032 sec * -26%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	0.818 sec *
Media Intel Core i5-8259U (0.738 - 0.818, n=5)	0.779 sec * +5%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	0.7 sec * +14%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.639 sec * +22%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.622 sec * +24%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.537 sec * +34%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	0.493 sec * +40%

LibreOffice - 20 Documents To PDF
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	80.4 s * -28%
Media Intel Core i5-8259U (62.7 - 76, n=5)	69.5 s * -11%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	68.2 s * -9%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	62.7 s *
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	52 s * +17%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	51.1 s * +19%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	50.4 s * +20%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	48.7 s * +22%

WebXPRT 3 - Overall
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	274 Points +50%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	257 Points +41%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	255 Points +40%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	236 Points +29%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	205 Points +12%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	182.4 Points
Media Intel Core i5-8259U (173.3 - 182.4, n=5)	176.9 Points -3%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	155.3 Points -15%

Mozilla Kraken 1.1 - Total
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	1238 ms * -14%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	1088 ms *
Media Intel Core i5-8259U (1010 - 1095, n=5)	1054 ms * +3%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	968 ms * +11%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	724 ms * +33%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	670 ms * +38%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	646 ms * +41%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	602 ms * +45%

3DMark
3840x2160 Fire Strike Ultra Physics
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	23269 Points +122%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	17568 Points +67%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	13773 Points +31%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	10500 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9561 Points -9%
Media Intel Core i5-8259U (8488 - 10583, n=4)	9530 Points -9%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	8470 Points -19%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	5843 Points -44%
1920x1080 Fire Strike Physics
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	23903 Points +120%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	18076 Points +66%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	13763 Points +27%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	10860 Points
Media Intel Core i5-8259U (8348 - 11006, n=6)	9726 Points -10%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9354 Points -14%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	9003 Points -17%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	5903 Points -46%
2560x1440 Time Spy CPU
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	8191 Points +145%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5443 Points +63%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5210 Points +56%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	3346 Points
Media Intel Core i5-8259U (2752 - 3346, n=6)	3096 Points -7%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	2867 Points -14%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	2728 Points -18%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2081 Points -38%

* ... Meglio usare valori piccoli

Performance Rating
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	96.5 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	67.3 pt
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	57.9 pt
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	45.7 pt
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	36.9 pt
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	34.9 pt
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	7.3 pt

AIDA64 / FP32 Ray-Trace
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	13460 KRay/s +157%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	9086 KRay/s +73%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	7489 KRay/s +43%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	5612 KRay/s +7%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	5247 KRay/s
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	4654 KRay/s -11%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	744 KRay/s -86%

AIDA64 / FPU Julia
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	85294 Points +226%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	57375 Points +119%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	31637 Points +21%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	26251 Points 0%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	26145 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	24138 Points -8%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	3970 Points -85%

AIDA64 / CPU SHA3
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	2924 MB/s +114%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	2099 MB/s +54%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	1971 MB/s +44%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	1649 MB/s +21%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	1367 MB/s
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	1052 MB/s -23%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	270 MB/s -80%

AIDA64 / CPU Queen
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	94655 Points +120%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	67224 Points +56%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	56561 Points +31%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	52477 Points +22%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	46646 Points +8%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	43072 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	8178 Points -81%

AIDA64 / FPU SinJulia
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	11929 Points +177%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	8294 Points +92%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	5011 Points +16%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	4648 Points +8%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	4310 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	3964 Points -8%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	408 Points -91%

AIDA64 / FPU Mandel
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	47010 Points +264%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	31389 Points +143%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	18770 Points +45%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	14905 Points +15%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	12914 Points
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	12560 Points -3%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	1987 Points -85%

AIDA64 / CPU AES
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	115382 MB/s +606%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	78211 MB/s +378%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	76500 MB/s +368%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	58910 MB/s +260%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	17907 MB/s +9%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	16354 MB/s
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	7954 MB/s -51%

AIDA64 / CPU ZLib
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	747 MB/s +136%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	505 MB/s +60%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	410 MB/s +30%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	316 MB/s
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	292 MB/s -8%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	265 MB/s -16%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	74.9 MB/s -76%

AIDA64 / FP64 Ray-Trace
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	7193 KRay/s +160%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	4636 KRay/s +67%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	4021 KRay/s +45%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	2997 KRay/s +8%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	2771 KRay/s
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	2527 KRay/s -9%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	412 KRay/s -85%

AIDA64 / CPU PhotoWorxx
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	30647 MPixel/s +105%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	26959 MPixel/s +80%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	19885 MPixel/s +33%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	19395 MPixel/s +29%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	14986 MPixel/s
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	10107 MPixel/s -33%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	4408 MPixel/s -71%

L'ACEMagician ACE-CK10-8259U nel multi loop di Cinebench R15

La ventola incorporata non ha faticato a mantenere il Intel Core i5-8259Usotto controllo. In sintesi, abbiamo potuto osservare un risultato leggermente migliore di quello del NiPoGi CK10 con processore nativo a 6 core. Tuttavia, il produttore ha deciso di utilizzare il SoC in modo molto conservativo in termini di limiti di potenza. Con una media di 621 punti, le sue prestazioni sono state estremamente stabili in tutte le 50 prove.

Metriche della CPU durante il ciclo Cinebench R15

ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Intel Core i5-8259U: Ø621 (611.68-659.87)

Morefine S500+ AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø1892 (1879.35-1907.49)

Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Core i5-11320H: Ø896 (837.78-960.71)

Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Ryzen 5 5600U: Ø1158 (1130.29-1266.62)

Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Core i5-1135G7: Ø574 (568.03-615.59)

Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel Core i7-10810U: Ø612 (604.67-652.86)

Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, Intel Processor N95: Ø404 (398.46-406.91)

Prestazioni del sistema

L'età del SoC installato è emersa anche nei benchmark di sistema. I modelli più recenti sono stati significativamente più veloci. Solo il NiPoGi GK3PLUS è stato battuto. È basato su un Intel N95 molto frugale, che ha ottenuto punti grazie alla sua efficienza. Nella valutazione soggettiva, siamo rimasti positivamente sorpresi dalle prestazioni del sistema puro nelle attività quotidiane. Il SoC, presumibilmente inferiore e obsoleto, si è comportato bene e il lavoro è stato sempre fluido.

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	6290 Points +52%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	5761 Points +39%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	5130 Points +24%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	4521 Points +9%
ACEMagician ACE-CK10-8259U, Intel Core i5-8259U Intel Iris Plus Graphics 655, FPT330M8SSD512G	4132 Points
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	3884 Points -6%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	2983 Points -28%

PCMark 10 / Essentials
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	10385 Points +26%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	10087 Points +23%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	9556 Points +16%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	8910 Points +8%
ACEMagician ACE-CK10-8259U, Intel Core i5-8259U Intel Iris Plus Graphics 655, FPT330M8SSD512G	8215 Points
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	7469 Points -9%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	6650 Points -19%

PCMark 10 / Productivity
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	9856 Points +65%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	9539 Points +60%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	6832 Points +14%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	6657 Points +11%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	6357 Points +6%
ACEMagician ACE-CK10-8259U, Intel Core i5-8259U Intel Iris Plus Graphics 655, FPT330M8SSD512G	5976 Points
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	4524 Points -24%

Performance Rating: Percent
CrossMark: Overall | Responsiveness | Creativity | Productivity

Performance Rating
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	100 pt
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	95.6 pt
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	91.7 pt
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	72.2 pt
ACEMagician ACE-CK10-8259U, Intel Core i5-8259U Intel Iris Plus Graphics 655, FPT330M8SSD512G	68.5 pt
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	49.2 pt

CrossMark / Overall
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1373 Points +44%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1300 Points +36%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1245 Points +31%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	1018 Points +7%
ACEMagician ACE-CK10-8259U, Intel Core i5-8259U Intel Iris Plus Graphics 655, FPT330M8SSD512G	954 Points
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	666 Points -30%

CrossMark / Responsiveness
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1263 Points +59%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1260 Points +58%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1224 Points +54%
ACEMagician ACE-CK10-8259U, Intel Core i5-8259U Intel Iris Plus Graphics 655, FPT330M8SSD512G	796 Points
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	779 Points -2%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	661 Points -17%

CrossMark / Creativity
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1379 Points +34%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1241 Points +21%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1193 Points +16%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	1038 Points +1%
ACEMagician ACE-CK10-8259U, Intel Core i5-8259U Intel Iris Plus Graphics 655, FPT330M8SSD512G	1027 Points
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	616 Points -40%

CrossMark / Productivity
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1406 Points +49%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1376 Points +46%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1306 Points +38%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	1092 Points +16%
ACEMagician ACE-CK10-8259U, Intel Core i5-8259U Intel Iris Plus Graphics 655, FPT330M8SSD512G	943 Points
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	721 Points -24%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	48650 MB/s +28%
Media della classe Mini PC (6481 - 89287, n=119, ultimi 2 anni)	47585 MB/s +25%
Media Intel Core i5-8259U (37992 - 49395, n=4)	46216 MB/s +22%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	41969 MB/s +10%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	37992 MB/s
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	35423 MB/s -7%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	35051 MB/s -8%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	18973 MB/s -50%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	6481 MB/s -83%

AIDA64 / Memory Read
Media della classe Mini PC (6914 - 99171, n=119, ultimi 2 anni)	48328 MB/s +36%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	46906 MB/s +32%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	46701 MB/s +32%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	40348 MB/s +14%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	38400 MB/s +8%
Media Intel Core i5-8259U (35415 - 39382, n=4)	37919 MB/s +7%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	35415 MB/s
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	19621 MB/s -45%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	6914 MB/s -80%

AIDA64 / Memory Write
Media della classe Mini PC (6862 - 98583, n=119, ultimi 2 anni)	52056 MB/s +19%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	50353 MB/s +15%
Media Intel Core i5-8259U (43598 - 51980, n=4)	48814 MB/s +12%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	43598 MB/s
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	41806 MB/s -4%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	39154 MB/s -10%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	37475 MB/s -14%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	18296 MB/s -58%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	6862 MB/s -84%

AIDA64 / Memory Latency
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	146 ns * -142%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	95.7 ns * -59%
Media della classe Mini PC (44.9 - 184.8, n=119, ultimi 2 anni)	91.9 ns * -52%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	91.3 ns * -51%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	73.5 ns * -22%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	69 ns * -14%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	60.3 ns *
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	60.2 ns * -0%
Media Intel Core i5-8259U (55.2 - 60.3, n=4)	56.6 ns * +6%

* ... Meglio usare valori piccoli

Latenza DPC

LatencyMon ha già mostrato un aumento delle latenze quando si aprono diverse schede con il browser Edge. Queste latenze non sono aumentate ulteriormente durante la riproduzione del video di test 4K di YouTube. Non abbiamo riscontrato alcuna perdita di fotogrammi e la iGPU dell'unitàIntel Core i5-8259U è stata utilizzata fino a circa il 60%.

Latenze massime quando si aprono più schede del browser e si riproducono video 4K.

Latenze massime dopo dieci secondi di Prime95

Driver classificati in base alla durata di esecuzione più lunga

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	7414 μs * -128%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	3463 μs * -7%
ACEMagician ACE-CK10-8259U, Intel Core i5-8259U Intel Iris Plus Graphics 655, FPT330M8SSD512G	3247 μs *
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	1625 μs * +50%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	765 μs * +76%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	659.1 μs * +80%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	349.5 μs * +89%

* ... Meglio usare valori piccoli

Dispositivi di archiviazione

Il nostro campione di prova è dotato di un'unità SSD con 512 GB di memoria, di cui non conosciamo ulteriori dettagli. L'unità SSD installata utilizza l'interfaccia M.2-2280 e offre una velocità SATA, come si può notare dai risultati. Il suo svantaggio rispetto alle più veloci SSD NVMe è diventato chiaramente visibile. Ciononostante, nel nostro test abbiamo potuto osservare una prestazione relativamente buona in lettura 4K, che si è rivelata un vantaggio quando si caricano molti file di piccole dimensioni. L'unità SSD installata è dotata di un piccolo radiatore. Questo sembra essere efficace, dato che le prestazioni continue dell'SSD sono rimaste molto costanti. In totale, l'ACEMagician ACE-CK10-8259U può essere equipaggiato con un massimo di tre SSD (2x M.2-2280, 1x 2,5 pollici).

Per ulteriori confronti e benchmark, date un'occhiata alla nostra tabella di confronto.

CrystalDiskMark 3.0

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

FPT330M8SSD512G

Sequential Read: 488.3 MB/s

Sequential Write: 498.1 MB/s

512K Read: 362.8 MB/s

512K Write: 491.3 MB/s

4K Read: 40.29 MB/s

4K Write: 95.79 MB/s

4K QD32 Read: 327.6 MB/s

4K QD32 Write: 317.3 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	90.2 pt
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	88.5 pt
Morefine S500+ ADATA XPG Gammix S11L 1024GB	71 pt
Minisforum EliteMini TH50 ^-11! Kingston OM8PDP3512B-AI1	65.8 pt
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	35.8 pt
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	30.1 pt
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	28.9 pt

DiskSpd
seq read
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2184 (2176.42^min - 2183.52^max) MB/s +371%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2082 (2067.58^min - 2082.23^max) MB/s +349%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2034 (2023.33^min - 2033.61^max) MB/s +338%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	1530 (1518.03^min - 1529.75^max) MB/s +230%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	464 (407.92^min - 464.01^max) MB/s
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	459 (458.57^min - 459.41^max) MB/s -1%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	311 (298.22^min - 311.01^max) MB/s -33%
seq write
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1792 (1662.17^min - 1791.62^max) MB/s +257%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1681.49^min - 1789.9^max) MB/s +257%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1277 (1270.04^min - 1277.38^max) MB/s +154%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	551 (548.61^min - 551.34^max) MB/s +10%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	502 (311.64^min - 502.31^max) MB/s
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	494 (488.92^min - 494.36^max) MB/s -2%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	439 (396.15^min - 438.89^max) MB/s -13%
seq q8 t1 read
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2525 (2269.25^min - 2525.2^max) MB/s +970%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2444 (2328.09^min - 2444.09^max) MB/s +936%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	2353 (1911.6^min - 2353.12^max) MB/s +897%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2167 (2086.44^min - 2166.57^max) MB/s +818%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	504 (458.23^min - 504.4^max) MB/s +114%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	444 (287.73^min - 443.55^max) MB/s +88%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	236 (35.65^min - 236.35^max) MB/s
seq q8 t1 write
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1687.16^min - 1790.13^max) MB/s +250%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1769 (1687.39^min - 1768.92^max) MB/s +246%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1316 (1309.25^min - 1315.54^max) MB/s +157%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	553 (493.25^min - 553.44^max) MB/s +8%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	519 (472.8^min - 519.47^max) MB/s +1%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	512 (493.73^min - 511.73^max) MB/s
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	461 (421.95^min - 460.95^max) MB/s -10%
4k q1 t1 read
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	48.2 (48.04^min - 48.16^max) MB/s +27%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	45.1 (43.96^min - 45.09^max) MB/s +18%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	38.8 (38.52^min - 38.82^max) MB/s +2%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	38.2 (38.04^min - 38.15^max) MB/s 0%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	38.1 (37.92^min - 38.07^max) MB/s
Morefine S500+ ADATA XPG Gammix S11L 1024GB	29.5 (29.27^min - 29.48^max) MB/s -23%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	25.9 (25.82^min - 25.85^max) MB/s -32%
4k q1 t1 write
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	218 (213.18^min - 217.95^max) MB/s +140%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	210 (122.22^min - 209.88^max) MB/s +131%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	196.3 (179.94^min - 196.31^max) MB/s +116%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	138 (136.12^min - 137.6^max) MB/s +52%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	96 (93.72^min - 96.04^max) MB/s +6%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	90.9 (89.44^min - 90.91^max) MB/s
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	81.9 (80.7^min - 81.87^max) MB/s -10%
4k q32 t16 read
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1063 (1053.81^min - 1062.87^max) MB/s +214%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1005 (1003.31^min - 1005.12^max) MB/s +197%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	991 (989.79^min - 991.47^max) MB/s +193%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	672 (664.88^min - 671.89^max) MB/s +99%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	338 (299.48^min - 338.25^max) MB/s
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	296 (283.25^min - 295.59^max) MB/s -12%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	260 (259.46^min - 259.7^max) MB/s -23%
4k q32 t16 write
Morefine S500+ ADATA XPG Gammix S11L 1024GB	890 (860.72^min - 889.72^max) MB/s +154%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	774 (725.33^min - 774.03^max) MB/s +121%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	659 (650.84^min - 659.33^max) MB/s +88%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	528 (477.23^min - 527.86^max) MB/s +51%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	350 (206.15^min - 349.79^max) MB/s
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	329 (317.87^min - 329.01^max) MB/s -6%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	259 (224.2^min - 258.97^max) MB/s -26%

AS SSD
Score Total
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2887 Points +175%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2797 Points +167%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2248 Points +115%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	1048 Points
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	736 Points -30%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	181.49 (344^min) Points -83%
Score Read
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1162 Points +177%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1152 Points +174%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	855 Points +104%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	420 Points
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	382 Points -9%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	232 Points -45%
Score Write
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1169 Points +190%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1059 Points +163%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	992 Points +146%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	403 Points
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	373 Points -7%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	173 Points -57%
Seq Read
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2260 MB/s +365%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2204 MB/s +353%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2048 MB/s +321%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	490 MB/s +1%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	486 MB/s
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	470 MB/s -3%
Seq Write
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1644 MB/s +398%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1603 MB/s +386%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1254 MB/s +280%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	484 MB/s +47%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	400 MB/s +21%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	330 MB/s
4K Read
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	52.54 MB/s +12%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	46.8 MB/s
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	42.04 MB/s -10%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	39.71 MB/s -15%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	27.6 MB/s -41%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	27.5 MB/s -41%
4K Write
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	185.32 MB/s +113%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	144.1 MB/s +65%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	121.3 MB/s +39%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	87.1 MB/s
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	85.6 MB/s -2%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	39.4 MB/s -55%
4K-64 Read
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	891.59 MB/s +175%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	883.24 MB/s +173%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	622 MB/s +92%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	324 MB/s
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	291.36 MB/s -10%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	157.7 MB/s -51%
4K-64 Write
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	823.51 MB/s +191%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	750.4 MB/s +165%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	745 MB/s +163%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	283 MB/s
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	239 MB/s -16%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	93.65 MB/s -67%
Access Time Read
Morefine S500+ ADATA XPG Gammix S11L 1024GB	0.154 ms * -86%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	0.112 ms * -35%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	0.083 ms *
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	0.076 ms * +8%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	0.075 ms * +10%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	0.06 ms * +28%
Access Time Write
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	0.127 ms * -0%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	0.127 ms *
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	0.113 ms * +11%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	0.103 ms * +19%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	0.103 ms * +19%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	0.102 ms * +20%

* ... Meglio usare valori piccoli

Reading continuous performance: DiskSpd Read Loop, Queue Depth 8

ACEMagician ACE-CK10-8259U FPT330M8SSD512G: Ø330 (164.21-394.73)

Morefine S500+ ADATA XPG Gammix S11L 1024GB: Ø2165 (2034.95-2173.28)

Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1: Ø2353 (2170.7-2362.34)

Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G: Ø1878 (827.51-2439.04)

Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G: Ø2219 (1791.18-2464.68)

Scheda grafica

A causa della sua età, la schedaIntel Iris Plus 655 non viene utilizzato molto spesso al giorno d'oggi. Questo modello si è comportato sorprendentemente bene rispetto al modelloIntel UHD Graphics 620 nel NiPoGi CK10. Grazie alla RAM a doppio canale, le prestazioni massime sono state raggiunte nel nostro campione di prova. Tuttavia, l'Intel Iris Plus 655 non è all'altezza dei più recenti SoC con IGPU Intel Iris Xe.

Altri benchmark di Intel Iris Plus 655 possono essere trovati qui.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	97.5 pt
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	87.7 pt
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	78.1 pt
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	73 pt
ACEMagician ACE-CK10-8259U Intel Iris Plus Graphics 655, Intel Core i5-8259U	41.4 pt
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	23.6 pt
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	22.6 pt

3DMark 11 - 1280x720 Performance GPU
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	7122 Points +147%
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	6518 Points +126%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	5610 Points +94%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	5565 Points +93%
ACEMagician ACE-CK10-8259U Intel Iris Plus Graphics 655, Intel Core i5-8259U	2888 Points
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	1660 Points -43%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1467 Points -49%

3DMark
1280x720 Cloud Gate Standard Graphics
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	32899 Points +139%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	26247 Points +91%
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	23589 Points +72%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	20432 Points +49%
ACEMagician ACE-CK10-8259U Intel Iris Plus Graphics 655, Intel Core i5-8259U	13739 Points
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	8164 Points -41%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	8035 Points -42%
1920x1080 Fire Strike Graphics
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	4730 Points +138%
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	4369 Points +120%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	3725 Points +87%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	3586 Points +80%
ACEMagician ACE-CK10-8259U Intel Iris Plus Graphics 655, Intel Core i5-8259U	1987 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1080 Points -46%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	1078 Points -46%

Performance Rating | Unigine Heaven 4.0 | Unigine Valley 1.0 | ComputeMark v2.1

Performance Rating - Percent
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	93.5 pt
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	91.8 pt
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	75.4 pt
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	70.3 pt
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	43.4 pt
Minipc Union NiPoGi CK10 - 10810U ^-1! UHD Graphics 620, i7-10810U, FPT310M8SSD512G	23.7 pt
Minipc Union NiPoGi GK3PLUS - N95 UHD Graphics 24EUs (Alder Lake-N), N95, Kimtigo KTB900SM28/512GB	22.8 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	23.2 fps +121%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	19.6 fps +87%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	17.7 fps +69%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	17.3 fps +65%
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	10.5 fps
Minipc Union NiPoGi GK3PLUS - N95 UHD Graphics 24EUs (Alder Lake-N), N95, Kimtigo KTB900SM28/512GB	6.3 fps -40%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	5.4 fps -49%
Extreme Preset DX11
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	23.3 fps +108%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	21.4 fps +91%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	17.7 fps +58%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	17.1 fps +53%
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	11.2 fps
Minipc Union NiPoGi GK3PLUS - N95 UHD Graphics 24EUs (Alder Lake-N), N95, Kimtigo KTB900SM28/512GB	6.4 fps -43%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	5.7 fps -49%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	14.9 fps +82%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	14.2 fps +73%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	11.5 fps +40%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	11.3 fps +38%
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	8.2 fps
Minipc Union NiPoGi GK3PLUS - N95 UHD Graphics 24EUs (Alder Lake-N), N95, Kimtigo KTB900SM28/512GB	4.1 fps -50%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	3.9 fps -52%
1920x1080 Extreme HD Preset OpenGL AA:x8
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	15.9 fps +109%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	13.7 fps +80%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	12.8 fps +68%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	11.5 fps +51%
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	7.6 fps
Minipc Union NiPoGi GK3PLUS - N95 UHD Graphics 24EUs (Alder Lake-N), N95, Kimtigo KTB900SM28/512GB	4.8 fps -37%

ComputeMark v2.1
1024x600 Normal, Score
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	4148 Points +162%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	3414 Points +116%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	3225 Points +104%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	2693 Points +70%
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	1584 Points
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	899 Points -43%
Minipc Union NiPoGi GK3PLUS - N95 UHD Graphics 24EUs (Alder Lake-N), N95, Kimtigo KTB900SM28/512GB	628 Points -60%
1024x600 Normal, Fluid 3DTex
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	306 Points +110%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	276 Points +89%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	224 Points +53%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	186 Points +27%
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	146 Points
Minipc Union NiPoGi GK3PLUS - N95 UHD Graphics 24EUs (Alder Lake-N), N95, Kimtigo KTB900SM28/512GB	103 Points -29%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	86 Points -41%
1024x600 Normal, Fluid 2DTexArr
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	292 Points +147%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	272 Points +131%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	212 Points +80%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	204 Points +73%
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	118 Points
Minipc Union NiPoGi GK3PLUS - N95 UHD Graphics 24EUs (Alder Lake-N), N95, Kimtigo KTB900SM28/512GB	90 Points -24%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	84 Points -29%
1024x600 Normal, Mandel Vector
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	1280 Points +340%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	982 Points +237%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	763 Points +162%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	558 Points +92%
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	291 Points
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	177 Points -39%
Minipc Union NiPoGi GK3PLUS - N95 UHD Graphics 24EUs (Alder Lake-N), N95, Kimtigo KTB900SM28/512GB	126 Points -57%
1024x600 Normal, Mandel Scalar
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	1115 Points +146%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	906 Points +100%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	853 Points +88%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	751 Points +66%
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	453 Points
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	200 Points -56%
Minipc Union NiPoGi GK3PLUS - N95 UHD Graphics 24EUs (Alder Lake-N), N95, Kimtigo KTB900SM28/512GB	112 Points -75%
1024x600 Normal, QJuliaRayTrace
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	1205 Points +109%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	1200 Points +108%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	994 Points +72%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	900 Points +56%
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	577 Points
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	352 Points -39%
Minipc Union NiPoGi GK3PLUS - N95 UHD Graphics 24EUs (Alder Lake-N), N95, Kimtigo KTB900SM28/512GB	197 Points -66%

3DMark 05 Standard		22740 punti
3DMark 06 Standard Score		18594 punti
3DMark Vantage P Result		12481 punti
3DMark 11 Performance		3182 punti
3DMark Ice Storm Standard Score		74401 punti
3DMark Cloud Gate Standard Score		11788 punti
3DMark Fire Strike Score		1850 punti
3DMark Fire Strike Extreme Score		893 punti
3DMark Time Spy Score		720 punti
Aiuto

... in confronto

Prestazioni di gioco

IlIntel Iris Plus 655 è stata quasi sempre sopraffatta quando si è cercato di giocare a giochi aggiornati. Anche i giochi più vecchi potevano essere riprodotti solo a 720p e con i dettagli più bassi, se non addirittura con i dettagli più bassi. Al massimo, la iGPU è riuscita a gestire i giochi casual più semplici a risoluzione nativa.

Per ulteriori confronti e benchmark, date un'occhiata al nostro Elenco dei giochi per GPU.

GTA V
1024x768 Lowest Settings possible
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	136 (6.37^min, 90.9^P1) fps +139%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	114.3 (8.54^min, 76.9^P1) fps +101%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	99.2 (25.1^min, 58.8^P1) fps +74%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	68.3 (18.7^min, 45.5^P1) fps +20%
Media Intel Iris Plus Graphics 655 (57 - 68, n=3)	62 fps +9%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Intel Iris Plus Graphics 655	57 (12.6^min, 32.3^P1) fps
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	33.9 (12.8^min, 19.2^P1) fps -41%
1366x768 Normal/Off AF:4x
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	123 (11.6^min, 76.9^P1) fps +140%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	94.3 (5.72^min, 62.5^P1) fps +84%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	85.3 (9.78^min, 50^P1) fps +67%
Media Intel Iris Plus Graphics 655 (51.2 - 62.1, n=3)	55 fps +7%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	54.8 (16.1^min, 37^P1) fps +7%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Intel Iris Plus Graphics 655	51.2 (20.4^min, 29.4^P1) fps
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	28 (12.2^min, 16.9^P1) fps -45%

Far Cry 5
1280x720 Low Preset AA:T
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	62 (57^min) fps +182%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	55 (48^min) fps +150%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	44 (38^min) fps +100%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	25 (19^min) fps +14%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Intel Iris Plus Graphics 655	22 (19^min) fps
Media Intel Iris Plus Graphics 655 (20 - 23, n=3)	21.7 fps -1%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	11 (10^min) fps -50%
1920x1080 Medium Preset AA:T
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	29 (26^min) fps +164%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	29 (25^min) fps +164%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	21 (19^min) fps +91%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	17 (14^min) fps +55%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Intel Iris Plus Graphics 655	11 (10^min) fps
Media Intel Iris Plus Graphics 655 (10 - 11, n=3)	10.7 fps -3%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	5 (5^min) fps -55%

Far Cry New Dawn
1280x720 Low Preset
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	56 (43^min) fps +167%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	48 (30^min) fps +129%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	40 (31^min) fps +90%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	29 (19^min) fps +38%
Media Intel Iris Plus Graphics 655 (21 - 22, n=2)	21.5 fps +2%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Intel Iris Plus Graphics 655	21 (16^min) fps
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	11 (8^min) fps -48%
1920x1080 Medium Preset
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	29 (23^min) fps +164%
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	28 (23^min) fps +155%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	20 (17^min) fps +82%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	16 (12^min) fps +45%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Intel Iris Plus Graphics 655	11 (10^min) fps
Media Intel Iris Plus Graphics 655 (11 - 11, n=2)	11 fps 0%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	5 (4^min) fps -55%

F1 2020
1280x720 Ultra Low Preset
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	114 (101^min) fps +180%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	93.1 (80^min) fps +129%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	90.4 (73^min) fps +122%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	60.4 (2^min) fps +48%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Intel Iris Plus Graphics 655	40.7 (33^min) fps
Media Intel Iris Plus Graphics 655 ()	40.7 fps 0%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	25.5 (19^min) fps -37%
1920x1080 Medium Preset AF:16x
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	52.9 (44^min) fps +177%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	47.7 (40^min) fps +150%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	41.2 (34^min) fps +116%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	32.6 (2^min) fps +71%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Intel Iris Plus Graphics 655	19.1 (16^min) fps
Media Intel Iris Plus Graphics 655 ()	19.1 fps 0%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	11.3 (5^min) fps -41%

Dota 2 Reborn
1280x720 min (0/3) fastest
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	137.4 (117.3^min) fps +58%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	125.3 (113.2^min) fps +44%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	111 (97.1^min) fps +28%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Intel Iris Plus Graphics 655	86.8 (75.1^min) fps
Media Intel Iris Plus Graphics 655 (51.4 - 98, n=8)	86.3 fps -1%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	79.1 (53.9^min) fps -9%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	72.8 (60.3^min) fps -16%
1366x768 med (1/3)
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	106.9 (88.3^min) fps +37%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	90.3 (69.5^min) fps +16%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	90 (68^min) fps +16%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Intel Iris Plus Graphics 655	77.9 (62.1^min) fps
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	71.4 (52.5^min) fps -8%
Media Intel Iris Plus Graphics 655 (34.6 - 77.9, n=8)	58.5 fps -25%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	45.1 (40.8^min) fps -42%

Strange Brigade
1280x720 lowest AF:1
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	100 (79.6^min, 85.5^P1) fps +142%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	87.5 (19.1^min, 33.8^P1) fps +111%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	80.1 (48.8^min, 67.5^P1) fps +93%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	72.9 (14.8^min, 24.2^P1) fps +76%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Intel Iris Plus Graphics 655	41.4 (9.8^min, 11.7^P1) fps
Media Intel Iris Plus Graphics 655 ()	41.4 fps 0%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	25.7 (5.3^min, 6.92^P1) fps -38%
1920x1080 medium AA:medium AF:4
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	38.2 (26.5^min, 33.7^P1) fps +117%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	37.3 (19^min, 21.3^P1) fps +112%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	30.2 (23.5^min, 26.3^P1) fps +72%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	28.3 (6.5^min, 7.43^P1) fps +61%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Intel Iris Plus Graphics 655	17.6 (5^min, 5.65^P1) fps
Media Intel Iris Plus Graphics 655 ()	17.6 fps 0%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	9.8 (5^min, 5^P1) fps -44%

	basso	medio	alto	ultra
GTA V (2015)	57	51.2	14.3	5.18
The Witcher 3 (2015)	27.9	17.8	10.1
Dota 2 Reborn (2015)	86.8	77.9	34.5	28.1
Final Fantasy XV Benchmark (2018)	18.1	9.73	6.55
X-Plane 11.11 (2018)	26.8	18.4	16
Far Cry 5 (2018)	22	11	10	9
Strange Brigade (2018)	41.4	17.6	16.9	14.5
Shadow of the Tomb Raider (2018)	23.5	11	10.1
Far Cry New Dawn (2019)	21	11	10	9
Metro Exodus (2019)	20.1	10.1	7.41
Borderlands 3 (2019)	22.5	10.4	6.65
F1 2020 (2020)	40.7	19.1	14.5	9.64
F1 2021 (2021)	44.6	21.6	16.4	10.2

Emissioni: silenzioso ed efficiente

Emissioni acustiche

L'unità di raffreddamento è stata in grado di tenere sotto controllo il SoC con facilità e senza causare alcun rumore fastidioso. In modalità idle, l'ACEMagician ACE-CK10-8259U è stato per lo più silenzioso. Anche sotto carico, abbiamo notato solo 33,6 dB(A) a carico massimo. Ciò significa che il nostro campione di prova ha condiviso il primo posto con il modello NiPoGi CK10. Questo non ci ha sorpreso, dato che entrambi i modelli si basano su fondamenta simili. Rispetto agli altri concorrenti, l'ACEMagician ACE-CK10-8259U ha funzionato sempre in modo molto silenzioso. Con oltre 50 dB(A), il modelloAMR5 dello stesso produttore era notevolmente più rumoroso.

Rumorosità

Idle		29.7 / 29.8 / 29.8 dB(A)
Sotto carico		33.5 / 33.6 dB(A)

	30 dB silenzioso 40 dB(A) udibile 50 dB(A) rumoroso
min: , med: , max: Earthworks M23R, Arta (15 cm di distanza) Rumorosità ambientale: 29.6 dB(A)

	ACEMagician ACE-CK10-8259U i5-8259U, Iris Plus Graphics 655	Morefine S500+ R9 5900HX, Vega 8	Minisforum EliteMini TH50 i5-11320H, Iris Xe G7 96EUs	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	Minipc Union NiPoGi CK10 - 10810U i7-10810U, UHD Graphics 620	Minipc Union NiPoGi GK3PLUS - N95 N95, UHD Graphics 24EUs (Alder Lake-N)
Noise		-12%	-8%	-22%	-8%	0%	-7%
off /ambiente *	29.6	30.1 -2%	30.2 -2%	30.5 -3%	30.28 -2%	30.4 -3%	30.4 -3%
Idle Minimum *	29.7		30.8 -4%	31.5 -6%	31.82 -7%	30.8 -4%	31 -4%
Idle Average *	29.8	33.15 -11%	32.1 -8%	32.6 -9%	32.27 -8%	30.9 -4%	31.1 -4%
Idle Maximum *	29.8		32.9 -10%	33.8 -13%	33.17 -11%	30.9 -4%	31.8 -7%
Load Average *	33.5		33.9 -1%	49.3 -47%	35.82 -7%	31 7%	33.3 1%
Load Maximum *	33.6	41.63 -24%	41.4 -23%	50.9 -51%	37.1 -10%	31 8%	42.5 -26%

* ... Meglio usare valori piccoli

Temperatura

Il case dell'ACEMagician ACE-CK10-8259U si è riscaldato solo in minima parte. Abbiamo anche potuto misurare una temperatura massima di 88 °C solo quando il SoC era sotto carico. Il limite di potenza massima di 40 watt è stato raggiunto senza problemi e a tempo debito è stato applicato il limite di 28 watt del PL1. Tuttavia, il SoC era ancora in grado di lavorare con una frequenza di clock media di 2,5 GHz.

L'ACEMagician ACE-CK10-8259U durante lo stress test (fronte)

L'ACEMagician ACE-CK10-8259U durante lo stress test (retro)

L'alimentatore di ACEMagician ACE-CK10-8259U durante lo stress test

Consumo di energia

Nel complesso, l'ACEMagician ACE-CK10-8259U ha fornito buoni risultati in termini di consumo energetico, anche se gli altri concorrenti si sono comportati molto meglio in modalità idle. Tuttavia, il consumo energetico registrato, compreso tra gli 8 e i 13 watt, è ancora ben al di sotto di un buon livello. Sotto carico, abbiamo osservato un massimo di 55,9 watt, che l'alimentatore da 65 watt è stato in grado di gestire bene.

Consumo di corrente

Off / Standby	0.4 / 0.8 Watt
Idle	8.1 / 8.4 / 13.8 Watt
Sotto carico	43.1 / 55.9 Watt


Leggenda: min: , med: , max: Metrahit Energy

	ACEMagician ACE-CK10-8259U i5-8259U, Iris Plus Graphics 655	Morefine S500+ R9 5900HX, Vega 8	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	Minipc Union NiPoGi CK10 - 10810U i7-10810U, UHD Graphics 620	Minipc Union NiPoGi GK3PLUS - N95 N95, UHD Graphics 24EUs (Alder Lake-N)	Media Intel Iris Plus Graphics 655	Media della classe Mini PC
Power Consumption		-5%	5%	26%	39%	39%	8%	-34%
Idle Minimum *	8.1	8.1 -0%	8.4 -4%	3.4 58%	4.8 41%	6.1 25%	5.96 ?(2.2 - 12.6, n=8) 26%	9.48 ?(1.9 - 45.7, n=119, ultimi 2 anni) -17%
Idle Average *	8.4	8.4 -0%	8.7 -4%	5.7 32%	4.9 42%	6.9 18%	8.44 ?(3.1 - 15, n=8) -0%	11.5 ?(1.9 - 47.5, n=117, ultimi 2 anni) -37%
Idle Maximum *	13.8	11.9 14%	9.3 33%	7 49%	5.5 60%	8.9 36%	10.6 ?(6.3 - 15.3, n=8) 23%	14.9 ?(2.6 - 57.1, n=119, ultimi 2 anni) -8%
Load Average *	43.1	47.1 -9%	46.4 -8%	36.5 15%	23 47%	20 54%	46.5 ?(34.2 - 59.7, n=8) -8%	57.4 ?(11.3 - 170.6, n=119, ultimi 2 anni) -33%
Load Maximum *	55.9	72.9 -30%	52 7%	68 -22%	54 3%	21.1 62%	56.2 ?(39.2 - 78, n=8) -1%	97.5 ?(18.1 - 423, n=119, ultimi 2 anni) -74%

* ... Meglio usare valori piccoli

Power consumption with external monitor

ACEMagician ACE-CK10-8259U; Prime95 V2810 Stress (external Monitor): Ø39.5 (37.2-54.3)

ACEMagician ACE-CK10-8259U; Cinebench R15 Multi (external Monitor): Ø43.7 (36.9-52.4)

ACEMagician ACE-CK10-8259U; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø42.4 (40.1-51.7)

ACEMagician ACE-CK10-8259U; 1920x1080 The Witcher 3 ultra (external Monitor): Ø39.4 (35.1-52.5)

ACEMagician ACE-CK10-8259U; Idle 1min (external Monitor): Ø13.9 (13.7-15)

Pro

+ dimensioni compatte

+ processore a 4 core con buone prestazioni

+ 16 GB di RAM e 512 GB di SSD

+ possibilità di installare fino a tre SSD

+ molte porte USB

+ facile da aprire

+ silenzioso in ogni momento

+ basso consumo energetico

Contro

- wLAN lenta

- La RAM è saldamente fissata

- niente Thunderbolt

- nessun lettore di schede SD

- alte latenze DPC

Verdetto - PC da ufficio silenzioso e compatto

Recensione ACEMagician ACE-CK10-8259U - Dispositivo di prova fornito da Minipc Union

ACEMagician ACE-CK10-8259U è un piccolo PC da ufficio realizzato con componenti solidi. Alla fine della giornata, il Intel Core i5-8259Uè ancora del tutto sufficiente per l'uso quotidiano. A parte questo, il SoC si è spesso trovato al di sotto dei più moderni 4 core. In un confronto diretto con il NiPoGi CK10che è equipaggiato in modo simile con un Intel Core i7-10810Uil nostro campione di prova è riuscito a stare in piedi da solo. A volte, le prestazioni del processore a 6 core sono state addirittura superate. Questo ci ha sorpreso e riflette anche le nostre impressioni soggettive durante la fase di test. Il sistema era veloce e non si aveva mai la sensazione di lavorare con un hardware vecchio.

Anche dal punto di vista della connettività non c'è molto di cui lamentarsi. Le porte USB sono più che sufficienti, compresa la Type-C. Solo la mancanza di un lettore di schede SD è deludente: bisogna compensare con un adattatore. A nostro avviso, le prestazioni del Wi-Fi sono degne di critica. In questo caso, l'ACEMagician ACE-CK10-8259U è chiaramente al di sotto delle nostre aspettative.

L'ACEMagician ACE-CK10-8259U è un ottimo dispositivo per lavorare a casa. Il SoC, presumibilmente più vecchio, offre prestazioni eccezionali nell'uso quotidiano.

Principalmente, l'ACEMagician ACE-CK10-8259U è più adatto per un semplice lavoro da casa. Il sistema funziona sempre in modo molto silenzioso e richiede poca energia. Tuttavia, a volte è possibile trovare valide alternative che offrono apparecchiature più moderne, come ad esempio il sistemaAce Magician TK11-A0 - e nella stessa fascia di prezzo. Ma ilMinisforum EliteMini TH50 vale la pena di dare un'occhiata anche quando si tratta di un semplice utilizzo in ufficio.

Prezzi e disponibilità

Attualmente è possibile acquistare la versione di ACEMagician ACE-CK10-8259U con Intel Core i7-10810U su Amazon per 379 dollari.

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

ACEMagician ACE-CK10-8259U - 04/09/2023 v7 ^(old)
Sebastian Bade

Chassis

81 / 98 → 82%

Connettività

48 / 81 → 60%

Peso

84%

Prestazioni di gioco

55%
