Recensione del PC desktop Minisforum Venus Series UM560 XT: Un mini PC con SoC AMD Cezanne a un prezzo accessibile!

Prestazione sprecata!

La serie Venus di Minisforum offre molta potenza in un ingombro minimo. Abbiamo già messo alla prova il modello di punta, l'UM690. Ora passiamo all'UM560 XT, dotato di Ryzen 5 5600H. La nostra recensione rivela la qualità del sistema. Tuttavia, una cosa è già chiara: in termini di prezzo e prestazioni, il Minisforum Venus Series UM560 XT è in testa alla classifica.
Minisforum Serie Venus UM560 XT
Minisforum Serie Venus UM560 XT
Configurazioni di Minisforum Venus Series UM560 XT (fonte: Minisforum)
Configurazioni di Minisforum Venus Series UM560 XT (fonte: Minisforum)

All'inizio di quest'anno abbiamo dato un'occhiata al Minisforum Venus Series UM690. Oltre al modello di punta, basato su AMD Ryzen 9 6900HX, il produttore cinese di mini PC offre altre configurazioni. Basato su AMD Ryzen 5 5600H, l'UM560 XT è disponibile nello stesso case e a un prezzo significativamente inferiore. Naturalmente non è corretto confrontare le prestazioni della macchina nativa a sei core con il modello di punta, ma a 419 dollari con 16 GB di RAM e un'unità SSD da 512 GB è una proposta interessante. Nella versione "barebone" è possibile risparmiare altri 90 dollari. Tuttavia, spetta all'utente occuparsi della RAM e dell'SSD.

Il Minisforum Venus Series UM560 XT è ben equipaggiato. Sono inclusi tutti gli elementi necessari per rendere il dispositivo operativo. Il dispositivo viene inoltre fornito con una piastra che consente di fissarlo a un monitor (supporto Vesa). In questa recensione analizziamo da vicino il confronto tra il modello in esame e il modello di punta, in termini di prestazioni, un dispositivo che costa quasi 400 dollari in più. Questa differenza di prezzo è giustificata o il modello entry-level è sufficiente? E quali sono i cambiamenti nel dettaglio? Inoltre, il Minisforum Venus Series UM560 XT non solo deve competere con i suoi sfidanti interni, ma anche con la forte concorrenza di Geekom, Morefine e Intel in questa categoria di prezzo. La tabella seguente ne riporta un elenco.

Minisforum Venus Series UM560 XT
Processore
AMD Ryzen 5 5600H 6 x 3.3 - 4.2 GHz, 35 W PL2 / Short Burst, 40 W PL1 / Sustained, Cezanne-H (Zen 3)
Scheda grafica
AMD Radeon RX Vega 7, Adrenalin 22.20.27.09
Memoria
16 GB
, DDR4-3200, 2 of 2 occupied, max. 32 GB
Scheda madre
AMD Promontory/Bixby FCH

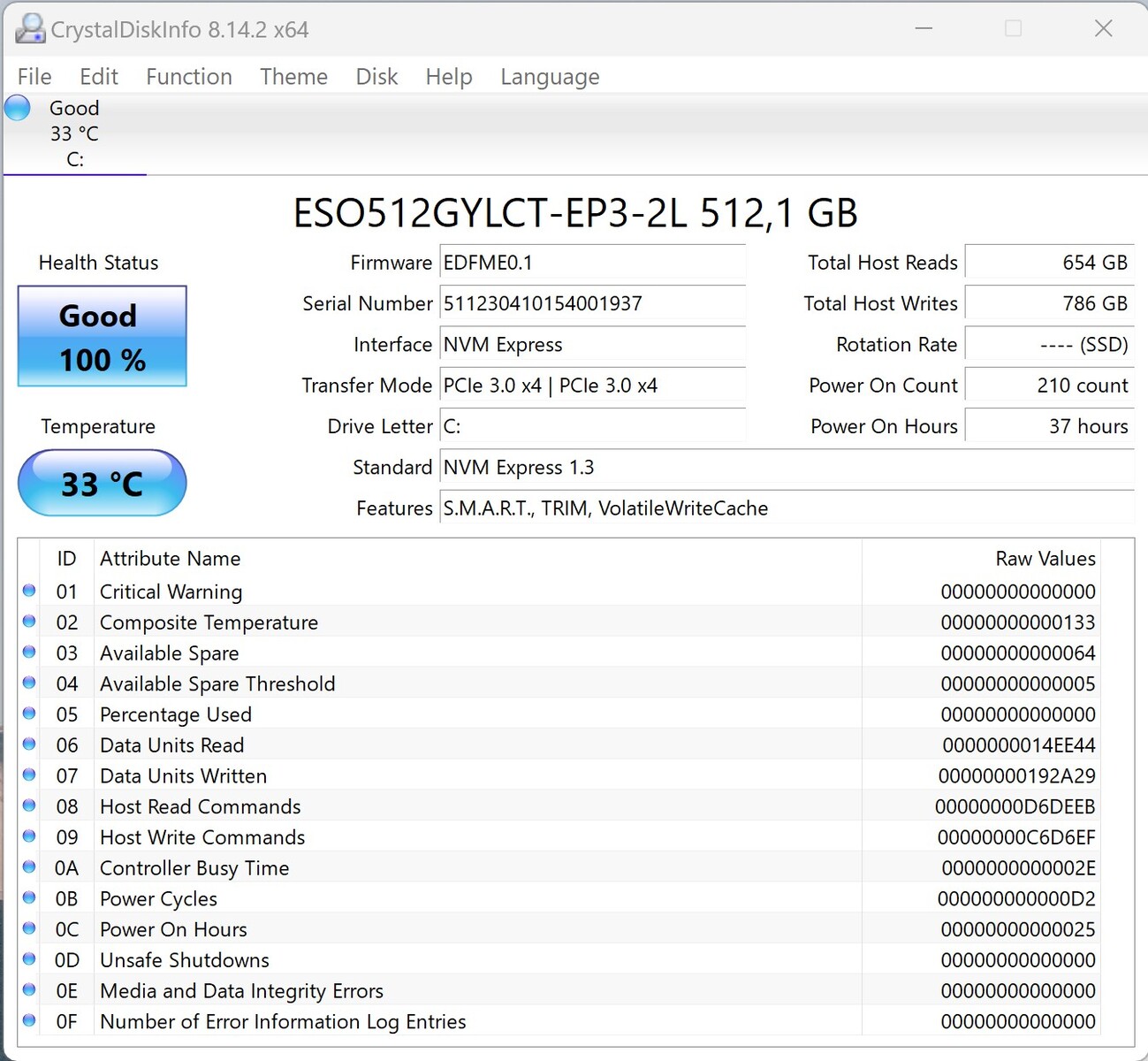

Harddisk
ESO512GYLCT, 512 GB
, M.2 2280, NVMe, 450 GB libera
Scheda audio
AMD Zen - Audio Processor - HD Audio Controller
Porte di connessione
2 USB 2.0, 4 USB 3.1 Gen 2, USB-C Power Delivery (PD), 2 HDMI, 1 DisplayPort, 1 Kensington Lock
Rete
Intel Ethernet Controller I225-V (10/100/1000/2500MBit/s), MediaTek RZ608 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2
Dimensioni
altezza x larghezza x profondità (in mm): 48 x 129 x 126
Sistema Operativo
Microsoft Windows 11 Pro
Altre caratteristiche
PSU with cable, HDMI cable, computer stand, Vesa mount assembly kit, user manual, 24 Mesi Garanzia
Peso
652 gr, Alimentazione: 228 gr
Prezzo
429 EUR
Nota: il produttore potrebbe usare componenti di fornitori diversi pannelli dei diplay, drive o banchi di memoria con specifiche simili.



Potenziali concorrenti a confronto

Punteggio
Data
Modello
Peso
Altezza
Miglior Prezzo
81.7 %
v7 (old)
05/2023
Minisforum Venus Series UM560 XT
R5 5600H, Vega 7
652 gr48 mm

v (old)
09/2022
Minipc Union Ace Magician AMR5
R5 5600U, Vega 7
628 gr72 mm
79.5 %
v7 (old)
02/2023
Minisforum Mars Series MC560
R5 5600U, Vega 7
562 gr66 mm
81.9 %
v7 (old)
05/2023
Minisforum Venus Series NAB6
i7-12650H, UHD Graphics 64EUs
616 gr55 mm
85.5 %
v7 (old)
03/2023
Morefine M600, 6900HX
R9 6900HX, Radeon 680M
779 gr40.6 mm
86.1 %
v7 (old)
02/2023
Minisforum Venus Series UM690
R9 6900HX, Radeon 680M
621 gr48 mm
82.3 %
v7 (old)
05/2023
Geekom Mini IT12
i7-1260P, Iris Xe G7 96EUs
572 gr45.6 mm
85.1 %
v7 (old)
01/2023
Minisforum Neptune Series NAD9
i9-12900H, Iris Xe G7 96EUs
1.2 kg66 mm
83.7 %
v7 (old)
05/2023
Morefine M600, 6600U
R5 6600U, Radeon 660M
768 gr40.6 mm

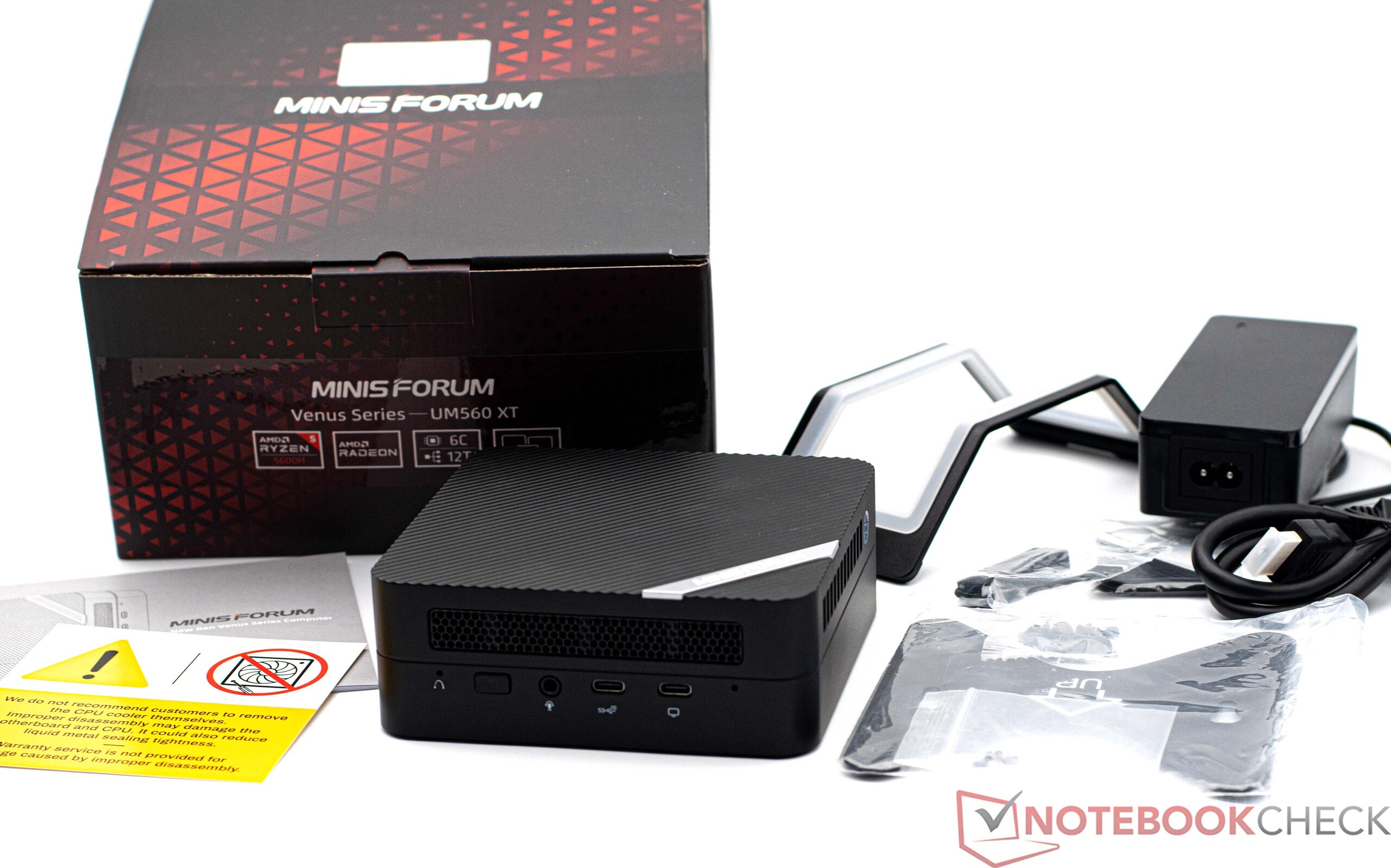

Minisforum Serie Venus UM560 XT in dettaglio

Minisforum Serie Venus UM560 XT
Minisforum Serie Venus UM560 XT
Minisforum Serie Venus UM560 XT
Minisforum Serie Venus UM560 XT
Minisforum Serie Venus UM560 XT
Minisforum Serie Venus UM560 XT
Minisforum Serie Venus UM560 XT
Minisforum Serie Venus UM560 XT
Minisforum Serie Venus UM560 XT
Minisforum Serie Venus UM560 XT
Minisforum Serie Venus UM560 XT
Minisforum Serie Venus UM560 XT
Minisforum Serie Venus UM560 XT
Minisforum Serie Venus UM560 XT
Minisforum Serie Venus UM560 XT
Minisforum Serie Venus UM560 XT
Minisforum Serie Venus UM560 XT
Minisforum Serie Venus UM560 XT
Minisforum Serie Venus UM560 XT
Minisforum Serie Venus UM560 XT
Minisforum Serie Venus UM560 XT
Minisforum Serie Venus UM560 XT
Minisforum Serie Venus UM560 XT
Minisforum Serie Venus UM560 XT
Minisforum Serie Venus UM560 XT

Caso

Il Minisforum UM560 XT ha una struttura simile al Minisforum UM690 con un AMD Ryzen 9 6900HX. Ulteriori dettagli sul case sono disponibili qui nella nostra recensione del modello superiore.

Confronto delle dimensioni

208 mm 180 mm 66 mm 1.2 kg155 mm 130 mm 72 mm 628 g147.3 mm 144.7 mm 40.6 mm 779 g147.3 mm 144.7 mm 40.6 mm 768 g127 mm 127 mm 55 mm 616 g129 mm 126 mm 48 mm 652 g129 mm 126 mm 48 mm 621 g104 mm 153 mm 66 mm 562 g117 mm 112 mm 45.6 mm 572 g297 mm 210 mm 1 mm 5.7 g

Caratteristiche

A prima vista, il Minisforum Venus Series UM560 XT offre le stesse caratteristiche del modello Modello UM690. Tuttavia, il supporto USB4 non è presente. Ciò significa che il tipo di espansioni che sarebbero possibili tramite Thunderbolt non sono possibili in questo caso. Tuttavia, sei porte USB sono fortunatamente a portata di mano. Inoltre, è possibile utilizzare tre monitor contemporaneamente se si utilizza anche la porta USB-C sulla parte anteriore del dispositivo.

Porte esterne del Minisforum Venus Series UM560 XT (fonte: Minisforum)
Porte esterne del Minisforum Venus Series UM560 XT (fonte: Minisforum)

Comunicazione

Modulo Wi-Fi Minisforum Venus Series UM560 XT
Modulo Wi-Fi Minisforum Venus Series UM560 XT

Minisforum ha dotato l'UM560 XT dello stesso modulo Wi-Fi 6E presente nell' UM690. Nei test pratici, il modulo Mediatek si è comportato bene. Per i test abbiamo utilizzato l'Asus ROG Rapture GT-AXE11000. In alternativa, per connessioni dati più veloci, è possibile utilizzare la porta LAN, che permette trasferimenti di dati fino a un massimo di 2,5 GBit/s.

Networking
iperf3 receive AXE11000
Minisforum Neptune Series NAD9
Intel Wi-Fi 6E AX210
1318 (663min - 1363max) MBit/s +48%
Minisforum Venus Series UM690
MediaTek RZ608
956 (944min - 963max) MBit/s +7%
Minisforum Mars Series MC560
MediaTek RZ608
949 (924min - 954max) MBit/s +7%
Morefine M600, 6600U
MediaTek RZ608
948 (934min - 957max) MBit/s +7%
Geekom Mini IT12
Intel Wi-Fi 6E AX211
943 (923min - 960max) MBit/s +6%
Media della classe Mini PC
  (192.9 - 1796, n=113, ultimi 2 anni)
932 MBit/s +5%
Morefine M600, 6900HX
MediaTek RZ608
929 (874min - 946max) MBit/s +4%
Minipc Union Ace Magician AMR5
MediaTek RZ608
903 MBit/s +1%
Minisforum Venus Series UM560 XT
MediaTek RZ608
890 (851min - 908max) MBit/s
Media MediaTek RZ608
  (430 - 975, n=20)
886 MBit/s 0%
Minisforum Venus Series NAB6
MediaTek RZ608
787 (752min - 801max) MBit/s -12%
iperf3 transmit AXE11000
Minisforum Neptune Series NAD9
Intel Wi-Fi 6E AX210
1320 (1165min - 1353max) MBit/s +59%
Minipc Union Ace Magician AMR5
MediaTek RZ608
967 MBit/s +17%
Morefine M600, 6900HX
MediaTek RZ608
964 (924min - 990max) MBit/s +16%
Minisforum Venus Series UM690
MediaTek RZ608
943 (477min - 981max) MBit/s +14%
Minisforum Mars Series MC560
MediaTek RZ608
936 (873min - 988max) MBit/s +13%
Geekom Mini IT12
Intel Wi-Fi 6E AX211
918 (892min - 938max) MBit/s +11%
Media della classe Mini PC
  (184.1 - 1776, n=113, ultimi 2 anni)
864 MBit/s +4%
Media MediaTek RZ608
  (572 - 979, n=20)
860 MBit/s +4%
Minisforum Venus Series UM560 XT
MediaTek RZ608
829 (775min - 889max) MBit/s
Morefine M600, 6600U
MediaTek RZ608
784 (381min - 874max) MBit/s -5%
Minisforum Venus Series NAB6
MediaTek RZ608
626 (301min - 689max) MBit/s -24%
050100150200250300350400450500550600650700750800850900Tooltip
Minisforum Venus Series UM560 XT; iperf3 receive AXE11000; iperf 3.1.3: Ø889 (851-908)
Minisforum Venus Series UM560 XT; iperf3 transmit AXE11000; iperf 3.1.3: Ø829 (775-889)

Prestazioni - AMD basato sulla generazione Cezanne

Nel Minisforum Venus Series UM560 XT, un AMD Ryzen 5 5600H con sei core e dodici thread fa il suo lavoro per aiutare il dispositivo a essere ben equipaggiato per le attività quotidiane basate sul lavoro. Ufficio, multimedia e streaming sono le attività principali di questo mini PC. Con AMD Radeon RX Vega 7, abbiamo una buona iGPU che supporta abilmente il SoC.

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
HWiNFO
GPU-Z
GPU-Z

Condizioni di prova

Per tutti i test di prestazione abbiamo scelto il profilo energetico High Performance. Le deviazioni da questo profilo sono state effettuate solo per quanto riguarda le misurazioni dell'energia e del volume, in conformità con i nostri criteri di test. Le prestazioni della CPU non sono state modificate nel BIOS e non abbiamo apportato alcuna modifica alla curva della ventola per quanto riguarda il raffreddamento.

Processore

AMD Ryzen 5 5600H
AMD Ryzen 5 5600H

Il AMD Ryzen 5 5600H appartiene alla serie Cezanne di AMD e offre sei core con un totale di dodici thread. Rispetto al modello di punta con AMD Ryzen 9 6900HX, il Minisforum Venus Series UM560 XT perde il 13% nella nostra valutazione delle prestazioni, attestandosi intorno al valore medio di tutti i benchmark delle CPU in questo confronto. Tuttavia, rispetto alla concorrenza, il nostro esemplare recensito regge meravigliosamente. In sostanza, il Minisforum Venus Series UM560 XT offre prestazioni simili a quelle del Geekom Mini IT12 con un Intel Core i7-1260P. Inoltre, il Morefine M600 6600U è tenuto sotto controllo. Tuttavia, il nostro dispositivo in prova ha fornito prestazioni solo marginalmente migliori, che possono essere rilevate solo qui, in condizioni di test.

Ulteriori benchmark del processore sono disponibiliqui.

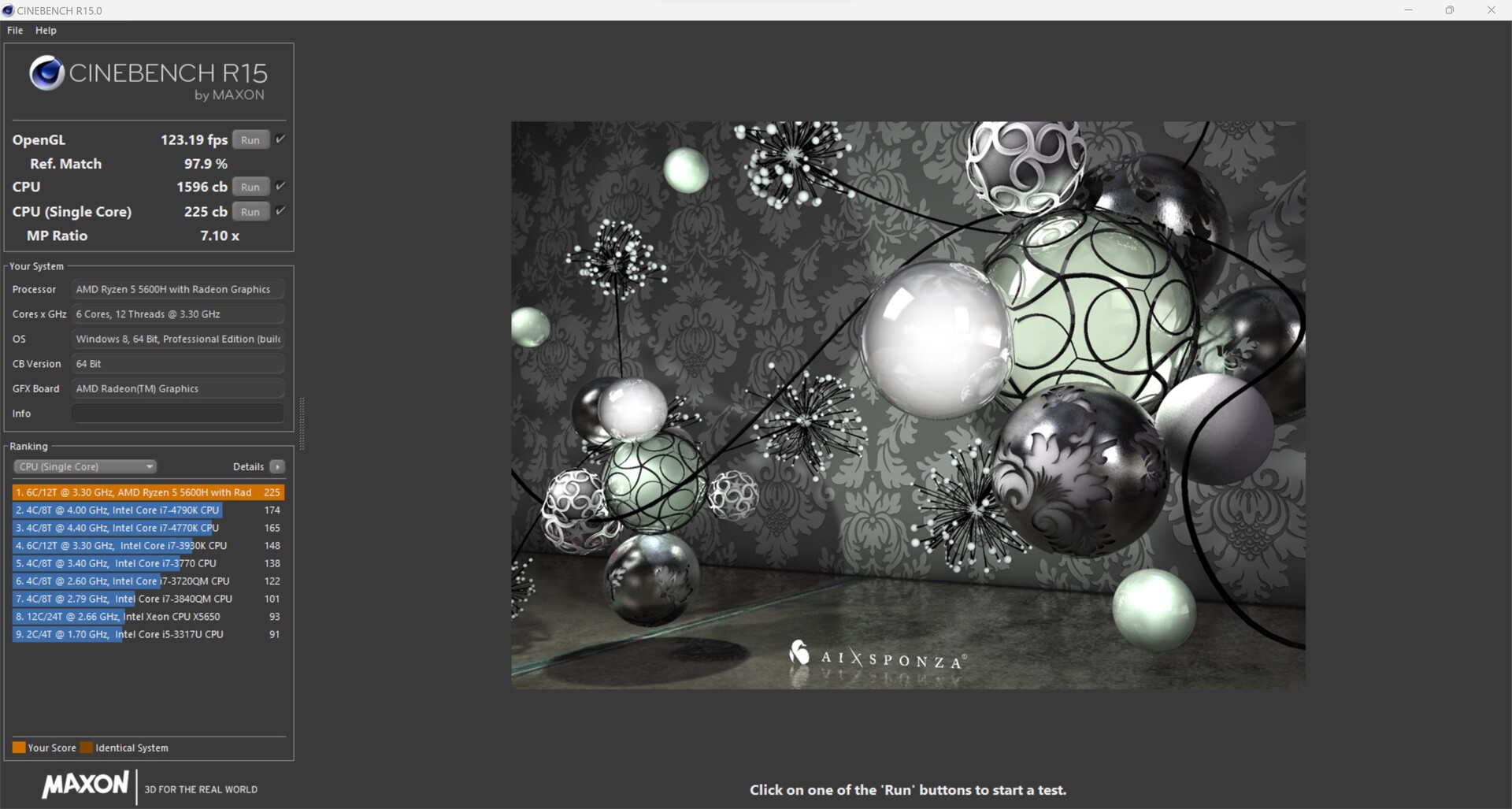

Cinebench R15
Cinebench R15

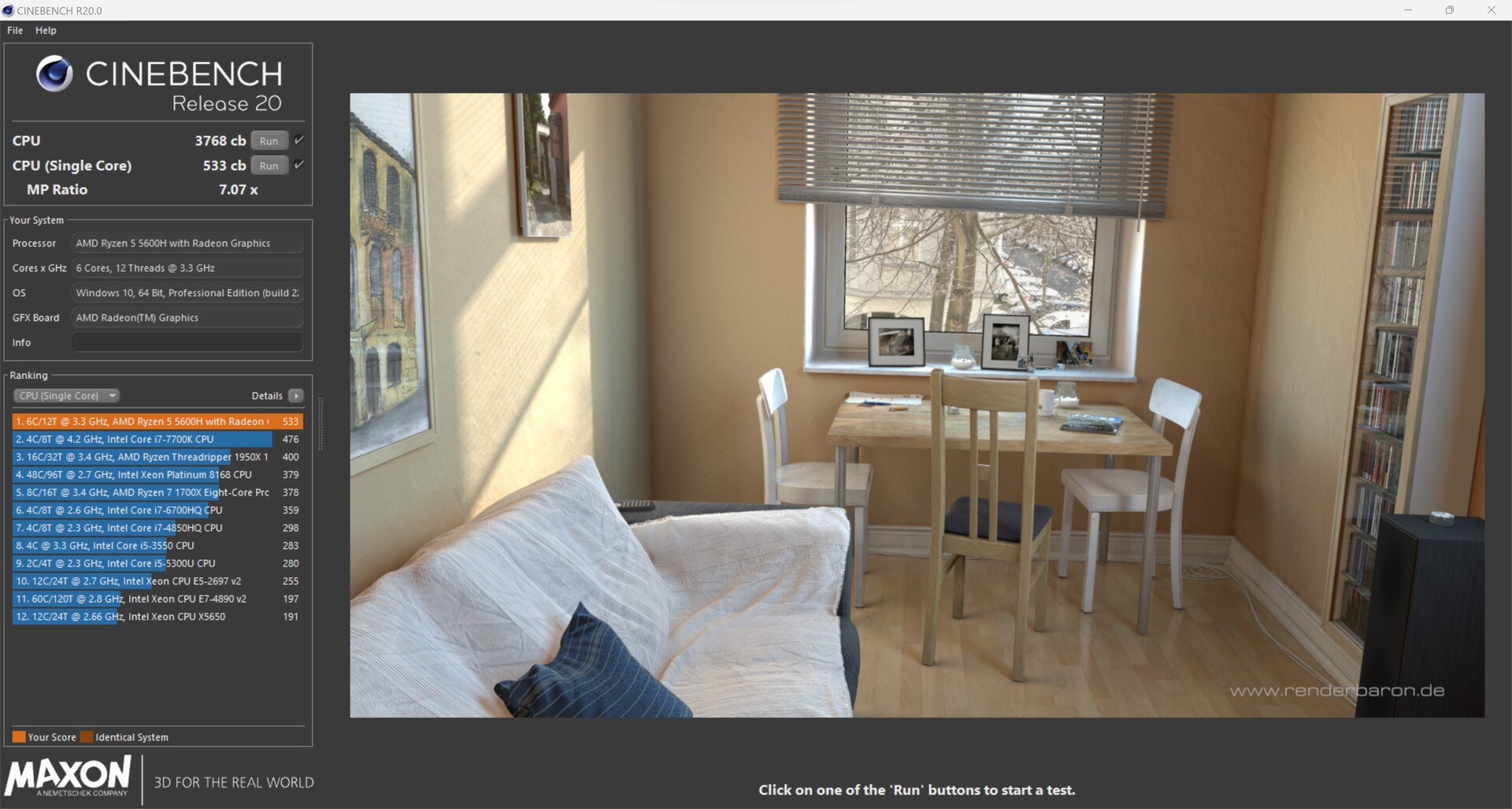

Cinebench R20
Cinebench R20
Cinebench R23
Cinebench R23
Performance Rating - Percent
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
50.6 pt
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
50.1 pt
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
50 pt
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
48.4 pt
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
45.8 pt
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
44.5 pt
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
44 pt
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
42.2 pt
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
41.8 pt
Cinebench R15
CPU Single 64Bit
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
261 Points +16%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
260 Points +16%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
247 Points +10%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
244 Points +8%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
241 Points +7%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
227 Points +1%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
225 Points
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
223 Points -1%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
223 Points -1%
CPU Multi 64Bit
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
2231 Points +40%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
2067 Points +30%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
1920 Points +20%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
1893 Points +19%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
1596 Points
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
1565 Points -2%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
1361 Points -15%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
1356 Points -15%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
1265 Points -21%
Cinebench R20
CPU (Single Core)
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
696 Points +31%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
682 Points +28%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
652 Points +22%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
629 Points +18%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
600 Points +13%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
558 Points +5%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
535 Points 0%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
534 Points 0%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
533 Points
CPU (Multi Core)
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
5328 Points +41%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
4941 Points +31%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
4788 Points +27%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
4781 Points +27%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
3768 Points
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
3427 Points -9%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
3419 Points -9%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
3189 Points -15%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
2975 Points -21%
Cinebench R11.5
CPU Single 64Bit
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
3.14 Points +19%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
3.07 Points +17%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
2.93 Points +11%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
2.88 Points +10%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
2.86 Points +9%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
2.73 Points +4%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
2.64 Points 0%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
2.63 Points
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
2.61 Points -1%
CPU Multi 64Bit
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
26.35 Points +41%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
25.96 Points +39%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
23.66 Points +27%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
22.08 Points +18%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
20.06 Points +7%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
18.68 Points
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
17.15 Points -8%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
15.96 Points -15%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
14.78 Points -21%
Cinebench R10
Rendering Single CPUs 64Bit
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
14533 Points +30%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
13568 Points +21%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
12943 Points +16%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
12846 Points +15%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
12185 Points +9%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
11685 Points +4%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
11201 Points
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
11132 Points -1%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
11098 Points -1%
Rendering Multiple CPUs 64Bit
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
77409 Points +30%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
76758 Points +29%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
69797 Points +17%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
68516 Points +15%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
59479 Points
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
54792 Points -8%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
53950 Points -9%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
50831 Points -15%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
45363 Points -24%
Blender - v2.79 BMW27 CPU
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
426 Seconds * -34%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
415 Seconds * -30%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
399 Seconds * -25%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
319 Seconds *
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
285 Seconds * +11%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
279 Seconds * +13%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
273 Seconds * +14%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
234 Seconds * +27%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
231 Seconds * +28%
wPrime 2.10
32m
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
5.377 s * -18%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
4.848 s * -7%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
4.688 s * -3%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
4.552 s *
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
4.485 s * +1%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
3.705 s * +19%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
3.642 s * +20%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
3.461 s * +24%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
3.421 s * +25%
1024m
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
410.289 s * -218%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
237.123 s * -84%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
189.07 s * -46%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
156.33 s * -21%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
147.807 s * -14%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
146.553 s * -13%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
129.204 s *
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
103.226 s * +20%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
93.19 s * +28%
X264 HD Benchmark 4.0
Pass 1
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
311.5 (311min - 312max) fps +24%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
262.5 (262min - 266max) fps +4%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
258.5 (256min - 268max) fps +3%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
251.21 fps
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
245 (239min - 261max) fps -2%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
236 (235min - 246max) fps -6%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
234 (233min - 235max) fps -7%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
224 (222min - 258max) fps -11%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
212 (206min - 224max) fps -16%
Pass 2
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
127.8 (127.3min - 129.1max) fps +34%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
125.25 (105.2min - 130max) fps +32%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
114 (111.2min - 119.4max) fps +20%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
111.1 (96.7min - 111.7max) fps +17%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
95.18 fps
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
80.95 (76.3min - 82.4max) fps -15%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
77.75 (77.6min - 113.9max) fps -18%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
76 (75.7min - 76.3max) fps -20%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
71.45 (70.2min - 76.6max) fps -25%
WinRAR - Result
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
9090 KB/s +21%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
7937 KB/s +6%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
7497 KB/s
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
6937 KB/s -7%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
6882 KB/s -8%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
6877 KB/s -8%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
6858 KB/s -9%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
6795 KB/s -9%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
6559 KB/s -13%
TrueCrypt
AES Mean 100MB
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
13.4 GB/s +43%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
12.1 GB/s +29%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
10.4 GB/s +11%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
10.1 GB/s +7%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
9.4 GB/s
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
9.3 GB/s -1%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
8.6 GB/s -9%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
8.3 GB/s -12%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
7.7 GB/s -18%
Twofish Mean 100MB
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
2 GB/s +54%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
1.8 GB/s +38%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
1.8 GB/s +38%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
1.8 GB/s +38%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
1.6 GB/s +23%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
1.3 GB/s 0%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
1.3 GB/s
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
1.2 GB/s -8%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
1.1 GB/s -15%
Serpent Mean 100MB
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
1.2 GB/s +40%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
1.1 GB/s +28%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
1.1 GB/s +28%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
1 GB/s +17%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
0.974 GB/s +14%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
0.857 GB/s 0%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
0.857 GB/s
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
0.796 GB/s -7%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
0.7 GB/s -18%
Geekbench 5.5
Multi-Core
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
9706 Points +34%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
9695 Points +34%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
9363 Points +29%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
9151 Points +26%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
8918 Points +23%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
7658 Points +6%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
7253 Points
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
6523 Points -10%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
6175 Points -15%
Single-Core
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
1861 Points +29%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
1782 Points +23%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
1767 Points +22%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
1634 Points +13%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
1547 Points +7%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
1504 Points +4%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
1443 Points
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
1430 Points -1%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
1427 Points -1%
Geekbench 5.0
5.0 Multi-Core
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
10249 Points +44%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
10249 Points +44%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
10249 Points +44%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
9663 Points +36%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
9638 Points +35%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
9099 Points +28%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
7128 Points
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
6479 Points -9%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
6117 Points -14%
5.0 Single-Core
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
1838 Points +32%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
1736 Points +25%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
1593 Points +14%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
1557 Points +12%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
1557 Points +12%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
1557 Points +12%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
1393 Points
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
1383 Points -1%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
1371 Points -2%
Geekbench 4.4
64 Bit Single-Core Score
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
8015 Points +31%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
7705 Points +26%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
6804 Points +11%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
6698 Points +9%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
6698 Points +9%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
6698 Points +9%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
6117 Points
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
5918 Points -3%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
5854 Points -4%
64 Bit Multi-Core Score
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
39852 Points +37%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
39852 Points +37%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
39852 Points +37%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
38566 Points +33%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
36692 Points +27%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
34909 Points +20%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
28997 Points
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
25738 Points -11%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
24495 Points -16%
3DMark 11 - 1280x720 Performance Physics
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
18382 Points +27%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
18363 Points +27%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
18277 Points +26%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
15855 Points +9%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
14496 Points
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
13130 Points -9%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
13067 Points -10%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
12608 Points -13%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
11630 Points -20%
7-Zip 18.03
7z b 4
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
61401 MIPS +32%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
56923 MIPS +22%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
51151 MIPS +10%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
47893 MIPS +3%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
46562 MIPS
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
44320 MIPS -5%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
40318 MIPS -13%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
39207 MIPS -16%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
37570 MIPS -19%
7z b 4 -mmt1
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
6116 MIPS +14%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
6067 MIPS +13%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
6019 MIPS +12%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
5591 MIPS +4%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
5577 MIPS +4%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
5486 MIPS +2%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
5369 MIPS
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
5249 MIPS -2%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
5161 MIPS -4%
HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
17.1 fps +38%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
15.4 fps +24%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
14.1 fps +14%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
13.6 fps +10%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
12.4 fps
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
11.7 fps -6%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
10.2 fps -18%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
10.1 fps -19%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
10.1 fps -19%
R Benchmark 2.5 - Overall mean
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
0.548 sec * -4%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
0.537 sec * -2%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
0.526 sec *
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
0.511 sec * +3%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
0.4881 sec * +7%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
0.4757 sec * +10%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
0.4718 sec * +10%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
0.4641 sec * +12%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
0.462 sec * +12%
LibreOffice - 20 Documents To PDF
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
57.5 s * -1%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
56.7 s *
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
53.4 s * +6%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
53 s * +7%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
51.1 s * +10%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
48.8 s * +14%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
48.1 s * +15%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
39.6 s * +30%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
38 s * +33%
WebXPRT 3 - Overall
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
311 Points +15%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
309 Points +14%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
292 Points +8%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
287 Points +6%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
287 Points +6%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
274 Points +1%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
270 Points
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
263 Points -3%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
255 Points -6%
Mozilla Kraken 1.1 - Total
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
659 ms * -1%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
651 ms *
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
646 ms * +1%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
619 ms * +5%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
605 ms * +7%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
577 ms * +11%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
571 ms * +12%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
539 ms * +17%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
519 ms * +20%
3DMark
3840x2160 Fire Strike Ultra Physics
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
25456 Points +21%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
22441 Points +6%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
21422 Points +1%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
21110 Points
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
21001 Points -1%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
18599 Points -12%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
17568 Points -17%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
16412 Points -22%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
15903 Points -25%
1920x1080 Fire Strike Physics
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
25915 Points +23%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
22426 Points +7%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
22346 Points +6%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
22244 Points +6%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
21025 Points
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
18076 Points -14%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
17499 Points -17%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
16568 Points -21%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
15934 Points -24%
2560x1440 Time Spy CPU
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
10539 Points +56%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
9354 Points +38%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
9168 Points +35%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
8622 Points +27%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
6767 Points
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
6487 Points -4%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
5443 Points -20%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
5114 Points -24%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
5077 Points -25%

* ... Meglio usare valori piccoli

Performance Rating
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
99.3 pt
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
85.9 pt
Media della classe Mini PC

75 pt
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
71.2 pt
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
70.7 pt
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
69.4 pt
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
62.8 pt
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
62.3 pt
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
60.2 pt
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
57 pt
AIDA64 / FP32 Ray-Trace
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
15102 KRay/s +33%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
13757 KRay/s +21%
Media della classe Mini PC
  (561 - 51004, n=119, ultimi 2 anni)
12449 KRay/s +10%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
11347 KRay/s
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
10952 KRay/s -3%
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
10839 KRay/s -4%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
9518 KRay/s -16%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
9406 KRay/s -17%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
9086 KRay/s -20%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
7933 KRay/s -30%
AIDA64 / FPU Julia
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
98980 Points +40%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
87663 Points +24%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
70782 Points
Media della classe Mini PC
  (3604 - 214250, n=119, ultimi 2 anni)
62645 Points -11%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
60111 Points -15%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
59704 Points -16%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
57375 Points -19%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
55221 Points -22%
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
54435 Points -23%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
40251 Points -43%
AIDA64 / CPU SHA3
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
3452 MB/s +46%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
2931 MB/s +24%
Media della classe Mini PC
  (225 - 9399, n=119, ultimi 2 anni)
2760 MB/s +17%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
2558 MB/s +8%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
2360 MB/s
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
2357 MB/s 0%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
2065 MB/s -12%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
2006 MB/s -15%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
1997 MB/s -15%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
1971 MB/s -16%
AIDA64 / CPU Queen
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
103686 Points +37%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
100293 Points +32%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
85240 Points +13%
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
82454 Points +9%
Media della classe Mini PC
  (8172 - 184747, n=119, ultimi 2 anni)
77998 Points +3%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
75724 Points
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
75248 Points -1%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
73765 Points -3%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
70563 Points -7%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
67224 Points -11%
AIDA64 / FPU SinJulia
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
13101 Points +46%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
12396 Points +38%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
8952 Points
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
8738 Points -2%
Media della classe Mini PC
  (408 - 29064, n=119, ultimi 2 anni)
8538 Points -5%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
8507 Points -5%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
8294 Points -7%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
7548 Points -16%
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
7444 Points -17%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
5567 Points -38%
AIDA64 / FPU Mandel
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
52710 Points +35%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
44629 Points +14%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
38989 Points
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
33084 Points -15%
Media della classe Mini PC
  (1958 - 113499, n=119, ultimi 2 anni)
32689 Points -16%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
32465 Points -17%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
31389 Points -19%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
28159 Points -28%
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
26735 Points -31%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
19857 Points -49%
AIDA64 / CPU AES
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
136723 MB/s +44%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
99521 MB/s +5%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
95057 MB/s
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
92530 MB/s -3%
Media della classe Mini PC
  (3691 - 325960, n=119, ultimi 2 anni)
85358 MB/s -10%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
82315 MB/s -13%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
78211 MB/s -18%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
74716 MB/s -21%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
56199 MB/s -41%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
39680 MB/s -58%
AIDA64 / CPU ZLib
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
863 MB/s +41%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
745 MB/s +21%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
732 MB/s +19%
Media della classe Mini PC
  (74.8 - 2039, n=119, ultimi 2 anni)
714 MB/s +16%
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
674 MB/s +10%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
614 MB/s
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
575 MB/s -6%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
531 MB/s -14%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
530 MB/s -14%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
505 MB/s -18%
AIDA64 / FP64 Ray-Trace
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
7973 KRay/s +38%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
7288 KRay/s +26%
Media della classe Mini PC
  (308 - 26952, n=119, ultimi 2 anni)
6658 KRay/s +15%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
5777 KRay/s 0%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
5777 KRay/s
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
5771 KRay/s 0%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
5058 KRay/s -12%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
5024 KRay/s -13%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
4636 KRay/s -20%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
4156 KRay/s -28%
AIDA64 / CPU PhotoWorxx
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
29765 MPixel/s +46%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
28118 MPixel/s +38%
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
28010 MPixel/s +37%
Media della classe Mini PC
  (4408 - 50500, n=119, ultimi 2 anni)
27805 MPixel/s +36%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
27720 MPixel/s +36%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
27456 MPixel/s +35%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
24323 MPixel/s +19%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
20410 MPixel/s
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
19395 MPixel/s -5%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
17803 MPixel/s -13%

Minisforum Venus Series UM560 XT nel test multi-loop di Cinebench R15

Nel ciclo continuo di Cinebench R15 è possibile avere una buona impressione di quanto il sistema funzioni bene sotto carico. Il Minisforum Venus Series UM560 XT ha superato il test in modo eccellente. I risultati dell'AMD Ryzen 5 5600H in ognuna delle 50 prove sono stati molto stabili e non c'è stato quasi nessun calo significativo delle prestazioni. In questa area di confronto, nessun altro sistema si avvicina.

Metriche della CPU durante il ciclo di Cinebench R15
Metriche della CPU durante il ciclo di Cinebench R15
011523034546057569080592010351150126513801495161017251840195520702185Tooltip
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, AMD Ryzen 5 5600H: Ø1586 (1574.56-1611.34)
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Ryzen 5 5600U: Ø1158 (1130.29-1266.62)
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, AMD Ryzen 5 5600U: Ø1099 (1072.7-1239.66)
Minisforum Venus Series NAB6 Intel Core i7-12650H, Intel Core i7-12650H: Ø1627 (1590.71-1899.25)
Morefine M600, 6900HX AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø1900 (1863.93-2044.26)
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø2111 (2087.36-2211.78)
Geekom Mini IT12 Intel Core i7-1260P, Intel Core i7-1260P: Ø1280 (1241-1619.37)
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Intel Core i9-12900H: Ø1703 (1657.14-2261.04)
Morefine M600, 6600U AMD Ryzen 5 6600U, AMD Ryzen 5 6600U: Ø1166 (1105.77-1443.37)

Prestazioni del sistema

Nell'ambito dei benchmark di sistema, il Minisforum Venus Series UM560 XT si è comportato molto bene, ottenendo il terzo posto nel confronto PCMark 10. Tuttavia, le cose appaiono un po' diverse nel confronto con Crossmark. Tuttavia, è in quest'area che tutti i dispositivi equipaggiati con AMD devono cedere il passo a quelli Intel. Il possesso di RAM DDR4 significa che il Minisforum Venus Series UM560 XT è in grado di competere solo con armi piuttosto spuntate. I primi tre posti vanno ai dispositivi con RAM DDR5 più veloce. Tuttavia, le prestazioni del nostro esemplare in prova sono decenti e possono essere paragonate a quelle di un UM560 XT. Questo si riflette soggettivamente in termini di prestazioni.

PCMark 10 / Score
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX
AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0
7045 Points +14%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
6654 Points +8%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7, ESO512GYLCT
6189 Points
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
6187 Points 0%
Minisforum Venus Series NAB6, Intel Core i7-12650H
Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0
6057 Points -2%
Morefine M600, 6600U, AMD Ryzen 5 6600U
AMD Ryzen 5 6600U, AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S
5872 Points -5%
Minisforum Mars Series MC560, AMD Ryzen 5 5600U
AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, ESO512GYLCT
5862 Points -5%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
5761 Points -7%
Geekom Mini IT12, Intel Core i7-1260P
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
5658 Points -9%
PCMark 10 / Essentials
Minisforum Venus Series NAB6, Intel Core i7-12650H
Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0
11395 Points +8%
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
11217 Points +7%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX
AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0
10838 Points +3%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7, ESO512GYLCT
10503 Points
Minisforum Mars Series MC560, AMD Ryzen 5 5600U
AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, ESO512GYLCT
10484 Points 0%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
10390 Points -1%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
10385 Points -1%
Geekom Mini IT12, Intel Core i7-1260P
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
10139 Points -3%
Morefine M600, 6600U, AMD Ryzen 5 6600U
AMD Ryzen 5 6600U, AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S
9820 Points -7%
PCMark 10 / Productivity
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX
AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0
10060 Points +4%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
9817 Points +2%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7, ESO512GYLCT
9642 Points
Minisforum Mars Series MC560, AMD Ryzen 5 5600U
AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, ESO512GYLCT
9545 Points -1%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
9539 Points -1%
Morefine M600, 6600U, AMD Ryzen 5 6600U
AMD Ryzen 5 6600U, AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S
9031 Points -6%
Minisforum Venus Series NAB6, Intel Core i7-12650H
Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0
8164 Points -15%
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
7673 Points -20%
Geekom Mini IT12, Intel Core i7-1260P
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
7427 Points -23%
CrossMark / Overall
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
1894 Points +41%
Minisforum Venus Series NAB6, Intel Core i7-12650H
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0
1875 Points +39%
Geekom Mini IT12, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
1738 Points +29%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston OM8PGP4512Q-A0
1731 Points +29%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
1517 Points +13%
Morefine M600, 6600U, AMD Ryzen 5 6600U
AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S
1517 Points +13%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
1373 Points +2%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H
AMD Radeon RX Vega 7, ESO512GYLCT
1346 Points
Minisforum Mars Series MC560, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, ESO512GYLCT
1300 Points -3%
CrossMark / Productivity
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
1921 Points +40%
Minisforum Venus Series NAB6, Intel Core i7-12650H
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0
1876 Points +37%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston OM8PGP4512Q-A0
1738 Points +27%
Geekom Mini IT12, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
1729 Points +26%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
1491 Points +9%
Morefine M600, 6600U, AMD Ryzen 5 6600U
AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S
1491 Points +9%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
1406 Points +3%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H
AMD Radeon RX Vega 7, ESO512GYLCT
1368 Points
Minisforum Mars Series MC560, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, ESO512GYLCT
1335 Points -2%
CrossMark / Creativity
Minisforum Venus Series NAB6, Intel Core i7-12650H
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0
1811 Points +32%
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
1800 Points +31%
Geekom Mini IT12, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
1749 Points +27%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston OM8PGP4512Q-A0
1745 Points +27%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
1652 Points +20%
Morefine M600, 6600U, AMD Ryzen 5 6600U
AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S
1652 Points +20%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
1379 Points 0%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H
AMD Radeon RX Vega 7, ESO512GYLCT
1377 Points
Minisforum Mars Series MC560, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, ESO512GYLCT
1325 Points -4%
CrossMark / Responsiveness
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
2116 Points +77%
Minisforum Venus Series NAB6, Intel Core i7-12650H
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0
2077 Points +74%
Geekom Mini IT12, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
1734 Points +45%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston OM8PGP4512Q-A0
1671 Points +40%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
1263 Points +6%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
1238 Points +3%
Morefine M600, 6600U, AMD Ryzen 5 6600U
AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S
1238 Points +3%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H
AMD Radeon RX Vega 7, ESO512GYLCT
1197 Points
Minisforum Mars Series MC560, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, ESO512GYLCT
1133 Points -5%
AIDA64 / Memory Copy
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
50228 MB/s +20%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
47938 MB/s +15%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
47711 MB/s +14%
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
46936 MB/s +12%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
45941 MB/s +10%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
44726 MB/s +7%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
41732 MB/s
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
38102 MB/s -9%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
35051 MB/s -16%
AIDA64 / Memory Read
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
51077 MB/s +9%
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
50120 MB/s +7%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
49936 MB/s +6%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
49559 MB/s +6%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
47491 MB/s +1%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
46963 MB/s
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
46084 MB/s -2%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
40126 MB/s -15%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
38400 MB/s -18%
AIDA64 / Memory Write
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
55194 MB/s +23%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
54750 MB/s +22%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
49353 MB/s +10%
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
47383 MB/s +6%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
46815 MB/s +4%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
46785 MB/s +4%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
44872 MB/s
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
40633 MB/s -9%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
37475 MB/s -16%
AIDA64 / Memory Latency
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
100 ns * -32%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
96.2 ns * -27%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
94 ns * -25%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
92.4 ns * -22%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
91.3 ns * -21%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
83 ns * -10%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
80.2 ns * -6%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
75.5 ns *
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
71.6 ns * +5%

* ... Meglio usare valori piccoli

Latenze DPC

Non abbiamo riscontrato alcun problema di latenza con il Minisforum Venus Series UM560 XT. Il nostro dispositivo di prova ha gestito perfettamente sia l'apertura di più schede in Edge che la riproduzione di un video di prova 4K. Utilizzando Prime95, non siamo riusciti a rilevare alcun aumento della latenza.

Latenza massima quando si aprono più schede del browser e si riproduce materiale video 4K
Latenza massima quando si aprono più schede del browser e si riproduce materiale video 4K
Latenza massima dopo dieci secondi di Prime95
Latenza massima dopo dieci secondi di Prime95
Conduttori ordinati in base alla durata più lunga della prestazione
Conduttori ordinati in base alla durata più lunga della prestazione
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston OM8PGP4512Q-A0
1488 μs * -58%
Minisforum Mars Series MC560, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, ESO512GYLCT
1359.1 μs * -45%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
1317 μs * -40%
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
1113.9 μs * -18%
Morefine M600, 6600U, AMD Ryzen 5 6600U
AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S
1016.7 μs * -8%
Geekom Mini IT12, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
985.8 μs * -5%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H
AMD Radeon RX Vega 7, ESO512GYLCT
940.27 μs *
Minisforum Venus Series NAB6, Intel Core i7-12650H
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0
795 μs * +15%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
765 μs * +19%

* ... Meglio usare valori piccoli

Memoria di massa

512 GB SSD NVMe
512 GB SSD NVMe

Minisforum ha dotato il nostro modello di recensione Venus Series UM560 XT di un'unità SSD da 512 GB, senza specificarne i dettagli. Le velocità di trasferimento del modello installato rispecchiano la sua interfaccia PCIe 3.0. La concorrenza, con SSD PCIe 4.0 più veloci, gode di un vantaggio irraggiungibile. Sotto carico continuo, il Minisforum Venus Series UM560 XT non ha avuto problemi a mantenere le sue prestazioni SSD. È in quest'area che ha dato i suoi frutti l'aver dotato l'SSD di un dissipatore di calore relativamente grande. Il dispositivo può ospitare un totale di due dispositivi di archiviazione di massa. Oltre all'interfaccia M.2, è presente anche un connettore SATA per un supporto di archiviazione da 2,5 pollici. Il dispositivo viene fornito con i cavi di collegamento appropriati.

Ulteriori confronti e benchmark sono disponibili nella nostra tabella di confronto.

AS SSD
AS SSD
CDM 3
CDM 3
CDM 5
CDM 5
CDM 6
CDM 6
CDI
CDI
ESO512GYLCT
Sequential Read: 1626 MB/s
Sequential Write: 1855 MB/s
512K Read: 1274 MB/s
512K Write: 1763 MB/s
4K Read: 43 MB/s
4K Write: 164.9 MB/s
4K QD32 Read: 528.2 MB/s
4K QD32 Write: 431.9 MB/s
Drive Performance Rating - Percent
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
85.3 pt
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
81.3 pt
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
69.7 pt
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
66.1 pt
Media della classe Mini PC

51.6 pt
Minisforum Venus Series UM560 XT
ESO512GYLCT
46.9 pt
Minisforum Mars Series MC560
ESO512GYLCT
41.1 pt
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
40.2 pt
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
36.8 pt
Geekom Mini IT12
Kingston OM8SEP4512N-A0
36.2 pt
DiskSpd
seq read
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
3195 (3147.62min - 3194.91max) MB/s +94%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
2815 (2802.79min - 2814.97max) MB/s +71%
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
2689 (2681.42min - 2688.76max) MB/s +63%
Media della classe Mini PC
  (233 - 4357, n=119, ultimi 2 anni)
2288 MB/s +39%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
2082 (2067.58min - 2082.23max) MB/s +27%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
1720 (1344.24min - 1720.17max) MB/s +5%
Minisforum Venus Series UM560 XT
ESO512GYLCT
1645 (1636.91min - 1645.01max) MB/s
Geekom Mini IT12
Kingston OM8SEP4512N-A0
1451 (1441.37min - 1451.23max) MB/s -12%
Minisforum Mars Series MC560
ESO512GYLCT
1310 (1296.67min - 1309.67max) MB/s -20%
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
1176 (1169.13min - 1175.87max) MB/s -29%
seq write
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
3544 (3538.94min - 3544.19max) MB/s +89%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
3539 (3516.6min - 3538.94max) MB/s +89%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
3402 (3372.67min - 3402.21max) MB/s +81%
Media della classe Mini PC
  (222 - 5595, n=119, ultimi 2 anni)
2448 MB/s +30%
Minisforum Venus Series UM560 XT
ESO512GYLCT
1877 (1870.87min - 1877.35max) MB/s
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
1792 (1662.17min - 1791.62max) MB/s -5%
Minisforum Mars Series MC560
ESO512GYLCT
1735 (1689.26min - 1735.49max) MB/s -8%
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
1530 (603.77min - 1530.08max) MB/s -18%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
1203 (1169.58min - 1202.51max) MB/s -36%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
1075 (545.51min - 1075.26max) MB/s -43%
seq q8 t1 read
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
4820 (3819.87min - 4820.3max) MB/s +104%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
4801 (4506.78min - 4800.59max) MB/s +103%
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
4797 (4271.21min - 4796.87max) MB/s +103%
Media della classe Mini PC
  (236 - 8430, n=119, ultimi 2 anni)
3706 MB/s +57%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
2522 (2230.32min - 2522.44max) MB/s +7%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
2444 (2328.09min - 2444.09max) MB/s +4%
Minisforum Venus Series UM560 XT
ESO512GYLCT
2360 (2078.7min - 2359.72max) MB/s
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
1987 (1409.4min - 1987.27max) MB/s -16%
Minisforum Mars Series MC560
ESO512GYLCT
1749 (1565.12min - 1749.09max) MB/s -26%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
1694 (1415.05min - 1693.87max) MB/s -28%
seq q8 t1 write
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
3541 (3519.65min - 3541.04max) MB/s +82%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
3536 (3475.82min - 3536.01max) MB/s +82%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
3402 (3374.28min - 3401.67max) MB/s +75%
Media della classe Mini PC
  (228 - 6669, n=119, ultimi 2 anni)
2743 MB/s +41%
Minisforum Venus Series UM560 XT
ESO512GYLCT
1946 (1938.09min - 1945.74max) MB/s
Minisforum Mars Series MC560
ESO512GYLCT
1815 (1770.86min - 1814.81max) MB/s -7%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
1769 (1687.39min - 1768.92max) MB/s -9%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
1599 (266.87min - 1599.24max) MB/s -18%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
1213 (1155.74min - 1212.78max) MB/s -38%
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
1084 (553.02min - 1084.16max) MB/s -44%
4k q1 t1 read
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
82.8 (82.48min - 82.75max) MB/s +85%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
82.1 (81.4min - 82.09max) MB/s +83%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
70.8 (63.28min - 70.81max) MB/s +58%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
55.6 (54.87min - 55.6max) MB/s +24%
Media della classe Mini PC
  (5.67 - 86.6, n=119, ultimi 2 anni)
54.7 MB/s +22%
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
48.5 (48.27min - 48.47max) MB/s +8%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
48.2 (48.04min - 48.16max) MB/s +8%
Minisforum Venus Series UM560 XT
ESO512GYLCT
44.8 (44.42min - 44.77max) MB/s
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
40.3 (36.8min - 40.3max) MB/s -10%
Minisforum Mars Series MC560
ESO512GYLCT
35.4 (35.09min - 35.36max) MB/s -21%
4k q1 t1 write
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
425 (415.92min - 425.01max) MB/s +152%
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
420 (417.55min - 420.16max) MB/s +149%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
288 (287.39min - 288.47max) MB/s +71%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
276 (193.9min - 275.81max) MB/s +64%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
229 (165.03min - 229.29max) MB/s +36%
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
220 (212.2min - 220.15max) MB/s +31%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
210 (122.22min - 209.88max) MB/s +25%
Media della classe Mini PC
  (30.4 - 435, n=119, ultimi 2 anni)
194.7 MB/s +16%
Minisforum Venus Series UM560 XT
ESO512GYLCT
168.4 (166.77min - 168.37max) MB/s
Minisforum Mars Series MC560
ESO512GYLCT
164.5 (163.24min - 164.49max) MB/s -2%
4k q32 t16 read
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
1944 (1936.89min - 1943.53max) MB/s +134%
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
1939 (1934.48min - 1939.25max) MB/s +133%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
1933 (1926.8min - 1932.75max) MB/s +133%
Media della classe Mini PC
  (26.1 - 4158, n=119, ultimi 2 anni)
1360 MB/s +64%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
991 (989.79min - 991.47max) MB/s +19%
Minisforum Venus Series UM560 XT
ESO512GYLCT
831 (807.33min - 831.01max) MB/s
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
561 (475.29min - 560.56max) MB/s -32%
Minisforum Mars Series MC560
ESO512GYLCT
424 (413.36min - 423.78max) MB/s -49%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
420 (418.45min - 419.54max) MB/s -49%
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
354 (11.43min - 353.56max) MB/s -57%
4k q32 t16 write
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
3388 (3373.11min - 3387.88max) MB/s +110%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
3331 (2068.43min - 3331.41max) MB/s +107%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
2396 (2376.28min - 2396.46max) MB/s +49%
Minisforum Venus Series UM560 XT
ESO512GYLCT
1611 (1590.22min - 1610.86max) MB/s
Media della classe Mini PC
  (30.2 - 4288, n=119, ultimi 2 anni)
1287 MB/s -20%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
942 (402.72min - 941.71max) MB/s -42%
Minisforum Mars Series MC560
ESO512GYLCT
934 (912.82min - 933.64max) MB/s -42%
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
893 (601.78min - 892.97max) MB/s -45%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
659 (650.84min - 659.33max) MB/s -59%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
544 (355.98min - 544.47max) MB/s -66%
AS SSD
Score Total
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
9030 Points +188%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
7134 Points +127%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
6665 Points +112%
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
4744 Points +51%
Media della classe Mini PC
  (181.5 - 10021, n=117, ultimi 2 anni)
4121 Points +31%
Minisforum Venus Series UM560 XT
ESO512GYLCT
3139 Points
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
2797 Points -11%
Minisforum Mars Series MC560
ESO512GYLCT
2491 Points -21%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
2491 Points -21%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
748.83 Points -76%
Score Read
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
3635 Points +281%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
2391 Points +151%
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
2356 Points +147%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
2352 Points +147%
Media della classe Mini PC
  (61 - 3741, n=117, ultimi 2 anni)
1534 Points +61%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
1162 Points +22%
Minisforum Mars Series MC560
ESO512GYLCT
965 Points +1%
Minisforum Venus Series UM560 XT
ESO512GYLCT
954 Points
Geekom Mini IT12
Kingston OM8SEP4512N-A0
725 Points -24%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
661 Points -31%
Score Write
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
3615 Points +112%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
3538 Points +108%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
3145 Points +85%
Media della classe Mini PC
  (88 - 4371, n=117, ultimi 2 anni)
1851 Points +9%
Minisforum Venus Series UM560 XT
ESO512GYLCT
1702 Points
Geekom Mini IT12
Kingston OM8SEP4512N-A0
1457 Points -14%
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
1308 Points -23%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
1059 Points -38%
Minisforum Mars Series MC560
ESO512GYLCT
1037 Points -39%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
700 Points -59%
Seq Read
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
5338 MB/s +143%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
4147 MB/s +89%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
4050 MB/s +85%
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
3874.21 MB/s +77%
Media della classe Mini PC
  (291 - 6620, n=117, ultimi 2 anni)
3161 MB/s +44%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
2844 MB/s +30%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
2789 MB/s +27%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
2260 MB/s +3%
Minisforum Venus Series UM560 XT
ESO512GYLCT
2193 MB/s
Minisforum Mars Series MC560
ESO512GYLCT
2181 MB/s -1%
Seq Write
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
3927 MB/s +123%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
3292 MB/s +87%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
3025 MB/s +72%
Media della classe Mini PC
  (240 - 5783, n=117, ultimi 2 anni)
2212 MB/s +26%
Minisforum Mars Series MC560
ESO512GYLCT
1769 MB/s 0%
Minisforum Venus Series UM560 XT
ESO512GYLCT
1762 MB/s
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
1644 MB/s -7%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
1232 MB/s -30%
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
882.93 MB/s -50%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
524 MB/s -70%
4K Read
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
103.66 MB/s +87%
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
102.97 MB/s +86%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
86.05 MB/s +56%
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
66.6 MB/s +20%
Media della classe Mini PC
  (6.08 - 104.3, n=117, ultimi 2 anni)
58.9 MB/s +7%
Minisforum Venus Series UM560 XT
ESO512GYLCT
55.3 MB/s
Minisforum Mars Series MC560
ESO512GYLCT
55.1 MB/s 0%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
53.5 MB/s -3%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
52.54 MB/s -5%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
48.9 MB/s -12%
4K Write
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
365.87 MB/s +141%
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
354.53 MB/s +134%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
273 MB/s +80%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
240.66 MB/s +59%
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
209 MB/s +38%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
185.4 MB/s +22%
Media della classe Mini PC
  (30.9 - 366, n=117, ultimi 2 anni)
175.1 MB/s +15%
Minisforum Mars Series MC560
ESO512GYLCT
160.1 MB/s +5%
Minisforum Venus Series UM560 XT
ESO512GYLCT
151.8 MB/s
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
144.1 MB/s -5%
4K-64 Read
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
3035 MB/s +347%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
1872.82 MB/s +176%
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
1865.81 MB/s +175%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
1860.96 MB/s +174%
Media della classe Mini PC
  (23.4 - 3220, n=117, ultimi 2 anni)
1159 MB/s +71%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
883.24 MB/s +30%
Minisforum Mars Series MC560
ESO512GYLCT
692 MB/s +2%
Minisforum Venus Series UM560 XT
ESO512GYLCT
679 MB/s
Geekom Mini IT12
Kingston OM8SEP4512N-A0
397 MB/s -42%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
323 MB/s -52%
4K-64 Write
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
3013 MB/s +119%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
2842.9 MB/s +107%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
2602.12 MB/s +89%
Media della classe Mini PC
  (32.8 - 3731, n=117, ultimi 2 anni)
1455 MB/s +6%
Minisforum Venus Series UM560 XT
ESO512GYLCT
1374 MB/s
Geekom Mini IT12
Kingston OM8SEP4512N-A0
1060 MB/s -23%
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
865.27 MB/s -37%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
750.4 MB/s -45%
Minisforum Mars Series MC560
ESO512GYLCT
699 MB/s -49%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
462 MB/s -66%
Access Time Read
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
0.117 ms * -166%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
0.098 ms * -123%
Media della classe Mini PC
  (0.022 - 0.489, n=117, ultimi 2 anni)
0.09726 ms * -121%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
0.075 ms * -70%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
0.074 ms * -68%
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
0.066 ms * -50%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
0.065 ms * -48%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
0.06 ms * -36%
Minisforum Venus Series UM560 XT
ESO512GYLCT
0.044 ms *
Minisforum Mars Series MC560
ESO512GYLCT
0.022 ms * +50%
Access Time Write
Geekom Mini IT12
Kingston OM8SEP4512N-A0
0.118 ms * -392%
Media della classe Mini PC
  (0.014 - 0.765, n=117, ultimi 2 anni)
0.1153 ms * -380%
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
0.11 ms * -358%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
0.102 ms * -325%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
0.031 ms * -29%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
0.031 ms * -29%
Minisforum Mars Series MC560
ESO512GYLCT
0.024 ms * -0%
Minisforum Venus Series UM560 XT
ESO512GYLCT
0.024 ms *
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
0.023 ms * +4%
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
0.018 ms * +25%

* ... Meglio usare valori piccoli

Continuous performance Read: DiskSpd Read Loop, Queue Depth 8

0245490735980122514701715196022052450269529403185343036753920416544104655Tooltip
Minisforum Venus Series UM560 XT ESO512GYLCT: Ø2347 (2148.11-2354.15)
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G: Ø1878 (827.51-2439.04)
Minisforum Mars Series MC560 ESO512GYLCT: Ø1752 (1554.86-1765.21)
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0: Ø4789 (4164.37-4807.96)
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G: Ø1770 (1505.89-1954.62)
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0: Ø2987 (1605.58-4819.04)
Geekom Mini IT12 Kingston OM8SEP4512N-A0: Ø2178 (1555.46-2595.65)
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0: Ø3302 (1830.49-4799.45)
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S: Ø1047 (95.4-2400.59)

Scheda grafica

Il Minisforum Venus Series UM560 XT dispone di una scheda grafica integrata AMD Radeon RX Vega 7. In un confronto diretto, questa iGPU ha prestazioni simili alla Intel Iris Xe Graphics G7 o alla AMD Radeon 660M. AMD Radeon 680M possiede una potenza nettamente superiore e si trova, tra gli altri dispositivi, anche nel Minisforum Venus Series UM690.

Ulteriori confronti e benchmark possono essere trovati nel nostro sitoGPU.

3DMark Performance Rating - Percent
Minisforum Venus Series UM690
AMD Radeon 680M, AMD Ryzen 9 6900HX
99.1 pt
Morefine M600, 6900HX
AMD Radeon 680M, AMD Ryzen 9 6900HX
98 pt
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H
72.5 pt
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
63 pt
Morefine M600, 6600U
AMD Radeon 660M, AMD Ryzen 5 6600U
62.3 pt
Minisforum Venus Series UM560 XT
AMD Radeon RX Vega 7, AMD Ryzen 5 5600H
57.4 pt
Minisforum Mars Series MC560
AMD Radeon RX Vega 7, AMD Ryzen 5 5600U
54.3 pt
Minisforum Venus Series NAB6
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H
53.8 pt
Minipc Union Ace Magician AMR5
AMD Radeon RX Vega 7, AMD Ryzen 5 5600U
51.4 pt
3DMark 11 - 1280x720 Performance GPU
Morefine M600, 6900HX
AMD Radeon 680M, AMD Ryzen 9 6900HX
11055 Points +82%
Minisforum Venus Series UM690
AMD Radeon 680M, AMD Ryzen 9 6900HX
10845 Points +78%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H
7057 Points +16%
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
6599 Points +9%
Minisforum Venus Series UM560 XT
AMD Radeon RX Vega 7, AMD Ryzen 5 5600H
6079 Points
Minisforum Mars Series MC560
AMD Radeon RX Vega 7, AMD Ryzen 5 5600U
5923 Points -3%
Morefine M600, 6600U
AMD Radeon 660M, AMD Ryzen 5 6600U
5634 Points -7%
Minipc Union Ace Magician AMR5
AMD Radeon RX Vega 7, AMD Ryzen 5 5600U
5610 Points -8%
Minisforum Venus Series NAB6
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H
5462 Points -10%
3DMark
1280x720 Cloud Gate Standard Graphics
Minisforum Venus Series UM690
AMD Radeon 680M, AMD Ryzen 9 6900HX
43275 Points +45%
Morefine M600, 6900HX
AMD Radeon 680M, AMD Ryzen 9 6900HX
41124 Points +37%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H
30434 Points +2%
Minisforum Venus Series UM560 XT
AMD Radeon RX Vega 7, AMD Ryzen 5 5600H
29927 Points
Morefine M600, 6600U
AMD Radeon 660M, AMD Ryzen 5 6600U
28159 Points -6%
Minisforum Mars Series MC560
AMD Radeon RX Vega 7, AMD Ryzen 5 5600U
27497 Points -8%
Minipc Union Ace Magician AMR5
AMD Radeon RX Vega 7, AMD Ryzen 5 5600U
26247 Points -12%
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
22570 Points -25%
Minisforum Venus Series NAB6
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H
21383 Points -29%
1920x1080 Fire Strike Graphics
Minisforum Venus Series UM690
AMD Radeon 680M, AMD Ryzen 9 6900HX
6679 Points +68%
Morefine M600, 6900HX
AMD Radeon 680M, AMD Ryzen 9 6900HX
6644 Points +67%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H
5526 Points +39%
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
4860 Points +22%
Morefine M600, 6600U
AMD Radeon 660M, AMD Ryzen 5 6600U
4621 Points +16%
Minisforum Venus Series NAB6
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H
4098 Points +3%
Minisforum Venus Series UM560 XT
AMD Radeon RX Vega 7, AMD Ryzen 5 5600H
3971 Points
Minisforum Mars Series MC560
AMD Radeon RX Vega 7, AMD Ryzen 5 5600U
3819 Points -4%
Minipc Union Ace Magician AMR5
AMD Radeon RX Vega 7, AMD Ryzen 5 5600U
3586 Points -10%
2560x1440 Time Spy Graphics
Morefine M600, 6900HX
AMD Radeon 680M, AMD Ryzen 9 6900HX
2408 Points +93%
Minisforum Venus Series UM690
AMD Radeon 680M, AMD Ryzen 9 6900HX
2351 Points +89%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H
1658 Points +33%
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
1528 Points +23%
Morefine M600, 6600U
AMD Radeon 660M, AMD Ryzen 5 6600U
1430 Points +15%
Minisforum Venus Series UM560 XT
AMD Radeon RX Vega 7, AMD Ryzen 5 5600H
1247 Points
Minisforum Venus Series NAB6
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H
1217 Points -2%
Minisforum Mars Series MC560
AMD Radeon RX Vega 7, AMD Ryzen 5 5600U
1153 Points -8%
Minipc Union Ace Magician AMR5
AMD Radeon RX Vega 7, AMD Ryzen 5 5600U
1102 Points -12%
Fire Strike Extreme Graphics
Minisforum Venus Series UM690
AMD Radeon 680M, AMD Ryzen 9 6900HX
3206 Points +94%
Morefine M600, 6900HX
AMD Radeon 680M, AMD Ryzen 9 6900HX
3066 Points +85%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H
2455 Points +48%
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
2150 Points +30%
Morefine M600, 6600U
AMD Radeon 660M, AMD Ryzen 5 6600U
2149 Points +30%
Minisforum Venus Series NAB6
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H
1866 Points +13%
Minisforum Venus Series UM560 XT
AMD Radeon RX Vega 7, AMD Ryzen 5 5600H
1654 Points
Minisforum Mars Series MC560
AMD Radeon RX Vega 7, AMD Ryzen 5 5600U
1583 Points -4%
Minipc Union Ace Magician AMR5
AMD Radeon RX Vega 7, AMD Ryzen 5 5600U
1472 Points -11%
Performance Rating - Percent
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
98.3 pt
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
90 pt
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
57.9 pt
Morefine M600, 6600U
Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S
56.9 pt
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
55.8 pt
Minisforum Venus Series UM560 XT
Vega 7, R5 5600H, ESO512GYLCT
55 pt
Minisforum Mars Series MC560
Vega 7, R5 5600U, ESO512GYLCT
50.1 pt
Minipc Union Ace Magician AMR5
Vega 7, R5 5600U, Future Path FPE220M8SSD512G
49.4 pt
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
48.8 pt
Unigine Heaven 4.0
Extreme Preset OpenGL
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
34.6 fps +66%
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
33.6 fps +61%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
23.3 fps +11%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
21 fps 0%
Minisforum Venus Series UM560 XT
Vega 7, R5 5600H, ESO512GYLCT
20.9 fps
Morefine M600, 6600U
Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S
20.4 fps -2%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
19.7 fps -6%
Minisforum Mars Series MC560
Vega 7, R5 5600U, ESO512GYLCT
18.6 fps -11%
Minipc Union Ace Magician AMR5
Vega 7, R5 5600U, Future Path FPE220M8SSD512G
17.7 fps -15%
Extreme Preset DX11
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
33.4 fps +69%
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
32.2 fps +63%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
24 fps +21%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
21.7 fps +10%
Morefine M600, 6600U
Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S
20.9 fps +6%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
20.4 fps +3%
Minisforum Venus Series UM560 XT
Vega 7, R5 5600H, ESO512GYLCT
19.8 fps
Minisforum Mars Series MC560
Vega 7, R5 5600U, ESO512GYLCT
18.2 fps -8%
Minipc Union Ace Magician AMR5
Vega 7, R5 5600U, Future Path FPE220M8SSD512G
17.1 fps -14%
Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
21 fps +59%
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
18.8 fps +42%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
14.3 fps +8%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
13.2 fps 0%
Minisforum Venus Series UM560 XT
Vega 7, R5 5600H, ESO512GYLCT
13.2 fps
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
12.8 fps -3%
Minisforum Mars Series MC560
Vega 7, R5 5600U, ESO512GYLCT
12.3 fps -7%
Minipc Union Ace Magician AMR5
Vega 7, R5 5600U, Future Path FPE220M8SSD512G
11.3 fps -14%
Morefine M600, 6600U
Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S
10.9 fps -17%
1920x1080 Extreme HD Preset OpenGL AA:x8
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
22.8 fps +69%
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
21.3 fps +58%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
16.1 fps +19%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
15.2 fps +13%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
15.1 fps +12%
Minisforum Venus Series UM560 XT
Vega 7, R5 5600H, ESO512GYLCT
13.5 fps
Minisforum Mars Series MC560
Vega 7, R5 5600U, ESO512GYLCT
12.2 fps -10%
Morefine M600, 6600U
Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S
11.6 fps -14%
Minipc Union Ace Magician AMR5
Vega 7, R5 5600U, Future Path FPE220M8SSD512G
11.5 fps -15%
ComputeMark v2.1
1024x600 Normal, Score
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
7111 Points +119%
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
5813 Points +79%
Morefine M600, 6600U
Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S
3439 Points +6%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
3390 Points +5%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
3308 Points +2%
Minisforum Venus Series UM560 XT
Vega 7, R5 5600H, ESO512GYLCT
3244 Points
Minipc Union Ace Magician AMR5
Vega 7, R5 5600U, Future Path FPE220M8SSD512G
3225 Points -1%
Minisforum Mars Series MC560
Vega 7, R5 5600U, ESO512GYLCT
2999 Points -8%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
2512 Points -23%
1024x600 Normal, Fluid 3DTex
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
400 Points +47%
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
371 Points +36%
Morefine M600, 6600U
Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S
318 Points +17%
Minisforum Venus Series UM560 XT
Vega 7, R5 5600H, ESO512GYLCT
272 Points
Minisforum Mars Series MC560
Vega 7, R5 5600U, ESO512GYLCT
243 Points -11%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
237 Points -13%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
234 Points -14%
Minipc Union Ace Magician AMR5
Vega 7, R5 5600U, Future Path FPE220M8SSD512G
224 Points -18%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
216 Points -21%
1024x600 Normal, Fluid 2DTexArr
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
404 Points +55%
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
367 Points +41%
Morefine M600, 6600U
Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S
340 Points +31%
Minisforum Venus Series UM560 XT
Vega 7, R5 5600H, ESO512GYLCT
260 Points
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
249 Points -4%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
237 Points -9%
Minisforum Mars Series MC560
Vega 7, R5 5600U, ESO512GYLCT
231 Points -11%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
220 Points -15%
Minipc Union Ace Magician AMR5
Vega 7, R5 5600U, Future Path FPE220M8SSD512G
212 Points -18%
1024x600 Normal, Mandel Vector
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
2030 Points +114%
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
1677 Points +77%
Minipc Union Ace Magician AMR5
Vega 7, R5 5600U, Future Path FPE220M8SSD512G
982 Points +4%
Minisforum Venus Series UM560 XT
Vega 7, R5 5600H, ESO512GYLCT
948 Points
Morefine M600, 6600U
Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S
933 Points -2%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
851 Points -10%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
827 Points -13%
Minisforum Mars Series MC560
Vega 7, R5 5600U, ESO512GYLCT
790 Points -17%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
483 Points -49%
1024x600 Normal, Mandel Scalar
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
1945 Points +120%
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
1473 Points +67%
Minipc Union Ace Magician AMR5
Vega 7, R5 5600U, Future Path FPE220M8SSD512G
906 Points +2%
Morefine M600, 6600U
Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S
885 Points 0%
Minisforum Venus Series UM560 XT
Vega 7, R5 5600H, ESO512GYLCT
884 Points
Minisforum Mars Series MC560
Vega 7, R5 5600U, ESO512GYLCT
877 Points -1%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
865 Points -2%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
834 Points -6%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
770 Points -13%
1024x600 Normal, QJuliaRayTrace
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
2332 Points +165%
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
1924 Points +119%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
1191 Points +35%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
1174 Points +33%
Morefine M600, 6600U
Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S
963 Points +9%
Minipc Union Ace Magician AMR5
Vega 7, R5 5600U, Future Path FPE220M8SSD512G
900 Points +2%
Minisforum Venus Series UM560 XT
Vega 7, R5 5600H, ESO512GYLCT
880 Points
Minisforum Mars Series MC560
Vega 7, R5 5600U, ESO512GYLCT
857 Points -3%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
823 Points -6%
3DMark 05 Standard
41219 punti
3DMark 06 Standard Score
27686 punti
3DMark Vantage P Result
19568 punti
3DMark 11 Performance
6495 punti
3DMark Ice Storm Standard Score
130670 punti
3DMark Cloud Gate Standard Score
23474 punti
3DMark Fire Strike Score
3632 punti
3DMark Fire Strike Extreme Score
1639 punti
3DMark Time Spy Score
1420 punti
Aiuto

Prestazioni di gioco

Il Minisforum Venus Series UM560 XT non può essere considerato adatto ai giochi a causa delle limitate prestazioni 3D della iGPU. Tuttavia, il nostro dispositivo di prova ha dimostrato che alcuni giochi sono riproducibili a dettagli bassi grazie alla sua AMD Radeon RX Vega 7ma soprattutto non alla risoluzione di 1080p. Chiunque dia grande importanza alle prestazioni di gioco pure dovrebbe dare un'occhiata a un mini PC con una scheda grafica dedicata. Due buoni esempi sono anche i dispositivi Minisforum: il modello HX99Ge ilNUCXi7.

The Witcher 3
1024x768 Low Graphics & Postprocessing
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
131.8 fps +75%
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
113.9 fps +51%
Intel NUC 13 Pro Kit NUC13ANK
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
101.7 fps +35%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
97.2 fps +29%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
86.9 fps +15%
Minisforum Venus Series UM560 XT
Vega 7, R5 5600H, ESO512GYLCT
75.4 fps
Minipc Union Ace Magician AMR5
Vega 7, R5 5600U, Future Path FPE220M8SSD512G
61.8 (16.1min, 20.6P0.1, 34.6P1) fps -18%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
41.3 fps +80%
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
39.4 fps +71%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
32 fps +39%
Intel NUC 13 Pro Kit NUC13ANK
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
31.1 fps +35%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
28.9 fps +26%
Minisforum Venus Series UM560 XT
Vega 7, R5 5600H, ESO512GYLCT
23 fps
Minipc Union Ace Magician AMR5
Vega 7, R5 5600U, Future Path FPE220M8SSD512G
19.6 (10.2min, 13P0.1, 16.4P1) fps -15%
Borderlands 3
1280x720 Very Low Overall Quality (DX11)
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
90.7 fps +37%
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
82.1 fps +24%
Minisforum Venus Series UM560 XT
Vega 7, R5 5600H, ESO512GYLCT
66.4 fps
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
59.1 fps -11%
Intel NUC 13 Pro Kit NUC13ANK
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
55.5 fps -16%
Minipc Union Ace Magician AMR5
Vega 7, R5 5600U, Future Path FPE220M8SSD512G
53.4 fps -20%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
51.8 fps -22%
1920x1080 High Overall Quality (DX11)
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
26.5 fps +70%
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
24.1 fps +54%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
16.2 fps +4%
Intel NUC 13 Pro Kit NUC13ANK
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
16.2 fps +4%
Minisforum Venus Series UM560 XT
Vega 7, R5 5600H, ESO512GYLCT
15.6 fps
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
14.8 fps -5%
Minipc Union Ace Magician AMR5
Vega 7, R5 5600U, Future Path FPE220M8SSD512G
13.3 fps -15%
GTA V
1024x768 Lowest Settings possible
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
152.1 (2.73min, 100P1) fps +8%
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
149.3 (5.43min, 100P1) fps +6%
Minisforum Venus Series UM560 XT
Vega 7, R5 5600H, ESO512GYLCT
140.7 (5.04min, 90.9P1) fps
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
135.3 (26.7min, 90.9P1) fps -4%
Intel NUC 13 Pro Kit NUC13ANK
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
126.2 (50.6min, 76.9P1) fps -10%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
119.3 (25.1min, 76.9P1) fps -15%
Minipc Union Ace Magician AMR5
Vega 7, R5 5600U, Future Path FPE220M8SSD512G
114.3 (8.54min, 76.9P1) fps -19%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
53.5 (3.46min, 38.5P1) fps +69%
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
49.3 (7.78min, 34.5P1) fps +56%
Minisforum Venus Series UM560 XT
Vega 7, R5 5600H, ESO512GYLCT
31.7 (15.9min, 23.3P1) fps
Minipc Union Ace Magician AMR5
Vega 7, R5 5600U, Future Path FPE220M8SSD512G
27.2 (6.42min, 20P1) fps -14%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
21 (8.15min, 16.1P1) fps -34%
Intel NUC 13 Pro Kit NUC13ANK
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
20.7 (9.05min, 15.9P1) fps -35%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
18.6 (8min, 14.3P1) fps -41%
Far Cry 5
1280x720 Low Preset AA:T
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
75 (60min) fps +32%
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
71 (39min) fps +25%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
57 (49min) fps 0%
Minisforum Venus Series UM560 XT
Vega 7, R5 5600H, ESO512GYLCT
57 (51min) fps
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
50 (41min) fps -12%
Intel NUC 13 Pro Kit NUC13ANK
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
46 (37min) fps -19%
Minipc Union Ace Magician AMR5
Vega 7, R5 5600U, Future Path FPE220M8SSD512G
44 (38min) fps -23%
1920x1080 High Preset AA:T
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
39 (34min) fps +56%
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
34 (30min) fps +36%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
27 (24min) fps +8%
Intel NUC 13 Pro Kit NUC13ANK
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
25 (22min) fps 0%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
25 (22min) fps 0%
Minisforum Venus Series UM560 XT
Vega 7, R5 5600H, ESO512GYLCT
25 (22min) fps
Minipc Union Ace Magician AMR5
Vega 7, R5 5600U, Future Path FPE220M8SSD512G
20 (17min) fps -20%
Far Cry New Dawn
1280x720 Low Preset
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
66 (50min) fps +27%
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
65 (50min) fps +25%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
52 (31min) fps 0%
Intel NUC 13 Pro Kit NUC13ANK
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
52 (34min) fps 0%
Minisforum Venus Series UM560 XT
Vega 7, R5 5600H, ESO512GYLCT
52 (39min) fps
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
46 (28min) fps -12%
Minipc Union Ace Magician AMR5
Vega 7, R5 5600U, Future Path FPE220M8SSD512G
40 (31min) fps -23%
1920x1080 High Preset
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
37 (17min) fps +54%
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
37 (29min) fps +54%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
28 (21min) fps +17%
Intel NUC 13 Pro Kit NUC13ANK
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
28 (22min) fps +17%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
25 (19min) fps +4%
Minisforum Venus Series UM560 XT
Vega 7, R5 5600H, ESO512GYLCT
24 (20min) fps
Minipc Union Ace Magician AMR5
Vega 7, R5 5600U, Future Path FPE220M8SSD512G
19 (16min) fps -21%
Dota 2 Reborn
1280x720 min (0/3) fastest
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
143 (124.5min) fps +4%
Minisforum Venus Series UM560 XT
Vega 7, R5 5600H, ESO512GYLCT
137.7 (114.5min) fps
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
136.9 (106.8min) fps -1%
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
133.4 (119min) fps -3%
Intel NUC 13 Pro Kit NUC13ANK
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
123.8 (98min) fps -10%
Minipc Union Ace Magician AMR5
Vega 7, R5 5600U, Future Path FPE220M8SSD512G
111 (97.1min) fps -19%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
108.1 (86.6min) fps -21%
1920x1080 high (2/3)
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
84.3 (74.6min) fps +36%
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
82.2 (71.4min) fps +32%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
68 (62.7min) fps +10%
Intel NUC 13 Pro Kit NUC13ANK
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
67.6 (59.9min) fps +9%
Minisforum Venus Series UM560 XT
Vega 7, R5 5600H, ESO512GYLCT
62.1 (57.1min) fps
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
60.9 (55.7min) fps -2%
Minipc Union Ace Magician AMR5
Vega 7, R5 5600U, Future Path FPE220M8SSD512G
50.5 (43.6min) fps -19%
bassomedioaltoultra
GTA V (2015) 140.7 123 31.7 15
The Witcher 3 (2015) 75.4 45.4 23 14.8
Dota 2 Reborn (2015) 137.7 107.8 62.1 58.2
Final Fantasy XV Benchmark (2018) 40.8 20.2 14.3
X-Plane 11.11 (2018) 49.5 37 31.9
Far Cry 5 (2018) 57 27 25 23
Strange Brigade (2018) 94.4 36.1 30.1 25.4
Far Cry New Dawn (2019) 52 26 24 22
Metro Exodus (2019) 44 19.1 14.1 11.8
Borderlands 3 (2019) 66.4 25.2 15.6 11.9
F1 2020 (2020) 102.7 45.3 35.3 24.7
F1 2021 (2021) 107.9 45.8 35.6 23.7
Far Cry 6 (2021) 47 21.9 18.1 15.3
Tiny Tina's Wonderlands (2022) 33.1 25.1 15.7 11.5
F1 22 (2022) 42.3 38 28.2 19.7

Emissioni - Molto silenzioso nonostante le buone prestazioni

Emissioni sonore

Per quanto riguarda le misurazioni del suono, il Minisforum Venus Series UM560 XT si comporta meravigliosamente e appartiene alle macchine più silenziose confrontate qui. Quando è in funzione al minimo o a basso carico, il dispositivo funziona quasi silenziosamente. I nostri dispositivi di misurazione hanno registrato un livello di volume di 33,2 dB(A) solo sotto carico elevato.

Rumorosità

Idle
30.3 / 30.5 / 30.6 dB(A)
Sotto carico
32.5 / 33.2 dB(A)
  red to green bar


30 dB
silenzioso
40 dB(A)
udibile
50 dB(A)
rumoroso

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm di distanza)   Rumorosità ambientale: 30 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2036.339.937.335.938.836.836.32535.735.836.137.337.337.235.73135.332.833.733.934.133.735.34029.830.129.529.329.227.929.85030.431.930.732.530.929.730.46326.830.727.928.729.529.426.88027.930.3272827.72627.910026.727.726.426.326.628.126.712524.623.92424.124.224.224.616023.423.323.122.222.622.123.420022.822.521.621.822.421.822.825021.621.422.520.821.620.121.631521.921.122.220.321.119.621.940021.621.520.219.319.519.221.650021.820.920.419.218.218.421.863020.820.118.818.818.217.920.880021.220.418.318.717.917.421.2100019.81917.918.317.417.519.8125019.218.717.417.417.217.219.2160019.819.217.217.41716.819.8200019.919.21716.916.716.819.9250022.321.717.417.517.216.722.3315024.723.418.218.317.917.224.7400022.321.317.817.917.617.222.3500018.618.41817.91817.718.6630018.618.518.618.518.518.418.680001919.219.119.11919191000019.719.82019.819.819.619.71250020.520.520.420.720.320.320.51600022.322.521.421.321.321.122.3SPL33.232.530.630.530.33033.2N1.81.71.41.41.41.31.8median 21.6median 20.9median 19.1median 19.1median 18.5median 18.4median 21.6Delta1.31.82.21.51.81.81.3hearing rangehide median Fan NoiseMinisforum Venus Series UM560 XT
Minisforum Venus Series UM560 XT
R5 5600H, Vega 7
Minipc Union Ace Magician AMR5
R5 5600U, Vega 7
Minisforum Mars Series MC560
R5 5600U, Vega 7
Minisforum Venus Series NAB6
i7-12650H, UHD Graphics 64EUs
Morefine M600, 6900HX
R9 6900HX, Radeon 680M
Minisforum Venus Series UM690
R9 6900HX, Radeon 680M
Geekom Mini IT12
i7-1260P, Iris Xe G7 96EUs
Minisforum Neptune Series NAD9
i9-12900H, Iris Xe G7 96EUs
Morefine M600, 6600U
R5 6600U, Radeon 660M
Noise
-21%
0%
-1%
-5%
-4%
1%
2%
6%
off /ambiente *
30
30.5
-2%
30.2
-1%
29.4
2%
30.4
-1%
30.5
-2%
29.8
1%
30.2
-1%
29.4
2%
Idle Minimum *
30.3
31.5
-4%
30.4
-0%
29.4
3%
30.9
-2%
31.6
-4%
29.9
1%
30.5
-1%
29.4
3%
Idle Average *
30.5
32.6
-7%
30.4
-0%
29.5
3%
31.5
-3%
31.6
-4%
30.1
1%
30.5
-0%
29.4
4%
Idle Maximum *
30.6
33.8
-10%
30.4
1%
29.7
3%
31.5
-3%
31.6
-3%
30.2
1%
30.5
-0%
29.5
4%
Load Average *
32.5
49.3
-52%
31.8
2%
34.6
-6%
37.5
-15%
33.9
-4%
32.1
1%
30.5
6%
29.6
9%
Load Maximum *
33.2
50.9
-53%
33.4
-1%
36.1
-9%
34.1
-3%
34.4
-4%
32.5
2%
30.5
8%
29.6
11%

* ... Meglio usare valori piccoli

Temperatura

Il case del Minisforum Venus Series UM560 XT si è riscaldato solo leggermente durante il funzionamento al minimo. Ma anche sotto carico, la temperatura del case è rimasta per lo più nella zona verde. Un notevole riscaldamento si avverte nell'area delle uscite della ventola e può essere osservato perfettamente nelle immagini della nostra termocamera.

Durante lo stress test, abbiamo dato un'occhiata anche ai componenti integrati. Il SoC impostato in modo conservativo (max. 40 watt) è stato tenuto sotto controllo, anche durante lo stress test. Non abbiamo osservato temperature superiori a 77,6 °C nel nostro dispositivo in prova. Poiché la potenza massima del pacchetto è disponibile solo per un breve periodo, le temperature massime vengono raggiunte solo per un breve periodo. Nello stress test, il SoC ha funzionato a 67 °C.

Stresstest Prime95 solo
Stresstest Prime95 solo
Stresstest FurMark solo
Stresstest FurMark solo
Stresstest Prime95 + FurMark
Stresstest Prime95 + FurMark
Minisforum Venus Series UM560 XT vs stress test
Minisforum Venus Series UM560 XT vs stress test
Minisforum Venus Series UM560 XT vs stress test
Minisforum Venus Series UM560 XT vs stress test
Minisforum Venus Series UM560 XT contro lo stress test (PSU)
Minisforum Venus Series UM560 XT contro lo stress test (PSU)

Consumo di energia

alimentatore da 120 watt
alimentatore da 120 watt

Nel nostro confronto, il Minisforum Venus Series UM560 XT è il dispositivo più economico dopo il Minisforum Mars Series MC560 Minisforum Mars Series MC560e questo lo aiuta ad assicurarsi il secondo posto. Il vantaggio sulla concorrenza è talvolta considerevole. Con il funzionamento al minimo, il Minisforum riesce a tenere sotto controllo il consumo energetico dell'UM560 XT ed è in quest'area che il nostro dispositivo in prova si differenzia dai suoi colleghi. Con 73,4 watt durante lo stress test, abbiamo visto brevemente il valore più alto che, tuttavia, non era permanente. A 45,1 watt i requisiti energetici si sono stabilizzati rispetto alla concorrenza che possiede una potenza simile del SoC. L'alimentatore può fornire fino a 120 watt e ha alimentato in modo affidabile e costante la nostra unità di test. Questo significa che c'è abbastanza spazio per il secondo supporto di memorizzazione opzionale.

Consumo di corrente
Off / Standbydarklight 0.7 / 1 Watt
Idledarkmidlight 6.6 / 6.8 / 7.2 Watt
Sotto carico midlight 45.1 / 73.4 Watt
 color bar
Leggenda: min: dark, med: mid, max: light        Metrahit Energy
Minisforum Venus Series UM560 XT
R5 5600H, Vega 7
Minipc Union Ace Magician AMR5
R5 5600U, Vega 7
Minisforum Mars Series MC560
R5 5600U, Vega 7
Minisforum Venus Series NAB6
i7-12650H, UHD Graphics 64EUs
Morefine M600, 6900HX
R9 6900HX, Radeon 680M
Minisforum Venus Series UM690
R9 6900HX, Radeon 680M
Geekom Mini IT12
i7-1260P, Iris Xe G7 96EUs
Minisforum Neptune Series NAD9
i9-12900H, Iris Xe G7 96EUs
Morefine M600, 6600U
R5 6600U, Radeon 660M
Media AMD Radeon RX Vega 7

Media della classe Mini PC

Power Consumption
-12%
10%
-62%
-55%
-39%
-10%
-88%
-21%
7%
-56%
Idle Minimum *
6.6
8.4
-27%
6.2
6%
10.4
-58%
9.9
-50%
8.7
-32%
5
24%
12.1
-83%
8
-21%
4.66 ?(2.6 - 8.4, n=52)
29%
Idle Average *
6.8
8.7
-28%
6.3
7%
12.3
-81%
11
-62%
9.6
-41%
7
-3%
13
-91%
8.7
-28%
7.56 ?(4.8 - 10.7, n=52)
-11%
Idle Maximum *
7.2
9.3
-29%
7.5
-4%
12.4
-72%
11.2
-56%
10.5
-46%
10.7
-49%
18.2
-153%
8.8
-22%
8.95 ?(5.6 - 13.8, n=52)
-24%
Load Average *
45.1
46.4
-3%
41.3
8%
72.9
-62%
74.2
-65%
65.8
-46%
50.3
-12%
70.6
-57%
54.6
-21%
Load Maximum *
73.4
52
29%
49
33%
101.2
-38%
103.2
-41%
94.5
-29%
82
-12%
113
-54%
83.2
-13%
51.9 ?(31 - 73.4, n=52)
29%

* ... Meglio usare valori piccoli

Power consumption with an external monitor

0510152025303540455055606570Tooltip
Minisforum Venus Series UM560 XT; Prime95 V2810 Stress (external Monitor): Ø64.9 (63.1-73.4)
Minisforum Venus Series UM560 XT; Cinebench R15 Multi (external Monitor): Ø65.1 (61.9-70.2)
Minisforum Venus Series UM560 XT; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø45.2 (42.7-58.8)
Minisforum Venus Series UM560 XT; Idle 1min (external Monitor): Ø7.26 (6.46-10.2)

Pro

+ design elegante
+ bassi requisiti energetici
+ prestazioni costanti dell'SSD
+ struttura molto compatta
+ basse latenze DPC
+ tre display (massimo) utilizzabili contemporaneamente
+ numerose porte USB
+ solido supporto in metallo
+ Opzione di montaggio VESA
+ difficilmente udibile sotto carico
+ Prezzo contenuto

Contro

- nessun lettore di schede SD
- nessun Thunderbolt / USB4

Verdetto - Un mini PC economico con buone prestazioni

Recensione di Minisforum Venus Series UM560 XT - fornita da Minisforum
Recensione di Minisforum Venus Series UM560 XT - fornita da Minisforum

Quando è arrivata la nostra recensione del Minisforum Venus Series UM560 XT, sapevamo di non avere a che fare con un concorrente sconosciuto, poiché eravamo già stati convinti e impressionati dalle prestazioni del modello superiore. Basato su AMD Ryzen 5 5600H, il produttore ha dotato questo modello di un SoC più vecchio che attualmente è ancora in grado di offrire prestazioni elevate. Tuttavia, per quanto riguarda le connessioni, si deve fare a meno dell'USB4. Tuttavia, dal punto di vista numerico, le numerose porte esterne disponibili dissipano rapidamente qualsiasi preoccupazione relativa alla connettività compromessa. In termini di qualità costruttiva, non abbiamo trovato difetti, anche se l'apertura del dispositivo tramite le viti coperte ci ha dato da ridire. Tuttavia, almeno il Minisforum Venus Series UM560 XT può essere acquistato anche in versione barebone. Questo rende necessaria l'apertura del case. Se, di conseguenza, i piedini incollati perdono la loro stabilità, ciò si traduce inevitabilmente in un difetto visivo in qualche modo pre-programmato.

Il Minisforum Venus Series UM560 XT ci ha colpito per le sue ottime prestazioni e il prezzo relativamente basso. Tuttavia, il dispositivo non dispone delle porte più moderne, come la Thunderbolt.

Abbiamo apprezzato l'ampio SSD raffreddato passivamente, la solida qualità costruttiva e lo stabile supporto. Vale la pena menzionare le basse emissioni della macchina, poiché il consumo energetico e le emissioni acustiche del mini PC possono essere considerati entrambi punti di forza. In questo modo, il sistema ottiene buoni risultati nei settori più importanti. Per l'uso quotidiano in ufficio, il Minisforum Venus Series UM560 XT è adatto anche come client di streaming, poiché le basse latenze consentono di riprodurre senza problemi video ad alta risoluzione. Tuttavia, il produttore ha anche sprecato il potenziale del dispositivo a causa del consumo energetico ridotto. Al contrario, si è puntato su un sistema più equilibrato, silenzioso durante le attività quotidiane, ma in grado di fornire prestazioni sufficienti senza richiedere troppa energia. A nostro avviso, questo obiettivo è stato raggiunto. Un ulteriore punto di forza è probabilmente il prezzo. Con soli 419 dollari, il nostro modello di recensione Minisforum Venus Series UM560 XT con 16 GB di RAM e 512 GB di spazio di archiviazione non lascerà un buco enorme nel bilancio familiare. In questo settore, tutti gli attuali concorrenti messi a confronto nella nostra recensione faticano a tenere il passo. Chiunque non abbia bisogno di Thunderbolt e non ne abbia bisogno in futuro può scegliere tranquillamente questa macchina.

Prezzo e disponibilità

Minisforum Venus Series UM560 XT può essere acquistato direttamente su Minisforum. Attualmente vengono offerti sconti interessanti con tasse già incluse. Ciò significa che il nostro dispositivo di prova può essere acquistato per 419 dollari. Senza sconti, il prezzo si aggira intorno ai 549 dollari. Al momento, il modello barebone più economico è scontato a 329 dollari.

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Minisforum Venus Series UM560 XT - 05/22/2023 v7 (old)
Sebastian Bade

Chassis
81 / 98 → 83%
Connettività
62 / 81 → 76%
Peso
81%
Prestazioni di gioco
67%
Prestazioni Applicazioni
94%
Workstation
64%
Rumorosità
87%
Media
77%
82%
Mini PC - Media ponderata
Please share our article, every link counts!
Mail Logo
> Recensioni e prove di notebook, tablets e smartphones > Recensioni e prove > Recensioni e prove > Recensione del PC desktop Minisforum Venus Series UM560 XT: Un mini PC con SoC AMD Cezanne a un prezzo accessibile!
Sebastian Bade, 2023-05-25 (Update: 2023-05-25)
