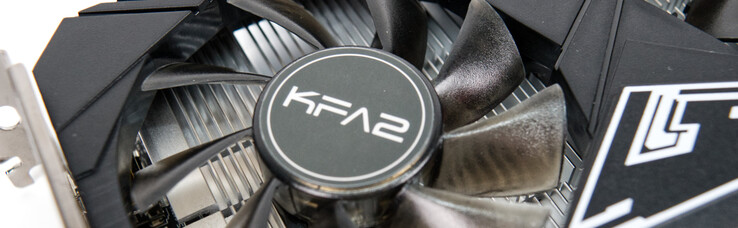

Recensione del della KFA2 GeForce GTX 1650 EX Plus - più prestazioni e VRAM più veloce per la più piccola GPU Desktop Turing-based

GeForce GTX 1650 da 90 watt!

La GeForce GTX 1650 è la più piccola scheda grafica basata su Turing, destinata ad acquirenti attenti al budget. La GeForce GTX 1650 EX Plus di KFA2 è dotata di un connettore di alimentazione aggiuntivo, motivo per cui ha un TGP di 90 watt. Leggete la nostra recensione completa per sapere che tipo di aumento delle prestazioni ci si può aspettare da questa scheda.
GPU-Z
GPU-Z

Le GPU entry-level basate su Turing si trovano nella serie GTX di NVIDIA. A differenza dei modelli RTX, le schede grafiche GTX non dispongono del supporto per l'accelerazione di ray-tracing basata su hardware e per il super campionamento di apprendimento profondo (DLSS). La mancanza di queste caratteristiche può essere perdonata, dato che le schede video GTX sono molto più lente delle GPU RTX. Dal rilascio dell'architettura NVIDIA e i partner della scheda hanno portato sul mercato molti modelli aggiornati. La KFA2 GeForce GTX 1650 EX Plus (1-Click OC) è uno di questi modelli.

Quella che abbiamo qui è una versione della GeForce GTX 1650 con più unità di mappatura delle texture. La GPU ha ancora 896 cores CUDA. Il passo successivo è la GeForce GTX 1650 Super, che offre un po' più di prestazioni grazie ai suoi 1280 processori a vapore. La differenza maggiore tra i due modelli non Super è la configurazione VRAM. La GTX 1650 EX Plus di KFA2 ha 4 GB di VRAM GDDR6 più veloce con una larghezza di banda di memoria di 192 GB/s. Tuttavia, tutto ciò presenta uno svantaggio. Il modello KFA2 richiede 15 watt di potenza in più, per questo motivo è dotato di un connettore di alimentazione a 6 pin. La GPU può assorbire solo 75 watt di potenza dallo slot PCI.

Al momento della recensione, la scheda grafica può essere acquistata a partire da 130 Euro (~$154) da vari rivenditori online. La scheda video è dotata di una porta DP 1.4, una porta HDMI 2.0b e una porta DVI.

Panoramica della gamma di GPU Turing

Specifiche GTX 1650 KFA2 GTX 1650 EX Plus GTX 1650 Super GTX 1660 GTX 1660 Super GTX 1660 Ti RTX 2060 RTX 2060 Super RTX 2070 RTX 2070 Super RTX 2080 RTX 2080 Super RTX 2080 Ti
Nome GPU TU117 TU117 TU116 TU116 TU116 TU116 TU106 TU106 TU106 TU104 TU104 TU104 TU102
Processo di produzione 12 nm 12 nm 12 nm 12 nm 12 nm 12 nm 12 nm 12 nm 12 nm 12 nm 12 nm 12 nm 12 nm
CUDA Cores 896 896 1.280 1.408 1.408 1.536 1.920 2.176 2.304 2.560 2.944 3.072 4.352
TMUs 56 74 80 88 88 96 120 136 144 160 184 192 272
Tensor Cores - - - - - - 240 272 288 320 368 384 544
RT Cores - - - - - - 30 34 36 40 46 48 68
Base Clock 1.485 MHz 1.410 MHz 1.530 MHz 1.530 MHz 1.530 MHz 1.500 MHz 1.365 MHz 1.470 MHz 1.410 MHz 1.605 MHz 1.515 MHz 1.650 MHz 1.350 MHz
Boost Clock 1.665 MHz 1.605 MHz 1.725 MHz 1.785 MHz 1.785 MHz 1.770 MHz 1.680 MHz 1.650 MHz 1.620 MHz 1.770 MHz 1.710 MHz 1.815 MHz 1.545 MHz
Memory Bus Width 128 Bits 128 Bits 128 Bits 192 Bits 192 Bits 192 Bits 192 Bits 256 Bits 256 Bits 256 Bits 256 Bits 256 Bits 352 Bits
Memory Bandwidth 128 GB/s 192 GB/s 192 GB/s 192.1 GB/s 336 GB/s 288 GB/s 336 GB/s 448 GB/s 448 GB/s 448 GB/s 448 GB/s 496,1 GB/s 616 GB/s
Frame Buffer 4 GB GDDR5 4 GB GDDR6 4 GB GDDR6 6 GB GDDR5 6 GB GDDR6 6 GB GDDR6 6 GB GDDR6 6 GB GDDR6 8 GB GDDR6 8 GB GDDR6 8 GB GDDR6 8 GB GDDR6 11 GB GDDR6
GCP (in watts) 75 W 90 W 100 W 120 W 120 W 125 W 160 W 175 W 175 W 215 W 215 W 250 W 250 W

Il nostro banco prova è basato su AMD Ryzen 9 3900X

Il nostro sistema di test si basa su una piattaforma AMD attuale. La Crosshair VIII Hero WiFi dell'Asus ROG è usata come scheda madre. La CPU, nota come AMD Ryzen 9 3900X, offre molte prestazioni. Il sistema è raffreddato da un sistema di raffreddamento ad acqua all-in-one di Alphacool (Eisbear Aurora 360). I 16 GB di RAM a 3600 MHz provengono da G-Skill. Il nostro monitor, (Acer Predator XB321HK) non rappresenta un collo di bottiglia, grazie alla sua risoluzione di 4K.

AMD Ryzen 9 3900X

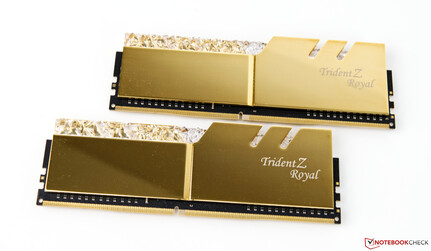

G-Skill Trident Z Royal gold DDR4-3600

Ulteriori informazioni sul nostro sistema di test - AMD vs. Intel

Abbiamo utilizzato il seguente sistema per effettuare i nostri benchmarks

  • Raijintek Pean benchtable
  • AMD Ryzen 9 3950X
  • Asus ROG Crosshair VIII Hero WiFi
  • Alphacool Eisbear Aurora 360
  • KFA2 GeForce GTX 1650 EX Plus (1-Click OC)
  • Alimentatore Corsair RM 1000X
  • G-Skill Trident Z Royal Gold DDR4 3600 memory kit, 2 x 8 GB, frequenza: 3600 MHz; timings: CL16-16-16-36
  • Corsair MP600 2TB M.2 PCIe 4.0 SSD
  • Crucial MX500 2TB (per gaming)
  • Microsoft Windows 10 Professional versione 64-it Build 2004)

Ringraziamo Caseking per averci fornito il sistema di prova Raijintek Pean, dotato di incisioni laser personalizzate. AMD ci ha fornito il Ryzen 9 3900X, la scheda madre, la RAM e il Corsair MP600. La nostra soluzione di raffreddamento, l'Alphacool Eisbear Aurora 360, ci è stata gentilmente fornita da Alphacool.

I Core Clocks della KFA2 GeForce GTX 1650 EX Plus (1-Click OC)

Il modello KFA2 ha core clocks inferiori rispetto al modello di riferimento. Tuttavia, utilizza una VRAM GDDR6 più veloce. Il numero di TMU è stato aumentato da 56 a 74, il che dovrebbe portare ad un significativo incremento delle prestazioni rispetto alla vecchia GeForce GTX 1650. Per eliminare i colli di bottiglia della potenza, il TGP è stato portato a 90 watt, il che permette alla GPU di ottenere clock boost stabili di 1605 MHz nel nostro caso particolare. Proprio come quasi tutte le altre GPU KFA2, la GeForce GTX 1650 EX Plus è dotata della funzione 1-Click OC. Può essere attivata nell'utility nota come Xtreme Tuner. In questo modo i clock delle GPU aumenteranno di 30 MHz. Questo è un passo nella giusta direzione, perché spesso la funzione 1-Click OC offre solo un incremento di 15 MHz. A nostro avviso, un aumento di 50 o 75 MHz del core clock in combinazione con un aumento simultaneo della velocità della memoria sarebbe stato più sostenibile. Tuttavia, la velocità di memoria non viene modificata.

GPU-Z
GPU-Z
GPU-Z
GPU-Z
GPU-Z (1-Click OC)
GPU-Z (1-Click OC)

Benchmarks Sintetici

Guardando la scheda tecnica si può dedurre che la KFA2 GeForce GTX 1650 EX Plus si inserirà probabilmente tra la GeForce GTX 1650 e la GeForce GTX 1660. Questo è esattamente quanto confermano i nostri benchmarks sintetici. La KFA2 GeForce GTX 1650 EX Plus è battuta dalla AMD Radeon RX 570. La prima GPU NVIDIA, in grado di superare la RX 570, è la GTX 1660 Super.

Performance Rating - Percent
AMD Radeon RX 5700 XT -1!
91.4 pt
Nvidia GeForce RTX 2060 Super -31!
88.2 pt
KFA2 GeForce RTX 2060 Super
83.1 pt
AMD Radeon RX 5700 -1!
80.7 pt
Sapphire AMD Radeon RX 5600 XT -9!
78.4 pt
MSI RTX 2060 Gaming Z 6G
72.5 pt
Zotac GeForce GTX 1660 Ti 6 GB
60.9 pt
XFX AMD Radeon RX 590 OC+ 8 GB -3!
59.2 pt
KFA 2 GeForce GTX 1660 Super
58.1 pt
Sapphire NITRO+ RX 570 8 GB -1!
49.8 pt
PNY GeForce GTX 1660
47.8 pt
KFA2 GeForce GTX 1650 EX One Click Plus
40.4 pt
Gainward GeForce GTX 1650 4 GB
36.8 pt
3DMark
1920x1080 Fire Strike Graphics
AMD Radeon RX 5700 XT
25383 Points +161%
AMD Radeon RX 5700
22457 Points +131%
Nvidia GeForce RTX 2060 Super
21772 Points +124%
Sapphire AMD Radeon RX 5600 XT
21734 Points +124%
KFA2 GeForce RTX 2060 Super
21563 Points +122%
MSI RTX 2060 Gaming Z 6G
19338 Points +99%
XFX AMD Radeon RX 590 OC+ 8 GB
16746 Points +72%
Zotac GeForce GTX 1660 Ti 6 GB
16024 Points +65%
KFA 2 GeForce GTX 1660 Super
15498 Points +59%
PNY GeForce GTX 1660
13847 Points +42%
Sapphire NITRO+ RX 570 8 GB
13827 Points +42%
KFA2 GeForce GTX 1650 EX One Click Plus
9718 Points
Gainward GeForce GTX 1650 4 GB
9195 Points -5%
Fire Strike Extreme Graphics
AMD Radeon RX 5700 XT
12209 Points +185%
AMD Radeon RX 5700
10876 Points +154%
Sapphire AMD Radeon RX 5600 XT
10663 Points +149%
Nvidia GeForce RTX 2060 Super
10540 Points +146%
KFA2 GeForce RTX 2060 Super
10368 Points +142%
MSI RTX 2060 Gaming Z 6G
9097 Points +112%
XFX AMD Radeon RX 590 OC+ 8 GB
7328 Points +71%
Zotac GeForce GTX 1660 Ti 6 GB
7184 Points +68%
KFA 2 GeForce GTX 1660 Super
6935 Points +62%
PNY GeForce GTX 1660
6414 Points +50%
Sapphire NITRO+ RX 570 8 GB
6077 Points +42%
KFA2 GeForce GTX 1650 EX One Click Plus
4287 Points
Gainward GeForce GTX 1650 4 GB
4044 Points -6%
3840x2160 Fire Strike Ultra Graphics
AMD Radeon RX 5700 XT
5955 Points +217%
Sapphire AMD Radeon RX 5600 XT
5556 Points +196%
AMD Radeon RX 5700
5292 Points +182%
Nvidia GeForce RTX 2060 Super
5185 Points +176%
KFA2 GeForce RTX 2060 Super
5137 Points +174%
MSI RTX 2060 Gaming Z 6G
4244 Points +126%
XFX AMD Radeon RX 590 OC+ 8 GB
3702 Points +97%
Zotac GeForce GTX 1660 Ti 6 GB
3158 Points +68%
KFA 2 GeForce GTX 1660 Super
3088 Points +64%
Sapphire NITRO+ RX 570 8 GB
3070 Points +63%
PNY GeForce GTX 1660
2684 Points +43%
KFA2 GeForce GTX 1650 EX One Click Plus
1878 Points
Gainward GeForce GTX 1650 4 GB
1674 Points -11%
2560x1440 Time Spy Graphics
KFA2 GeForce RTX 2060 Super
8699 Points +148%
AMD Radeon RX 5700 XT
8673 Points +147%
Nvidia GeForce RTX 2060 Super
8673 Points +147%
MSI RTX 2060 Gaming Z 6G
7732 Points +120%
AMD Radeon RX 5700
7675 Points +119%
Sapphire AMD Radeon RX 5600 XT
7602 Points +116%
Zotac GeForce GTX 1660 Ti 6 GB
6131 Points +75%
KFA 2 GeForce GTX 1660 Super
6021 Points +71%
PNY GeForce GTX 1660
5502 Points +57%
XFX AMD Radeon RX 590 OC+ 8 GB
4863 Points +38%
Sapphire NITRO+ RX 570 8 GB
3958 Points +13%
KFA2 GeForce GTX 1650 EX One Click Plus
3512 Points
Gainward GeForce GTX 1650 4 GB
3492 Points -1%
3DMark 11 - 1280x720 Performance GPU
AMD Radeon RX 5700 XT
35715 Points +164%
AMD Radeon RX 5700
31570 Points +133%
Sapphire AMD Radeon RX 5600 XT
30515 Points +126%
Nvidia GeForce RTX 2060 Super
29419 Points +117%
KFA2 GeForce RTX 2060 Super
29148 Points +115%
MSI RTX 2060 Gaming Z 6G
26413 Points +95%
XFX AMD Radeon RX 590 OC+ 8 GB
23202 Points +71%
Zotac GeForce GTX 1660 Ti 6 GB
22128 Points +64%
KFA 2 GeForce GTX 1660 Super
21347 Points +58%
PNY GeForce GTX 1660
20696 Points +53%
Sapphire NITRO+ RX 570 8 GB
18967 Points +40%
Gainward GeForce GTX 1650 4 GB
13759 Points +2%
KFA2 GeForce GTX 1650 EX One Click Plus
13531 Points
Unigine Heaven 4.0
Extreme Preset OpenGL
KFA2 GeForce RTX 2060 Super
132.3 fps +135%
MSI RTX 2060 Gaming Z 6G
115.8 fps +106%
AMD Radeon RX 5700 XT
110.2 fps +96%
AMD Radeon RX 5700
100.7 fps +79%
Zotac GeForce GTX 1660 Ti 6 GB
94.3 fps +67%
Sapphire AMD Radeon RX 5600 XT
92.6 fps +64%
KFA 2 GeForce GTX 1660 Super
92.2 fps +64%
PNY GeForce GTX 1660
82.4 fps +46%
XFX AMD Radeon RX 590 OC+ 8 GB
60.3 fps +7%
KFA2 GeForce GTX 1650 EX One Click Plus
56.3 fps
Sapphire NITRO+ RX 570 8 GB
55.7 fps -1%
Gainward GeForce GTX 1650 4 GB
54.3 fps -4%
Extreme Preset DX11
KFA2 GeForce RTX 2060 Super
140.4 fps +134%
AMD Radeon RX 5700 XT
132.5 fps +120%
MSI RTX 2060 Gaming Z 6G
124.1 fps +106%
AMD Radeon RX 5700
119.9 fps +100%
Sapphire AMD Radeon RX 5600 XT
109.6 fps +82%
Zotac GeForce GTX 1660 Ti 6 GB
100.9 fps +68%
KFA 2 GeForce GTX 1660 Super
98.3 fps +64%
PNY GeForce GTX 1660
87.6 fps +46%
XFX AMD Radeon RX 590 OC+ 8 GB
76.1 fps +27%
Sapphire NITRO+ RX 570 8 GB
64.7 fps +8%
KFA2 GeForce GTX 1650 EX One Click Plus
60.1 fps
Gainward GeForce GTX 1650 4 GB
56.8 fps -5%
Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
KFA2 GeForce RTX 2060 Super
111 fps +138%
AMD Radeon RX 5700 XT
106.3 fps +128%
AMD Radeon RX 5700
99.3 fps +113%
MSI RTX 2060 Gaming Z 6G
91.2 fps +96%
Sapphire AMD Radeon RX 5600 XT
91 fps +95%
KFA 2 GeForce GTX 1660 Super
77.6 fps +67%
Zotac GeForce GTX 1660 Ti 6 GB
77.4 fps +66%
PNY GeForce GTX 1660
64.2 fps +38%
XFX AMD Radeon RX 590 OC+ 8 GB
57.3 fps +23%
Sapphire NITRO+ RX 570 8 GB
49.1 fps +5%
KFA2 GeForce GTX 1650 EX One Click Plus
46.6 fps
Gainward GeForce GTX 1650 4 GB
42.1 fps -10%
1920x1080 Extreme HD Preset OpenGL AA:x8
KFA2 GeForce RTX 2060 Super
97.6 fps +125%
AMD Radeon RX 5700 XT
89.1 fps +105%
MSI RTX 2060 Gaming Z 6G
83.6 fps +93%
AMD Radeon RX 5700
82.7 fps +91%
Sapphire AMD Radeon RX 5600 XT
73.3 fps +69%
Zotac GeForce GTX 1660 Ti 6 GB
70.5 fps +62%
KFA 2 GeForce GTX 1660 Super
70.4 fps +62%
PNY GeForce GTX 1660
59.1 fps +36%
XFX AMD Radeon RX 590 OC+ 8 GB
50 fps +15%
KFA2 GeForce GTX 1650 EX One Click Plus
43.4 fps
Sapphire NITRO+ RX 570 8 GB
42.8 fps -1%
Gainward GeForce GTX 1650 4 GB
40 fps -8%
LuxMark v2.0 64Bit
Room GPUs-only
KFA2 GeForce RTX 2060 Super
3278 Samples/s +158%
MSI RTX 2060 Gaming Z 6G
2586 Samples/s +103%
KFA 2 GeForce GTX 1660 Super
2286 Samples/s +80%
Zotac GeForce GTX 1660 Ti 6 GB
2108 Samples/s +66%
AMD Radeon RX 5700 XT
2104 Samples/s +65%
PNY GeForce GTX 1660
2030 Samples/s +59%
XFX AMD Radeon RX 590 OC+ 8 GB
1996 Samples/s +57%
AMD Radeon RX 5700
1856 Samples/s +46%
Sapphire AMD Radeon RX 5600 XT
1692 Samples/s +33%
Sapphire NITRO+ RX 570 8 GB
1600 Samples/s +26%
Gainward GeForce GTX 1650 4 GB
1368 Samples/s +7%
KFA2 GeForce GTX 1650 EX One Click Plus
1273 Samples/s
Sala GPUs-only
KFA2 GeForce RTX 2060 Super
7010 Samples/s +171%
AMD Radeon RX 5700 XT
6188 Samples/s +140%
MSI RTX 2060 Gaming Z 6G
5655 Samples/s +119%
AMD Radeon RX 5700
5312 Samples/s +106%
Sapphire AMD Radeon RX 5600 XT
4898 Samples/s +90%
KFA 2 GeForce GTX 1660 Super
4490 Samples/s +74%
Zotac GeForce GTX 1660 Ti 6 GB
4440 Samples/s +72%
XFX AMD Radeon RX 590 OC+ 8 GB
4084 Samples/s +58%
PNY GeForce GTX 1660
4070 Samples/s +58%
Sapphire NITRO+ RX 570 8 GB
3282 Samples/s +27%
KFA2 GeForce GTX 1650 EX One Click Plus
2582 Samples/s
Gainward GeForce GTX 1650 4 GB
2577 Samples/s 0%
ComputeMark v2.1
1024x600 Normal, QJuliaRayTrace
AMD Radeon RX 5700 XT
5761 Points +142%
KFA2 GeForce RTX 2060 Super
5270 Points +121%
MSI RTX 2060 Gaming Z 6G
4903 Points +106%
Sapphire AMD Radeon RX 5600 XT
4799 Points +102%
AMD Radeon RX 5700
4703 Points +98%
Zotac GeForce GTX 1660 Ti 6 GB
3975 Points +67%
PNY GeForce GTX 1660
3740 Points +57%
KFA 2 GeForce GTX 1660 Super
3656 Points +54%
XFX AMD Radeon RX 590 OC+ 8 GB
3299 Points +39%
Gainward GeForce GTX 1650 4 GB
2538 Points +7%
Sapphire NITRO+ RX 570 8 GB
2444 Points +3%
KFA2 GeForce GTX 1650 EX One Click Plus
2381 Points
1024x600 Normal, Mandel Scalar
AMD Radeon RX 5700 XT
4869 Points +252%
Sapphire AMD Radeon RX 5600 XT
4095 Points +196%
AMD Radeon RX 5700
4043 Points +193%
XFX AMD Radeon RX 590 OC+ 8 GB
3312 Points +140%
KFA2 GeForce RTX 2060 Super
3169 Points +129%
MSI RTX 2060 Gaming Z 6G
2982 Points +116%
Sapphire NITRO+ RX 570 8 GB
2478 Points +79%
Zotac GeForce GTX 1660 Ti 6 GB
2362 Points +71%
PNY GeForce GTX 1660
2199 Points +59%
KFA 2 GeForce GTX 1660 Super
2149 Points +55%
Gainward GeForce GTX 1650 4 GB
1474 Points +7%
KFA2 GeForce GTX 1650 EX One Click Plus
1382 Points
1024x600 Normal, Mandel Vector
AMD Radeon RX 5700 XT
4246 Points +173%
Sapphire AMD Radeon RX 5600 XT
3593 Points +131%
AMD Radeon RX 5700
3532 Points +127%
KFA2 GeForce RTX 2060 Super
2948 Points +89%
XFX AMD Radeon RX 590 OC+ 8 GB
2802 Points +80%
MSI RTX 2060 Gaming Z 6G
2800 Points +80%
Zotac GeForce GTX 1660 Ti 6 GB
2327 Points +49%
PNY GeForce GTX 1660
2214 Points +42%
Sapphire NITRO+ RX 570 8 GB
2169 Points +39%
KFA 2 GeForce GTX 1660 Super
2169 Points +39%
Gainward GeForce GTX 1650 4 GB
1628 Points +5%
KFA2 GeForce GTX 1650 EX One Click Plus
1557 Points
1024x600 Normal, Fluid 2DTexArr
KFA2 GeForce RTX 2060 Super
2101 Points +136%
AMD Radeon RX 5700 XT
1960 Points +120%
AMD Radeon RX 5700
1810 Points +104%
MSI RTX 2060 Gaming Z 6G
1801 Points +103%
Sapphire AMD Radeon RX 5600 XT
1594 Points +79%
KFA 2 GeForce GTX 1660 Super
1488 Points +67%
Zotac GeForce GTX 1660 Ti 6 GB
1452 Points +63%
XFX AMD Radeon RX 590 OC+ 8 GB
1140 Points +28%
PNY GeForce GTX 1660
1030 Points +16%
Sapphire NITRO+ RX 570 8 GB
997 Points +12%
KFA2 GeForce GTX 1650 EX One Click Plus
889 Points
Gainward GeForce GTX 1650 4 GB
673 Points -24%
1024x600 Normal, Fluid 3DTex
AMD Radeon RX 5700 XT
2349 Points +148%
AMD Radeon RX 5700
2294 Points +142%
KFA2 GeForce RTX 2060 Super
2290 Points +141%
MSI RTX 2060 Gaming Z 6G
1889 Points +99%
Sapphire AMD Radeon RX 5600 XT
1701 Points +79%
KFA 2 GeForce GTX 1660 Super
1636 Points +72%
Zotac GeForce GTX 1660 Ti 6 GB
1531 Points +61%
XFX AMD Radeon RX 590 OC+ 8 GB
1239 Points +31%
Sapphire NITRO+ RX 570 8 GB
1106 Points +17%
PNY GeForce GTX 1660
1054 Points +11%
KFA2 GeForce GTX 1650 EX One Click Plus
949 Points
Gainward GeForce GTX 1650 4 GB
698 Points -26%
1024x600 Normal, Score
AMD Radeon RX 5700 XT
19184 Points +168%
AMD Radeon RX 5700
16383 Points +129%
Sapphire AMD Radeon RX 5600 XT
15783 Points +120%
KFA2 GeForce RTX 2060 Super
15776 Points +120%
MSI RTX 2060 Gaming Z 6G
14375 Points +101%
XFX AMD Radeon RX 590 OC+ 8 GB
11791 Points +65%
Zotac GeForce GTX 1660 Ti 6 GB
11648 Points +63%
KFA 2 GeForce GTX 1660 Super
11098 Points +55%
PNY GeForce GTX 1660
10237 Points +43%
Sapphire NITRO+ RX 570 8 GB
9194 Points +28%
KFA2 GeForce GTX 1650 EX One Click Plus
7159 Points
Gainward GeForce GTX 1650 4 GB
7011 Points -2%
SPECviewperf 12
1900x1060 Solidworks (sw-03)
AMD Radeon RX 5700 XT
89.6 fps +88%
AMD Radeon RX 5700
79.2 fps +66%
XFX AMD Radeon RX 590 OC+ 8 GB
70.4 fps +47%
KFA2 GeForce RTX 2060 Super
63.3 fps +32%
Sapphire NITRO+ RX 570 8 GB
59.9 fps +25%
MSI RTX 2060 Gaming Z 6G
57.6 fps +21%
KFA 2 GeForce GTX 1660 Super
56.5 fps +18%
Zotac GeForce GTX 1660 Ti 6 GB
55.4 fps +16%
KFA2 GeForce GTX 1650 EX One Click Plus
47.78 fps
Gainward GeForce GTX 1650 4 GB
43.33 fps -9%
PNY GeForce GTX 1660
43.33 fps -9%
1900x1060 Siemens NX (snx-02)
AMD Radeon RX 5700 XT
35.27 fps +449%
AMD Radeon RX 5700
33.5 fps +422%
XFX AMD Radeon RX 590 OC+ 8 GB
24.87 fps +287%
Sapphire NITRO+ RX 570 8 GB
19.35 fps +201%
KFA2 GeForce RTX 2060 Super
8.6 fps +34%
Zotac GeForce GTX 1660 Ti 6 GB
8.55 fps +33%
MSI RTX 2060 Gaming Z 6G
8.35 fps +30%
KFA 2 GeForce GTX 1660 Super
8.21 fps +28%
Gainward GeForce GTX 1650 4 GB
6.48 fps +1%
PNY GeForce GTX 1660
6.48 fps +1%
KFA2 GeForce GTX 1650 EX One Click Plus
6.42 fps
1900x1060 Medical (medical-01)
AMD Radeon RX 5700 XT
46.9 fps +101%
AMD Radeon RX 5700
40.97 fps +76%
KFA2 GeForce RTX 2060 Super
38 fps +63%
MSI RTX 2060 Gaming Z 6G
35.22 fps +51%
XFX AMD Radeon RX 590 OC+ 8 GB
33.92 fps +46%
Zotac GeForce GTX 1660 Ti 6 GB
31.75 fps +36%
KFA 2 GeForce GTX 1660 Super
31.2 fps +34%
KFA2 GeForce GTX 1650 EX One Click Plus
23.29 fps
Gainward GeForce GTX 1650 4 GB
21.41 fps -8%
PNY GeForce GTX 1660
21.41 fps -8%
Sapphire NITRO+ RX 570 8 GB
18.12 fps -22%
1900x1060 Maya (maya-04)
KFA2 GeForce RTX 2060 Super
160 fps +70%
KFA 2 GeForce GTX 1660 Super
127.8 fps +36%
MSI RTX 2060 Gaming Z 6G
127.4 fps +36%
Zotac GeForce GTX 1660 Ti 6 GB
123.2 fps +31%
KFA2 GeForce GTX 1650 EX One Click Plus
93.9 fps
AMD Radeon RX 5700 XT
86.5 fps -8%
Gainward GeForce GTX 1650 4 GB
85.3 fps -9%
PNY GeForce GTX 1660
85.3 fps -9%
AMD Radeon RX 5700
73.3 fps -22%
XFX AMD Radeon RX 590 OC+ 8 GB
66.2 fps -29%
Sapphire NITRO+ RX 570 8 GB
31.7 fps -66%
1900x1060 Energy (energy-01)
AMD Radeon RX 5700 XT
12.72 fps +153%
AMD Radeon RX 5700
11.53 fps +129%
KFA2 GeForce RTX 2060 Super
10.74 fps +114%
MSI RTX 2060 Gaming Z 6G
9.19 fps +83%
KFA 2 GeForce GTX 1660 Super
8.18 fps +63%
Zotac GeForce GTX 1660 Ti 6 GB
7.89 fps +57%
XFX AMD Radeon RX 590 OC+ 8 GB
5.95 fps +18%
KFA2 GeForce GTX 1650 EX One Click Plus
5.03 fps
Sapphire NITRO+ RX 570 8 GB
4.27 fps -15%
Gainward GeForce GTX 1650 4 GB
2.2 fps -56%
PNY GeForce GTX 1660
2.2 fps -56%
1900x1060 Creo (creo-01)
AMD Radeon RX 5700 XT
66.9 fps +92%
AMD Radeon RX 5700
60.2 fps +73%
XFX AMD Radeon RX 590 OC+ 8 GB
49.01 fps +41%
KFA2 GeForce RTX 2060 Super
45.58 fps +31%
MSI RTX 2060 Gaming Z 6G
44.45 fps +28%
Sapphire NITRO+ RX 570 8 GB
41.33 fps +19%
Zotac GeForce GTX 1660 Ti 6 GB
36.6 fps +5%
KFA 2 GeForce GTX 1660 Super
35.51 fps +2%
KFA2 GeForce GTX 1650 EX One Click Plus
34.79 fps
Gainward GeForce GTX 1650 4 GB
27.36 fps -21%
PNY GeForce GTX 1660
27.36 fps -21%
1900x1060 Catia (catia-04)
AMD Radeon RX 5700 XT
158.8 fps +262%
AMD Radeon RX 5700
135.7 fps +209%
XFX AMD Radeon RX 590 OC+ 8 GB
123.5 fps +181%
KFA2 GeForce RTX 2060 Super
79.4 fps +81%
MSI RTX 2060 Gaming Z 6G
74.8 fps +70%
Zotac GeForce GTX 1660 Ti 6 GB
65.9 fps +50%
KFA 2 GeForce GTX 1660 Super
63 fps +44%
Sapphire NITRO+ RX 570 8 GB
54.6 fps +24%
KFA2 GeForce GTX 1650 EX One Click Plus
43.9 fps
Gainward GeForce GTX 1650 4 GB
42.85 fps -2%
PNY GeForce GTX 1660
42.85 fps -2%
1900x1060 3ds Max (3dsmax-05)
KFA2 GeForce RTX 2060 Super
193 fps +75%
MSI RTX 2060 Gaming Z 6G
183.6 fps +67%
AMD Radeon RX 5700 XT
173.8 fps +58%
Zotac GeForce GTX 1660 Ti 6 GB
159 fps +44%
AMD Radeon RX 5700
155.7 fps +41%
KFA 2 GeForce GTX 1660 Super
153.5 fps +39%
XFX AMD Radeon RX 590 OC+ 8 GB
120.3 fps +9%
KFA2 GeForce GTX 1650 EX One Click Plus
110.1 fps
Sapphire NITRO+ RX 570 8 GB
107.9 fps -2%
Gainward GeForce GTX 1650 4 GB
106.4 fps -3%
PNY GeForce GTX 1660
106.4 fps -3%
SPECviewperf 13
Solidworks (sw-04)
Sapphire AMD Radeon RX 5600 XT
117.8 fps +71%
AMD Radeon RX 5700 XT
114.4 fps +66%
AMD Radeon RX 5700
101.8 fps +48%
KFA2 GeForce RTX 2060 Super
89.1 fps +29%
MSI RTX 2060 Gaming Z 6G
83.4 fps +21%
XFX AMD Radeon RX 590 OC+ 8 GB
82.9 fps +20%
Sapphire NITRO+ RX 570 8 GB
79.9 fps +16%
KFA 2 GeForce GTX 1660 Super
78.8 fps +14%
Zotac GeForce GTX 1660 Ti 6 GB
77.5 fps +12%
KFA2 GeForce GTX 1650 EX One Click Plus
68.9 fps
Gainward GeForce GTX 1650 4 GB
60.8 fps -12%
PNY GeForce GTX 1660
60.8 fps -12%
Siemens NX (snx-03)
Sapphire AMD Radeon RX 5600 XT
69.7 fps +507%
AMD Radeon RX 5700 XT
61.3 fps +434%
AMD Radeon RX 5700
60.5 fps +427%
XFX AMD Radeon RX 590 OC+ 8 GB
44.18 fps +285%
Sapphire NITRO+ RX 570 8 GB
38.28 fps +233%
KFA2 GeForce RTX 2060 Super
15.49 fps +35%
Zotac GeForce GTX 1660 Ti 6 GB
15.26 fps +33%
MSI RTX 2060 Gaming Z 6G
14.99 fps +30%
KFA 2 GeForce GTX 1660 Super
14.76 fps +28%
Gainward GeForce GTX 1650 4 GB
11.6 fps +1%
PNY GeForce GTX 1660
11.6 fps +1%
KFA2 GeForce GTX 1650 EX One Click Plus
11.49 fps
Medical (medical-02)
AMD Radeon RX 5700 XT
82.8 fps +224%
AMD Radeon RX 5700
67.5 fps +164%
Sapphire AMD Radeon RX 5600 XT
65.2 fps +155%
KFA2 GeForce RTX 2060 Super
54.6 fps +113%
MSI RTX 2060 Gaming Z 6G
49.1 fps +92%
Sapphire NITRO+ RX 570 8 GB
43.54 fps +70%
Zotac GeForce GTX 1660 Ti 6 GB
42.08 fps +65%
KFA 2 GeForce GTX 1660 Super
39.5 fps +54%
XFX AMD Radeon RX 590 OC+ 8 GB
27.9 fps +9%
Gainward GeForce GTX 1650 4 GB
27.66 fps +8%
PNY GeForce GTX 1660
27.66 fps +8%
KFA2 GeForce GTX 1650 EX One Click Plus
25.58 fps
Maya (maya-05)
KFA2 GeForce RTX 2060 Super
269.3 fps +92%
MSI RTX 2060 Gaming Z 6G
247 fps +76%
AMD Radeon RX 5700 XT
220.3 fps +57%
Sapphire AMD Radeon RX 5600 XT
211 fps +50%
Zotac GeForce GTX 1660 Ti 6 GB
202.7 fps +44%
AMD Radeon RX 5700
185.2 fps +32%
XFX AMD Radeon RX 590 OC+ 8 GB
151 fps +8%
Sapphire NITRO+ RX 570 8 GB
143.9 fps +3%
KFA2 GeForce GTX 1650 EX One Click Plus
140.3 fps
Gainward GeForce GTX 1650 4 GB
129.2 fps -8%
PNY GeForce GTX 1660
129.2 fps -8%
KFA 2 GeForce GTX 1660 Super
20.7 fps -85%
Energy (energy-02)
AMD Radeon RX 5700 XT
26.82 fps +282%
AMD Radeon RX 5700
24.55 fps +249%
KFA2 GeForce RTX 2060 Super
21.88 fps +211%
Sapphire AMD Radeon RX 5600 XT
19.43 fps +176%
KFA 2 GeForce GTX 1660 Super
11.25 fps +60%
Zotac GeForce GTX 1660 Ti 6 GB
11.17 fps +59%
XFX AMD Radeon RX 590 OC+ 8 GB
8.98 fps +28%
Sapphire NITRO+ RX 570 8 GB
8.1 fps +15%
MSI RTX 2060 Gaming Z 6G
7.62 fps +8%
KFA2 GeForce GTX 1650 EX One Click Plus
7.03 fps
Gainward GeForce GTX 1650 4 GB
2.88 fps -59%
PNY GeForce GTX 1660
2.88 fps -59%
Creo (creo-02)
KFA2 GeForce RTX 2060 Super
180.4 fps +70%
MSI RTX 2060 Gaming Z 6G
169.8 fps +60%
AMD Radeon RX 5700 XT
157 fps +48%
Sapphire AMD Radeon RX 5600 XT
147.5 fps +39%
Zotac GeForce GTX 1660 Ti 6 GB
133.5 fps +26%
KFA 2 GeForce GTX 1660 Super
130.3 fps +23%
AMD Radeon RX 5700
116.7 fps +10%
KFA2 GeForce GTX 1650 EX One Click Plus
106 fps
XFX AMD Radeon RX 590 OC+ 8 GB
90 fps -15%
Gainward GeForce GTX 1650 4 GB
87.5 fps -17%
PNY GeForce GTX 1660
87.5 fps -17%
Sapphire NITRO+ RX 570 8 GB
80.2 fps -24%
Catia (catia-05)
AMD Radeon RX 5700 XT
242.8 fps +293%
Sapphire AMD Radeon RX 5600 XT
230.2 fps +272%
AMD Radeon RX 5700
209.2 fps +239%
XFX AMD Radeon RX 590 OC+ 8 GB
168.9 fps +173%
Sapphire NITRO+ RX 570 8 GB
153.6 fps +149%
KFA2 GeForce RTX 2060 Super
115.2 fps +86%
MSI RTX 2060 Gaming Z 6G
108.2 fps +75%
Zotac GeForce GTX 1660 Ti 6 GB
94.3 fps +53%
KFA 2 GeForce GTX 1660 Super
89.8 fps +45%
KFA2 GeForce GTX 1650 EX One Click Plus
61.8 fps
Gainward GeForce GTX 1650 4 GB
60.4 fps -2%
PNY GeForce GTX 1660
60.4 fps -2%
3ds Max (3dsmax-06)
KFA2 GeForce RTX 2060 Super
193.2 fps +75%
MSI RTX 2060 Gaming Z 6G
184.4 fps +67%
AMD Radeon RX 5700 XT
175.6 fps +59%
Sapphire AMD Radeon RX 5600 XT
172.8 fps +57%
Zotac GeForce GTX 1660 Ti 6 GB
159.4 fps +45%
AMD Radeon RX 5700
157 fps +43%
KFA 2 GeForce GTX 1660 Super
152.1 fps +38%
XFX AMD Radeon RX 590 OC+ 8 GB
120.4 fps +9%
KFA2 GeForce GTX 1650 EX One Click Plus
110.1 fps
Sapphire NITRO+ RX 570 8 GB
108.4 fps -2%
Gainward GeForce GTX 1650 4 GB
105.5 fps -4%
PNY GeForce GTX 1660
105.5 fps -4%
SiSoft Sandra 2016
Image Processing
KFA2 GeForce RTX 2060 Super
1120 MPix/s +156%
AMD Radeon RX 5700 XT
919 MPix/s +110%
MSI RTX 2060 Gaming Z 6G
912 MPix/s +109%
AMD Radeon RX 5700
775 MPix/s +77%
Zotac GeForce GTX 1660 Ti 6 GB
737 MPix/s +69%
KFA 2 GeForce GTX 1660 Super
706 MPix/s +62%
PNY GeForce GTX 1660
681 MPix/s +56%
Sapphire AMD Radeon RX 5600 XT
671 MPix/s +54%
Gainward GeForce GTX 1650 4 GB
440.6 MPix/s +1%
KFA2 GeForce GTX 1650 EX One Click Plus
436.7 MPix/s
GP Cryptography (Higher Security AES256+SHA2-512)
KFA2 GeForce RTX 2060 Super
74.6 GB/s +140%
MSI RTX 2060 Gaming Z 6G
63.8 GB/s +105%
PNY GeForce GTX 1660
52.2 GB/s +68%
KFA 2 GeForce GTX 1660 Super
49.11 GB/s +58%
Zotac GeForce GTX 1660 Ti 6 GB
46.29 GB/s +49%
KFA2 GeForce GTX 1650 EX One Click Plus
31.05 GB/s
Sapphire NITRO+ RX 570 8 GB
29.52 GB/s -5%
Gainward GeForce GTX 1650 4 GB
23.8 GB/s -23%
GP Financial Analysis (FP High/Double Precision)
Sapphire NITRO+ RX 570 8 GB
137.4 KOPT/s +199%
KFA2 GeForce RTX 2060 Super
106.3 KOPT/s +131%
MSI RTX 2060 Gaming Z 6G
99.1 KOPT/s +116%
Zotac GeForce GTX 1660 Ti 6 GB
73.8 KOPT/s +61%
PNY GeForce GTX 1660
69.6 KOPT/s +52%
KFA 2 GeForce GTX 1660 Super
67 KOPT/s +46%
KFA2 GeForce GTX 1650 EX One Click Plus
45.92 KOPT/s
Gainward GeForce GTX 1650 4 GB
44.82 KOPT/s -2%
AMD Radeon RX 5700 XT
24 KOPT/s -48%
AMD Radeon RX 5700
20.81 KOPT/s -55%
Sapphire AMD Radeon RX 5600 XT
17.96 KOPT/s -61%
3DMark 06 Standard Score
44842 punti
3DMark Vantage P Result
47363 punti
3DMark 11 Performance
14069 punti
3DMark Ice Storm Standard Score
164494 punti
3DMark Cloud Gate Standard Score
39148 punti
3DMark Fire Strike Score
9209 punti
3DMark Fire Strike Extreme Score
4368 punti
3DMark Time Spy Score
3927 punti
Aiuto

Gaming Benchmarks

The Witcher 3: Frame times (settaggi massimi)
The Witcher 3: Frame times (settaggi massimi)
The Witcher 3: Frame rates (settaggi massimi)
The Witcher 3: Frame rates (settaggi massimi)

L'aumento delle prestazioni che la KFA2 GeForce GTX 1650 EX Plus mostra nei benchmarks sintetici ci porta ai benchmark di gioco. In generale, il nuovo modello è più veloce della versione precedente della GTX 1650. Questo non è sorprendente, perché il nuovo modello è dotato di VRAM più veloce. Anche il divario di prestazioni tra la KFA2 GeForce GTX 1650 e la AMD Radeon RX 570 è più piccolo. Più alta è la risoluzione e le impostazioni grafiche, più la GTX 1650 fa fatica a raggiungere frame rate riproducibili nei titoli attuali. La riduzione delle impostazioni grafiche si traduce spesso in un notevole aumento delle prestazioni. Tutto ciò dimostra che 4 GB di VRAM non andranno molto lontano di questi tempi.

Tuttavia, la KFA2 GeForce GTX 1650 EX Plus è adatta per i giochi a 1080p, a condizione che si possa convivere con impostazioni grafiche leggermente ridotte. Qui gli utenti dovrebbero esaminare ogni titolo individualmente, perché alcuni giochi come FIFA 20 possono funzionare anche a 2160p.

Guardando il grafico del frame rate, che mostra i risultati del nostro stress test di gioco con The Witcher 3 (ultra preimpostato), si può notare che il raffreddatore a doppia ventola non ha problemi a mantenere fredda la KFA2 GeForce GTX 1650 EX Plus. In un'occasione c'è stato un leggero calo di prestazioni, dopo di che le prestazioni sono tornate rapidamente a un livello normale. Gli utenti non dovrebbero subire cali significativi delle prestazioni sotto carico. Non ci sono stati problemi con le prestazioni in tempo reale.

Potete scoprire come la KFA2 GeForce GeForce GTX 1650 EX Plus si sovrappone ad altre schede grafiche nella nostra pagina dei GPU Benchmarks.

The Witcher 3 - Frame rates con settaggi massimi

0510152025303540Tooltip
KFA2 GeForce GTX 1650 EX One Click Plus GeForce GTX 1650 (Desktop), R9 3900X: Ø39.3 (36-42)
Far Cry 5 - 1920x1080 Ultra Preset AA:T
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R9 3900X
110 (85min - 145max) fps +86%
KFA2 GeForce RTX 2060 Super
GeForce RTX 2060 Super (Desktop), R9 3900X, Corsair MP600
108 (87min - 136max) fps +83%
Sapphire AMD Radeon RX 5600 XT
Radeon RX 5600 XT (Desktop), R9 3900X
106 (85min - 128max) fps +80%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super (Desktop), R7 2700X
99 (75min - 131max) fps +68%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R7 2700X
96 (75min - 127max) fps +63%
MSI RTX 2060 Gaming Z 6G
GeForce RTX 2060 (Desktop), R7 2700X
94 (72min - 124max) fps +59%
KFA 2 GeForce GTX 1660 Super
GeForce GTX 1660 Super (Desktop), R9 3900X
92 (83min - 104max) fps +56%
Zotac GeForce GTX 1660 Ti 6 GB
GeForce GTX 1660 Ti (Desktop), R7 2700X
91 (78min - 105max) fps +54%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), R7 2700X
84 (59min - 114max) fps +42%
PNY GeForce GTX 1660
GeForce GTX 1660 (Desktop), R9 3900X
82 (73min - 93max) fps +39%
XFX AMD Radeon RX 590 OC+ 8 GB
Radeon RX 590, R7 2700X
74 (67min - 88max) fps +25%
Sapphire NITRO+ RX 570 8 GB
Radeon RX 570, R7 2700X
65 (58min - 79max) fps +10%
KFA2 GeForce GTX 1650 EX One Click Plus
GeForce GTX 1650 (Desktop), R9 3900X
59 (52min - 68max) fps
Gainward GeForce GTX 1650 4 GB
GeForce GTX 1650 (Desktop), R7 2700X
56 (50min - 66max) fps -5%
The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R9 3900X
94 (86min - 103max) fps +133%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R7 2700X
92 (79min - 99max) fps +128%
KFA2 GeForce RTX 2060 Super
GeForce RTX 2060 Super (Desktop), R9 3900X, Corsair MP600
83 (73min - 96max) fps +105%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), R7 2700X
80 (70min - 87max) fps +98%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super (Desktop), R7 2700X
79 (67min - 89max) fps +96%
Sapphire AMD Radeon RX 5600 XT
Radeon RX 5600 XT (Desktop), R9 3900X
75.5 (66min - 81max) fps +87%
MSI RTX 2060 Gaming Z 6G
GeForce RTX 2060 (Desktop), R7 2700X
72.7 (61min - 82max) fps +80%
Zotac GeForce GTX 1660 Ti 6 GB
GeForce GTX 1660 Ti (Desktop), R7 2700X
62 (43min - 74max) fps +53%
KFA 2 GeForce GTX 1660 Super
GeForce GTX 1660 Super (Desktop), R9 3900X
59.5 (53min - 68max) fps +47%
PNY GeForce GTX 1660
GeForce GTX 1660 (Desktop), R9 3900X
55.5 (50min - 63max) fps +37%
XFX AMD Radeon RX 590 OC+ 8 GB
Radeon RX 590, R7 2700X
50.8 (42min - 57max) fps +26%
Gainward GeForce GTX 1650 4 GB
GeForce GTX 1650 (Desktop), R7 2700X
43 (37min - 47max) fps +6%
Sapphire NITRO+ RX 570 8 GB
Radeon RX 570, R7 2700X
43 (37min - 47max) fps +6%
KFA2 GeForce GTX 1650 EX One Click Plus
GeForce GTX 1650 (Desktop), R9 3900X
40.4 (35min - 46max) fps
Apex Legends - 1920x1080 Maximum Settings AA:TS AF:16x
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super (Desktop), R7 2700X
144 (143min - 145max) fps +102%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R7 2700X
144 (143min - 145max) fps +102%
KFA2 GeForce RTX 2060 Super
GeForce RTX 2060 Super (Desktop), R9 3900X, Corsair MP600
144 (143min - 145max) fps +102%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), R7 2700X
142 (136min - 145max) fps +99%
MSI RTX 2060 Gaming Z 6G
GeForce RTX 2060 (Desktop), R7 2700X
139 (126min - 145max) fps +95%
Sapphire AMD Radeon RX 5600 XT
Radeon RX 5600 XT (Desktop), R9 3900X
135 fps +89%
KFA 2 GeForce GTX 1660 Super
GeForce GTX 1660 Super (Desktop), R9 3900X
120 (109min - 140max) fps +68%
Zotac GeForce GTX 1660 Ti 6 GB
GeForce GTX 1660 Ti (Desktop), R7 2700X
112 (104min - 126max) fps +57%
PNY GeForce GTX 1660
GeForce GTX 1660 (Desktop), R9 3900X
111 (93.5P1) fps +56%
XFX AMD Radeon RX 590 OC+ 8 GB
Radeon RX 590, R7 2700X
96 (88min - 110max) fps +35%
Sapphire NITRO+ RX 570 8 GB
Radeon RX 570, R7 2700X
77 (71min - 91max) fps +8%
KFA2 GeForce GTX 1650 EX One Click Plus
GeForce GTX 1650 (Desktop), R9 3900X
71.3 (63min - 85max) fps
Gainward GeForce GTX 1650 4 GB
GeForce GTX 1650 (Desktop), R7 2700X
67 (56min - 78max) fps -6%
Far Cry New Dawn - 1920x1080 Ultra Preset
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R9 3900X
97 (69min - 147max) fps +67%
KFA2 GeForce RTX 2060 Super
GeForce RTX 2060 Super (Desktop), R9 3900X, Corsair MP600
96 (68min - 141max) fps +66%
MSI RTX 2060 Gaming Z 6G
GeForce RTX 2060 (Desktop), R7 2700X
88 (66min - 125max) fps +52%
KFA 2 GeForce GTX 1660 Super
GeForce GTX 1660 Super (Desktop), R9 3900X
87 (69min - 108max) fps +50%
Sapphire AMD Radeon RX 5600 XT
Radeon RX 5600 XT (Desktop), R9 3900X
86 (62min - 132max) fps +48%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super (Desktop), R7 2700X
85 (63min - 134max) fps +47%
Zotac GeForce GTX 1660 Ti 6 GB
GeForce GTX 1660 Ti (Desktop), R7 2700X
84 (65min - 110max) fps +45%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), R7 2700X
83 (60min - 132max) fps +43%
PNY GeForce GTX 1660
GeForce GTX 1660 (Desktop), R9 3900X
80 (64min - 96max) fps +38%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R7 2700X
79 (58min - 120max) fps +36%
XFX AMD Radeon RX 590 OC+ 8 GB
Radeon RX 590, R7 2700X
76 (58min - 102max) fps +31%
Sapphire NITRO+ RX 570 8 GB
Radeon RX 570, R7 2700X
66 (49min - 86max) fps +14%
KFA2 GeForce GTX 1650 EX One Click Plus
GeForce GTX 1650 (Desktop), R9 3900X
58 (47min - 70max) fps
Gainward GeForce GTX 1650 4 GB
GeForce GTX 1650 (Desktop), R7 2700X
55 (44min - 67max) fps -5%
Metro Exodus - 1920x1080 Ultra Quality AF:16x
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R7 2700X
61 (36.09min - 86.1max) fps +120%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super (Desktop), R7 2700X
58.9 (32min - 92max) fps +113%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), R7 2700X
58.6 (32.67min - 85.8max) fps +112%
KFA2 GeForce RTX 2060 Super
GeForce RTX 2060 Super (Desktop), R9 3900X, Corsair MP600
58 (32min - 87max) fps +109%
Sapphire AMD Radeon RX 5600 XT
Radeon RX 5600 XT (Desktop), R9 3900X
58 (31min - 90max) fps +109%
MSI RTX 2060 Gaming Z 6G
GeForce RTX 2060 (Desktop), R7 2700X
52.7 (29min - 82max) fps +90%
Zotac GeForce GTX 1660 Ti 6 GB
GeForce GTX 1660 Ti (Desktop), R7 2700X
42.7 (24min - 66max) fps +54%
KFA 2 GeForce GTX 1660 Super
GeForce GTX 1660 Super (Desktop), R9 3900X
41 (23min - 61max) fps +48%
PNY GeForce GTX 1660
GeForce GTX 1660 (Desktop), R9 3900X
38 (22min - 57max) fps +37%
XFX AMD Radeon RX 590 OC+ 8 GB
Radeon RX 590, R7 2700X
37.9 (21min - 58max) fps +37%
Sapphire NITRO+ RX 570 8 GB
Radeon RX 570, R7 2700X
31.7 (18min - 49max) fps +14%
KFA2 GeForce GTX 1650 EX One Click Plus
GeForce GTX 1650 (Desktop), R9 3900X
27.7 (15.94min - 41.8max) fps
Gainward GeForce GTX 1650 4 GB
GeForce GTX 1650 (Desktop), R7 2700X
25.4 (15min - 38max) fps -8%
X-Plane 11.11 - 1920x1080 high (fps_test=3)
KFA 2 GeForce GTX 1660 Super
GeForce GTX 1660 Super (Desktop), R9 3900X
94 fps +5%
PNY GeForce GTX 1660
GeForce GTX 1660 (Desktop), R9 3900X
93 fps +4%
KFA2 GeForce RTX 2060 Super
GeForce RTX 2060 Super (Desktop), R9 3900X, Corsair MP600
92 fps +3%
KFA2 GeForce GTX 1650 EX One Click Plus
GeForce GTX 1650 (Desktop), R9 3900X
89.6 fps
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super (Desktop), R7 2700X
77 fps -14%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R9 3900X
57.1 fps -36%
Sapphire AMD Radeon RX 5600 XT
Radeon RX 5600 XT (Desktop), R9 3900X
54.8 fps -39%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R7 2700X
48.1 fps -46%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), R7 2700X
47 fps -48%
FIFA 20 - 1920x1080 Ultra Preset AA:4xMS
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), R9 3900X
284 (204.1P1) fps +107%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R9 3900X
282 (208.3P1) fps +106%
XFX AMD Radeon RX 590 OC+ 8 GB
Radeon RX 590, R9 3900X
266 (196.1P1) fps +94%
Sapphire AMD Radeon RX 5600 XT
Radeon RX 5600 XT (Desktop), R9 3900X
253 (225min - 278max) fps +85%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super (Desktop), R9 3900X
248 (178.6P1) fps +81%
PNY GeForce GTX 1660
GeForce GTX 1660 (Desktop), R9 3900X
239 (175.4P1) fps +74%
KFA 2 GeForce GTX 1660 Super
GeForce GTX 1660 Super (Desktop), R9 3900X
236 (172.4P1) fps +72%
Sapphire NITRO+ RX 570 8 GB
Radeon RX 570, R9 3900X
234 (172.4P1) fps +71%
Gainward GeForce GTX 1650 4 GB
GeForce GTX 1650 (Desktop), R9 3900X
184 (140.8P1) fps +34%
KFA2 GeForce GTX 1650 EX One Click Plus
GeForce GTX 1650 (Desktop), R9 3900X
137 (108.7P1) fps
Borderlands 3 - 1920x1080 Badass Overall Quality (DX11)
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R9 3900X
71.7 fps
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super (Desktop), R9 3900X
68.7 fps
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), R9 3900X
66.7 fps
Sapphire AMD Radeon RX 5600 XT
Radeon RX 5600 XT (Desktop), R9 3900X
62 fps
KFA 2 GeForce GTX 1660 Super
GeForce GTX 1660 Super (Desktop), R9 3900X
50 fps
PNY GeForce GTX 1660
GeForce GTX 1660 (Desktop), R9 3900X
49 fps
XFX AMD Radeon RX 590 OC+ 8 GB
Radeon RX 590, R9 3900X
42.1 fps
Sapphire NITRO+ RX 570 8 GB
Radeon RX 570, R9 3900X
35.2 fps
Gainward GeForce GTX 1650 4 GB
GeForce GTX 1650 (Desktop), R9 3900X
30.1 fps
GRID 2019 - 1920x1080 Ultra High Preset
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R9 3900X
96 (61.3P1) fps +113%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), R9 3900X
91 (55.9P1) fps +102%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super (Desktop), R9 3900X
90 (59.5P1) fps +100%
Sapphire AMD Radeon RX 5600 XT
Radeon RX 5600 XT (Desktop), R9 3900X
88.2 (56.5P1) fps +96%
KFA 2 GeForce GTX 1660 Super
GeForce GTX 1660 Super (Desktop), R9 3900X
69 (48.1P1) fps +53%
PNY GeForce GTX 1660
GeForce GTX 1660 (Desktop), R9 3900X
67 (47.2P1) fps +49%
XFX AMD Radeon RX 590 OC+ 8 GB
Radeon RX 590, R9 3900X
64 (42.7P1) fps +42%
Sapphire NITRO+ RX 570 8 GB
Radeon RX 570, R9 3900X
47.1 (31.8P1) fps +5%
KFA2 GeForce GTX 1650 EX One Click Plus
GeForce GTX 1650 (Desktop), R9 3900X
45 fps
Gainward GeForce GTX 1650 4 GB
GeForce GTX 1650 (Desktop), R9 3900X
43.1 (32.9P1) fps -4%
Need for Speed Heat - 1920x1080 Ultra Preset
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super (Desktop), R9 3900X
92 (76min - 107max) fps +136%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R9 3900X
88 (74min - 99max) fps +126%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), R9 3900X
88 (74min - 103max) fps +126%
Sapphire AMD Radeon RX 5600 XT
Radeon RX 5600 XT (Desktop), R9 3900X
83.5 (76min - 92max) fps +114%
KFA 2 GeForce GTX 1660 Super
GeForce GTX 1660 Super (Desktop), R9 3900X
77 (70min - 85max) fps +97%
PNY GeForce GTX 1660
GeForce GTX 1660 (Desktop), R9 3900X
70 (57min - 78max) fps +79%
XFX AMD Radeon RX 590 OC+ 8 GB
Radeon RX 590, R9 3900X
60 (55min - 67max) fps +54%
Gainward GeForce GTX 1650 4 GB
GeForce GTX 1650 (Desktop), R9 3900X
48.4 (38min - 56max) fps +24%
KFA2 GeForce GTX 1650 EX One Click Plus
GeForce GTX 1650 (Desktop), R9 3900X
39 (16min - 56max) fps
Star Wars Jedi Fallen Order - 1920x1080 Epic Preset
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super (Desktop), R9 3900X
114 (72min - 140max) fps +108%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R9 3900X
108 (65min - 138max) fps +97%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), R9 3900X
102 (64min - 125max) fps +86%
Sapphire AMD Radeon RX 5600 XT
Radeon RX 5600 XT (Desktop), R9 3900X
88 fps +60%
PNY GeForce GTX 1660
GeForce GTX 1660 (Desktop), R9 3900X
81 (67min - 96max) fps +48%
XFX AMD Radeon RX 590 OC+ 8 GB
Radeon RX 590, R9 3900X
64 (53min - 75max) fps +17%
KFA 2 GeForce GTX 1660 Super
GeForce GTX 1660 Super (Desktop), R9 3900X
56.9 (50min - 70max) fps +4%
KFA2 GeForce GTX 1650 EX One Click Plus
GeForce GTX 1650 (Desktop), R9 3900X
54.9 (45min - 62max) fps
Gainward GeForce GTX 1650 4 GB
GeForce GTX 1650 (Desktop), R9 3900X
52.8 (46min - 61max) fps -4%
Total War: Three Kingdoms - 1920x1080 Ultra (incl textures)
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super (Desktop), R9 3900X
69 fps +161%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), R9 3900X
63 fps +139%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R9 3900X
60.7 fps +130%
Sapphire AMD Radeon RX 5600 XT
Radeon RX 5600 XT (Desktop), R9 3900X
57.6 fps +118%
KFA 2 GeForce GTX 1660 Super
GeForce GTX 1660 Super (Desktop), R9 3900X
47.2 fps +79%
PNY GeForce GTX 1660
GeForce GTX 1660 (Desktop), R9 3900X
42 fps +59%
XFX AMD Radeon RX 590 OC+ 8 GB
Radeon RX 590, R9 3900X
38.4 fps +45%
Gainward GeForce GTX 1650 4 GB
GeForce GTX 1650 (Desktop), R9 3900X
27 fps +2%
KFA2 GeForce GTX 1650 EX One Click Plus
GeForce GTX 1650 (Desktop), R9 3900X
26.4 fps
Final Fantasy XV Benchmark - 1920x1080 High Quality
KFA2 GeForce RTX 2060 Super
GeForce RTX 2060 Super (Desktop), R9 3900X, Corsair MP600
80 (53min - 120max) fps +94%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super (Desktop), R7 2700X
79 (36min - 121max) fps +92%
MSI RTX 2060 Gaming Z 6G
GeForce RTX 2060 (Desktop), R7 2700X
72.6 (31min - 114max) fps +76%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R7 2700X
69 (34min - 112max) fps +67%
Zotac GeForce GTX 1660 Ti 6 GB
GeForce GTX 1660 Ti (Desktop), R7 2700X
59.6 (36min - 90max) fps +45%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), R7 2700X
59.6 (18min - 102max) fps +45%
XFX AMD Radeon RX 590 OC+ 8 GB
Radeon RX 590, R7 2700X
43.3 (25min - 66max) fps +5%
KFA2 GeForce GTX 1650 EX One Click Plus
GeForce GTX 1650 (Desktop), R9 3900X
41.2 fps
Gainward GeForce GTX 1650 4 GB
GeForce GTX 1650 (Desktop), R7 2700X
35.7 (18min - 56max) fps -13%
Sapphire NITRO+ RX 570 8 GB
Radeon RX 570, R7 2700X
35.2 (18min - 53max) fps -15%
Call of Duty Modern Warfare 2019 - 1920x1080 Maximum Settings AA:T2X Filmic SM
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R9 3900X
112 (83.3P1) fps +107%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super (Desktop), R9 3900X
109 (82P1) fps +102%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), R9 3900X
95 (69.9P1) fps +76%
Sapphire AMD Radeon RX 5600 XT
Radeon RX 5600 XT (Desktop), R9 3900X
93 fps +72%
KFA 2 GeForce GTX 1660 Super
GeForce GTX 1660 Super (Desktop), R9 3900X
84 (65.8P1) fps +56%
PNY GeForce GTX 1660
GeForce GTX 1660 (Desktop), R9 3900X
79 (62.5P1) fps +46%
XFX AMD Radeon RX 590 OC+ 8 GB
Radeon RX 590, R9 3900X
76 (54.1P1) fps +41%
Sapphire NITRO+ RX 570 8 GB
Radeon RX 570, R9 3900X
64 (49P1) fps +19%
KFA2 GeForce GTX 1650 EX One Click Plus
GeForce GTX 1650 (Desktop), R9 3900X
54 fps
Gainward GeForce GTX 1650 4 GB
GeForce GTX 1650 (Desktop), R9 3900X
51.7 (40P1) fps -4%
Red Dead Redemption 2 - 1920x1080 Maximum Settings
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R9 3900X
51.5 (24.8min, 35.7P1 - 75.7max) fps +134%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super (Desktop), R9 3900X
46.5 (27.7min, 32.3P1 - 56max) fps +111%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), R9 3900X
46.2 (29.6min, 35.7P1 - 60.4max) fps +110%
Sapphire AMD Radeon RX 5600 XT
Radeon RX 5600 XT (Desktop), R9 3900X
41 (3min - 113max) fps +86%
KFA 2 GeForce GTX 1660 Super
GeForce GTX 1660 Super (Desktop), R9 3900X
33.2 (19.2min, 22.7P1 - 40.6max) fps +51%
PNY GeForce GTX 1660
GeForce GTX 1660 (Desktop), R9 3900X
30.9 (17.9min, 21.3P1 - 37.4max) fps +40%
XFX AMD Radeon RX 590 OC+ 8 GB
Radeon RX 590, R9 3900X
29.9 (19.1min, 22.2P1 - 35.5max) fps +36%
KFA2 GeForce GTX 1650 EX One Click Plus
GeForce GTX 1650 (Desktop), R9 3900X
22 (12min - 67max) fps
Gainward GeForce GTX 1650 4 GB
GeForce GTX 1650 (Desktop), R9 3900X
21.5 (13.7min, 14.1P1 - 27max) fps -2%
F1 2020 - 1920x1080 Ultra High Preset AA:T AF:16x
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R9 3900X
149 fps +147%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), R9 3900X
143 (106min - 175max) fps +137%
Sapphire AMD Radeon RX 5600 XT
Radeon RX 5600 XT (Desktop), R9 3900X
138 fps +129%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super (Desktop), R9 3900X
127 (102min - 149max) fps +111%
XFX AMD Radeon RX 590 OC+ 8 GB
Radeon RX 590, R9 3900X
96 (71min - 121max) fps +59%
KFA 2 GeForce GTX 1660 Super
GeForce GTX 1660 Super (Desktop), R9 3900X
94.3 (78min - 111max) fps +56%
PNY GeForce GTX 1660
GeForce GTX 1660 (Desktop), R9 3900X
89.8 (73min - 106max) fps +49%
KFA2 GeForce GTX 1650 EX One Click Plus
GeForce GTX 1650 (Desktop), R9 3900X
60.3 (49min - 72max) fps
Death Stranding - 1920x1080 Very High Preset
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R9 3900X
125 fps +137%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), R9 3900X
121 (105.3P1) fps +130%
Sapphire AMD Radeon RX 5600 XT
Radeon RX 5600 XT (Desktop), R9 3900X
115 fps +118%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super (Desktop), R9 3900X
114 (102P1) fps +116%
KFA 2 GeForce GTX 1660 Super
GeForce GTX 1660 Super (Desktop), R9 3900X
84.3 (75.2P1) fps +60%
PNY GeForce GTX 1660
GeForce GTX 1660 (Desktop), R9 3900X
77.6 (69P1) fps +47%
XFX AMD Radeon RX 590 OC+ 8 GB
Radeon RX 590, R9 3900X
73.9 (66.7P1) fps +40%
XFX AMD Radeon RX 590 OC+ 8 GB
Radeon RX 590, R9 3900X
73.9 (66.7P1) fps +40%
KFA2 GeForce GTX 1650 EX One Click Plus
GeForce GTX 1650 (Desktop), R9 3900X
52.7 (25.1P1) fps
Horizon Zero Dawn - 1920x1080 Ultimate Quality
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R9 3900X
80 fps +122%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), R9 3900X
78 (22min - 158max) fps +117%
Sapphire AMD Radeon RX 5600 XT
Radeon RX 5600 XT (Desktop), R9 3900X
75 fps +108%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super (Desktop), R9 3900X
69 (28min - 144max) fps +92%
KFA 2 GeForce GTX 1660 Super
GeForce GTX 1660 Super (Desktop), R9 3900X
57 (21min - 116max) fps +58%
PNY GeForce GTX 1660
GeForce GTX 1660 (Desktop), R9 3900X
54 fps +50%
XFX AMD Radeon RX 590 OC+ 8 GB
Radeon RX 590, R9 3900X
48 (22min - 135max) fps +33%
KFA2 GeForce GTX 1650 EX One Click Plus
GeForce GTX 1650 (Desktop), R9 3900X
36 (23min - 62max) fps
bassomedioaltoultraQHD4K
The Witcher 3 (2015) 216 128 70.1 40.4 23.6
Dota 2 Reborn (2015) 156.7 114.3 112.6 106.9 59.1
Final Fantasy XV Benchmark (2018) 108 55.3 41.2 28.9 15.8
X-Plane 11.11 (2018) 123 110 89.6 66.9
Far Cry 5 (2018) 135 69 63 59 40 19
Strange Brigade (2018) 245 94.4 74 62.2 44.7 25.7
Apex Legends (2019) 144 111 76 71.3 50.4 27
Far Cry New Dawn (2019) 120 68 63 58 42 21
Metro Exodus (2019) 107 48 35.2 27.7 21.3 12.1
Total War: Three Kingdoms (2019) 202.1 68.5 41.5 26.4 15.7 15
FIFA 20 (2019) 237 215 192 137 107 69.9
GRID 2019 (2019) 155 86 70 45 32 18
Call of Duty Modern Warfare 2019 (2019) 118 78 65 54 37 21
Need for Speed Heat (2019) 114 64.4 53.6 39 17.7 17.1
Star Wars Jedi Fallen Order (2019) 77.7 65.5 54.9 36.3 17
Red Dead Redemption 2 (2019) 111 54 34 22
Hunt Showdown (2020) 153 60.8 46.7 29.3 25.7
Doom Eternal (2020) 116 80.4 61.4
Gears Tactics (2020) 252.9 86.7 56 40.1 27.8 15
Valorant (2020) 341.7 291.8 260.1 176.6 82.8
F1 2020 (2020) 219 115 88.1 60.3 42.9 23.4
Death Stranding (2020) 98.2 58.7 54.4 52.7 35.6 17.3
Horizon Zero Dawn (2020) 99 55 46 36 26 15
Flight Simulator 2020 (2020) 76.7 35.6 25.3 17 12.3 5
Serious Sam 4 (2020) 138.7 57.5 43.3 17.8 13.7 9.9
Mafia Definitive Edition (2020) 103.8 49.7 45.2 29 14.5
Star Wars Squadrons (2020) 312 146 123 114 72.9 39.6
FIFA 21 (2020) 231 224 206 184 145 86.3
Watch Dogs Legion (2020) 92.9 56 47.6 21.2 14.3 8.02

Emissioni della KFA2 GeForce GTX 1650 EX Plus (1-Click OC)

KFA2 GeForce GTX 1650 EX Plus (1-Click OC) durante lo stress test (PT 100)
KFA2 GeForce GTX 1650 EX Plus (1-Click OC) durante lo stress test (PT 100)
KFA2 GeForce GTX 1650 EX Plus (1-Click OC) durante lo stress test (PT 100)
KFA2 GeForce GTX 1650 EX Plus (1-Click OC) durante lo stress test (PT 100)

Chiunque voglia una GTX 1650 è probabilmente preoccupato per il consumo di energia. Il TGP da 90 watt e un connettore di alimentazione aggiuntivo non fanno sembrare molto favorevole il confronto con la GTX 1650 standard senza un connettore a 6 pin. Tuttavia, in realtà, la KFA2 GeForce GeForce GTX 1650 EX Plus non comporta alcuno svantaggio. Il modello più vecchio ha un assorbimento di potenza molto simile nel sistema che stiamo usando attualmente.

Quando è inattivo, il consumo di energia del nostro sistema ammonta a 85 watt con entrambe le versioni della GTX 1650. Quando stavamo giocando o testando il sistema, l'assorbimento di potenza ha raggiunto poco più di 200 watt, il che è un buon risultato. L'AMD Radeon RX 570, che è marginalmente più veloce nei gaming benchmarks, richiede molta più energia. Questa è la prova che la tecnologia sta andando avanti.

Non ci sono stati problemi termici con la KFA2 GeForce GTX 1650 EX Plus. Durante la prova di stress, le temperature hanno raggiunto un picco di 67 °C (152,6 °F) ed entrambe le ventole assiali hanno funzionato al 57% della loro velocità massima. Tuttavia, abbiamo potuto sentire un leggero ronzio che proveniva dal case. Non lo possiamo definire fastidioso.

Consumo energetico del sistema di prova (a riposo)
Consumo energetico del sistema di prova (a riposo)
Consumo energetico del sistema di prova (FurMark, PT 100%)
Consumo energetico del sistema di prova (FurMark, PT 100%)
Consumo energetico del sistema di prova (durante il gaming: The Witcher 3 settaggi massimi)
Consumo energetico del sistema di prova (durante il gaming: The Witcher 3 settaggi massimi)
Stress test con FurMark (PT 100%)
Stress test con FurMark (PT 100%)
Power Consumption
1920x1080 The Witcher 3 ultra (external Monitor)
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R9 3900X (Idle: 83.2 W)
376.4 (373min - 382max) Watt * -86%
XFX AMD Radeon RX 590 OC+ 8 GB
Radeon RX 590, R9 3900X (Idle: 85.9 W)
358.9 (351min - 370max) Watt * -77%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R7 2700X (Idle: 69.8 W)
348.7 (341min - 359max) Watt * -72%
XFX AMD Radeon RX 590 OC+ 8 GB
Radeon RX 590, R7 2700X
346.9 (326min - 364max) Watt * -71%
KFA2 GeForce RTX 2060 Super
GeForce RTX 2060 Super (Desktop), R9 3900X, Corsair MP600 (81.7 fps, Idle: 93.8 W)
331.4 (322min - 345max) Watt * -63%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super (Desktop), R9 3900X (Idle: 86.7 W)
331 (322min - 344max) Watt * -63%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), R9 3900X (Idle: 77.9 W)
317.5 (313min, 216P1 - 326max) Watt * -56%
Sapphire NITRO+ RX 570 8 GB
Radeon RX 570, R9 3900X (Idle: 85.5 W)
300.2 (284min - 311max) Watt * -48%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super (Desktop), R7 2700X (82.7 fps, Idle: 77.12 W)
298.2 (293min - 322max) Watt * -47%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), R7 2700X (84.2 fps, Idle: 64.5 W)
295.9 (284min - 304max) Watt * -46%
MSI RTX 2060 Gaming Z 6G
GeForce RTX 2060 (Desktop), R7 2700X (Idle: 74.66 W)
288.8 (284min - 299max) Watt * -42%
Sapphire AMD Radeon RX 5600 XT
Radeon RX 5600 XT (Desktop), R9 3900X (Idle: 112 W)
287.8 (282min - 294max) Watt * -42%
Sapphire NITRO+ RX 570 8 GB
Radeon RX 570, R7 2700X (Idle: 72.61 W)
274 (268min - 300max) Watt * -35%
KFA 2 GeForce GTX 1660 Super
GeForce GTX 1660 Super (Desktop), R9 3900X (Idle: 84.76 W)
260.4 (255min - 277max) Watt * -28%
PNY GeForce GTX 1660
GeForce GTX 1660 (Desktop), R9 3900X (Idle: 79.88 W)
248.6 (240min - 259max) Watt * -23%
Zotac GeForce GTX 1660 Ti 6 GB
GeForce GTX 1660 Ti (Desktop), R7 2700X (Idle: 68.3 W)
235.5 (232min - 269max) Watt * -16%
Gainward GeForce GTX 1650 4 GB
GeForce GTX 1650 (Desktop), R9 3900X (Idle: 82.4 W)
203.9 (199min - 215max) Watt * -0%
KFA2 GeForce GTX 1650 EX One Click Plus
GeForce GTX 1650 (Desktop), R9 3900X (Idle: 85.5 W)
202.9 (202min - 204max) Watt *
Gainward GeForce GTX 1650 4 GB
GeForce GTX 1650 (Desktop), R7 2700X (Idle: 64.63 W)
178.9 (176min - 192max) Watt * +12%
1280x720 FurMark 1.19 GPU Stress Test (external Monitor)
XFX AMD Radeon RX 590 OC+ 8 GB
Radeon RX 590, R9 3900X (Idle: 85.9 W)
371.7 (360min - 388max) Watt * -85%
XFX AMD Radeon RX 590 OC+ 8 GB
Radeon RX 590, R7 2700X
357.5 (347min - 383max) Watt * -78%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R9 3900X (Idle: 83.2 W)
352.1 (346min - 377max) Watt * -76%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R7 2700X (239 fps, Idle: 69.8 W)
326.6 (313min - 351max) Watt * -63%
Sapphire NITRO+ RX 570 8 GB
Radeon RX 570, R9 3900X (Idle: 85.5 W)
322.8 (309min - 347max) Watt * -61%
Sapphire AMD Radeon RX 5600 XT
Radeon RX 5600 XT (Desktop), R9 3900X (Idle: 112 W)
321.1 (300min - 348max) Watt * -60%
KFA2 GeForce RTX 2060 Super
GeForce RTX 2060 Super (Desktop), R9 3900X, Corsair MP600 (234 fps, Idle: 93.8 W)
315.3 (310min - 344max) Watt * -57%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super (Desktop), R9 3900X (Idle: 86.7 W)
312 (306min - 328max) Watt * -56%
Sapphire NITRO+ RX 570 8 GB
Radeon RX 570, R7 2700X (Idle: 72.61 W)
308.9 (301min - 338max) Watt * -54%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), R9 3900X (Idle: 77.9 W)
297.3 (292min - 316max) Watt * -48%
MSI RTX 2060 Gaming Z 6G
GeForce RTX 2060 (Desktop), R7 2700X (Idle: 74.66 W)
295.2 (148min - 331max) Watt * -47%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super (Desktop), R7 2700X (237 fps, Idle: 77.12 W)
281.4 (275min - 321max) Watt * -40%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), R7 2700X (207 fps, Idle: 64.5 W)
280.5 (271min - 312max) Watt * -40%
PNY GeForce GTX 1660
GeForce GTX 1660 (Desktop), R9 3900X (Idle: 79.88 W)
247.8 (242min - 282max) Watt * -24%
KFA 2 GeForce GTX 1660 Super
GeForce GTX 1660 Super (Desktop), R9 3900X (Idle: 84.76 W)
247.6 (241min - 322max) Watt * -24%
Zotac GeForce GTX 1660 Ti 6 GB
GeForce GTX 1660 Ti (Desktop), R7 2700X (Idle: 68.3 W)
233.2 (226min - 250max) Watt * -16%
Gainward GeForce GTX 1650 4 GB
GeForce GTX 1650 (Desktop), R9 3900X (Idle: 82.4 W)
202.5 (200min - 213max) Watt * -1%
KFA2 GeForce GTX 1650 EX One Click Plus
GeForce GTX 1650 (Desktop), R9 3900X (Idle: 85.5 W)
200.4 (193min - 230max) Watt *
Gainward GeForce GTX 1650 4 GB
GeForce GTX 1650 (Desktop), R7 2700X (Idle: 64.63 W, Idle: 64.63 W)
183 (178min - 187max) Watt * +9%

* ... Meglio usare valori piccoli

Overclocking - dal 10 al 15% di prestazioni in più

GPU-Z (overclock manuale)
GPU-Z (overclock manuale)

Purtroppo, l'obiettivo di potenza della KFA2 GeForce GTX 1650 EX Plus non può essere aumentato oltre i 90 watt. Nel KFA2 Xtreme Tuner, gli utenti possono attivare la funzione 1-Click OC, che aumenta il core clock di 30 MHz. Tuttavia, non c'è un aumento evidente delle prestazioni.

In caso di overclocking manuale, il core clock può essere aumentato di 220 MHz e la frequenza di memoria di 1200 MHz. La GPU era stabile con questi overclock e abbiamo eseguito due benchmarks per valutare le prestazioni. A seconda dell'applicazione, gli utenti possono aspettarsi di vedere dal 10 al 15% di prestazioni in più. Tuttavia, la GeForce GTX 1660 offre ancora un livello di prestazioni più elevato.

3DMark 11 (GPU + 220 MHz, VRAM + 1200 MHz)
3DMark 11 (GPU + 220 MHz, VRAM + 1200 MHz)
3DMark Fire Strike (GPU + 220 MHz, VRAM + 1200 MHz)
3DMark Fire Strike (GPU + 220 MHz, VRAM + 1200 MHz)

Pro

+ abbastanza veloce per 1080p
+ VRAM GDDR6
+ buona soluzione di raffreddamento
+ basso consumo energetico
+ buon rapporto qualità-prezzo
+ buon potenziale di OC nonostante i limiti di potenza

Contro

- rumoroso sotto carico
- L'opzione 1-Click-OC offre solo una spinta di 30 MHz
- una sola porta DP

Valutazione Complessiva - La migliore GeForce GTX 1650

KFA2 GeForce GTX 1650 EX Plus (1-Click OC), gentilmente fornita da: KFA2 Germany
KFA2 GeForce GTX 1650 EX Plus (1-Click OC), gentilmente fornita da: KFA2 Germany

La KFA2 GeForce GTX 1650 EX Plus è una versione migliore della GeForce GTX 1650. A causa della scarsa disponibilità di GDDR5 VRAM, la GPU entry-level basata su Turing ha dovuto utilizzare VRAM GDDR6 più veloce. In combinazione con un aumento del numero di unità di mappatura delle texture, la GPU offre un piccolo incremento delle prestazioni. Nei gaming benchmarks puri, la KFA2 GeForce GTX 1650 è talvolta in grado di eguagliare la AMD Radeon RX 570. 4 GB di VRAM non sono molti, ma, dato il livello di prestazioni offerto, sono sufficienti. La GPU può eseguire giochi moderni a 1080p con impostazioni grafiche ridotte.

La KFA2 GeForce GTX 1650 EX Plus è una scheda grafica economica, un'opzione perfetta per un certo tipo di giocatore.

Nel complesso, la KFA2 GeForce GTX 1650 EX Plus lascia un'impressione molto solida. La soluzione di raffreddamento non si lascia sopraffare e non è molto rumorosa. I prezzi partono da 130 Euro (~$154). Chi è soddisfatto di questo livello di prestazioni e può convivere con il fatto che la GPU è dotata di un connettore di alimentazione a 6 pin dovrebbe dare un'occhiata più da vicino alla KFA2 GeForce GTX 1650 EX Plus.

Please share our article, every link counts!
> Recensioni e prove di notebook, tablets e smartphones > Recensioni e prove > Recensioni e prove > Recensione del della KFA2 GeForce GTX 1650 EX Plus - più prestazioni e VRAM più veloce per la più piccola GPU Desktop Turing-based
Sebastian Bade, 2020-09- 1 (Update: 2020-09- 1)
