Recensione del PC desktop Morefine M600: Moderno mini PC con AMD Ryzen 9 6900HX, 32 GB DDR5 e USB4

Name: Morefine M600, 6900HX
Brand: Morefine

Ottimo dispositivo per tutti i giorni!

Il Morefine M600, dotato di un AMD Ryzen 9 6900HX, è basato sull'aggiornato SoC Rembrandt di AMD. Abbiamo dato un'occhiata più da vicino al modello e abbiamo confrontato le sue prestazioni con quelle dei suoi concorrenti, che in parte dispongono di hardware simile. Il vincitore della gara può essere scoperto leggendo questa recensione dettagliata, che presenta una serie di benchmark e misurazioni.

Sebastian Bade (traduzione a cura di DeepL / Ninh Duy), Published 03/29/2023 🇺🇸 🇩🇪 ...

AMD Desktop Mini PC Ryzen (Zen) Zen

Configurazioni di Morefine M600 (fonte: Morefine)

Dopo il Morefine S600 Apex Engineer, il produttore cinese ha ora rilasciato anche una versione del sistema che utilizza SoC AMD aggiornati. Il modello più economico con AMD Ryzen 5-6600U parte da 388 dollari per la versione barebone. Il modello top di gamma con AMD Ryzen 9 6900HX può essere acquistato a circa 569 dollari al momento del test. Il dispositivo può essere equipaggiato anche con RAM e SSD: questo porta il nostro sistema di prova a un totale di 809 dollari, che include 32 GB di RAM DDR5, un SSD da 1 TB e Windows 11 Professional.

Il Morefine M600 viene fornito in una scatola esteticamente gradevole e stabile, completa di tutti gli accessori necessari, in modo che il PC sia subito pronto all'uso. Inoltre, la confezione include un supporto VESA che può essere utilizzato per montare il PC su un monitor esterno - internamente il PC può essere dotato di un massimo di tre SSD. In questa recensione, abbiamo messo il Morefine M600 a confronto con dispositivi come il Minisforum Venus Series UM690e laMinisforum Neptune Series NAD9e il predecessore del Morefine M600. L'elenco completo di tutti questi dispositivi è riportato nella tabella seguente.

Morefine M600, 6900HX

Processore

AMD Ryzen 9 6900HX 8 x 3.3 - 4.9 GHz, 45 W PL2 / Short Burst, 45 W PL1 / Sustained, Rembrandt-H (Zen 3+)

Scheda grafica

AMD Radeon 680M, Adrenalin 23.3.1

Memoria

32 GB

, DDR5-4800 MT/s, 2 of 2 installed, max. 64 GB

Scheda madre

AMD Promontory/Bixby FCH

Harddisk

Kingston KC3000 2048G SKC3000D2048G, 2048 GB

, M.2 2280, NVMe, 920 GB libera

Scheda audio

AMD Zen - Audio Processor - HD Audio Controller

Porte di connessione

2 USB 2.0, 4 USB 3.1 Gen 2, 1 USB 4.0 40 Gbps, 1 Thunderbolt, 1 HDMI, 1 DisplayPort, Connessioni Audio: 3.5 mm jack, Realtek RTL8125 2.5 GBe Family Ethernet Controller

Rete

Realtek RTL8125 2.5GBe Family Ethernet Controller (10/100/1000/2500MBit/s), MediaTek RZ608 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2

Dimensioni

altezza x larghezza x profondità (in mm): 40.6 x 147.3 x 144.7

Sistema Operativo

Microsoft Windows 11 Pro

Altre caratteristiche

120 watt power adapter, 24 Mesi Garanzia

Peso

779 gr, Alimentazione: 372 gr

Prezzo

809 USD

Nota: il produttore potrebbe usare componenti di fornitori diversi pannelli dei diplay, drive o banchi di memoria con specifiche simili.

guarda tutte le specifiche

Potenziali concorrenti a confronto

Punteggio	Data	Modello	Peso	Altezza
85.5 % v7 ^(old)	03/2023	Morefine M600, 6900HX R9 6900HX, Radeon 680M	779 gr	40.6 mm
v ^(old)	01/2022	Morefine S500+ R9 5900HX, Vega 8	697 gr	40 mm
v ^(old)	06/2022	Minisforum EliteMini B550 R7 5700G, Vega 8	1.1 kg	67 mm
v7 ^(old)	09/2022	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	586 gr	53 mm
v7 ^(old)	10/2022	Morefine S600-Apex Engineer i9-12900HK, Iris Xe G7 96EUs	795 gr	63.5 mm
85.1 % v7 ^(old)	01/2023	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	1.2 kg	66 mm
78.9 % v7 ^(old)	11/2022	Intel NUC 12 Pro Kit NUC12WSKi7 i7-1260P, Iris Xe G7 96EUs	511 gr	37 mm
86.1 % v7 ^(old)	02/2023	Minisforum Venus Series UM690 R9 6900HX, Radeon 680M	621 gr	48 mm

Morefine M600 in dettaglio

Caso

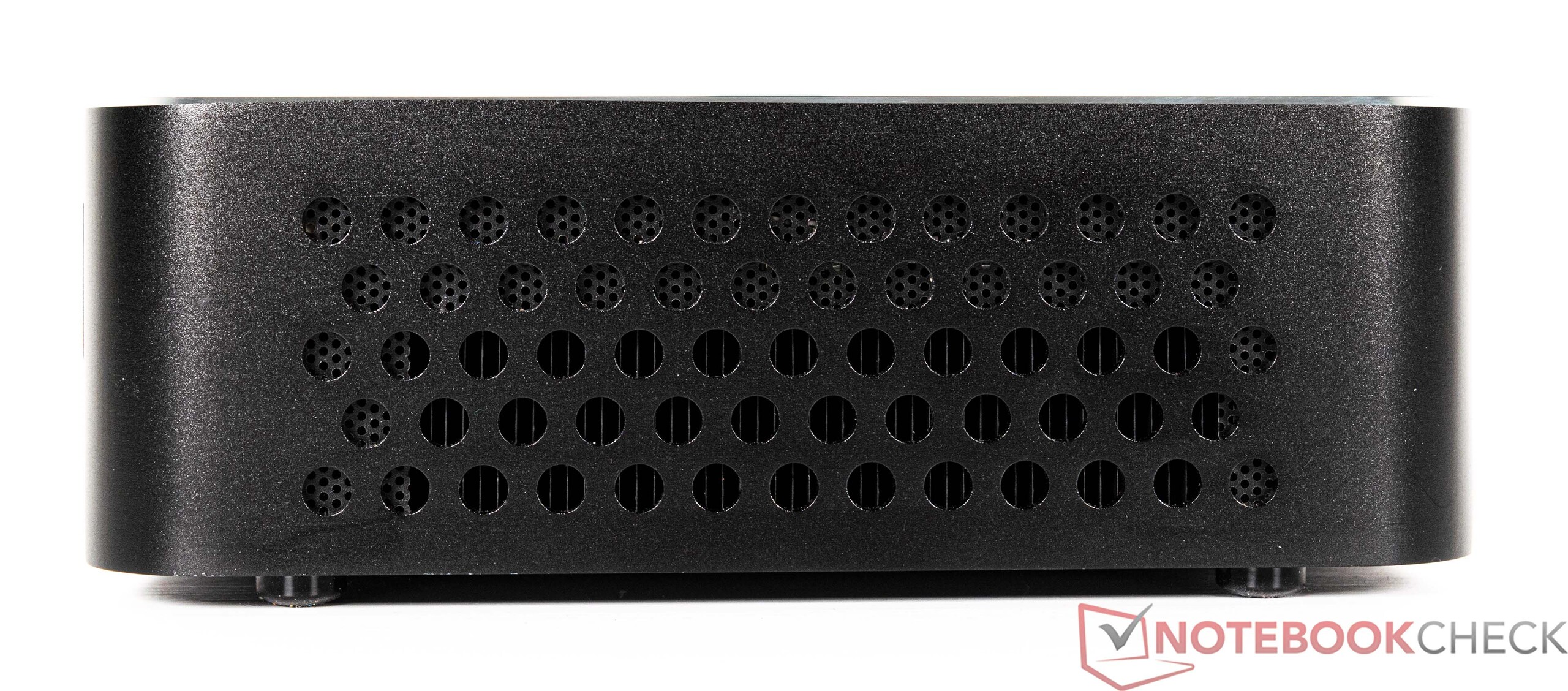

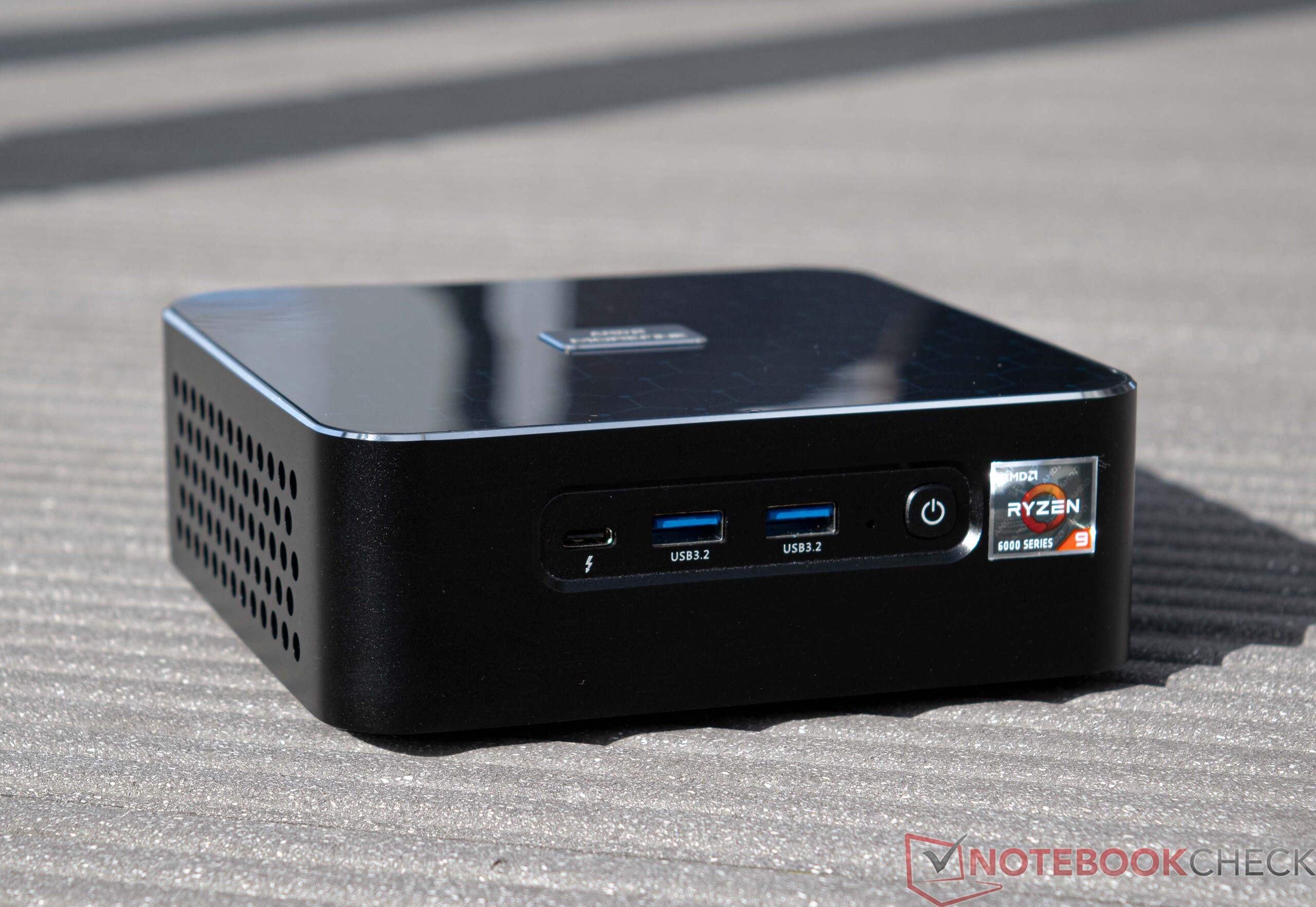

Dal punto di vista puramente estetico, il Morefine M600 può essere paragonato al suo omologo Intel, ilMorefine S600 Apex Engineeril case è realizzato per la maggior parte in una lega di alluminio e magnesio, che conferisce al dispositivo un'eccellente stabilità e una sensazione di alta qualità. La parte superiore del case è costituita da un coperchio in plastica rinforzata in metallo con un motivo inciso. Purtroppo, a causa della sua superficie lucida, è soggetta a graffi.

Per quanto riguarda le dimensioni, il nostro esemplare di prova si colloca a metà strada e non occupa troppo spazio sulla scrivania. Il Morefine M600 è anche abbastanza leggero, con un peso di soli 779 grammi. Rispetto al Morefine S600 Apex Engineer, l'alimentatore di questo PC è notevolmente più piccolo. Nel nostro campione di prova, l'alimentatore da 120 watt pesava solo 372 grammi.

Confronto delle dimensioni

Minisforum Neptune Series NAD9 Minisforum EliteMini B550 Morefine S600-Apex Engineer Minipc Union Ace Magician TK11-A0 Morefine M600, 6900HX Morefine S500+ Minisforum Venus Series UM690 Intel NUC 12 Pro Kit NUC12WSKi7 DIN A4 ❌

Connettività

Nonostante il design compatto, Morefine M600 ha un numero sorprendentemente elevato di porte. Con 6 porte USB in totale, la maggior parte degli utenti sarà più che soddisfatta. Lo stesso numero di porte è presente nel modello Serie Minisforum Venus UM690. Sulla parte anteriore del PC compatto è presente anche una presa USB-C con supporto Thunderbolt, che amplia notevolmente la gamma di utilizzi possibili. In totale, al Morefine M600 possono essere collegati contemporaneamente tre monitor, tramite HDMI, DisplayPort o USB-C.

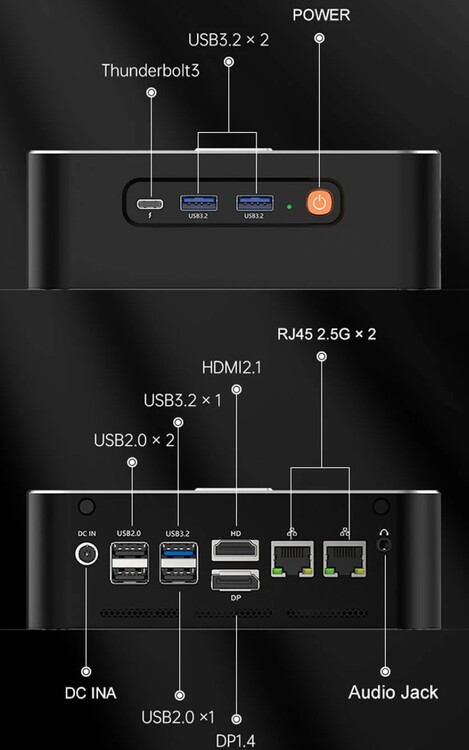

Porte esterne di Morefine M600 (fonte: Morefine)

Comunicazione

Il Morefine M600 è dotato di un modulo Wi-Fi 6E di Mediatek. Nel nostro test pratico, in cui abbiamo utilizzato il router ROG Rapture GT-AXE11000 di Asus come router di prova, il Morefine M600 ha fornito velocità di trasferimento stabili e costanti superiori alla media. Tuttavia, rispetto allaMinisforum Neptune Series NAD9che ha un Intel Wi-Fi 6E AX210, il Morefine M600 è risultato notevolmente più lento. Nell'uso quotidiano, soggettivamente non noteremmo troppa differenza tra i due. Se siete alla ricerca di un trasferimento dati più veloce, il PC è dotato anche di due prese LAN, che offrono velocità fino a 2,5 Gbit/s ciascuna.

Networking
iperf3 receive AXE11000
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1318 (663^min - 1363^max) MBit/s +42%
Media della classe Mini PC (192.9 - 1796, n=113, ultimi 2 anni)	932 MBit/s 0%
Morefine M600, 6900HX MediaTek RZ608	929 (874^min - 946^max) MBit/s
Media MediaTek RZ608 (430 - 975, n=20)	886 MBit/s -5%
Minisforum EliteMini B550 MediaTek RZ608	430 MBit/s -54%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	390 MBit/s -58%
iperf3 transmit AXE11000
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1320 (1165^min - 1353^max) MBit/s +37%
Morefine M600, 6900HX MediaTek RZ608	964 (924^min - 990^max) MBit/s
Media della classe Mini PC (184.1 - 1776, n=113, ultimi 2 anni)	864 MBit/s -10%
Media MediaTek RZ608 (572 - 979, n=20)	860 MBit/s -11%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	745 MBit/s -23%
Minisforum EliteMini B550 MediaTek RZ608	572 MBit/s -41%

Morefine M600, 6900HX; iperf3 receive AXE11000; iperf 3.1.3: Ø929 (874-946)

Morefine M600, 6900HX; iperf3 transmit AXE11000; iperf 3.1.3: Ø964 (924-990)

Accessori

Il PC viene fornito anche con un adattatore di alimentazione da 120 watt e un supporto VESA che può essere utilizzato per fissare il dispositivo direttamente a un monitor. Inoltre, il produttore include un cavo HMDI e un cavo di collegamento per un'unità da 2,5 pollici.

Manutenzione

Simile al Morefine S600 Apex Engineermorefine M600 può essere aperto facilmente. La parte superiore è collegata a due viti facilmente accessibili dal retro. Nella parte inferiore, le viti sono nascoste sotto i piedini incastrati del dispositivo. Questo è un po' scomodo se si ha bisogno di smontare la parte inferiore del PC. Qui si trovano la ventola e uno slot M.2, che nel nostro sistema di prova era già dotato di un'unità SSD.

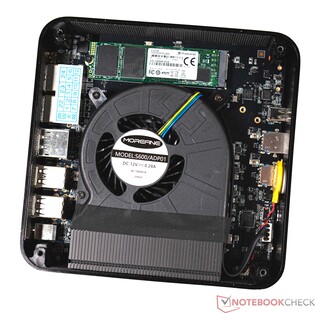

Morefine M600 con custodia aperta - parte inferiore

Prestazioni - Il SoC AMD Rembrandt offre prestazioni accettabili

Condizioni di test

In tutti i test sulle prestazioni eseguiti con questo dispositivo, abbiamo utilizzato il profilo energetico più performante. Le deviazioni sono state fatte solo nelle misurazioni del consumo energetico e delle emissioni acustiche, in conformità con i nostri criteri di test. Le prestazioni della CPU e del sistema di raffreddamento sono rimaste invariate nel BIOS. Le prestazioni del SoC possono essere aumentate fino a 54 watt.

Processore

IlAMD Ryzen 9 6900HXè un processore a 8 core della serie Rembrandt con 16 thread, basato su un chip con architettura Zen3. Sotto carico, il Morefine M600 ha mostrato brevi picchi di 65 watt prima che il PC si stabilizzasse al limite dei 45 watt. Questo si era già visto con ilMinisforum Venus Series UM690. Rispetto ai suoi concorrenti con equipaggiamento simile, il Morefine M600 ha perso in tutti i benchmark della CPU, ma solo di 4 punti percentuali. Il Morefine S600 Apex Engineersi è rivelato leggermente più veloce, grazie al suo Intel Core i9-12900HK. Dispone di 14 core e 20 thread, il che significa che ha ottenuto migliori prestazioni multi-core rispetto all' AMD Ryzen 9 6900HXtuttavia, la differenza tra i due è piuttosto ridotta. Con l'eccezione del Ace Magician TK11-A0tutti i risultati dei nostri campioni di prova sono abbastanza vicini.

Potete trovare altri benchmark dei processoriqui.

Performance Rating - Percent
Morefine S600-Apex Engineer ^-6! Intel Core i9-12900HK, 1800 MHz	51.9 pt
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	50.6 pt
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	50.1 pt
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	49.4 pt
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	48.4 pt
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	47.6 pt
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	47.3 pt
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	35.8 pt

Cinebench R15
CPU Single 64Bit
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	261 Points +7%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	260 Points +7%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	247 Points +1%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	244 Points
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	243 Points 0%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	240 Points -2%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	226 Points -7%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	197 Points -19%
CPU Multi 64Bit
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	2231 Points +16%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2067 Points +8%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1980 Points +3%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	1975 Points +3%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1920 Points
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1919 (1862.02^min - 1893.4^max) Points 0%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1879 Points -2%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	560 Points -71%

Cinebench R20
CPU (Single Core)
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	698 Points +16%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	682 Points +14%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	629 Points +5%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	608 Points +1%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	600 Points
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	585 Points -2%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	567 Points -5%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	517 Points -14%
CPU (Multi Core)
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	5328 Points +11%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	5168 Points +8%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	4941 Points +3%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	4788 Points
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	4660 Points -3%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	4578 Points -4%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	4495 Points -6%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1440 Points -70%

Cinebench R11.5
CPU Single 64Bit
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	3.15 Points +9%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	3.07 Points +7%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	2.88 Points
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	2.87 Points 0%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2.86 Points -1%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	2.8 Points -3%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	2.69 Points -7%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	2.31 Points -20%
CPU Multi 64Bit
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	26.35 Points +11%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	25.96 Points +10%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	23.66 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	23.6 Points 0%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	23.44 Points -1%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	22.79 Points -4%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	22 Points -7%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	6.37 Points -73%

Cinebench R10
Rendering Single CPUs 64Bit
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	14504 Points +19%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	12943 Points +6%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	12846 Points +5%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	12378 Points +2%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12185 Points
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	12113 Points -1%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	11811 Points -3%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	10395 Points -15%
Rendering Multiple CPUs 64Bit
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	77409 Points +11%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	76758 Points +10%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	75223 Points +8%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	73492 Points +5%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	69797 Points
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	66237 Points -5%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	64320 Points -8%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	24499 Points -65%

Blender - v2.79 BMW27 CPU
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	750 Seconds * -225%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	280 Seconds * -21%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	273 Seconds * -18%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	265 Seconds * -15%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	252.1 Seconds * -9%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	234 Seconds * -1%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	232 Seconds * -0%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	231 Seconds *

wPrime 2.10
32m
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	6.799 s * -87%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	4.4 s * -21%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	3.642 s *
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	3.641 s * -0%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	3.595 s * +1%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	3.461 s * +5%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	3.421 s * +6%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	3.375 s * +7%
1024m
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	286.835 s * -178%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	235.874 s * -129%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	201.062 s * -95%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	189.07 s * -83%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	106.7 s * -3%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	103.226 s *
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	98.635 s * +4%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	93.19 s * +10%

X264 HD Benchmark 4.0
Pass 1
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	276.5 (274^min - 278^max) fps +7%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	276 (273^min - 294^max) fps +7%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	266 (264^min - 271^max) fps +3%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	263.5 (262^min - 266^max) fps +2%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	262.5 (262^min - 266^max) fps +2%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	258.5 (256^min - 268^max) fps
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	245 (239^min - 261^max) fps -5%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	165.55 (163.6^min - 204^max) fps -36%
Pass 2
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	127.8 (127.3^min - 129.1^max) fps +12%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	125.25 (105.2^min - 130^max) fps +10%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	116.8 (116.8^min - 117.3^max) fps +2%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	114 (111.2^min - 119.4^max) fps
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	113.7 (113.5^min - 122.2^max) fps 0%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	112 (112^min - 112^max) fps -2%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	110.5 (101.7^min - 125.3^max) fps -3%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	36.7 (36.7^min - 37.6^max) fps -68%

WinRAR - Result
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	7937 KB/s +17%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7722 KB/s +14%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	7387 KB/s +9%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	7200 KB/s +6%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	6960 KB/s +2%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	6882 KB/s +1%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	6795 KB/s
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4185 KB/s -38%

TrueCrypt
AES Mean 100MB
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	14.1 GB/s +17%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	13.4 GB/s +11%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12.1 GB/s
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	11.6 GB/s -4%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	10.8 GB/s -11%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8.6 GB/s -29%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7.6 GB/s -37%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5.3 GB/s -56%
Twofish Mean 100MB
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	2.3 GB/s +44%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2 GB/s +25%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1.9 GB/s +19%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	1.8 GB/s +13%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1.6 GB/s 0%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1.6 GB/s
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1.5 GB/s -6%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.755 GB/s -53%
Serpent Mean 100MB
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	1.3 GB/s +18%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	1.2 GB/s +9%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1.1 GB/s 0%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1.1 GB/s 0%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1.1 GB/s 0%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1.1 GB/s
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	0.974 GB/s -11%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.448 GB/s -59%

Geekbench 5.5
Multi-Core
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	9935 Points +9%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	9706 Points +6%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9695 Points +6%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	9151 Points
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7855 Points -14%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7818 Points -15%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4898 Points -46%
Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1861 Points +20%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1715 Points +11%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	1634 Points +6%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1560 Points +1%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1552 Points 0%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1547 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1391 Points -10%

Geekbench 5.0
5.0 Multi-Core
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	10249 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	9817 Points -4%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9663 Points -6%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	9638 Points -6%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7847 Points -23%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7806 Points -24%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4841 Points -53%
5.0 Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1838 Points +18%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1694 Points +9%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	1593 Points +2%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1557 Points
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1518 Points -3%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1504 Points -3%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1385 Points -11%

Geekbench 4.4
64 Bit Single-Core Score
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8015 Points +20%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	7554 Points +13%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	6804 Points +2%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	6698 Points
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	6517 Points -3%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	6434 Points -4%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5911 Points -12%
64 Bit Multi-Core Score
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	39852 Points
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	38566 Points -3%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	36974 Points -7%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	36692 Points -8%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	31835 Points -20%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	31724 Points -20%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	19288 Points -52%

3DMark 11 - 1280x720 Performance Physics
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	18382 Points +16%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	18277 Points +15%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	18044 Points +14%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	17378 Points +10%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	16783 Points +6%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	15855 Points
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	14277 Points -10%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	7792 Points -51%

7-Zip 18.03
7z b 4
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	61401 MIPS +8%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	56923 MIPS
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	56455 MIPS -1%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	55046 MIPS -3%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	54998 MIPS -3%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	51151 MIPS -10%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	47064 MIPS -17%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	17636 MIPS -69%
7z b 4 -mmt1
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	6067 MIPS +9%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	6019 MIPS +8%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	5905 MIPS +6%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	5809 MIPS +4%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	5738 MIPS +3%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	5591 MIPS
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	5347 MIPS -4%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4788 MIPS -14%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	17.1 fps +11%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	15.7 fps +2%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	15.4 fps
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	14.8 fps -4%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	14.5 fps -6%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	14.1 fps -8%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	13.2 fps -14%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5.26 fps -66%

R Benchmark 2.5 - Overall mean
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.639 sec * -31%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	0.4997 sec * -2%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	0.4975 sec * -2%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	0.493 sec * -1%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	0.4881 sec *
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	0.4787 sec * +2%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	0.4757 sec * +3%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	0.4641 sec * +5%

LibreOffice - 20 Documents To PDF
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	53.4 s *
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	52 s * +3%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	50.7 s * +5%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	50.4 s * +6%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	48.8 s * +9%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	45 s * +16%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	41.9 s * +22%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	38 s * +29%

WebXPRT 3 - Overall
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	311 Points +7%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	292 Points
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	287 Points -2%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	285 Points -2%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	285 Points -2%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	284 Points -3%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	274 Points -6%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	236 Points -19%

Mozilla Kraken 1.1 - Total
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	724 ms * -20%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	605 ms *
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	604 ms * -0%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	602 ms * -0%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	582 ms * +4%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	577 ms * +5%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	571 ms * +6%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	534 ms * +12%

3DMark
3840x2160 Fire Strike Ultra Physics
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	25456 Points +13%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	23939 Points +7%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	23269 Points +4%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	22441 Points
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	22101 Points -2%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	21422 Points -5%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	19357 Points -14%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9561 Points -57%
1920x1080 Fire Strike Physics
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	25915 Points +16%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	25160 Points +12%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	23903 Points +7%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	23308 Points +4%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	22426 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	22244 Points -1%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	20684 Points -8%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9354 Points -58%
2560x1440 Time Spy CPU
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	10539 Points +22%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	9449 Points +10%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	9354 Points +8%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	8622 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	8393 Points -3%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	8191 Points -5%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7087 Points -18%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	2867 Points -67%

* ... Meglio usare valori piccoli

Performance Rating
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	99.2 pt
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	85.9 pt
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	85.8 pt
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	85.8 pt
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	76.1 pt
Media della classe Mini PC	74.9 pt
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	70.7 pt
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	69.2 pt
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	41.4 pt

AIDA64 / FP32 Ray-Trace
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	15102 KRay/s +10%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	13757 KRay/s
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	13631 KRay/s -1%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	13460 KRay/s -2%
Media della classe Mini PC (561 - 51004, n=119, ultimi 2 anni)	12449 KRay/s -10%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	12208 KRay/s -11%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	10952 KRay/s -20%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	10351 KRay/s -25%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	5612 KRay/s -59%

AIDA64 / FPU Julia
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	98980 Points +13%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	87663 Points
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	86825 Points -1%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	85294 Points -3%
Media della classe Mini PC (3604 - 214250, n=119, ultimi 2 anni)	62645 Points -29%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	61600 Points -30%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	55221 Points -37%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	52136 Points -41%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	24138 Points -72%

AIDA64 / CPU SHA3
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	3452 MB/s +18%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	2953 MB/s +1%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	2931 MB/s
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	2924 MB/s 0%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	2844 MB/s -3%
Media della classe Mini PC (225 - 9399, n=119, ultimi 2 anni)	2760 MB/s -6%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	2590 MB/s -12%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	2558 MB/s -13%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	1649 MB/s -44%

AIDA64 / CPU Queen
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	103686 Points +3%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	100293 Points
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	97720 Points -3%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	95602 Points -5%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	94655 Points -6%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	85240 Points -15%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	82493 Points -18%
Media della classe Mini PC (8172 - 184747, n=119, ultimi 2 anni)	77998 Points -22%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	46646 Points -53%

AIDA64 / FPU SinJulia
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	13101 Points +6%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	12396 Points
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	12202 Points -2%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	11929 Points -4%
Media della classe Mini PC (408 - 29064, n=119, ultimi 2 anni)	8538 Points -31%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	8213 Points -34%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	7548 Points -39%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	6728 Points -46%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	3964 Points -68%

AIDA64 / FPU Mandel
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	52710 Points +18%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	47597 Points +7%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	47010 Points +5%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	44629 Points
Media della classe Mini PC (1958 - 113499, n=119, ultimi 2 anni)	32689 Points -27%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	30804 Points -31%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	28159 Points -37%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	25996 Points -42%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	14905 Points -67%

AIDA64 / CPU AES
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	136723 MB/s +143%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	119844 MB/s +113%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	115382 MB/s +105%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	99521 MB/s +77%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	92356 MB/s +64%
Media della classe Mini PC (3691 - 325960, n=119, ultimi 2 anni)	85358 MB/s +52%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	59882 MB/s +7%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	58910 MB/s +5%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	56199 MB/s

AIDA64 / CPU ZLib
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	863 MB/s +16%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	828 MB/s +11%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	774 MB/s +4%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	747 MB/s 0%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	745 MB/s
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	732 MB/s -2%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	722 MB/s -3%
Media della classe Mini PC (74.8 - 2039, n=119, ultimi 2 anni)	714 MB/s -4%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	265 MB/s -64%

AIDA64 / FP64 Ray-Trace
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	7973 KRay/s +9%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	7288 KRay/s
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	7193 KRay/s -1%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	7184 KRay/s -1%
Media della classe Mini PC (308 - 26952, n=119, ultimi 2 anni)	6658 KRay/s -9%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	6612 KRay/s -9%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	5777 KRay/s -21%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	5613 KRay/s -23%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	2997 KRay/s -59%

AIDA64 / CPU PhotoWorxx
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	30098 MPixel/s +1%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	29765 MPixel/s
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	28377 MPixel/s -5%
Media della classe Mini PC (4408 - 50500, n=119, ultimi 2 anni)	27805 MPixel/s -7%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	27720 MPixel/s -7%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	26959 MPixel/s -9%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	24323 MPixel/s -18%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	19885 MPixel/s -33%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	14810 MPixel/s -50%

Morefine M600 nel Multi Loop di Cinebench R15

Il ciclo continuo di Cinebench R15 ci ha permesso di dare una prima occhiata alle prestazioni del sistema di raffreddamento integrato del dispositivo. Nel complesso, il AMD Ryzen 9 6900HXha fornito una prestazione relativamente stabile di 1.900 punti dopo 50 cicli.

Metriche della CPU durante il ciclo Cinebench R15

Morefine M600, 6900HX AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø1900 (1863.93-2044.26)

Morefine S500+ AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø1892 (1879.35-1907.49)

Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Ryzen 7 5700G: Ø1980 (1960.21-1996.81)

Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Core i5-1135G7: Ø574 (568.03-615.59)

Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Core i9-12900HK: Ø1986 (1882.53-2086.59)

Minisforum Neptune Series NAD9 Intel Core i9-12900H, Intel Core i9-12900H: Ø1703 (1657.14-2261.04)

Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Core i7-1260P: Ø1702 (1671.26-2063.13)

Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø2111 (2087.36-2211.78)

Prestazioni del sistema

Il Morefine M600 si è comportato bene nel benchmark del sistema PCMark 10. Ha ottenuto solo risultati medi nel test Crossmark, anche se abbiamo rilevato buoni risultati nei test della RAM. In questo caso, il nostro campione di prova si è addirittura piazzato al primo posto. Nell'uso quotidiano, il Morefine M600 si comporta bene e può essere confrontato con tutti gli altri dispositivi del nostro test.

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0	7045 Points +6%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	6654 Points
Morefine S500+, AMD Ryzen 9 5900HX AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	6290 Points -5%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	6214 Points -7%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	6187 Points -7%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	5915 Points -11%
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	5658 Points -15%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	4521 Points -32%

PCMark 10 / Essentials
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	11217 Points +8%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0	10838 Points +4%
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	10700 Points +3%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	10661 Points +3%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	10390 Points
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	10148 Points -2%
Morefine S500+, AMD Ryzen 9 5900HX AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	10087 Points -3%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	8910 Points -14%

PCMark 10 / Productivity
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0	10060 Points +2%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	9941 Points +1%
Morefine S500+, AMD Ryzen 9 5900HX AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	9856 Points 0%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	9817 Points
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	7673 Points -22%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	7626 Points -22%
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	7041 Points -28%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	6357 Points -35%

CrossMark: Overall | Productivity | Creativity | Responsiveness

CrossMark / Overall
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1894 Points +25%
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	1804 Points +19%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1731 Points +14%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	1679 Points +11%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1517 Points
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1424 Points -6%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1245 Points -18%

CrossMark / Productivity
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1921 Points +29%
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	1740 Points +17%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1738 Points +17%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	1649 Points +11%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1491 Points
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1453 Points -3%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1306 Points -12%

CrossMark / Creativity
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	1867 Points +13%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1800 Points +9%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	1785 Points +8%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1745 Points +6%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1652 Points
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1448 Points -12%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1193 Points -28%

CrossMark / Responsiveness
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	2116 Points +71%
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	1811 Points +46%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1671 Points +35%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	1476 Points +19%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1271 Points +3%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1238 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1224 Points -1%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	50228 MB/s
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	47938 MB/s -5%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	45941 MB/s -9%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	44965 MB/s -10%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	44661 MB/s -11%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	41969 MB/s -16%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	37840 MB/s -25%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	35423 MB/s -29%

AIDA64 / Memory Read
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	51077 MB/s
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	49936 MB/s -2%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	49559 MB/s -3%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	46906 MB/s -8%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	46644 MB/s -9%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	44775 MB/s -12%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	42996 MB/s -16%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	40348 MB/s -21%

AIDA64 / Memory Write
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	55194 MB/s
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	54750 MB/s -1%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	46815 MB/s -15%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	46454 MB/s -16%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	46223 MB/s -16%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	41806 MB/s -24%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	39154 MB/s -29%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	35371 MB/s -36%

AIDA64 / Memory Latency
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	101.5 ns * -10%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	100 ns * -8%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	92.7 ns * -0%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	92.4 ns *
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	83 ns * +10%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	74.2 ns * +20%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	73.5 ns * +20%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	69 ns * +25%

* ... Meglio usare valori piccoli

Latenza DPC

Utilizzando lo strumento LatencyMon, abbiamo già misurato un leggero aumento delle latenze quando si aprono più schede del browser. La riproduzione di video 4K e l'utilizzo di Prime95 non hanno comportato ulteriori aumenti.

Latenza massima quando si aprono più schede del browser e si riproducono video 4K

Latenza massima dopo 10 secondi di Prime95

Driver classificati in base alla durata di esecuzione più lunga

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1867 μs * -42%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	1625 μs * -23%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1488 μs * -13%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1317 μs *
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1113.9 μs * +15%
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	961.5 μs * +27%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	779 μs * +41%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	659.1 μs * +50%

* ... Meglio usare valori piccoli

Dispositivi di archiviazione

Il nostro campione Morefine M600 è stato equipaggiato con un'unità SSD da 1 TB di Crucial, in particolare il Crucial P3 Plus. I lettori più attenti noteranno che in realtà abbiamo eseguito i nostri benchmark utilizzando un'altra unità SSD. Durante il nostro test, l'unità SSD integrata si è guastata e quindi abbiamo dovuto utilizzare un modello diverso. Il Kingston KC3000 è anche un'unità SSD PCle 4.0 NMVe. Nel nostro test abbiamo misurato buone velocità di trasferimento, con alcuni punti deboli per quanto riguarda l'output continuo.

Il Morefine M600 può essere dotato di un massimo di 3 unità SSD ed è anche possibile collegare un'unità da 2,5 pollici sotto il coperchio del PC, ma l'unità non può superare i 9 millimetri di altezza. Come già detto, il cavo necessario è incluso nella fornitura.

Per ulteriori confronti e benchmark, date un'occhiata alla nostra tabella di confronto.

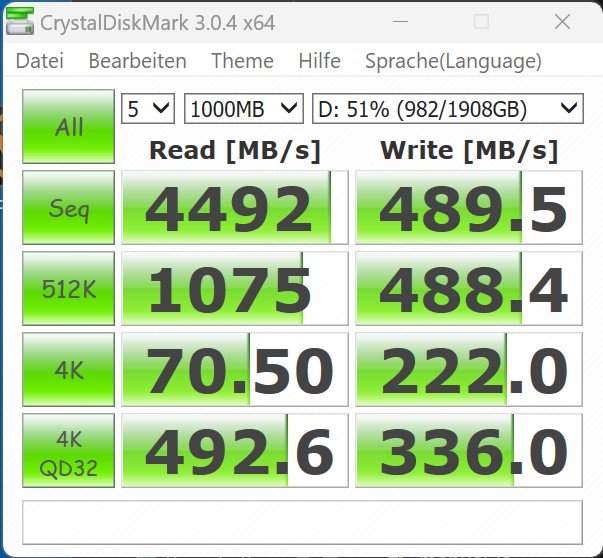

CrystalDiskMark 3.0

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Kingston KC3000 2048G SKC3000D2048G

Sequential Read: 4492 MB/s

Sequential Write: 489.5 MB/s

512K Read: 1075 MB/s

512K Write: 488.4 MB/s

4K Read: 70.5 MB/s

4K Write: 222 MB/s

4K QD32 Read: 492.6 MB/s

4K QD32 Write: 336 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	86.2 pt
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	82.1 pt
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	66.9 pt
Media della classe Mini PC	52.6 pt
Morefine S600-Apex Engineer ^-8! Crucial P1 SSD CT1000P1SSD8	47.8 pt
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	41.8 pt
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	40 pt
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	34.9 pt
Morefine S500+ ADATA XPG Gammix S11L 1024GB	31.2 pt

DiskSpd
seq read
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3195 (3147.62^min - 3194.91^max) MB/s +172%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2815 (2802.79^min - 2814.97^max) MB/s +139%
Media della classe Mini PC (233 - 4357, n=119, ultimi 2 anni)	2288 MB/s +95%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2184 (2176.42^min - 2183.52^max) MB/s +86%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2034 (2023.33^min - 2033.61^max) MB/s +73%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	1790 (1744.2^min - 1789.7^max) MB/s +52%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1713 (1703.57^min - 1712.81^max) MB/s +46%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1176 (1169.13^min - 1175.87^max) MB/s
seq write
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3539 (3516.6^min - 3538.94^max) MB/s +131%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3402 (3372.67^min - 3402.21^max) MB/s +122%
Media della classe Mini PC (222 - 5595, n=119, ultimi 2 anni)	2448 MB/s +60%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1681.49^min - 1789.9^max) MB/s +17%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1530 (603.77^min - 1530.08^max) MB/s
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1277 (1270.04^min - 1277.38^max) MB/s -17%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1185 (1181.38^min - 1184.95^max) MB/s -23%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	984 (154.77^min - 984.48^max) MB/s -36%
seq q8 t1 read
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	4820 (3819.87^min - 4820.3^max) MB/s +143%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	4801 (4506.78^min - 4800.59^max) MB/s +142%
Media della classe Mini PC (236 - 8430, n=119, ultimi 2 anni)	3706 MB/s +87%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2525 (2269.25^min - 2525.2^max) MB/s +27%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	2378 (2126.78^min - 2378.31^max) MB/s +20%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	2273 (1501.91^min - 2273.31^max) MB/s +14%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2167 (2086.44^min - 2166.57^max) MB/s +9%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1987 (1409.4^min - 1987.27^max) MB/s
seq q8 t1 write
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3536 (3475.82^min - 3536.01^max) MB/s +226%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3402 (3374.28^min - 3401.67^max) MB/s +214%
Media della classe Mini PC (228 - 6669, n=119, ultimi 2 anni)	2743 MB/s +153%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1687.16^min - 1790.13^max) MB/s +65%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	1758 (161.06^min - 1758.04^max) MB/s +62%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1316 (1309.25^min - 1315.54^max) MB/s +21%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1200 (1191.05^min - 1200.08^max) MB/s +11%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1084 (553.02^min - 1084.16^max) MB/s
4k q1 t1 read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	82.1 (81.4^min - 82.09^max) MB/s +69%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	70.8 (63.28^min - 70.81^max) MB/s +46%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	63 (57.2^min - 63.02^max) MB/s +30%
Media della classe Mini PC (5.67 - 86.6, n=119, ultimi 2 anni)	54.7 MB/s +13%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	48.5 (48.27^min - 48.47^max) MB/s
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	45.1 (43.96^min - 45.09^max) MB/s -7%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	44.4 (44.23^min - 44.37^max) MB/s -8%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	29.5 (29.27^min - 29.48^max) MB/s -39%
4k q1 t1 write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	425 (415.92^min - 425.01^max) MB/s +93%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	288 (287.39^min - 288.47^max) MB/s +31%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	220 (212.2^min - 220.15^max) MB/s
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	199.5 (150.75^min - 199.48^max) MB/s -9%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	196.3 (179.94^min - 196.31^max) MB/s -11%
Media della classe Mini PC (30.4 - 435, n=119, ultimi 2 anni)	194.7 MB/s -11%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	160 (158.59^min - 159.95^max) MB/s -27%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	138 (136.12^min - 137.6^max) MB/s -37%
4k q32 t16 read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	1944 (1936.89^min - 1943.53^max) MB/s +449%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	1933 (1926.8^min - 1932.75^max) MB/s +446%
Media della classe Mini PC (26.1 - 4158, n=119, ultimi 2 anni)	1360 MB/s +284%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1063 (1053.81^min - 1062.87^max) MB/s +200%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1005 (1003.31^min - 1005.12^max) MB/s +184%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	803 (785.8^min - 802.75^max) MB/s +127%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	354 (11.43^min - 353.56^max) MB/s
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	350 (213.46^min - 349.65^max) MB/s -1%
4k q32 t16 write
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3331 (2068.43^min - 3331.41^max) MB/s +273%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2396 (2376.28^min - 2396.46^max) MB/s +168%
Media della classe Mini PC (30.2 - 4288, n=119, ultimi 2 anni)	1287 MB/s +44%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1032 (1014.5^min - 1032.27^max) MB/s +16%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	893 (601.78^min - 892.97^max) MB/s
Morefine S500+ ADATA XPG Gammix S11L 1024GB	890 (860.72^min - 889.72^max) MB/s 0%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	774 (725.33^min - 774.03^max) MB/s -13%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	561 (408.83^min - 561.15^max) MB/s -37%

AS SSD
Score Total
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	9030 Points
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	7134 Points -21%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	6665 Points -26%
Media della classe Mini PC (181.5 - 10021, n=117, ultimi 2 anni)	4121 Points -54%
Morefine S600-Apex Engineer Crucial P1 SSD CT1000P1SSD8	4023 Points -55%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2887 Points -68%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	2722 Points -70%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2248 Points -75%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	1340 Points -85%
Score Read
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3635 Points
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2391 Points -34%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	2352 Points -35%
Media della classe Mini PC (61 - 3741, n=117, ultimi 2 anni)	1534 Points -58%
Morefine S600-Apex Engineer Crucial P1 SSD CT1000P1SSD8	1365 Points -62%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1152 Points -68%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1000 Points -72%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	855 Points -76%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	655 Points -82%
Score Write
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3615 Points
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3538 Points -2%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3145 Points -13%
Morefine S600-Apex Engineer Crucial P1 SSD CT1000P1SSD8	1959 Points -46%
Media della classe Mini PC (88 - 4371, n=117, ultimi 2 anni)	1851 Points -49%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1251 Points -65%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1169 Points -68%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	992 Points -73%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	406 Points -89%
Seq Read
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	5338 MB/s
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	4147 MB/s -22%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	4050 MB/s -24%
Media della classe Mini PC (291 - 6620, n=117, ultimi 2 anni)	3161 MB/s -41%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	2723 MB/s -49%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	2303.9 MB/s -57%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2204 MB/s -59%
Morefine S600-Apex Engineer Crucial P1 SSD CT1000P1SSD8	2133 MB/s -60%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2048 MB/s -62%
Seq Write
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3927 MB/s
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3292 MB/s -16%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3025 MB/s -23%
Media della classe Mini PC (240 - 5783, n=117, ultimi 2 anni)	2212 MB/s -44%
Morefine S600-Apex Engineer Crucial P1 SSD CT1000P1SSD8	1699 MB/s -57%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1603 MB/s -59%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	1405 MB/s -64%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1254 MB/s -68%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1145 MB/s -71%
4K Read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	103.66 MB/s +56%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	86.05 MB/s +29%
Morefine S600-Apex Engineer Crucial P1 SSD CT1000P1SSD8	77.46 MB/s +16%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	66.6 MB/s
Media della classe Mini PC (6.08 - 104.3, n=117, ultimi 2 anni)	58.9 MB/s -12%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	57.87 MB/s -13%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	39.71 MB/s -40%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	34.41 MB/s -48%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	27.6 MB/s -59%
4K Write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	365.87 MB/s +75%
Morefine S600-Apex Engineer Crucial P1 SSD CT1000P1SSD8	247.2 MB/s +18%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	240.66 MB/s +15%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	209 MB/s
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	185.32 MB/s -11%
Media della classe Mini PC (30.9 - 366, n=117, ultimi 2 anni)	175.1 MB/s -16%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	152.35 MB/s -27%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	121.3 MB/s -42%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	100.35 MB/s -52%
4K-64 Read
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3035 MB/s
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	1872.82 MB/s -38%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	1860.96 MB/s -39%
Media della classe Mini PC (23.4 - 3220, n=117, ultimi 2 anni)	1159 MB/s -62%
Morefine S600-Apex Engineer Crucial P1 SSD CT1000P1SSD8	1073.73 MB/s -65%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	891.59 MB/s -71%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	711.88 MB/s -77%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	622 MB/s -80%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	348.68 MB/s -89%
4K-64 Write
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3013 MB/s
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2842.9 MB/s -6%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	2602.12 MB/s -14%
Morefine S600-Apex Engineer Crucial P1 SSD CT1000P1SSD8	1541.66 MB/s -49%
Media della classe Mini PC (32.8 - 3731, n=117, ultimi 2 anni)	1455 MB/s -52%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	984.11 MB/s -67%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	823.51 MB/s -73%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	745 MB/s -75%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	164.61 MB/s -95%
Access Time Read
Morefine S500+ ADATA XPG Gammix S11L 1024GB	0.154 ms * -133%
Morefine S600-Apex Engineer Crucial P1 SSD CT1000P1SSD8	0.154 ms * -133%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	0.105 ms * -59%
Media della classe Mini PC (0.022 - 0.489, n=117, ultimi 2 anni)	0.09726 ms * -47%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	0.084 ms * -27%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	0.074 ms * -12%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	0.066 ms *
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	0.065 ms * +2%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	0.06 ms * +9%
Access Time Write
Media della classe Mini PC (0.014 - 0.765, n=117, ultimi 2 anni)	0.1153 ms * -541%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	0.103 ms * -472%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	0.103 ms * -472%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	0.035 ms * -94%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	0.031 ms * -72%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	0.031 ms * -72%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	0.029 ms * -61%
Morefine S600-Apex Engineer Crucial P1 SSD CT1000P1SSD8	0.026 ms * -44%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	0.018 ms *

* ... Meglio usare valori piccoli

Reading continuous output: DiskSpd Read Loop, Queue Depth 8

Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G: Ø1770 (1505.89-1954.62)

Morefine S500+ ADATA XPG Gammix S11L 1024GB: Ø2165 (2034.95-2173.28)

Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1: Ø2353 (2170.7-2362.34)

Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G: Ø2219 (1791.18-2464.68)

Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0: Ø3302 (1830.49-4799.45)

Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S: Ø2242 (1995.64-2278.98)

Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0: Ø2987 (1605.58-4819.04)

Scheda grafica

Gli altri test hanno già contribuito a delineare un quadro dellaAMD Radeon 680Mcome iGPU Rembrandt-SoC. Con Morefine M600, abbiamo anche osservato una grande vittoria in termini di prestazioni rispetto a Morefine S500+ Morefine S500+con una vecchia Radeon RX Vega 8 di AMD. Confrontandolo con la Minisforum Neptune Series NAD9rende chiaro che questo era davvero necessario.

Grazie alla sua porta Thunderbolt, abbiamo analizzato le sue prestazioni in combinazione con il Razer Core X e con una Nvidia GeForce RTX 3060 Ti. Tuttavia, a causa della minore connettività PCI Express della scheda grafica desktop, le sue prestazioni sono state in qualche modo limitate. Tuttavia, le prestazioni 3D dell'iGPU sono aumentate notevolmente. I nostri test sintetici hanno mostrato risultati simili a quelli dei concorrenti di Morefine M600. Solo il Ace Magician TK11-A0 è rimasto un po' indietro a causa della sua CPU più lenta.

Potete trovare altri benchmark AMD Radeon 680Mqui.

AMD Radeon 680M

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	99.1 pt
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	98 pt
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	72.5 pt
Morefine S600-Apex Engineer Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	71.9 pt
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	64.3 pt
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	63.8 pt
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	51.6 pt
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	50.7 pt

3DMark 11 - 1280x720 Performance GPU
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	11055 Points
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	10845 Points -2%
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	7122 Points -36%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	7057 Points -36%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	6840 Points -38%
Morefine S600-Apex Engineer Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	6687 Points -40%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	5777 Points -48%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	5565 Points -50%

3DMark
1280x720 Cloud Gate Standard Graphics
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	43275 Points +5%
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	41124 Points
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	32899 Points -20%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	30434 Points -26%
Morefine S600-Apex Engineer Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	30433 Points -26%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	26183 Points -36%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	21114 Points -49%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	20432 Points -50%
1920x1080 Fire Strike Graphics
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	6679 Points +1%
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	6644 Points
Morefine S600-Apex Engineer Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	5543 Points -17%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	5526 Points -17%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	4883 Points -27%
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	4369 Points -34%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	3725 Points -44%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	3379 Points -49%
2560x1440 Time Spy Graphics
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	2408 Points
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	2351 Points -2%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	1658 Points -31%
Morefine S600-Apex Engineer Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	1633 Points -32%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	1630 Points -32%
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	1412 Points -41%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	1150 Points -52%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	1109 Points -54%
Fire Strike Extreme Graphics
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	3206 Points +5%
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	3066 Points
Morefine S600-Apex Engineer Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	2498 Points -19%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	2455 Points -20%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	2161 Points -30%
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	1823 Points -41%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	1735 Points -43%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	1509 Points -51%

Performance Rating | Unigine Heaven 4.0 | Unigine Valley 1.0 | Unigine Superposition | ComputeMark v2.1

Performance Rating - Percent
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	98.4 pt
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	91.6 pt
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	64.4 pt
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	61.2 pt
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	61.2 pt
Intel NUC 12 Pro Kit NUC12WSKi7 ^-2! Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	59.2 pt
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	50.8 pt
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	47.6 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	34.6 fps +3%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	33.6 fps
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	24.1 fps -28%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	23.3 fps -31%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	22.2 fps -34%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	19.6 fps -42%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	17.3 fps -49%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	14.9 fps -56%
Extreme Preset DX11
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	33.4 fps +4%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	32.2 fps
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	24.7 fps -23%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	24 fps -25%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	22.5 fps -30%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	21.4 fps -34%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	17.7 fps -45%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	16.8 fps -48%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	21 fps
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	18.8 fps -10%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	15.5 fps -26%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	14.3 fps -32%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	14.2 fps -32%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	13.6 fps -35%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	11.5 fps -45%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	10.6 fps -50%
1920x1080 Extreme HD Preset OpenGL AA:x8
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	22.8 fps
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	21.3 fps -7%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	16.4 fps -28%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	16.2 fps -29%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	15.2 fps -33%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	13.7 fps -40%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	12.8 fps -44%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	9.2 fps -60%

Unigine Superposition
1920x1080 1080p High
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	3187 Points +9%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	2916 Points
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	2191 Points -25%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	2095 Points -28%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	1926 Points -34%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	1579 Points -46%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	1530 Points -48%
1920x1080 1080p Extreme
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	1481 Points +9%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1358 Points
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	1076 Points -21%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	1041 Points -23%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	868 Points -36%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	776 Points -43%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	736 Points -46%

ComputeMark v2.1
1024x600 Normal, Score
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	7111 Points +22%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	5813 Points
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	4148 Points -29%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	3843 Points -34%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	3535 Points -39%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	3390 Points -42%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	3343 Points -42%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	2693 Points -54%
1024x600 Normal, Fluid 3DTex
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	400 Points +8%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	371 Points
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	298 Points -20%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	276 Points -26%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	235 Points -37%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	234 Points -37%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	224 Points -40%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	186 Points -50%
1024x600 Normal, Fluid 2DTexArr
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	404 Points +10%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	367 Points
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	286 Points -22%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	272 Points -26%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	249 Points -32%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	242 Points -34%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	220 Points -40%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	204 Points -44%
1024x600 Normal, Mandel Vector
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	2030 Points +21%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1677 Points
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	1280 Points -24%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	1217 Points -27%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	891 Points -47%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	851 Points -49%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	808 Points -52%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	558 Points -67%
1024x600 Normal, QJuliaRayTrace
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	2332 Points +21%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1924 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	1303 Points -32%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	1205 Points -37%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	1191 Points -38%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	1123 Points -42%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	1115 Points -42%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	994 Points -48%

Nvidia GeForce RTX 3060 Ti via Thunderbolt 3

Performance Rating | 3DMark 11 | 3DMark

Performance Rating - Percent
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	99.9 pt
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	98.6 pt
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	97.1 pt
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	95.9 pt

3DMark 11 - 1280x720 Performance GPU
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	33425 Points +202%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	32915 Points +198%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	32726 Points +196%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	32630 Points +195%
	11055 Points

3DMark
1280x720 Cloud Gate Standard Graphics
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	121918 Points +196%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	118686 Points +189%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	116516 Points +183%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	112625 Points +174%
	41124 Points
1920x1080 Fire Strike Graphics
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	25071 Points +277%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	24905 Points +275%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	24360 Points +267%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	24193 Points +264%
	6644 Points
2560x1440 Time Spy Graphics
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	11032 Points +358%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	10777 Points +348%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	10717 Points +345%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	10530 Points +337%
	2408 Points
Fire Strike Extreme Graphics
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	13299 Points +334%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	13264 Points +333%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	13007 Points +324%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	12943 Points +322%
	3066 Points

Unigine Heaven 4.0 | Unigine Valley 1.0 | Unigine Superposition | ComputeMark v2.1

Unigine Heaven 4.0
Extreme Preset OpenGL
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	169.6 fps +405%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	167.3 fps +398%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	167.3 fps +398%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	142.1 fps +323%
	33.6 fps
Extreme Preset DX11
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	164.4 fps +411%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	154.5 fps +380%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	154.3 fps +379%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	135.3 fps +320%
	32.2 fps

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	141.6 fps +574%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	134.2 fps +539%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	131.7 fps +527%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	93.6 fps +346%
	21 fps
1920x1080 Extreme HD Preset OpenGL AA:x8
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	127.2 fps +458%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	122.7 fps +438%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	122.2 fps +436%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	91.6 fps +302%
	22.8 fps

Unigine Superposition
1920x1080 1080p High
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	14751 Points +406%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	14698 Points +404%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	8142 Points +179%
	2916 Points
1920x1080 1080p Extreme
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	7036 Points +418%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	7035 Points +418%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	4171 Points +207%
	1358 Points

ComputeMark v2.1
1024x600 Normal, Score
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	27847 Points +379%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	27847 Points +379%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	27740 Points +377%
	5813 Points
1024x600 Normal, Fluid 3DTex
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	2698 Points +627%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	2691 Points +625%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	2679 Points +622%
	371 Points
1024x600 Normal, Fluid 2DTexArr
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	2629 Points +616%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	2622 Points +614%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	2619 Points +614%
	367 Points
1024x600 Normal, Mandel Vector
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	5711 Points +241%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	5689 Points +239%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	5655 Points +237%
	1677 Points
1024x600 Normal, QJuliaRayTrace
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	10539 Points +448%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	10536 Points +448%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	10532 Points +447%
	1924 Points

Prestazioni di gioco

Rispetto allaAMD Radeon RX Vega 8la nuova AMD Radeon 680Mha mostrato un notevole aumento delle prestazioni. Con alcune limitazioni nei dettagli, alcuni giochi attuali funzionano senza problemi, ma non sempre. Giocando a Borderlands 3 con livelli medi di dettaglio, siamo riusciti a raggiungere solo 35 FPS. Le prestazioni di gioco sono buone rispetto a quelle dei suoi concorrenti, anche se il Minisforum Venus Series UM690si è comportato un po' meglio nei nostri test. Rispetto ai concorrenti che utilizzano le attuali iGPU di Intel, la AMD Radeon 680Mha saputo farsi valere e a volte ha persino primeggiato.

Come nei nostri test sintetici, abbiamo analizzato le prestazioni di gioco del PC in combinazione con il Razer Core X e con una scheda Nvidia RTX 30 Nvidia GeForce RTX 3060 Ti. Le prestazioni 3D sono aumentate in modo significativo con l'uso di Thunderbolt e dei relativi accessori. Rispetto ai suoi concorrenti, che abbiamo testato nello stesso modo, il nostro campione di prova ha fatto un ottimo lavoro. L'Intel NUC 12 Pro è riuscito a ottenere prestazioni migliori grazie alla sua CPU veloce. Di conseguenza, le prestazioni 3D dei giochi testati sono migliorate del 153% rispetto al Morefine M600 basato su iGPU.

Per ulteriori confronti e benchmark, date un'occhiata al nostro Elenco dei giochi con GPU.

AMD Radeon 680M

The Witcher 3
1024x768 Low Graphics & Postprocessing
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	131.8 fps +16%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	113.9 fps
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	97.6 (8.8^min, 27.5^P0.1, 58.5^P1) fps -14%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	97.2 fps -15%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	88.1 (3.39^min, 21.4^P0.1, 52.9^P1) fps -23%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	84.5 (18.4^min, 24^P0.1, 61.8^P1) fps -26%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	69 (13.2^min, 36.3^P0.1, 41.6^P1) fps -39%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	65.9 (1.678^min, 12.6^P0.1, 39.7^P1) fps -42%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	41.3 fps +5%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	39.4 fps
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	32.1 (3.28^min, 14.8^P0.1, 18.7^P1) fps -19%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	32 fps -19%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	25.6 (19.1^min, 20^P0.1, 22.1^P1) fps -35%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	23.7 (1.923^min, 13.5^P0.1, 19.7^P1) fps -40%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	19.3 (2.25^min, 2.26^P0.1, 2.92^P1) fps -51%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	15.2 (8.49^min, 8.73^P0.1, 9.27^P1) fps -61%

Borderlands 3
1280x720 Very Low Overall Quality (DX11)
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	90.7 fps
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	82.1 fps -9%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	72.7 fps -20%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	61 fps -33%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	59.1 fps -35%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	55.5 fps -39%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	52.4 fps -42%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	33.9 fps -63%
1920x1080 High Overall Quality (DX11)
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	26.5 fps +10%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	24.1 fps
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	17.7 fps -27%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	16.2 fps -33%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	15.7 fps -35%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	15 fps -38%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	14.8 fps -39%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	10.5 fps -56%

GTA V
1024x768 Lowest Settings possible
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	152.1 (2.73^min, 100^P1) fps
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	149.3 (5.43^min, 100^P1) fps -2%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	136 (6.37^min, 90.9^P1) fps -11%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	135.3 (26.7^min, 90.9^P1) fps -11%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	114.9 (9.31^min, 76.9^P1) fps -24%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	113.4 (25.6^min, 76.9^P1) fps -25%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	108.6 (21.4^min, 71.4^P1) fps -29%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	68.3 (18.7^min, 45.5^P1) fps -55%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	53.5 (3.46^min, 38.5^P1) fps
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	49.3 (7.78^min, 34.5^P1) fps -8%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	33.9 (11^min, 24.4^P1) fps -37%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	26.5 (10.4^min, 18.9^P1) fps -50%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	22.2 (5.57^min, 17.5^P1) fps -59%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	21 (8.15^min, 16.1^P1) fps -61%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	19.4 (8.25^min, 15.2^P1) fps -64%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	16.4 (5.82^min, 11.9^P1) fps -69%

Far Cry 5
1280x720 Low Preset AA:T
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	75 (60^min) fps
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	71 (39^min) fps -5%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	62 (57^min) fps -17%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	59 (53^min) fps -21%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	57 (49^min) fps -24%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	52 (45^min) fps -31%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	44 (19^min) fps -41%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	25 (19^min) fps -67%
1920x1080 High Preset AA:T
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	39 (34^min) fps +15%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	34 (30^min) fps
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	28 (25^min) fps -18%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	27 (24^min) fps -21%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	27 (24^min) fps -21%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	25 (23^min) fps -26%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	20 (10^min) fps -41%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	16 (13^min) fps -53%

Far Cry New Dawn
1280x720 Low Preset
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	66 (50^min) fps
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	65 (50^min) fps -2%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	56 (43^min) fps -15%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	53 (31^min) fps -20%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	52 (31^min) fps -21%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	47 (30^min) fps -29%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	42 (33^min) fps -36%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	29 (19^min) fps -56%
1920x1080 High Preset
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	37 (17^min) fps 0%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	37 (29^min) fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	28 (21^min) fps -24%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	27 (21^min) fps -27%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	26 (21^min) fps -30%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	26 (19^min) fps -30%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	19 (6^min) fps -49%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	15 (12^min) fps -59%

Dota 2 Reborn
1280x720 min (0/3) fastest
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	143 (124.5^min) fps +7%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	141 (113.7^min) fps +6%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	137.4 (117.3^min) fps +3%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	136.9 (106.8^min) fps +3%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	133.4 (119^min) fps
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	124.2 (110.5^min) fps -7%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	116.4 (93.7^min) fps -13%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	79.1 (53.9^min) fps -41%
1920x1080 high (2/3)
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	84.3 (74.6^min) fps +3%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	82.2 (71.4^min) fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	68 (62.7^min) fps -17%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	67 (61.5^min) fps -18%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	66.7 (61^min) fps -19%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	63.1 (57.2^min) fps -23%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	51.7 (47.2^min) fps -37%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	43.4 (31.3^min) fps -47%

	basso	medio	alto	ultra
GTA V (2015)	152.1	140.4	53.5	24.1
The Witcher 3 (2015)	113.9	72.7	39.4	25
Dota 2 Reborn (2015)	133.4	110.4	82.2	71.8
Final Fantasy XV Benchmark (2018)	59.5	31	23.4
X-Plane 11.11 (2018)	63.5	50.7	41.3
Far Cry 5 (2018)	75	41	34	36
Strange Brigade (2018)	140.4	57.8	47.9	41.3
Shadow of the Tomb Raider (2018)	92	39.8	35.4	29.9
Far Cry New Dawn (2019)	66	39	37	34
Metro Exodus (2019)	65.8	27.2	20.2	16.4
Borderlands 3 (2019)	90.7	34.8	24.1	19.6
F1 2020 (2020)	166.9	80.9	63.7	43.9
F1 2021 (2021)	175.3	82.1	63.5	26.6
Far Cry 6 (2021)	78.4	38.7	33.1	28.6
GRID Legends (2022)	84.5	62.9	48	38
Cyberpunk 2077 1.6 (2022)	50.6	41.8	33.6	18.9
Tiny Tina's Wonderlands (2022)	44.7	35.3	23.5	18.7
F1 22 (2022)	74.3	65.4	48.4	12.2

Nvidia GeForce RTX 3060 Ti via Thunderbolt 3

Performance Rating - Percent
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	97.3 pt
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	85.5 pt
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	84.7 pt
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	73.8 pt
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	33.5 pt

GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	90.5 (15.8^min, 62.5^P1 - 187.2^max) fps +276%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	89.5 (16.6^min, 58.8^P1 - 175.8^max) fps +271%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	85.1 (17.4^min, 52.6^P1 - 186.7^max) fps +253%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	56.1 (15.7^min, 38.5^P1 - 119.1^max) fps +133%
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	24.1 (2.82^min, 16.9^P1 - 72.5^max) fps

The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	75.3 (40.5^min, 52.6^P0.1, 59.5^P1 - 173.3^max) fps +201%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	60.8 (40.3^min, 43^P0.1, 46.6^P1 - 140.7^max) fps +143%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	57.9 fps +132%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	56.3 fps +125%
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	25 fps

Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	134.5 (115.1^min) fps +87%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	113.3 (94.8^min) fps +58%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	111.7 (92.8^min) fps +56%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	92.8 (79.9^min) fps +29%
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	71.8 (61.8^min) fps

Final Fantasy XV Benchmark - 1920x1080 High Quality
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	97.6 fps +317%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	92.2 fps +294%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	91.5 fps +291%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	79 fps +238%
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	23.4 fps

Strange Brigade - 1920x1080 ultra AA:ultra AF:16
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	148.8 (78.4^min, 90.6^P1 - 285^max) fps +260%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	131.1 (68.1^min, 78.3^P1 - 270^max) fps +217%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	127.4 (45.3^min, 77.9^P1 - 260^max) fps +208%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	114.7 (58.8^min, 72.4^P1 - 210^max) fps +178%
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	41.3 (30.4^min, 32.8^P1 - 70^max) fps

Far Cry 5 - 1920x1080 Ultra Preset AA:T
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	120 (92^min - 158^max) fps +233%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	107 (72^min - 143^max) fps +197%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	104 (77^min - 138^max) fps +189%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	60 (46^min - 78^max) fps +67%
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	36 (32^min - 44^max) fps

Far Cry New Dawn - 1920x1080 Ultra Preset
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	101 (74^min - 147^max) fps +197%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	88 (63^min - 132^max) fps +159%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	87 (62^min - 135^max) fps +156%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	54 (39^min - 85^max) fps +59%
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	34 (26^min - 42^max) fps

F1 2020 - 1920x1080 Ultra High Preset AA:T AF:16x
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	102.7 (53^min - 145^max) fps +134%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	86.7 (48^min - 122^max) fps +97%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	82.4 (39^min - 117^max) fps +88%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	81.5 (43^min - 107^max) fps +86%
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	43.9 (34^min - 54^max) fps

F1 2021 - 1920x1080 Ultra High Preset + Raytracing AA:T AF:16x
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	65.4 (47^min, 47^P1 - 73^max) fps +146%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	51.7 (34^min, 24^P1 - 59^max) fps +94%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	44 (9^min, 20^P1 - 52^max) fps +65%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	43.5 (10^min, 19^P1 - 51^max) fps +64%
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	26.6 (19^min, 19^P1 - 30^max) fps

Borderlands 3 - 1920x1080 Badass Overall Quality (DX11)
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	83.6 fps +327%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	76.4 fps +290%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	71.3 fps +264%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	69.8 fps +256%
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	19.6 fps

	basso	medio	alto	ultra	QHD	4K
GTA V (2015)	174.2	169.1	151.9	89.5	58.5	96.9
The Witcher 3 (2015)	210.1	143.7	108.7	56.3		60.9
Dota 2 Reborn (2015)	140.6	126.4	120	111.7		96.5
Final Fantasy XV Benchmark (2018)	174.9	132.2	92.2		73.6	46.5
X-Plane 11.11 (2018)	106.7	94	76			66.3
Far Cry 5 (2018)	132	115	111	104	90	56
Strange Brigade (2018)	173	134.5	132.9	131.1	119.6	79.5
Shadow of the Tomb Raider (2018)	117.6	91.6	89.4	86.8	77.3	51.4
Far Cry New Dawn (2019)	114	101	98	87	81	57
Metro Exodus (2019)	113.9	76.7	58.6	44	39.2	30
Borderlands 3 (2019)	87.2	96.2	84.3	69.8	55.1	32.8
F1 2020 (2020)	174.6	95.9	106.1	86.7	74.9	53.1
F1 2021 (2021)	117.5	91.1	57.6	44	38.9	34.5
Far Cry 6 (2021)	62.6	53.3	44.1	37.8	37.2	0.8
GRID Legends (2022)	98.7	83.7	69.1	59.3	53.1	43.9
Cyberpunk 2077 1.6 (2022)	82.8	80.7	72.9	60.7	43	23.1
Tiny Tina's Wonderlands (2022)	154.1	125.5	92.2	74.8	58.2	35
F1 22 (2022)	49.4	44.9	35.2	20.5	22	16.9

Emissioni - economiche, ma comunque udibili

Emissioni acustiche

Come si vede nelMorefine S600 Apex Engineer, il Morefine M600 è dotato di un sistema di raffreddamento simile, in grado di funzionare in modo relativamente silenzioso grazie al suo SoC economico. A vuoto, il dispositivo è molto silenzioso e abbiamo misurato 37,5 dB(A) a medio carico. Le emissioni acustiche del Morefine M600 sono quindi udibili, ma sono del tutto accettabili rispetto ai suoi concorrenti.

Rumorosità

Idle		30.9 / 31.5 / 31.5 dB(A)
Sotto carico		37.5 / 34.1 dB(A)

	30 dB silenzioso 40 dB(A) udibile 50 dB(A) rumoroso
min: , med: , max: Earthworks M23R, Arta (15 cm di distanza) Rumorosità ambientale: 30.4 dB(A)

	Morefine M600, 6900HX R9 6900HX, Radeon 680M	Minisforum Venus Series UM690 R9 6900HX, Radeon 680M	Morefine S600-Apex Engineer i9-12900HK, Iris Xe G7 96EUs	Morefine S500+ R9 5900HX, Vega 8	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	Intel NUC 12 Pro Kit NUC12WSKi7 i7-1260P, Iris Xe G7 96EUs	Minisforum EliteMini B550 R7 5700G, Vega 8	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs
Noise		1%	-16%	-9%	6%	-8%	4%	-3%
off /ambiente *	30.4	30.5 -0%	29.6 3%	30.1 1%	30.2 1%	30.4 -0%	30.2 1%	30.28 -0%
Idle Minimum *	30.9	31.6 -2%	36.1 -17%		30.5 1%	33.1 -7%	30.5 1%	31.82 -3%
Idle Average *	31.5	31.6 -0%	37.6 -19%	33.15 -5%	30.5 3%	33.1 -5%	30.5 3%	32.27 -2%
Idle Maximum *	31.5	31.6 -0%	39.2 -24%		30.5 3%	33.1 -5%	30.5 3%	33.17 -5%
Load Average *	37.5	33.9 10%	42.6 -14%		30.5 19%	38.1 -2%	31.2 17%	35.82 4%
Load Maximum *	34.1	34.4 -1%	42.4 -24%	41.63 -22%	30.5 11%	43.6 -28%	35.1 -3%	37.1 -9%

* ... Meglio usare valori piccoli

Temperatura

Il case del Morefine M600 si riscalda solo leggermente, il che significa che il calore viene efficacemente convogliato all'esterno. Nel AMD Ryzen 9 6900HXdi AMD Ryzen 9 6900HX (che simula uno scenario estremo), abbiamo rilevato una temperatura massima di 90,9°C.

Adattatore di alimentazione di Morefine M600 durante lo stress test

Consumo di energia

Rispetto alle prestazioni del Morefine M600, il suo consumo energetico è stato molto ridotto. Questo vantaggio vale per tutti i mini PC del nostro confronto. Rispetto al Morefine S600 Apex Engineeril produttore è riuscito a migliorare drasticamente il consumo energetico a vuoto. Con un consumo di soli 9,9-11,2 watt, il nostro esemplare era all'incirca allo stesso livello di quello delMinisforum Venus Series UM690. Sotto carico, il Morefine M600 ha un consumo leggermente superiore rispetto ai suoi concorrenti. Insieme allaMinisforum Neptune Series NAD9e ilMinisforum EliteMini B550ha momentaneamente superato la soglia dei 100 watt.

Il suo alimentatore da 120 watt non ha mai faticato ad alimentare il PC.

adattatore di alimentazione da 120 watt (in alto)

adattatore di alimentazione da 120 watt (in basso)

Consumo di corrente

Off / Standby	1.6 / 2.2 Watt
Idle	9.9 / 11 / 11.2 Watt
Sotto carico	74.2 / 103.2 Watt


Leggenda: min: , med: , max: Metrahit Energy

	Morefine M600, 6900HX R9 6900HX, Radeon 680M	Minisforum Venus Series UM690 R9 6900HX, Radeon 680M	Morefine S600-Apex Engineer i9-12900HK, Iris Xe G7 96EUs	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	Intel NUC 12 Pro Kit NUC12WSKi7 i7-1260P, Iris Xe G7 96EUs	Morefine S500+ R9 5900HX, Vega 8	Minisforum EliteMini B550 R7 5700G, Vega 8	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	Media AMD Radeon 680M	Media della classe Mini PC
Power Consumption		10%	-267%	-21%	-5%	20%	-3%	47%	24%	-1%
Idle Minimum *	9.9	8.7 12%	46.5 -370%	12.1 -22%	12.1 -22%	8.1 18%	8.9 10%	3.4 66%	6.7 ?(2.2 - 10.8, n=32) 32%	9.48 ?(1.9 - 45.7, n=119, ultimi 2 anni) 4%
Idle Average *	11	9.6 13%	63 -473%	13 -18%	12.2 -11%	8.4 24%	9.6 13%	5.7 48%	8.73 ?(4.4 - 12.8, n=32) 21%	11.5 ?(1.9 - 47.5, n=117, ultimi 2 anni) -5%
Idle Maximum *	11.2	10.5 6%	68.9 -515%	18.2 -63%	12.3 -10%	11.9 -6%	11.8 -5%	7 37%	10.3 ?(5.1 - 18.6, n=32) 8%	14.9 ?(2.6 - 57.1, n=119, ultimi 2 anni) -33%
Load Average *	74.2	65.8 11%	73.9 -0%	70.6 5%	64 14%	47.1 37%	98.9 -33%	36.5 51%	53.1 ?(20 - 77.7, n=32) 28%	57.4 ?(11.3 - 170.6, n=119, ultimi 2 anni) 23%
Load Maximum *	103.2	94.5 8%	80.8 22%	113 -9%	98.8 4%	72.9 29%	101.8 1%	68 34%	70.3 ?(48 - 103.2, n=32) 32%	97.5 ?(18.1 - 423, n=119, ultimi 2 anni) 6%

* ... Meglio usare valori piccoli

Power consumption with external monitor

Morefine M600, 6900HX; Prime95 V2810 Stress (external Monitor): Ø73.7 (67.6-103.2)

Morefine M600, 6900HX; Cinebench R15 Multi (external Monitor): Ø83.2 (76.2-92.8)

Morefine M600, 6900HX; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø80.2 (74-97.8)

Morefine M600, 6900HX; 1920x1080 The Witcher 3 ultra (external Monitor): Ø74.7 (71.8-85.8)

Morefine M600, 6900HX; Idle 1min (external Monitor): Ø11.2 (10.9-12)

Pro

+ custodia robusta e compatta con materiali di alta qualità

+ design accattivante

+ buone prestazioni iPGU

+ numerose porte USB, tra cui Thunderbolt

+ fino a 3 SSD

+ possibilità di utilizzare fino a 3 display contemporaneamente

+ doppia LAN 2.5G

Contro

- nessun lettore di schede SD

- Prestazioni del SoC non superiori a quelle del predecessore

Verdetto - assolutamente adatto alla vita di tutti i giorni

Il Morefine M600 recensito, fornito da Morefine

Il Morefine M600 è un classico esempio di mini PC che conquista grazie alle sue finiture di alta qualità e alle ottime prestazioni. Dal punto di vista ottico, il dispositivo completamente nero non offre molti punti di forza, ma non importa. Con il suo AMD Ryzen 9 6900HXè un SoC a 8 core molto veloce con buone prestazioni dell'iGPU, nettamente superiori a quelle del modello Morefine S500+ci sono sicuramente alcuni giochi attuali che si possono giocare senza problemi sul PC senza dover rinunciare ai dettagli grafici. Tuttavia, non bisogna considerare il Morefine M600 come un PC da gioco completo. Le moderne opzioni di connettività, tra cui Thunderbolt 4, rendono il dispositivo a prova di futuro, anche se le prestazioni della CPU ristagnano rispetto al Morefine S500+.

Morefine M600 è un mini PC veloce con ottime opzioni di connettività. Grazie alla porta Thunderbolt 4, ha molte opportunità di essere spinto al massimo del suo potenziale.

Un leggero svantaggio del PC è il suo sistema di raffreddamento integrato, ma è comunque superiore a quello delMorefine S600 Apex Engineerquesto può essere attribuito al suo SoC leggermente più economico. IlMinisforum Venus Series UM690che abbiamo testato in precedenza, si è rivelato un mini PC con un equipaggiamento simile, che ha finito per funzionare in modo molto più silenzioso sotto carico.

Prezzi e disponibilità

Il Morefine M600 può essere attualmente acquistato direttamente dal produttore https://morefine.com/en-de/products/morefine-m600-mini-pc-amd-6900hx-6800u-6600u?variant=40036452466775i prezzi partono da 569 dollariper la versione barebone con AMD Ryzen 9 6900HX. Il modello più economico con Ryzen 5 parte da 388 dollari.

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Morefine M600, 6900HX - 03/25/2023 v7 ^(old)
Sebastian Bade

Chassis

87 / 98 → 89%

Connettività

63 / 81 → 78%

Peso

79%

Prestazioni di gioco

78%
