Intel NUC11 Essential Kit alias Atlas Canyon con recensione dell'Intel Pentium Silver N6005 e dell'Intel Celeron N4505

Name: Intel NUC11ATKPE, N6005
Brand: Intel

Sovraccarico rapido?

Il NUC11 Essential Kit di Intel è basato su un SoC Intel Jasper Lake ed è perfetto per il lavoro d'ufficio. Abbiamo dato un'occhiata da vicino al mini PC con un Intel Pentium Silver N6005 e un Intel Celeron N4505. In questa recensione, potete leggere ciò che entrambi i sistemi hanno da offrire.

Sebastian Bade (traduzione a cura di DeepL / Ninh Duy), Published 03/19/2023 🇺🇸 🇩🇪 ...

Desktop Intel Jasper Lake Mini PC

Kit essenziale Intel NUC11 - Atlas Canyon

Intel ha rilasciato la serie NUC 11 Essential Kit con lo pseudonimo di Atlas Canyon, che utilizza processori Jasper Lake. Le versioni barebone dei PC sono piuttosto convenienti. Al momento del test, il sistema con un processore Intel Celeron N4505costa circa 129 dollari e la versione dell'Intel NUC11 Essential Kit - Atlas Canyon con un processore Intel Pentium Silver N6005costa circa 229 dollari. I sistemi Barebone sono spesso venduti senza RAM e SSD, il che va tenuto presente quando si calcolano i costi. Anche la licenza per il sistema operativo non è inclusa nel prezzo. Per il nostro test, abbiamo installato 16 GB di RAM DDR4 e un'unità SSD da 512 GB in entrambi i dispositivi di prova.

I dispositivi di confronto, che hanno specifiche simili, sono elencati nella tabella seguente.

Intel NUC11ATKPE, N6005

Processore

Intel Pentium Silver N6005 4 x 2 - 3.3 GHz, 25 W PL2 / Short Burst, 15 W PL1 / Sustained, Jasper Lake

Scheda grafica

Intel UHD Graphics (Jasper Lake 32 EU)

Memoria

16 GB

, DDR4-2933, dual channel, 2 of 2 installed

Harddisk

WDC PC SN720 SDAPNTW-512G, 512 GB

, M.2 2280, NVMe

Scheda audio

Intel Jasper Lake PCH - cAVS Controller

Porte di connessione

2 USB 2.0, 4 USB 3.0 / 3.1, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Connessioni Audio: 2x 3.5 mm jack

Rete

Realtek Semiconductor RTL8168/8111 PCI-E Gigabit Ethernet NIC (10/100/1000MBit/s), Intel Wireless AC 9462 (b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 5.0

Dimensioni

altezza x larghezza x profondità (in mm): 36 x 135 x 115

Altre caratteristiche

36 Mesi Garanzia

Peso

530 gr, Alimentazione: 193 gr

Prezzo

250 EUR

Links

Intel homepage

Nota: il produttore potrebbe usare componenti di fornitori diversi pannelli dei diplay, drive o banchi di memoria con specifiche simili.

guarda tutte le specifiche

Intel NUC11ATKC2, N4505

Processore

Intel Celeron N4505 2 x 2 - 2.9 GHz, 15 W PL2 / Short Burst, 10 W PL1 / Sustained, Jasper Lake

Scheda grafica

Intel UHD Graphics (Jasper Lake 16 EU)

Memoria

16 GB

, DDR4-2933, Dual Channel, 2 von 2 installiert

Harddisk

WDC PC SN720 SDAPNTW-512G, 512 GB

, M.2 2280, NVMe

Scheda audio

Intel Jasper Lake PCH - cAVS Controller

Porte di connessione

2 USB 2.0, 4 USB 3.1 Gen 2, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Connessioni Audio: 2x 3,5mm Klinke

Rete

Realtek Semiconductor RTL8168/8111 PCI-E Gigabit Ethernet NIC (10/100/1000MBit/s), Intel Wireless AC 9462 (b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 5.0

Dimensioni

altezza x larghezza x profondità (in mm): 36 x 135 x 115

Altre caratteristiche

36 Mesi Garanzia

Peso

535 gr, Alimentazione: 197 gr

Prezzo

150 EUR

Links

Intel homepage

Nota: il produttore potrebbe usare componenti di fornitori diversi pannelli dei diplay, drive o banchi di memoria con specifiche simili.

guarda tutte le specifiche

Potenziali concorrenti a confronto

Punteggio	Data	Modello	Peso	Altezza
70.9 % v7 ^(old)	03/2023	Intel NUC11ATKPE, N6005 Pentium N6005, UHD Graphics (Jasper Lake 32 EU)	530 gr	36 mm
63.2 % v7 ^(old)	03/2023	Intel NUC11ATKC2, N4505 Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	535 gr	36 mm
65.9 % v7 ^(old)	01/2023	Minipc Union Ace Magician T8Pro Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	209 gr	43.5 mm
66.5 % v7 ^(old)		Geekom MiniAir 11 Special Edition Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	496 gr	34.2 mm
v ^(old)	02/2022	Newsmay AC8 N6005 Pentium N6005, UHD Graphics (Jasper Lake 32 EU)	534 gr	48 mm
v ^(old)	08/2021	AC6-M Mini-PC Celeron J4125, UHD Graphics 600		58 mm
68.2 % v7 ^(old)	03/2023	Minipc Union NiPoGi GK3PLUS - N95 N95, UHD Graphics 24EUs (Alder Lake-N)	381 gr	47 mm

Intel NUC11 Essential Kit - Atlas Canyon in dettaglio

Kit essenziale Intel NUC11 - Atlas Canyon (Intel Pentium Silver N6005)

Kit essenziale Intel NUC11 - Atlas Canyon (Intel Celeron N4505)

Caso

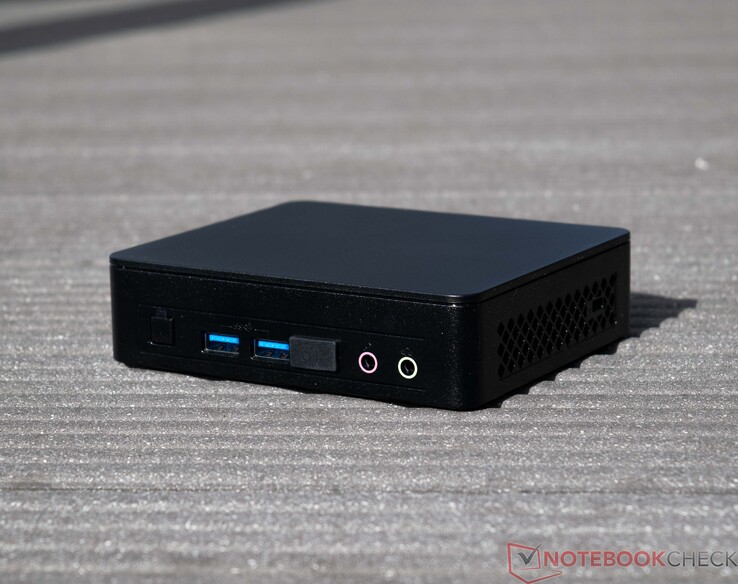

L'Intel NUC11 Essential Kit - Atlas Canyon è completamente nero e non presenta superfici brillanti. A prima vista, il case in plastica sembra un po' economico. Tuttavia, la sensazione tattile del case è molto migliore: il dispositivo è molto robusto grazie ai suoi supporti metallici interni. Questo aspetto è molto simile a quello di altri dispositivi della serie NUC e il produttore non fa eccezioni per l'Intel NUC11 Essential Kit - Atlas Canyon. Per quanto riguarda le dimensioni, possiamo notare una certa differenza rispetto agli altri modelli della serie. Il mini PC ha un ingombro di 13,5 x 11,5 centimetri: otticamente, questo dispositivo relativamente piccolo ricorda l'Intel NUC Pro Chassis Element. Tecnicamente, sono costruiti in modo molto diverso l'uno dall'altro. L'Intel NUC11 Essential Kit - Atlas Canyon può essere fissato a un monitor utilizzando il supporto VESA in dotazione.

Confronto delle dimensioni

Minipc Union NiPoGi GK3PLUS - N95 Newsmay AC8 N6005 Intel NUC11ATKPE, N6005 Intel NUC11ATKC2, N4505 Geekom MiniAir 11 Special Edition Minipc Union Ace Magician T8Pro DIN A5 ❌

Connettività

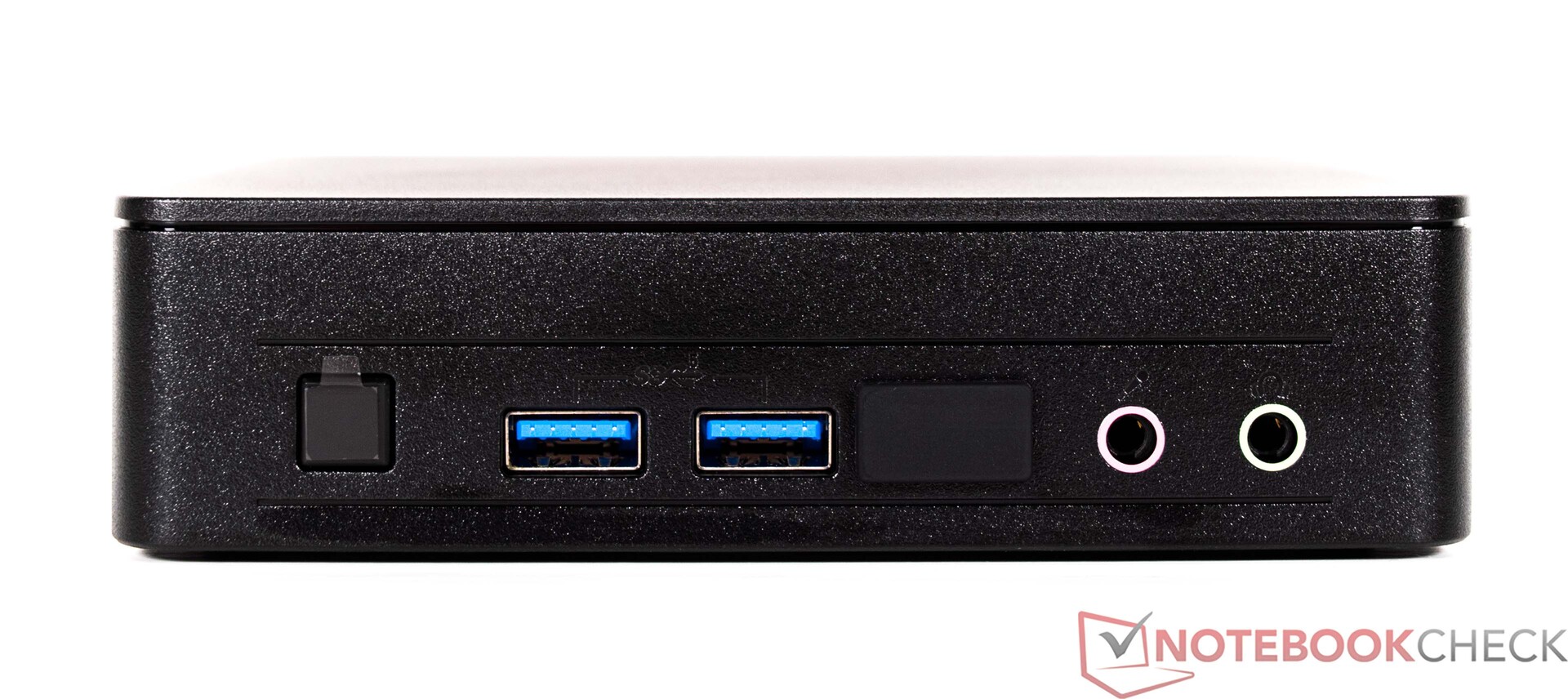

L'Intel NUC 11 Essential Kit - Atlas Canyon ha una connettività piuttosto standard per un mini PC di questa classe di dispositivi. Sei porte USB Type-A sono più che sufficienti per l'uso quotidiano. È possibile collegare i monitor tramite DisplayPort o HDMI. Entrambi i dispositivi hanno lo stesso equipaggiamento, per cui abbiamo evitato di presentarli separatamente.

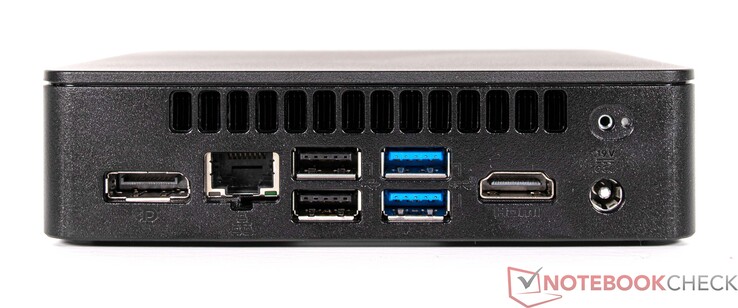

Retro: DisplayPort, GBit LAN, 2x USB 2.0, 2x USB 3.2, HDMI, alimentatore

Comunicazione

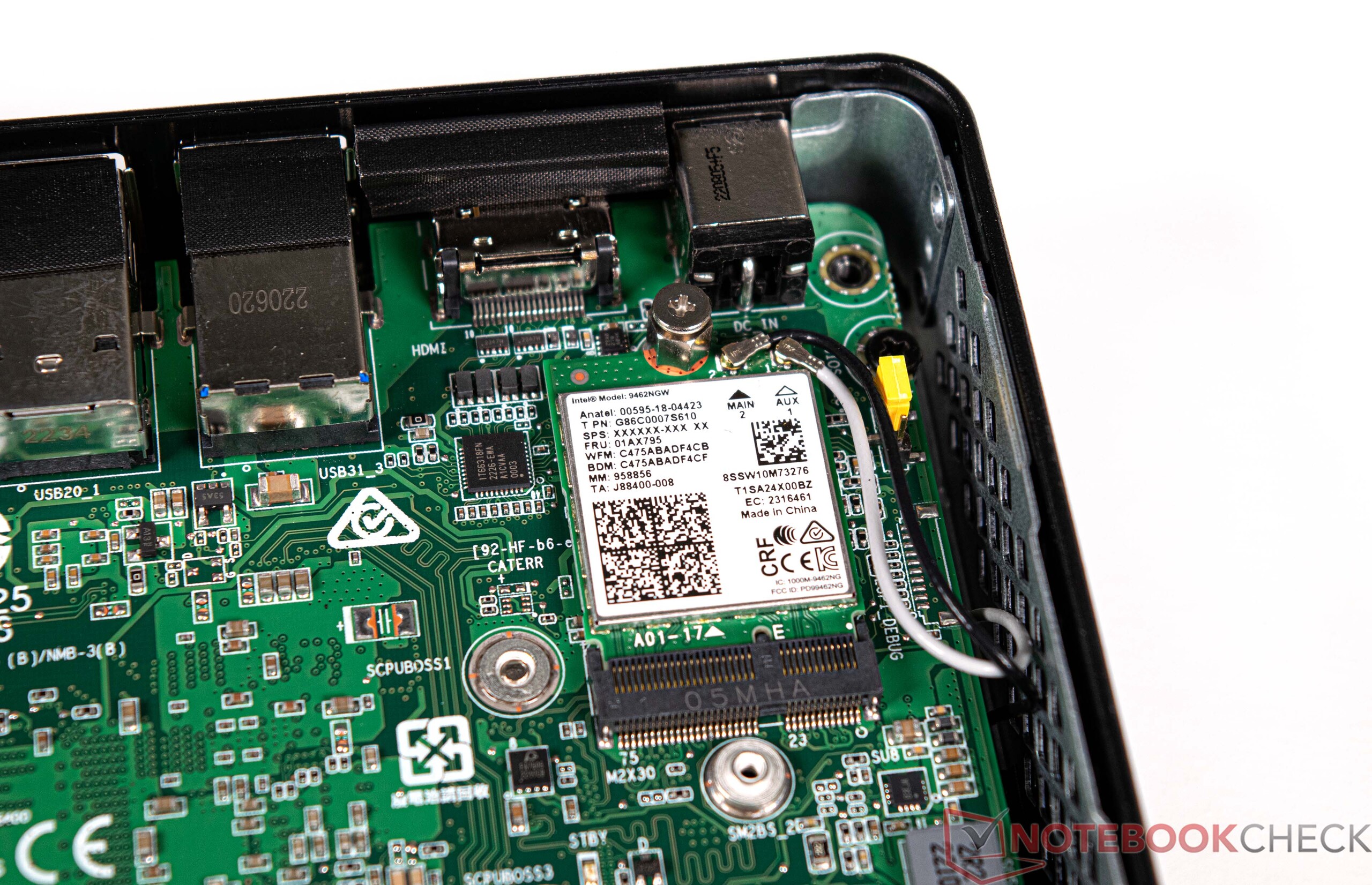

L'Intel NUC11 Essential Kit è dotato del modulo WLAN di Intel, il Wireless AC 9462. Le sue prestazioni sono buone rispetto alla concorrenza, a volte addirittura migliori. Purtroppo, abbiamo misurato velocità di trasmissione significativamente inferiori alla media dei mini PC testati. Entrambi i modelli dell'Intel NUC 11 Essential Kit si basano sullo stesso modulo WLAN, motivo per cui abbiamo ottenuto risultati quasi identici per ciascuno di essi. In questo test abbiamo utilizzato l'Asus ROG Rapture GT-AXE11000 come router di prova.

Networking
iperf3 receive AXE11000
Media della classe Mini PC (192.9 - 1796, n=113, ultimi 2 anni)	932 MBit/s +151%
Intel NUC11ATKPE, N6005 Intel Wireless AC 9462	371 (186^min - 374^max) MBit/s
Intel NUC11ATKC2, N4505 Intel Wireless AC 9462	366 (333^min - 376^max) MBit/s -1%
Minipc Union Ace Magician T8Pro Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	363 (359^min - 365^max) MBit/s -2%
Minipc Union NiPoGi GK3PLUS - N95 Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	358 (180^min - 362^max) MBit/s -4%
Media Intel Wireless AC 9462 (245 - 371, n=5)	335 MBit/s -10%
Geekom MiniAir 11 Special Edition Intel Dual Band Wireless-AC 7265	290 (279^min - 299^max) MBit/s -22%
iperf3 transmit AXE11000
Media della classe Mini PC (184.1 - 1776, n=113, ultimi 2 anni)	864 MBit/s +141%
Intel NUC11ATKC2, N4505 Intel Wireless AC 9462	366 (332^min - 393^max) MBit/s +2%
Media Intel Wireless AC 9462 (359 - 370, n=5)	366 MBit/s +2%
Intel NUC11ATKPE, N6005 Intel Wireless AC 9462	359 (322^min - 389^max) MBit/s
Minipc Union NiPoGi GK3PLUS - N95 Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	269 (136^min - 276^max) MBit/s -25%
Geekom MiniAir 11 Special Edition Intel Dual Band Wireless-AC 7265	225 (210^min - 237^max) MBit/s -37%
Minipc Union Ace Magician T8Pro Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	184.1 (94^min - 191^max) MBit/s -49%

Intel NUC11ATKPE, N6005 Intel Wireless AC 9462; iperf3 receive AXE11000; iperf 3.1.3: Ø364 (186-374)

Intel NUC11ATKC2, N4505 Intel Wireless AC 9462; iperf3 receive AXE11000; iperf 3.1.3: Ø366 (333-376)

Intel NUC11ATKPE, N6005 Intel Wireless AC 9462; iperf3 transmit AXE11000; iperf 3.1.3: Ø359 (322-389)

Intel NUC11ATKC2, N4505 Intel Wireless AC 9462; iperf3 transmit AXE11000; iperf 3.1.3: Ø366 (332-393)

Accessori

Il mini PC viene fornito con un alimentatore da 65 watt e una piastra di montaggio per il supporto VESA.

Manutenzione

Il fondo dell'Intel NUC11 Essential Kit - Atlas Canyon può essere aperto facilmente, poiché la piastra inferiore è fissata solo da quattro viti. All'interno, gli slot per la RAM e la porta M.2 sono facilmente accessibili. Se si desidera pulire la ventola della CPU, è necessario smontare ulteriormente il dispositivo.

Prestazioni - 4 core rendono l'utilizzo quotidiano molto più fluido

L'Intel NUC11 Essential Kit - Atlas Canyon dispone di alcune opzioni Jasper Lake; nel nostro test daremo un'occhiata più da vicino all'Intel Celeron N4505 Intel Celeron N4505e ilIntel Pentium Silver N6005. Poiché l'Intel Celeron N4505 ha solo 2 core, questo modello incontra rapidamente i suoi limiti. Per l'uso quotidiano, l'Intel Pentium Silver N6005 è sicuramente la scelta più sensata: i suoi 4 core offrono un notevole miglioramento delle prestazioni. Tuttavia, per usi specifici con un sistema operativo più piccolo, l'Intel NUC11 Essential Kit - Atlas Canyon con un Intel Celeron N4505 ha sicuramente ancora il suo posto. Secondo le specifiche, questo modello supporta anche Linux.

Intel Pentium Silver N6005

Intel Celeron N4505

Condizioni di test

Abbiamo eseguito tutti i test sulle prestazioni utilizzando il profilo energetico "bilanciato". Non abbiamo modificato le prestazioni della CPU, ma l'abbiamo lasciata in modalità automatica secondo le impostazioni del BIOS.

Processore

I processori della serie Jasper Lake presentano 2 core nel modello Intel Celeron N4505e 4 core nel modello Intel Pentium Silver N6005. Il SoC dual-core ha faticato parecchio durante il nostro test, mentre il modello con 4 core ha fatto un lavoro decisamente migliore. Anche le prestazioni in single-core dell'Intel Pentium Silver N6005 sono state migliori, sebbene lo stesso SoC si sia comportato meglio nel test di Newsmay AC8.

Tuttavia, è necessario considerare l'uso che si intende fare del dispositivo: Per i sistemi embedded più piccoli e con responsabilità limitate che utilizzano Linux come sistema operativo, l'Intel NUC11 Essential Kit - Atlas Canyon con un Intel Celeron N4505 è sicuramente un'opzione valida e conveniente. Se il sistema deve funzionare con Windows, consigliamo di acquistare l'Intel NUC11 Essential Kit - Atlas Canyon con un Intel Pentium N6005.

Per ulteriori confronti e benchmark, date un'occhiata alla nostraTabella di confronto delle CPU.

Intel NUC11ATKPE, N6005

Intel NUC11ATKC2, N4505

Performance Rating - Percent
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	88.9 pt
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	85.7 pt
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	74.9 pt
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	74 pt
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	71.9 pt
AC6-M Mini-PC ^-2! Intel Celeron J4125, 2000 MHz	51.2 pt
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	50.6 pt

Cinebench R15
CPU Single 64Bit
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	123 Points +2%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	123 Points +2%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	121 Points
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	106 Points -12%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	104 Points -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	102 Points -16%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	77 Points -36%
CPU Multi 64Bit
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	428 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	408 Points -5%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	369 Points -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	359 Points -16%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	319 Points -25%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	248 Points -42%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	191 Points -55%

Cinebench R20
CPU (Single Core)
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	266 Points +2%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	262 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	241 Points -8%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	234 Points -11%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	233 Points -11%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	224 Points -15%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	171 Points -35%
CPU (Multi Core)
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	976 Points +3%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	948 Points
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	828 Points -13%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	822 Points -13%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	720 Points -24%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	556 Points -41%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	431 Points -55%

Cinebench R23
Single Core
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	700 Points +1%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	696 Points 0%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	694 Points
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	611 Points -12%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	607 Points -13%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	592 Points -15%
Multi Core
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2528 Points +2%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	2475 Points
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2164 Points -13%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2150 Points -13%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1833 Points -26%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	1114 Points -55%

Cinebench R11.5
CPU Single 64Bit
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	1.49 Points +1%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	1.48 Points
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1.47 Points -1%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1.29 Points -13%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	1.27 Points -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1.25 Points -16%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	0.92 Points -38%
CPU Multi 64Bit
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	5.56 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	5.18 Points -7%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	4.76 Points -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	4.65 Points -16%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	4.14 Points -26%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	3.09 Points -44%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	2.46 Points -56%

Cinebench R10
Rendering Single CPUs 64Bit
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	6562 Points +6%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	6172 Points
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	6163 Points 0%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	5451 Points -12%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	5294 Points -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	5224 Points -15%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	3711 Points -40%
Rendering Multiple CPUs 64Bit
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	20429 Points +1%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	20238 Points
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	17278 Points -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	16442 Points -19%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	15504 Points -23%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	10705 Points -47%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	10063 Points -50%

Blender - v2.79 BMW27 CPU
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	2953 Seconds * -118%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	2379 Seconds * -76%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1805 Seconds * -33%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1550 Seconds * -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1547 Seconds * -14%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	1354 Seconds *
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	1152 Seconds * +15%

wPrime 2.10
32m
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	35.481 s * -122%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	19.779 s * -24%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	19.202 s * -20%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	17.37 s * -9%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	17.09 s * -7%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	16.449 s * -3%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	16.004 s *
1024m
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	1120.441 s * -127%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	617.326 s * -25%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	615 s * -25%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	605.375 s * -23%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	566 s * -15%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	535.88 s * -9%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	493.256 s *

X264 HD Benchmark 4.0
Pass 1
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	145.25 (144.9^min - 145.6^max) fps +7%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	135.5 (134.3^min - 136.3^max) fps
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	120.25 (119.9^min - 120.3^max) fps -11%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	112.75 (112^min - 114.5^max) fps -17%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	102 (100^min - 118^max) fps -25%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	78.9 (77.1^min - 81.7^max) fps -42%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	72.3 (71.9^min - 72.4^max) fps -47%
Pass 2
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	29.65 (29.5^min - 29.7^max) fps +3%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	28.75 (28.3^min - 29.5^max) fps
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	25.25 (25.2^min - 25.4^max) fps -12%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	24.75 (24.5^min - 25^max) fps -14%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	21.6 (21.5^min - 22.1^max) fps -25%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	16.75 (16.7^min - 16.9^max) fps -42%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	13.8 (13.8^min - 13.8^max) fps -52%

WinRAR - Result
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2181 KB/s +20%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	1824 KB/s
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1781 KB/s -2%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1630 KB/s -11%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1525 KB/s -16%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1140 KB/s -37%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	1000 KB/s -45%

TrueCrypt
AES Mean 100MB
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	2.9 GB/s
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	2.6 GB/s -10%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2.5 GB/s -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2.5 GB/s -14%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2.4 GB/s -17%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1.9 GB/s -34%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	1.3 GB/s -55%
Twofish Mean 100MB
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	0.497 GB/s +23%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	0.403 GB/s 0%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	0.403 GB/s
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	0.37 GB/s -8%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	0.37 GB/s -8%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	0.266 GB/s -34%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	0.192 GB/s -52%
Serpent Mean 100MB
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	0.243 GB/s +11%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	0.23 GB/s +5%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	0.219 GB/s
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	0.198 GB/s -10%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	0.198 GB/s -10%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	0.182 GB/s -17%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	0.101 GB/s -54%

Geekbench 5.5
Multi-Core
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	2402 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2391 Points 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2052 Points -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2020 Points -16%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1673 Points -30%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1501 Points -38%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	1225 Points -49%
Single-Core
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	804 Points +9%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	738 Points
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	657 Points -11%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	647 Points -12%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	637 Points -14%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	606 Points -18%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	455 Points -38%

Geekbench 5.0
5.0 Multi-Core
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	2455 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2382 Points -3%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2041 Points -17%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1985 Points -19%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1482 Points -40%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1313 Points -47%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	1205 Points -51%
5.0 Single-Core
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	804 Points +16%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	694 Points
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	655 Points -6%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	645 Points -7%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	638 Points -8%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	603 Points -13%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	453 Points -35%

Geekbench 4.4
64 Bit Single-Core Score
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	3591 Points +8%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	3314 Points
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	2942 Points -11%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2929 Points -12%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2858 Points -14%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	2555 Points -23%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1922 Points -42%
64 Bit Multi-Core Score
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	9662 Points +3%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	9426 Points
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	7968 Points -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	7842 Points -17%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	5468 Points -42%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	5399 Points -43%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	5078 Points -46%

3DMark 11 - 1280x720 Performance Physics
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	5084 Points +1%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	5024 Points
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	4287 Points -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	4272 Points -15%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	3659 Points -27%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	2794 Points -44%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	2700 Points -46%

7-Zip 18.03
7z b 4
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	12851 MIPS
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	11654 MIPS -9%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	10994 MIPS -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	10924 MIPS -15%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	9964 MIPS -22%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	7790 MIPS -39%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	5871 MIPS -54%
7z b 4 -mmt1
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	3515 MIPS +3%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	3425 MIPS
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	3121 MIPS -9%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	3098 MIPS -10%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	2971 MIPS -13%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2935 MIPS -14%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	2379 MIPS -31%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	3.03 fps +29%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	2.34 fps
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2.02 fps -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2.01 fps -14%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1.65 fps -29%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1.48 fps -37%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	1.16 fps -50%

R Benchmark 2.5 - Overall mean
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1.579 sec * -47%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	1.224 sec * -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1.2 sec * -12%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1.166 sec * -9%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1.137 sec * -6%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	1.073 sec *
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	1.032 sec * +4%

LibreOffice - 20 Documents To PDF
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	143 s * -28%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	111.7 s *
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	105.1 s * +6%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	103.6 s * +7%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	103.2 s * +8%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	92.9 s * +17%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	80.4 s * +28%

WebXPRT 3 - Overall
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	155.3 Points +9%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	146 Points +3%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	142.3 Points
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	127.2 Points -11%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	122.2 Points -14%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	113.3 Points -20%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	86.2 Points -39%

Mozilla Kraken 1.1 - Total
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	2288 ms * -51%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	1798 ms * -19%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1619 ms * -7%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1581 ms * -4%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	1516 ms *
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1396 ms * +8%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	1238 ms * +18%

3DMark - 1920x1080 Fire Strike Physics
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	6403 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	5903 Points -8%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	5535 Points -14%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	5474 Points -15%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	4295 Points -33%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	3885 Points -39%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	2979 Points -53%

* ... Meglio usare valori piccoli

Performance Rating
Media della classe Mini PC	100 pt
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	20.9 pt
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	18.8 pt
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	17.9 pt
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	14.5 pt
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	10.2 pt
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	8.5 pt
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	6 pt

AIDA64 / FP32 Ray-Trace
Media della classe Mini PC (561 - 51004, n=119, ultimi 2 anni)	12449 KRay/s +758%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	1451 KRay/s
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1242 KRay/s -14%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1241 KRay/s -14%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	999 KRay/s -31%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	744 KRay/s -49%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	646 KRay/s -55%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	416 KRay/s -71%

AIDA64 / FPU Julia
Media della classe Mini PC (3604 - 214250, n=119, ultimi 2 anni)	62645 Points +613%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	8792 Points
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	7457 Points -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	7446 Points -15%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	6217 Points -29%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	3970 Points -55%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	3857 Points -56%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	2401 Points -73%

AIDA64 / CPU SHA3
Media della classe Mini PC (225 - 9399, n=119, ultimi 2 anni)	2760 MB/s +365%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	593 MB/s
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	514 MB/s -13%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	513 MB/s -13%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	396 MB/s -33%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	270 MB/s -54%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	260 MB/s -56%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	167 MB/s -72%

AIDA64 / CPU Queen
Media della classe Mini PC (8172 - 184747, n=119, ultimi 2 anni)	77998 Points +197%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	26238 Points
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	22326 Points -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	22138 Points -16%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	20014 Points -24%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	11639 Points -56%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	8178 Points -69%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	7876 Points -70%

AIDA64 / FPU SinJulia
Media della classe Mini PC (408 - 29064, n=119, ultimi 2 anni)	8538 Points +622%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	1204 Points +2%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	1182 Points
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1002 Points -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1000 Points -15%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	519 Points -56%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	408 Points -65%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	397 Points -66%

AIDA64 / FPU Mandel
Media della classe Mini PC (1958 - 113499, n=119, ultimi 2 anni)	32689 Points +600%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	4670 Points
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	3961 Points -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	3954 Points -15%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	3375 Points -28%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	2049 Points -56%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	1987 Points -57%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	1264 Points -73%

AIDA64 / CPU AES
Media della classe Mini PC (3691 - 325960, n=119, ultimi 2 anni)	85358 MB/s +585%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	19354 MB/s +55%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	19350 MB/s +55%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	12455 MB/s
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	10084 MB/s -19%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	7954 MB/s -36%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	6370 MB/s -49%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	5504 MB/s -56%

AIDA64 / CPU ZLib
Media della classe Mini PC (74.8 - 2039, n=119, ultimi 2 anni)	714 MB/s +222%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	222 MB/s
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	188.1 MB/s -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	188 MB/s -15%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	131 MB/s -41%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	98.7 MB/s -56%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	74.9 MB/s -66%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	60.6 MB/s -73%

AIDA64 / FP64 Ray-Trace
Media della classe Mini PC (308 - 26952, n=119, ultimi 2 anni)	6658 KRay/s +718%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	814 KRay/s
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	676 KRay/s -17%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	676 KRay/s -17%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	553 KRay/s -32%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	412 KRay/s -49%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	350 KRay/s -57%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	213 KRay/s -74%

AIDA64 / CPU PhotoWorxx
Media della classe Mini PC (4408 - 50500, n=119, ultimi 2 anni)	27805 MPixel/s +137%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	11739 MPixel/s
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	9899 MPixel/s -16%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	7994 MPixel/s -32%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	7654 MPixel/s -35%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	6778 MPixel/s -42%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	4408 MPixel/s -62%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	2501 MPixel/s -79%

Kit essenziale Intel NUC11 - Atlas Canyon vs. Cinebench R15 Multi Loop

Abbiamo avuto modo di vedere per la prima volta le capacità di raffreddamento dei dispositivi nel test Cinebench R15 a ciclo continuo. Le prestazioni di entrambi i sistemi di test sono rimaste stabili nel corso dei 50 cicli. Rispetto alNewsmay AC8il nostro campione di prova con lo stesso SoC ha ottenuto un risultato molto migliore grazie al suo sistema di raffreddamento attivo. Grazie al Intel Celeron N4505del Celeron N4505, il sistema non è riuscito a tenere il passo dei suoi concorrenti e si è classificato all'ultimo posto con 193,9 punti.

Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel Pentium Silver N6005: Ø414 (407.59-416.69)

Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel Celeron N4505: Ø193.9 (178.74-195.53)

Minipc Union Ace Magician T8Pro Intel Celeron N5095, Intel Celeron N5095: Ø362 (359.44-363.62)

Geekom MiniAir 11 Special Edition Intel Celeron N5095, Intel Celeron N5095: Ø371 (367.43-373.05)

Newsmay AC8 N6005 Intel Pentium Silver N6005, Intel Pentium Silver N6005: Ø273 (225.33-307.03)

AC6-M Mini-PC Intel Celeron J4125, Intel Celeron J4125: Ø247 (245.01-250.05)

Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, Intel Processor N95: Ø404 (398.46-406.91)

Prestazioni del sistema

Abbiamo riscontrato risultati simili nei benchmark sintetici delle prestazioni del sistema. Il kit essenziale Intel NUC11 con unIntel Pentium Silver N6005è stato in grado di competere con il NiPoGi GK3Plusche ha anch'esso un SoC quad-core - l' Intel N95. Tuttavia, l'Intel N95 è un SoC molto più recente, che ha permesso di ottenere prestazioni migliori del 10-25%. Il campione di prova con un Intel Celeron N4505ha addirittura superato il Newsmay AC6-Mche ha 4 core. Nei test sulla RAM, entrambi i nostri campioni di prova hanno ottenuto buone prestazioni rispetto alla concorrenza.

Performance Rating | PCMark 10

Performance Rating - Percent
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	100 pt
Intel NUC11ATKPE, N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), WDC PC SN720 SDAPNTW-512G	88.7 pt
Newsmay AC8 N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD	84.2 pt
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	83.4 pt
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	80.9 pt
Intel NUC11ATKC2, N4505, Intel Celeron N4505 Intel UHD Graphics (Jasper Lake 16 EU), WDC PC SN720 SDAPNTW-512G	72.6 pt
AC6-M Mini-PC, Intel Celeron J4125 Intel UHD Graphics 600,	65.3 pt

PCMark 10
Score
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	2983 Points +9%
Intel NUC11ATKPE, N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), WDC PC SN720 SDAPNTW-512G	2746 Points
Newsmay AC8 N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD	2548 Points -7%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	2417 Points -12%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	2351 Points -14%
Intel NUC11ATKC2, N4505, Intel Celeron N4505 Intel UHD Graphics (Jasper Lake 16 EU), WDC PC SN720 SDAPNTW-512G	2067 Points -25%
AC6-M Mini-PC, Intel Celeron J4125 Intel UHD Graphics 600,	1806 Points -34%
Essentials
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	6650 Points +9%
Intel NUC11ATKPE, N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), WDC PC SN720 SDAPNTW-512G	6113 Points
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	5866 Points -4%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	5679 Points -7%
Newsmay AC8 N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD	5446 Points -11%
Intel NUC11ATKC2, N4505, Intel Celeron N4505 Intel UHD Graphics (Jasper Lake 16 EU), WDC PC SN720 SDAPNTW-512G	4876 Points -20%
AC6-M Mini-PC, Intel Celeron J4125 Intel UHD Graphics 600,	4693 Points -23%
Productivity
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	4524 Points +22%
Newsmay AC8 N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD	3854 Points +4%
Intel NUC11ATKPE, N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), WDC PC SN720 SDAPNTW-512G	3719 Points
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	3666 Points -1%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	3547 Points -5%
Intel NUC11ATKC2, N4505, Intel Celeron N4505 Intel UHD Graphics (Jasper Lake 16 EU), WDC PC SN720 SDAPNTW-512G	3396 Points -9%
AC6-M Mini-PC, Intel Celeron J4125 Intel UHD Graphics 600,	2928 Points -21%

Performance Rating | CrossMark

Performance Rating - Percent
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	100 pt
Intel NUC11ATKPE, N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), WDC PC SN720 SDAPNTW-512G	79.7 pt
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	74.5 pt
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	69.4 pt
Intel NUC11ATKC2, N4505, Intel Celeron N4505 Intel UHD Graphics (Jasper Lake 16 EU), WDC PC SN720 SDAPNTW-512G	66 pt

CrossMark
Responsiveness
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	661 Points +37%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	497 Points +3%
Intel NUC11ATKPE, N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), WDC PC SN720 SDAPNTW-512G	482 Points
Intel NUC11ATKC2, N4505, Intel Celeron N4505 Intel UHD Graphics (Jasper Lake 16 EU), WDC PC SN720 SDAPNTW-512G	419 Points -13%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	403 Points -16%
Creativity
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	616 Points +21%
Intel NUC11ATKPE, N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), WDC PC SN720 SDAPNTW-512G	510 Points
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	440 Points -14%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	438 Points -14%
Intel NUC11ATKC2, N4505, Intel Celeron N4505 Intel UHD Graphics (Jasper Lake 16 EU), WDC PC SN720 SDAPNTW-512G	388 Points -24%
Productivity
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	721 Points +22%
Intel NUC11ATKPE, N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), WDC PC SN720 SDAPNTW-512G	591 Points
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	558 Points -6%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	535 Points -9%
Intel NUC11ATKC2, N4505, Intel Celeron N4505 Intel UHD Graphics (Jasper Lake 16 EU), WDC PC SN720 SDAPNTW-512G	513 Points -13%
Overall
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	666 Points +24%
Intel NUC11ATKPE, N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), WDC PC SN720 SDAPNTW-512G	539 Points
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	495 Points -8%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	473 Points -12%
Intel NUC11ATKC2, N4505, Intel Celeron N4505 Intel UHD Graphics (Jasper Lake 16 EU), WDC PC SN720 SDAPNTW-512G	442 Points -18%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Media della classe Mini PC (6481 - 89287, n=119, ultimi 2 anni)	47585 MB/s +79%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	26521 MB/s
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	25028 MB/s -6%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	22138 MB/s -17%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	16422 MB/s -38%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	13833 MB/s -48%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	6481 MB/s -76%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	6308 MB/s -76%

AIDA64 / Memory Read
Media della classe Mini PC (6914 - 99171, n=119, ultimi 2 anni)	48328 MB/s +150%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	19297 MB/s
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	16615 MB/s -14%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	15613 MB/s -19%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	15464 MB/s -20%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	10204 MB/s -47%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	6914 MB/s -64%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	6576 MB/s -66%

AIDA64 / Memory Write
Media della classe Mini PC (6862 - 98583, n=119, ultimi 2 anni)	52056 MB/s +51%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	34452 MB/s
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	30843 MB/s -10%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	29332 MB/s -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	18612 MB/s -46%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	10449 MB/s -70%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	6866 MB/s -80%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	6862 MB/s -80%

AIDA64 / Memory Latency
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	146 ns * -164%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	144 ns * -160%
Media della classe Mini PC (44.9 - 184.8, n=119, ultimi 2 anni)	91.9 ns * -66%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	89.5 ns * -62%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	74.1 ns * -34%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	59.3 ns * -7%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	59.1 ns * -7%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	55.3 ns *

* ... Meglio usare valori piccoli

Latenza DPC

Entrambi i sistemi di test hanno avuto problemi con le latenze elevate. Sorprendentemente, abbiamo riscontrato risultati peggiori nel dispositivo presumibilmente più veloce. D'altra parte, entrambi i dispositivi hanno faticato a riprodurre video ad alta risoluzione in 4K.

Intel NUC11ATKPE, N6005

Latenza massima quando si aprono più schede del browser e si riproducono video 4K

Latenza massima dopo dieci secondi di Prime95

Driver classificati in base alla durata di esecuzione più lunga

Intel NUC11ATKC2, N4505

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minipc Union Ace Magician T8Pro UHD Graphics (Jasper Lake 16 EU), Celeron N5095, FPT310M4SSD256G	4075 μs * -4%
Intel NUC11ATKPE, N6005 UHD Graphics (Jasper Lake 32 EU), Pentium N6005, WDC PC SN720 SDAPNTW-512G	3924 μs *
AC6-M Mini-PC UHD Graphics 600, Celeron J4125	3767 μs * +4%
Minipc Union NiPoGi GK3PLUS - N95 UHD Graphics 24EUs (Alder Lake-N), N95, Kimtigo KTB900SM28/512GB	3463 μs * +12%
Newsmay AC8 N6005 UHD Graphics (Jasper Lake 32 EU), Pentium N6005, Lexar 128GB SSD	2635 μs * +33%
Intel NUC11ATKC2, N4505 UHD Graphics (Jasper Lake 16 EU), Celeron N4505, WDC PC SN720 SDAPNTW-512G	1503.7 μs * +62%
Geekom MiniAir 11 Special Edition UHD Graphics (Jasper Lake 16 EU), Celeron N5095, NF830 256GB M.2 2280	687.3 μs * +82%

* ... Meglio usare valori piccoli

Dispositivi di archiviazione

Come abbiamo detto nella nostra introduzione, l'Intel NUC11 Essential Kit - Atlas Canyon è un sistema barebone. Per il nostro test, abbiamo installato un'unità SSD da 512 GB di Western Digital. Il modello equipaggiato ha fornito una velocità di trasmissione rapida e stabile. Intel utilizza la piastra inferiore per raffreddare il dispositivo: è già dotata di un cuscinetto per la conduzione del calore. L'Intel NUC11 Essential Kit - Atlas Canyon può essere dotato di una sola unità SSD.

Per ulteriori confronti e benchmark, date un'occhiata alla nostra tabella di confronto.

Intel NUC11ATKPE, N6005

Intel NUC11ATKC2, N4505

CrystalDiskMark 3.0

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

WDC PC SN720 SDAPNTW-512G

Sequential Read: 1061 MB/s

Sequential Write: 1012 MB/s

512K Read: 793.6 MB/s

512K Write: 819.4 MB/s

4K Read: 18.84 MB/s

4K Write: 75.66 MB/s

4K QD32 Read: 202.9 MB/s

4K QD32 Write: 113 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Media della classe Mini PC	94.5 pt
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	44.5 pt
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	38.1 pt
AC6-M Mini-PC	27.9 pt
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	27.6 pt
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	24.7 pt
Newsmay AC8 N6005 Lexar 128GB SSD	24.3 pt
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	13.9 pt

DiskSpd
seq read
Media della classe Mini PC (233 - 4357, n=119, ultimi 2 anni)	2288 MB/s +116%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	1057 (1032.22^min - 1057.37^max) MB/s
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	1026 (988.51^min - 1025.76^max) MB/s -3%
Newsmay AC8 N6005 Lexar 128GB SSD	511 (502.22^min - 510.84^max) MB/s -52%
AC6-M Mini-PC	477 (454.59^min - 477.1^max) MB/s -55%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	472 (470.6^min - 472.28^max) MB/s -55%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	459 (458.57^min - 459.41^max) MB/s -57%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	434 (226.49^min - 434.29^max) MB/s -59%
seq write
Media della classe Mini PC (222 - 5595, n=119, ultimi 2 anni)	2448 MB/s +151%
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	1022 (961.96^min - 1021.79^max) MB/s +5%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	976 (968.83^min - 975.8^max) MB/s
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	494 (488.92^min - 494.36^max) MB/s -49%
Newsmay AC8 N6005 Lexar 128GB SSD	491 (445.91^min - 491.36^max) MB/s -50%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	463 (451.31^min - 462.72^max) MB/s -53%
AC6-M Mini-PC	428 (412.52^min - 427.8^max) MB/s -56%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	409 (44.25^min - 408.73^max) MB/s -58%
seq q8 t1 read
Media della classe Mini PC (236 - 8430, n=119, ultimi 2 anni)	3706 MB/s +154%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	1461 (1238.96^min - 1460.88^max) MB/s
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	1426 (1221.66^min - 1425.85^max) MB/s -2%
AC6-M Mini-PC	563 (509.43^min - 563.43^max) MB/s -61%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	550 (465.68^min - 549.87^max) MB/s -62%
Newsmay AC8 N6005 Lexar 128GB SSD	548 (494.87^min - 547.82^max) MB/s -62%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	504 (458.23^min - 504.4^max) MB/s -66%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	447 (396.95^min - 446.64^max) MB/s -69%
seq q8 t1 write
Media della classe Mini PC (228 - 6669, n=119, ultimi 2 anni)	2743 MB/s +108%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	1316 (1303.71^min - 1316.48^max) MB/s
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	1283 (1273.81^min - 1283.04^max) MB/s -3%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	519 (472.8^min - 519.47^max) MB/s -61%
Newsmay AC8 N6005 Lexar 128GB SSD	515 (500.64^min - 515.04^max) MB/s -61%
AC6-M Mini-PC	497 (494.3^min - 497.29^max) MB/s -62%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	466 (442.13^min - 465.87^max) MB/s -65%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	346 (118.46^min - 345.82^max) MB/s -74%
4k q1 t1 read
Media della classe Mini PC (5.67 - 86.6, n=119, ultimi 2 anni)	54.7 MB/s +125%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	33.9 (33.27^min - 33.91^max) MB/s +40%
Newsmay AC8 N6005 Lexar 128GB SSD	26.4 (25.68^min - 26.38^max) MB/s +9%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	25.9 (25.82^min - 25.85^max) MB/s +7%
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	24.4 (23.94^min - 24.41^max) MB/s 0%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	24.3 (23.99^min - 24.31^max) MB/s
AC6-M Mini-PC	13.9 (11.27^min - 13.88^max) MB/s -43%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	12.9 (5.79^min - 12.85^max) MB/s -47%
4k q1 t1 write
Media della classe Mini PC (30.4 - 435, n=119, ultimi 2 anni)	194.7 MB/s +368%
Newsmay AC8 N6005 Lexar 128GB SSD	99.8 (98.72^min - 99.78^max) MB/s +140%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	96 (93.72^min - 96.04^max) MB/s +131%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	74.1 (72.55^min - 74.09^max) MB/s +78%
AC6-M Mini-PC	62 (61.58^min - 62.02^max) MB/s +49%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	41.6 (39.05^min - 41.6^max) MB/s
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	40 (39.1^min - 40.03^max) MB/s -4%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	22 (19.72^min - 21.99^max) MB/s -47%
4k q32 t16 read
Media della classe Mini PC (26.1 - 4158, n=119, ultimi 2 anni)	1360 MB/s +89%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	719 (712.63^min - 718.86^max) MB/s
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	460 (454.97^min - 459.58^max) MB/s -36%
AC6-M Mini-PC	302 (300.2^min - 301.59^max) MB/s -58%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	266 (264.89^min - 265.82^max) MB/s -63%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	260 (259.46^min - 259.7^max) MB/s -64%
Newsmay AC8 N6005 Lexar 128GB SSD	185 (183.89^min - 185.03^max) MB/s -74%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	170.2 (157.55^min - 170.17^max) MB/s -76%
4k q32 t16 write
Media della classe Mini PC (30.2 - 4288, n=119, ultimi 2 anni)	1287 MB/s +154%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	506 (502.96^min - 505.69^max) MB/s
AC6-M Mini-PC	351 (323.82^min - 350.53^max) MB/s -31%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	319 (315.72^min - 318.72^max) MB/s -37%
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	316 (312.68^min - 316.32^max) MB/s -38%
Newsmay AC8 N6005 Lexar 128GB SSD	288 (244.64^min - 287.66^max) MB/s -43%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	259 (224.2^min - 258.97^max) MB/s -49%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	168.3 (88.04^min - 168.3^max) MB/s -67%

AS SSD
Score Total
Media della classe Mini PC (181.5 - 10021, n=117, ultimi 2 anni)	4121 Points +100%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	2059 Points
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	1610 Points -22%
AC6-M Mini-PC	1091 Points -47%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	736 Points -64%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	698 Points -66%
Newsmay AC8 N6005 Lexar 128GB SSD	604 Points -71%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	151.3 (331.02^min) Points -93%
Score Read
Media della classe Mini PC (61 - 3741, n=117, ultimi 2 anni)	1534 Points +79%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	859 Points
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	588 Points -32%
AC6-M Mini-PC	473 Points -45%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	320 Points -63%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	232 Points -73%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	217 Points -75%
Newsmay AC8 N6005 Lexar 128GB SSD	134 Points -84%
Score Write
Media della classe Mini PC (88 - 4371, n=117, ultimi 2 anni)	1851 Points +140%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	770 Points
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	728 Points -5%
Newsmay AC8 N6005 Lexar 128GB SSD	396 Points -49%
AC6-M Mini-PC	374 Points -51%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	373 Points -52%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	312 Points -59%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	208 Points -73%
Seq Read
Media della classe Mini PC (291 - 6620, n=117, ultimi 2 anni)	3161 MB/s +134%
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	1359 MB/s +1%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	1348 MB/s
Newsmay AC8 N6005 Lexar 128GB SSD	512 MB/s -62%
AC6-M Mini-PC	492 MB/s -64%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	489 MB/s -64%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	470 MB/s -65%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	433 MB/s -68%
Seq Write
Media della classe Mini PC (240 - 5783, n=117, ultimi 2 anni)	2212 MB/s +96%
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	1139 MB/s +1%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	1126 MB/s
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	484 MB/s -57%
AC6-M Mini-PC	450 MB/s -60%
Newsmay AC8 N6005 Lexar 128GB SSD	411.6 MB/s -63%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	385 MB/s -66%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	344 MB/s -69%
4K Read
Media della classe Mini PC (6.08 - 104.3, n=117, ultimi 2 anni)	58.9 MB/s +170%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	35.45 MB/s +63%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	27.5 MB/s +26%
Newsmay AC8 N6005 Lexar 128GB SSD	23.29 MB/s +7%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	21.8 MB/s
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	21.4 MB/s -2%
AC6-M Mini-PC	19.43 MB/s -11%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	16.2 MB/s -26%
4K Write
Media della classe Mini PC (30.9 - 366, n=117, ultimi 2 anni)	175.1 MB/s +348%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	85.6 MB/s +119%
Newsmay AC8 N6005 Lexar 128GB SSD	83 MB/s +112%
AC6-M Mini-PC	51.4 MB/s +31%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	39.1 MB/s
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	38.2 MB/s -2%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	38 MB/s -3%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	36.63 MB/s -6%
4K-64 Read
Media della classe Mini PC (23.4 - 3220, n=117, ultimi 2 anni)	1159 MB/s +65%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	703 MB/s
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	431 MB/s -39%
AC6-M Mini-PC	404.1 MB/s -43%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	235.66 MB/s -66%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	157.7 MB/s -78%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	157.18 MB/s -78%
Newsmay AC8 N6005 Lexar 128GB SSD	59.4 MB/s -92%
4K-64 Write
Media della classe Mini PC (32.8 - 3731, n=117, ultimi 2 anni)	1455 MB/s +135%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	618 MB/s
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	576 MB/s -7%
AC6-M Mini-PC	277.8 MB/s -55%
Newsmay AC8 N6005 Lexar 128GB SSD	272.3 MB/s -56%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	239 MB/s -61%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	237.24 MB/s -62%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	135.39 MB/s -78%
Access Time Read
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	0.205 ms * -65%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	0.148 ms * -19%
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	0.143 ms * -15%
Newsmay AC8 N6005 Lexar 128GB SSD	0.139 ms * -12%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	0.124 ms *
Media della classe Mini PC (0.022 - 0.489, n=117, ultimi 2 anni)	0.09726 ms * +22%
AC6-M Mini-PC	0.088 ms * +29%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	0.076 ms * +39%
Access Time Write
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	0.203 ms * -244%
Newsmay AC8 N6005 Lexar 128GB SSD	0.145 ms * -146%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	0.132 ms * -124%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	0.127 ms * -115%
Media della classe Mini PC (0.014 - 0.765, n=117, ultimi 2 anni)	0.1153 ms * -95%
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	0.096 ms * -63%
AC6-M Mini-PC	0.071 ms * -20%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	0.059 ms *

* ... Meglio usare valori piccoli

Reading continuous performance: DiskSpd Read Loop, Queue Depth 8

Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G: Ø1445 (1295.28-1490.45)

Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G: Ø1402 (1294.85-1449.38)

Scheda grafica e prestazioni di gioco

L'Intel NUC11 Essential Kit - Atlas Canyon è dotato di una scheda grafica integrata Intel UHD della serie Jasper Lake. Il Intel Pentium Silver N6005ha 32 EU e l'Intel Celeron N4505 ha una scheda grafica integrata Intel Celeron N4505ha solo 16 EU. La differenza di prestazioni diventa molto evidente osservando le prestazioni 3D sintetiche dei sistemi.

In entrambi i casi, l'iGPU integrata non è sufficiente per i giochi. Dando un'occhiata all'elenco dei giochi che abbiamo testato, si può notare che hanno prodotto frame rate a malapena giocabili.

Ulteriori benchmark UHD di Intel (Jasper Lake) possono essere trovati qui.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Intel NUC11ATKPE, N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	100 pt
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	81.2 pt
Newsmay AC8 N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	70.9 pt
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	50.1 pt
Geekom MiniAir 11 Special Edition Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	48.2 pt
Intel NUC11ATKC2, N4505 Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N4505	47.7 pt
AC6-M Mini-PC Intel UHD Graphics 600, Intel Celeron J4125	34.1 pt

3DMark 11 - 1280x720 Performance GPU
Intel NUC11ATKPE, N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	1872 Points
Newsmay AC8 N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	1589 Points -15%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1467 Points -22%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	859 Points -54%
Intel NUC11ATKC2, N4505 Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N4505	854 Points -54%
Geekom MiniAir 11 Special Edition Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	837 Points -55%
AC6-M Mini-PC Intel UHD Graphics 600, Intel Celeron J4125	602 Points -68%

3DMark
1280x720 Cloud Gate Standard Graphics
Intel NUC11ATKPE, N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	9405 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	8035 Points -15%
Newsmay AC8 N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	5895 Points -37%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	5217 Points -45%
Geekom MiniAir 11 Special Edition Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	4958 Points -47%
Intel NUC11ATKC2, N4505 Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N4505	4625 Points -51%
AC6-M Mini-PC Intel UHD Graphics 600, Intel Celeron J4125	3503 Points -63%
1920x1080 Fire Strike Graphics
Intel NUC11ATKPE, N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	1351 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1080 Points -20%
Newsmay AC8 N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	881 Points -35%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	662 Points -51%
Intel NUC11ATKC2, N4505 Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N4505	653 Points -52%
Geekom MiniAir 11 Special Edition Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	637 Points -53%
AC6-M Mini-PC Intel UHD Graphics 600, Intel Celeron J4125	446 Points -67%

Intel NUC11ATKPE, N6005

3DMark 05 Standard		14499 punti
3DMark 06 Standard Score		10473 punti
3DMark Vantage P Result		7448 punti
3DMark 11 Performance		2086 punti
3DMark Ice Storm Standard Score		40203 punti
3DMark Cloud Gate Standard Score		7589 punti
3DMark Fire Strike Score		1260 punti
3DMark Fire Strike Extreme Score		620 punti
3DMark Time Spy Score		456 punti
Aiuto

... in confronto

Intel NUC11ATKC2, N4505

3DMark 05 Standard		12573 punti
3DMark 06 Standard Score		6419 punti
3DMark Vantage P Result		3411 punti
3DMark 11 Performance		971 punti
3DMark Ice Storm Standard Score		23869 punti
3DMark Cloud Gate Standard Score		3669 punti
3DMark Fire Strike Score		635 punti
3DMark Fire Strike Extreme Score		309 punti
3DMark Time Spy Score		203 punti
Aiuto

... in confronto

Performance Rating | X-Plane 11.11 | Dota 2 Reborn | Final Fantasy XV Benchmark

Performance Rating - Percent
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	93.7 pt
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)	90.6 pt
Newsmay AC8 N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	67.2 pt
Minipc Union Ace Magician T8Pro ^-1! Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	58.1 pt
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	52.6 pt
Geekom MiniAir 11 Special Edition Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	52.6 pt
AC6-M Mini-PC Intel Celeron J4125, Intel UHD Graphics 600	36 pt

X-Plane 11.11
1280x720 low (fps_test=1)
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	23.4 fps
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)	22.5 fps -4%
Newsmay AC8 N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	15.2 fps -35%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	15.1 fps -35%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	13.2 fps -44%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	10.1 fps -57%
AC6-M Mini-PC Intel Celeron J4125, Intel UHD Graphics 600	6.36 fps -73%
1920x1080 med (fps_test=2)
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	15.9 fps
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)	14.7 fps -8%
Newsmay AC8 N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	11.4 fps -28%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	9.18 fps -42%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	8.41 fps -47%
AC6-M Mini-PC Intel Celeron J4125, Intel UHD Graphics 600	4.84 fps -70%

Dota 2 Reborn
1280x720 min (0/3) fastest
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	79.8 (67.5^min) fps
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)	69.7 (57.1^min) fps -13%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	61.2 (50.1^min) fps -23%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	58.6 (47.7^min) fps -27%
Newsmay AC8 N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	54 (46.5^min) fps -32%
AC6-M Mini-PC Intel Celeron J4125, Intel UHD Graphics 600	41.5 (35.8^min) fps -48%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	36.2 (29.6^min) fps -55%
1366x768 med (1/3)
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)	44.9 (33.7^min) fps +62%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	27.8 (20.4^min) fps
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	26.9 (19.4^min) fps -3%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	22.8 (14.3^min) fps -18%
Newsmay AC8 N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	22.4 (18^min) fps -19%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	22 (11.8^min) fps -21%
AC6-M Mini-PC Intel Celeron J4125, Intel UHD Graphics 600	17.2 (12.6^min) fps -38%

Final Fantasy XV Benchmark
1280x720 Lite Quality
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	14.3 fps
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)	12 fps -16%
Newsmay AC8 N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	10.7 fps -25%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	7.13 fps -50%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	6.94 fps -51%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	6.92 fps -52%
AC6-M Mini-PC Intel Celeron J4125, Intel UHD Graphics 600	5.17 fps -64%
1920x1080 Standard Quality
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	6.71 fps
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)	5.63 fps -16%
Newsmay AC8 N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	4.96 fps -26%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	3.28 fps -51%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	3.27 fps -51%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	3.19 fps -52%
AC6-M Mini-PC Intel Celeron J4125, Intel UHD Graphics 600	2.14 fps -68%

Intel NUC11ATKPE, N6005

	basso	medio	alto	ultra
GTA V (2015)	26.8	26.1	10.8
Dota 2 Reborn (2015)	79.8	27.8	19.5	18.3
Final Fantasy XV Benchmark (2018)	14.3	6.71	4.61
X-Plane 11.11 (2018)	23.4	15.9	14.6
Strange Brigade (2018)	32	12.1	10.2	13.3
Borderlands 3 (2019)	19.2	7.96	4.68
F1 2020 (2020)	30.8	14.7	10.5	6.41
F1 2021 (2021)	37.6	15.8	12.7
Tiny Tina's Wonderlands (2022)	5.43	6.63	4.25

Intel NUC11ATKC2, N4505

	basso	medio	alto	ultra
GTA V (2015)	25.1	25	5.59
Dota 2 Reborn (2015)	36.2	26.9	11.8	10.9
Final Fantasy XV Benchmark (2018)	6.94	3.19	2.25
X-Plane 11.11 (2018)	13.2	9.18	8.58
Strange Brigade (2018)	16.2	6.5	6.5

Emissioni

Emissioni acustiche

Entrambi i dispositivi hanno ottenuto risultati simili in termini di emissioni acustiche. A vuoto, entrambi i dispositivi di prova sono rimasti abbastanza silenziosi. Tuttavia, la ventola è sempre in funzione, quindi può essere udita in sottofondo. Sotto carico, abbiamo misurato rispettivamente 36,7 e 36,8 dB(A), che sono abbastanza rumorosi rispetto ai loro concorrenti - se si esclude il NiPoGi GK3Plus.

Intel NUC11ATKPE, N6005

Rumorosità

Idle		31.8 / 31.9 / 32 dB(A)
Sotto carico		32.5 / 36.8 dB(A)

	30 dB silenzioso 40 dB(A) udibile 50 dB(A) rumoroso
min: , med: , max: Earthworks M23R, Arta (15 cm di distanza) Rumorosità ambientale: 30.3 dB(A)

Intel NUC11ATKC2, N4505

Rumorosità

Idle		32.6 / 32.8 / 32.9 dB(A)
Sotto carico		33.3 / 36.7 dB(A)

	30 dB silenzioso 40 dB(A) udibile 50 dB(A) rumoroso
min: , med: , max: Earthworks M23R, Arta (15 cm di distanza) Rumorosità ambientale: 30.4 dB(A)

	Intel NUC11ATKPE, N6005 Pentium N6005, UHD Graphics (Jasper Lake 32 EU)	Intel NUC11ATKC2, N4505 Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	Minipc Union Ace Magician T8Pro Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	Geekom MiniAir 11 Special Edition Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	Minipc Union NiPoGi GK3PLUS - N95 N95, UHD Graphics 24EUs (Alder Lake-N)
Noise		-2%	6%	7%	-2%
off /ambiente *	30.3	30.4 -0%	30.2 -0%	29.6 2%	30.4 -0%
Idle Minimum *	31.8	32.6 -3%	30.2 5%	29.6 7%	31 3%
Idle Average *	31.9	32.8 -3%	30.2 5%	29.6 7%	31.1 3%
Idle Maximum *	32	32.9 -3%	30.2 6%	29.6 7%	31.8 1%
Load Average *	32.5	33.3 -2%	30.5 6%	30 8%	33.3 -2%
Load Maximum *	36.8	36.7 -0%	30.9 16%	32.9 11%	42.5 -15%

* ... Meglio usare valori piccoli

Temperature

Per quanto riguarda la temperatura del case, l'Intel NUC11 Essential Kit - Atlas Canyon non ha nulla di eccezionale. L'aria calda viene condotta efficacemente fuori dal case senza causare alcun accumulo di calore.

All'interno, abbiamo misurato temperature più elevate, ma a 77 °C, l'Intel Pentium Silver N6005 è in grado di gestire la temperatura di esercizio.Intel Pentium Silver N6005è ancora ben all'interno dell'area verde. Con il Intel Celeron N4505abbiamo misurato solo 71 °C sotto carico.

Intel NUC11ATKPE, N6005

Intel NUC11ATKC2, N4505

Intel NUC11 Essential Kit - Atlas Canyon vs. Stress test

Adattatore di alimentazione sotto carico

Consumo di energia

Per quanto riguarda il consumo energetico, entrambi i dispositivi si sono comportati bene. Tuttavia, ci sono state differenze nel consumo di energia in relazione ai diversi limiti TPD. Al massimo carico, con un consumo di 37,6 watt, l'Intel NUC Essential Kit con unIntel Pentium Silver N6005si è distinto. A medio carico abbiamo misurato 23,5 e 18,2 watt, un risultato simile a quello dei concorrenti. A vuoto (circa 4,4-8 watt), entrambi i dispositivi si sono comportati in modo simile e si sono dimostrati abbastanza efficienti dal punto di vista energetico.

Intel NUC11ATKPE, N6005

Consumo di corrente

Off / Standby	0.53 / 0.93 Watt
Idle	4.4 / 7.3 / 7.3 Watt
Sotto carico	23.5 / 37.6 Watt


Leggenda: min: , med: , max: Metrahit Energy

Intel NUC11ATKC2, N4505

Consumo di corrente

Off / Standby	0.5 / 0.9 Watt
Idle	5.2 / 8 / 8 Watt
Sotto carico	18.2 / 26.5 Watt


Leggenda: min: , med: , max: Metrahit Energy

	Intel NUC11ATKPE, N6005 Pentium N6005, UHD Graphics (Jasper Lake 32 EU)	Intel NUC11ATKC2, N4505 Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	Minipc Union Ace Magician T8Pro Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	Geekom MiniAir 11 Special Edition Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	Minipc Union NiPoGi GK3PLUS - N95 N95, UHD Graphics 24EUs (Alder Lake-N)	Media Intel UHD Graphics (Jasper Lake 16 EU)	Media Intel UHD Graphics (Jasper Lake 32 EU)	Media della classe Mini PC
Power Consumption		3%	-20%	18%	1%	10%	9%	-116%
Idle Minimum *	4.4	5.2 -18%	8.4 -91%	4.8 -9%	6.1 -39%	5.65 ?(2.5 - 8.4, n=8) -28%	4.83 ?(2.4 - 8.3, n=4) -10%	9.48 ?(1.9 - 45.7, n=119, ultimi 2 anni) -115%
Idle Average *	7.3	8 -10%	8.4 -15%	4.8 34%	6.9 5%	6.61 ?(4.6 - 8.4, n=7) 9%	7.13 ?(4.1 - 11, n=4) 2%	11.5 ?(1.9 - 47.5, n=117, ultimi 2 anni) -58%
Idle Maximum *	7.3	8 -10%	11.1 -52%	6.7 8%	8.9 -22%	7.54 ?(5.3 - 11.1, n=7) -3%	7.88 ?(4.7 - 11.3, n=4) -8%	14.9 ?(2.6 - 57.1, n=119, ultimi 2 anni) -104%
Load Average *	23.5	18.2 23%	16.5 30%	15.9 32%	20 15%	16.2 ?(12.3 - 18.3, n=6) 31%	17.5 ?(13.6 - 23.5, n=4) 26%	57.4 ?(11.3 - 170.6, n=119, ultimi 2 anni) -144%
Load Maximum *	37.6	26.5 30%	26.3 30%	28.4 24%	21.1 44%	23.1 ?(13.4 - 28.4, n=7) 39%	24.9 ?(12.1 - 37.6, n=4) 34%	97.5 ?(18.1 - 423, n=119, ultimi 2 anni) -159%

* ... Meglio usare valori piccoli

Power consumption with external monitor

Intel NUC11ATKPE, N6005 UHD Graphics (Jasper Lake 32 EU), Pentium N6005, WDC PC SN720 SDAPNTW-512G; Prime95 V2810 Stress (external Monitor): Ø27 (24.4-35.2)

Intel NUC11ATKC2, N4505 UHD Graphics (Jasper Lake 16 EU), Celeron N4505, WDC PC SN720 SDAPNTW-512G; Prime95 V2810 Stress (external Monitor): Ø19.7 (17.1-20.5)

Intel NUC11ATKPE, N6005 UHD Graphics (Jasper Lake 32 EU), Pentium N6005, WDC PC SN720 SDAPNTW-512G; Cinebench R15 Multi (external Monitor): Ø25.5 (22.8-28.5)

Intel NUC11ATKC2, N4505 UHD Graphics (Jasper Lake 16 EU), Celeron N4505, WDC PC SN720 SDAPNTW-512G; Cinebench R15 Multi (external Monitor): Ø17.6 (16.8-18)

Intel NUC11ATKPE, N6005 UHD Graphics (Jasper Lake 32 EU), Pentium N6005, WDC PC SN720 SDAPNTW-512G; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø25 (22.5-28.8)

Intel NUC11ATKC2, N4505 UHD Graphics (Jasper Lake 16 EU), Celeron N4505, WDC PC SN720 SDAPNTW-512G; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø16 (15.3-19)

Intel NUC11ATKPE, N6005 UHD Graphics (Jasper Lake 32 EU), Pentium N6005, WDC PC SN720 SDAPNTW-512G; Idle 1min (external Monitor): Ø7.34 (7.09-7.67)

Intel NUC11ATKC2, N4505 UHD Graphics (Jasper Lake 16 EU), Celeron N4505, WDC PC SN720 SDAPNTW-512G; Idle 1min (external Monitor): Ø8.03 (7.87-8.35)

Intel NUC11ATKPE, N6005

Pro

+ custodia stabile e compatta

+ facile da aprire

+ numerose porte USB

+ basso consumo energetico

Contro

- alta latenza DPC

Verdetto: perfetto per il semplice lavoro d'ufficio

Kit essenziale Intel NUC11 - Recensione Atlas Canyon - fornito da Intel Germania

Abbiamo dato un'occhiata all'Intel NUC11 Essential Kit - Atlas Canyon, un mini PC con due sistemi diversi, che differiscono non poco nelle prestazioni. Entrambi i dispositivi di prova condividono lo stesso case e la stessa scheda madre. Intel Celeron N4505 è un SoC dual-core, che al giorno d'oggi ha un utilizzo limitato nella vita quotidiana. Vediamo una chiara opportunità di utilizzo in scenari molto specifici e con software adattato. L'Intel NUC11 Essential Kit - Atlas con un Intel Pentium Silver N6005 ha sicuramente il suo posto nel lavoro quotidiano in ufficio. Il SoC è dotato di 4 core e offre quindi prestazioni migliori.

L'Intel NUC11 Essential Kit - Atlas Canyon è perfetto per l'uso in scenari specializzati. Per l'uso quotidiano con Windows come sistema operativo, si dovrebbe optare per il processore a 4 core.

Per quanto riguarda la connettività, è stato fatto un compromesso lasciando fuori le porte moderne come USB4 o Thunderbolt. Nonostante ciò, il numero di porte è più che sufficiente per gli usi previsti dai sistemi. Le prestazioni WLAN sono state un po' deludenti, ma nel complesso hanno comunque fatto meglio dei loro concorrenti. In ogni caso, questi piccoli sistemi non dovranno gestire grandi quantità di dati. Molto più importante è la stabilità delle prestazioni, che entrambi i sistemi sono stati più che in grado di fornire. Le prestazioni della WLAN e della CPU sono rimaste sempre stabili, anche per un periodo di tempo più lungo. Lo stesso vale per l'unità SSD, che ha fornito prestazioni stabili con un carico continuo.

Dal punto di vista puramente estetico, l'Intel NUC11 Essential Kit - Atlas Canyon è un mini PC poco appariscente. Tuttavia, ha una finitura di alta qualità e non è assolutamente prodotto a basso costo. È realizzato bene e senza difetti, anche se il case in plastica sembra un po' economico a prima vista. Al giorno d'oggi, ci sono molti concorrenti nel campo dei mini PC, ma non molti in una fascia di prezzo compresa tra 150 e 250 dollari. Tuttavia, non si può dimenticare di calcolare il prezzo della RAM e dell'SSD nel proprio budget, poiché si tratta di un sistema barebone. Questo ci porta a determinare il NiPoGi GK3Plus e il Geekom MiniAir 11 come i maggiori concorrenti di questo mini PC.

Prezzi e disponibilità

L'Intel NUC11 Essential Kit - Atlas Canyon con Intel Celeron N4505 può essere acquistato su Amazon a 129 dollari.

La versione con il più veloce Intel Pentium Silver N6005 può essere acquistata da Intel per 229 dollari.

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Intel NUC11ATKPE, N6005 - 03/16/2023 v7 ^(old)
Sebastian Bade

Chassis

84 / 98 → 86%

Connettività

55 / 81 → 68%

Peso

83%

Prestazioni di gioco

51%

Prestazioni Applicazioni

74%

Rumorosità

84%

Media

72%

71%

Mini PC - Media ponderata

Intel NUC11ATKC2, N4505 - 03/16/2023 v7 ^(old)
Sebastian Bade

Chassis

84 / 98 → 86%

Connettività

55 / 81 → 68%

Peso

83%

Prestazioni di gioco

29%

Prestazioni Applicazioni

67%

Rumorosità

83%

Media

67%

63%

Mini PC - Media ponderata

Articoli collegati

#1 Intel NUC11ATKPE, N6005 (NUC11 Serie), #2 NUC11ATKPE, N6005 (NUC11 Serie), #3 NUC11ATKC2, N4505 (NUC11 Serie)

notizia

•

100 W Core i7-8809G contro 28 W Core i7-1165G7: Tiger Lake può superare l'e...

recensione

•

Il Kaby Lake-G è storia: Recensione dell'Intel Phantom Canyon NUC11PHKi7C

notizia

•

Intel NUC11TNK con Core i5 ora in spedizione per $579 USD senza RAM, OS o s...

recensione

•

Recensione dell'Intel NUC11TNKi5 Pro Mini Tiger Canyon: Il più piccolo Tige...

notizia

•

Il più veloce Core i7-1165G7 PC disponibile è ora oltre due volte più veloc...

recensione

•

Recensione del mini PC Intel NUC11PAQi7 Panther Canyon: Tiger Lake Fatto bene

Editor of the original article: Daisy Dickson - Translator - 339 articles published on Notebookcheck since 2023

Translator: Ninh Ngoc Duy - Editorial Assistant - 459232 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Recensioni e prove di notebook, tablets e smartphones > Recensioni e prove > Recensioni e prove > Intel NUC11 Essential Kit alias Atlas Canyon con recensione dell'Intel Pentium Silver N6005 e dell'Intel Celeron N4505

Sebastian Bade, 2023-03-19 (Update: 2023-03-27)
