Recensione Breve del portatile Lenovo ThinkPad E560 (Core i7, Radeon R7 M370)

Name: Lenovo ThinkPad E560-20EWS00000
Brand: Lenovo

Evoluzione di successo. Per la prima volta, Lenovo monta su un ThinkPad della serie E500 un display high-quality IPS ed una scheda grafica con la veloce memoria GDDR5. Il prezzo che include SSD e CPU i7 è ancora sotto i 1.000 Euro (~$1096) – si tratta di un affare?

Till Schönborn, ✓ Tanja Hinum, Published 01/03/2016 🇺🇸 🇩🇪 ...

Business Laptop / Notebook Skylake Windows

Dispositivo di test fornito da campuspoint.de

Scarica la tua immagine come PNG / SVG

E560 20EWS00000 (ThinkPad E560 Serie)

Processore

Intel Core i7-6500U 2 x 2.5 - 3.1 GHz, Skylake

Scheda grafica

AMD Radeon R7 M370 - 2048 MB VRAM, Core: 875 MHz, Memoria: 3600 MHz, GDDR5, 15.201.1101.0, Enduro

Memoria

8 GB

, 1x 8 GB DDR3L-1600, 1 slot su 2 occupato

Schermo

15.60 pollici 16:9, 1920 x 1080 pixel, Lenovo LP156WF6-SPK2, pannello IPS, retroilluminazione LED, lucido: no

Scheda madre

Intel Skylake-U Premium PCH

Harddisk

Samsung CM871 MZ7LF192HCGS, 192 GB

, 158 GB libera

Scheda audio

Intel Skylake-U/Y PCH - High Definition Audio

Porte di connessione

3 USB 3.0 / 3.1, 1 VGA, 1 HDMI, 1 Kensington Lock, 1 Porta Docking, Connessioni Audio: porta cuffie (jack da 3.5 mm), Lettore schede: SD, MMC

Rete

Intel Ethernet Connection I219-V (10/100/1000MBit/s), Intel Dual Band Wireless-AC 3165 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2

Drive ottico

HL-DT-ST DVDRAM GUC0N

Dimensioni

altezza x larghezza x profondità (in mm): 27.1 x 377 x 256

Batteria

48 Wh ioni di litio, 6 celle

Sistema Operativo

Microsoft Windows 10 Home 64 Bit

Camera

Webcam: Intel RealSense 3D Camera (2x 1080p)

Altre caratteristiche

Casse: JBL Stereo (2x 2W), Tastiera: Chiclet, Illuminazione Tastiera: no, Alimentatore da 65-Watt, Lenovo Solution Center, 12 Mesi Garanzia

Peso

2.35 kg, Alimentazione: 220 gr

Prezzo

930 Euro

Links

Lenovo homepage

Nota: il produttore potrebbe usare componenti di fornitori diversi pannelli dei diplay, drive o banchi di memoria con specifiche simili.

guarda tutte le specifiche

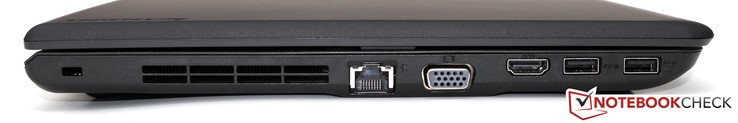

Left side: Kensington lock, Gbit-LAN, VGA, HDMI, 2x USB 3.0

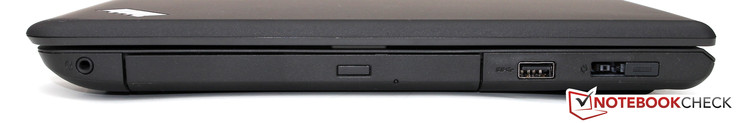

Right side: headset port, DVD burner, USB 3.0, power/OneLink

Sfarfallio dello schermo / PWM (Pulse-Width Modulation)

ℹ

Per ridurre la luminosità dello schermo, alcuni portatili accendono e spengono la retroilluminazione in rapida successione - un metodo chiamato Pulse Width Modulation (PWM). Questa frequenza di ciclo a livello ideale non dovrebbe essere percepibile dall'occhi umano. Se tale frequenza è troppo bassa, gli utenti con occhi sensibili potrebbero stancarsi gli occhi o avere mal di testa o anche notare uno sfarfallio.

flickering dello schermo / PWM non rilevato

In confronto: 53 % di tutti i dispositivi testati non utilizza PWM per ridurre la luminosita' del display. Se è rilevato PWM, una media di 8791 (minimo: 5 - massimo: 343500) Hz è stata rilevata.


238 cd/m²	230 cd/m²	222 cd/m²
249 cd/m²	257 cd/m²	239 cd/m²
228 cd/m²	229 cd/m²	214 cd/m²

Distribuzione della luminosità

Lenovo LP156WF6-SPK2 tested with X-Rite i1Pro 2

Massima: 257 cd/m² (Nits) Media: 234 cd/m²
Distribuzione della luminosità: 83 %
Al centro con la batteria: 255 cd/m²
Contrasto: 952:1 (Nero: 0.27 cd/m²)
ΔE Color 7.16 | 0.5-29.43 Ø4.93
ΔE Greyscale 6.28 | 0.5-98 Ø5.2
57.3% sRGB (Argyll 1.6.3 3D)
36.6% AdobeRGB 1998 (Argyll 1.6.3 3D)
39.8% AdobeRGB 1998 (Argyll 2.2.0 3D)
57.5% sRGB (Argyll 2.2.0 3D)
38.5% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.44

Download ICC File (X-Rite i1Pro 2)

	Lenovo ThinkPad E560-20EWS00000 1.920 x 1.080 IPS-Panel	Lenovo ThinkPad E550-20DF00CNGE 1.920 x 1.080 TN-Panel	HP ProBook 450 G3 1.920 x 1.080 TN-Panel	Dell Latitude 15 3550-0123 1.920 x 1.080 IPS-Panel
Display		3%	-1%	55%
Display P3 Coverage	38.5	39.84 3%	38.1 -1%	64.3 67%
sRGB Coverage	57.5	59.3 3%	57.3 0%	83.3 45%
AdobeRGB 1998 Coverage	39.8	41.2 4%	39.37 -1%	60.9 53%
Response Times			-16%
Response Time Grey 50% / Grey 80% *	38.4 ?(13.2, 25.2)		41.2 ?(22.4, 18.8) -7%
Response Time Black / White *	22.4 ?(6.4, 16)		28 ?(10, 18) -25%
PWM Frequency
Screen		-28%	-23%	29%
Brightness middle	257	195 -24%	211 -18%	353 37%
Brightness	234	188 -20%	214 -9%	335 43%
Brightness Distribution	83	90 8%	91 10%	88 6%
Black Level *	0.27	0.46 -70%	0.43 -59%	0.31 -15%
Contrast	952	424 -55%	491 -48%	1139 20%
Colorchecker dE 2000 *	7.16	9.92 -39%	9.25 -29%	4.59 36%
Greyscale dE 2000 *	6.28	10.06 -60%	9.83 -57%	3.73 41%
Gamma	2.44 ^90%	2.37 ^93%	2.82 ^78%	2.42 ^91%
CCT	6806 ^96%	11552 ^56%	10890 ^60%	6268 ^104%
Color Space (Percent of AdobeRGB 1998)	36.6	38 4%	36.4 -1%	55 50%
Color Space (Percent of sRGB)	57.3	59.3 3%	57.3 0%	83 45%
Media totale (Programma / Settaggio)		-13% / -20%	-13% / -18%	42% / 36%

* ... Meglio usare valori piccoli

Tempi di risposta del Display

ℹ

I tempi di risposta del display mostrano quanto sia veloce lo schermo a cambaire da un colore all'altro. Tempi di risposta lenti possono creare sovrapposizioni negloi oggetti in movimento. Specialmente i giocatori patiti del 3D dovrebbero usare uno schermo con tempi di risposta bassi.

↔ Tempi di risposta dal Nero al Bianco
22.4 ms ... aumenta ↗ e diminuisce ↘ combinato	↗ 6.4 ms Incremento
22.4 ms ... aumenta ↗ e diminuisce ↘ combinato	↘ 16 ms Calo
Lo schermo mostra buoni tempi di risposta durante i nostri tests, ma potrebbe essere troppo lento per i gamers competitivi. In confronto, tutti i dispositivi di test variano da 0.1 (minimo) a 240 (massimo) ms. » 46 % di tutti i dispositivi è migliore. Questo significa che i tempi di risposta rilevati sono simili alla media di tutti i dispositivi testati (21 ms).
↔ Tempo di risposta dal 50% Grigio all'80% Grigio
38.4 ms ... aumenta ↗ e diminuisce ↘ combinato	↗ 13.2 ms Incremento
38.4 ms ... aumenta ↗ e diminuisce ↘ combinato	↘ 25.2 ms Calo
Lo schermo mostra tempi di risposta lenti nei nostri tests e sarà insoddisfacente per i gamers. In confronto, tutti i dispositivi di test variano da 0.165 (minimo) a 636 (massimo) ms. » 53 % di tutti i dispositivi è migliore. Questo significa che i tempi di risposta rilevati sono peggiori rispetto alla media di tutti i dispositivi testati (33 ms).

Cinebench R11.5 | Cinebench R15 | X264 HD Benchmark 4.0 | Geekbench 3

Cinebench R11.5
CPU Single 64Bit (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U	1.45 Points
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U	1.3 Points -10%
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U	1.42 Points -2%
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U	1.51 Points +4%
HP ProBook 450 G3 Intel Core i5-6200U	1.32 Points -9%
Dell Latitude 15 3550-0123 Intel Core i7-5500U	1.41 Points -3%
CPU Multi 64Bit (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U	3.55 Points
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U	3.23 Points -9%
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U	3.13 Points -12%
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U	3.31 Points -7%
HP ProBook 450 G3 Intel Core i5-6200U	3.21 Points -10%
Dell Latitude 15 3550-0123 Intel Core i7-5500U	3.29 Points -7%

Cinebench R15
CPU Single 64Bit (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U	124 Points
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U	114 Points -8%
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U	123 Points -1%
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U	130 Points +5%
HP ProBook 450 G3 Intel Core i5-6200U	116 Points -6%
Dell Latitude 15 3550-0123 Intel Core i7-5500U	124 Points 0%
CPU Multi 64Bit (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U	319 Points
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U	290 Points -9%
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U	282 Points -12%
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U	302 Points -5%
HP ProBook 450 G3 Intel Core i5-6200U	288 Points -10%
Dell Latitude 15 3550-0123 Intel Core i7-5500U	299 Points -6%

X264 HD Benchmark 4.0
Pass 1 (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U	107.6 fps
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U	97.6 fps -9%
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U	89.6 fps -17%
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U	102.4 fps -5%
Pass 2 (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U	20.95 fps
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U	18.97 fps -9%
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U	17.31 fps -17%
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U	18.72 fps -11%

Geekbench 3
64 Bit Single-Core Score (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U	2902 Points
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U	2702 Points -7%
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U	2839 Points -2%
64 Bit Multi-Core Score (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U	6403 Points
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U	5801 Points -9%
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U	5794 Points -10%

Cinebench R10 Shading 32Bit

7921

Cinebench R10 Rendering Multiple CPUs 32Bit

11004

Cinebench R10 Rendering Single 32Bit

4871

Cinebench R10 Shading 64Bit

7835 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

14045 Points

Cinebench R10 Rendering Single CPUs 64Bit

6343 Points

Cinebench R11.5 CPU Single 64Bit

1.45 Points

Cinebench R11.5 OpenGL 64Bit

52.9 fps

Cinebench R11.5 CPU Multi 64Bit

3.55 Points

Cinebench R15 OpenGL 64Bit

51.3 fps

Cinebench R15 CPU Single 64Bit

124 Points

Cinebench R15 CPU Multi 64Bit

319 Points

Cinebench R15 Ref. Match 64Bit

98 %

Aiuto

... in confronto

HD Tune

CrystalDiskMark 3.0

AS SSD

Samsung CM871 MZ7LF192HCGS

Valore Minimo di trasferimento: 280.8 MB/s

Valore Massimo di trasferimento: 399.1 MB/s

Valore Medio di trasferimento: 388.8 MB/s

Tempi di accesso: 0.2 ms

Burst Rate: 126.7 MB/s

Utilizzo CPU: 3.1 %

PCMark 7 | PCMark 8

PCMark 7 - Score (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Radeon R7 M370, 6500U, Samsung CM871 MZ7LF192HCGS	5102 Points
Lenovo ThinkPad E550-20DF00CNGE Radeon R7 M265, 5500U, WDC Slim WD10SPCX-22HWST0	2819 Points -45%
HP ProBook 450 G3 HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15	3075 Points -40%
Dell Latitude 15 3550-0123 GeForce 830M, 5500U, Toshiba MQ01ABD100	2714 Points -47%
Acer TravelMate P257-M-56AX HD Graphics 5500, 5200U, Kingston RBU-SC150S37256GD	4293 Points -16%

PCMark 8
Home Score Accelerated v2 (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Radeon R7 M370, 6500U, Samsung CM871 MZ7LF192HCGS	3595 Points
Lenovo ThinkPad E550-20DF00CNGE Radeon R7 M265, 5500U, WDC Slim WD10SPCX-22HWST0	3960 Points +10%
HP ProBook 450 G3 HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15	2910 Points -19%
Dell Latitude 15 3550-0123 GeForce 830M, 5500U, Toshiba MQ01ABD100	3152 Points -12%
Acer TravelMate P257-M-56AX HD Graphics 5500, 5200U, Kingston RBU-SC150S37256GD	3090 Points -14%
Creative Score Accelerated v2 (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Radeon R7 M370, 6500U, Samsung CM871 MZ7LF192HCGS	4049 Points
HP ProBook 450 G3 HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15	3460 Points -15%
Dell Latitude 15 3550-0123 GeForce 830M, 5500U, Toshiba MQ01ABD100	3443 Points -15%
Work Score Accelerated v2 (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Radeon R7 M370, 6500U, Samsung CM871 MZ7LF192HCGS	4650 Points
Lenovo ThinkPad E550-20DF00CNGE Radeon R7 M265, 5500U, WDC Slim WD10SPCX-22HWST0	4020 Points -14%
HP ProBook 450 G3 HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15	3901 Points -16%
Dell Latitude 15 3550-0123 GeForce 830M, 5500U, Toshiba MQ01ABD100	3873 Points -17%
Acer TravelMate P257-M-56AX HD Graphics 5500, 5200U, Kingston RBU-SC150S37256GD	3979 Points -14%

PCMark 7 Score		5102 punti
PCMark 8 Home Score Accelerated v2		3595 punti
PCMark 8 Creative Score Accelerated v2		4049 punti
PCMark 8 Work Score Accelerated v2		4650 punti
Aiuto

... in confronto

3DMark 11 | 3DMark

3DMark 11 - 1280x720 Performance GPU (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 AMD Radeon R7 M370	2522 Points
Lenovo ThinkPad T450s-20BWS1UT00 NVIDIA GeForce 940M	2313 Points -8%
Lenovo ThinkPad E550-20DF00CNGE AMD Radeon R7 M265	2073 Points -18%
Lenovo ThinkPad E460-20EUS00000 AMD Radeon R7 M360	1989 Points -21%
Dell Latitude 15 3550-0123 NVIDIA GeForce 830M	1961 Points -22%
HP ProBook 430 G3 P5T00ES Intel HD Graphics 520	1318 Points -48%
HP ProBook 450 G3 Intel HD Graphics 520	1165 Points -54%

3DMark - 1920x1080 Fire Strike Graphics (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 AMD Radeon R7 M370	1760 Points
Lenovo ThinkPad T450s-20BWS1UT00 NVIDIA GeForce 940M	1627 Points -8%
Lenovo ThinkPad E550-20DF00CNGE AMD Radeon R7 M265	1397 Points -21%
Lenovo ThinkPad E460-20EUS00000 AMD Radeon R7 M360	1109 Points -37%
Dell Latitude 15 3550-0123 NVIDIA GeForce 830M	1360 Points -23%
HP ProBook 430 G3 P5T00ES Intel HD Graphics 520	861 Points -51%
HP ProBook 450 G3 Intel HD Graphics 520	608 Points -65%

3DMark 06 Standard Score		12983 punti
3DMark Vantage P Result		8513 punti
3DMark 11 Performance		2689 punti
3DMark Ice Storm Standard Score		34736 punti
3DMark Cloud Gate Standard Score		7083 punti
3DMark Fire Strike Score		1654 punti
3DMark Fire Strike Extreme Score		822 punti
Aiuto

... in confronto

Crysis 3
1024x768 Low Preset (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	54.1 fps
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	39.1 fps -28%
1366x768 Medium Preset AF:16x (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	32.6 fps
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	25.4 fps -22%
1366x768 High Preset AA:FX AF:16x (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	20.2 fps
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	18.1 fps -10%

Tomb Raider
1024x768 Low Preset (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	105.5 fps
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	104.5 fps -1%
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U, AMD Radeon R7 M360	73.2 fps -31%
HP ProBook 450 G3 Intel Core i5-6200U, Intel HD Graphics 520	52 fps -51%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	50.1 fps -53%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	74.2 fps -30%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	108.7 fps +3%
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	130.8 fps +24%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	123.2 fps +17%
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	128.8 fps +22%
Dell XPS 13 2016 i7 256GB QHD Intel Core i7-6500U, Intel HD Graphics 520	71.8 fps -32%
1366x768 Normal Preset AA:FX AF:4x (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	55.4 fps
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	51.5 fps -7%
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U, AMD Radeon R7 M360	38.7 fps -30%
HP ProBook 450 G3 Intel Core i5-6200U, Intel HD Graphics 520	26.8 fps -52%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	26.6 fps -52%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	39.4 fps -29%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	55.3 fps 0%
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	66.1 fps +19%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	58 fps +5%
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	61.5 fps +11%
Dell XPS 13 2016 i7 256GB QHD Intel Core i7-6500U, Intel HD Graphics 520	36.6 fps -34%
1366x768 High Preset AA:FX AF:8x (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	42.7 fps
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	34.6 fps -19%
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U, AMD Radeon R7 M360	29.7 fps -30%
HP ProBook 450 G3 Intel Core i5-6200U, Intel HD Graphics 520	15.1 fps -65%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	15.3 fps -64%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	24.5 fps -43%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	31.1 fps -27%
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	36.4 fps -15%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	33.4 fps -22%
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	33.5 fps -22%
Dell XPS 13 2016 i7 256GB QHD Intel Core i7-6500U, Intel HD Graphics 520	24.4 fps -43%

BioShock Infinite
1280x720 Very Low Preset (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	86.7 fps
Dell XPS 13 2016 i7 256GB QHD Intel Core i7-6500U, Intel HD Graphics 520	51.4 fps -41%
1366x768 Medium Preset (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	48.4 fps
Dell XPS 13 2016 i7 256GB QHD Intel Core i7-6500U, Intel HD Graphics 520	27.9 fps -42%
1366x768 High Preset (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	46.7 fps
Dell XPS 13 2016 i7 256GB QHD Intel Core i7-6500U, Intel HD Graphics 520	24.1 fps -48%

Metro: Last Light
1024x768 Low (DX10) AF:4x (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	51.9 fps
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	46.4 fps -11%
1366x768 Medium (DX10) AF:4x (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	38.2 fps
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	36.4 fps -5%
1366x768 High (DX11) AF:16x (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	21.8 fps
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	22.5 fps +3%

Battlefield 4
1024x768 Low Preset (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	68 fps
1366x768 Medium Preset (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	46.7 fps
1366x768 High Preset (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	33.2 fps

Thief
1024x768 Very Low Preset (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	30.3 fps
1366x768 Normal Preset AA:FX (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	21 fps
1366x768 High Preset AA:FXAA & Low SS AF:4x (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	18 fps

Sims 4
1024x768 Low Preset (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	172.7 fps
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	164.8 fps -5%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	176.8 fps +2%
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	161.1 fps -7%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	184.5 fps +7%
1366x768 Medium Preset (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	58.6 fps
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	40.5 fps -31%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	49.4 fps -16%
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	66.2 fps +13%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	90.1 fps +54%
1920x1080 High Preset (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	35 fps
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	16.6 fps -53%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	25.3 fps -28%
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	35.7 fps +2%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	40.1 fps +15%

Middle-earth: Shadow of Mordor
1280x720 Lowest Preset (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	37.4 fps
1344x756 Medium Preset (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	27.8 fps
1920x1080 High Preset (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	15.7 fps

Dragon Age: Inquisition
1024x768 Low Graphics Quality (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	58.6 fps
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	42 fps -28%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	17.2 fps -71%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	28.6 fps -51%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	44.7 fps -24%
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	40.9 fps -30%
1366x768 Medium Graphics Quality (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	34.9 fps
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	28.7 fps -18%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	11.7 fps -66%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	18.9 fps -46%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	29.7 fps -15%
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	25.1 fps -28%
1920x1080 High Graphics Quality (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	11.7 fps
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	10.7 fps -9%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	4.5 fps -62%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	10.3 fps -12%
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	16.1 fps +38%

Battlefield Hardline
1024x768 Low Graphics Quality (DX11) (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	72.4 fps
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	53.3 fps -26%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	30.6 fps -58%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	47.7 fps -34%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	65.2 fps -10%
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	71.7 fps -1%
1366x768 Medium Graphics Quality (DX11) (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	52.5 fps
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	42 fps -20%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	21.7 fps -59%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	33.5 fps -36%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	46.1 fps -12%
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	50.2 fps -4%
1920x1080 High Graphics Quality (DX11) (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	19.4 fps
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	17.3 fps -11%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	7.3 fps -62%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	11.9 fps -39%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	16.7 fps -14%
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	18 fps -7%

Dirt Rally
1024x768 Ultra Low Preset (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	116.8 fps
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	136.6 fps +17%
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U, AMD Radeon R7 M360	91.8 fps -21%
HP ProBook 450 G3 Intel Core i5-6200U, Intel HD Graphics 520	71.3 fps -39%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	70.6 fps -40%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	113.3 fps -3%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	165.4 fps +42%
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	183.2 fps +57%
Dell XPS 13 2016 i7 256GB QHD Intel Core i7-6500U, Intel HD Graphics 520	95 fps -19%
1366x768 Medium Preset (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	47.6 fps
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	40.6 fps -15%
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U, AMD Radeon R7 M360	34 fps -29%
HP ProBook 450 G3 Intel Core i5-6200U, Intel HD Graphics 520	20 fps -58%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	19.9 fps -58%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	25.7 fps -46%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	45.6 fps -4%
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	45.1 fps -5%
Dell XPS 13 2016 i7 256GB QHD Intel Core i7-6500U, Intel HD Graphics 520	23.6 fps -50%
1920x1080 High Preset (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	25.6 fps
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	21.3 fps -17%
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U, AMD Radeon R7 M360	18.4 fps -28%
HP ProBook 450 G3 Intel Core i5-6200U, Intel HD Graphics 520	12.5 fps -51%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	12.5 fps -51%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	12.5 fps -51%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	25.5 fps 0%
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	22.6 fps -12%
Dell XPS 13 2016 i7 256GB QHD Intel Core i7-6500U, Intel HD Graphics 520	12.7 fps -50%

The Witcher 3
1024x768 Low Graphics & Postprocessing (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	27.6 fps
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	22.9 fps -17%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	24.5 fps -11%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	27 fps -2%
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	29 fps +5%
1366x768 Medium Graphics & Postprocessing (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	18 fps
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	15.9 fps -12%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	15 fps -17%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	16.7 fps -7%
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	17.6 fps -2%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off) (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	9.5 fps
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	8.8 fps -7%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	7.3 fps -23%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	9 fps -5%
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	9.2 fps -3%

Batman: Arkham Knight
1280x720 Low / Off AF:Trilinear (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	29 fps
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	25 fps -14%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	23 fps -21%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	26 fps -10%
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	25 fps -14%
1366x768 Normal / Off AF:4x (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	23 fps
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	17 fps -26%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	19 fps -17%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	21 fps -9%
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	21 fps -9%
1920x1080 High / On (Interactive Smoke & Paper Debris Off) AA:SM AF:8x (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	10 fps
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	7 fps -30%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	7 fps -30%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	10 fps 0%
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	12 fps +20%

Metal Gear Solid V
1024x768 Low / Off (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	57.1 fps
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	60 fps +5%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	28.6 fps -50%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	45 fps -21%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	60 fps +5%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	60 fps +5%
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	58 fps +2%
Dell XPS 13 2016 i7 256GB QHD Intel Core i7-6500U, Intel HD Graphics 520	43.7 fps -23%
1366x768 Medium / Off (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	43.3 fps
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	48.7 fps +12%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	18.3 fps -58%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	28.2 fps -35%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	48.2 fps +11%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	40.5 fps -6%
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	39.9 fps -8%
Dell XPS 13 2016 i7 256GB QHD Intel Core i7-6500U, Intel HD Graphics 520	28.3 fps -35%
1920x1080 High / On (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	20.2 fps
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	18.3 fps -9%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	16.9 fps -16%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	16.4 fps -19%
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	16.1 fps -20%
Dell XPS 13 2016 i7 256GB QHD Intel Core i7-6500U, Intel HD Graphics 520	11.5 fps -43%

Mad Max
1366x768 Normal Preset AF:2x (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	38.4 fps
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	32.4 fps -16%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	32 fps -17%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	34.5 fps -10%
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	34.4 fps -10%
1920x1080 High Preset AF:6x (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	17.1 fps
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	16 fps -6%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	15.7 fps -8%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	16.4 fps -4%
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	17 fps -1%

World of Warships
1366x768 Low Preset AF:Trilinear (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	51 fps
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	83.2 fps +63%
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U, AMD Radeon R7 M360	46.5 fps -9%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	45.2 fps -11%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	69.2 fps +36%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	48.4 fps -5%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	102.6 fps +101%
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	103.4 fps +103%
1366x768 Medium Preset AF:Trilinear (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	35.6 fps
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	56.4 fps +58%
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U, AMD Radeon R7 M360	36.7 fps +3%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	32.1 fps -10%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	47 fps +32%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	37.6 fps +6%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	75.3 fps +112%
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	78.1 fps +119%
1920x1080 High Preset AF:8x (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	17.7 fps
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	28.1 fps +59%
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U, AMD Radeon R7 M360	17.2 fps -3%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	15.9 fps -10%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	22 fps +24%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	20.2 fps +14%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	34.7 fps +96%
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	36.6 fps +107%

FIFA 16
1280x720 Low Preset (ordina per valore)
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	69 fps
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	36.9 fps
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	63.5 fps
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	92.6 fps
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	99.7 fps
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	88.5 fps
1366x768 High Preset AA:2x MS (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	27.9 fps
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	49.1 fps +76%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	25 fps -10%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	39.7 fps +42%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	50 fps +79%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	57.8 fps +107%
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	57.9 fps +108%

Anno 2205
1024x768 Low Preset (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	35.4 fps
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	8.2 fps -77%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	40.6 fps +15%
1366x768 Medium Preset AA:2x (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	19.8 fps
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	5.3 fps -73%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	22.3 fps +13%
1920x1080 High Preset AA:4x (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	8.7 fps
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	9.7 fps +11%

Call of Duty: Black Ops 3
1024x768 Low / Off (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	44.2 fps
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U, AMD Radeon R7 M360	33.9 fps -23%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	17.2 fps -61%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	22 fps -50%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	46.7 fps +6%
1366x768 Medium / Off (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	28 fps
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U, AMD Radeon R7 M360	20.6 fps -26%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	9.7 fps -65%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	12 fps -57%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	29.2 fps +4%
1920x1080 High / On AA:FX (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	11.4 fps
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U, AMD Radeon R7 M360	8.5 fps -25%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	13.1 fps +15%

Fallout 4
1280x720 Low Preset AA:FX (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	34 fps
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U, AMD Radeon R7 M360	21.4 fps -37%
HP ProBook 450 G3 Intel Core i5-6200U, Intel HD Graphics 520	13.2 fps -61%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	13.6 fps -60%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	18.8 fps -45%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	32.3 fps -5%
1366x768 Medium Preset AA:T AF:16x (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	21.1 fps
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U, AMD Radeon R7 M360	14.5 fps -31%
HP ProBook 450 G3 Intel Core i5-6200U, Intel HD Graphics 520	8.6 fps -59%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	9.1 fps -57%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	11.4 fps -46%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	19.8 fps -6%
1920x1080 High Preset AA:T AF:16x (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	11.5 fps
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U, AMD Radeon R7 M360	7.5 fps -35%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	11.1 fps -3%

Star Wars Battlefront
1024x768 Low Preset (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	52.1 fps
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U, AMD Radeon R7 M360	23.5 fps -55%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	46.2 fps -11%
1366x768 Medium Preset AA:FX (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	32.8 fps
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U, AMD Radeon R7 M360	16.5 fps -50%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	28.5 fps -13%
1920x1080 High Preset AA:FX (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	16 fps
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U, AMD Radeon R7 M360	8.9 fps -44%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	12.8 fps -20%

Assassin's Creed Syndicate
1024x768 Low Preset AA:FX (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	19.3 fps
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U, AMD Radeon R7 M360	12 fps -38%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	21.8 fps +13%
1366x768 Medium Preset AA:FX (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	15.8 fps
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U, AMD Radeon R7 M360	10 fps -37%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	17.3 fps +9%
1920x1080 High Preset AA:FX (ordina per valore)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	8.9 fps
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U, AMD Radeon R7 M360	5.9 fps -34%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	9.6 fps +8%

	basso	medio	alto	ultra
Crysis 3 (2013)	54.1	32.6	20.2	7.4
Tomb Raider (2013)	105.5	55.4	42.7	18.6
BioShock Infinite (2013)	86.7	48.4	46.7	16.1
Metro: Last Light (2013)	51.9	38.2	21.8	10.1
Battlefield 4 (2013)	68	46.7	33.2	12.8
Thief (2014)	30.3	21	18	9.8
Sims 4 (2014)	172.7	58.6	35	25
Middle-earth: Shadow of Mordor (2014)	37.4	27.8	15.7	11.7
Dragon Age: Inquisition (2014)	58.6	34.9	11.7	7.6
Battlefield Hardline (2015)	72.4	52.5	19.4	12.8
Dirt Rally (2015)	116.8	47.6	25.6	13.4
The Witcher 3 (2015)	27.6	18	9.5	5.7
Batman: Arkham Knight (2015)	29	23	10
Metal Gear Solid V (2015)	57.1	43.3	20.2	12.7
Mad Max (2015)		38.4	17.1	13.8
World of Warships (2015)	51	35.6	17.7	13.3
FIFA 16 (2015)			27.9	15.6
Anno 2205 (2015)	35.4	19.8	8.7	4.1
Call of Duty: Black Ops 3 (2015)	44.2	28	11.4	6.5
Fallout 4 (2015)	34	21.1	11.5	8.4
Star Wars Battlefront (2015)	52.1	32.8	16	13.5
Assassin's Creed Syndicate (2015)	19.3	15.8	8.9

	Lenovo ThinkPad E560-20EWS00000 Radeon R7 M370, 6500U, Samsung CM871 MZ7LF192HCGS	Lenovo ThinkPad E550-20DF00CNGE Radeon R7 M265, 5500U, WDC Slim WD10SPCX-22HWST0	Dell Latitude 15 3550-0123 GeForce 830M, 5500U, Toshiba MQ01ABD100	HP ProBook 450 G3 HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15	Acer TravelMate P257-M-56AX HD Graphics 5500, 5200U, Kingston RBU-SC150S37256GD
Noise		-2%	-18%	-0%	-7%
Idle Minimum *	29.2	29.8 -2%	32.5 -11%	29.7 -2%	31.8 -9%
Idle Average *	29.2	29.8 -2%	32.5 -11%	29.7 -2%	31.8 -9%
Idle Maximum *	29.2	31.1 -7%	32.5 -11%	29.7 -2%	31.8 -9%
Load Average *	33.6	33.1 1%	43.5 -29%	33.1 1%	35 -4%
Load Maximum *	35.5	35.6 -0%	45.3 -28%	34.2 4%	37.6 -6%

* ... Meglio usare valori piccoli

Rumorosità

Idle		29.2 / 29.2 / 29.2 dB(A)
Sotto carico		33.6 / 35.5 dB(A)

	30 dB silenzioso 40 dB(A) udibile 50 dB(A) rumoroso
min: , med: , max: Voltcraft SL-451 (15 cm di distanza)

Carico massimo

Idle


40.3 °C	41.5 °C	28.6 °C
37.3 °C	45 °C	26.8 °C
29.9 °C	36.6 °C	24.1 °C

Massima: 45 °C
Media: 34.5 °C


26.8 °C	39.8 °C	31.9 °C
25.8 °C	38.9 °C	36.8 °C
23.9 °C	33.8 °C	30.6 °C

Massima: 39.8 °C
Media: 32 °C

Alimentazione (max) 50.6 °C | Temperatura della stanza 19.1 °C | Fluke 62 Max

(±) La temperatura media del lato superiore sotto carico massimo e' di 34.5 °C / 94 F, rispetto alla media di 29.5 °C / 85 F per i dispositivi di questa classe Office.
(±) La temperatura massima sul lato superiore è di 45 °C / 113 F, rispetto alla media di 34.3 °C / 94 F, che varia da 21.2 a 62.5 °C per questa classe Office.
(+) Il lato inferiore si riscalda fino ad un massimo di 39.8 °C / 104 F, rispetto alla media di 36.8 °C / 98 F
(+) In idle, la temperatura media del lato superiore è di 25.1 °C / 77 F, rispetto alla media deld ispositivo di 29.5 °C / 85 F.
(±) I poggiapolsi e il touchpad possono diventare molto caldi al tatto con un massimo di 36.6 °C / 97.9 F.
(-) La temperatura media della zona del palmo della mano di dispositivi simili e'stata di 27.7 °C / 81.9 F (-8.9 °C / -16 F).

Consumo di corrente

Off / Standby	0.25 / 0.4 Watt
Idle	4.2 / 7.5 / 8.2 Watt
Sotto carico	49.6 / 65.8 Watt


Leggenda: min: , med: , max: Metrahit Energy Attualmente utilizziamo il Metrahit Energy, un multimetro digitale professionale per la misurazione della qualità della potenza e dell'energia monofase, per le nostre misurazioni.

	Lenovo ThinkPad E560-20EWS00000 48 Wh	Lenovo ThinkPad E550-20DF00CNGE 48 Wh	HP ProBook 450 G3 44 Wh	Dell Latitude 15 3550-0123 58 Wh	Acer TravelMate P257-M-56AX 37 Wh
Autonomia della batteria		-21%	-19%	10%	-15%
Reader / Idle	884	663 -25%	575 -35%	775 -12%	703 -20%
H.264	413	311 -25%	337 -18%	474 15%
WiFi v1.3	342	293 -14%	309 -10%	379 11%	321 -6%
Load	104	82 -21%	90 -13%	129 24%	83 -20%

Autonomia della batteria

Idle (senza WLAN, min luminosità)		14ore 44minuti
WiFi Websurfing		5ore 42minuti
Big Buck Bunny H.264 1080p		6ore 53minuti
Sotto carico (max luminosità)		1ore 44minuti

Pro

+ decente qualità del case

+ eccellente tastiera

+ soluzione docking opzionale

+ Display IPS ad elevato contrasto e risoluzione con ampi angoli di visuale

+ prestazioni con le applicazioni molto buone

+ Scarsa rumorosità

+ buon rapporto prezzo-prestazioni

Contro

- mediocre riproduzione del colore del display

- possibilità di upgrade limitata

- leggero throttling sotto carico massimo

- solo 12 mesi di garanzia

In review: Lenovo ThinkPad E560. Test model courtesy of Campuspoint.

Dopo l'eccellente risultato del ThinkPad E460, l'E560 continua con le buone prestazioni e Lenovo è ancora una volta (in base alla configurazione) in grado di offrire un modello entry-level relativamente economico senza grandi pecche. Oltre alla consueta eccellente tastiera, dobbiamo citare il nuovo display IPS in particolare, che non solo offre una maggiore luminosità ed un contrasto superiore ma anche angoli di visuale maggiori rispetto ai pannelli TN che sono comuni in questa fascia di prezzo. Le performance sono abbastanza buone grazie all'SSD, agli 8 GB di RAM ed al processore Core i7, sebbene raccomandiamo un modello con CPU i5, che non è molto più lento, per chi vuole risparmiare. La scheda dedicata Radeon R7 M370 con memoria GDDR5 fornisce decenti prestazioni gaming con dettagli ridotti, ma la HD Graphics 520 integrata potrebbe essere sufficiente per applicazioni da ufficio e multimedia.

Non potete sbagliarvi quando comprate il ThinkPad E560 – ma dovreste pesare se avete bisogno di un processore Core i7 ed una GPU Radeon.

Abbiamo già detto che non abbiamo trovato grosse pecche durante la recensione, am ci sono ancora alcune cose che possono essere migliorate nella prossima generazione. Tra queste, uno slot libero M.2 ci farebbe piacere, come un accesso più facile alla ventola ed al sistema di raffreddamento, e la riproduzione del colore del display potrebbe essere migliorata. Tuttavia, come per la garanzia di appena 12 mesi, si tratta delle conseguenze del taglio del prezzo - Lenovo vuole ancora vendere le sue serie più costose L e T.

Nota: si tratta di una recensione breve, con alcune sezioni non tradotte, per la versione integrale in inglese guardate qui.

Lenovo ThinkPad E560-20EWS00000 - 2016-02-26 02/26/2016 v5 ^(old)
Till Schönborn

Chassis

80 / 98 → 82%

Tastiera

87%

Dispositivo di puntamento

83%

Connettività

53 / 80 → 66%

Peso

61 / 20-67 → 87%

Batteria

87%

Display

83%

Prestazioni di gioco

62 / 68 → 91%

Prestazioni Applicazioni

81 / 92 → 88%

Temperatura

90%

Rumorosità

93%

Audio

69%

Fotocamera

58 / 85 → 68%

Media

76%

84%

Office - Media ponderata

Informazioni sulle mofiche nella nuova versione 5 dei punteggi

Price comparison

Editor of the original article: Andreas Osthoff - Managing Editor Business Laptops - 1692 articles published on Notebookcheck since 2013

contact me via: LinkedIn

Please share our article, every link counts!

> Recensioni e prove di notebook, tablets e smartphones > Recensioni e prove > Recensioni e prove > Recensione Breve del portatile Lenovo ThinkPad E560 (Core i7, Radeon R7 M370)

Till Schönborn, 2016-01- 3 (Update: 2016-01- 3)
