Recensione Breve del Portatile Lenovo ThinkPad E560 (Core i3, HD)

Name: Lenovo ThinkPad E560 20EV000MGE
Brand: Lenovo

Lavoratore instancabile. Il nostro modello di ThinkPad E560 punta a clienti attenti al prezzo. Bisogna sborsare poco più di 500 Euro (~$553) per questo dispositivo. Avrete un processore Core i3, ampia autonomia, tastiera eccellente e due sistemi operativi Windows.

Sascha Mölck, ✓ Stefanie Voigt, Published 07/12/2016 🇺🇸 🇩🇪 ...

Business Laptop / Notebook Skylake Windows

Dispositivo di test fornito da notebooksbilliger.de

Scarica la tua immagine come PNG / SVG

Lenovo ThinkPad E560 20EV000MGE (ThinkPad E560 Serie)

Processore

Intel Core i3-6100U 2 x 2.3 GHz, Skylake

Scheda grafica

Intel HD Graphics 520, Core: 950 MHz, Single-Channel, 20.19.15.4312

Memoria

4 GB

, DDR3-1600, single-channel, due banchi di memoria (uno occupato)

Schermo

15.60 pollici 16:9, 1366 x 768 pixel 100 PPI, Lenovo N156B6-L07, TN LED, lucido: no

Scheda madre

Intel Skylake-U Premium PCH

Harddisk

Western Digital WD Black Mobile 500GB (WD5000LPLX), 500 GB

, 7200 rpm, 420 GB libera

Scheda audio

Conexant CX20753/4 @ Intel Skylake PCH - High Definition Audio Controller

Porte di connessione

3 USB 3.0 / 3.1, 1 VGA, 1 HDMI, 1 Kensington Lock, 1 Porta Docking, Connessioni Audio: combo audio, Lettore schede: SD, 1 Lettore impronte digitali, TPM 1.2

Rete

Intel Ethernet Connection I219-V (10/100/1000MBit/s), Intel Dual Band Wireless-AC 3165 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2

Drive ottico

HL-DT-ST DVDRAM GUC0N

Dimensioni

altezza x larghezza x profondità (in mm): 27.1 x 377 x 255

Batteria

48 Wh, 4400 mAh ioni di litio, removibile, 10.8 V

Sistema Operativo

Microsoft Windows 7 Professional (64 Bit) + Windows 10 Pro (64 Bit)

Camera

Webcam: HD webcam

Altre caratteristiche

Casse: stereo, Tastiera: chiclet, Illuminazione Tastiera: no, Cyberlink PowerDVD 12, Cyberlink WaveEditor Cyberlink PowerDVD Create, McAfee LiveSafe Internet Security (trial), MS Office (trial), 12 Mesi Garanzia

Peso

2.35 kg, Alimentazione: 305 gr

Prezzo

549 Euro

Links

Lenovo homepage

Nota: il produttore potrebbe usare componenti di fornitori diversi pannelli dei diplay, drive o banchi di memoria con specifiche simili.

guarda tutte le specifiche


225 cd/m²	238 cd/m²	224 cd/m²
218 cd/m²	241 cd/m²	224 cd/m²
215 cd/m²	226 cd/m²	221 cd/m²

Distribuzione della luminosità

Lenovo N156B6-L07 tested with X-Rite i1Pro 2

Massima: 241 cd/m² (Nits) Media: 225.8 cd/m² Minimum: 7 cd/m²
Distribuzione della luminosità: 89 %
Al centro con la batteria: 242 cd/m²
Contrasto: 502:1 (Nero: 0.48 cd/m²)
ΔE Color 12.43 | 0.5-29.43 Ø4.91

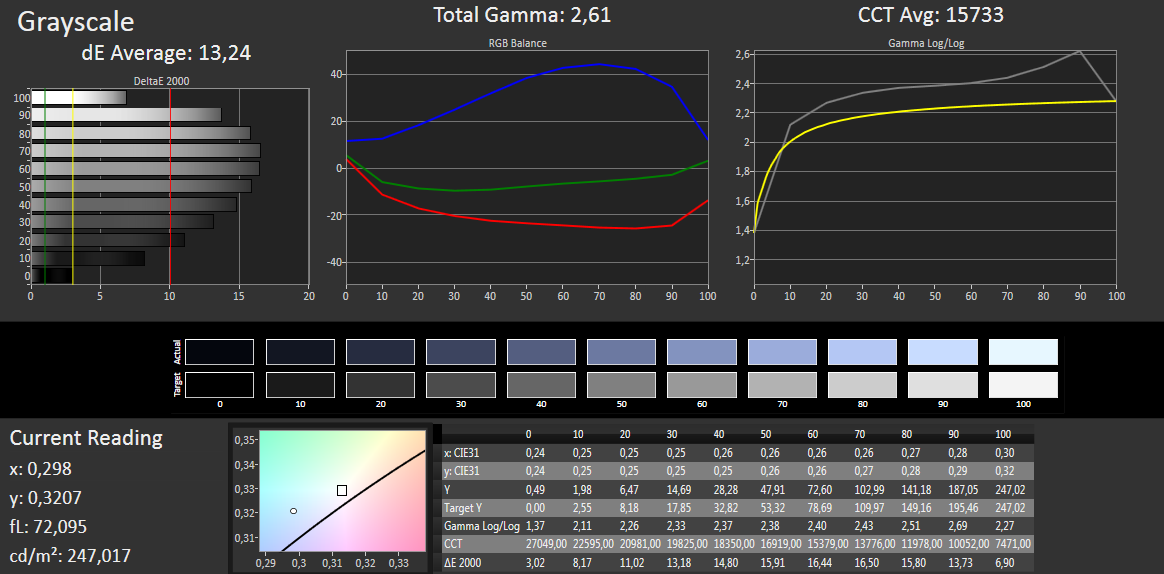

ΔE Greyscale 13.24 | 0.5-98 Ø5.2
57% sRGB (Argyll 1.6.3 3D)
36% AdobeRGB 1998 (Argyll 1.6.3 3D)
38.88% AdobeRGB 1998 (Argyll 2.2.0 3D)
56.7% sRGB (Argyll 2.2.0 3D)
37.63% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.61

Download ICC File (X-Rite i1Pro 2)

Sfarfallio dello schermo / PWM (Pulse-Width Modulation)

ℹ

Per ridurre la luminosità dello schermo, alcuni portatili accendono e spengono la retroilluminazione in rapida successione - un metodo chiamato Pulse Width Modulation (PWM). Questa frequenza di ciclo a livello ideale non dovrebbe essere percepibile dall'occhi umano. Se tale frequenza è troppo bassa, gli utenti con occhi sensibili potrebbero stancarsi gli occhi o avere mal di testa o anche notare uno sfarfallio.

flickering dello schermo / PWM non rilevato

In confronto: 53 % di tutti i dispositivi testati non utilizza PWM per ridurre la luminosita' del display. Se è rilevato PWM, una media di 8715 (minimo: 5 - massimo: 343500) Hz è stata rilevata.

Tempi di risposta del Display

ℹ

I tempi di risposta del display mostrano quanto sia veloce lo schermo a cambaire da un colore all'altro. Tempi di risposta lenti possono creare sovrapposizioni negloi oggetti in movimento. Specialmente i giocatori patiti del 3D dovrebbero usare uno schermo con tempi di risposta bassi.

↔ Tempi di risposta dal Nero al Bianco
23 ms ... aumenta ↗ e diminuisce ↘ combinato	↗ 7 ms Incremento
23 ms ... aumenta ↗ e diminuisce ↘ combinato	↘ 16 ms Calo
Lo schermo mostra buoni tempi di risposta durante i nostri tests, ma potrebbe essere troppo lento per i gamers competitivi. In confronto, tutti i dispositivi di test variano da 0.1 (minimo) a 240 (massimo) ms. » 48 % di tutti i dispositivi è migliore. Questo significa che i tempi di risposta rilevati sono peggiori rispetto alla media di tutti i dispositivi testati (20.9 ms).
↔ Tempo di risposta dal 50% Grigio all'80% Grigio
50 ms ... aumenta ↗ e diminuisce ↘ combinato	↗ 20 ms Incremento
50 ms ... aumenta ↗ e diminuisce ↘ combinato	↘ 30 ms Calo
Lo schermo mostra tempi di risposta lenti nei nostri tests e sarà insoddisfacente per i gamers. In confronto, tutti i dispositivi di test variano da 0.165 (minimo) a 636 (massimo) ms. » 84 % di tutti i dispositivi è migliore. Questo significa che i tempi di risposta rilevati sono peggiori rispetto alla media di tutti i dispositivi testati (32.8 ms).

	Lenovo ThinkPad E560 20EV000MGE TN LED, 1366x768	Lenovo ThinkPad E560-20EWS00000 IPS-Panel, 1920x1080	HP ProBook 450 G3 TN LED, 1920x1080	Acer TravelMate P257-M-56AX TN LED, 1920x1080	Dell Latitude 15 3550-0123 IPS, 1920x1080	Dell Latitude 15-3570 TN LED, 1366x768
Display		2%	1%	0%	58%	8%
Display P3 Coverage	37.63	38.5 2%	38.1 1%	37.78 0%	64.3 71%	40.61 8%
sRGB Coverage	56.7	57.5 1%	57.3 1%	56.8 0%	83.3 47%	61.1 8%
AdobeRGB 1998 Coverage	38.88	39.8 2%	39.37 1%	39.04 0%	60.9 57%	41.96 8%
Response Times		13%	-2%			-18%
Response Time Grey 50% / Grey 80% *	50 ?(20, 30)	38.4 ?(13.2, 25.2) 23%	41.2 ?(22.4, 18.8) 18%			37 ?(13, 24) 26%
Response Time Black / White *	23 ?(7, 16)	22.4 ?(6.4, 16) 3%	28 ?(10, 18) -22%			37 ?(20, 17) -61%
PWM Frequency
Screen		26%	5%	2%	54%	-7%
Brightness middle	241	257 7%	211 -12%	205 -15%	353 46%	202 -16%
Brightness	226	234 4%	214 -5%	210 -7%	335 48%	211 -7%
Brightness Distribution	89	83 -7%	91 2%	71 -20%	88 -1%	88 -1%
Black Level *	0.48	0.27 44%	0.43 10%	0.4 17%	0.31 35%	0.62 -29%
Contrast	502	952 90%	491 -2%	513 2%	1139 127%	326 -35%
Colorchecker dE 2000 *	12.43	7.16 42%	9.25 26%	9.76 21%	4.59 63%	12.35 1%
Colorchecker dE 2000 max. *	21.03					19.9 5%
Greyscale dE 2000 *	13.24	6.28 53%	9.83 26%	10.47 21%	3.73 72%	13.46 -2%
Gamma	2.61 ^84%	2.44 ^90%	2.82 ^78%	2.56 ^86%	2.42 ^91%	2.44 ^90%
CCT	15733 ^41%	6806 ^96%	10890 ^60%	12103 ^54%	6268 ^104%	15217 ^43%
Color Space (Percent of AdobeRGB 1998)	36	36.6 2%	36.4 1%	36 0%	55 53%	39 8%
Color Space (Percent of sRGB)	57	57.3 1%	57.3 1%	57 0%	83 46%	61 7%
Media totale (Programma / Settaggio)		14% / 19%	1% / 3%	1% / 2%	56% / 55%	-6% / -5%

* ... Meglio usare valori piccoli

Cinebench R10 Shading 32Bit

6506

Cinebench R10 Rendering Multiple CPUs 32Bit

8437

Cinebench R10 Rendering Single 32Bit

3710

Cinebench R11.5 OpenGL 64Bit

23.77 fps

Cinebench R11.5 CPU Multi 64Bit

2.78 Points

Cinebench R11.5 CPU Single 64Bit

1.11 Points

Cinebench R15 Ref. Match 64Bit

97.8 %

Cinebench R15 OpenGL 64Bit

30.2 fps

Cinebench R15 CPU Multi 64Bit

251 Points

Cinebench R15 CPU Single 64Bit

98 Points

Aiuto

... in confronto

Cinebench R15
CPU Multi 64Bit
Lenovo ThinkPad E560-20EWS00000 Radeon R7 M370, 6500U, Samsung CM871 MZ7LF192HCGS	319 Points +27%
Dell Latitude 15 3550-0123 GeForce 830M, 5500U, Toshiba MQ01ABD100	299 Points +19%
Dell Latitude 15-3570 HD Graphics 520, 6200U, Samsung CM871 MZNLF128HCHP	290 Points +16%
HP ProBook 450 G3 HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15	288 Points +15%
Acer TravelMate P257-M-56AX HD Graphics 5500, 5200U, Kingston RBU-SC150S37256GD	260 Points +4%
Lenovo ThinkPad E560 20EV000MGE HD Graphics 520, 6100U, Western Digital WD Black Mobile 500GB (WD5000LPLX)	251 Points
Medion Akoya E6422 HD Graphics 520, 6100U, Phison 128GB PS3109-S9	247 Points -2%
Intel NUC5i3RYK HD Graphics 5500, 5010U, Intel SSDSCKHW360A4 SSD 530 360 GB	220 Points -12%
Intel NUC5i3RYK HD Graphics 5500, 5010U, Intel SSDSCKHW360A4 SSD 530 360 GB	211 (209.9^min - 211.39^max) Points -16%
Asus F555LJ-XX110H GeForce 920M, 5010U, Hitachi Travelstar Z5K500 HTS545050A7E680	217 Points -14%
CPU Single 64Bit
Dell Latitude 15 3550-0123 GeForce 830M, 5500U, Toshiba MQ01ABD100	124 Points +27%
Lenovo ThinkPad E560-20EWS00000 Radeon R7 M370, 6500U, Samsung CM871 MZ7LF192HCGS	124 Points +27%
HP ProBook 450 G3 HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15	116 Points +18%
Dell Latitude 15-3570 HD Graphics 520, 6200U, Samsung CM871 MZNLF128HCHP	116 Points +18%
Acer TravelMate P257-M-56AX HD Graphics 5500, 5200U, Kingston RBU-SC150S37256GD	109 Points +11%
Lenovo ThinkPad E560 20EV000MGE HD Graphics 520, 6100U, Western Digital WD Black Mobile 500GB (WD5000LPLX)	98 Points
Medion Akoya E6422 HD Graphics 520, 6100U, Phison 128GB PS3109-S9	97 Points -1%
Asus F555LJ-XX110H GeForce 920M, 5010U, Hitachi Travelstar Z5K500 HTS545050A7E680	85 Points -13%
Intel NUC5i3RYK HD Graphics 5500, 5010U, Intel SSDSCKHW360A4 SSD 530 360 GB	84 Points -14%

Cinebench R11.5
CPU Multi 64Bit
Lenovo ThinkPad E560-20EWS00000 Radeon R7 M370, 6500U, Samsung CM871 MZ7LF192HCGS	3.55 Points +28%
Dell Latitude 15 3550-0123 GeForce 830M, 5500U, Toshiba MQ01ABD100	3.29 Points +18%
HP ProBook 450 G3 HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15	3.21 Points +15%
Acer TravelMate P257-M-56AX HD Graphics 5500, 5200U, Kingston RBU-SC150S37256GD	2.85 Points +3%
Lenovo ThinkPad E560 20EV000MGE HD Graphics 520, 6100U, Western Digital WD Black Mobile 500GB (WD5000LPLX)	2.78 Points
Medion Akoya E6422 HD Graphics 520, 6100U, Phison 128GB PS3109-S9	2.75 Points -1%
Asus F555LJ-XX110H GeForce 920M, 5010U, Hitachi Travelstar Z5K500 HTS545050A7E680	2.32 Points -17%
CPU Single 64Bit
Lenovo ThinkPad E560-20EWS00000 Radeon R7 M370, 6500U, Samsung CM871 MZ7LF192HCGS	1.45 Points +31%
Dell Latitude 15 3550-0123 GeForce 830M, 5500U, Toshiba MQ01ABD100	1.41 Points +27%
HP ProBook 450 G3 HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15	1.32 Points +19%
Acer TravelMate P257-M-56AX HD Graphics 5500, 5200U, Kingston RBU-SC150S37256GD	1.24 Points +12%
Lenovo ThinkPad E560 20EV000MGE HD Graphics 520, 6100U, Western Digital WD Black Mobile 500GB (WD5000LPLX)	1.11 Points
Medion Akoya E6422 HD Graphics 520, 6100U, Phison 128GB PS3109-S9	1.1 Points -1%
Asus F555LJ-XX110H GeForce 920M, 5010U, Hitachi Travelstar Z5K500 HTS545050A7E680	0.97 Points -13%

Cinebench R10
Rendering Multiple CPUs 32Bit
Lenovo ThinkPad E560-20EWS00000 Radeon R7 M370, 6500U, Samsung CM871 MZ7LF192HCGS	11004 Points +30%
Dell Latitude 15 3550-0123 GeForce 830M, 5500U, Toshiba MQ01ABD100	10119 Points +20%
HP ProBook 450 G3 HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15	9907 Points +17%
Acer TravelMate P257-M-56AX HD Graphics 5500, 5200U, Kingston RBU-SC150S37256GD	8689 Points +3%
Lenovo ThinkPad E560 20EV000MGE HD Graphics 520, 6100U, Western Digital WD Black Mobile 500GB (WD5000LPLX)	8437 Points
Medion Akoya E6422 HD Graphics 520, 6100U, Phison 128GB PS3109-S9	8413 Points 0%
Asus F555LJ-XX110H GeForce 920M, 5010U, Hitachi Travelstar Z5K500 HTS545050A7E680	7222 Points -14%
Rendering Single 32Bit
Lenovo ThinkPad E560-20EWS00000 Radeon R7 M370, 6500U, Samsung CM871 MZ7LF192HCGS	4871 Points +31%
Dell Latitude 15 3550-0123 GeForce 830M, 5500U, Toshiba MQ01ABD100	4573 Points +23%
HP ProBook 450 G3 HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15	4414 Points +19%
Acer TravelMate P257-M-56AX HD Graphics 5500, 5200U, Kingston RBU-SC150S37256GD	4103 Points +11%
Medion Akoya E6422 HD Graphics 520, 6100U, Phison 128GB PS3109-S9	3714 Points 0%
Lenovo ThinkPad E560 20EV000MGE HD Graphics 520, 6100U, Western Digital WD Black Mobile 500GB (WD5000LPLX)	3710 Points
Asus F555LJ-XX110H GeForce 920M, 5010U, Hitachi Travelstar Z5K500 HTS545050A7E680	3114 Points -16%

Geekbench 3
32 Bit Single-Core Score
Dell Latitude 15 3550-0123 GeForce 830M, 5500U, Toshiba MQ01ABD100	2914 Points +33%
Lenovo ThinkPad E560-20EWS00000 Radeon R7 M370, 6500U, Samsung CM871 MZ7LF192HCGS	2816 Points +29%
HP ProBook 450 G3 HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15	2549 Points +16%
Medion Akoya E6422 HD Graphics 520, 6100U, Phison 128GB PS3109-S9	2191 Points 0%
Lenovo ThinkPad E560 20EV000MGE HD Graphics 520, 6100U, Western Digital WD Black Mobile 500GB (WD5000LPLX)	2188 Points
Asus F555LJ-XX110H GeForce 920M, 5010U, Hitachi Travelstar Z5K500 HTS545050A7E680	2167 Points -1%
Intel NUC5i3RYK HD Graphics 5500, 5010U, Intel SSDSCKHW360A4 SSD 530 360 GB	2164 Points -1%
32 Bit Multi-Core Score
Lenovo ThinkPad E560-20EWS00000 Radeon R7 M370, 6500U, Samsung CM871 MZ7LF192HCGS	6092 Points +27%
Dell Latitude 15 3550-0123 GeForce 830M, 5500U, Toshiba MQ01ABD100	6029 Points +25%
HP ProBook 450 G3 HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15	5557 Points +16%
Medion Akoya E6422 HD Graphics 520, 6100U, Phison 128GB PS3109-S9	4826 Points 0%
Lenovo ThinkPad E560 20EV000MGE HD Graphics 520, 6100U, Western Digital WD Black Mobile 500GB (WD5000LPLX)	4804 Points
Intel NUC5i3RYK HD Graphics 5500, 5010U, Intel SSDSCKHW360A4 SSD 530 360 GB	4551 Points -5%
Asus F555LJ-XX110H GeForce 920M, 5010U, Hitachi Travelstar Z5K500 HTS545050A7E680	4540 Points -5%

Sunspider - 1.0 Total Score
Asus F555LJ-XX110H GeForce 920M, 5010U, Hitachi Travelstar Z5K500 HTS545050A7E680	160.3 ms * -20%
Intel NUC5i3RYK HD Graphics 5500, 5010U, Intel SSDSCKHW360A4 SSD 530 360 GB	146.7 ms * -9%
Lenovo ThinkPad E560 20EV000MGE HD Graphics 520, 6100U, Western Digital WD Black Mobile 500GB (WD5000LPLX)	134.1 ms *
Acer TravelMate P257-M-56AX HD Graphics 5500, 5200U, Kingston RBU-SC150S37256GD	117.5 ms * +12%
Medion Akoya E6422 HD Graphics 520, 6100U, Phison 128GB PS3109-S9	109.1 ms * +19%
Dell Latitude 15 3550-0123 GeForce 830M, 5500U, Toshiba MQ01ABD100	96.4 ms * +28%
HP ProBook 450 G3 HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15	89.6 ms * +33%
Lenovo ThinkPad E560-20EWS00000 Radeon R7 M370, 6500U, Samsung CM871 MZ7LF192HCGS	85.9 ms * +36%

JetStream 1.1 - Total Score
HP ProBook 450 G3 HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15	190.4 Points +103%
Lenovo ThinkPad E560-20EWS00000 Radeon R7 M370, 6500U, Samsung CM871 MZ7LF192HCGS	189.6 Points +102%
Medion Akoya E6422 HD Graphics 520, 6100U, Phison 128GB PS3109-S9	165.4 Points +76%
Intel NUC5i3RYK HD Graphics 5500, 5010U, Intel SSDSCKHW360A4 SSD 530 360 GB	117.7 Points +25%
Intel NUC5i3RYK HD Graphics 5500, 5010U, Intel SSDSCKHW360A4 SSD 530 360 GB	71 Points -24%
Lenovo ThinkPad E560 20EV000MGE HD Graphics 520, 6100U, Western Digital WD Black Mobile 500GB (WD5000LPLX)	93.8 Points

Mozilla Kraken 1.1 - Total
Asus F555LJ-XX110H GeForce 920M, 5010U, Hitachi Travelstar Z5K500 HTS545050A7E680	3232 ms * -15%
Intel NUC5i3RYK HD Graphics 5500, 5010U, Intel SSDSCKHW360A4 SSD 530 360 GB	3171 ms * -13%
Intel NUC5i3RYK HD Graphics 5500, 5010U, Intel SSDSCKHW360A4 SSD 530 360 GB	1727 ms * +39%
Lenovo ThinkPad E560 20EV000MGE HD Graphics 520, 6100U, Western Digital WD Black Mobile 500GB (WD5000LPLX)	2817 ms *
Acer TravelMate P257-M-56AX HD Graphics 5500, 5200U, Kingston RBU-SC150S37256GD	2551 ms * +9%
Dell Latitude 15 3550-0123 GeForce 830M, 5500U, Toshiba MQ01ABD100	2269 ms * +19%
Medion Akoya E6422 HD Graphics 520, 6100U, Phison 128GB PS3109-S9	1474 ms * +48%
HP ProBook 450 G3 HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15	1281 ms * +55%
Lenovo ThinkPad E560-20EWS00000 Radeon R7 M370, 6500U, Samsung CM871 MZ7LF192HCGS	1104 ms * +61%

Octane V2 - Total Score
Lenovo ThinkPad E560-20EWS00000 Radeon R7 M370, 6500U, Samsung CM871 MZ7LF192HCGS	29745 Points +140%
HP ProBook 450 G3 HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15	27580 Points +123%
Medion Akoya E6422 HD Graphics 520, 6100U, Phison 128GB PS3109-S9	24139 Points +95%
Intel NUC5i3RYK HD Graphics 5500, 5010U, Intel SSDSCKHW360A4 SSD 530 360 GB	19588 Points +58%
Intel NUC5i3RYK HD Graphics 5500, 5010U, Intel SSDSCKHW360A4 SSD 530 360 GB	10221 Points -17%
Dell Latitude 15 3550-0123 GeForce 830M, 5500U, Toshiba MQ01ABD100	14741 Points +19%
Acer TravelMate P257-M-56AX HD Graphics 5500, 5200U, Kingston RBU-SC150S37256GD	13295 Points +7%
Lenovo ThinkPad E560 20EV000MGE HD Graphics 520, 6100U, Western Digital WD Black Mobile 500GB (WD5000LPLX)	12368 Points
Asus F555LJ-XX110H GeForce 920M, 5010U, Hitachi Travelstar Z5K500 HTS545050A7E680	10182 Points -18%

Peacekeeper - ---
Lenovo ThinkPad E560-20EWS00000 Radeon R7 M370, 6500U, Samsung CM871 MZ7LF192HCGS	3055 Points +39%
Dell Latitude 15 3550-0123 GeForce 830M, 5500U, Toshiba MQ01ABD100	2655 Points +20%
HP ProBook 450 G3 HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15	2546 Points +15%
Medion Akoya E6422 HD Graphics 520, 6100U, Phison 128GB PS3109-S9	2319 Points +5%
Lenovo ThinkPad E560 20EV000MGE HD Graphics 520, 6100U, Western Digital WD Black Mobile 500GB (WD5000LPLX)	2205 Points
Asus F555LJ-XX110H GeForce 920M, 5010U, Hitachi Travelstar Z5K500 HTS545050A7E680	1946 Points -12%

* ... Meglio usare valori piccoli

PCMark 7 Score		2627 punti
PCMark 8 Home Score Accelerated v2		2965 punti
PCMark 8 Creative Score Accelerated v2		3113 punti
PCMark 8 Work Score Accelerated v2		3926 punti
Aiuto

... in confronto

PCMark 8 | PCMark 7

PCMark 8 - Work Score Accelerated v2
Lenovo ThinkPad E560-20EWS00000 Radeon R7 M370, 6500U, Samsung CM871 MZ7LF192HCGS	4650 Points +18%
Acer Aspire V Nitro VN7-792G-55SF GeForce 945M, 6300HQ, Toshiba MQ02ABD100H	4483 Points +14%
Dell Latitude 15-3570 HD Graphics 520, 6200U, Samsung CM871 MZNLF128HCHP	4477 Points +14%
Acer TravelMate P257-M-56AX HD Graphics 5500, 5200U, Kingston RBU-SC150S37256GD	3979 Points +1%
Lenovo ThinkPad E560 20EV000MGE HD Graphics 520, 6100U, Western Digital WD Black Mobile 500GB (WD5000LPLX)	3926 Points
HP ProBook 450 G3 HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15	3901 Points -1%
Dell Latitude 15 3550-0123 GeForce 830M, 5500U, Toshiba MQ01ABD100	3873 Points -1%

PCMark 7 - Score
Lenovo ThinkPad E560-20EWS00000 Radeon R7 M370, 6500U, Samsung CM871 MZ7LF192HCGS	5102 Points +94%
Acer Aspire V Nitro VN7-792G-55SF GeForce 945M, 6300HQ, Toshiba MQ02ABD100H	4633 Points +76%
Acer TravelMate P257-M-56AX HD Graphics 5500, 5200U, Kingston RBU-SC150S37256GD	4293 Points +63%
HP ProBook 450 G3 HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15	3075 Points +17%
Dell Latitude 15 3550-0123 GeForce 830M, 5500U, Toshiba MQ01ABD100	2714 Points +3%
Lenovo ThinkPad E560 20EV000MGE HD Graphics 520, 6100U, Western Digital WD Black Mobile 500GB (WD5000LPLX)	2627 Points

HD Tune

CrystalDiskMark 3.0

Western Digital WD Black Mobile 500GB (WD5000LPLX)

Valore Minimo di trasferimento: 74.2 MB/s

Valore Massimo di trasferimento: 120.9 MB/s

Valore Medio di trasferimento: 101.3 MB/s

Tempi di accesso: 16.2 ms

Burst Rate: 69 MB/s

3DMark 11 Performance		1160 punti
3DMark Ice Storm Standard Score		41065 punti
3DMark Cloud Gate Standard Score		4620 punti
3DMark Fire Strike Score		567 punti
Aiuto

... in confronto

3DMark 11 | 3DMark | 3DMark 06

3DMark 11 - 1280x720 Performance
Lenovo ThinkPad E560-20EWS00000 Radeon R7 M370, 6500U, Samsung CM871 MZ7LF192HCGS	2689 Points +132%
Dell Latitude 15 3550-0123 GeForce 830M, 5500U, Toshiba MQ01ABD100	2097 Points +81%
Dell Latitude 15-3570 HD Graphics 520, 6200U, Samsung CM871 MZNLF128HCHP	1363 Points +18%
Acer TravelMate P257-M-56AX HD Graphics 5500, 5200U, Kingston RBU-SC150S37256GD	1290 Points +11%
HP ProBook 450 G3 HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15	1260 Points +9%
Lenovo ThinkPad E560 20EV000MGE HD Graphics 520, 6100U, Western Digital WD Black Mobile 500GB (WD5000LPLX)	1160 Points

3DMark
1280x720 Ice Storm Standard Score
Acer TravelMate P257-M-56AX HD Graphics 5500, 5200U, Kingston RBU-SC150S37256GD	51123 Points +24%
Dell Latitude 15-3570 HD Graphics 520, 6200U, Samsung CM871 MZNLF128HCHP	46457 Points +13%
Dell Latitude 15 3550-0123 GeForce 830M, 5500U, Toshiba MQ01ABD100	43118 Points +5%
Lenovo ThinkPad E560 20EV000MGE HD Graphics 520, 6100U, Western Digital WD Black Mobile 500GB (WD5000LPLX)	41065 Points
HP ProBook 450 G3 HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15	40691 Points -1%
Lenovo ThinkPad E560-20EWS00000 Radeon R7 M370, 6500U, Samsung CM871 MZ7LF192HCGS	34736 Points -15%
1280x720 Cloud Gate Standard Score
Lenovo ThinkPad E560-20EWS00000 Radeon R7 M370, 6500U, Samsung CM871 MZ7LF192HCGS	7083 Points +53%
Dell Latitude 15 3550-0123 GeForce 830M, 5500U, Toshiba MQ01ABD100	6238 Points +35%
Acer TravelMate P257-M-56AX HD Graphics 5500, 5200U, Kingston RBU-SC150S37256GD	5179 Points +12%
Dell Latitude 15-3570 HD Graphics 520, 6200U, Samsung CM871 MZNLF128HCHP	4919 Points +6%
HP ProBook 450 G3 HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15	4847 Points +5%
Lenovo ThinkPad E560 20EV000MGE HD Graphics 520, 6100U, Western Digital WD Black Mobile 500GB (WD5000LPLX)	4620 Points
1280x720 Sky Diver Score
Dell Latitude 15 3550-0123 GeForce 830M, 5500U, Toshiba MQ01ABD100	4779 Points +67%
HP ProBook 450 G3 HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15	2883 Points +1%
Lenovo ThinkPad E560 20EV000MGE HD Graphics 520, 6100U, Western Digital WD Black Mobile 500GB (WD5000LPLX)	2855 Points
1920x1080 Fire Strike Score
Lenovo ThinkPad E560-20EWS00000 Radeon R7 M370, 6500U, Samsung CM871 MZ7LF192HCGS	1654 Points +192%
Dell Latitude 15 3550-0123 GeForce 830M, 5500U, Toshiba MQ01ABD100	1209 Points +113%
HP ProBook 450 G3 HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15	574 Points +1%
Lenovo ThinkPad E560 20EV000MGE HD Graphics 520, 6100U, Western Digital WD Black Mobile 500GB (WD5000LPLX)	567 Points

3DMark 06 - 1280x1024 Standard Score AA:0x AF:0x
Lenovo ThinkPad E560-20EWS00000 Radeon R7 M370, 6500U, Samsung CM871 MZ7LF192HCGS	12983 Points
Dell Latitude 15 3550-0123 GeForce 830M, 5500U, Toshiba MQ01ABD100	11275 Points
HP ProBook 450 G3 HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15	6518 Points

	basso	medio	alto
Tomb Raider (2013)	49.2	26.2	15.3
BioShock Infinite (2013)	33.5	19.7	15.9
Battlefield 4 (2013)	23	16.9	11.3

Rumorosità

Idle		32.3 / 32.3 / 32.5 dB(A)
HDD		32.3 dB(A)
DVD		36.7 / dB(A)
Sotto carico		36 / 38.8 dB(A)

	30 dB silenzioso 40 dB(A) udibile 50 dB(A) rumoroso
min: , med: , max: Audix TM1, Arta (15 cm di distanza) Rumorosità ambientale: 31.2 dB(A)

	Lenovo ThinkPad E560 20EV000MGE 6100U, HD Graphics 520	Lenovo ThinkPad E560-20EWS00000 6500U, Radeon R7 M370	HP ProBook 450 G3 6200U, HD Graphics 520	Acer TravelMate P257-M-56AX 5200U, HD Graphics 5500	Dell Latitude 15 3550-0123 5500U, GeForce 830M	Dell Latitude 15-3570 6200U, HD Graphics 520
Noise		9%	9%	2%	-8%	5%
off /ambiente *	31.2					31 1%
Idle Minimum *	32.3	29.2 10%	29.7 8%	31.8 2%	32.5 -1%	31 4%
Idle Average *	32.3	29.2 10%	29.7 8%	31.8 2%	32.5 -1%	31 4%
Idle Maximum *	32.5	29.2 10%	29.7 9%	31.8 2%	32.5 -0%	31 5%
Load Average *	36	33.6 7%	33.1 8%	35 3%	43.5 -21%	34.2 5%
Load Maximum *	38.8	35.5 9%	34.2 12%	37.6 3%	45.3 -17%	34.3 12%

* ... Meglio usare valori piccoli

Carico massimo

Idle


27.9 °C	26.2 °C	28.9 °C
30.9 °C	31 °C	27.4 °C
29.8 °C	32.1 °C	26.3 °C

Massima: 32.1 °C
Media: 28.9 °C


31.1 °C	29.4 °C	27.4 °C
30.2 °C	33.6 °C	32.4 °C
26.6 °C	33.1 °C	30.4 °C

Massima: 33.6 °C
Media: 30.5 °C

Alimentazione (max) 36 °C | Temperatura della stanza 22.6 °C | FIRT 550-Pocket

(+) La temperatura media del lato superiore sotto carico massimo e' di 28.9 °C / 84 F, rispetto alla media di 29.5 °C / 85 F per i dispositivi di questa classe Office.
(+) La temperatura massima sul lato superiore è di 32.1 °C / 90 F, rispetto alla media di 34.3 °C / 94 F, che varia da 21.2 a 62.5 °C per questa classe Office.
(+) Il lato inferiore si riscalda fino ad un massimo di 33.6 °C / 92 F, rispetto alla media di 36.8 °C / 98 F
(+) In idle, la temperatura media del lato superiore è di 27.9 °C / 82 F, rispetto alla media deld ispositivo di 29.5 °C / 85 F.
(+) I poggiapolsi e il touchpad raggiungono la temperatura massima della pelle (32.1 °C / 89.8 F) e quindi non sono caldi.
(-) La temperatura media della zona del palmo della mano di dispositivi simili e'stata di 27.6 °C / 81.7 F (-4.5 °C / -8.1 F).

	Lenovo ThinkPad E560 20EV000MGE 6100U, HD Graphics 520	Lenovo ThinkPad E560-20EWS00000 6500U, Radeon R7 M370	HP ProBook 450 G3 6200U, HD Graphics 520	Acer TravelMate P257-M-56AX 5200U, HD Graphics 5500	Dell Latitude 15 3550-0123 5500U, GeForce 830M	Dell Latitude 15-3570 6200U, HD Graphics 520
Heat		-5%	-11%	-0%	-30%	-12%
Maximum Upper Side *	32.1	45 -40%	40.2 -25%	34.3 -7%	50.5 -57%	36.1 -12%
Maximum Bottom *	33.6	39.8 -18%	42 -25%	42.1 -25%	54 -61%	47 -40%
Idle Upper Side *	30.5	26.1 14%	32.5 -7%	26.7 12%	34.1 -12%	31.7 -4%
Idle Bottom *	36	27.7 23%	31 14%	29.2 19%	31.6 12%	32.9 9%

* ... Meglio usare valori piccoli

Temperature development upper side (load)

Temperature development underside (load)

Temperature development upper side (idle)

Temperature development underside (idle)

Consumo di corrente

Off / Standby	0.22 / 0.4 Watt
Idle	5.2 / 7.25 / 7.9 Watt
Sotto carico	25.1 / 25.1 Watt


Leggenda: min: , med: , max: Metrahit Energy

	Lenovo ThinkPad E560 20EV000MGE 6100U, HD Graphics 520	Lenovo ThinkPad E560-20EWS00000 6500U, Radeon R7 M370	HP ProBook 450 G3 6200U, HD Graphics 520	Acer TravelMate P257-M-56AX 5200U, HD Graphics 5500	Dell Latitude 15 3550-0123 5500U, GeForce 830M	Dell Latitude 15-3570 6200U, HD Graphics 520
Power Consumption		-50%	-17%	5%	-69%	-0%
Idle Minimum *	5.2	4.2 19%	4.9 6%	3.2 38%	5.9 -13%	4.9 6%
Idle Average *	7.25	7.5 -3%	8.2 -13%	5.5 24%	11.5 -59%	7.2 1%
Idle Maximum *	7.9	8.2 -4%	9 -14%	6.4 19%	11.6 -47%	7.5 5%
Load Average *	25.1	49.6 -98%	30.1 -20%	31.8 -27%	49 -95%	25.4 -1%
Load Maximum *	25.1	65.8 -162%	36.1 -44%	33 -31%	58 -131%	28 -12%

* ... Meglio usare valori piccoli

Autonomia della batteria

Idle (senza WLAN, min luminosità)		14ore 45minuti
WiFi Websurfing (IE 11)		9ore 26minuti
Big Buck Bunny H.264 1080p		7ore 35minuti
Sotto carico (max luminosità)		2ore 37minuti

	Lenovo ThinkPad E560 20EV000MGE 48 Wh	Lenovo ThinkPad E560-20EWS00000 48 Wh	HP ProBook 450 G3 44 Wh	Acer TravelMate P257-M-56AX 37 Wh	Dell Latitude 15 3550-0123 58 Wh	Dell Latitude 15-3570 65 Wh
Autonomia della batteria		-21%	-37%	-37%	-15%	4%
Reader / Idle	885	884 0%	575 -35%	703 -21%	775 -12%	1024 16%
H.264	455	413 -9%	337 -26%		474 4%
WiFi v1.3	566	342 -40%	309 -45%	321 -43%	379 -33%	542 -4%
Load	157	104 -34%	90 -43%	83 -47%	129 -18%	157 0%

Pro

+ schermo matto

+ silenzioso

+ non si riscalda

+ decente qualità del case

+ ottima tastiera

+ porta docking

+ ottima autonomia

Contro

- schermo scuro

- solo 1 anno di garanzia

In review: Lenovo ThinkPad E560. Test model courtesy of Notebooksbilliger.de

Il nostro ThinkPad è un membro low-cost della linea. Il processore Core i3 ha potenza più che sufficiente per l'ufficio e le applicazioni Internet. Il portatile in genere è silenzioso e non si scalda molto. Dovrebbe essere facile cambiare l'hard drive da 500 GB con un SSD in quanto il ThinkPad ha una cover di manutenzione. Come per gli altri modelli ThinkPad, l'E560 ha una ottima tastiera. La sorprendente autonomia completa il tutto.

Ampia autonomia, buona tastiera, prezzo ragionevole - Lenovo ha un laptop per studenti ed alunni nella sua offerta.

Tuttavia, il portatile ha anche delle pecche. Lo schermo scuro che consente l'utilizzo solo in ambienti chiusi. Inoltre, Lenovo include solo un anno di garanzia. Coloro che possono con questi difetti avranno un portatile tuttofare da ufficio che è impressionanti in molti aspetti applicativi.

Nota: si tratta di una recensione breve, con alcune sezioni non tradotte, per la versione integrale in inglese guardate qui.

Lenovo ThinkPad E560 20EV000MGE - 06/28/2016 v5.1 ^(old)
Sascha Mölck

Chassis

80 / 98 → 82%

Tastiera

87%

Dispositivo di puntamento

83%

Connettività

54 / 80 → 68%

Peso

61 / 20-67 → 87%
