Recensione Breve del Portatile Asus F555UB-XO043T

Tuttofare. Asus vende il suo portatile da 15.6"per circa 600 Euro (~$680). L'F555UB riesce a gestire il gaming ed ha una buona autonomia. Il display e la tastiera non sono altrettanto impressionanti.

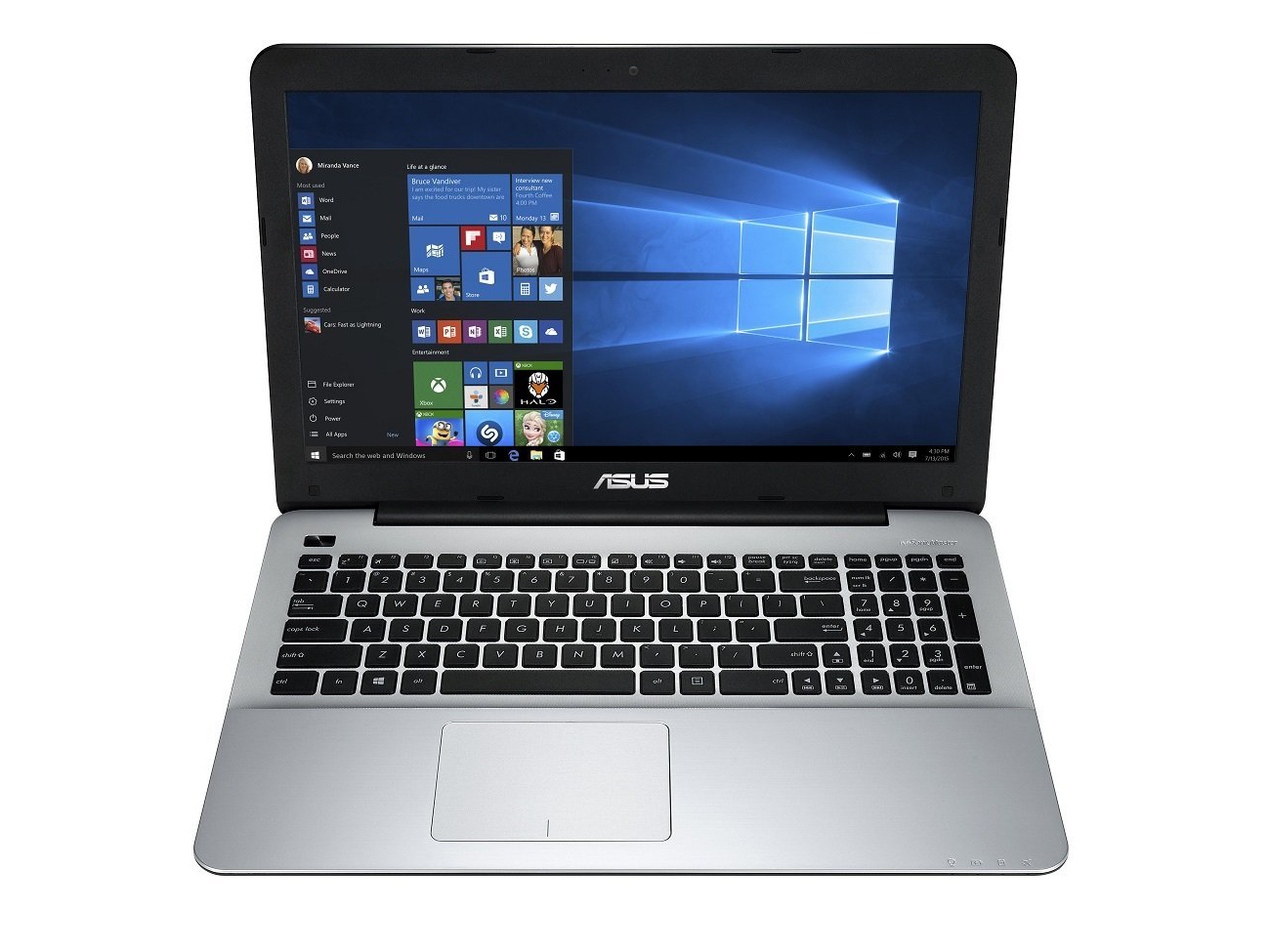

Asus F555UB-XO043T (F555 Serie)
Processore
Intel Core i5-6200U 2 x 2.3 - 2.8 GHz, Skylake
Scheda grafica
NVIDIA GeForce 940M - 2048 MB VRAM, Core: 1176 MHz, RAM: 900 MHz, DDR3, interfaccia a 64-bit, 10.18.13.6472 (ForceWare 364.72), Optimus
Memoria
8 GB
, DDR3-1600, Dual-Channel, uno slot (usato), 4 GB saldati
Schermo
15.60 pollici 16:9, 1366 x 768 pixel 100 PPI, AU Optronics B156XTN04.6, TN LED, lucido: no
Scheda madre
Intel Skylake-U Premium PCH
Harddisk
Seagate Momentus SpinPoint M8 ST1000LM024, 1000 GB
, 5400 rpm, 890 GB libera
Scheda audio
Realtek High Definition Audio
Porte di connessione
1 USB 2.0, 2 USB 3.0 / 3.1, 1 VGA, 1 HDMI, 1 Kensington Lock, Connessioni Audio: Audio combo-jack, Lettore schede: SD, TPM 2.0
Rete
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Realtek RTL8821AE 802.11ac (), Bluetooth 4.0
Drive ottico
Matshita DVD-RAM UJ8HC
Dimensioni
altezza x larghezza x profondità (in mm): 25.8 x 382 x 256
Batteria
37 Wh ioni di litio
Sistema Operativo
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: SD webcam
Altre caratteristiche
Casse: Stereo, Tastiera: Chiclet, Illuminazione Tastiera: no, Cyberlink PhotoDirector 5, Cyberlink PowerDirector 12, McAfee LiveSafe-Internet Security (trial), MS Office (trial), 24 Mesi Garanzia
Peso
2.3 kg, Alimentazione: 241 gr
Prezzo
599 Euro
Nota: il produttore potrebbe usare componenti di fornitori diversi pannelli dei diplay, drive o banchi di memoria con specifiche simili.



202
cd/m²
226
cd/m²
216
cd/m²
202
cd/m²
214
cd/m²
208
cd/m²
196
cd/m²
186
cd/m²
194
cd/m²
Distribuzione della luminosità
AU Optronics B156XTN04.6 testato con X-Rite i1Pro 2
Massima: 226 cd/m² (Nits) Media: 204.9 cd/m²
Distribuzione della luminosità: 82 %
Al centro con la batteria: 208 cd/m²
Contrasto: 465:1 (Nero: 0.46 cd/m²)
ΔE Color 6.52 | 0.5-29.43 Ø4.87
ΔE Greyscale 7.05 | 0.5-98 Ø5.1
57.8% sRGB (Argyll 1.6.3 3D)
36.6% AdobeRGB 1998 (Argyll 1.6.3 3D)
39.49% AdobeRGB 1998 (Argyll 2.2.0 3D)
57.5% sRGB (Argyll 2.2.0 3D)
38.22% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.41

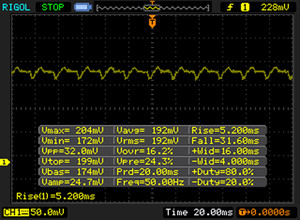

Sfarfallio dello schermo / PWM (Pulse-Width Modulation)

Per ridurre la luminosità dello schermo, alcuni portatili accendono e spengono la retroilluminazione in rapida successione - un metodo chiamato Pulse Width Modulation (PWM). Questa frequenza di ciclo a livello ideale non dovrebbe essere percepibile dall'occhi umano. Se tale frequenza è troppo bassa, gli utenti con occhi sensibili potrebbero stancarsi gli occhi o avere mal di testa o anche notare uno sfarfallio.
flickering dello schermo / PWM rilevato 50 Hz ≤ 60 % settaggio luminosita'

Il display sfarfalla a 50 Hz (Probabilmente a causa dell'uso di PWM) Flickering rilevato ad una luminosita' di 60 % o inferiore. Non dovrebbe verificarsi flickering o PWM sopra questo valore di luminosita'.

La frequenza di 50 Hz è molto bassa, quindi il flickering potrebbe causare stanchezza agli occhi e mal di testa con un utilizzo prolungato.

In confronto: 53 % di tutti i dispositivi testati non utilizza PWM per ridurre la luminosita' del display. Se è rilevato PWM, una media di 8516 (minimo: 5 - massimo: 343500) Hz è stata rilevata.

Tempi di risposta del Display

I tempi di risposta del display mostrano quanto sia veloce lo schermo a cambaire da un colore all'altro. Tempi di risposta lenti possono creare sovrapposizioni negloi oggetti in movimento. Specialmente i giocatori patiti del 3D dovrebbero usare uno schermo con tempi di risposta bassi.

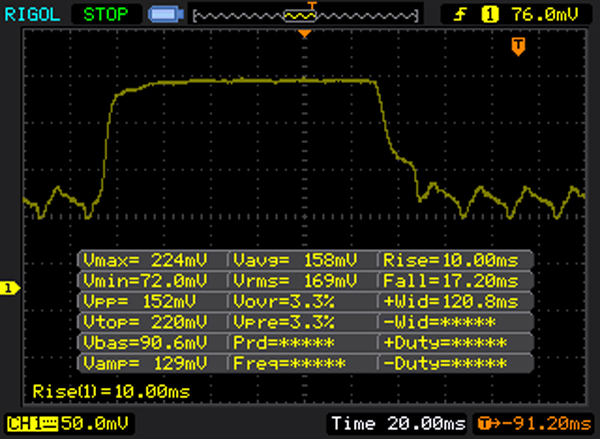

       Tempi di risposta dal Nero al Bianco
27 ms ... aumenta ↗ e diminuisce ↘ combinato↗ 10 ms Incremento
↘ 17 ms Calo
Lo schermo mostra tempi di risposta relativamente lenti nei nostri tests e potrebbe essere troppo lento per i gamers.
In confronto, tutti i dispositivi di test variano da 0.1 (minimo) a 240 (massimo) ms. » 65 % di tutti i dispositivi è migliore.
Questo significa che i tempi di risposta rilevati sono peggiori rispetto alla media di tutti i dispositivi testati (20.8 ms).
       Tempo di risposta dal 50% Grigio all'80% Grigio
46 ms ... aumenta ↗ e diminuisce ↘ combinato↗ 24 ms Incremento
↘ 22 ms Calo
Lo schermo mostra tempi di risposta lenti nei nostri tests e sarà insoddisfacente per i gamers.
In confronto, tutti i dispositivi di test variano da 0.165 (minimo) a 636 (massimo) ms. » 77 % di tutti i dispositivi è migliore.
Questo significa che i tempi di risposta rilevati sono peggiori rispetto alla media di tutti i dispositivi testati (32.5 ms).
Cinebench R10 Shading 32Bit
6113
Cinebench R10 Rendering Multiple CPUs 32Bit
9936
Cinebench R10 Rendering Single 32Bit
4315
Cinebench R11.5 OpenGL 64Bit
46.83 fps
Cinebench R11.5 CPU Multi 64Bit
3.21 Points
Cinebench R11.5 CPU Single 64Bit
1.32 Points
Cinebench R15 Ref. Match 64Bit
99.6 %
Cinebench R15 OpenGL 64Bit
46.83 fps
Cinebench R15 CPU Multi 64Bit
289 Points
Cinebench R15 CPU Single 64Bit
115 Points
Aiuto
Cinebench R15
CPU Multi 64Bit
Dell Latitude 15 3550-0123
GeForce 830M, 5500U, Toshiba MQ01ABD100
299 Points +3%
HP Pavilion 15-ab022ng
GeForce 940M, 5500U, HGST Travelstar 5K1000 HTS541010A9E680
289 Points 0%
Asus F555UB-XO043T
GeForce 940M, 6200U, Seagate Momentus SpinPoint M8 ST1000LM024
289 Points
Toshiba Satellite L50-C-275
GeForce 930M, 6200U, Samsung SSD PM871 MZNLN256HCHP
282 Points -2%
Dell Inspiron 15-5558
GeForce 920M, 5200U, Toshiba MQ01ABD100
261 Points -10%
Lenovo Z51-70-80K6
Radeon R7 M360, 5200U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
260 Points -10%
Lenovo Z51-70
Radeon R9 M375, 5200U, Samsung PM871 MZYLN256HCHP
259 Points -10%
Acer Aspire E5-573G-5785
GeForce 940M, 5200U, Seagate ST500LM000 Solid State Hybrid Drive
258 Points -11%
Asus F555LJ-XX110H
GeForce 920M, 5010U, Hitachi Travelstar Z5K500 HTS545050A7E680
217 Points -25%
HP Pavilion 15-ab052ng
Radeon R8 M365DX, A10-8700P, Seagate ST1000LM014 Solid State Hybrid Drive
195 Points -33%
Lenovo Ideapad 500-15ACZ
Radeon R6 M340DX, A10-8700P, Seagate Momentus SpinPoint M8 ST1000LM024
195 Points -33%
CPU Single 64Bit
Dell Latitude 15 3550-0123
GeForce 830M, 5500U, Toshiba MQ01ABD100
124 Points +8%
Asus F555UB-XO043T
GeForce 940M, 6200U, Seagate Momentus SpinPoint M8 ST1000LM024
115 Points
Toshiba Satellite L50-C-275
GeForce 930M, 6200U, Samsung SSD PM871 MZNLN256HCHP
114 Points -1%
HP Pavilion 15-ab022ng
GeForce 940M, 5500U, HGST Travelstar 5K1000 HTS541010A9E680
112 Points -3%
Dell Inspiron 15-5558
GeForce 920M, 5200U, Toshiba MQ01ABD100
108 Points -6%
Acer Aspire E5-573G-5785
GeForce 940M, 5200U, Seagate ST500LM000 Solid State Hybrid Drive
107 Points -7%
Lenovo Z51-70-80K6
Radeon R7 M360, 5200U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
105 Points -9%
Lenovo Z51-70
Radeon R9 M375, 5200U, Samsung PM871 MZYLN256HCHP
96 Points -17%
Asus F555LJ-XX110H
GeForce 920M, 5010U, Hitachi Travelstar Z5K500 HTS545050A7E680
85 Points -26%
Lenovo Ideapad 500-15ACZ
Radeon R6 M340DX, A10-8700P, Seagate Momentus SpinPoint M8 ST1000LM024
74 Points -36%
HP Pavilion 15-ab052ng
Radeon R8 M365DX, A10-8700P, Seagate ST1000LM014 Solid State Hybrid Drive
63 Points -45%

* ... Meglio usare valori piccoli

PCMark 8 Home Score Accelerated v2
3305 punti
PCMark 8 Creative Score Accelerated v2
3550 punti
PCMark 8 Work Score Accelerated v2
4091 punti
Aiuto
PCMark 8 - Home Score Accelerated v2
Lenovo Z51-70
Radeon R9 M375, 5200U, Samsung PM871 MZYLN256HCHP
3612 Points +9%
Acer Aspire E5-573G-5785
GeForce 940M, 5200U, Seagate ST500LM000 Solid State Hybrid Drive
3377 Points +2%
Asus F555UB-XO043T
GeForce 940M, 6200U, Seagate Momentus SpinPoint M8 ST1000LM024
3305 Points
Dell Latitude 15 3550-0123
GeForce 830M, 5500U, Toshiba MQ01ABD100
3152 Points -5%
Lenovo Z51-70-80K6
Radeon R7 M360, 5200U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
3130 Points -5%
HP Pavilion 15-ab022ng
GeForce 940M, 5500U, HGST Travelstar 5K1000 HTS541010A9E680
3069 Points -7%
Asus F555LJ-XX110H
GeForce 920M, 5010U, Hitachi Travelstar Z5K500 HTS545050A7E680
2972 Points -10%
Toshiba Satellite L50-C-275
GeForce 930M, 6200U, Samsung SSD PM871 MZNLN256HCHP
2961 Points -10%
Dell Inspiron 15-5558
GeForce 920M, 5200U, Toshiba MQ01ABD100
2830 Points -14%
HP Pavilion 15-ab052ng
Radeon R8 M365DX, A10-8700P, Seagate ST1000LM014 Solid State Hybrid Drive
2825 Points -15%
Lenovo Ideapad 500-15ACZ
Radeon R6 M340DX, A10-8700P, Seagate Momentus SpinPoint M8 ST1000LM024
2485 Points -25%
Seagate Momentus SpinPoint M8 ST1000LM024
Valore Minimo di trasferimento: 41.7 MB/s
Valore Massimo di trasferimento: 111.4 MB/s
Valore Medio di trasferimento: 83.4 MB/s
Tempi di accesso: 18.2 ms
Burst Rate: 215.7 MB/s
Utilizzo CPU: 9.1 %
3DMark 11 Performance
2420 punti
3DMark Ice Storm Standard Score
62794 punti
3DMark Cloud Gate Standard Score
6127 punti
3DMark Fire Strike Score
1372 punti
Aiuto
3DMark 11 - 1280x720 Performance
Lenovo Z51-70
Radeon R9 M375, 5200U, Samsung PM871 MZYLN256HCHP
3269 Points +35%
HP Pavilion 15-ab052ng
Radeon R8 M365DX, A10-8700P, Seagate ST1000LM014 Solid State Hybrid Drive
2701 Points +12%
Acer Aspire E5-573G-5785
GeForce 940M, 5200U, Seagate ST500LM000 Solid State Hybrid Drive
2539 Points +5%
Asus X555LB-DM223H
GeForce 940M, 5500U
2442 Points +1%
HP Pavilion 15-ab022ng
GeForce 940M, 5500U, HGST Travelstar 5K1000 HTS541010A9E680
2437 Points +1%
Asus F555UB-XO043T
GeForce 940M, 6200U, Seagate Momentus SpinPoint M8 ST1000LM024
2420 Points
Lenovo Ideapad 500-15ACZ
Radeon R6 M340DX, A10-8700P, Seagate Momentus SpinPoint M8 ST1000LM024
2240 Points -7%
Toshiba Satellite L50-C-275
GeForce 930M, 6200U, Samsung SSD PM871 MZNLN256HCHP
2227 Points -8%
Lenovo Z51-70-80K6
Radeon R7 M360, 5200U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
2172 Points -10%
Dell Latitude 15 3550-0123
GeForce 830M, 5500U, Toshiba MQ01ABD100
2097 Points -13%
Dell Inspiron 15-5558
GeForce 920M, 5200U, Toshiba MQ01ABD100
1793 Points -26%
Asus F555LJ-XX110H
GeForce 920M, 5010U, Hitachi Travelstar Z5K500 HTS545050A7E680
1766 Points -27%
bassomedioaltoultra
BioShock Infinite (2013) 87.4 48.3 39.2
Star Wars Battlefront (2015) 50.5 30.6
Just Cause 3 (2015) 39.7 31.9
XCOM 2 (2016) 27.9
Far Cry Primal (2016) 28
The Division (2016) 36 22.3
Hitman 2016 (2016) 30.3 23.5
Need for Speed 2016 (2016) 34.6 28.7
BioShock Infinite - 1366x768 Medium Preset
Lenovo Z51-70
Radeon R9 M375, 5200U, Samsung PM871 MZYLN256HCHP
52.9 fps +10%
Asus X555LB-DM223H
GeForce 940M, 5500U
49 fps +1%
Asus F555UB-XO043T
GeForce 940M, 6200U, Seagate Momentus SpinPoint M8 ST1000LM024
48.3 fps
Toshiba Satellite L50-C-275
GeForce 930M, 6200U, Samsung SSD PM871 MZNLN256HCHP
47 fps -3%
HP Pavilion 15-ab052ng
Radeon R8 M365DX, A10-8700P, Seagate ST1000LM014 Solid State Hybrid Drive
44.8 fps -7%
Asus F555LJ-XX110H
GeForce 920M, 5010U, Hitachi Travelstar Z5K500 HTS545050A7E680
35.3 fps -27%
Lenovo Ideapad 500-15ACZ
Radeon R6 M340DX, A10-8700P, Seagate Momentus SpinPoint M8 ST1000LM024
26.1 fps -46%

Rumorosità

Idle
34 / 34 / 34.2 dB(A)
HDD
34.3 dB(A)
DVD
37.2 / dB(A)
Sotto carico
38.9 / 43.6 dB(A)
  red to green bar


30 dB
silenzioso
40 dB(A)
udibile
50 dB(A)
rumoroso

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm di distanza)
Carico massimo
 29.4 °C32.1 °C24.9 °C
 29.2 °C33.2 °C24.2 °C
 23.9 °C24.3 °C26.5 °C
Massima: 33.2 °C
Media: 27.5 °C
30.6 °C44 °C26.5 °C
25 °C32 °C31.5 °C
27.6 °C25.1 °C24.9 °C
Massima: 44 °C
Media: 29.7 °C
Alimentazione (max)  41.1 °C | Temperatura della stanza 21.9 °C | FIRT 550-Pocket
(+) La temperatura media del lato superiore sotto carico massimo e' di 27.5 °C / 82 F, rispetto alla media di 31.3 °C / 88 F per i dispositivi di questa classe Multimedia.
(+) La temperatura massima sul lato superiore è di 33.2 °C / 92 F, rispetto alla media di 36.9 °C / 98 F, che varia da 21.1 a 71 °C per questa classe Multimedia.
(±) Il lato inferiore si riscalda fino ad un massimo di 44 °C / 111 F, rispetto alla media di 39.2 °C / 103 F
(+) In idle, la temperatura media del lato superiore è di 26 °C / 79 F, rispetto alla media deld ispositivo di 31.3 °C / 88 F.
(+) I poggiapolsi e il touchpad sono piu' freddi della temperatura della pelle con un massimo di 28.2 °C / 82.8 F e sono quindi freddi al tatto.
(±) La temperatura media della zona del palmo della mano di dispositivi simili e'stata di 28.8 °C / 83.8 F (+0.6 °C / 1 F).
Consumo di corrente
Off / Standbydarklight 0.35 / 0.6 Watt
Idledarkmidlight 4.7 / 6.5 / 6.8 Watt
Sotto carico midlight 42.7 / 59 Watt
 color bar
Leggenda: min: dark, med: mid, max: light        Metrahit Energy
Autonomia della batteria
WiFi Websurfing (Edge 25.10586.0.0)
5ore 55minuti
Autonomia della batteria - WiFi v1.3
Asus F555UB-XO043T
GeForce 940M, 6200U, Seagate Momentus SpinPoint M8 ST1000LM024
355 min
Asus F555LJ-XX110H
GeForce 920M, 5010U, Hitachi Travelstar Z5K500 HTS545050A7E680
345 min
Lenovo Ideapad 500-15ACZ
Radeon R6 M340DX, A10-8700P, Seagate Momentus SpinPoint M8 ST1000LM024
183 min
Acer Aspire E5-573G-5785
GeForce 940M, 5200U, Seagate ST500LM000 Solid State Hybrid Drive
347 min
Toshiba Satellite L50-C-275
GeForce 930M, 6200U, Samsung SSD PM871 MZNLN256HCHP
345 min
Lenovo Z51-70
Radeon R9 M375, 5200U, Samsung PM871 MZYLN256HCHP
289 min
HP Pavilion 15-ab052ng
Radeon R8 M365DX, A10-8700P, Seagate ST1000LM014 Solid State Hybrid Drive
137 min
Lenovo Z51-70-80K6
Radeon R7 M360, 5200U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
334 min
HP Pavilion 15-ab022ng
GeForce 940M, 5500U, HGST Travelstar 5K1000 HTS541010A9E680
267 min
Dell Latitude 15 3550-0123
GeForce 830M, 5500U, Toshiba MQ01ABD100
379 min
Dell Inspiron 15-5558
GeForce 920M, 5200U, Toshiba MQ01ABD100
337 min

Pro

+ display matto
+ buone performance
+ adatto al gaming
+ non si scalda
+ silenzioso quasi sempre
+ buona autonomia

Contro

- display scuro
- la tastiera si flette
- PWM flickering
In review: Asus F555UB-XO043T. Test model courtesy of notebooksbilliger.de
In review: Asus F555UB-XO043T. Test model courtesy of notebooksbilliger.de

Il processore Core i5 offre potenza più che sufficiente per la maggioranza degli utenti, mentre la GPU GeForce 940M consente anche il gaming. Durante l'utilizzo normale, il portatile è silenzioso e non si scalda nemmeno sotto carico. Lo spazio di archiviazione è generoso grazie all'HDD da 1 TB. Per sganciare il drive convenzionale per un SSD, dovete aprire lo chassis, in quanto la cover di manutenzione accede soltanto allo slot RAM.

L'Asus F555UB-XO043T è un buon tuttofare con un prezzo decente.

Le prestazioni del display non sono nulla di speciale: il pannello è scuro con angoli di visuale limitati ed offre al massimo un contrasto mediocre- Almeno si tratta di uno schermo matto e non lucido. Abbiamo apprezzato l'autonomia. La tastiera può essere sufficiente per l'utilizzo domestico, ma in definitiva non va bene per chi scrive molto.

Nota: si tratta di una recensione breve, con alcune sezioni non tradotte, per la versione integrale in inglese guardate qui.

Asus F555UB-XO043T - 04/18/2016 v5.1 (old)
Sascha Mölck

Chassis
74 / 98 → 75%
Tastiera
67%
Dispositivo di puntamento
78%
Connettività
42 / 81 → 51%
Peso
61 / 20-67 → 87%
Batteria
87%
Display
77%
Prestazioni di gioco
63 / 85 → 74%
Prestazioni Applicazioni
76 / 92 → 83%
Temperatura
93%
Rumorosità
78 / 95 → 82%
Audio
50%
Fotocamera
38 / 85 → 44%
Media
68%
75%
Multimedia - Media ponderata

Price comparison

Please share our article, every link counts!
Mail Logo
> Recensioni e prove di notebook, tablets e smartphones > Recensioni e prove > Recensioni e prove > Recensione Breve del Portatile Asus F555UB-XO043T
Sascha Mölck, 2016-04-28 (Update: 2016-04-28)
