Aggiornamento breve del portatile Lenovo IdeaPad Z50-75
For the original German review, see here.
We tested the Z50 in the form of the Z50-70 (Core i7-4510U, GeForce 840M) only a few weeks ago. Now we have our hands on the Z50-75 sister model equipped with AMD technology. A quad-core processor and dual-graphics solution are inside. With a price of 450 Euros, ~$564 (400 Euros, ~$501, without Windows operating system), the Z50-75 is almost 300 Euros (~$376) cheaper than the Z50-70. Our report reveals whether the Z50-75 can compete with Intel's counterpart.
The IdeaPad is a member of the below 500-Euro (~$627) all-rounders. Many rivals are found in this sector, such as Acer's Aspire E1-572G (Core i5-4200U, Radeon HD 8750M) and Medion's Akoya P6647 (Core i5-4200M, GeForce 825M). The Akoya configuration that we tested is considerably more expensive than its contenders with a price of approximately 600 Euros (~$752). However, the laptop is available with a Pentium 3550M for a price starting at 480 Euros (~$602) in an entry-level version.
Since both IdeaPads feature an identical build, we will not go in-depth about casing, connectivity, input devices or speakers. The corresponding information can be found in the review of the IdeaPad Z50-70.
Case
There is then a slight difference between the IdeaPad Z50-75 and Z50-70: While the display's back of the Z50-70 features a smooth surface, the Z50-75 has a rippled structure.
Display
In contrast to the Full HD screen in the IdeaPad Z50-70, an HD screen (1366x768 pixels) is installed in the Z50-75. That is also the reason why the Z50-70 costs roughly 300 Euros (~$376) more than the Z50-75. The HD screen operates with a brightness of 223.9 cd/m². Although this is not a good rate, it is acceptable in view of the laptop's price. The screens of the Z50-70 (192.3 cd/m²) and Aspire (182.3 cd/m²) achieve lower rates. However, the Full HD screen in the Akoya (290.1 cd/m²) is pleasing.
|
Distribuzione della luminosità: 89 %
Al centro con la batteria: 225 cd/m²
Contrasto: 536:1 (Nero: 0.42 cd/m²)
ΔE Color 11.59 | 0.5-29.43 Ø4.93
ΔE Greyscale 11.86 | 0.5-98 Ø5.2
39% AdobeRGB 1998 (Argyll 1.6.3 3D)
42.02% AdobeRGB 1998 (Argyll 2.2.0 3D)
61.2% sRGB (Argyll 2.2.0 3D)
40.67% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.3
Lenovo IdeaPad Z50-75 Radeon R6 M255DX, A8-7100, WDC Scorpio Blue WD10JPCX-24UE4T0 | Lenovo IdeaPad Z50-70 (59427656) GeForce 840M, 4510U, Seagate ST1000LM014 Solid State Hybrid Drive | Acer Aspire E1-572G-54204G75Mnkk Radeon HD 8750M, 4200U, TOSHIBA MQ01ABD075 | Medion Akoya P6647 (MD98571) GeForce 825M, 4200M, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB | Lenovo G510-59416358 Radeon R5 M230, 4200M, Seagate ST500LM000 Solid State Hybrid Drive | |
---|---|---|---|---|---|
Display | -11% | -13% | 24% | 34% | |
Display P3 Coverage | 40.67 | 36.2 -11% | 35.85 -12% | 51.4 26% | 55.5 36% |
sRGB Coverage | 61.2 | 53.8 -12% | 52.1 -15% | 74.4 22% | 79.8 30% |
AdobeRGB 1998 Coverage | 42.02 | 37.48 -11% | 36.93 -12% | 52.7 25% | 57.3 36% |
Screen | -1% | -13% | 2% | -9% | |
Brightness middle | 225 | 202 -10% | 195 -13% | 319 42% | 269 20% |
Brightness | 224 | 192 -14% | 182 -19% | 290 29% | 249 11% |
Brightness Distribution | 89 | 78 -12% | 83 -7% | 74 -17% | 83 -7% |
Black Level * | 0.42 | 0.37 12% | 0.47 -12% | 0.8 -90% | 1.02 -143% |
Contrast | 536 | 546 2% | 415 -23% | 399 -26% | 264 -51% |
Colorchecker dE 2000 * | 11.59 | 10.23 12% | 12.28 -6% | 10.68 8% | 6.7 42% |
Greyscale dE 2000 * | 11.86 | 10.04 15% | 12.94 -9% | 12.24 -3% | 8.46 29% |
Gamma | 2.3 96% | 2.2 100% | 2.65 83% | 2.58 85% | 2.48 89% |
CCT | 14580 45% | 10347 63% | 18956 34% | 12660 51% | 8658 75% |
Color Space (Percent of AdobeRGB 1998) | 39 | 35 -10% | 34.1 -13% | 66.6 71% | 51 31% |
Media totale (Programma / Settaggio) | -6% /
-4% | -13% /
-13% | 13% /
8% | 13% /
3% |
* ... Meglio usare valori piccoli
Both the contrast of 536:1 and black level of 0.42 cd/m² are also absolutely satisfactory. The screen in the Z50-70 (546:1, 0.37 cd/m²) provides similar rates. Both the Aspire (415:1, 0.47 cd/m²) and Akoya (399:1, 0.8 cd/m²) do a slightly worse job. The IdeaPad's screen cannot reproduce either the AdobeRGB or sRGB color spaces. The coverage rates are 39% (AdobeRGB) and 56% (sRGB).

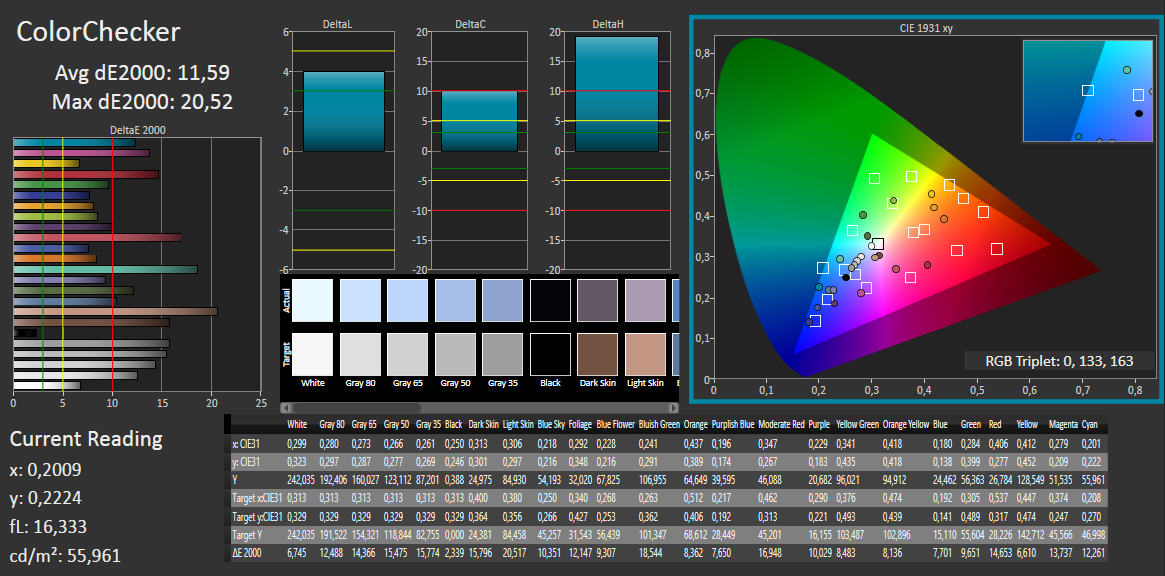

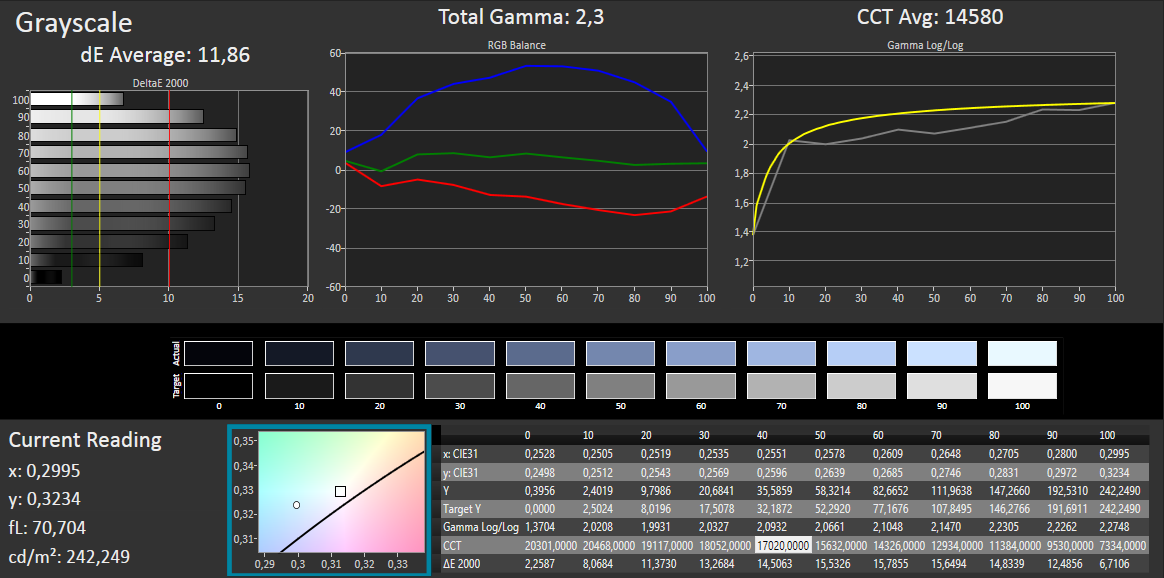

The average DeltaE 2000 shift is 11.6 in state of delivery. This rate is normal for laptops from this price range. Ideal would be a rate of less than 3. The screen also exhibits a clear bluish cast.

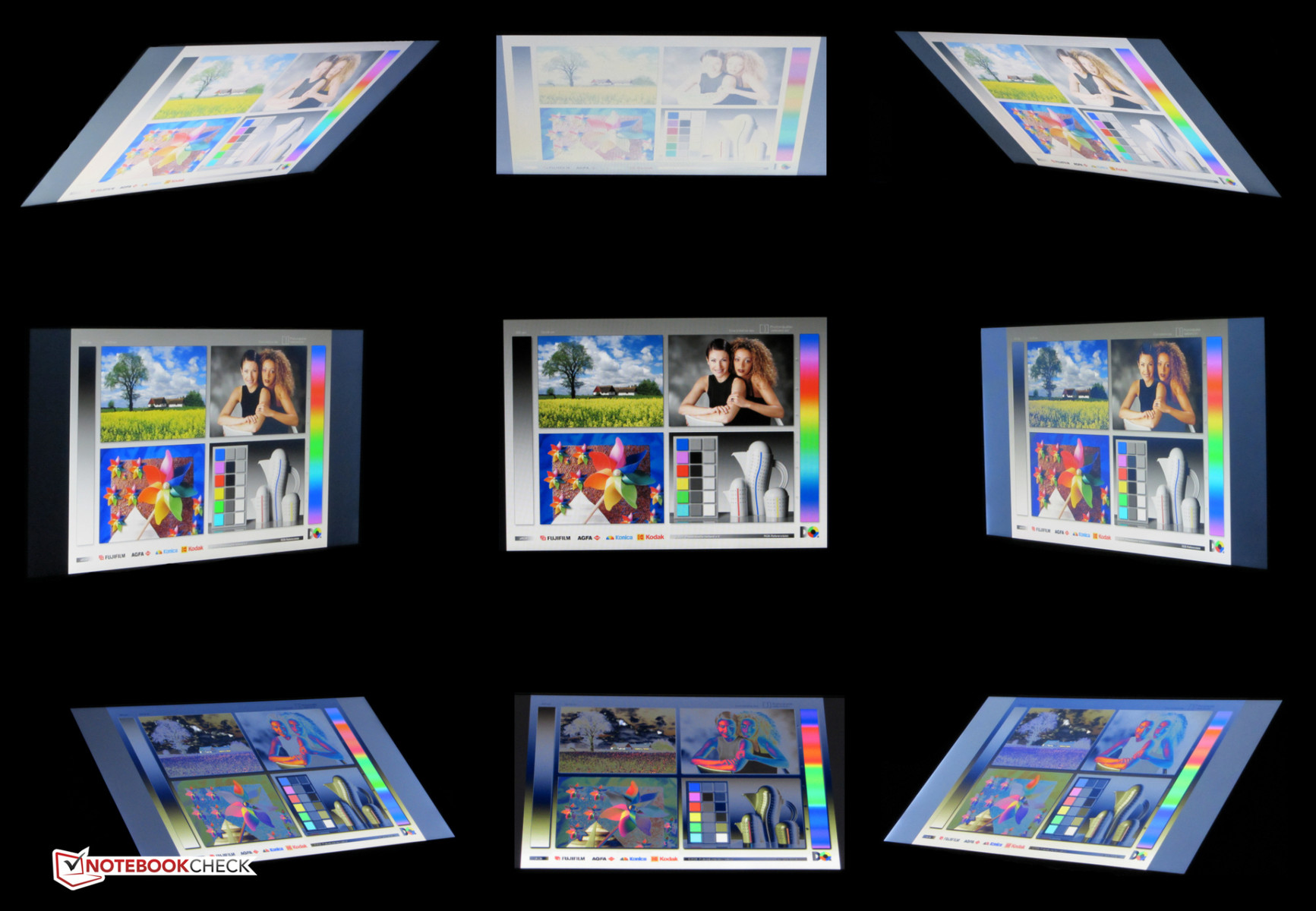

The IdeaPad is equipped with a simple TN screen, and thus it can only offer limited viewing angles. We did not expect anything else considering the price. Even the considerably more expensive IdeaPad Z50-70 does not have a viewing-angle stable IPS screen. The screen's highly reflective surface also makes reading the screen outdoors extremely difficult. Consequently, outdoor use is only possible in shadowy places.
Performance
Lenovo's IdeaPad Z50-75 is a basic all-round laptop. It not only has enough computing power for routine applications but can also smoothly render computer games to a limited degree. Our review sample is available for approximately 450 Euros (~$564) or 400 Euros (~$501) without a Windows operating system. Lenovo has multiple other models in its IdeaPad Z50 lineup.
Processor
Lenovo installs an A8-7100 APU (Kaveri) from AMD in its IdeaPad. The processor part of the APU clocks with a base speed of 1.8 GHz. It can be accelerated up to 3 GHz via Turbo. The processor is comprised of four CPU cores. The APU's TDP is 19 watts. Additional information and benchmarks relating to AMD's Kaveri APU can be found in our corresponding article.
We could not retrieve the APU's full processing power. The processor performed the single-thread tests of the Cinebench benchmarks with 2.1 to 2.5 GHz, and the multi-thread tests with 1.6 to 1.8 GHz. The APU ran both tests with a consistent 1.8 GHz in battery mode. The multi-thread scores are roughly on par with those of current Haswell Core i3 ULV processors. If the processor could retrieve its full performance, the scores would likely be on the level of the Haswell Core i5 ULV processors. The processor cannot compete with Intel's Core i3 processors in the single-core performance. It is on par with the Haswell Pentium ULV CPUs.
Cinebench R11.5 - CPU Single 64Bit (ordina per valore) | |
Lenovo IdeaPad Z50-75 | |
Acer Aspire E5-551-T8X3 | |
Packard Bell EasyNote TE69HW-29574G50Mnsk | |
Acer Extensa 2510-34Z4 | |
Acer Aspire E1-572G-54204G75Mnkk | |
HP Compaq 15-a024sg | |
Asus X555LN-XO112H | |
Lenovo G510-59416358 | |
Medion Akoya P6647 (MD98571) | |
Lenovo IdeaPad Z50-70 (59427656) |
Cinebench R11.5 - CPU Multi 64Bit (ordina per valore) | |
Lenovo IdeaPad Z50-75 | |
Packard Bell EasyNote TE69HW-29574G50Mnsk | |
Acer Aspire E5-551-T8X3 | |
Acer Extensa 2510-34Z4 | |
HP Compaq 15-a024sg | |
Acer Aspire E1-572G-54204G75Mnkk | |
Asus X555LN-XO112H | |
Lenovo IdeaPad Z50-70 (59427656) | |
Medion Akoya P6647 (MD98571) | |
Lenovo G510-59416358 |
System Performance
The system generally runs smoothly. However, we could not perform some of our benchmarks. The 3DMark05 and 06 benchmarks crashed right in the middle of testing with error messages. The programs presumably have problems with the dual-graphics. The PCMark 7 and 8 benchmarks caused the laptop to freeze. The laptop first smoothly performed PCMark 7 after we disabled the dual-graphics in the BIOS. This action did not have any effect on the behavior of the PCMark 8 benchmark.
PCMark Vantage Result | 4296 punti | |
PCMark 7 Score | 1835 punti | |
Aiuto |
PCMark 7 - Score (ordina per valore) | |
Lenovo IdeaPad Z50-75 | |
Acer Aspire E5-551-T8X3 | |
HP Compaq 15-a024sg | |
Acer Aspire E1-572G-54204G75Mnkk | |
Medion Akoya P6647 (MD98571) | |
Lenovo G510-59416358 | |
Lenovo IdeaPad Z50-70 (59427656) |
Storage Devices
Owners of an IdeaPad will not run out of storage space very soon. The installed hard drive from Western Digital offers a storage capacity of 1 TB. It spins with 5400 revolutions per minute. CrystalDiskMark recorded a read speed of 101.9 MB/s, and HD Tune delivered an average transfer rate of 84.3 MB/s. Thus, the drive is on par with virtually all currently available 5400 rpm hard drives.
Graphics Card
The Radeon R6 M255DX graphics solution is installed in the IdeaPad. It is not a dedicated graphics chip, but a dual graphics solution from AMD. It is comprised of the integrated Radeon R5 (Kaveri) graphics core and the dedicated Radeon R5 M230 GPU. The GPUs operate in a so-called Crossfire array, i.e. both cores can perform the calculation of displayed images. This process is, for example, used in computer games. Only the integrated GPU is used for routine tasks and in battery mode. The user can determine whether single applications are to be performed with the dual-graphics solution in the driver menu. There is no general performance advantage over a dedicated Radeon R5 M230 GPU. The scores and frame rates clearly increase in some benchmarks and games, and in other cases there is no difference. The R6 M255DX graphics solution sometimes reaps in a lower score.
3DMark 03 Standard | 14432 punti | |
3DMark Vantage P Result | 5008 punti | |
3DMark 11 Performance | 1857 punti | |
3DMark Ice Storm Standard Score | 26540 punti | |
3DMark Cloud Gate Standard Score | 2663 punti | |
3DMark Fire Strike Score | 518 punti | |
Aiuto |
3DMark 11 - 1280x720 Performance (ordina per valore) | |
Lenovo IdeaPad Z50-75 | |
HP Compaq 15-a024sg | |
Acer Aspire E5-551-T8X3 | |
Lenovo G510-59416358 | |
Acer Aspire E1-572G-54204G75Mnkk | |
Medion Akoya P6647 (MD98571) | |
HP Pavilion 15-p008ng | |
Asus X555LN-XO112H | |
Lenovo IdeaPad Z50-70 (59427656) |
Gaming Performance
Just looking at the 3DMark 2011 benchmarks scores indicate that the performance of the installed graphics solution should roughly be on par with a dedicated Radeon HD 8750M GPU. The gaming benchmarks did not confirm this. The IdeaPad rarely, if at all, comes close to a correspondingly equipped laptop. The Z50-75 managed to render most games in a low (to sometimes medium) resolution and low (to sometimes medium) quality settings smoothly. Therefore, it is likely that something will happen in some games in the future providing the drivers are optimized accordingly. The Radeon R6 M255DX graphics solution supports AMD's Mantle interface, and we tested the game Thief with and without Mantle. The frame rates averagely climbed by 23.6% to 18.4 fps (min.), 13.1 fps (med.), 10.1 fps (high) with enabled Mantle. Battlefield 4 also supports Mantle. However, the tool fraps refused to record the frame rates when the Mantle interface was enabled. Consequently, we cannot provide any results for this game.
Buyers looking for an affordable, gaming-suitable laptop will find considerably better alternatives in the 400 to 500 Euro (~$501 to ~$627) price range. For example, the Aspire E1-572G (Core i5-4200U, Radeon HD 8750M). This device is now available for 470 Euros, ~$590 (or 400 Euros, ~$501, without a Windows operating system). Also, entry-level versions of the Akoya P6647 (Core i5-4200M, GeForce 825M) are available for below 500 Euros (~$627).
basso | medio | alto | ultra | |
---|---|---|---|---|
The Elder Scrolls V: Skyrim (2011) | 37.3 | 26.4 | 17.3 | |
Diablo III (2012) | 59.2 | 39.7 | 32 | |
Hitman: Absolution (2012) | 19.6 | 18.1 | 9.3 | |
Dead Space 3 (2013) | 66.7 | 30.7 | 24.8 | |
Tomb Raider (2013) | 70.7 | 39.7 | 25.5 | |
StarCraft II: Heart of the Swarm (2013) | 100.3 | 44.6 | 25.3 | |
BioShock Infinite (2013) | 42.1 | 24 | 19.5 | |
Metro: Last Light (2013) | 19.2 | 16.1 | 10.5 | |
Company of Heroes 2 (2013) | 15.9 | 16.1 | 9.6 | |
Saints Row IV (2013) | 19.5 | 16.6 | 11 | |
F1 2013 (2013) | 30 | 24 | 25 | |
Battlefield 4 (2013) | 34.2 | 21.9 | 16.5 | |
X-Plane 10.25 (2013) | 26 | 15.1 | 7.5 | |
Thief (2014) | 14.1 | 10.9 | 8.4 | |
Wolfenstein: The New Order (2014) | 23.6 | 22.4 | 11.7 | |
GRID: Autosport (2014) | 66.2 | 26.9 | 19.2 | |
Risen 3: Titan Lords (2014) | 26.2 | 15.9 | 7.9 | |
Fifa 15 (2014) | 35.8 | 29.4 |
Lenovo IdeaPad Z50-75 Radeon R6 M255DX, A8-7100, WDC Scorpio Blue WD10JPCX-24UE4T0 | Lenovo IdeaPad Z50-70 (59427656) GeForce 840M, 4510U, Seagate ST1000LM014 Solid State Hybrid Drive | Medion Akoya P6647 (MD98571) GeForce 825M, 4200M, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB | Acer Aspire E1-572G-54204G75Mnkk Radeon HD 8750M, 4200U, TOSHIBA MQ01ABD075 | Lenovo G510-59416358 Radeon R5 M230, 4200M, Seagate ST500LM000 Solid State Hybrid Drive | |
---|---|---|---|---|---|
Tomb Raider | 45% | 11% | 22% | -31% | |
1024x768 Low Preset | 70.7 | 123.3 74% | 91.2 29% | 92.6 31% | 52.6 -26% |
1366x768 Normal Preset AA:FX AF:4x | 39.7 | 58.8 48% | 44 11% | 45.5 15% | 26.7 -33% |
1366x768 High Preset AA:FX AF:8x | 25.5 | 28.7 13% | 23.9 -6% | 30.8 21% | 16.8 -34% |
StarCraft II: Heart of the Swarm | 72% | 79% | -18% | ||
1024x768 Low | 100.3 | 187.2 87% | 91.6 -9% | ||
1366x768 Medium | 44.6 | 79.7 79% | 79.1 77% | 33.6 -25% | |
1366x768 High AA:on | 25.3 | 41.8 65% | 44 74% | 20.1 -21% | |
Media totale (Programma / Settaggio) | 45% /
45% | 42% /
36% | 51% /
51% | -25% /
-25% |
Emissions
System Noise
The fan spins at a low speed with a quiet, consistent noise in idle mode. The fan does not get exceedingly loud during load either. We measured almost equal noise levels of 37 dB(A) during medium load via 3DMark06 and 36.2 dB(A) during full load in the stress test via Furmark and Prime95. That is not surprising since the processor was throttled during the stress test. It overall looks identical in the Aspire; the Akoya produced more noise during load.
Rumorosità
Idle |
| 32.4 / 32.9 / 33.1 dB(A) |
HDD |
| 33.2 dB(A) |
DVD |
| 37.2 / dB(A) |
Sotto carico |
| 37 / 36.4 dB(A) |
| ||
30 dB silenzioso 40 dB(A) udibile 50 dB(A) rumoroso |
||
min: , med: , max: Voltcraft sl-320 (15 cm di distanza) |
Temperature
The GPUs performed the stress test (Prime95 and Furmark run for at least one hour) in the same manner in both AC and battery modes. While the integrated GPU clocked with 200 to 300 MHz, the dedicated GPU ran at full speed (855 MHz). The CPU clocked with 1.2 to 1.4 GHz in AC mode and 1.1 GHz in battery mode. The IdeaPad does not struggle with heatwaves. We measured a maximum temperature of 40 °C on one measuring point even during the stress test. The CPU's throttling is noticed here. Both the Aspire and Akoya reach higher temperatures.
(+) La temperatura massima sul lato superiore è di 39.5 °C / 103 F, rispetto alla media di 36.9 °C / 98 F, che varia da 21.1 a 71 °C per questa classe Multimedia.
(±) Il lato inferiore si riscalda fino ad un massimo di 40 °C / 104 F, rispetto alla media di 39.2 °C / 103 F
(+) In idle, la temperatura media del lato superiore è di 27.1 °C / 81 F, rispetto alla media deld ispositivo di 31.3 °C / 88 F.
(+) I poggiapolsi e il touchpad raggiungono la temperatura massima della pelle (35.9 °C / 96.6 F) e quindi non sono caldi.
(-) La temperatura media della zona del palmo della mano di dispositivi simili e'stata di 28.8 °C / 83.8 F (-7.1 °C / -12.8 F).
Energy Management
Power Consumption
The idle power consumptions of the IdeaPad and Aspire are identical. The Akoya consumes more power because it is equipped with a standard mobile processor (no ULV). The three comparison devices basically range on a similar level during load. However, the IdeaPad consumed the least power in the stress test because the laptop's CPU is throttled strongly.
Off / Standby | 0.1 / 0.1 Watt |
Idle | 6.8 / 9.6 / 11.4 Watt |
Sotto carico |
41.6 / 38.6 Watt |
Leggenda:
min: ,
med: ,
max: Voltcraft VC 940 Attualmente utilizziamo il Metrahit Energy, un multimetro digitale professionale per la misurazione della qualità della potenza e dell'energia monofase, per le nostre misurazioni. |
Battery Runtime
The battery in the IdeaPad lasted for 5:11 h in idle mode. The Aspire (9:02 h) achieves a considerably better runtime. Idle mode is ascertained using Battery Eater's Reader's test. The screen is set to its minimum brightness, the energy-saving profile is enabled, and the wireless modules are off. The IdeaPad shut down after 1:14 h in load. The Aspire (1:20 h) is on par with that. The load runtime is determined with Battery Eater's Classic test using maximum screen brightness, the high-performance profile, and enabled radio modules.
The IdeaPad closed the Wi-Fi test after 2:35 h. The Akoya (3:26 h) and the Aspire (4:26 h) last longer. Websites are automatically opened every 40 seconds using the energy-saving profile and a screen brightness of approximately 150 cd/m². We test the video playback time by running the short movie Big Buck Bunny (H.264 encoding, 1920x1080 pixels) in a loop. The energy-saving profile is enabled, the radio modules are disabled and the screen's brightness is set to approximately 150 cd/m². The IdeaPad lasted for 2:20 h here.
In total, the IdeaPad serves with abysmal, no longer contemporary battery runtimes. The IdeaPad Z50-70 sister model achieved twice the runtime in most of our battery tests. That is, however, not least due to the Z50-70's higher battery capacity (41 Wh) in contrast to the Z50-75's (32 Wh).
Lenovo IdeaPad Z50-75 Radeon R6 M255DX, A8-7100, WDC Scorpio Blue WD10JPCX-24UE4T0 | Lenovo IdeaPad Z50-70 (59427656) GeForce 840M, 4510U, Seagate ST1000LM014 Solid State Hybrid Drive | Acer Aspire E1-572G-54204G75Mnkk Radeon HD 8750M, 4200U, TOSHIBA MQ01ABD075 | Medion Akoya P6647 (MD98571) GeForce 825M, 4200M, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB | Lenovo G510-59416358 Radeon R5 M230, 4200M, Seagate ST500LM000 Solid State Hybrid Drive | |
---|---|---|---|---|---|
Autonomia della batteria | 76% | 51% | 33% | 57% | |
Reader / Idle | 311 | 672 116% | 542 74% | 605 95% | |
H.264 | 140 | ||||
WiFi | 155 | 281 81% | 266 72% | 206 33% | 283 83% |
Load | 74 | 97 31% | 80 8% | 68 -8% |
Verdict
Il Lenovo IdeaPad Z50-70 è un economico portatile tuttofare da 15.6". Il processore quad-core fornisce abbastanza potenza per le applicazioni da ufficio ed Internet. Inoltre, è possibile usare qualche gioco. Le prestazioni gaming dovrebbero accontentare i giocatori occasionali. L'IdeaPad resta sempre silenzioso e difficilmente si scalda. E' semplice accedere all'hardware grazie ad una grande cover. Lo schermo non vince alcun premio ma è accettabile considerando il prezzo del portatile. La limitata autonomia è da criticare. Siamo abituati a questi risultati per i portatili multimedia che si basano su processori Core i7 e schede grafiche di prima classe. A nostro parere lo Z50-75 avrà difficoltà a trovare clienti in quanto ci sono portatili migliori in questa fascia di prezzo. Dobbiamo citare l'Aspire E1-572G. Questo offre più prestazioni CPU, più potenza per il gaming, maggiore autonomia e schermo matto.
Nota: si tratta di una recensione breve, con alcune sezioni non tradotte, per la versione integrale in inglese, guardate qui.
