NVIDIA Quadro FX 2800M

NVIDIA Quadro FX 2800M

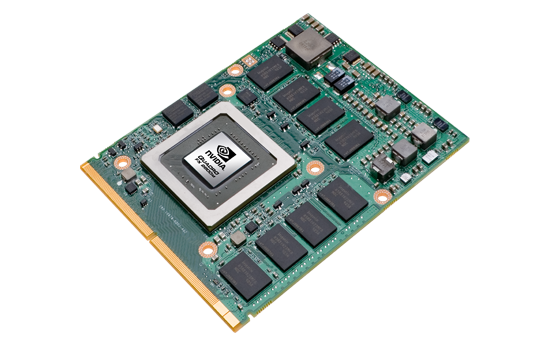

La NVIDIA Quadro FX 2800M è una scheda grafica workstation mobile per portatili di fascia alta. Si basa sul core Geforce 9800M GT / G92 ma può essere già prodotta in 55nm (la 9800M GT è realizzata in 65nm) e sfrutta un core clock superiore.

La serie di schede Quadro FX è ottimizzata per applicazioni professionali come CAD o DCC. Specialmente le prestazioni OpenGL dovrebbero essere notevolmente migliori rispetto alle schede consumer GeForce.

La Quadro FX2800M si trova nelle workstations mobile come il Dell M6500 e supporta DirectX 10.0 ed OpenGL 2.1. Nei portatili Dell la scheda è in grado di gestire fino a due displays simultaneamente (DisplayPort fino a 2560x1600, DVI/HDMI fino a 1920x1200). Dell specifica un thermal power di 65 Watt (Nvidia 75 Watt TDP).

Considerato un consumo massimo di 65/75 Watt (TDP) e 10 Watt in modalità Idle, la Quadro FX 2800M può essere usata solo nei portatili di medie (con spesso ventole sempre in funzione) o grandi dimensioni.

Quadro FX Serie

Quadro FX 3800M 128 @ 0.68 GHz256 Bit @ 1000 MHz
Quadro FX 3700M 128 @ 0.55 GHz256 Bit @ 800 MHz
Quadro FX 2800M 96 @ 0.6 GHz256 Bit @ 1000 MHz
Quadro FX 3600M 96 @ 0.5 GHz256 Bit @ 800 MHz
Quadro FX 1800M 72 @ 0.56 GHz128 Bit @ 1100 MHz
Quadro FX 2700M 48 @ 0.53 GHz256 Bit @ 800 MHz
Quadro FX 880M 48 @ 0.55 GHz128 Bit @ 790 MHz
Quadro FX 3500M 24/8 cores @ 0.58 GHz256 Bit @ 700 MHz
Quadro FX 2500M 24/8 cores @ 0.5 GHz256 Bit @ 600 MHz
Quadro FX 1700M 32 @ 0.63 GHz128 Bit @ 800 MHz
Quadro FX 1600M 32 @ 0.63 GHz128 Bit @ 800 MHz
Quadro FX 1500M 20/7 cores @ 0.38 GHz256 Bit @ 500 MHz
Quadro FX 770M 32 @ 0.5 GHz128 Bit @ 800 MHz
Quadro FX 570M 32 @ 0.48 GHz128 Bit @ 700 MHz
Quadro FX 380M 16 @ 0.63 GHz64 Bit @ 800 MHz
Quadro FX 370M 8 @ 0.58 GHz64 Bit @ 700 MHz
Quadro FX 360M 16 @ 0.4 GHz64 Bit @ 600 MHz
Quadro FX 350M 4/3 cores @ 0.45 GHz64 Bit @ 350 MHz
Nome in codiceNB10-GLM3
ArchitetturaG9x
Pipelines96 - unified
Velocità del core600 MHz
Velocità de Shader1500 MHz
Velocità della memoria1000 MHz
Larghezza del bus di memoria256 Bit
Tipo di memoriaGDDR3
Max. quantità di memoria1024 MB
Memoria condivisano
APIDirectX 10, Shader 4.0
Consumo di corrente75 Watt
Transistor Count754 Milioni
tecnologia55 nm
CaratteristicheOpenGL 2.1, CUDA, PowerMizer 8.0
Dimensione del portatilegrande
Data dell'annuncio01.12.2009
Link alla pagina del produttorewww.nvidia.com

Benchmark

3DMark Vantage
3DM Vant. Perf. total +
3DMark Vantage - 3DM Vant. Perf. total
min: 5779     media: 5783     media: 5783 (2%)     massimo: 5787 Points
+ 2 benchmarks e specifiche   + Mostra il grafico di confronto
3DM Vant. Perf. GPU no PhysX +
3DMark Vantage - 3DM Vant. Perf. GPU no PhysX
min: 5000     media: 5037     media: 5037 (3%)     massimo: 5074 Points
+ 2 benchmarks e specifiche   - Nascondi il grafico di confronto
3DMark 2001SE - 3DMark 2001 - Standard
34844 Points (36%)
+ 1 benchmarks e specifiche   + Mostra il grafico di confronto
3DMark 03 - 3DMark 03 - Standard
33900 Points (18%)
+ 1 benchmarks e specifiche   + Mostra il grafico di confronto
3DMark 05 - 3DMark 05 - Standard
min: 16310     media: 16936     media: 16935.5 (19%)     massimo: 17561 Points
+ 2 benchmarks e specifiche   - Nascondi il grafico di confronto
Intel Graphics Media Accelerator (GMA) 500
133.4 -99%
...
NVIDIA Quadro 1000M
16583 -2%
Intel Iris Pro Graphics 5200
16590 -2%
NVIDIA GeForce 9800M GTX
16638 -2%
NVIDIA GeForce GT 735M
16640 -2%
NVIDIA GeForce GT 740M
16696 -1%
NVIDIA GeForce GTS 360M
16712 -1%
AMD Radeon HD 7730M
16766 -1%
Intel UHD Graphics 24EUs (Alder Lake-N)
16771 -1%
NVIDIA GeForce GT 730M
16882 0%
NVIDIA Quadro FX 2800M
16936
NVIDIA GeForce 8800M GTX SLI
16942 0%
AMD Radeon HD 6850M
16944 0%
Intel UHD Graphics 620
16972 0%
NVIDIA GeForce 825M
17043 1%
NVIDIA GeForce GT 640M
17105 1%
ATI FirePro M7740
17192 2%
NVIDIA GeForce 840M
17271 2%
AMD Radeon 530
17513 3%
AMD Radeon HD 7690M XT
17545 4%
...
AMD Radeon RX 7600M XT
68064 302%
max:
NVIDIA GeForce RTX 4080 Super
87172 415%
0%
100%
3DMark 06 3DMark 06 - Standard 1280x1024 +
3DMark 06
min: 11162     media: 11359     media: 11358.5 (15%)     massimo: 11555 Points
+ 2 benchmarks e specifiche   + Mostra il grafico di confronto
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - 3dsmax
32.3 punti (67%)
+ 1 benchmarks e specifiche   + Mostra il grafico di confronto
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - Catia
39 punti (82%)
+ 1 benchmarks e specifiche   + Mostra il grafico di confronto
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - EnSight
44 punti (93%)
+ 1 benchmarks e specifiche   + Mostra il grafico di confronto
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - Maya
59.6 punti (32%)
+ 1 benchmarks e specifiche   + Mostra il grafico di confronto
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - Pro/Engeneer
42.6 punti (83%)
+ 1 benchmarks e specifiche   + Mostra il grafico di confronto
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - SolidWorks
59.5 punti (88%)
+ 1 benchmarks e specifiche   + Mostra il grafico di confronto
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - UGS Teamcenter
35.2 punti (91%)
+ 1 benchmarks e specifiche   + Mostra il grafico di confronto
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - UGS NX
31.3 punti (64%)
+ 1 benchmarks e specifiche   + Mostra il grafico di confronto
SPECviewperf 11
specvp11 snx-01 +
SPECviewperf 11 - specvp11 snx-01
min: 13.58     media: 14.7     media: 13.9 (8%)     massimo: 16.55 fps
+ 3 benchmarks e specifiche   + Mostra il grafico di confronto
specvp11 tcvis-02 +
SPECviewperf 11 - specvp11 tcvis-02
min: 15.1     media: 16     media: 15.3 (9%)     massimo: 17.4 fps
+ 3 benchmarks e specifiche   + Mostra il grafico di confronto
specvp11 sw-02 +
SPECviewperf 11 - specvp11 sw-02
min: 6.73     media: 14.1     media: 7.5 (6%)     massimo: 28 fps
+ 3 benchmarks e specifiche   + Mostra il grafico di confronto
specvp11 proe-05 +
SPECviewperf 11 - specvp11 proe-05
min: 4.67     media: 5.1     media: 4.7 (6%)     massimo: 5.89 fps
+ 3 benchmarks e specifiche   + Mostra il grafico di confronto
specvp11 maya-03 +
SPECviewperf 11 - specvp11 maya-03
min: 6.2     media: 7     media: 7.4 (6%)     massimo: 7.5 fps
+ 3 benchmarks e specifiche   + Mostra il grafico di confronto
specvp11 lightwave-01 +
SPECviewperf 11 - specvp11 lightwave-01
min: 7.99     media: 16.2     media: 8.5 (9%)     massimo: 32 fps
+ 3 benchmarks e specifiche   + Mostra il grafico di confronto
specvp11 ensight-04 +
SPECviewperf 11 - specvp11 ensight-04
min: 10.8     media: 11.9     media: 11.1 (5%)     massimo: 13.7 fps
+ 3 benchmarks e specifiche   + Mostra il grafico di confronto
specvp11 catia-03 +
SPECviewperf 11 - specvp11 catia-03
min: 9.53     media: 13.4     media: 9.7 (5%)     massimo: 20.92 fps
+ 3 benchmarks e specifiche   + Mostra il grafico di confronto
Windows Vista Experience Index - Windows Vista Leistungsindex - Grafik (Spiele)
6.8 Points (100%)
+ 1 benchmarks e specifiche   + Mostra il grafico di confronto
Windows Vista Experience Index - Windows Vista Leistungsindex - Grafik
6.8 Points (100%)
+ 1 benchmarks e specifiche   + Mostra il grafico di confronto
Cinebench R11.5 Cinebench R11.5 OpenGL 64 Bit +
Cinebench R11.5 - Cinebench R11.5 OpenGL 64 Bit
min: 28.16     media: 28.8     media: 28.8 (9%)     massimo: 29.36 fps
+ 2 benchmarks e specifiche   + Mostra il grafico di confronto
- Valori di benchmark per questa scheda grafica
- Valori medi di benchmark per questa scheda grafica
* Numeri più piccoli rappresentano prestazioni supeiori

Benchmarks per i giochi

I seguenti benchmarks deirivano dai benchmarks dei portatili recensiti. Le prestazioni dipendono dalla scheda grafica utilizzata, dal clock rate, dal processore, dai settaggi di sistema, dai drivers, e dai sistemi operativi. Quindi i risultati non sono rappresentativi per i portatili con questa GPU. Per informazioni dettagliate sui risultati del benchmark, cliccate sul numero di fps.

Mafia 2

Mafia 2

2010
basso 800x600
63.2  fps    + Confronta
medio 1024x768
56.1  fps    + Confronta
alto 1360x768
48.9  fps    + Confronta
ultra 1920x1080
30.8  fps    + Confronta
» Giocabile con tutti i portatili testati con dettagli alto.
StarCraft 2

StarCraft 2

2010
basso 1024x768
158  fps    + Confronta
medio 1360x768
60  fps    + Confronta
alto 1360x768
52  fps    + Confronta
ultra 1920x1080
29.6  fps    + Confronta
» Giocabile con tutti i portatili testati con dettagli alto.
Battlefield: Bad Company 2

Battlefield: Bad Company 2

2010
medio 1366x768
58.9  fps    + Confronta
alto 1366x768
41.5  fps    + Confronta
ultra 1920x1080
23.1  fps    + Confronta
» Giocabile con tutti i portatili testati con dettagli alto.
CoD Modern Warfare 2

CoD Modern Warfare 2

2009
basso 800x600
158.1  fps    + Confronta
medio 1024x768
78.9  fps    + Confronta
alto 1366x768
66.7  fps    + Confronta
ultra 1920x1080
41.2  fps    + Confronta
» Giocabile con tutti i portatili testati con dettagli ultra.
Colin McRae: DIRT 2

Colin McRae: DIRT 2

2009
basso 800x600
96.3  fps    + Confronta
medio 1024x768
89.5  fps    + Confronta
alto 1360x768
62.6  fps    + Confronta
ultra 1920x1080
30.7  fps    + Confronta
» Giocabile con tutti i portatili testati con dettagli alto.
bassomedioaltoultraQHD4K
Mafia 263.256.148.930.8
StarCraft 2158605229.6
Battlefield: Bad Company 258.941.5323.07
CoD Modern Warfare 2158.178.966.741.2
Colin McRae: DIRT 296.389.562.630.7
< 30 fps
< 60 fps
< 120 fps
≥ 120 fps

2
2
2
3

3
2
2
3







Per conoscere altri giochi che potrebbero essere utilizzabili e per una lista completa di tutti i giochi e delle schede grafiche visitate la nostra Gaming List

v1.28
log 08. 23:52:25

#0 ran 0s before starting gpusingle class +0s ... 0s

#1 no ids found in url (should be separated by "_") +0s ... 0s

#2 not redirecting to Ajax server +0s ... 0s

#3 did not recreate cache, as it is less than 5 days old! Created at Fri, 08 Nov 2024 19:43:11 +0100 +0.001s ... 0.001s

#4 no comparison url found in template nbc.compare_page_1 needed +0.037s ... 0.038s

#5 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.038s

#6 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.039s

#7 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.039s

#8 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.039s

#9 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.039s

#10 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.04s

#11 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.04s

#12 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.04s

#13 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.04s

#14 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.041s

#15 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.041s

#16 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.041s

#17 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.041s

#18 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.042s

#19 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.042s

#20 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.042s

#21 composed specs +0s ... 0.042s

#22 did output specs +0s ... 0.042s

#23 start showIntegratedCPUs +0s ... 0.042s

#24 getting avg benchmarks for device 1544 +0.013s ... 0.055s

#25 got single benchmarks 1544 +0.01s ... 0.065s

#26 got avg benchmarks for devices +0s ... 0.065s

#27 min, max, avg, median took s +0.381s ... 0.446s

#28 before gaming benchmark output +0s ... 0.446s

#29 Got 19 rows for game benchmarks. +0.003s ... 0.449s

#30 composed SQL query for gamebenchmarks +0s ... 0.449s

#31 got data and put it in $dataArray +0.003s ... 0.452s

#32 benchmarks composed for output. +0.192s ... 0.644s

#33 no comparison url found in template nbc.compare_page_1 needed +0.003s ... 0.646s

#34 return log +0s ... 0.646s

Please share our article, every link counts!

Classe 1

NVIDIA GeForce RTX 4090 Laptop GPU
NVIDIA RTX 5000 Ada Generation Laptop GPU
Radeon RX 7900M
NVIDIA GeForce RTX 4080 Laptop GPU
NVIDIA RTX 4000 Ada Generation Laptop GPU
NVIDIA RTX 3500 Ada Generation Laptop GPU
GeForce RTX 3080 Ti Laptop GPU
NVIDIA GeForce RTX 4070 Laptop GPU
NVIDIA RTX 3000 Ada Generation Laptop GPU
RTX A5500 Laptop GPU
GeForce RTX 3080 Laptop GPU
Radeon RX 6850M XT
GeForce RTX 3070 Ti Laptop GPU
RTX A4500 Laptop GPU
RTX A5000 Laptop GPU
NVIDIA GeForce RTX 4060 Laptop GPU
NVIDIA RTX 2000 Ada Generation Laptop GPU
Quadro RTX 6000 (Laptop)
Radeon RX 6800M
GeForce RTX 2080 Super Mobile
GeForce RTX 3070 Laptop GPU
RTX A4000 Laptop GPU *

Classe 2

M4 20-core GPU
Radeon RX 6800S
Radeon RX 7600M XT *
Radeon RX 7700S *
M3 Max 40-Core GPU *
M2 Max 38-Core GPU *
GeForce RTX 2080 Mobile
Radeon RX 6700M
M3 Max 30-Core GPU *
Quadro RTX 5000 (Laptop)
Radeon RX 7600M *
M2 Max 30-Core GPU *
GeForce RTX 3060 Laptop GPU
M1 Max 32-Core GPU *
Radeon RX 7600S
GeForce RTX 2070 Super Mobile
GeForce RTX 2080 Super Max-Q
RTX A3000 Laptop GPU
M1 Max 24-Core GPU *
A770M *
Radeon RX 6650M XT *
M3 Pro 18-Core GPU *
M2 Pro 19-Core GPU *
Radeon RX 6650M
Radeon RX 6600M
Radeon RX 6700S
GeForce RTX 2070 Mobile
Quadro RTX 5000 Max-Q
GeForce RTX 2080 Max-Q
Radeon RX 5700M *
GeForce GTX 1080 Mobile
Quadro RTX 4000 (Laptop)
M3 Pro 14-Core GPU *
M2 Pro 16-Core GPU *
M1 Pro 16-Core GPU *
Radeon PRO W6600M *
GeForce RTX 2070 Super Max-Q
Quadro RTX 4000 Max-Q *
M1 Pro 14-Core GPU *
GeForce RTX 2070 Max-Q *
Radeon RX 6600S *
Quadro P5200
Quadro RTX 3000 (Laptop) *
GeForce RTX 2060 Mobile
Quadro RTX 3000 Max-Q *
GeForce GTX 1080 Max-Q
GeForce GTX 1070 Mobile
GeForce RTX 2060 Max-Q *
Quadro P4200
NVIDIA GeForce RTX 4050 Laptop GPU
Nvidia RTX 1000 Ada Generation Laptop GPU
RTX A2000 Laptop GPU
A730M *
Radeon Pro 5600M *
Radeon RX 5600M
Quadro P5000
GeForce GTX 1660 Ti Mobile
GeForce RTX 3050 Ti Laptop GPU
GeForce RTX 3050 6GB Laptop GPU
A570M *
RTX A1000 Laptop GPU
GeForce GTX 1070 Max-Q
A550M *
Quadro P5000 Max-Q *
GeForce RTX 3050 A Laptop GPU
GeForce RTX 3050 4GB Laptop GPU
Nvidia RTX 500 Ada Generation Laptop GPU
A530M *
GeForce GTX 1660 Ti Max-Q
RTX A500 Laptop GPU
Radeon RX 6550M *
Radeon RX 6500M
Radeon RX 6550S *
GeForce GTX 980 (Laptop)
Quadro M5500
Quadro P4000
Quadro T2000 (Laptop) *
GeForce GTX 1060 Mobile
GeForce GTX 1650 Ti Mobile
A370M *
Radeon RX 5500M
Radeon Pro 5500M *
Quadro P4000 Max-Q
Quadro P3200
Radeon RX 580X (Laptop) *
Radeon RX 580 (Laptop)
Radeon RX 6450M *
GeForce RTX 2050 Mobile
Arc 140V *
GeForce MX570 *
Radeon RX 6300M *
Arc 130V *
GeForce GTX 1650 Mobile
Radeon Pro 5300M
Radeon RX 5300M
Quadro P3000
GeForce GTX 1060 Max-Q
Quadro P3000 Max-Q *
GeForce GTX 1650 Ti Max-Q *
Quadro T2000 Max-Q *
Radeon Pro WX 7100 *
Radeon RX 570X (Laptop) *
Radeon RX 570 (Laptop) *
Radeon RX 470 (Laptop) *
GeForce GTX 1650 Max-Q *
T1200 Laptop GPU *
Radeon 890M *
Quadro T1000 (Laptop) *
Quadro T1000 Max-Q *
A310 *
Arc 8-Core *
A350M *
Arc 7-Core *
T600 Laptop GPU *
T550 Laptop GPU *

Classe 3

M4 8-Core GPU *
GeForce GTX 980M
Vega M GH
Quadro M5000M
Radeon Pro Vega 20
Radeon 880M *
Adreno 830 *
Adreno X1-85 4.6 TFLOPS *
Radeon 780M *
GeForce MX550
GeForce GTX 1050 Ti Mobile
Radeon 680M
Quadro P2000
Quadro P2000 Max-Q
Quadro M4000M
GeForce GTX 970M
T500 Laptop GPU *
GeForce MX450 *
Radeon R9 M395X
GeForce GTX 1050 Ti Max-Q *
Radeon Pro Vega 16
Vega M GL / 870
WX Vega M GL
Radeon R9 M485X
Quadro M3000M
GeForce GTX 1050 Mobile
FirePro W7170M
Radeon R9 M395
GeForce GTX 1050 Max-Q *
Radeon 760M *
Adreno X1-85 3.8 TFLOPS *
Radeon Radeon Steam Deck 8CU
Radeon 660M
Radeon Pro WX 4150 *
GeForce GTX 965M
Radeon RX 560X (Laptop)
Radeon RX 560 (Laptop)
Quadro M2200
Radeon RX 460 (Laptop)
Quadro P1000
Radeon R9 M390
Xe MAX
Radeon Pro 560X
Radeon Pro 560
Radeon Pro 460
Radeon Pro WX 4130 *
Iris Xe G7 96EUs
GeForce MX350
GeForce GTX 960M
Quadro M1200
Quadro P620 *
Radeon RX 550X (Laptop)
Radeon RX 550 (Laptop)
Radeon RX 640
Radeon Pro WX 3200 *
Radeon Pro 555X
Radeon Pro 555
Radeon Pro 455
Quadro P600
GeForce MX250
GeForce MX330
GeForce MX150
Iris Xe G7 80EUs
Graphics 4-Core *
Quadro M2000M
Radeon RX 540X *
Radeon Pro WX 2100 *
Radeon RX 540 *
Radeon Pro WX 3100 *
GeForce GTX 950M
Radeon Pro 450
Adreno X1-45 2.1 TFLOPS *
Radeon 630
Radeon 540X *
Radeon R9 M470X *
Radeon R9 M385X
Quadro P520
Quadro M1000M
Quadro M620 *
GeForce 945M
Quadro P500 *
UHD Graphics 64EUs
Iris Plus Graphics G7 (Ice Lake 64 EU) *
Vega 10 *
Iris Pro Graphics P580
Iris Pro Graphics 580
Adreno X1-45 1.7 TFLOPS *
Radeon R9 M470 *
FirePro W5170M *
Radeon R9 M370X
Vega 9
FirePro W5130M
UHD Graphics Xe G4 48EUs *
UHD Graphics 32EUs
UHD Graphics Xe 32EUs (Tiger Lake-H) *
UHD Graphics 750
Radeon 740M *
UHD Graphics 730
GeForce MX230
Vega 8 *
Vega 7
Radeon R7 M465
Iris Pro Graphics 6200
GeForce MX130
GeForce 940MX
Quadro M520
Vega 8
GeForce 940M
Iris Plus Graphics G4 (Ice Lake 48 EU)
GeForce 930MX
Quadro M600M
FirePro W4190M
Radeon R9 M375
Iris Plus Graphics 655
Radeon R7 M445
Quadro M500M
Iris Plus Graphics 650
GeForce 930M
Iris Graphics 550
Radeon 530
Radeon 625
Vega 6 *
Iris Plus Graphics 645
GeForce MX110 *
Iris Plus Graphics 640
GeForce 920MX
Iris Graphics 540
UHD Graphics 24EUs (Alder Lake-N) *
Radeon R7 (Bristol Ridge) *
Radeon R7 M460 *
Radeon R7 M360
GeForce 920M
Radeon R8 M445DX
Radeon 620
Radeon R7 M440
Radeon R7 M340
Radeon 520
Radeon 610
Radeon Graphics (Ryzen 7000)
Radeon 610M *
Vega 6 *
Vega 5 *
UHD Graphics G1 (Ice Lake 32 EU)
UHD Graphics Xe 16EUs (Tiger Lake-H) *
HD Graphics 530
Radeon R5 (Bristol Ridge)
UHD Graphics 620
HD Graphics 620
Adreno 690 *
Adreno 685 *
Adreno 680 *
Quadro FX 2800M
Radeon R5 M330
Radeon R5 M430
Vega 3 *
GeForce 910M
HD Graphics 520
Iris Graphics 6100

Classe 4

Radeon R5 M320 *
Radeon R5 M315 *
Radeon R5 M420 *
Vega 2 *
Radeon R5 (Stoney Ridge)
HD Graphics 6000
UHD Graphics (Jasper Lake 32 EU) *
UHD Graphics 617
UHD Graphics 615
UHD Graphics (Jasper Lake 24 EU) *
HD Graphics 615
HD Graphics 515
UHD Graphics 610
HD Graphics 610
HD Graphics 510
UHD Graphics (Jasper Lake 16 EU)
UHD Graphics 605
HD Graphics 505
Radeon R4 (Stoney Ridge)
Radeon R2 (Stoney Ridge)
VideoCore VII *
UHD Graphics 600
HD Graphics 500
HD Graphics 405 (Braswell)
HD Graphics (Braswell)
HD Graphics 400 (Braswell)

Posizione approssimativa dell'adattatore grafico

> Recensioni e prove di notebook, tablets e smartphones > Info Techniche / Tips > Confronto delle schede video > NVIDIA > NVIDIA Quadro FX 2800M
Klaus Hinum, 2010-10- 9 (Update: 2014-09-19)
