Intel Core i7-2820QM

Intel 2820QM

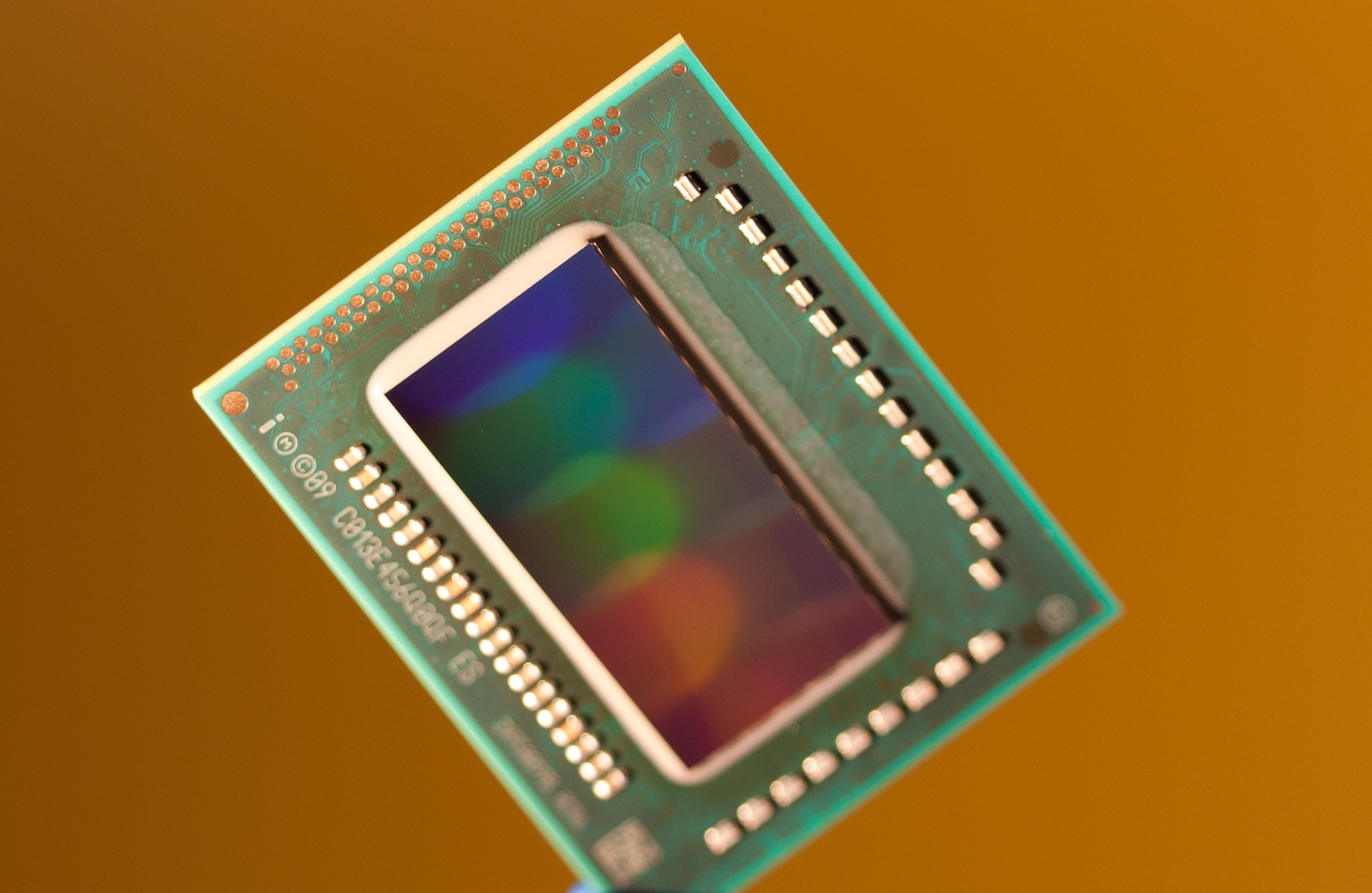

L'Intel Core i7-2820QM è un veloce processore di fascia alta quad core per portatili. Al momento del suo annuncio (Gen. 2011) era il processore da 45 Watt più veloce. Si basa sulla architettura Sandy Bridge ed offre l'Hyperthreading per la gestione simultanea di 8 threads (per un miglior utilizzo della pipeline). Rispetto ai precedenti Clarksdale quad-cores, l'i7-2820QM ora è realizzato in 32nm ed offre una scheda grafica integrata e funzioni AES. Rispetto alla 2720QM con un clock inferiore, la 2820QM offre più level 3 cache (8 vs. 6MB).

Sandy Bridge è il successore evolutivo della architettura Arrandale. I principali miglioramenti sono le nuove istruzioni 265Bit AVX, il Turbo Boost migliorato e l'integrazione della scheda grafica nel core CPU da 32nm. Inoltre, il controller di memoria integrato è stato migliorato ed ora supporta fino ad 8 GB di DDR3-1333.

L'i7-2820QM offre una scheda grafica integrata (Intel HD Graphics 3000) che si è mostrata nettamente più veloce rispetto alle vecchie Intel HD Graphics delle CPUs Arrandale ed al livello delle schede grafiche dedicate di fascia bassa come la GeForce 310M. La HD Graphics 3000 supporta anche il Turbo Boost ed ha un clock tra 650 MHz e 1300 MHz. Poiché la scheda grafica condivide la veloce level cache, il processore sarà leggermente più lento con la GPU attiva.

Le prestazioni del Core i7-2820QM sono notevolmente migliori (es. versioni Cinebench) rispetto alla precedente generazione di Core i7-940XM quad core. Pertanto, le prestazioni dovrebbero essere sufficienti per i moderni giochi 3D e le applicazioni impegnative. Grazie al veloce Turbo Boost 2.0 anche le applicazioni single threaded girano molto velocemente. I risultati dettagliati del benchmark del 2820QM possono essere reperiti nella sezione inferiore di questa pagina.

Il valore di TDP relativamente elevato del 2820QM da 45 Watt permette l'utilizzo del quad core solo nei portatili a partire dai 15". Tuttavia, rispetto alla precedente generazione di quad-cores, tuttavia, è presente un miglioramento del TDP, grazie alla GPU integrata.

SerieIntel Core i7
Nome in codiceSandy Bridge

Serie: Core i7 Sandy Bridge

Intel Core i7-2960XM2.7 - 3.7 GHz4 / 8 cores8 MB L3
Intel Core i7-2860QM2.5 - 3.6 GHz4 / 8 cores8 MB L3
Intel Core i7-2920XM2.5 - 3.5 GHz4 / 8 cores8 MB L3
Intel Core i7-2760QM2.4 - 3.5 GHz4 / 8 cores6 MB L3
Intel Core i7-2820QM « 2.3 - 3.4 GHz4 / 8 cores8 MB L3
Intel Core i7-2720QM2.2 - 3.3 GHz4 / 8 cores6 MB L3
Intel Core i7-2675QM2.2 - 3.1 GHz4 / 8 cores6 MB L3
Intel Core i7-2670QM2.2 - 3.1 GHz4 / 8 cores6 MB L3
Intel Core i7-2635QM2 - 2.9 GHz4 / 8 cores6 MB L3
Intel Core i7-2630QM2 - 2.9 GHz4 / 8 cores6 MB L3
Intel Core i7-2640M2.8 - 3.5 GHz2 / 4 cores4 MB L3
Intel Core i7-2620M2.7 - 3.4 GHz2 / 4 cores4 MB L3
Intel Core i7-2649M2.3 - 3.2 GHz2 / 4 cores4 MB L3
Intel Core i7-2629M2.1 - 3 GHz2 / 4 cores4 MB L3
Intel Core i7-2677M1.8 - 2.9 GHz2 / 4 cores4 MB L3
Intel Core i7-2637M1.7 - 2.8 GHz2 / 4 cores4 MB L3
Intel Core i7-2657M1.6 - 2.7 GHz2 / 4 cores4 MB L3
Intel Core i7-2617M1.5 - 2.6 GHz2 / 4 cores4 MB L3
Clock Rate2300 - 3400 MHz
Level 1 Cache256 KB
Level 2 Cache1 MB
Level 3 Cache8 MB
Numero di Cores / Threads4 / 8
Consumo energetico (TDP = Thermal Design Power)45 Watt
Transistor Count995 Milioni
Tecnologia del produttore32 nm
Dimensione Die216 mm2
Temperatura massima100 °C
SocketFCBGA1224, FCPGA988
FeaturesHD Graphics 3000 (650-1300MHz), DDR-1066/1333/1600 Memory Controller, HyperThreading, AVX, Quick Sync, Virtualization
GPUIntel HD Graphics 3000 (650 - 1300 MHz)
64 BitSupporto 64 Bit
Architecturex86
Prezzo base$568 U.S.
Data di annuncio01/03/2011
Collegamento Prodotto (esterno)ark.intel.com

Benchmark

Cinebench R11.5 - Cinebench R11.5 CPU Multi 64 Bit
min: 4.41     media: 5.2     media: 5.5 (7%)     massimo: 5.81 Points
Cinebench R10 - Cinebench R10 Rend. Single (32bit)
min: 4200     media: 4274     media: 4249.5 (26%)     massimo: 4365 punti
Cinebench R10 - Cinebench R10 Rend. Multi (32bit)
min: 12641     media: 14782     media: 15043.5 (11%)     massimo: 16105 punti
Cinebench R10 - Cinebench R10 Rend. Multi (64bit)
min: 16327     media: 18631     media: 19316 (12%)     massimo: 20393 Points
Cinebench R10 - Cinebench R10 Rend. Single (64bit)
min: 5232     media: 5368     media: 5372 (7%)     massimo: 5468 Points
wPrime 2.10 - wPrime 2.0 1024m *
min: 281     media: 366.3     media: 360.2 (4%)     massimo: 458.6 s
wPrime 2.10 - wPrime 2.0 32m *
min: 8.27     media: 10.7     media: 10 (2%)     massimo: 13.64 s
3DMark 06 - CPU - 3DMark 06 - CPU
min: 4427     media: 5486     media: 5818.5 (12%)     massimo: 5923 Points
Super Pi mod 1.5 XS 1M - Super Pi mod 1.5 XS 1M *
min: 11     media: 11.2     media: 11 (2%)     massimo: 11.6 s
Super Pi mod 1.5 XS 2M - Super Pi mod 1.5 XS 2M *
min: 23.1     media: 29.7     media: 25 (1%)     massimo: 54 s
Super Pi Mod 1.5 XS 32M - Super Pi mod 1.5 XS 32M *
min: 618     media: 628     media: 625 (3%)     massimo: 644 s
SiSoft Sandra Dhrystone (MIPS) - SiSoft Sandra Dhrystone (MIPS)
min: 83000     media: 90497     media: 87000 (41%)     massimo: 101490 MIPS
SiSoft Sandra Whetstone (MFLOPS) - SiSoft Sandra Whetstone (MFLOPS)
min: 23590     media: 53623     media: 66280 (51%)     massimo: 71000 MFLOPS
PCMark 05 - PCMark 05 - Standard
13842 Points (29%)
Windows 7 Experience Index - Win7 CPU
min: 7.4     media: 7.5     media: 7.5 (96%)     massimo: 7.5 Points
3DMark Vantage - 3DM Vant. Perf. CPU no Physx
min: 16115     media: 18441     media: 18520 (14%)     massimo: 20526 Points
3DMark 11 - 3DM11 Performance Physics
min: 5165     media: 6335     media: 6724 (17%)     massimo: 7245 Points
- Valori di benchmark per questa scheda grafica
- Valori medi di benchmark per questa scheda grafica
* Numeri più piccoli rappresentano prestazioni supeiori
